Image 1 of 1
MTT volume pricing / USD
Choose your length. Select your quantity.
Prices per cable in US dollars at the quantities shown. Minimum order: 10 pieces.
| Length | 10 pieces | 20 pieces | 50 pieces | 100 pieces |
|---|---|---|---|---|
| 6 in | US$59.00 | US$53.10 | US$47.20 | US$41.30 |
| 12 in | US$69.00 | US$62.10 | US$55.20 | US$48.30 |
| 24 in | US$149.00 | US$134.10 | US$119.20 | US$104.30 |
| 36 in | US$249.00 | US$224.10 | US$199.20 | US$174.30 |
| 48 in | US$649.00 | US$584.10 | US$519.20 | US$454.30 |
| 72 in | US$747.00 | US$672.30 | US$597.60 | US$522.90 |
Connecting to native checkout…
Product prices exclude applicable taxes, duties and shipping. Confirm pricing for optional armour, phase/delay matching and custom configurations with MTT.
MTT CUSTOMER PROMISE
Price-beat guarantee & warranty
Found a lower price for a comparable coaxial cable assembly? Send us the offer. MTT will beat a verified qualifying product price under the terms below.
Compare the same cable specification, length and order quantity.
12 months of coverage against defects in materials and workmanship.
Offers accepted from these 10 online suppliers
Supplier names identify eligible comparison sources. They do not imply endorsement, affiliation or a quality certification. Prices are verified when you submit an offer.
Send a lower-priced offer ↗Price guarantee & warranty terms
Comparable offer: New, genuine, in-stock products with matching connector types, cable type, length, impedance, electrical specifications, certifications, warranty and quantity. Compare product prices in the same currency at the time MTT verifies the offer. Taxes, duty, freight, insurance and payment charges are excluded unless included equally in both quotes.
Submit the product link or formal quotation before ordering. MTT must verify and approve the claim before order confirmation. Clearance, coupons, membership prices, auction or marketplace listings, pricing errors and unverifiable offers are excluded.
One-year limited warranty: Coverage runs for 12 months from the MTT invoice date for defects in materials and workmanship under normal intended use. After inspection, MTT may repair or replace the affected assembly. Proof of purchase and return authorization are required. Normal wear, misuse, incorrect installation, excessive bending, crushing, connector over-torque, unauthorized modification and environmental exposure beyond the product rating are excluded. Shipping and incidental costs are excluded unless agreed in writing.
Precision RF connectivity / DC–40 GHz

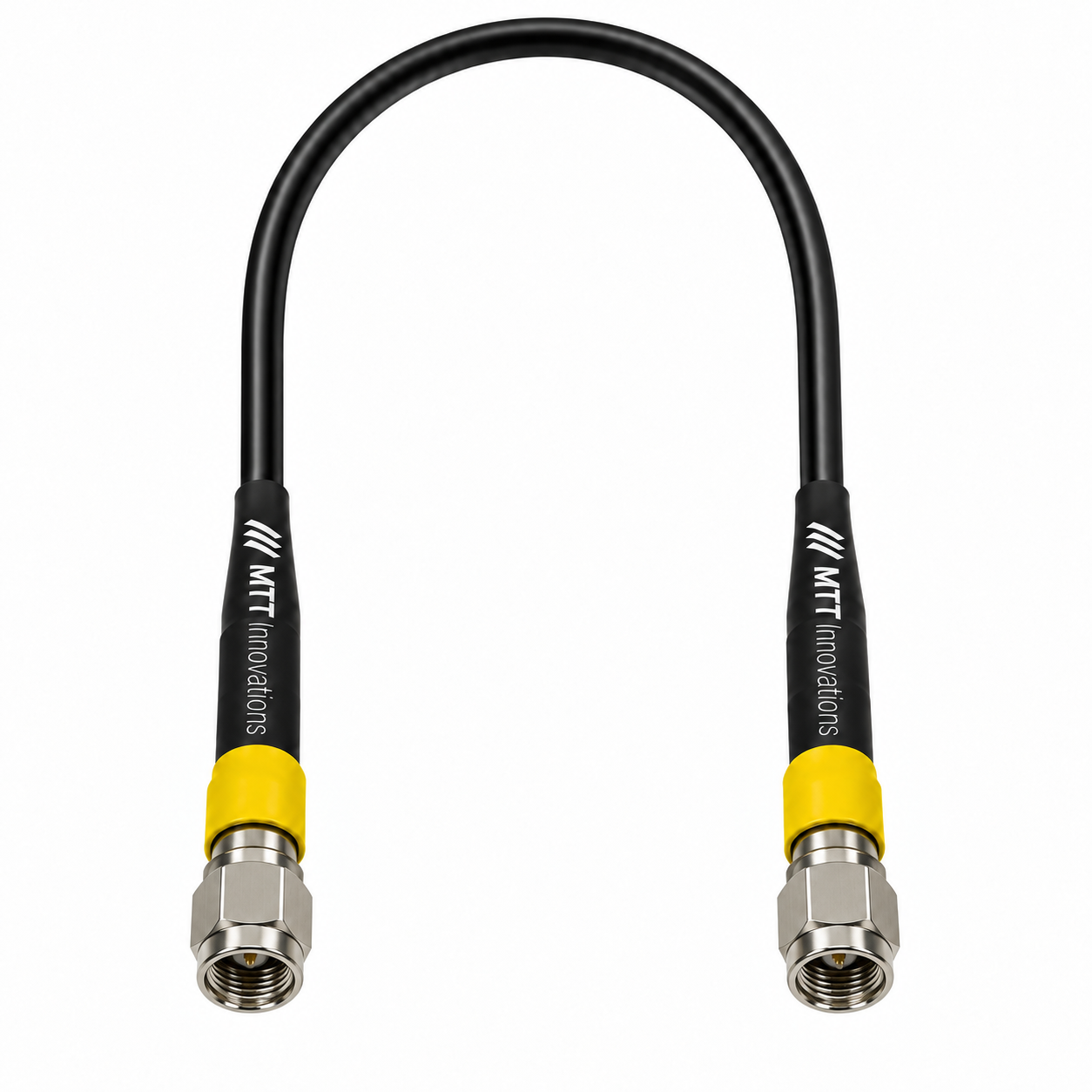

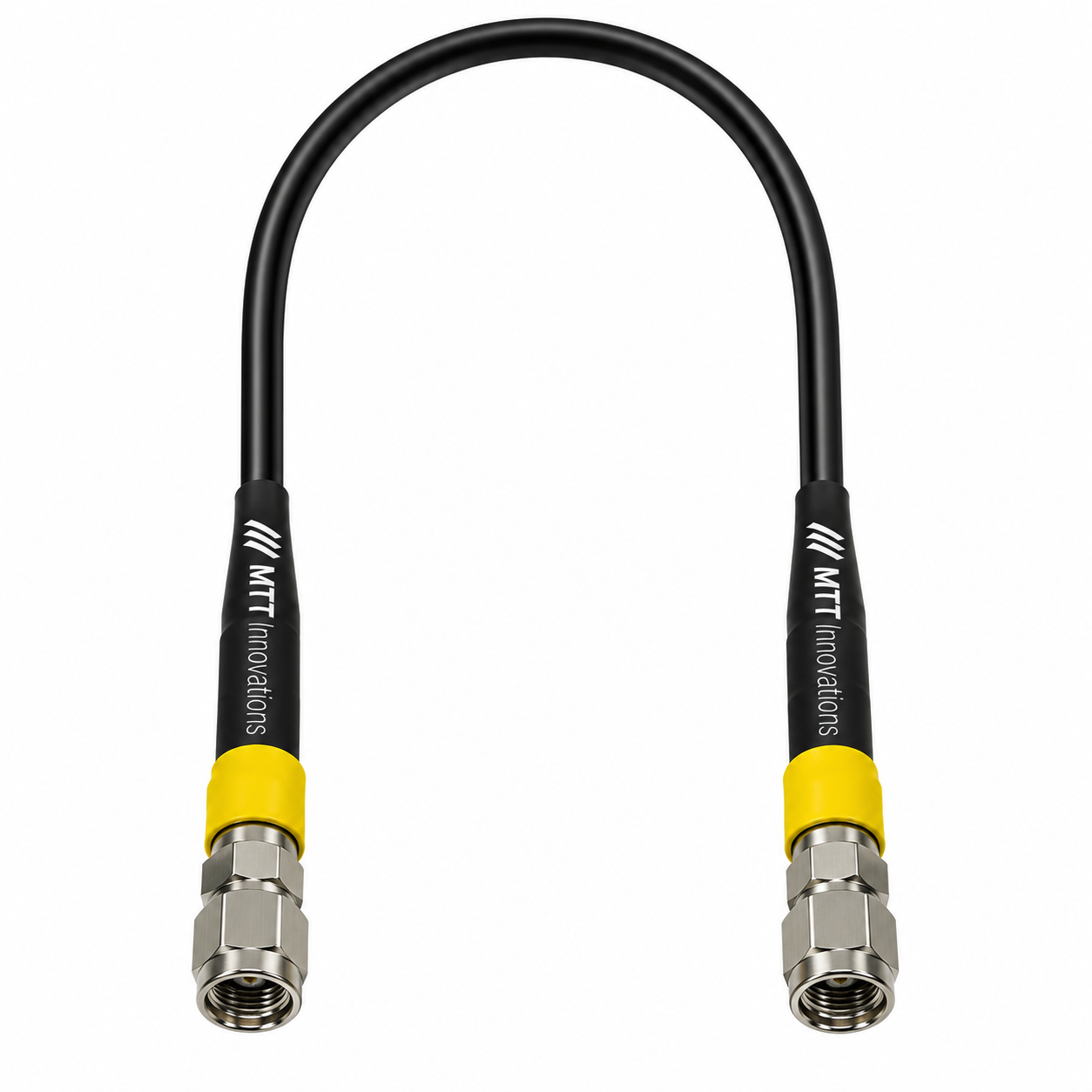

MTT40L-2.92M2.92M-L
Low loss.
High-frequency
confidence.
A flexible 2.92 mm male-to-male coaxial assembly for test benches, manufacturing laboratories and high-frequency equipment.
3D product gallery
Assembly perspective · Select a view.
Illustrative geometry; connector detail and routing are approximate.
The assembly
Flexible connections.
Clearly specified performance.
Combine a compact FEP-jacketed cable with straight 2.92 mm male connectors. The specified flexure stability supports applications where cable movement matters, with optional armour and phase or delay matching available for your configuration.
01 / Signal stability
Controlled flexure response
Typical phase stability of ±5° and amplitude stability of ±0.08 dB versus flexure at 40 GHz.
02 / Connector construction
Stainless steel bodies
Passivated stainless steel with gold-plated beryllium copper contacts and PEI dielectric at both ends.
03 / Configuration
Built around your requirement
Specify length, armour and matching requirements for test equipment, manufacturing laboratories or WAN equipment.
Technical information
Specifications, clearly arranged.
Electrical characteristics
| Frequency range | DC–40 GHz |
|---|---|
| VSWR | 1.25:1 typical / 1.30:1 maximum |
| Velocity of propagation | 83% typical |
| Shielding effectiveness | 90 dB minimum |
| Capacitance | 79.9 pF/m maximum |
| Phase stability vs. flexure at 40 GHz | ±5° typical |
| Amplitude stability vs. flexure at 40 GHz | ±0.08 dB typical |
| Phase stability vs. temperature | 550 ppm maximum |
Environmental & physical characteristics
| Cable outside diameter | 3.7 mm |
|---|---|
| Jacket | FEP |
| Minimum bending radius | 19 mm |
| Typical flex life | 50,000 (test conditions not specified) |
| Operating temperature | −55 to +125 °C |
| Storage temperature | −65 to +165 °C |
| Assembly length | To order; drawing tolerance +2% / −0% |
Connector specifications · both ends
| Connector 1 / Connector 2 | 2.92 mm straight male / 2.92 mm straight male |
|---|---|
| Contact material / plating | Beryllium copper / gold |
| Dielectric | PEI |
| Body | Passivated stainless steel |
| Insertion loss per connector, maximum | 0.05 × √f(GHz) dB |
Frequency performance
Know the loss.
Plan the power.
Cable attenuation and maximum CW power across nine frequency points, from 2 to 40 GHz.
Loss values below are for cable per metre. Connector loss is specified separately as 0.05 × √f(GHz) dB per connector. Confirm complete assembly performance and operating conditions with MTT.
| Frequency | Cable loss, max. | CW power, max. |
|---|---|---|
| 2 GHz | 0.45 dB/m | 445 W |
| 4 GHz | 0.65 dB/m | 312 W |
| 6 GHz | 0.8 dB/m | 253 W |
| 8 GHz | 0.91 dB/m | 217 W |
| 12 GHz | 1.15 dB/m | 176 W |
| 16 GHz | 1.34 dB/m | 151 W |
| 18 GHz | 1.43 dB/m | 141 W |
| 26.5 GHz | 1.76 dB/m | 115 W |
| 40 GHz | 2.2 dB/m | 92 W |
Configure your assembly
Your length.
Your protection.
Your connection.
Tell us the cable length, quantity and protection you need. MTT will confirm the final ordering code, matching limits, price and delivery timeline.
| Standard | Unarmoured FEP jacket |
|---|---|
| -A | Black nylon woven armour |
| -AP | PUR waterproof armour |
| -AS | Stainless steel armour |
| -AT | Transparent armour |
Optional matching suffixes: -XXPS (≤ ±XX ps) or -XX° (±XX°). Matching values and test conditions are agreed at quotation.
Request a configuration
Configuration reference for quotation; final order code to be confirmed.
MTT technical summary / PDF
Keep the specifications.
Electrical data, mechanical characteristics and ordering options in one document.
Full assembly / 3D STEP
Explore the cable assembly in 3D.
Includes the cable, two straight 2.92 mm male connectors and strain-relief boots.
Illustrative model in millimetres. Routing and connector details are approximate; this is not a length-specific or manufacturing drawing.
Let’s connect your next design.
Share your frequency, length, quantity and delivery requirements.
