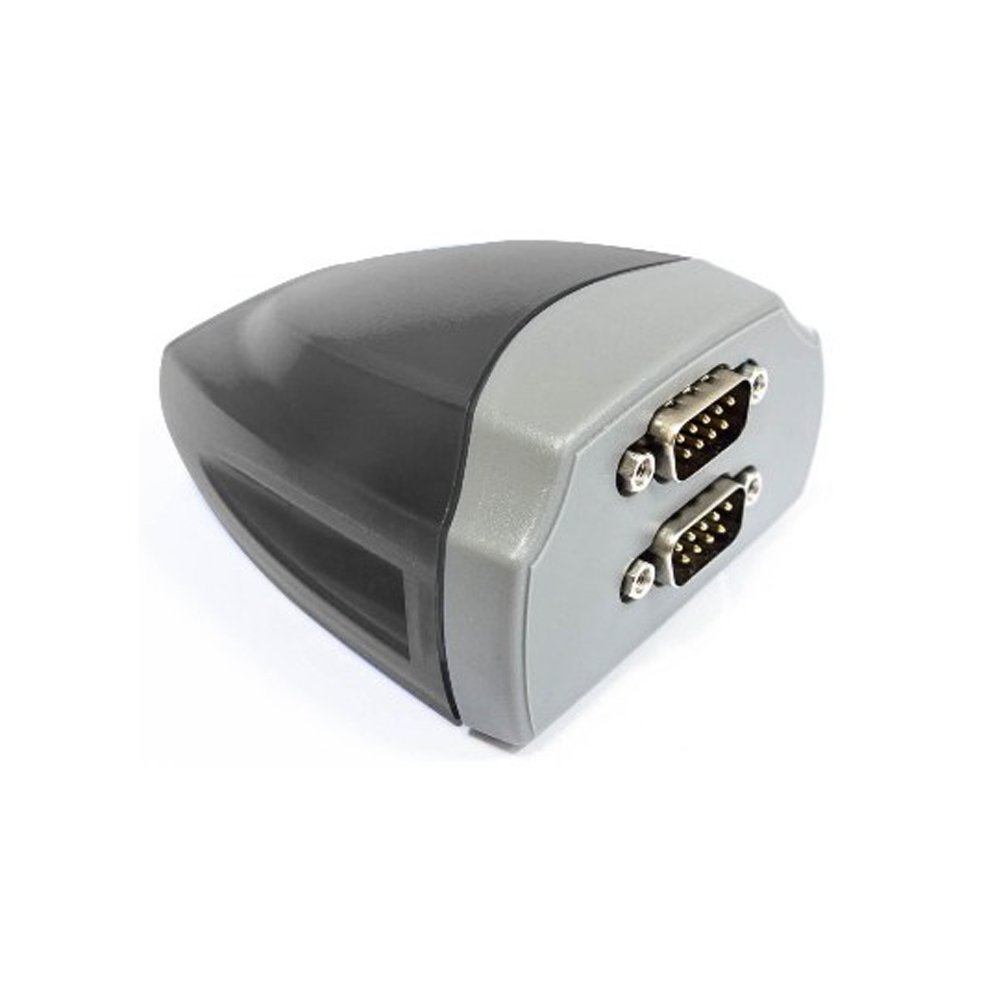

USB to Dual Serial Port (RS232)

₹0.00

Features :

Adds two high speed RS-232 serial port by connecting to a USB port
Robust and compact plastic housing
Powered by USB port, no external power adapter required
LEDs indicate TxD and RxD for easy port monitoring and diagnosis
Installs as a standard Windows COM port
Full RS-232 modem control signals and hardware/software flow control
Serial port protected with 15KV ESD protection
Non-standard baud rates supported
Easy plug and play installation and RS-232 device connection
Supports Apple-provided VCP on OS X 10.9 and later

Features :

Adds two high speed RS-232 serial port by connecting to a USB port
Robust and compact plastic housing
Powered by USB port, no external power adapter required
LEDs indicate TxD and RxD for easy port monitoring and diagnosis
Installs as a standard Windows COM port
Full RS-232 modem control signals and hardware/software flow control
Serial port protected with 15KV ESD protection
Non-standard baud rates supported
Easy plug and play installation and RS-232 device connection
Supports Apple-provided VCP on OS X 10.9 and later

USB to Serial Adapter Specifications

USB Specification

Interface	USB 2.0 High Speed, USB 1.1 compliant
Speed	480Mbps, hi-speed USB
USB Connector	USB type B
Power Input	Power supplied via USB connector (No external power needed)

Serial Interface

Interface	RS-232
Number of Ports	2
Connector	DB9 male
Max. Speed	Data transfer rates from 300 baud to 1M baud
RS-232 Signals	DCD, RxD, TxD, DTR, GND, DSR, RTS, CTS, RI
FIFO	4k bytes transmit/receive FIFO
Protection	15kV ESD protection for all signals

Serial Communication Parameters

Data Bits	7, 8
Parity	None, Even, Odd, Mark, Space
Stop Bit	1, 2
Flow Control	Hardware (RTS, CTS), XON/XOFF

Drivers Support

Windows	Windows 11, 10, 8.1, 8, 7, XP Windows Server 2025, 2022, 2019, 2016, 2012 R2, 2012 and 2008 R2
Linux	Linux Kernel version 3.0 and later
Mac	Apple-provided VCP on OS X 10.9 and later
Power Input	Power supplied via USB connector No external power needed

Environmental Specification

Operating Temperature	0°C to 55°C
Storage Temperature	-20°C to 75°C
Operating Humidity	5% to 95% RH
Safety Approvals	CE, FCC

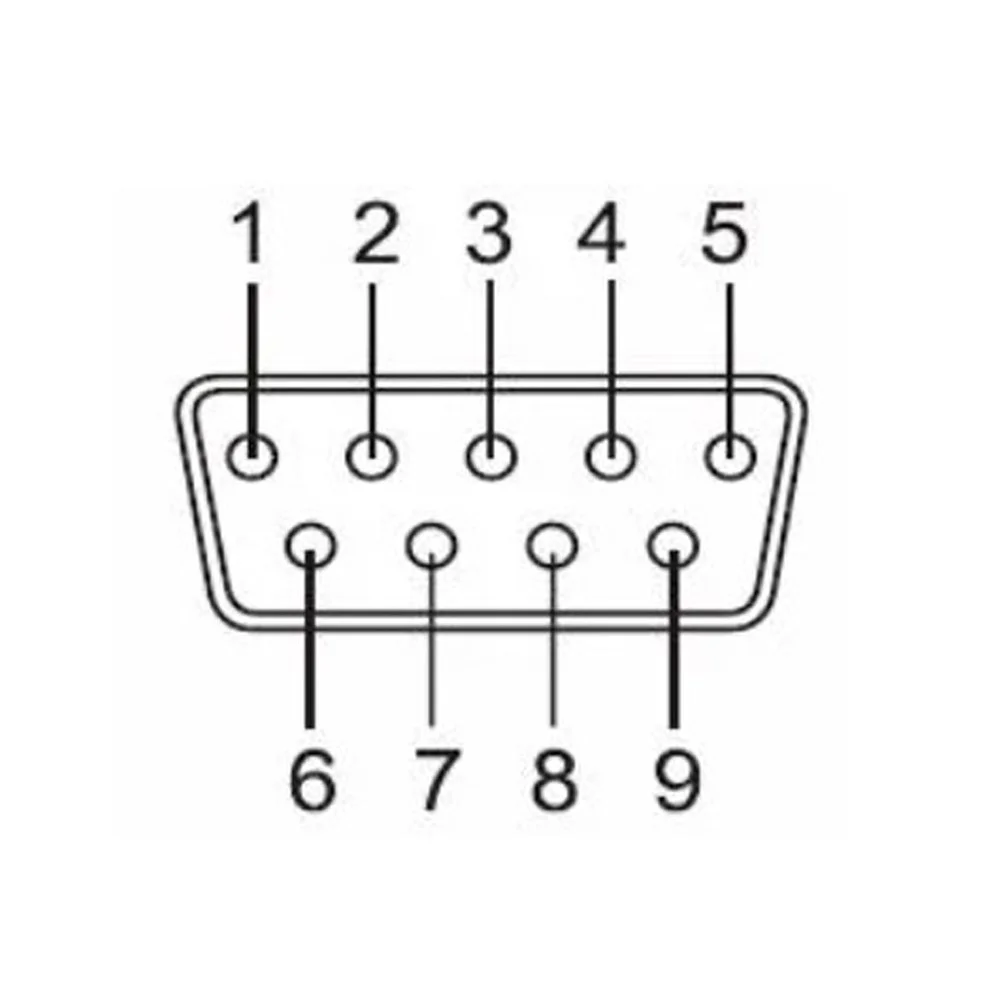

Pinout Diagram

RS-232 DB9 Male Connector Pinout

RS-232 DB9 Male Connector Pinout

PIN	SIGNAL
1	DCD
2	RxD
3	TxD
4	DTR
5	GND
6	DSR
7	RTS
8	CTS
9	RI
