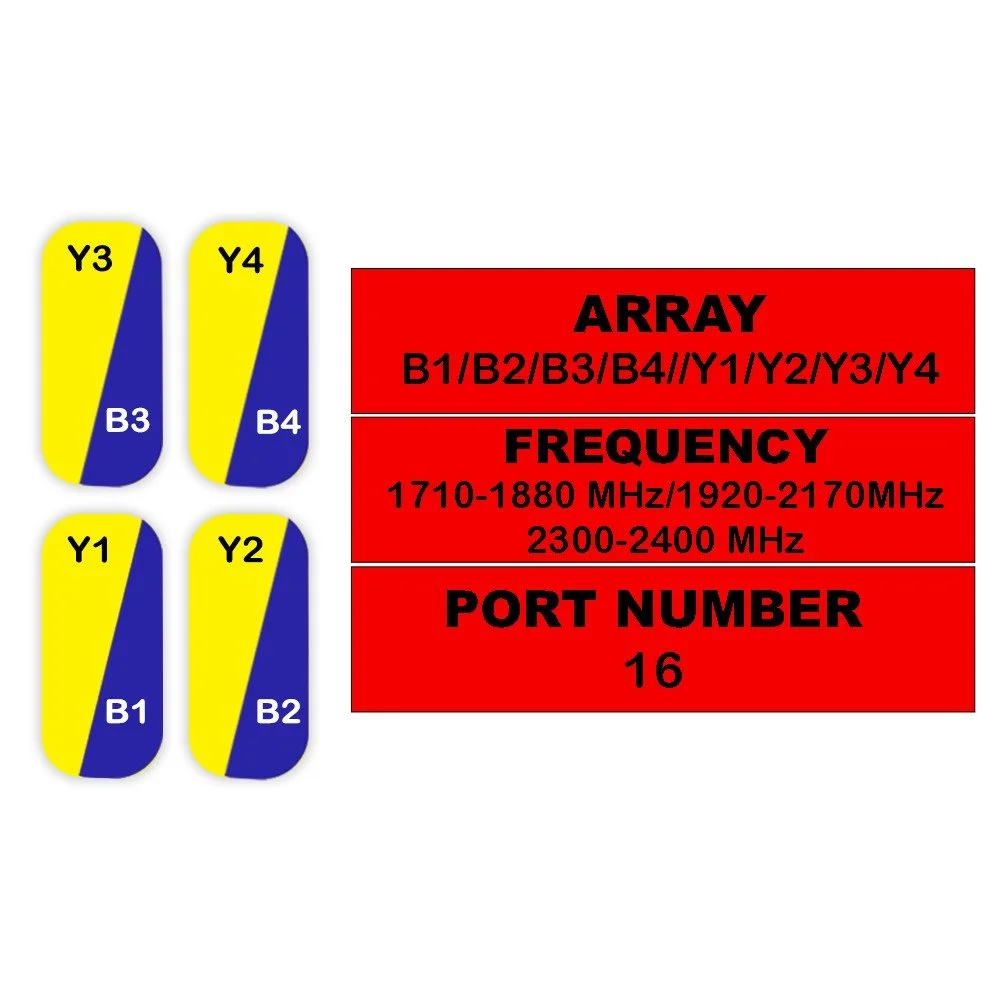

| Parameter | Unit | B1/B2 1710–1880 MHz |
B1/B2 1920–2170 MHz |
Y1/Y2 2300–2400 MHz |
Y3/Y4 2300–2400 MHz |
|---|---|---|---|---|---|
| Frequency Range | MHz | 1710–1880 | 1920–2170 | 2300–2400 | 2300–2400 |
| Polarization | — | ±45° | ±45° | ±45° | ±45° |
| Gain (Mid Tilt) | dBi | 17.3 | 17.5 | 18.5 | 18.0 |
| Gain (All Tilts) | dBi | 17.2 ± 0.6 | 17.4 ± 0.6 | 18.4 ± 0.6 | 17.9 ± 0.6 |
| Horizontal Beamwidth | degree | 40 ± 3 | 36 ± 3 | 33 ± 3 | 33 ± 3 |
| Azimuth Beam Centers | degree | B1: +30 ± 3 B2: −30 ± 3 |
B1: +30 ± 3 B2: −30 ± 3 |
B1: +30 ± 3 B2: −30 ± 3 |
B1: +30 ± 3 B2: −30 ± 3 |
| Vertical Beamwidth | degree | 10.5 ± 1.1 | 9.1 ± 0.9 | 8.0 ± 0.8 | 8.0 ± 0.8 |
| Electrical Downtilt (Continuous) | degree | 2–12 | 2–12 | 2–12 | 2–12 |
| First Upper Side Lobe Suppression | dB | > 15 | > 15 | > 15 | > 15 |
| Front-To-Back Ratio (Co-Pol, ±30°) | dB | > 23 | > 24 | > 25 | > 25 |
| Cross Polar Discrimination (Boresight) | dB | > 15 | > 15 | > 15 | > 15 |
| Isolation (Intraband) | dB | ≥ 25 | ≥ 25 | ≥ 25 | ≥ 25 |
| Isolation (Beam-to-Beam, Same Beam) | dB | ≥ 25 | ≥ 25 | ≥ 25 | ≥ 25 |
| Isolation (Interband) | dB | ≥ 25 | ≥ 25 | ≥ 25 | ≥ 25 |
| Impedance | Ohm | 50 | 50 | 50 | 50 |
| VSWR | — | < 1.5 | < 1.5 | < 1.5 | < 1.5 |
| Return Loss | dB | > 14 | > 14 | > 14 | > 14 |
| PIM3 (2×43 dBm Carrier) | dBc | < -150 | < -150 | < -150 | < -150 |
| Lightning Protection | — | DC Ground | DC Ground | DC Ground | DC Ground |
| Max Avg Input Power per Port (50°C) | Watts | 200 | 200 | 200 | 200 |
| Parameter | Sub-Category | Unit | Specification |
|---|---|---|---|

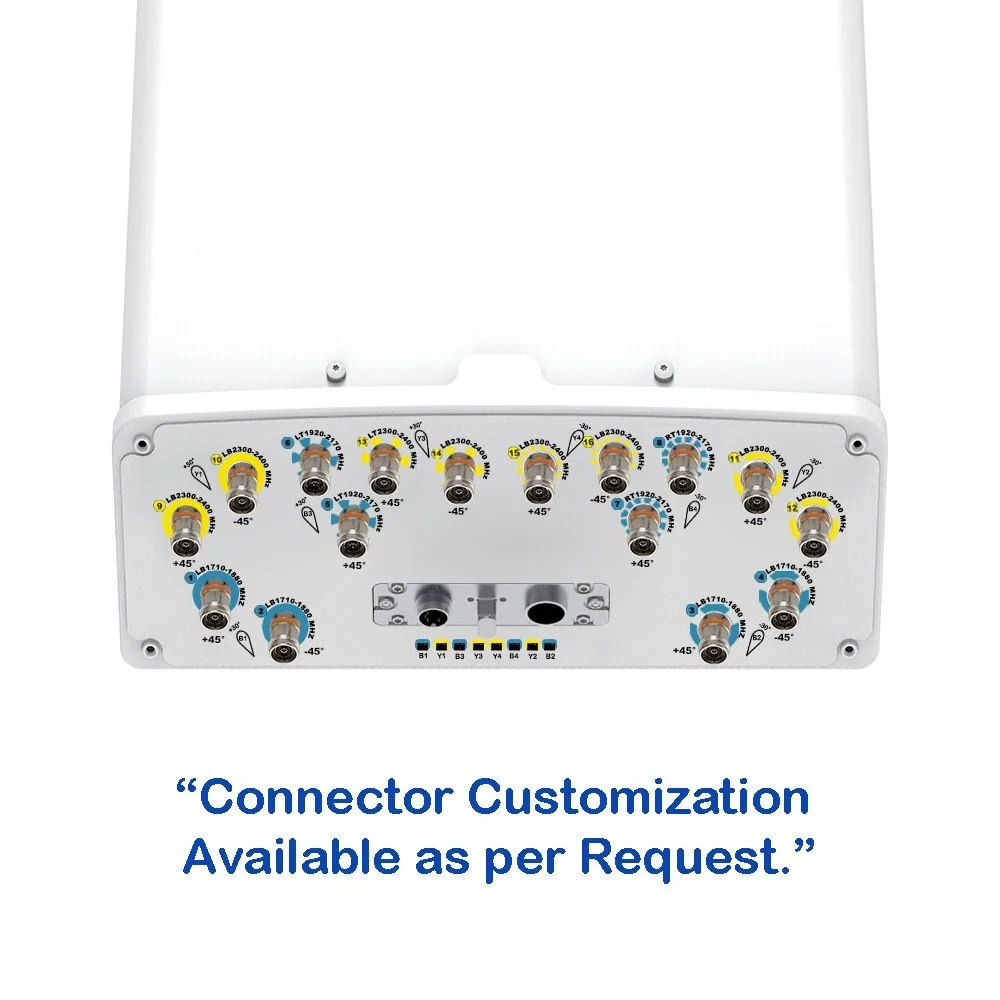

| Connector Type | — | — | (16x) 4.3/10 Female |
| Connector Position | — | — | Bottom |
| Electrical Tilt Control | — | — | Integrated RET |
| Radome Material | — | — | Fiberglass |

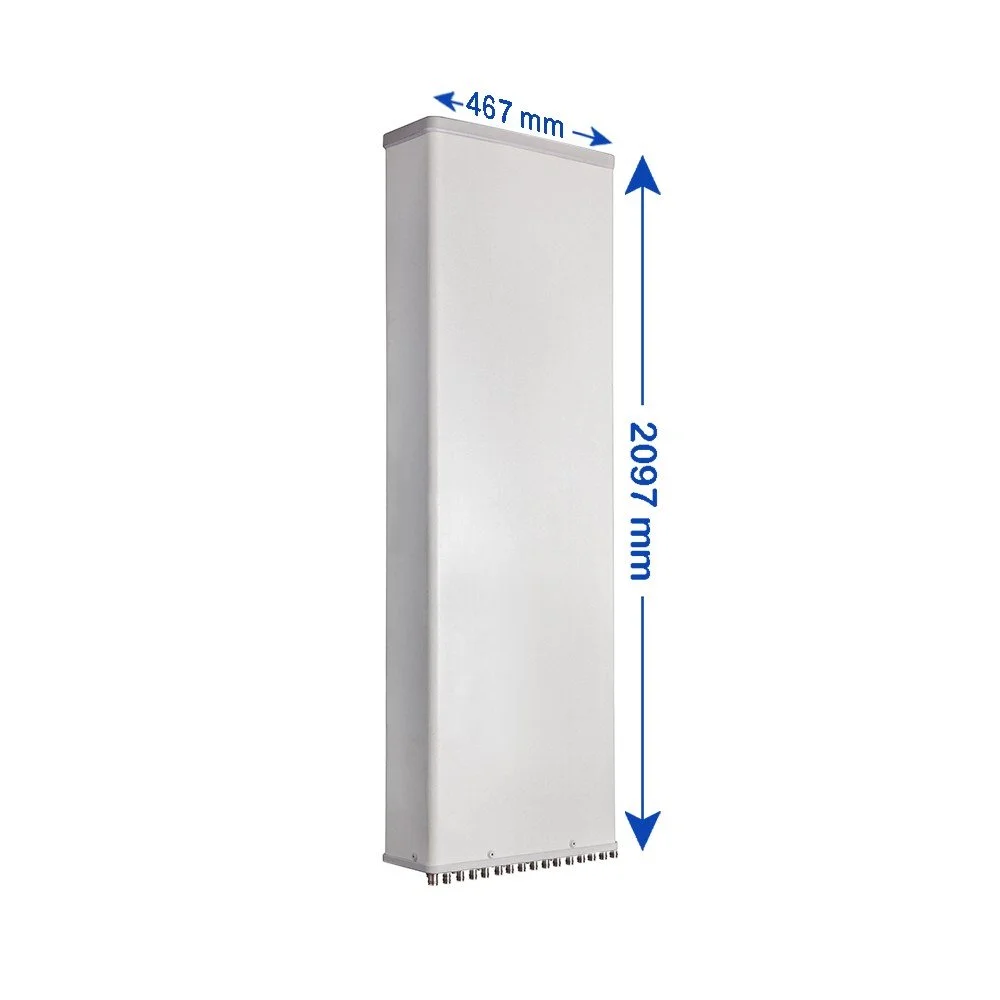

| Antenna Dimensions (H × W × D) | — | mm (in) | 2097 × 467 × 167 (82.6 × 18.4 × 6.6) |
| Antenna Weight | Antenna Only | kg (lbs) | 37.5 (82.7) |
| Antenna Weight | Antenna with Clamps | kg (lbs) | 43 (94.8) |
| Maximum Wind Speed | — | km/h (mph) | 200 (124.3) |
| Wind Load (150 km/h) | Frontal | N (lbf) | 905 (203.5) |
| Wind Load (150 km/h) | Rear | N (lbf) | 1010 (227.1) |
| Wind Load (150 km/h) | Lateral | N (lbf) | 400 (89.9) |
| Operating Temperature | — | °C (°F) | -40 to +60 (-40 to +140) |
