RF Coaxial Cable RG-213, 50 NM to NM

Overview :

  • Type: RG-213 coaxial cable

  • Impedance: 50 ohms

  • Termination: NM (Female N) to NM (Male N) — both ends N-type connectors; specify gender per order if needed

  • Length: Available in custom lengths; common stock lengths: 1 ft, 3 ft, 6 ft, 10 ft, 25 ft, 50 ft, 100 ft

  • Frequency range: DC to several GHz (suitable for VHF/UHF and many microwave applications)

  • Applications: RF test leads, base station jumper runs, antenna feeds, lab instrumentation, RF systems, amateur radio, commercial communications

Key Features :

  • Low-loss construction: Solid center conductor and high-quality dielectric minimize insertion loss across wide frequency bands.

  • Durable outer conductor: Corrugated copper or tinned copper braid provides excellent shielding (>90 dB typical at lower frequencies) and mechanical flexibility.

  • Robust N-type connectors: Precision-machined N connectors provide reliable performance up to their specified frequency range and maintain consistent 50-ohm continuity.

  • Weather resistance: Optionally available with weatherproofing and heat-shrink boots for outdoor antenna and tower use.

  • Flexible and resilient: Good balance of flexibility for routing and mechanical strength for field deployment.

RF Coaxial Cable RG-213, 50 NM to NM

Overview :

  • Type: RG-213 coaxial cable

  • Impedance: 50 ohms

  • Termination: NM (Female N) to NM (Male N) — both ends N-type connectors; specify gender per order if needed

  • Length: Available in custom lengths; common stock lengths: 1 ft, 3 ft, 6 ft, 10 ft, 25 ft, 50 ft, 100 ft

  • Frequency range: DC to several GHz (suitable for VHF/UHF and many microwave applications)

  • Applications: RF test leads, base station jumper runs, antenna feeds, lab instrumentation, RF systems, amateur radio, commercial communications

Key Features :

  • Low-loss construction: Solid center conductor and high-quality dielectric minimize insertion loss across wide frequency bands.

  • Durable outer conductor: Corrugated copper or tinned copper braid provides excellent shielding (>90 dB typical at lower frequencies) and mechanical flexibility.

  • Robust N-type connectors: Precision-machined N connectors provide reliable performance up to their specified frequency range and maintain consistent 50-ohm continuity.

  • Weather resistance: Optionally available with weatherproofing and heat-shrink boots for outdoor antenna and tower use.

  • Flexible and resilient: Good balance of flexibility for routing and mechanical strength for field deployment.

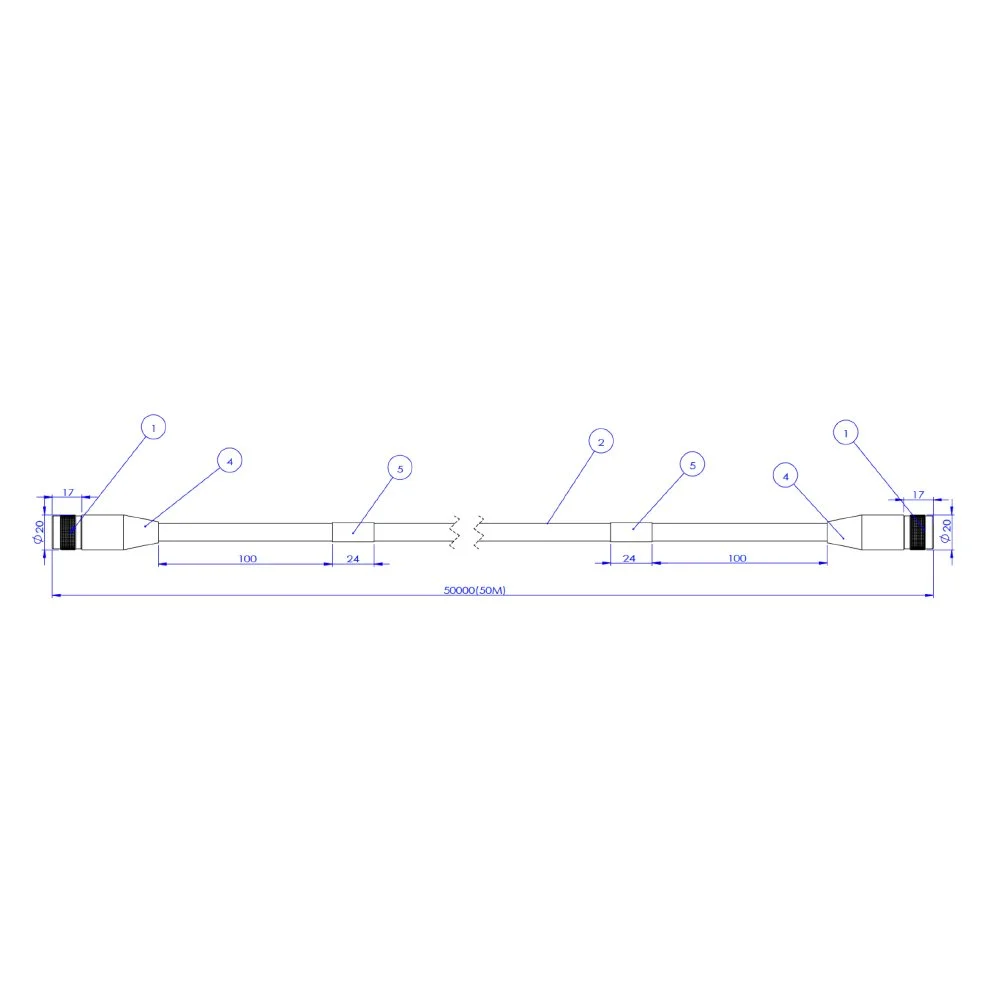

Component reference table listing connectors, cables, and labels
REF DESCRIPTION QTY/Length
1 N Male Connectors 2
2 RG-213 COAX CABLE 50M
3 Black Heat Shrink Sleeves 2
4 Thermal Transfer Print Labels "MTTNM-213-NM-50M" 2

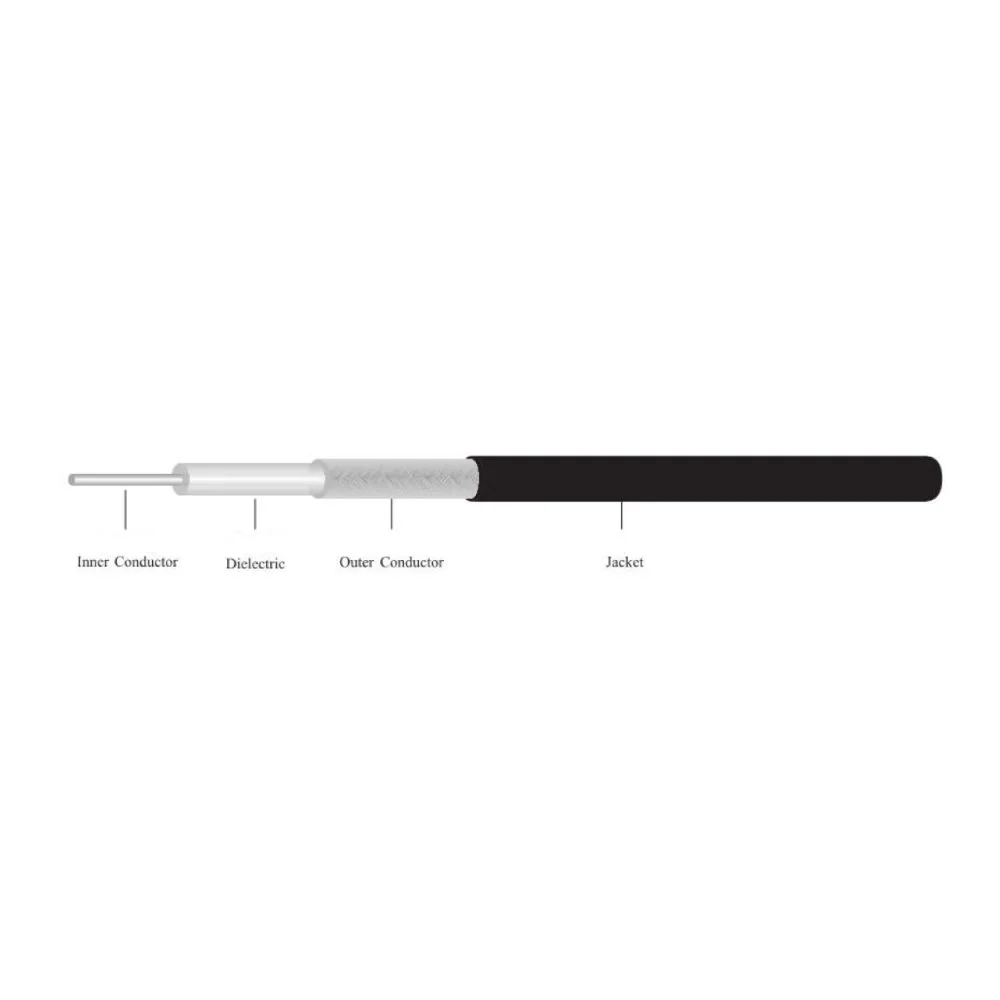

Construction Specification for cable components including material and diameter measurements
CONSTRUCTION SPECIFICATION
Item Material Diameter [mm]
Inner Conductor Bare Copper Wire 7/0.75
Dielectric Solid PE 7.24±0.15 mm
Outer Conductor Copper Wire Braiding 7.88±0.15 mm
Jacket PVC Black 10.28±0.30 mm
Electrical Characteristics table including capacitance, impedance, and voltage
ELECTRICAL CHARACTERISTICS
Items Data
Capacitance [pF/m] 101.05 pF/m
Impedance [ohm] 50 Ohm
Velocity of Propagation [%] 66 %
Time Delay [ns/m] 5.05ns/m
Maximum Operating Voltage [Vrms] 3700
Shielding Effect [dB] >60
Return Loss (30~3000MHz) ≥15 dB
Mechanical and Environmental Characteristics table showing bending radius, RoHS compliance, temperature range, and weight
MECHANICAL AND ENVIRONMENTAL CHARACTERISTICS
Items Data
Minimum Bending Radius Static [mm] 40 mm
RoHS OK
Operating Temperature [°C] -40°C to + 85°C
Weight [kg/km] 148.5 (REF.)
Attenuation values at 20 degrees Celsius and Sea Level across various frequencies
ATTENUATION @ 20°C AND SEA LEVEL
Frequency [MHz] Attenuation [dB/m]
0.3 0.15
0.6 0.22
1.2 0.35
1.8 0.45
2.4 0.55
3 0.64
