2kW [63dBm] RF High Power Amplifier Systems 12 - 18 GHz

₹0.00

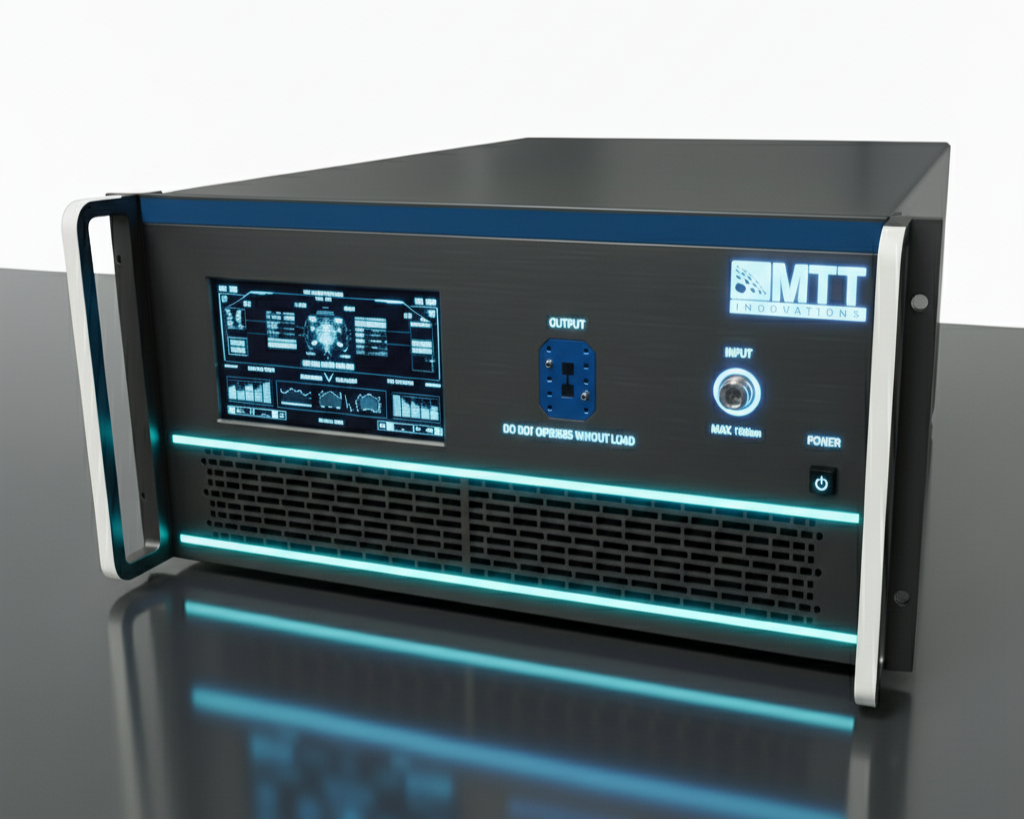

Our 2kW RF High Power Amplifier Systems deliver exceptional performance across the 12 to 18 GHz frequency range, providing a remarkable output power of 63dBm. Engineered for advanced applications in radar, electronic warfare, satellite communications, and test & measurement, these amplifiers combine reliability with cutting-edge technology.

Key Features:

  • Frequency Range: 12 - 18 GHz

  • Output Power: 2kW (63dBm) continuous wave (CW)

  • High Efficiency: Optimized amplifier architecture for maximum power output with minimal thermal dissipation

  • Robust Design: Ruggedized systems engineered for harsh environments and long operational lifetimes

  • Low Noise and Distortion: Ensures signal integrity in demanding applications

  • Flexible Control: Remote monitoring and control through modern interfaces compatible with automated test systems

  • Compact Footprint: Designed for easy integration in existing test setups or field equipment

This high power solution is ideal for next-generation RF applications requiring unmatched power, linearity, and bandwidth. It empowers users with the ability to push the boundaries in high-frequency amplification with reliable, high-performance delivery.

Our 2kW RF High Power Amplifier Systems deliver exceptional performance across the 12 to 18 GHz frequency range, providing a remarkable output power of 63dBm. Engineered for advanced applications in radar, electronic warfare, satellite communications, and test & measurement, these amplifiers combine reliability with cutting-edge technology.

Key Features:

  • Frequency Range: 12 - 18 GHz

  • Output Power: 2kW (63dBm) continuous wave (CW)

  • High Efficiency: Optimized amplifier architecture for maximum power output with minimal thermal dissipation

  • Robust Design: Ruggedized systems engineered for harsh environments and long operational lifetimes

  • Low Noise and Distortion: Ensures signal integrity in demanding applications

  • Flexible Control: Remote monitoring and control through modern interfaces compatible with automated test systems

  • Compact Footprint: Designed for easy integration in existing test setups or field equipment

This high power solution is ideal for next-generation RF applications requiring unmatched power, linearity, and bandwidth. It empowers users with the ability to push the boundaries in high-frequency amplification with reliable, high-performance delivery.
Product Specifications
Detailed product specifications for the ARF device.
Specification Value
Key Specifications
Gain 63 dB min.
Input Frequency Band 112 - 18 GHz
Number of Bands Single-Band
Peak Output Power 63 dBm typ.; 62 dBm min.
Transmission Mode Pulse Wave
Product Revision A
RF Specifications
Duty Cycle 10% max.
ESD Sensitivity (HBm) Class 0, passed 150V
Fall Time 50 ns typ.; 100 ns max.
Harmonics -20 dBc max.
Input VSWR max. 2.0 : 1
Modulation Frequency 0.2 KHz min.; 500 KHz max.
Output Power Adjust Accuracy ±1 dB typ.
Output Power Adjust Range 40 dB typ.
Output Power Adjust Step ±0.5 dB typ.
Pulse Width 0.2 μs min.; 500 μs max.
RF Input Power 15 dBm
Rise Time 50 ns typ.; 100 ns max.
Spurious -60 dBc max.
Electrical Specifications
Control Functions 1. Power setting On/Off; 2. ALC automatic level control; 3. RF ON/OFF; 4. Gain adjustment; 5. Real time status query
Impedance 50 Ohms
Power Consumption 1500 Watts@10%
Power Requirements 220V AC
Protection Functions 1. Over TEM; 2. Over voltage; 3. Over current protection; 4. Over VSWR
Supply Bias Voltage 220V AC
Interface Specifications
Communication Functions RS422/Ethernet, LCD Screen Display
Communication Interfaces RJ45/DB9
Forward/Reverse Coupling Connector SMA Femal/SMA Female
Input Connector N Female
Output Connector WR-62
Pulse Input TNC Female
Environmental Specifications
Temperature Operational -20°C to +50°C
Physical Specifications
Cooling System Built in Cooling system, forced air cooling
Product Dimensions 19 Inch 12U x 550 depth mm
Information
HS Code 8517799000
Country of Origin Made in TIAWAN
Ex Works TIAWAN
ECCN Number 3A001.b.4.b.4
Warranty 3 years
Unit Package Dimensions 535 x 590 x 600 mm
Unit Package Weight -
Total Aluminium Content 0 Kg
Aluminum Country of Smelt and Cast -
Total Aluminium Value $ 0
