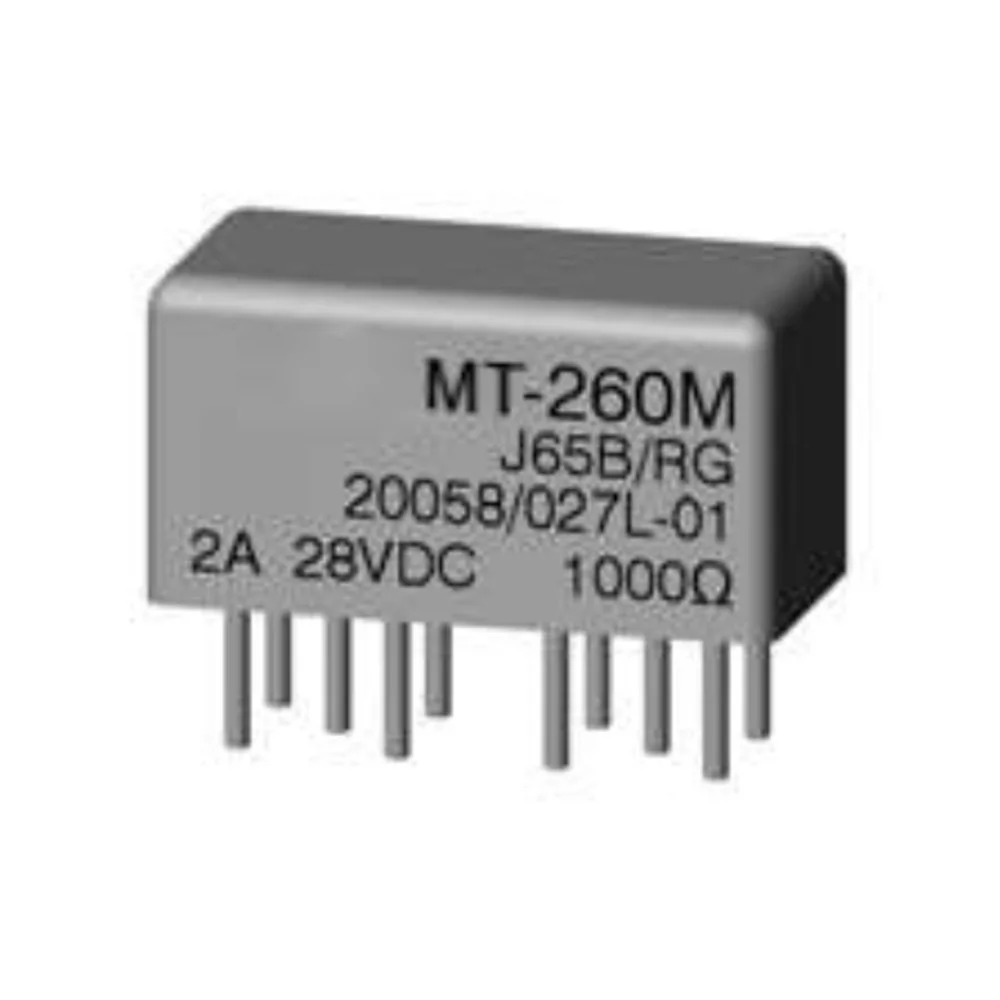

Sealed Magnetic Relay

₹0.00

Features:

  • Accord with GJB65B-99 “General specification for the reliability index of electromagnetic relays".

  • Number of enterprise product standard Q/RG20058-2003.

  • The product has been included in the military electronic components qualified product catalogue (QPL)

Features:

  • Accord with GJB65B-99 “General specification for the reliability index of electromagnetic relays".

  • Number of enterprise product standard Q/RG20058-2003.

  • The product has been included in the military electronic components qualified product catalogue (QPL)

Relay technical characteristics and specification table
Technical Characteristics
Contact form 2Z (Two sets of conversion)
Operate and Reset time ≤ 2
Pulse width ≥ 6
Contact resistance (Ω) ≤ 0.05
Insulation Resistance (MΩ) Between open contacts ≥ 1000
Between contact groups ≥ 1000
Between coil and contact ≥ 1000
Others ≥ 1000
Dielectric withstanding (V.r.m.s.) (50 Hz) Between open contacts 500
Between contact groups 500
Between coil and contact 500
Other 500

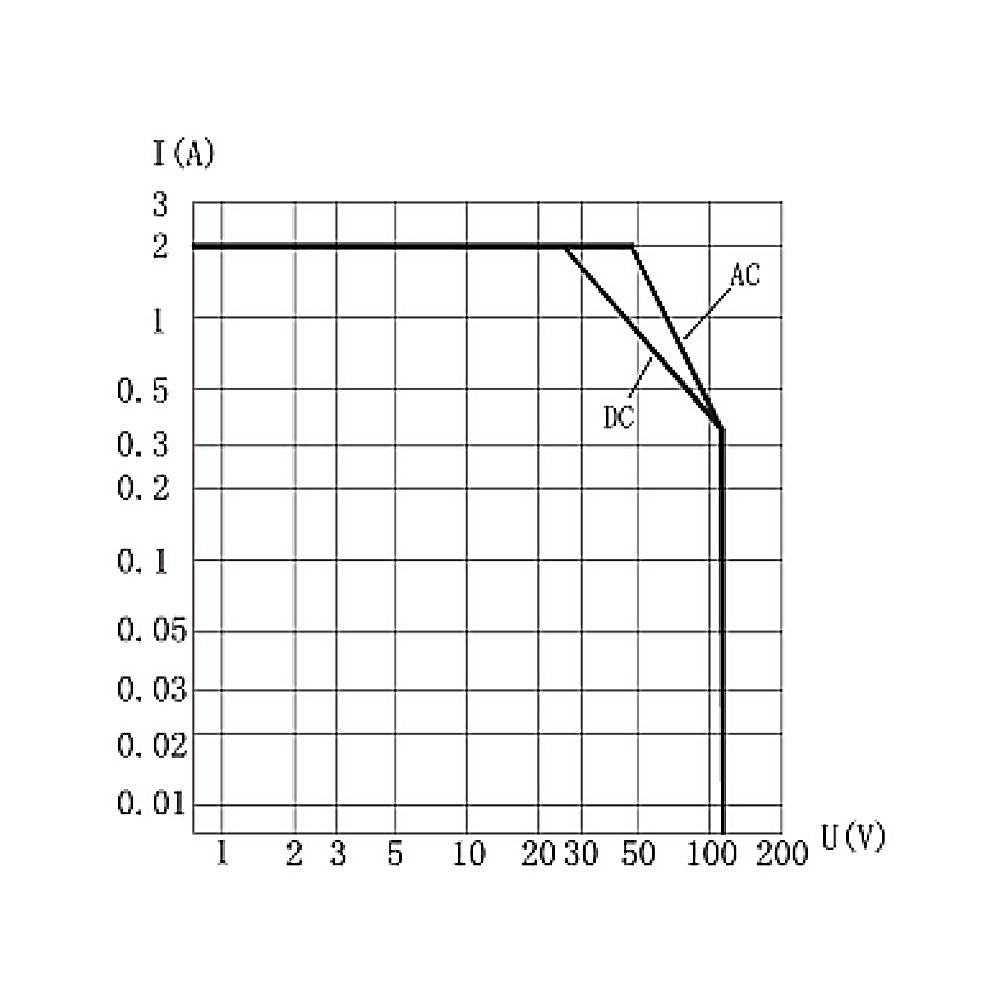

Contact load and life 10^50µA, 10^50mV2A, 28Vd.c.
(Resistance) 1×105 times

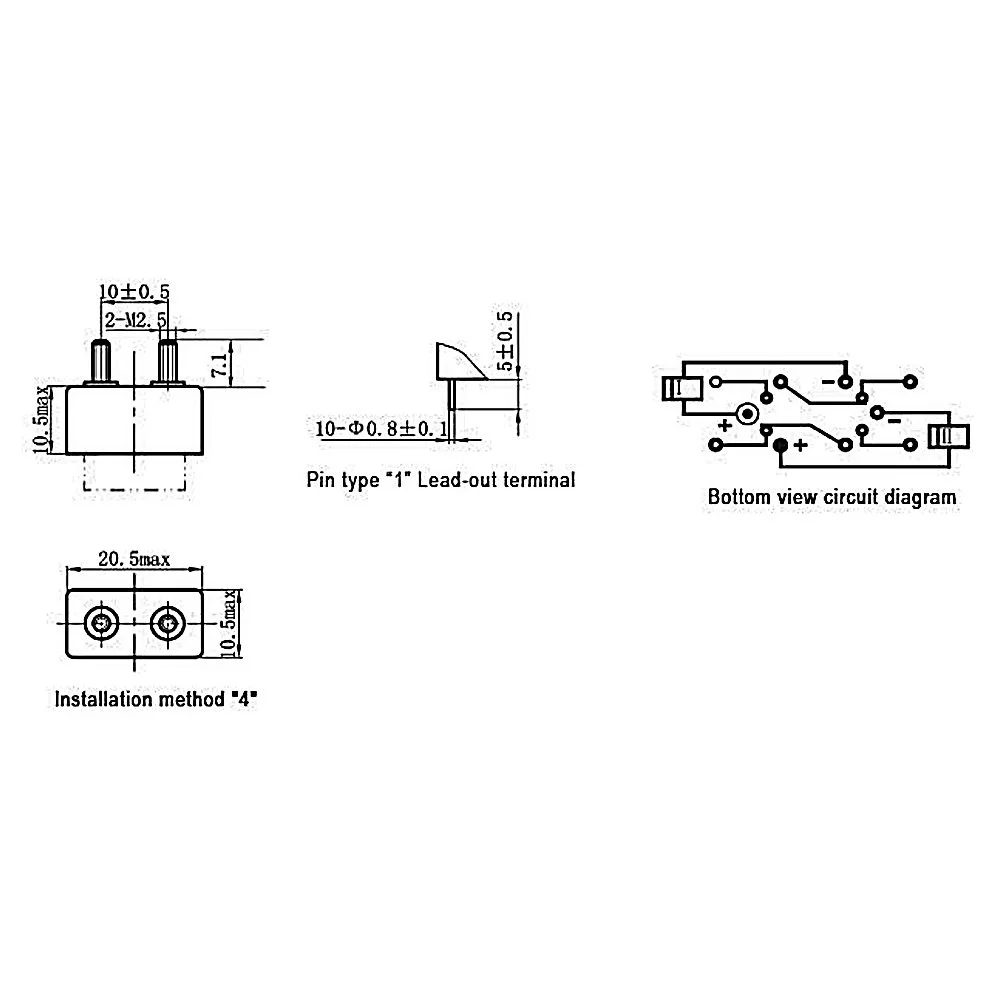

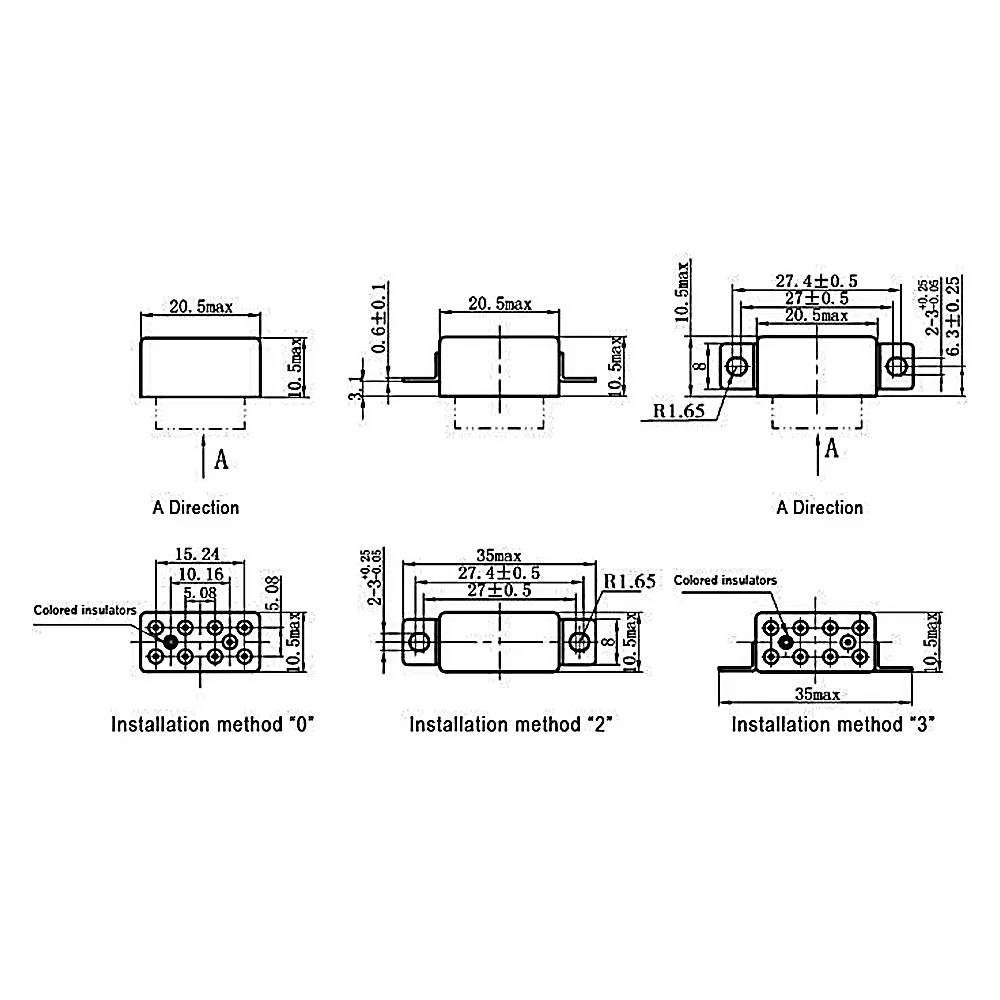

Outline dimensions 20.5 X 10.5 X 10.5 mm
Coil power (W) About 0.73
Weight (g) ≤ 14.2
Relay coil voltage and operating specifications
Specification Table
Specification Coil voltage 25°C The whole temperature range
Operate and Reset voltage (max)
Nominal Max Coil resistance (Ω) ±10% Operate and Reset voltage (max)
006 6 7.2 63 3.6 4.5
009 9 10.8 140 5.4 6.8
012 12 15 254 7.2 9.0
018 18 22.5 480 10.8 13.5
027 27 32 1000 16.2 20.3
048 48 57.6 3800 28.8 36
Relay environment specification
Environment Specification
Temperature range - 65°C to + 125°C
Relative humidity 98% at 40°C
Low atmosphere 4.4 kPa
Vibration Hz 10~3000
m/s2 294
Vibration resistance 20(m/s2) / Hz, 169.1 m/s2
Shock resistance 980 m/s2
Steady state accelerated speed 980
Leakage rate (Pa·cm3/s) ≤1×10-3
