12-Port Panel Sector Antenna (690–2690 MHz)

An advanced 12-port panel sector antenna engineered for macro and small-cell deployments across low- and mid-band cellular frequencies (690–2690 MHz). Designed for dense urban and suburban sites, this antenna delivers high isolation, precise beam control, and robust performance for MIMO and carrier aggregation applications across multiple operators.

Key Features :

  • Frequency range: 690–2690 MHz covering key LTE/5G low- and mid-band bands.

  • 12 independent ports supporting multi-band, multi-operator MIMO and Rx diversity configurations.

  • Sector beamwidth options optimized for 65° horizontal typical sector coverage.

  • High port-to-port isolation to reduce inter-path interference and improve overall system throughput.

  • Low VSWR across the band for efficient power transfer and improved link budget.

  • High gain with smooth gain slope for consistent performance across frequencies.

  • Rugged radome and mounting hardware for long-term outdoor deployment in harsh environments.

  • Multi-band diplexer/combiner networks integrated where required to enable compact multi-port operation.

  • Lightning and surge protection options available per customer requirements.

  • IP65/IP67 enclosure rating for weatherproofing and dust resistance.

  • Lightweight design and standardized mast mount for straightforward installation and alignment.

12-Port Panel Sector Antenna (690–2690 MHz)

An advanced 12-port panel sector antenna engineered for macro and small-cell deployments across low- and mid-band cellular frequencies (690–2690 MHz). Designed for dense urban and suburban sites, this antenna delivers high isolation, precise beam control, and robust performance for MIMO and carrier aggregation applications across multiple operators.

Key Features :

  • Frequency range: 690–2690 MHz covering key LTE/5G low- and mid-band bands.

  • 12 independent ports supporting multi-band, multi-operator MIMO and Rx diversity configurations.

  • Sector beamwidth options optimized for 65° horizontal typical sector coverage.

  • High port-to-port isolation to reduce inter-path interference and improve overall system throughput.

  • Low VSWR across the band for efficient power transfer and improved link budget.

  • High gain with smooth gain slope for consistent performance across frequencies.

  • Rugged radome and mounting hardware for long-term outdoor deployment in harsh environments.

  • Multi-band diplexer/combiner networks integrated where required to enable compact multi-port operation.

  • Lightning and surge protection options available per customer requirements.

  • IP65/IP67 enclosure rating for weatherproofing and dust resistance.

  • Lightweight design and standardized mast mount for straightforward installation and alignment.

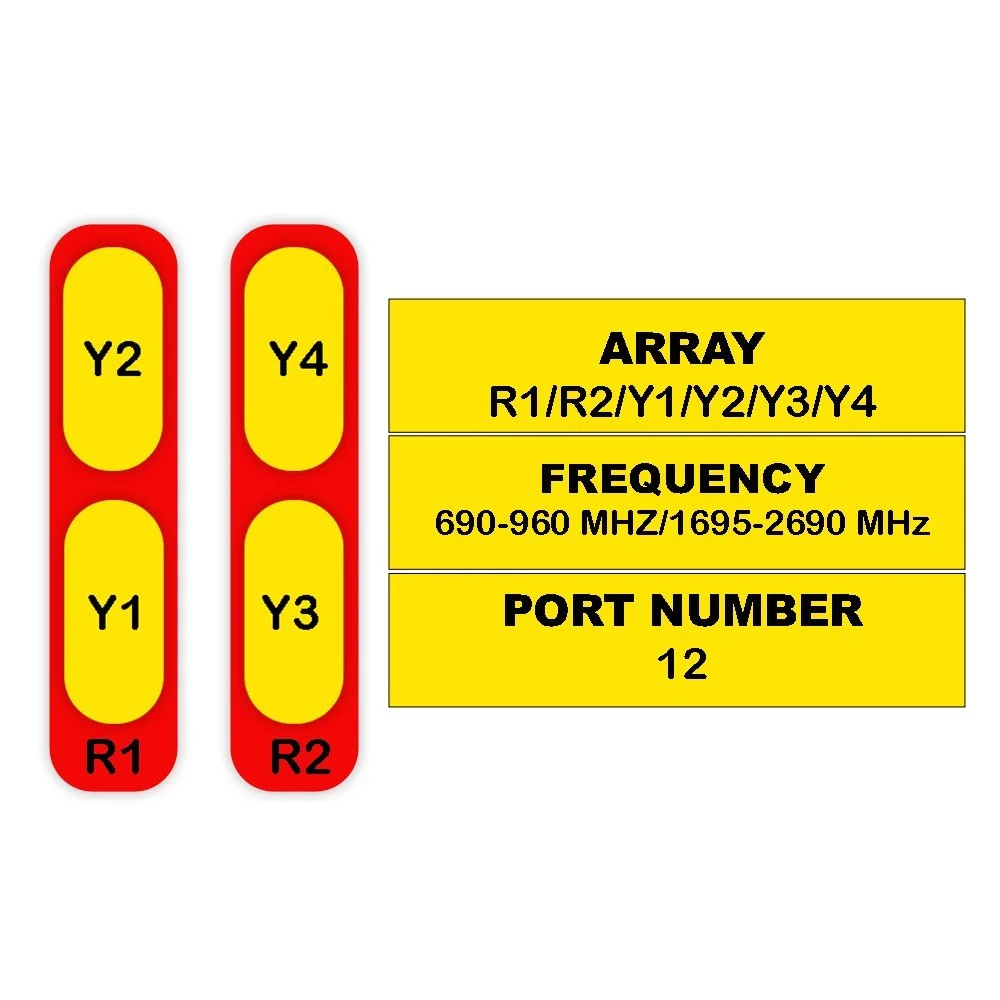

Electrical Specifications
R1 / R2 Y1 / Y2 / Y3 / Y4
MHz 690-960 1695-2690
MHz 690-806 790-894 880-960 1695-1880 1850-1990 1920-2170 2300-2400 2490-2690
Polarization --- ±45° ±45°
Gain – Mid Tilt dBi 13.4 13.8 14.1 13.8 14.1 14.4 14.7 14.7
Gain – All Tilts dBi 13.2 ±0.5 13.6 ±0.5 13.9 ±0.5 13.6 ±0.5 13.9 ±0.5 14.2 ±0.5 14.5 ±0.5 14.5 ±0.5
Horizontal Beamwidth degree 66 ±6.5 59 ±6.5 56 ±6.5 67 ±6.5 65 ±6.5 62 ±6.5 63 ±6.2 61 ±6.2
Vertical Beamwidth degree 16.7 ±1.1 14.8 ±0.9 14.3 ±0.9 15.2 ±0.6 14 ±0.6 12.6 ±0.6 11.5 ±0.5 10.4 ±0.4
Electrical Downtilt (Continuous) degree 2-12 2-12
Tilt Accuracy degree <1 <1 <1 <1 <1 <1 <1 <1
Upper Side Lobe – First Upper Lobe dB >15 >15 >15 >15 >15 >15 >15 >15
Suppression – Peak to 20° dB >15 >15 >15 >15 >15 >15 >15 >15
Front-to-Back Ratio ±30° dB >22 >23 >24 ≥25 ≥25 >25 ≥26 ≥26
Cross Polar – at Boresight dB >17 >17 >17 >16 >16 >17 >17 >17
Discrimination – Over Sector dB >8.0 >7.5 >6.5 >5.0 >6.0 >5.0 >3.0 >2.0
Isolation – Cross Polar dB >25 >25
Isolation – Port to Port dB >23 (R1/R2), >28 (R1/Y1,Y2,Y3,Y4) >28
Impedance Ohm 50 50
VSWR --- <1.5 <1.5
Return Loss dB >14 >14
PIM3 (2×43 dBm Carrier) dBc <-150 <-150
Lightning Protection --- DC Ground DC Ground
Maximum Average Input Power per Port
at 50°C Ambient Temperature		 Watts 250 200

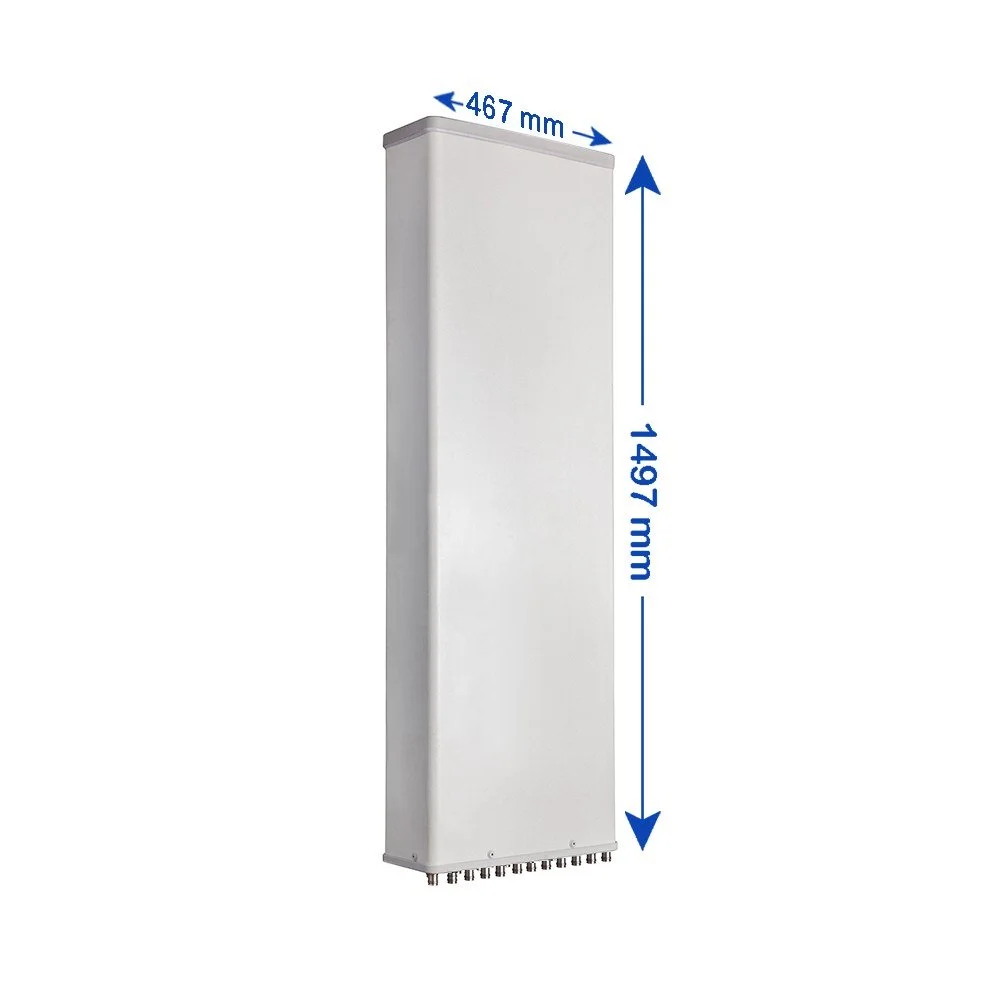

Mechanical Specifications
Parameter Unit Specification

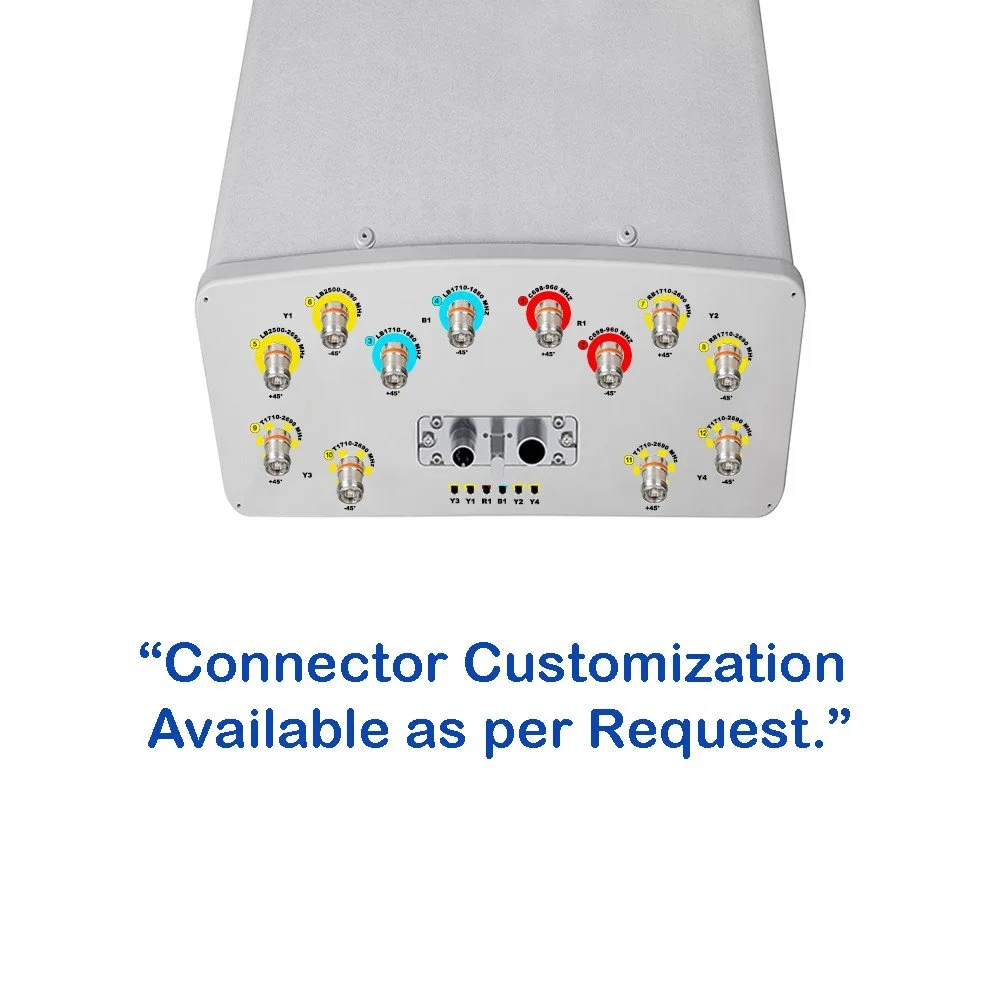

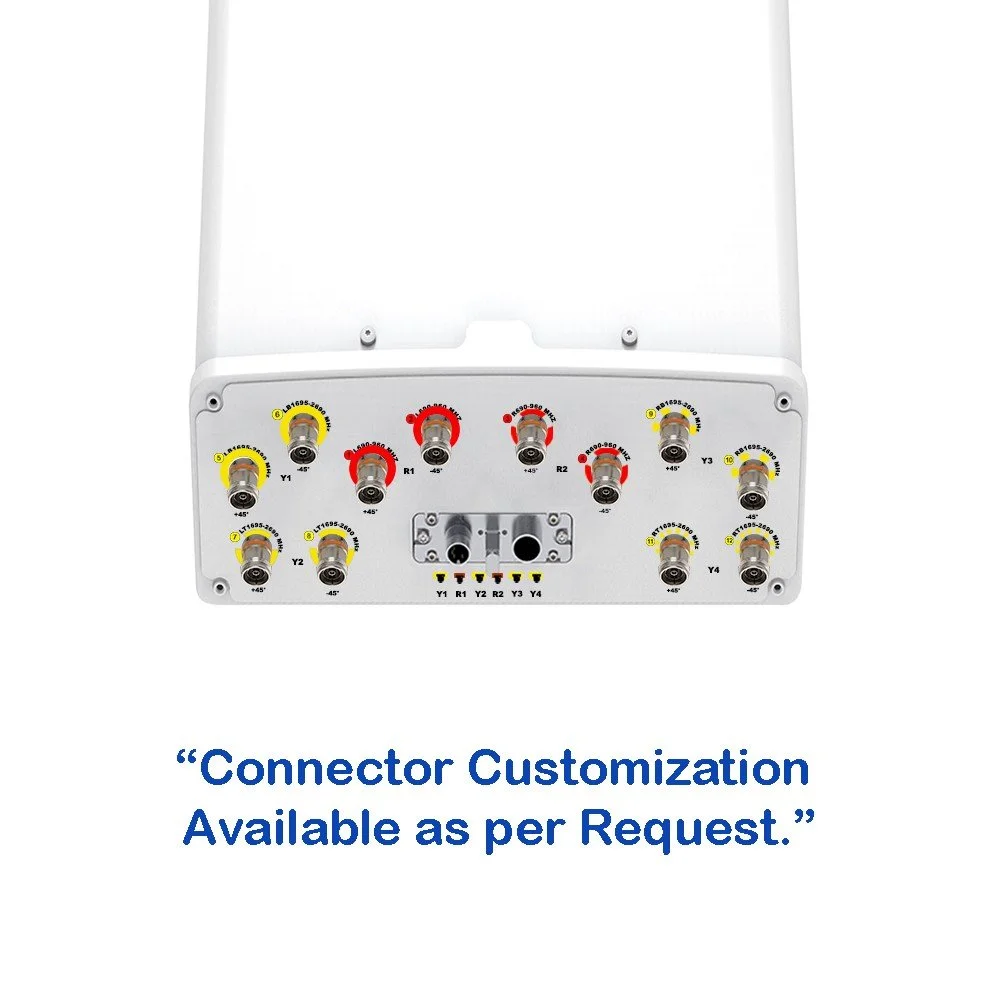

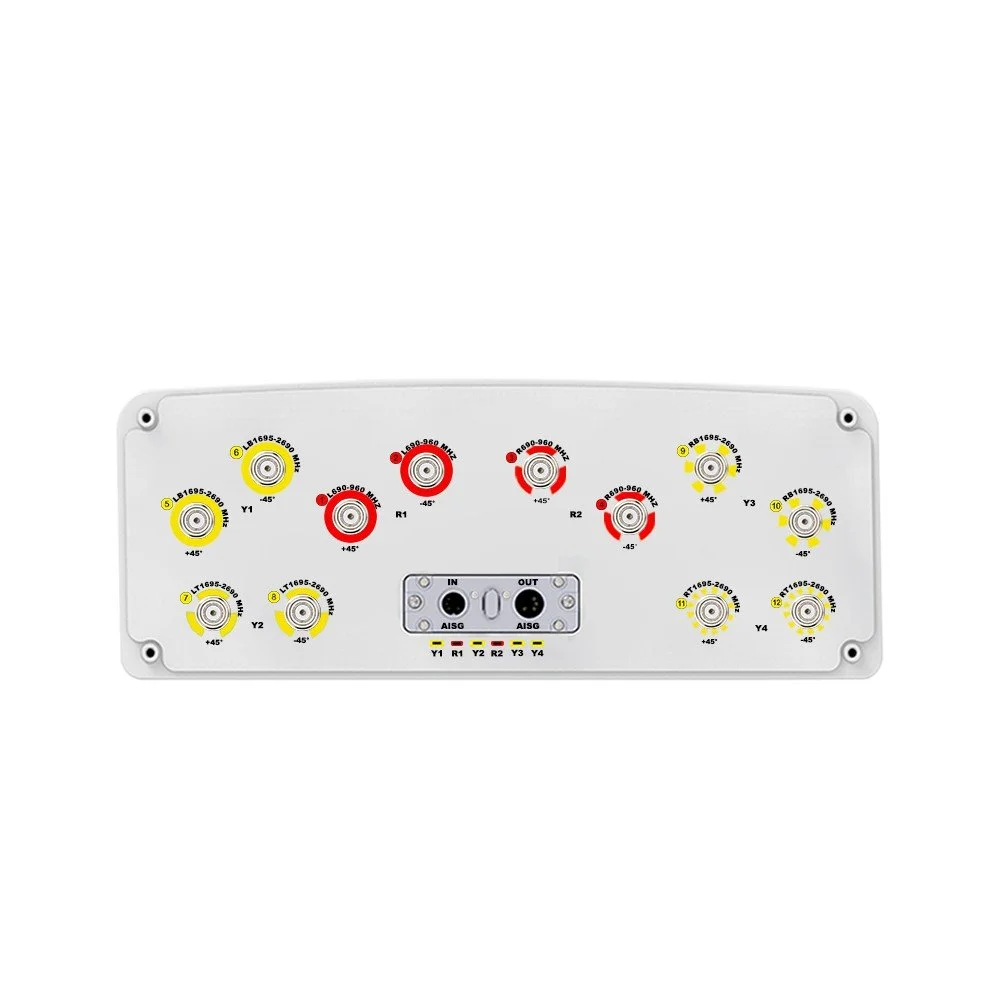

Connector Type --- (12x) 4.3/10 Female
Connector Position --- Bottom
Electrical Tilt Control --- Integrated RET
Radome Material --- Fiberglass
Antenna Dimensions (H × W × D) mm (in) 1397 × 467 × 167 (55.0 × 18.4 × 6.6)
Antenna Weight – Antenna Only kg (lbs) 27 (59.5)
Antenna Weight – With Clamps kg (lbs) 31 (68.3)
Maximum Wind Speed km/h (mph) 200 (124.3)
Wind Load – Frontal (at 150 km/h) N (lbf) 640 (143.9)
Wind Load – Rear (at 150 km/h) N (lbf) 715 (160.7)
Wind Load – Lateral (at 150 km/h) N (lbf) 315 (70.8)
Operating Temperature °C (°F) -40 to +60 (-40 to +140)
