Modular Ultralight Mast from 4 to 14.4 Meter Carbon or Fiberglass

₹0.00

M.U.M. is the result of a recent request in the military sector, they need two essential characteristics: modular design and lightness.It was designed to satisfy both of these requirements, making it a new benchmark in the category.Thanks to the fast-fit design, from the simple bracing to the minimal number of accessories specially designed for it, the installation is very quick and easy.

M.U.M. is available in carbon (only 630 gr per element) and in ­fiberglass (840 gr per element).Both versions have a fast-­fit system with a push-button for a quicker mount.It’s also supplied with a stainless steel plate and a bag with canvas pockets.

M.U.M. is the result of a recent request in the military sector, they need two essential characteristics: modular design and lightness.It was designed to satisfy both of these requirements, making it a new benchmark in the category.Thanks to the fast-fit design, from the simple bracing to the minimal number of accessories specially designed for it, the installation is very quick and easy.

M.U.M. is available in carbon (only 630 gr per element) and in ­fiberglass (840 gr per element).Both versions have a fast-­fit system with a push-button for a quicker mount.It’s also supplied with a stainless steel plate and a bag with canvas pockets.

Specifications table for Carbon Fiber and Fiberglass mast systems
CARBON FIBER

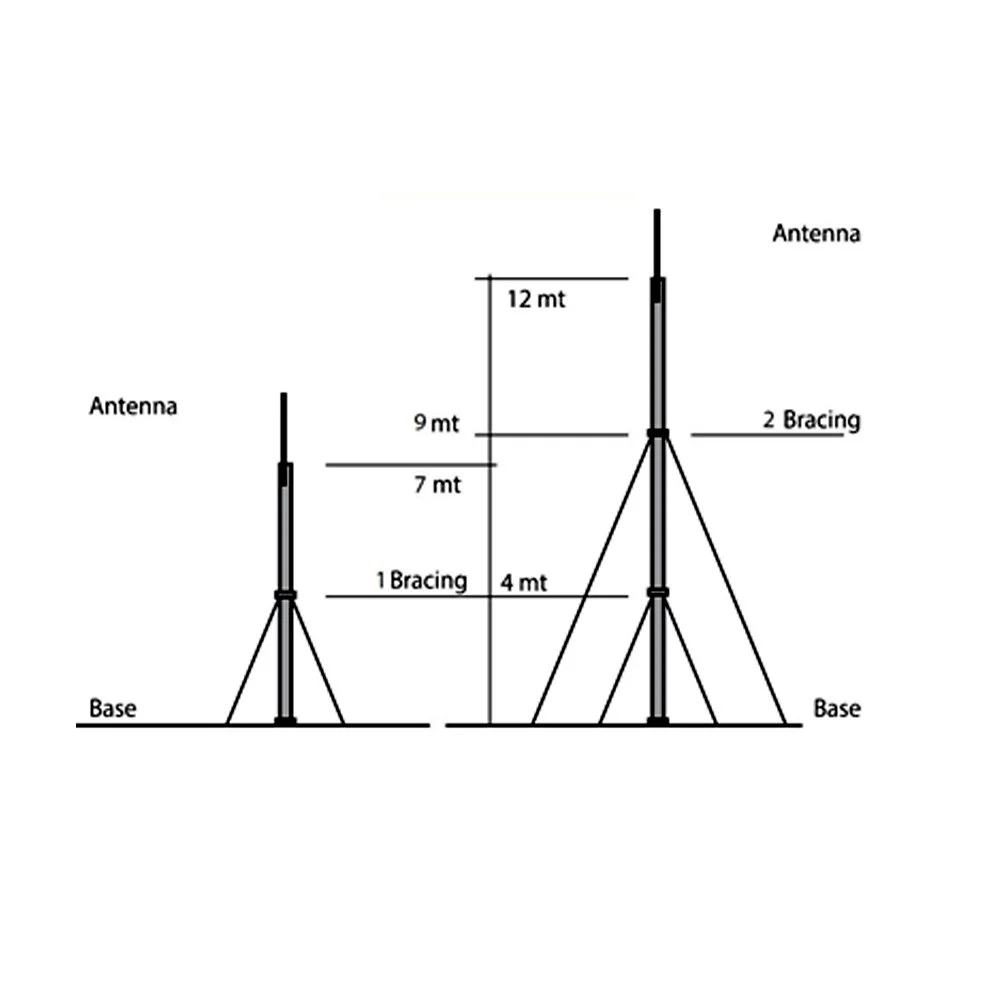

Element Number Mounted Height Transport Bag Mast Weight Necessary Bracings Maximum Lifted Load Maximum Installed in Buckling Load Max Wind 0.1 mq Top
5 6 mt (20ft) 1 bag 140 x 40 x 40 3.60 Kg 1 20 Kg 20 Kg 130 Km/h
6 7.20 mt (24ft) 1 bag 140 x 40 x 40 3.78 Kg 1 20 Kg 18 Kg 130 Km/h
8 9.6 mt (32ft) 1 bag 140 x 40 x 40 5.04 Kg 1 20 Kg 18 Kg 130 Km/h
10 12 mt (40ft) 2 bags 140 x 40 x 40 6.30 Kg 2 20 Kg 14 Kg 130 Km/h
12 14.4 mt (48ft) 2 bags 140 x 40 x 40 7.56 Kg 2 20 Kg 10 Kg 130 Km/h
FIBERGLASS
Element Number Mounted Height Transport Bag Mast Weight Necessary Bracings Maximum Lifted Load Maximum Installed in Buckling Load Max Wind 0.1 mq Top
5 6 mt (20ft) 1 bag 140 x 40 x 40 4.20 Kg 1 8 Kg 8 Kg 110 Km/h
6 7.20 mt (24ft) 1 bag 140 x 40 x 40 5.04 Kg 1 20 Kg 7 Kg 110 Km/h
8 9.6 mt (32ft) 1 bag 140 x 40 x 40 6.72 Kg 1 20 Kg 6 Kg 110 Km/h

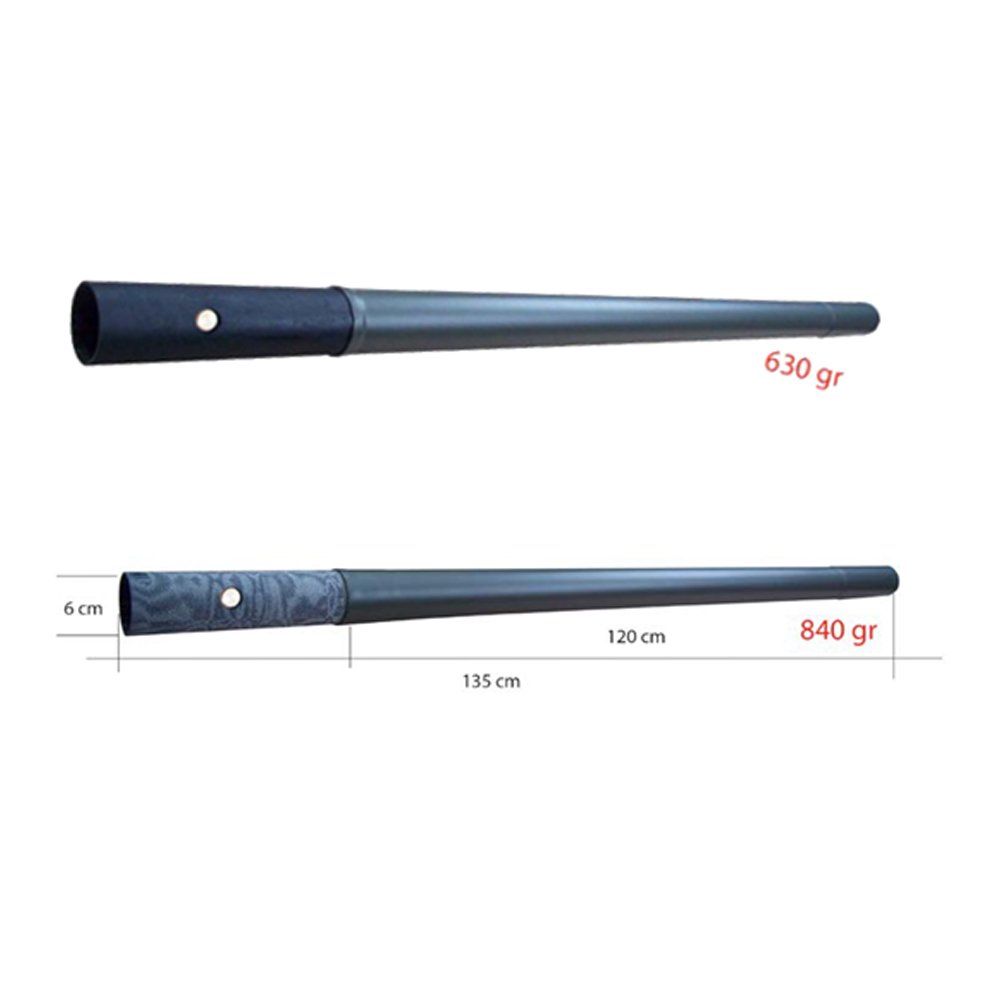

Specifications for MTT13601 - Carbon Element
MTT13601 - Carbon Element
Thickness 4mm
Dia 57mm
Total Lenght 1350 mm
Useful Lenght 1200 mm
Weight 630 gr
Specifications for MTT13602 - Fiberglass Element
MTT13602 - Fiberglass Element
Thickness 4mm
Dia 57mm
Total Lenght 1350 mm
Useful Lenght 1200 mm
Weight 630 gr

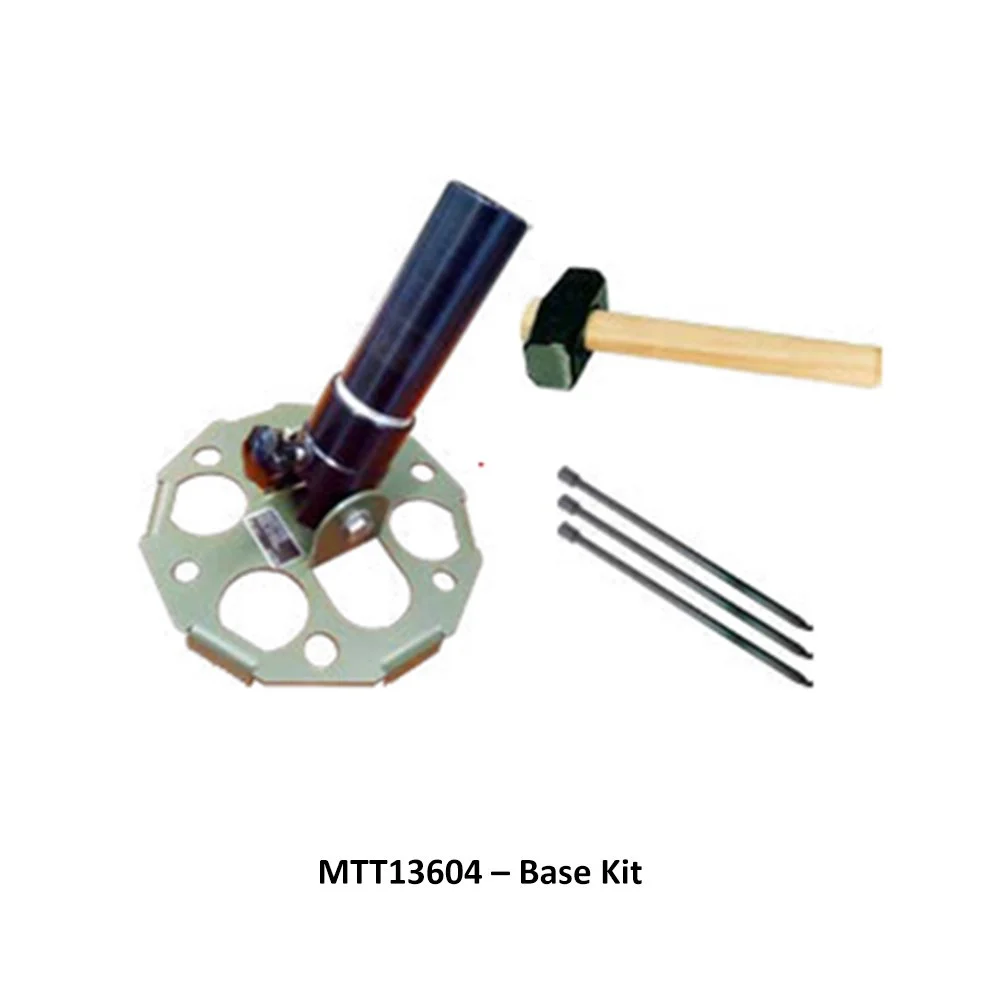

Specifications for MTT13604 – Base Kit
MTT13604 – Base Kit
Containing MTT13610 - Base 1 Pcs MTT13604 - Stakes 3 Pcs
Hammer 1Pcs
Total Weight kit 4.230Kg

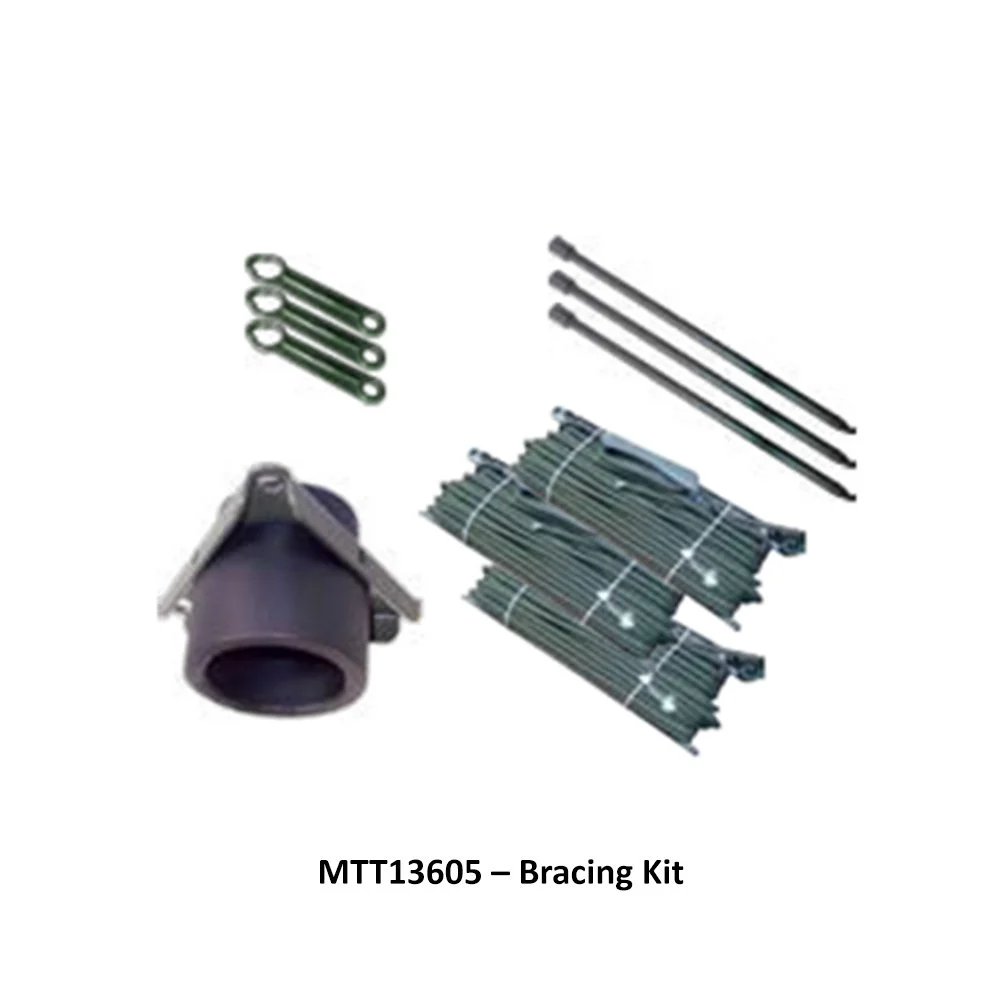

Specifications for MTT13605 – Bracing Kit
MTT13605 – Bracing Kit
Containing MTT13603 - Bracing 1 Pcs MTT13604 - Stakes 3 Pcs MTT13613 - Pulling 3 Pcs3 MTT13609 - Rope Pcs3
Total Weight kit 3.160Kg

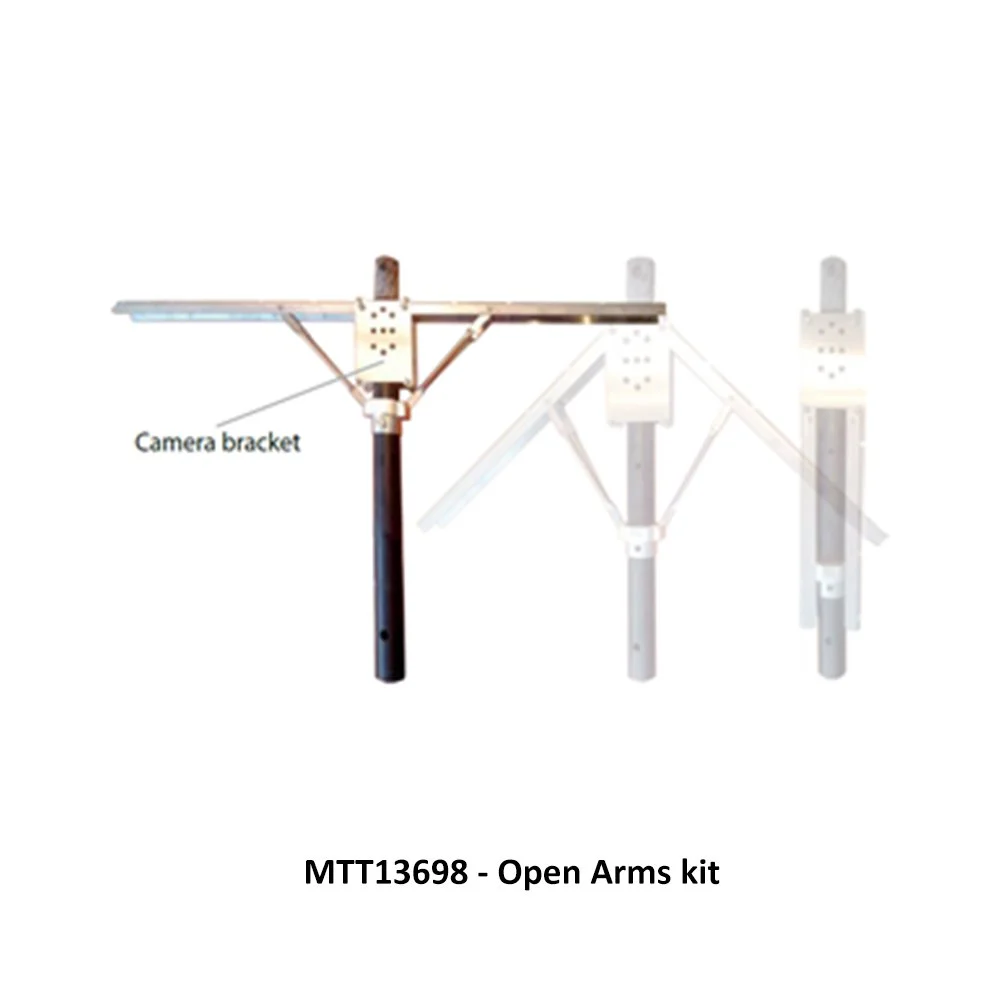

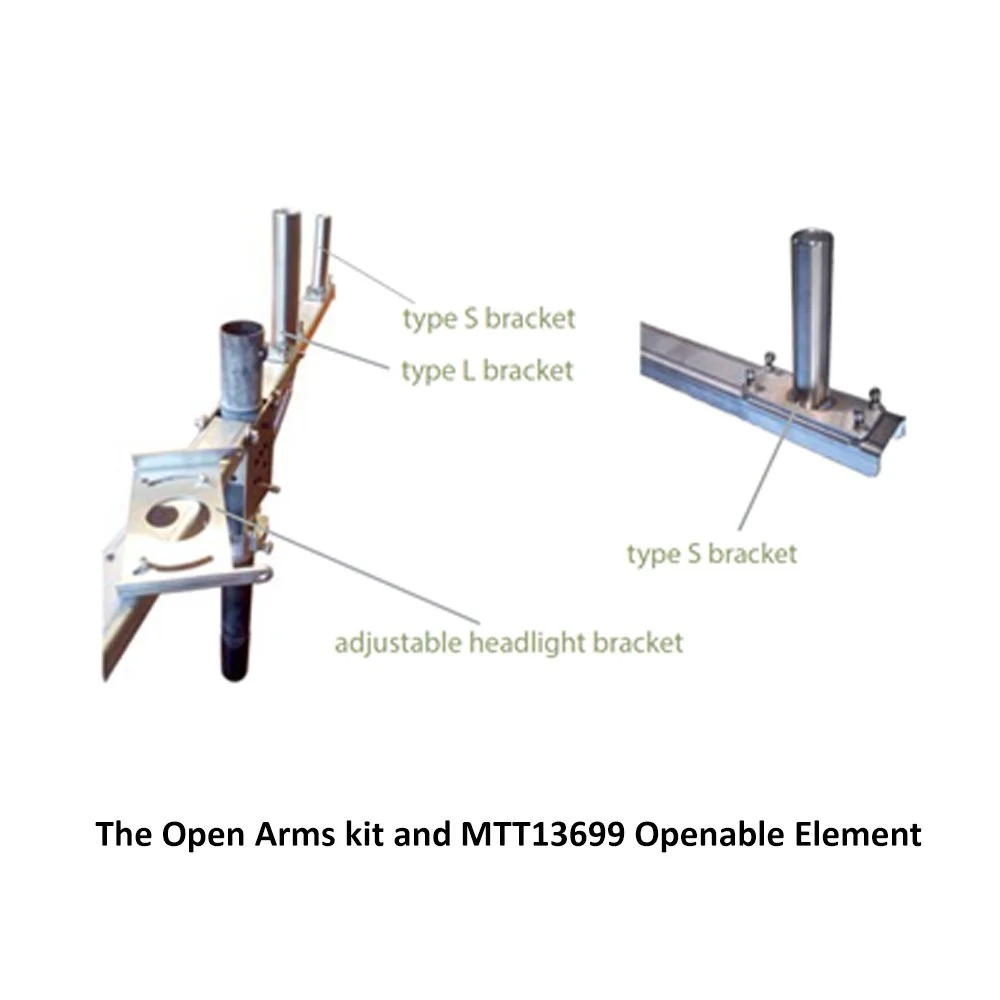

Specifications for MTT13698 - Open Arms kit
MTT13698 - Open Arms kit
With Two Arms, Made for Cameras, Antennas, Lights.
Materials: Stainless Steel mast element in Carbon fiber.
Contents list for The Open Arms kit
The Open Arms kit contains :
2 Camera Brackets 2 Headlight Brackets 2 Antenna Brackets Type L 1 Antenna Bracket Type S
Specifications for MTT13699 Openable Element
MTT13699 Openable Element
Like MTT13698 But with mast Element in Fiberglass.

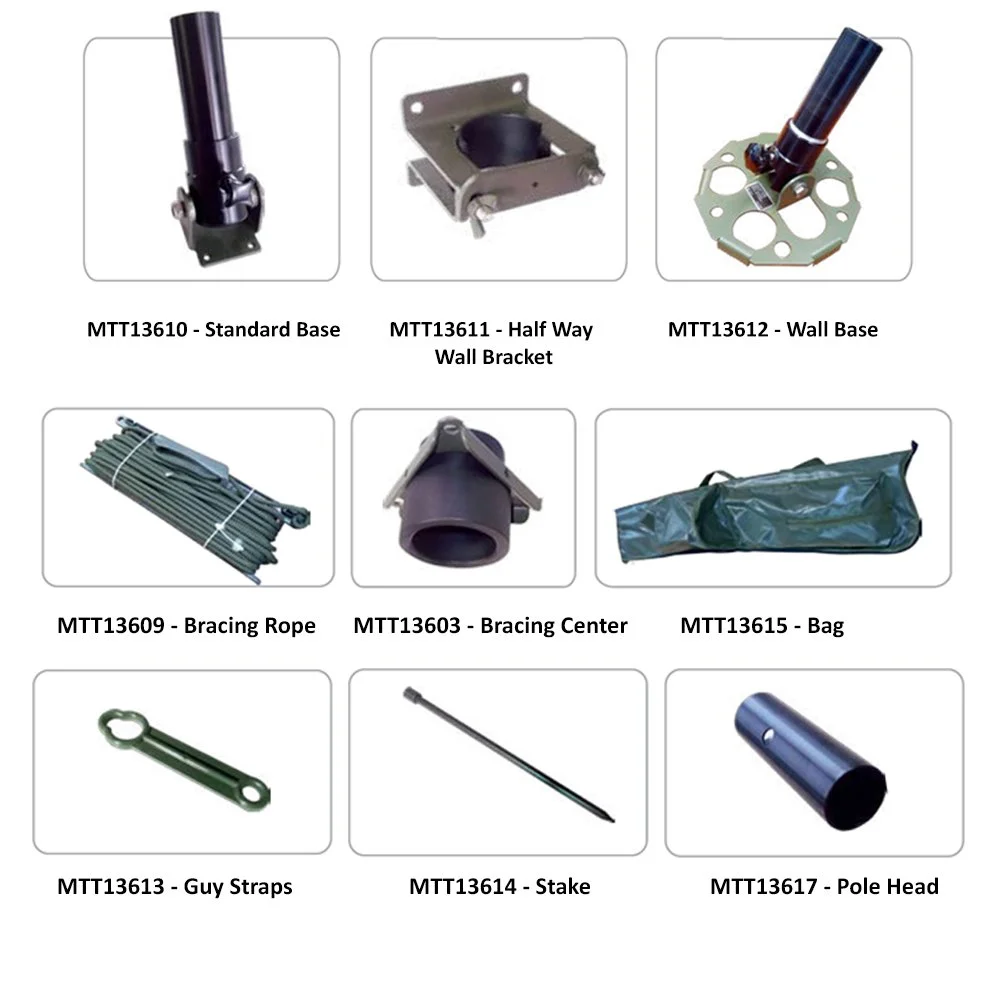

Specifications comparison for Standard Base, Half Way Wall Bracket, and Wall Base
MTT13610 - Standard Base MTT13611 - Half Way Wall Bracket MTT13612 - Wall Base
Material : stainless steel -anticorodal Material : stainless steel -anticorodal Material : stainless steel- anticorodal
Size : 190 mm Blowdown system.
Hole diameter : 57 mm Circular system in order to orient directive antennas.
Specifications for Bracing Rope, Bracing Center, and Bag
MTT13609 - Bracing Rope MTT13603 - Bracing Center MTT13615 - Bag
Material Kevlar
Diameter 8 mm
Length 15 mt
Resistance 1260 Kn
Quick 1 side shackle coupling
Tractor clam cleat
Material Composite
Size 130 mm
Hole dia 57 mm
Weight 150 gr

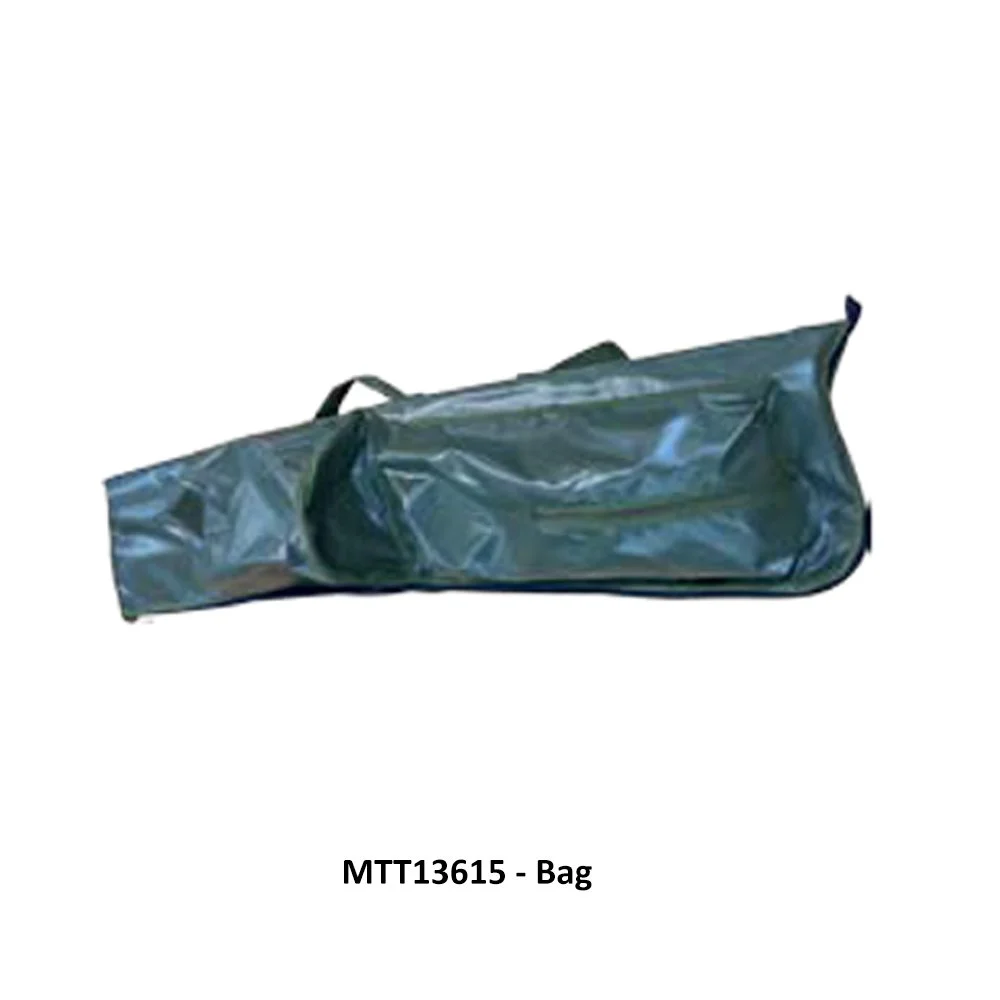

Material Matt 650 Polyester
Size (closed) 140 x 40 x 40
Weight 1.720 Kg
The bag is for 6 tubes
With pockets for all accessories

Specifications for Guy Straps, Stake, and Pole Head components
MTT13613 - Guy Straps MTT13614 - Stake MTT13617 - Pole Head
Material Composite
Size 140 mm
Hole dia 25mm
Weight 20 gr

Material Galvanized iron
Colour Black
Size 450 mm
Weight 610 gr

Fixing collars diam 60 mm
Material Aluminum
Colour Black
Size 150 mm
Weight 250 gr
Detailed Inventory Breakdown for Bag Contents, Spare Parts, Components, and Weight Specifications
Bag Contains
Code Elements Spare Parts Pcs Weight (Kg)
Code Kit Component Kit Q
MTT13601 Carbon Fibre Modular Pole * 0.63
MTT13602 Fiberglass Modular Pole * 0.84
MTT13604 Base Kit MTT13610 Base 1 1 3.00
MTT13614 Stakes 3
Hammer 1 1.20
MTT13605 Bracing Kit MTT13603 Bracing centre 1 1 3.16
MTT13614 Stakes 3
MTT13613 Pulling 3
MTT13609 Ropes x 15M 3
MTT13615 Bag x 6 Pole Max, Mast 7.20 mt 1 1.70
Total Weight Depends from Poles Quantity.
Carbon fibre mast suggested top Element in fiberglass for Sparking Protection.
