Long-range True 5G Macro WiFi Coverage for Outdoor Environments

₹0.00

MTT’s 5G Macro Wi-Fi solution is designed to provide extensive, long-range WiFi coverage for outdoor environments such as rural areas, farms, and other remote locations. It addresses common issues like limited coverage, interference, and low user capacity found in traditional WiFi solutions.

Key Features and Capabilities

  • Extensive Coverage: The system delivers kilometer-level coverage, with a maximum range of 1.5 to 2 km in unobstructed environments. This is achieved through a high-gain, wide-beam antenna array.

  • High User Capacity: It is designed to support a large number of users, with an optimal threshold of 200 clients and a maximum capacity of over 1000.

  • Advanced Antenna System: The solution features a 4×4 MIMO antenna with 13dBi high gain and provides 180∘ sector coverage. The antenna polarization is ±45∘.

  • Dual-Band Support: It operates on both 2.4GHz and 5GHz bands and supports Wi-Fi standards IEEE 802.11 a/b/g/n/ac/ax.

  • High Data Rates: Maximum data rates are 1148 Mbps on the 2.4 GHz band and 2402 Mbps on the 5 GHz band.

  • Connectivity: It includes a 2.5 GE PoE+ Port for connectivity.

MTT’s 5G Macro Wi-Fi solution is designed to provide extensive, long-range WiFi coverage for outdoor environments such as rural areas, farms, and other remote locations. It addresses common issues like limited coverage, interference, and low user capacity found in traditional WiFi solutions.

Key Features and Capabilities

  • Extensive Coverage: The system delivers kilometer-level coverage, with a maximum range of 1.5 to 2 km in unobstructed environments. This is achieved through a high-gain, wide-beam antenna array.

  • High User Capacity: It is designed to support a large number of users, with an optimal threshold of 200 clients and a maximum capacity of over 1000.

  • Advanced Antenna System: The solution features a 4×4 MIMO antenna with 13dBi high gain and provides 180∘ sector coverage. The antenna polarization is ±45∘.

  • Dual-Band Support: It operates on both 2.4GHz and 5GHz bands and supports Wi-Fi standards IEEE 802.11 a/b/g/n/ac/ax.

  • High Data Rates: Maximum data rates are 1148 Mbps on the 2.4 GHz band and 2402 Mbps on the 5 GHz band.

  • Connectivity: It includes a 2.5 GE PoE+ Port for connectivity.

Macro Wi-Fi Specifications
Main Design of Radio
LAN Interface 1x 2.5Gbps Ethernet Port
Wi-Fi Standard IEEE 802.11 a/b/g/n/ac/ax
Maximum Data Rate 1148 Mbps (2.4 GHz) 2402 Mbps (5 GHz)
Wireless Connectivity Capacity 1000+
Optimal Wireless Client Threshold (LAWiFi Protocol) 200
Maximum EIRP 36dBm for 2.4GHz and 5GHz (EIRP on different channels may be limited by country regulations)
Maximum Coverage Range 1.5-2km (An unobstructed coverage environment)
Reception Sensitivity 2.4GHz:
11AX 20MHz MCS0: -95 11AX 20MHz MCS11: -66 11AX 40MHz MCS0: -94 11AX 40MHz MCS11: -63

5GHz:
11AX 20MHz MCS0: -94 11AX 20MHz MCS11: -64.5 11AX 40MHz MCS0: -90.5 11AX 40MHz MCS11: -63 11AX 80MHz MCS0: -88.5
11AX 80MHz MCS11: -60.5
Channel US:
2.4GHz: 1 - 11;
5GHz: 36, 40, 44, 48, 149, 153, 157, 161, 165;

EU:
2.4GHz: 1 - 13;
5GHz: 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140;

JP:
2.4GHz: 1 - 13;
5GHz: 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140, 144
Maximum Transmit Power on dBm 2.4GHz: 20dBm; 5GHz: 20dBm (transmit power on different channels and country may be limited by country regulations)
Seamless Roaming ✓
Mesh ✓
Beamforming ✓
MU-MIMO 2G: 4x4 DL MU-MIMO; 5G: 4x4 DL MU-MIMO
OFDMA UL/DLOFDMA
Rate Based on SSID/Client
LAWiFi Protocol ✓
Antenna Systems
Radition Patter Directional antenna
Polarization ±45°
Beamforming ±45°
Gain (dBi) 2.4GHz: 4 x 13±0.5; 5GHz: 4 x 13±0.5
Horizontal 3dB Beamwidth 2.4GHz: 90±5: 5GHz: 85±5
Electrical Downtilt 1.5 (Customizable)
Out of Band Spurious Emission <-36dBm
Supported Data Rate
802.11ax 8 Mbps to 2402 Mbps
(MCS0-MCS11, NSS = 1 to 4 HE20/40/80)
802.11ac 6.5 Mbps to 2166.7 Mbps
(MCS0-MCS11, NSS = 1 to 4 VHT20/40/80)
802.11n 6.5 Mbps to 600 Mbps (MSC0-MCS31, HT20/40)
802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11a 1, 2, 5.5, 11 Mbps (short and long preamble support)

5G Macro WiFi Deployment Pictures

Applications

The MacroWiFi solution is suitable for various outdoor scenarios, including:

  • Village Coverage

  • Industrial Parks

  • Beach Camping

  • National Parks

  • Mining

  • Temporary Events

  • Emergency Services

Product Specifications
Security
Access Control ✓
Maximum MAC Filter 400
VLAN ✓
Wireless Encryption WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
802.11X Support ✓
Physical Design
Power Supply 802.3at PoE or 12V/2A DC
Maximum Power Consumption 25.5W (for PoE); 22.5W (for DC)
Reset Config Allowed
Mounting Pole Installation
Dimension 250 mm x 1245 mm
Nt. Weight 13.2 kg
Enclosure Material UPVC
Packing Size 1415 x 355 x 380
Installation Kit Weight (kg) 2.5
Packing Weight (kg) 18
Wind Load at 150km/h 160/160/160 (Frontal/Lateral/Rearside)
Environment
Operating Temperature -25 °C - 60 °C; -40 °C - 70 °C
Storage Temperature -40 °C - 70 °C
Operating Humidity 10% - 90% non-condensing
Storage Humidity 5% - 90% non-condensing

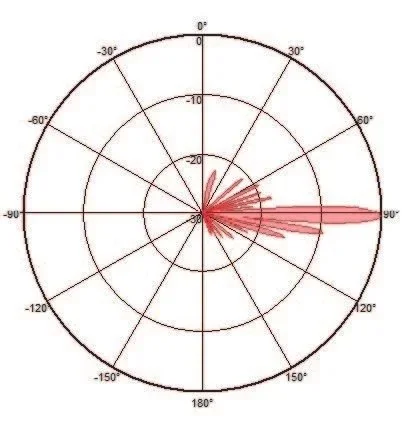

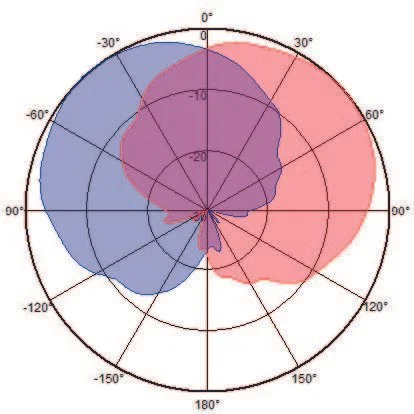

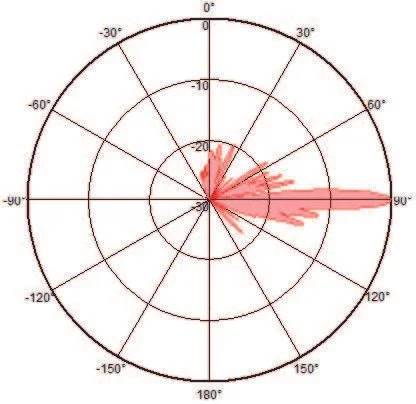

Antenna Radiation Pattern
