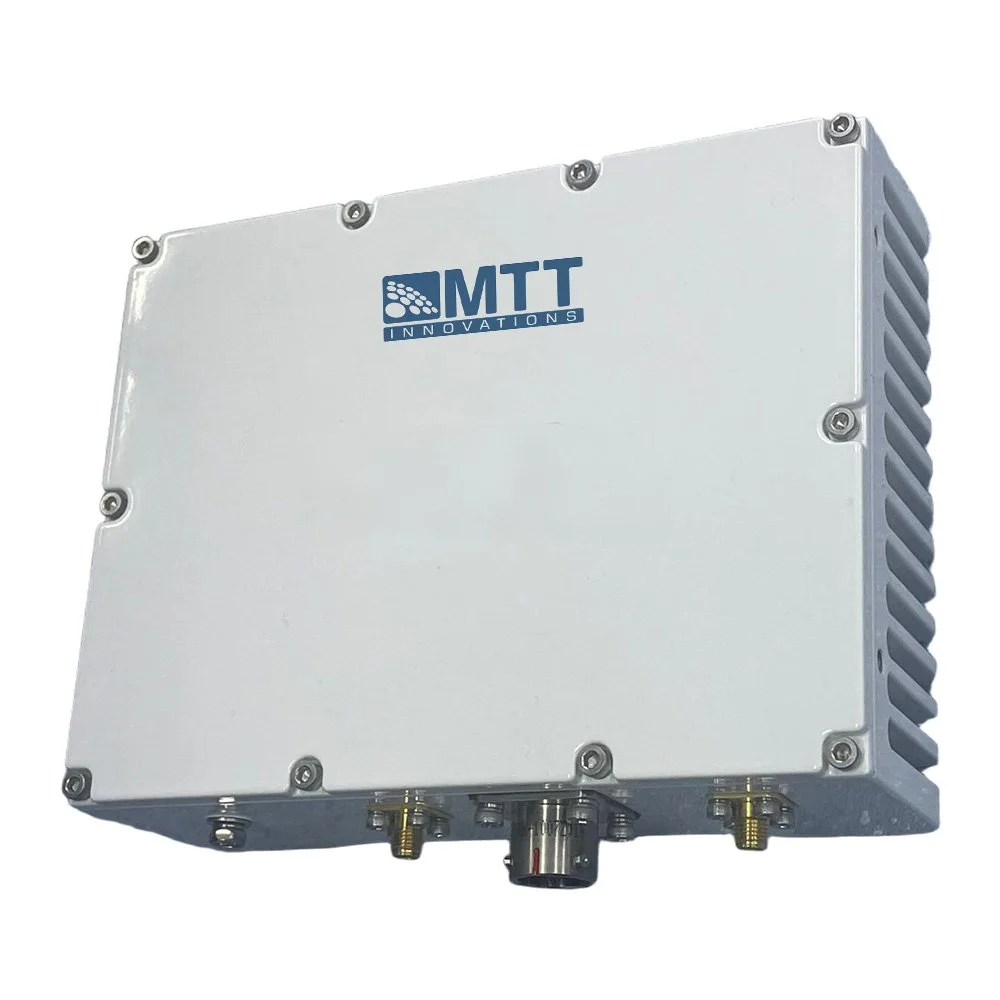

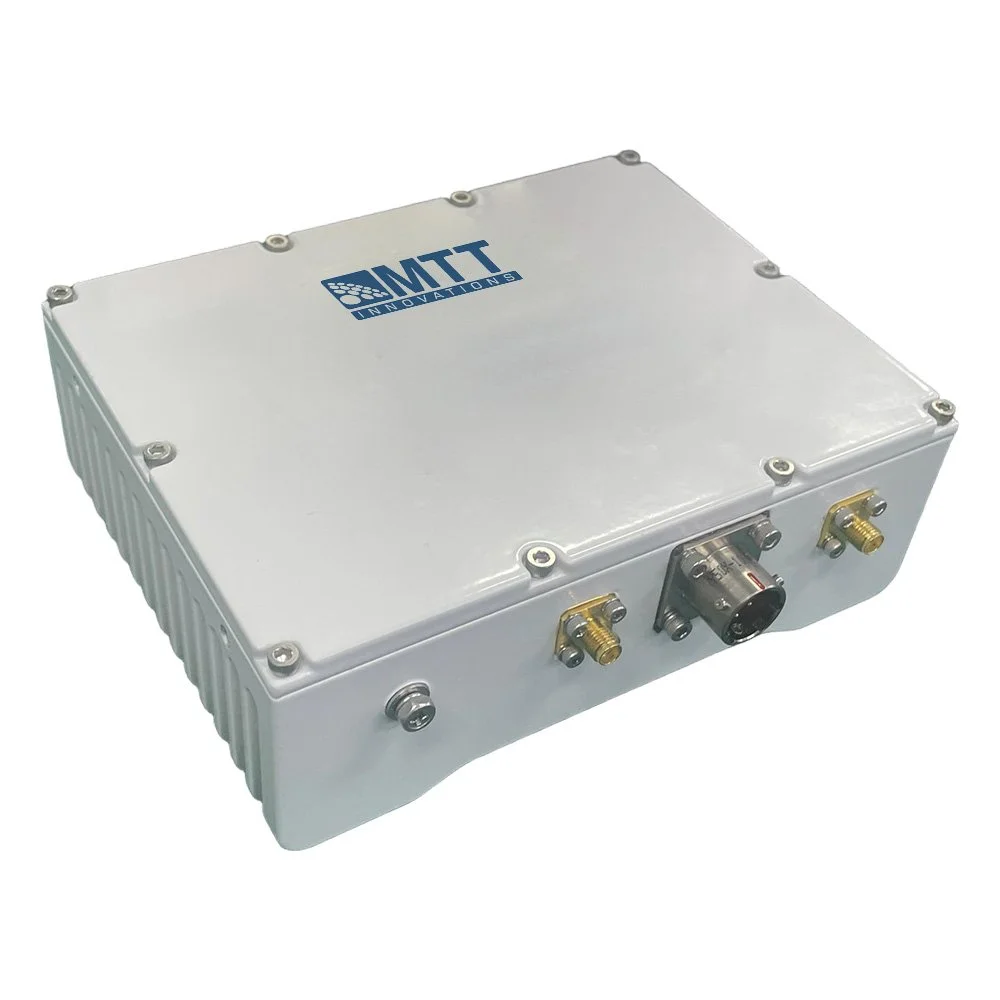

Ka Band 100W BUC

₹0.00

Ka Band 100W BUC

Product Features

  • High-efficiency gallium nitride technology

  • low power consumption, low spurious emissions,  and ultra-low phase noise

  • Product photos Built-in over-temperature and over-current protection

  • Monitoring function; automatic frequency switching function

  • Product type: Block Upconverter (BUC)

  • Frequency band: Ka-band (typically 27.5–31 GHz for uplink; check specific model range)

  • Output power: 100 watts (50 dBm)

  • Application: VSAT, satellite uplink for high-throughput satellites (HTS), maritime, aero, enterprise, oil & gas, and military terminals

  • Mounting: Radome-capable outdoor unit (ODU) for antenna feed or integrated with antenna assemblies

Key Features

  • High RF Output: 100 W continuous wave (CW) ensures robust uplink margin for high-data-rate services and adverse link conditions.

  • Low Phase Noise: Optimized PLL and VCO design to meet strict carrier stability requirements for advanced modulation schemes (e.g., 8PSK, 16APSK, 32APSK, QPSK with high symbol rates).

  • High Linearization: Built-in linearizer and wide dynamic range for efficient operation with higher-order modulation, minimizing spectral regrowth.

  • Wide IF Input: Supports standard IF input range (typically 950–1450 MHz) for Ku/Ka IF interfacing; some models support 5–512 MHz IF for direct-conversion architectures—verify model spec.

  • Integrated Frequency Reference: OCXO or optional GPS-disciplined reference for enhanced frequency stability; 10 MHz reference input/output included.

  • Redundancy & Monitoring: Remote management via SNMP, RS-232/RS-485, or Ethernet (web GUI/CLI). Alarm/status, SWR detection, temperature monitoring, and automatic power control.

  • Environmental Hardened: Ruggedized for outdoor operation with IP65/IP67 sealing, wide operating temperature (-40°C to +60°C typical), and shock/vibration tolerance for mobile platforms.

  • Efficiency & Cooling: Advanced LDMOS or GaN transistor architectures for improved RF efficiency; forced-air or conduction cooling designs depending on installation.

  • Safety & Protections: Over-temperature, over-voltage, VSWR protection, and automatic shutdown to protect the PA and system.

Performance Specifications (typical)

  • Frequency Range (RF output): specify model-specific Ka uplink range (e.g., 27.5–30.0 GHz)

  • IF Input Range: 950–1700 MHz (or model-dependent)

  • Output Power: 100 W (50 dBm) CW

  • Gain: 70–85 dB (model dependent)

  • Gain Flatness: ±1.5 dB typical over IF

Ka Band 100W BUC

Product Features

  • High-efficiency gallium nitride technology

  • low power consumption, low spurious emissions,  and ultra-low phase noise

  • Product photos Built-in over-temperature and over-current protection

  • Monitoring function; automatic frequency switching function

  • Product type: Block Upconverter (BUC)

  • Frequency band: Ka-band (typically 27.5–31 GHz for uplink; check specific model range)

  • Output power: 100 watts (50 dBm)

  • Application: VSAT, satellite uplink for high-throughput satellites (HTS), maritime, aero, enterprise, oil & gas, and military terminals

  • Mounting: Radome-capable outdoor unit (ODU) for antenna feed or integrated with antenna assemblies

Key Features

  • High RF Output: 100 W continuous wave (CW) ensures robust uplink margin for high-data-rate services and adverse link conditions.

  • Low Phase Noise: Optimized PLL and VCO design to meet strict carrier stability requirements for advanced modulation schemes (e.g., 8PSK, 16APSK, 32APSK, QPSK with high symbol rates).

  • High Linearization: Built-in linearizer and wide dynamic range for efficient operation with higher-order modulation, minimizing spectral regrowth.

  • Wide IF Input: Supports standard IF input range (typically 950–1450 MHz) for Ku/Ka IF interfacing; some models support 5–512 MHz IF for direct-conversion architectures—verify model spec.

  • Integrated Frequency Reference: OCXO or optional GPS-disciplined reference for enhanced frequency stability; 10 MHz reference input/output included.

  • Redundancy & Monitoring: Remote management via SNMP, RS-232/RS-485, or Ethernet (web GUI/CLI). Alarm/status, SWR detection, temperature monitoring, and automatic power control.

  • Environmental Hardened: Ruggedized for outdoor operation with IP65/IP67 sealing, wide operating temperature (-40°C to +60°C typical), and shock/vibration tolerance for mobile platforms.

  • Efficiency & Cooling: Advanced LDMOS or GaN transistor architectures for improved RF efficiency; forced-air or conduction cooling designs depending on installation.

  • Safety & Protections: Over-temperature, over-voltage, VSWR protection, and automatic shutdown to protect the PA and system.

Performance Specifications (typical)

  • Frequency Range (RF output): specify model-specific Ka uplink range (e.g., 27.5–30.0 GHz)

  • IF Input Range: 950–1700 MHz (or model-dependent)

  • Output Power: 100 W (50 dBm) CW

  • Gain: 70–85 dB (model dependent)

  • Gain Flatness: ±1.5 dB typical over IF
Electrical specifications for RF system including frequency range, gain, power, phase noise, and power supply details.
Parameter Specification Remarks
RF Frequency 27.5 – 31 GHz Selectable in 1 GHz steps within range
IF Frequency 1 – 2 GHz Can be customized as required
LO Frequency Determined by output frequency —
Reference Frequency 10 MHz ± 5 dBm —
Small-Signal Gain > 68 dB —
Gain Adjustment Range 20 dB Synchronous adjustment @ 0.25 dB step
Amplitude-Frequency Response < 4 dBp-p / 16 MHz
< 1.2 dBp-p / 1200 MHz 		—
Gain Flatness < 3 dB Over full temperature range
Saturated Output Power > 46 dBm Other power levels customizable
IMB < −23 dBc @ rated power backed off by 3 dB
Phase Noise < −65 dBc/Hz @ 100 Hz
< −75 dBc/Hz @ 1 kHz
< −85 dBc/Hz @ 10 kHz
< −95 dBc/Hz @ 100 kHz 		—
Input VSWR < 1.8 —
Output VSWR < 2 —
Spurs < −55 dBc —
Power Supply AC 220 V ± 15% —
Power Consumption < 450 W —
Structural specifications including RF interfaces, communication interfaces, cooling method, and protection rating.
Parameter Specification Remarks
RF Input N-KFD —
RF Output WR28 —
Power / Communication Interface Y50Y-0803ZJ10 / RS485 —
Cooling Forced Air Cooling —
Protection Rating IP65 —
