Microphone Receiver Handset

₹0.00

Product overview : A compact, rugged wireless microphone receiver handset designed for professional audio capture in live events, broadcast, and field production. The unit integrates a high-sensitivity microphone element, digital wireless receiver, ergonomic handset form factor, and intuitive controls to deliver reliable, clear voice and instrument capture in noisy environments.

Product overview : A compact, rugged wireless microphone receiver handset designed for professional audio capture in live events, broadcast, and field production. The unit integrates a high-sensitivity microphone element, digital wireless receiver, ergonomic handset form factor, and intuitive controls to deliver reliable, clear voice and instrument capture in noisy environments.

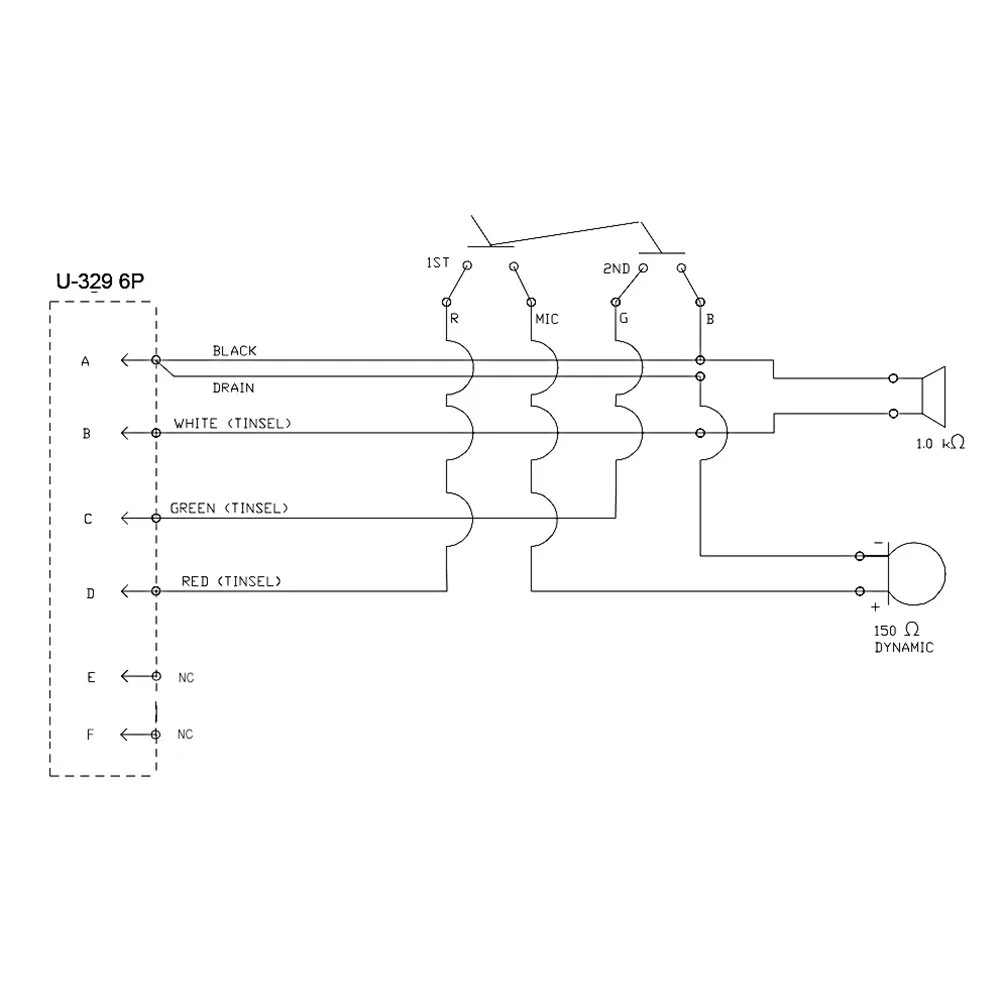

Electrical Specification Table
Electrical Specification

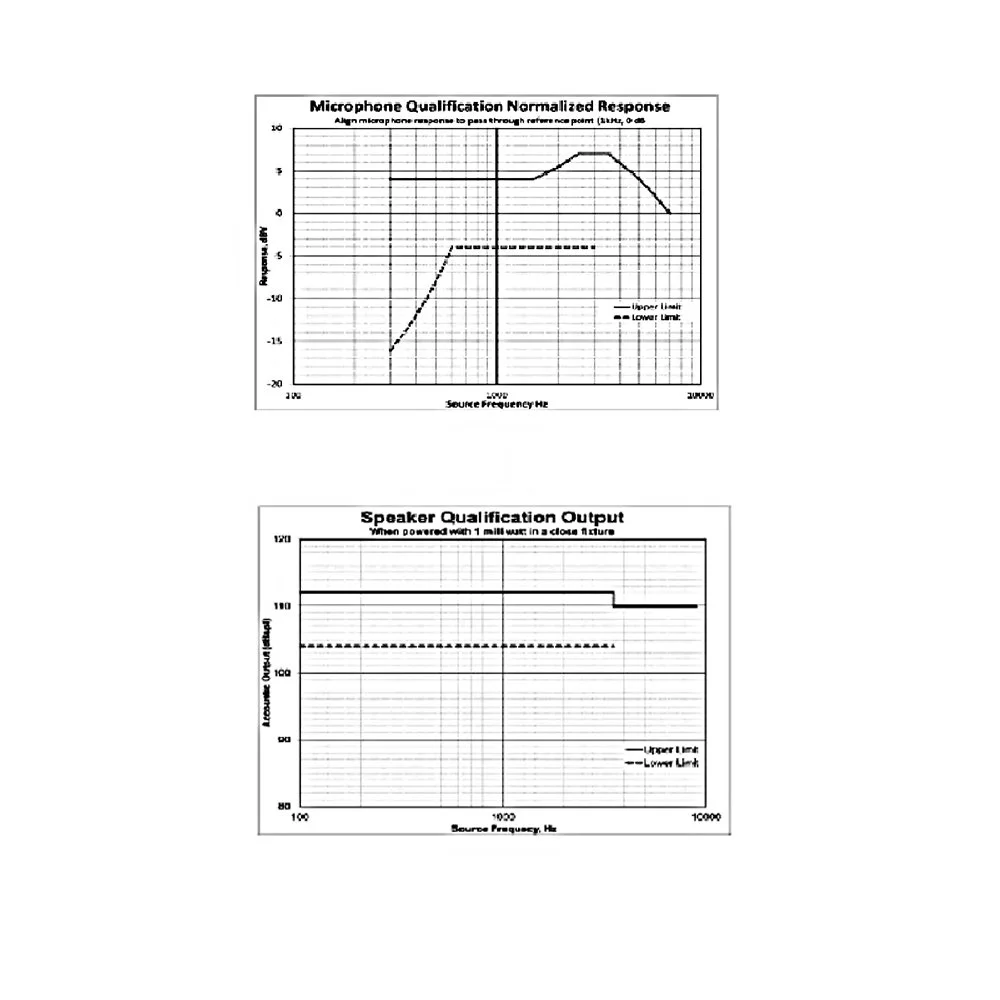

Microphone
Parameters Units Min Typ. Max
Impedance ohm 127.5 150 172.5
Sensitivity (Original) -56 dBm Min, @1kHz, 25 from 28 dynes/cm² source (103 dB SPL)
Sensitivity (Equivalent) -73.2 dBV Min, @1kHz, 25 from PA source (94 dB SPL)
THD (Distortion) % 5%
Signal-to-Noise dB 17
Voltage V 1.2 20
Speaker @ 1 Inch, 1 Milliwatt
Impedance ohm 900 1,000 1,100
SPL (20Hz to 3.5kHz) dB 104 112
SPL (3kHz to 9kHz) dB 110
Distortion (THD+N) % 5
Ruggedness Will not change more than 3dB from original response curve when operated at 300mW level 1000 Hz, for a Period of 8 hours.
PITT SWITCH
Cycle Life Cycles 2,000,000
Rating @ 12 VDC mA 50

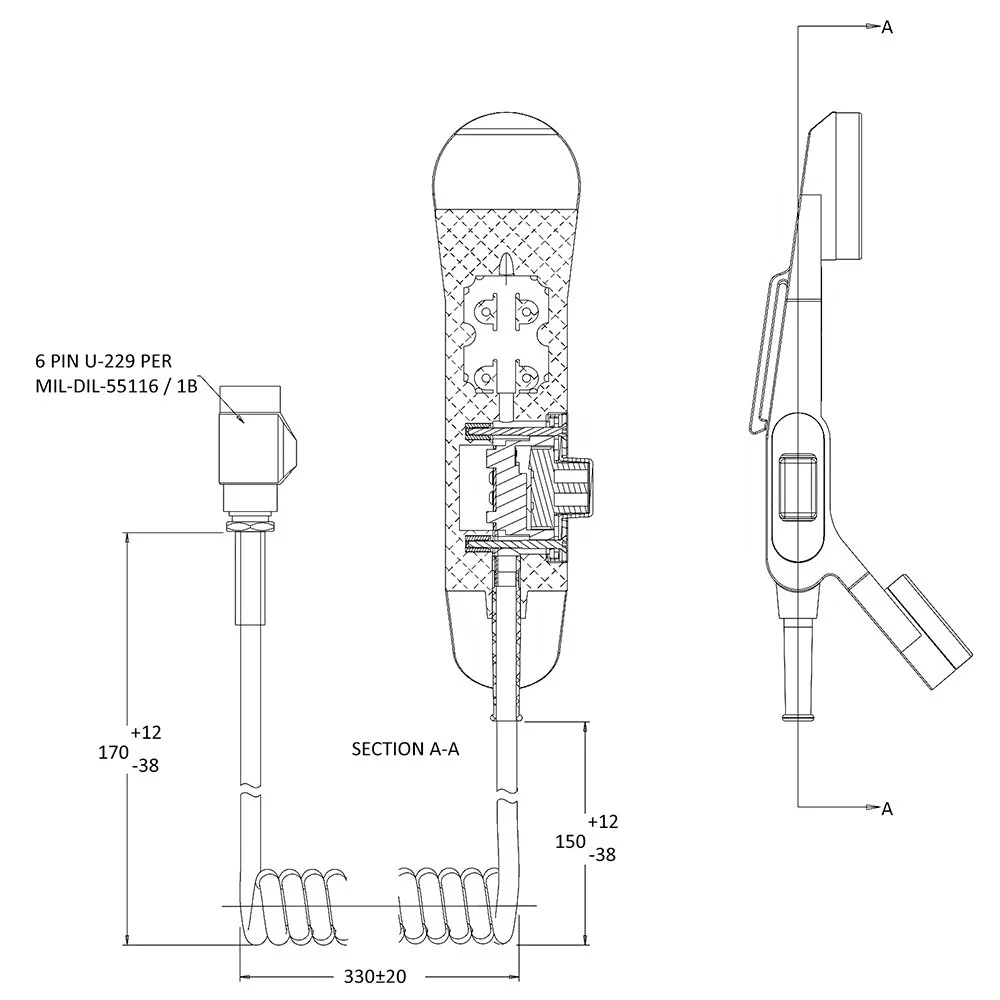

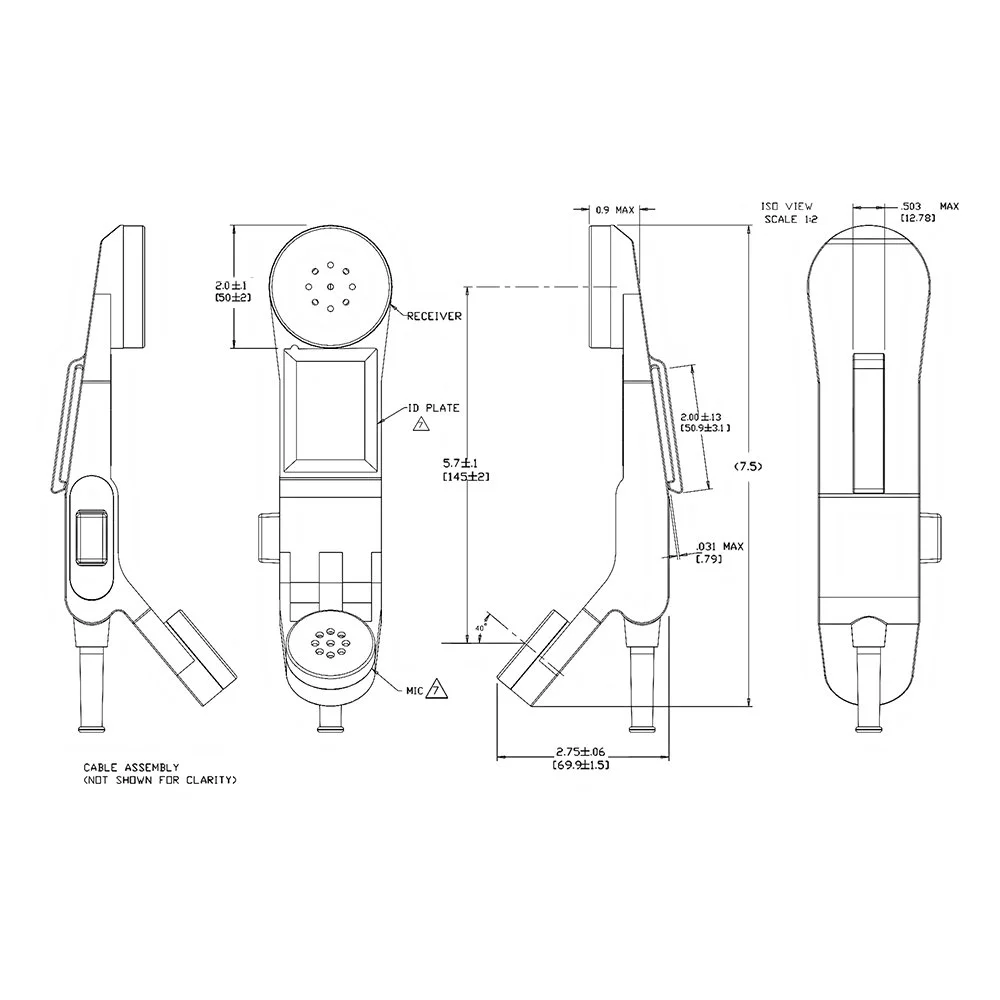

Mechanical Specifications
Mechanical Specifications
Parameters Units Min Typ. Max
Mass lbm 2
Cable Pull from Handset, Axial lbf 33
Cable Pull from Connector, Axial lbf 25 40
Cable Flex at Each End (2 lbm Wt.) Cycles 18,000
Cable Elongation (3%) Cycles 15,000
Environmental Specifications
Environmental Specifications
Operating Temperature -40℃ to +65℃
Storage Temperature -55℃ to +70℃
Thermal Shock 2 Hrs @ -40 / 2 HRS 2:@+158 [70] Six Cycles, 24 Hrs Total
Humidity Method 507.5, Procedure I, Cyclic High, B2 for 6 cycles, followed by a 24 hr dryout
Altitude 50 kft for 2 hours, followed immediately by 2 hours @ 10 kft.
Immersion 1 meter for 30 mins (24 hour recover allowable)
Vibration MIL-STD-202, Method 201, 2 hrs in each of 3 planes
Mechanical Shock Drop test : 2 from 72” onto tiled concrete
Bounce Method 514.6, Procedure II
Salt Fog Method 509.5, 96 hrs total,
2x 24 hrs exposure
w/ 24 hrs dryout between each
Dust Method 510.5, Procedure I
Fungus Resistance MIL-HDBK-454,
Guideline 4, Group 1
Packaging Each Handset assembly to be placed in individual bag. Bag will be boxed.
