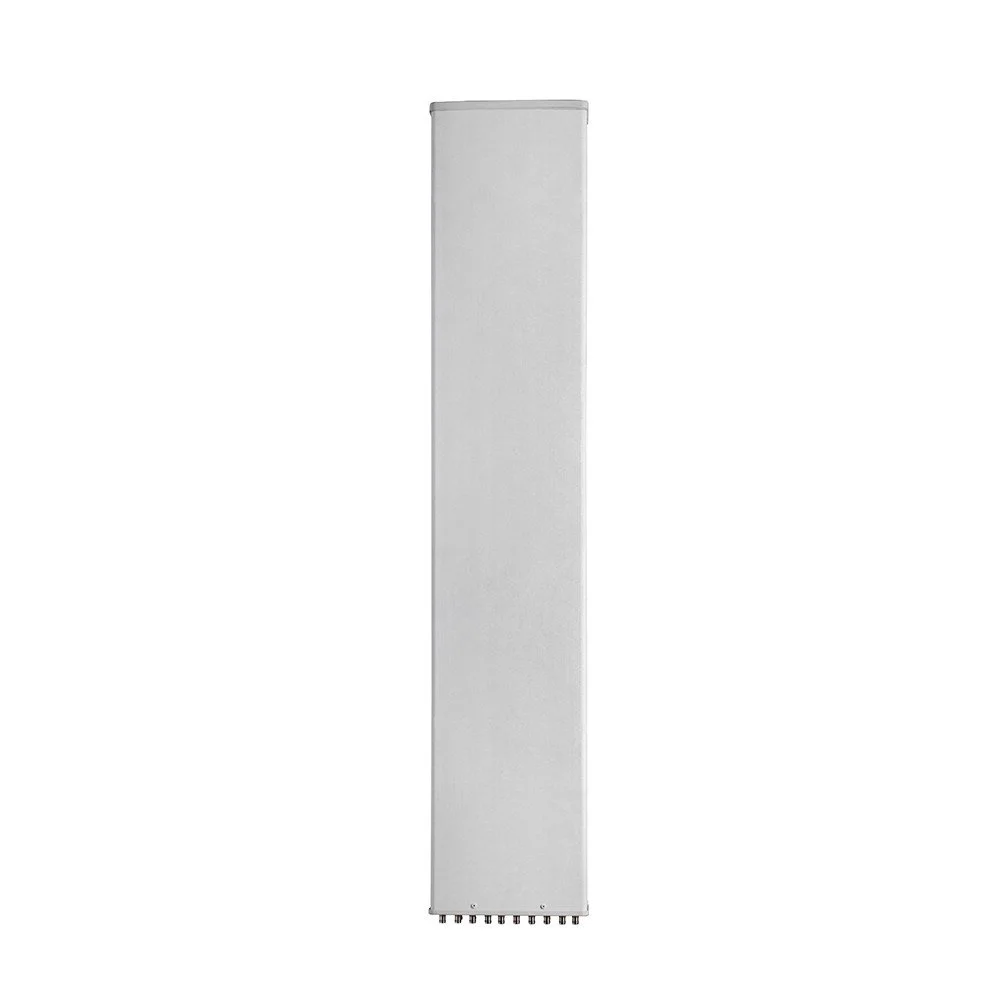

30-Port TDD Hybrid Panel Antenna ( 698 - 3800 MHz )

₹0.00

30-Port TDD Hybrid Panel Antenna Overview

Designed for cutting-edge wireless infrastructure, this 30-Port TDD Hybrid Panel Antenna delivers exceptional multi-band performance across a broad frequency spectrum. Featuring a horizontal beamwidth (HBW) of 65°, it ensures targeted coverage combined with high gain for enhanced network capacity and quality.

Frequency Bands & Gain:

  • (2x) 698-960 MHz: 15 dBi

  • (4x) 1710-2690 MHz: 14.5 dBi each

  • (2x) 3300-3800 MHz: 15 dBi each

Elevation Beamwidth (EBW):

  • (2x) 2°–16°

  • (6x) 2°–12° tapered

Physical Specifications:

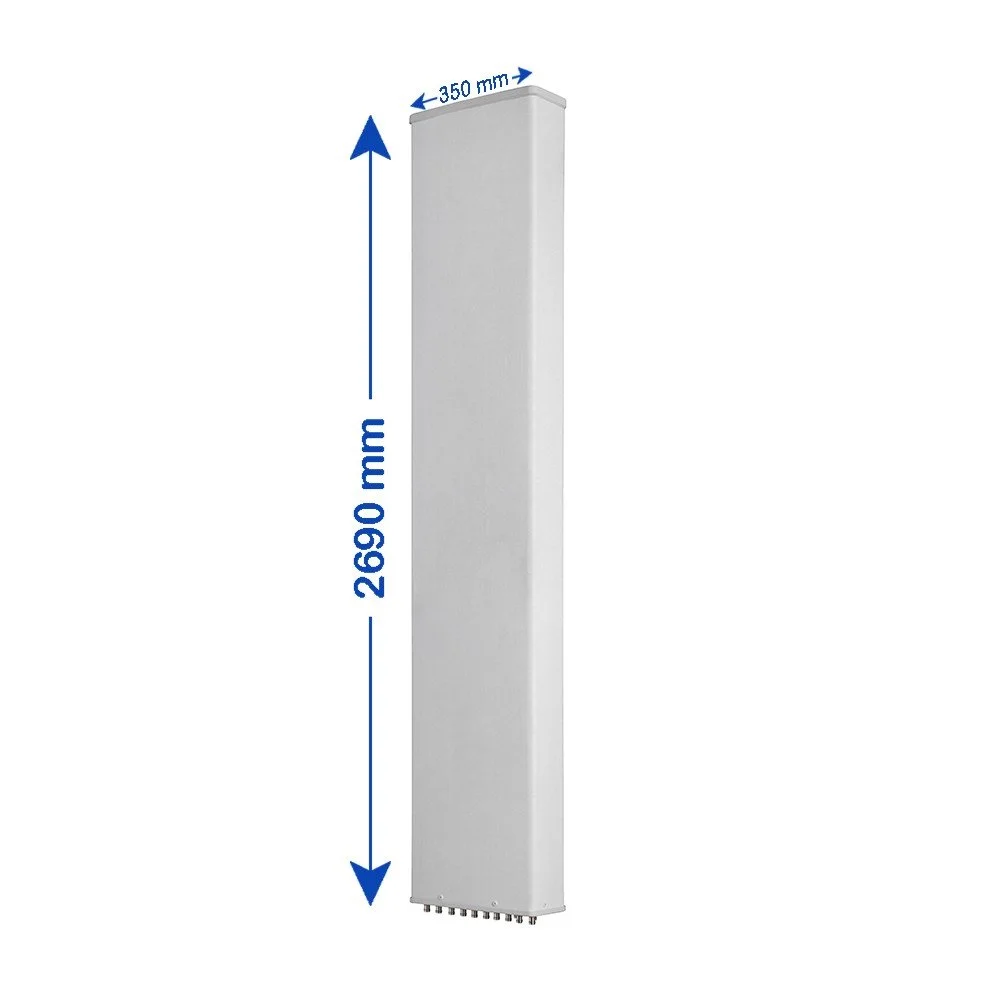

  • Length: 1.597 meters

This antenna is optimized for TDD operations, delivering versatile deployment options for modern 5G and LTE networks. Its multi-port design supports simultaneous handling of multiple frequency bands with superior isolation, making it an ideal choice for dense urban environments and carrier aggregation applications.

Maximize coverage, capacity, and spectral efficiency with this innovative hybrid panel antenna tailored to meet tomorrow’s wireless demands today.

30-Port TDD Hybrid Panel Antenna Overview

Designed for cutting-edge wireless infrastructure, this 30-Port TDD Hybrid Panel Antenna delivers exceptional multi-band performance across a broad frequency spectrum. Featuring a horizontal beamwidth (HBW) of 65°, it ensures targeted coverage combined with high gain for enhanced network capacity and quality.

Frequency Bands & Gain:

  • (2x) 698-960 MHz: 15 dBi

  • (4x) 1710-2690 MHz: 14.5 dBi each

  • (2x) 3300-3800 MHz: 15 dBi each

Elevation Beamwidth (EBW):

  • (2x) 2°–16°

  • (6x) 2°–12° tapered

Physical Specifications:

  • Length: 1.597 meters

This antenna is optimized for TDD operations, delivering versatile deployment options for modern 5G and LTE networks. Its multi-port design supports simultaneous handling of multiple frequency bands with superior isolation, making it an ideal choice for dense urban environments and carrier aggregation applications.

Maximize coverage, capacity, and spectral efficiency with this innovative hybrid panel antenna tailored to meet tomorrow’s wireless demands today.

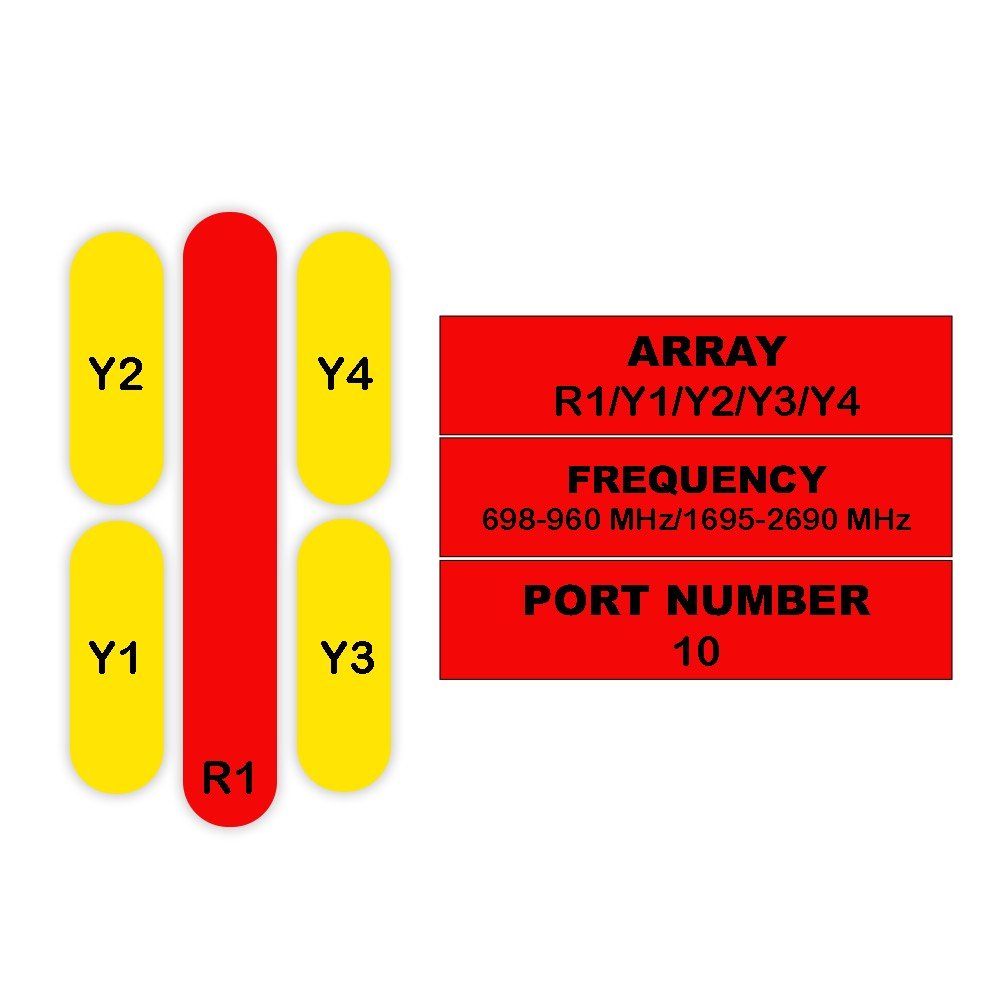

R1 / R2 Y2 / Y4
MHz 698–806 790–894 880–960 1710–1880 1850–1990 1920–2170 2300–2400 2490–2690
Frequency Range MHz 698–806 790–894 880–960 1710–1880 1850–1990 1920–2170 2300–2400 2490–2690
Polarization -- ±45° ±45°
Gain @ Mid Tilt 13.7 14 14.4 13.7 13.9 14.2 14.4 14.4
Over All Tilts 13.5±0.6 13.6±0.6 14.1±0.6 13.5±0.6 13.7±0.5 14.0±0.5 14.2±0.5 14.1±0.5
Horizontal Beamwidth degree 69±6.5 62±6.5 59±6.5 58±4.9 67±4.7 64±5.1 65±5.5 62±5.2
Vertical Beamwidth degree 15.7±1.5 13.4±1.1 12.3±0.8 12.7±0.8 11.7±0.8 10.5±0.8 9.6±0.8 8.7±0.8
Electrical Downtilt, Continuously Adjustable degree 2–16 2–12
First Upper Side Lobe Suppression dB > 15 > 15 > 15 > 16 > 16 > 16
Front-to-Back Ratio ±30 dB > 22 > 23 > 24 > 25 > 25
Isolation Cross-Polar > 25 > 25

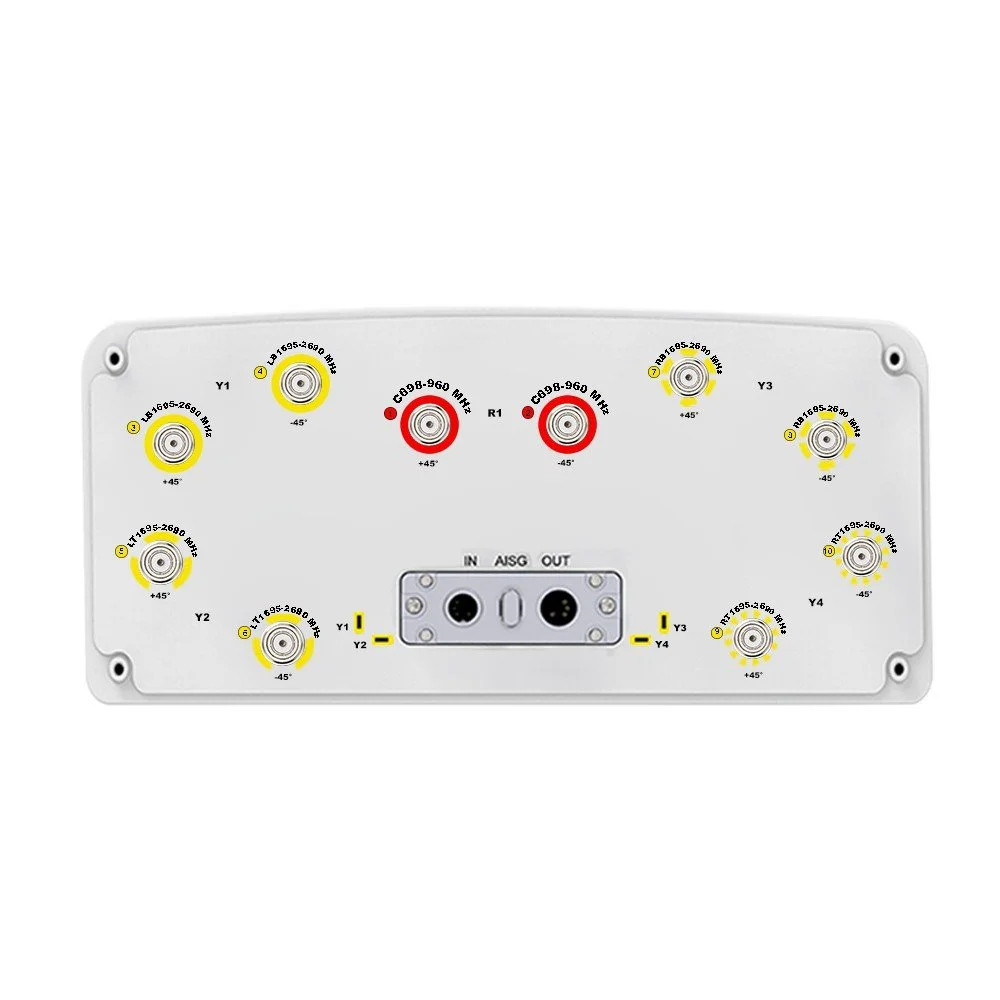

Port-to-Port > 25 (R1/R2) > 26 (R1/Y2, Y2/Y4, P1, P3) > 26
Impedance Ohm 50 50
VSWR -- < 1.5 < 1.5
Return Loss dB > 14 > 14
PIM3(2x43 dBm Carrier) dBc < -150 < -150
Lightning Protection -- DC Ground DC Ground
Maximum Average Input Power per Port, at 50 C Ambient Temperature Watts 250 200
Parameter Unit P1 (3300-3600 MHz) P2 (3600-3800 MHz)
Frequency Range
Frequency Range MHz 3300-3800 ---
MHz 3300-3600 3600-3800
Polarization --- ±45° ±45°
Electrical Downtilt, Continuously Adjustable degree 2-12 2-12
Beamforming Electrical Properties Radiation Parameters
Single Column Beam
Gain dBi 14.1 ± 1 14.5 ± 1
Horizontal Beamwidth degree 75 ± 15 70 ± 15
Vertical Beamwidth (3 dB) degree 8.2 ± 0.8 7.7 ± 0.6
Cross-Polar Discrimination at Boresight dB ≥ 15 ≥ 15
Cross-Polar Discrimination Over Sector dB ≥ 8 ≥ 8
First Upper Side Lobe Suppression dB ≥ 15 ≥ 15
Front-To-Back Ratio Co-Pol, ±30° dB ≥ 22 ≥ 23
65° Broadcast Beam
Gain dB 15.5 16.0
Horizontal Beamwidth (10 dB) degree 115 108
First Upper Side Lobe Suppression dB ≥ 15 ≥ 15
Front-To-Back Ratio dB ≥ 25 ≥ 25
Service Beam
(0°) Direct Beam Gain dB 19.5 20
(0°) Direction Beam 3dB Horizontal Beamwidth degree 26 24
(0°) Direction Beam Cross-Polar Ratio at Beampeak dB ≥ 16 ≥ 17
(0°) Direction Beam Front-To-Back Ratio dB ≥ 27 ≥ 28
(0°) Direction Beam Horizontal Sidelobe dB 12 12
±30° Direction Beam Gain dB 18 18.5
±30° Direction Beam 3dB Horizontal Beamwidth degree 28 25
±30° Direction Beam Front-to-Back Ratio dB ≥ 24 ≥ 25
Calibration and Electrical Parameter
Coupling Factor Between Calibration And Each Antenna Port dB -26 ± 2
Maximum Amplitude Tolerance From Calibration Port To Input Ports dB ≤ 1
Maximum Phase Tolerance From Calibration Port To Input Ports degree ≤ 10
Ports VSWR --- < 1.5
Return Loss dB > 14
Average Power Capacity Watts 25
Co-Polar Isolation Between Ports dB ≥ 23
Cross-Polar Isolation Between Ports dB ≥ 23
Impedance Ohm 50
Lightning Protection --- DC Ground
Parameter Unit P1 (3300-3600 MHz) P2 (3600-3800 MHz)
Frequency Range
Frequency Range MHz 3300-3600 3600-3800
Single Column Beam
Gain dBi 14.1 ± 1 14.5 ± 1
Horizontal Beamwidth (3 dB) degree 75 ± 15 70 ± 15
Vertical Beamwidth (3 dB) degree 8.2 ± 0.8 7.7 ± 0.6
Cross-Polar Discrimination At Boresight dB ≥ 15 ≥ 15
Cross-Polar Discrimination Over Sector dB ≥ 8 ≥ 8
First Upper Side Lobe Suppression dB ≥ 15 ≥ 15
NR Broadcast Beam (± 13°, ± 43° Service Beam)
Gain dB 19.0 19.5
Horizontal Beamwidth (3 dB) degree 65 65
First Upper Side Lobe Suppression dB ≥ 15 ≥ 15
Front-To-Back Ratio dB ≥ 25 ≥ 25
NR Service Beam
0° Direct Beam Gain dBi 19.5 20
0° Direct Beam Horizontal 3 dB Beamwidth degree 26 24
0° Direct Beam Cross-Polar Ratio at Beampeak dB ≥ 16 ≥ 17
0° Direct Beam Front-To-Back Ratio dB ≥ 27 ≥ 28
0° Direct Beam Horizontal Sidelobe dB 12 12
