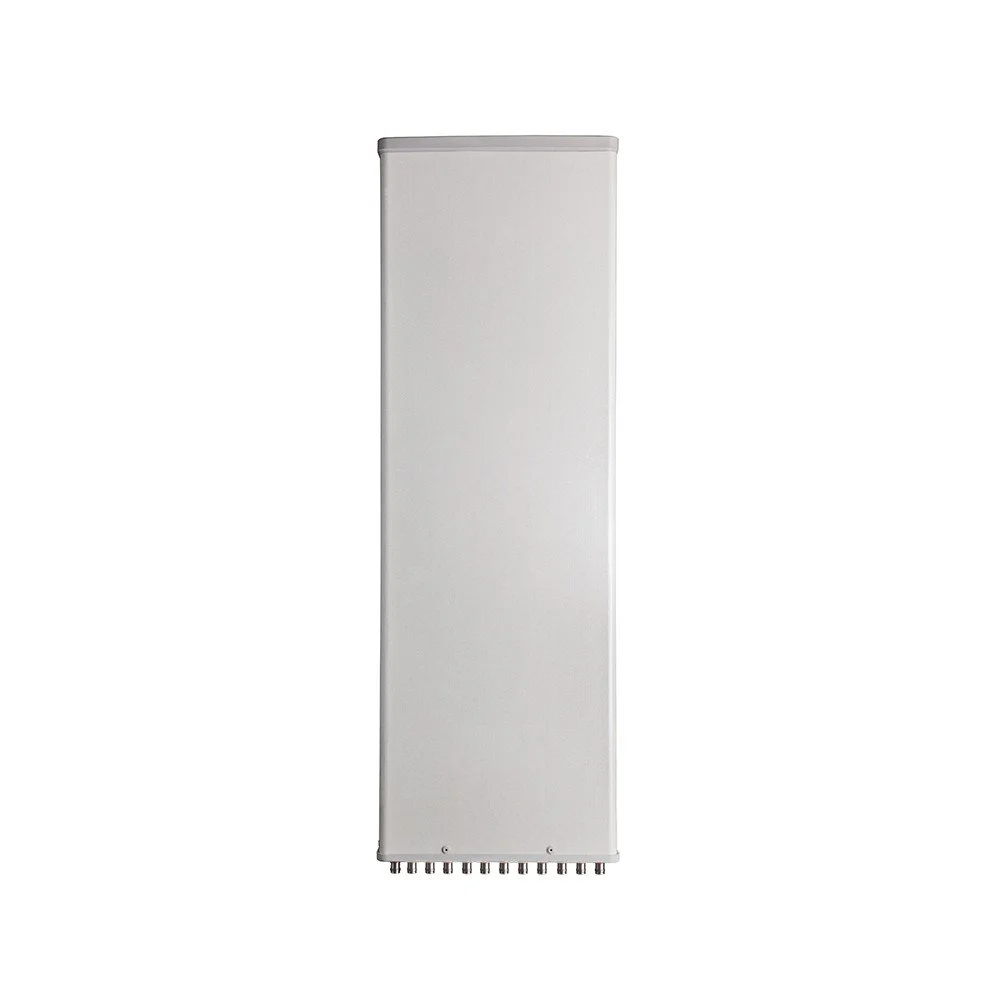

12-Port Panel Sector Antenna (690–2690 MHz)

  • Multiport sector antenna designed for dense, high-capacity wireless deployments across low and mid bands (690–2690 MHz).

  • Twelve independent RF ports support MIMO, carrier aggregation, and multi-operator sharing without performance compromise.

  • Slim, weatherproof radome optimized for rooftop, monopole, and tower installations in urban and suburban environments.

Key Features :

  • Frequency range: 690–2690 MHz — full coverage for 700/800/900/1700/1800/2100/2600 MHz bands and common LTE/5G NR low-band deployments.

  • 12 ports: Flexible configurations for e.g., 8×8 MIMO + 4×4 MIMO, dual-operator split, or hybrid active/passive architectures.

  • High isolation between ports: Minimizes inter-element coupling to preserve throughput and reduce inter-band interference.

  • Wideband gain: Stable gain and radiation patterns across the entire band to ensure consistent coverage, cell-edge performance, and capacity.

  • Controlled vertical beamwidth: Sector-specific elevation tilt profiles to optimize coverage and reduce overlap with adjacent sectors.

  • Low VSWR and high port efficiency: Improves link budget and reduces the need for external amplifiers.

  • Integrated electrical downtilt options: Manual and optional remote electronic tilt (RET) support for dynamic coverage tuning.

  • Ruggedized mechanical design: IP66/67 rated radome and sealed connectors for long-term outdoor reliability.

  • Lightweight, low windload form factor: Simplifies mounting and reduces structural requirements.

  • Corrosion-resistant mounting bracket: Compatible with common pole diameters and tower hardware.

  • Easy maintenance: Front-accessible connectors and modular RF assemblies for quick field servicing.

12-Port Panel Sector Antenna (690–2690 MHz)

  • Multiport sector antenna designed for dense, high-capacity wireless deployments across low and mid bands (690–2690 MHz).

  • Twelve independent RF ports support MIMO, carrier aggregation, and multi-operator sharing without performance compromise.

  • Slim, weatherproof radome optimized for rooftop, monopole, and tower installations in urban and suburban environments.

Key Features :

  • Frequency range: 690–2690 MHz — full coverage for 700/800/900/1700/1800/2100/2600 MHz bands and common LTE/5G NR low-band deployments.

  • 12 ports: Flexible configurations for e.g., 8×8 MIMO + 4×4 MIMO, dual-operator split, or hybrid active/passive architectures.

  • High isolation between ports: Minimizes inter-element coupling to preserve throughput and reduce inter-band interference.

  • Wideband gain: Stable gain and radiation patterns across the entire band to ensure consistent coverage, cell-edge performance, and capacity.

  • Controlled vertical beamwidth: Sector-specific elevation tilt profiles to optimize coverage and reduce overlap with adjacent sectors.

  • Low VSWR and high port efficiency: Improves link budget and reduces the need for external amplifiers.

  • Integrated electrical downtilt options: Manual and optional remote electronic tilt (RET) support for dynamic coverage tuning.

  • Ruggedized mechanical design: IP66/67 rated radome and sealed connectors for long-term outdoor reliability.

  • Lightweight, low windload form factor: Simplifies mounting and reduces structural requirements.

  • Corrosion-resistant mounting bracket: Compatible with common pole diameters and tower hardware.

  • Easy maintenance: Front-accessible connectors and modular RF assemblies for quick field servicing.

Electrical Specifications for R1/R2 and Y1/Y2/Y3 antenna bands
Electrical Specifications Unit 690-806 790-894 880-960 1695-1880 1850-1990 1920-2170 2300-2400 2490-2690
Frequency Range MHz 690-960 1695-2690
Polarization ±45° ±45°
Gain (Mid Tilt) dBi 16 16.4 16.8 16.6 16.9 17.2 17.4 17.4
Gain (All Tilts) dBi 15.8 ±0.5 16.2 ±0.5 16.6 ±0.5 16.4 ±0.6 16.7 ±0.5 17.0 ±0.5 17.2 ±0.5 17.2 ±0.5
Horizontal Beamwidth degree 65 ±4.4 62 ±3.6 58 ±4.6 67 ±6.5 64 ±6.5 63 ±6.5 58 ±5.5 60 ±6.0
Vertical Beamwidth degree 8.8 ±1.1 7.8 ±0.9 7.2 ±0.9 6.8 ±0.6 6.4 ±0.5 5.9 ±0.5 5.2 ±0.4 4.8 ±0.6
Electrical Downtilt (Continuous) degree 2-12 2-12
Tilt Accuracy degree <1 <1 <1 <1 <1 <1 <1 <1
Upper Side Lobe Suppression (First Upper) dB >16 >16 >16 >16 >16 >16 >16 >16
Upper Side Lobe Suppression (Peak to 20°) dB >15 >15 >15 >15 >15 >15 >14 >14
Front-to-Back Ratio ±30° dB >23 >24 >25 >25 >25 >25 >26 >26
Cross Polar Discrimination (Boresight) dB >18 >18 >18 >16 >16 >16 >17 >17
Cross Polar Discrimination (Sector) dB >7.0 >7.5 >8.5 >4.0 >6.0 >6.0 >5.0 >3.0
Isolation (Cross-Polar) dB >26 >26
Isolation (Port-to-Port) dB >26 (R1/R2), >28 (R1/Y1,Y2,Y3,Y4) >28
Impedance Ohm 50 50
VSWR <1.5 <1.5
Return Loss dB >14 >14
PIM3 (2×43 dBm Carrier) dBc <-150 <-150
Lightning Protection DC Ground DC Ground
Maximum Average Input Power / Port (50°C) Watts 250 200
Electrical Specifications for Y4 Antenna Band
Electrical Specifications (Y4) Unit 1695-1880 1850-1990 1920-2170 2300-2400 2490-2690
Frequency Range MHz 1695-2690
Polarization ±45°
Gain (Mid Tilt) dBi 16.4 16.8 17.1 17.3 17.3
Gain (All Tilts) dBi 16.2 ±0.6 16.6 ±0.5 16.9 ±0.5 17.1 ±0.6 17.1 ±0.6
Horizontal Beamwidth degree 67 ±6.5 65 ±6.1 64 ±6.1 62 ±5.5 62 ±5.9
Vertical Beamwidth degree 6.8 ±0.6 6.4 ±0.5 5.9 ±0.5 5.2 ±0.4 4.8 ±0.6
Electrical Downtilt (Continuous) degree 2-12
Tilt Accuracy degree <1 <1 <1 <1 <1
Upper Side Lobe Suppression (First Upper) dB >16 >16 >16 >16 >16
Upper Side Lobe Suppression (Peak to 20°) dB >15 >15 >15 >14 >14
Front-to-Back Ratio ±30° dB >25 >25 >26 >26 >26
Cross Polar Discrimination (Boresight) dB >16 >16 >16 >17 >17
Cross Polar Discrimination (Sector) dB >4.0 >6.0 >6.0 >5.0 >3.0
Isolation (Cross-Polar) dB >26
Isolation (Port-to-Port) dB >28
Impedance Ohm 50
VSWR <1.5
Return Loss dB >14
PIM3 (2×43 dBm) dBc <-150
Lightning Protection DC Ground
Maximum Average Input Power / Port (50°C) Watts 200
Mechanical Specifications for Antenna
Mechanical Specifications Unit Value

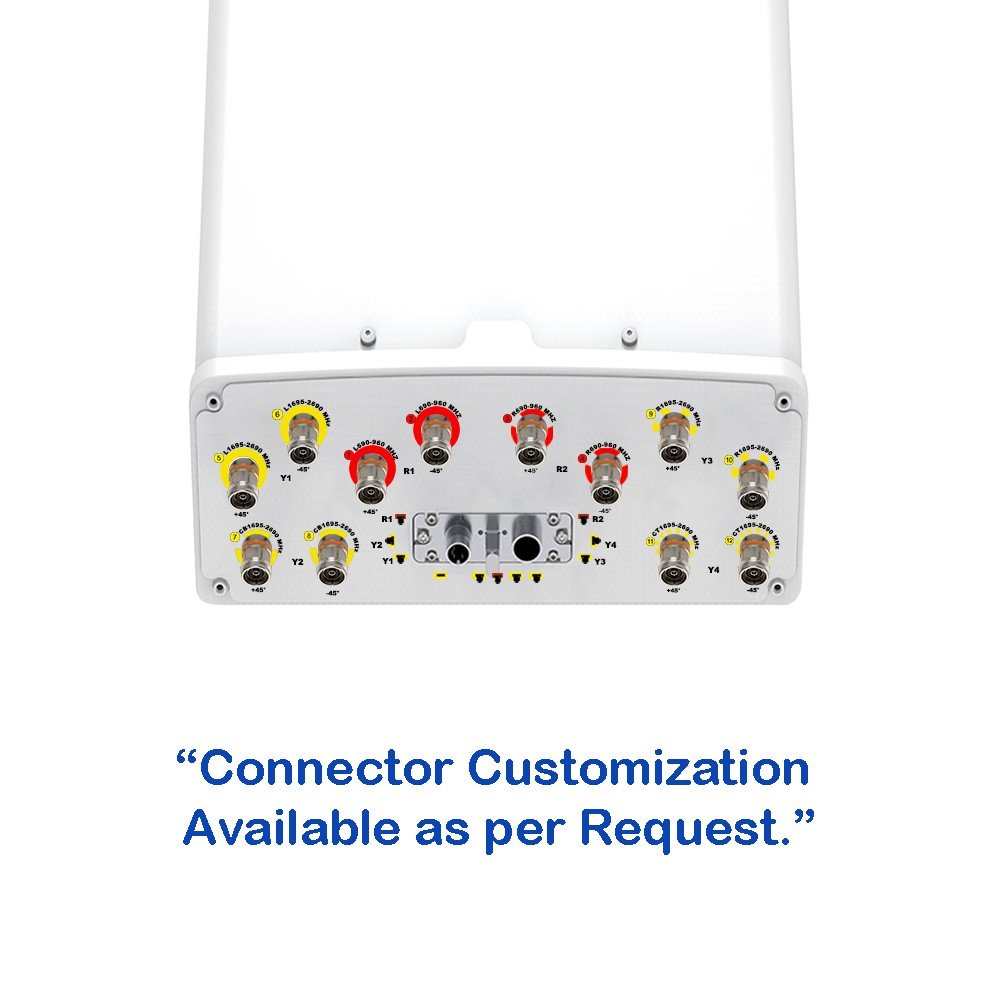

Connector Type (12x) 4.3/10 Female
Connector Position Bottom
Electrical Tilt Control Integrated RET
Radome Material Fiberglass

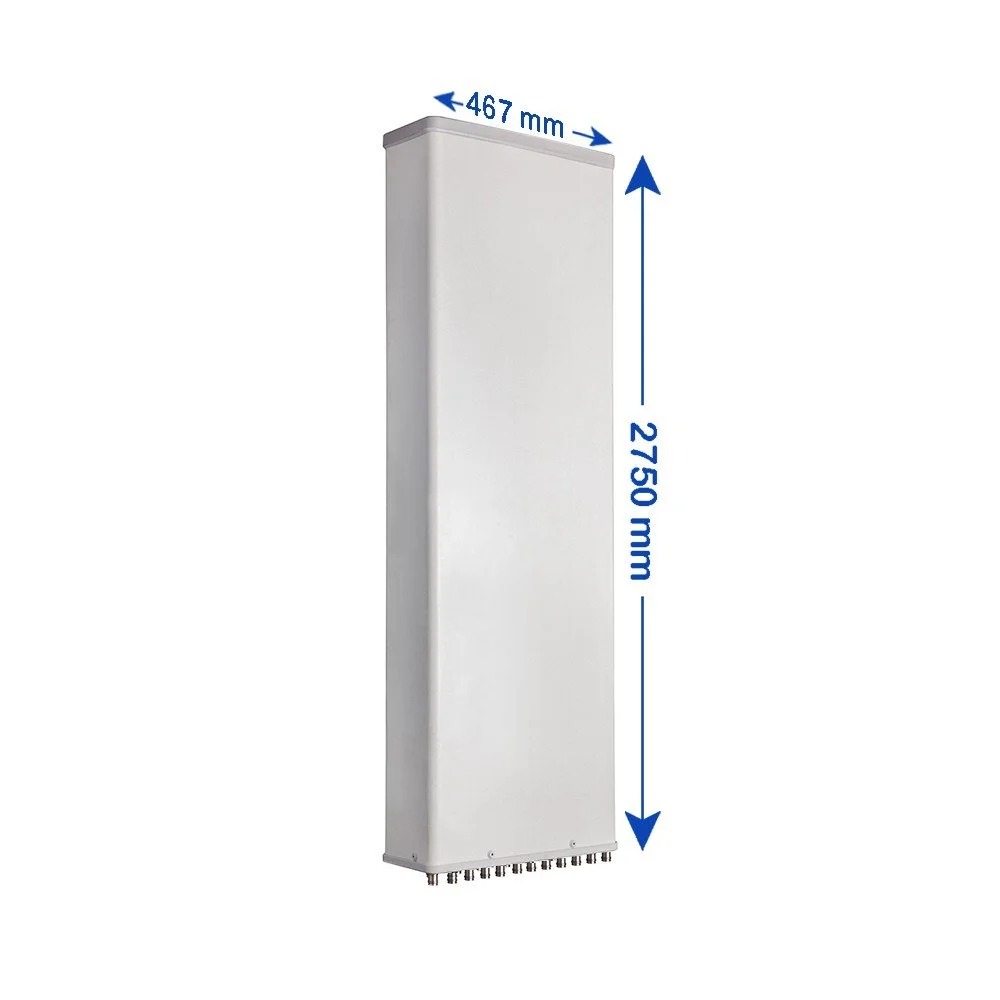

Antenna Dimensions (H × W × D) mm (in) 2750 × 467 × 167 (108.3 × 18.4 × 6.6)
Antenna Weight (Antenna Only) kg (lbs) 43 (94.8)
Antenna Weight (with Clamps) kg (lbs) 50.5 (111.3)
Maximum Wind Speed km/h (mph) 200 (124.3)
Wind Load – Frontal (at 150 km/h) N (lbf) 1185 (266.4)
Wind Load – Rear (at 150 km/h) N (lbf) 1325 (297.9)
Wind Load – Lateral (at 150 km/h) N (lbf) 525 (118.0)
Operating Temperature °C (°F) -40 to +60 (-40 to +140)
