RG-58 Flexible Coaxial Cable

₹0.00

RG-58 Flexible Coaxial Cable

Overview : RG-58 is a flexible, general-purpose coaxial cable widely used for RF signal transmission, test equipment, and low-power data links. Its construction provides a balance of flexibility, shielding, and electrical performance for applications from DC to several hundred megahertz and beyond, depending on quality and assembly.

RG-58 Flexible Coaxial Cable

Overview : RG-58 is a flexible, general-purpose coaxial cable widely used for RF signal transmission, test equipment, and low-power data links. Its construction provides a balance of flexibility, shielding, and electrical performance for applications from DC to several hundred megahertz and beyond, depending on quality and assembly.

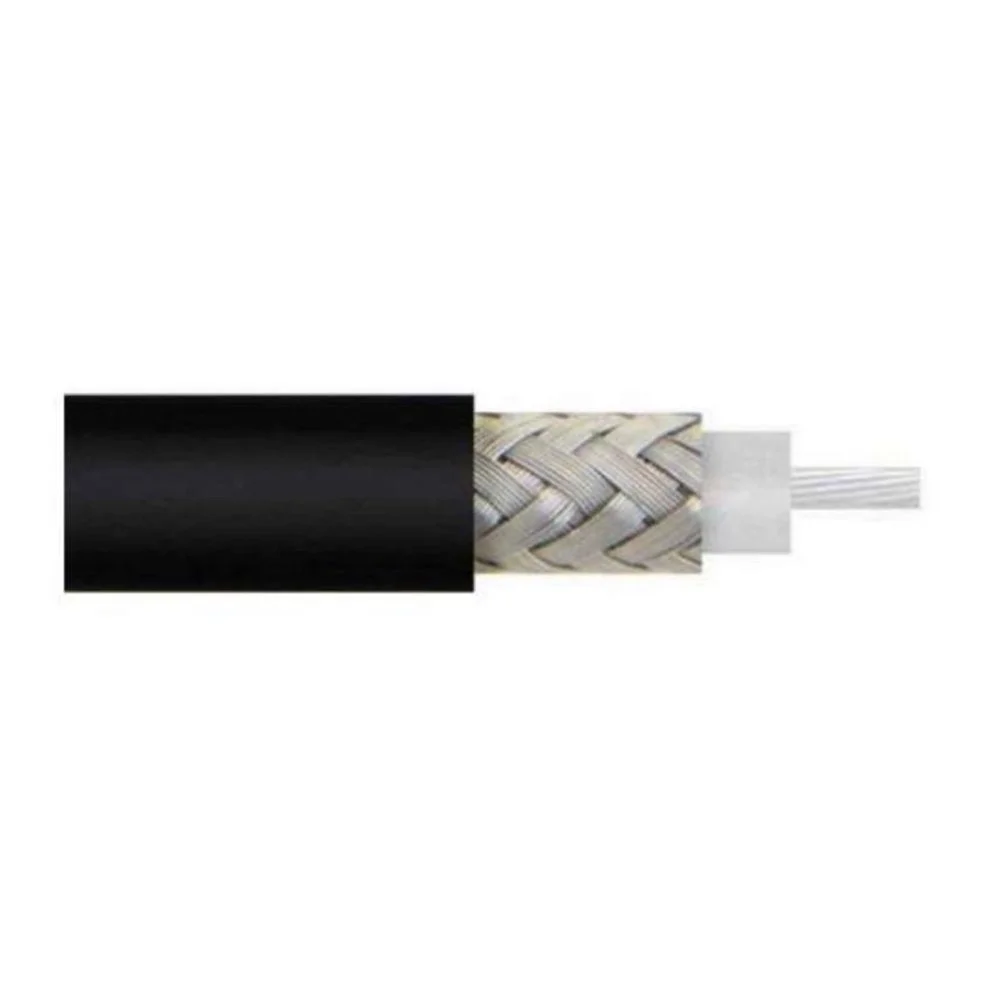

Construction Specification
Description Material Diameter (mm)
Inner Conductor Copper Tin, 19 Strands 0.91mm
Conductor Type Stranded
Dielectric PE 2.95mm
First Shield Tinned Copper Braid 3.51mm
Jacket PVC, Black 4.95mm
Electrical Specification
Description Details
Frequency Range DC–5GHz
Characteristics Impedance 50 Ohms
Velocity of Propagation 65.9%
Nominal Capacitance 101.05 pF/m
Operating Voltage 1900 Vrms
Weight 0.04 kg/m
Temperature Operating Range -40°C to +80°C
Attenuation & Power
Frequency Attenuation (dB/100m, 5–10% Increment Allowance)
0.01GHz 4.59
0.1GHz 16.08
1GHz 65.62
5GHz 196.85
