RF Coaxial Cable RG-213 50 Ω, NM to BNC-M

Overview :

  • Type: RG-213 coaxial cable

  • Impedance: 50 ohms

  • Length: Specify (standard cuts available; provide required length when ordering)

  • Connectors: NM (N Male) to BNC-M (BNC Male)

  • Jacket: UV- and weather-resistant polyethylene (PE) or PVC options available

  • Center conductor: Solid copper or copper-clad steel (specify preference)

  • Shielding: Double shield — aluminum foil + tinned copper braid for high shielding effectiveness

  • Temperature range: -40°C to +85°C (typical, confirm for specific jacket choice)

Key Features :

  • Low insertion loss suitable for VHF/UHF and many microwave applications

  • Rugged construction designed for outdoor and indoor installations

  • Stable 50 Ω impedance for reliable RF performance and minimal VSWR

  • High-quality

RF Coaxial Cable RG-213 50 Ω, NM to BNC-M

Overview :

  • Type: RG-213 coaxial cable

  • Impedance: 50 ohms

  • Length: Specify (standard cuts available; provide required length when ordering)

  • Connectors: NM (N Male) to BNC-M (BNC Male)

  • Jacket: UV- and weather-resistant polyethylene (PE) or PVC options available

  • Center conductor: Solid copper or copper-clad steel (specify preference)

  • Shielding: Double shield — aluminum foil + tinned copper braid for high shielding effectiveness

  • Temperature range: -40°C to +85°C (typical, confirm for specific jacket choice)

Key Features :

  • Low insertion loss suitable for VHF/UHF and many microwave applications

  • Rugged construction designed for outdoor and indoor installations

  • Stable 50 Ω impedance for reliable RF performance and minimal VSWR

  • High-quality

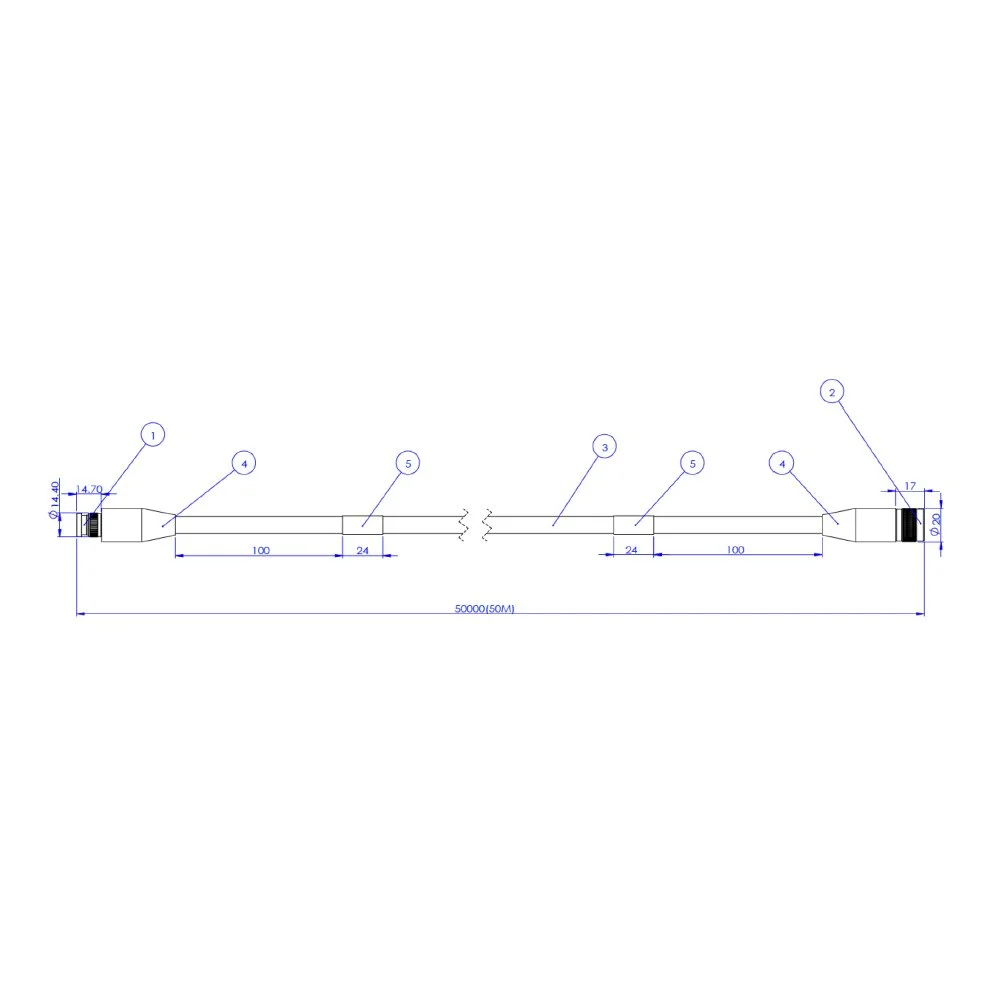

Component reference table listing BNC and N connectors, cables, and labels
REF DESCRIPTION QTY/Length
1 BNC Male Connector 1
2 N Male Connector 1
3 RG-213 COAX CABLE 50M
4 Black Heat Shrink Sleeves 2
5 Thermal Transfer Print Labels "MTTNM-213-BNCM-50M" 2

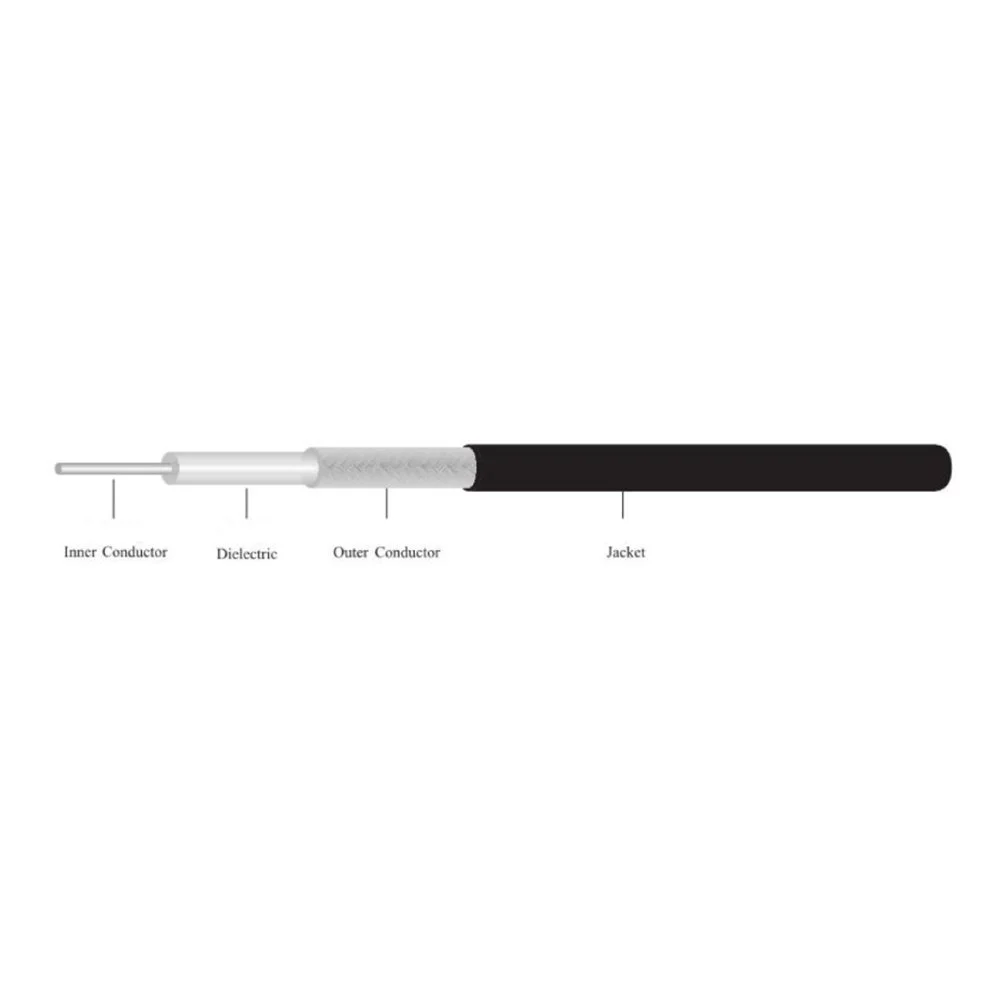

Construction Specification
Item Material Diameter (mm)
Inner Conductor Bare Copper Wire 7/0.75
Dielectric Solid PE 7.24±0.15 mm
Outer Conductor Copper Wire Braiding 7.88±0.15 mm
Jacket PVC Black 10.28±0.30 mm
Electrical characteristics of the cable including capacitance, impedance, propagation, delay, voltage, shielding, and return loss.
Electrical Characteristics
Items Data
Capacitance [pF/m] 101.05 pF/m
Impedance [ohm] 50 Ohm
Velocity of Propagation [%] 66 %
Time Delay [ns/m] 5.05 ns/m
Maximum Operating Voltage [Vrms] 3700
Shielding Effect [dB] >60
Return Loss (30~3000MHz) ≥15 dB
Mechanical and Environmental Characteristics
Table showing mechanical and environmental specifications including bending radius, RoHS, temperature, and weight.
Items Data
Minimum Bending Radius Static [mm] 40 mm
RoHS OK
Operating Temperature [°C] -40°C to + 85°C
Weight [kg/km] 148.5 (REF.)
Attenuation @ 20°C and Sea Level
Table showing signal attenuation in dB/m at various frequencies in MHz at 20 degrees Celsius and sea level.
Frequency [MHz] Attenuation [dB/m]
0.3 0.15
0.6 0.22
1.2 0.35
1.8 0.45
2.4 0.55
3 0.64
