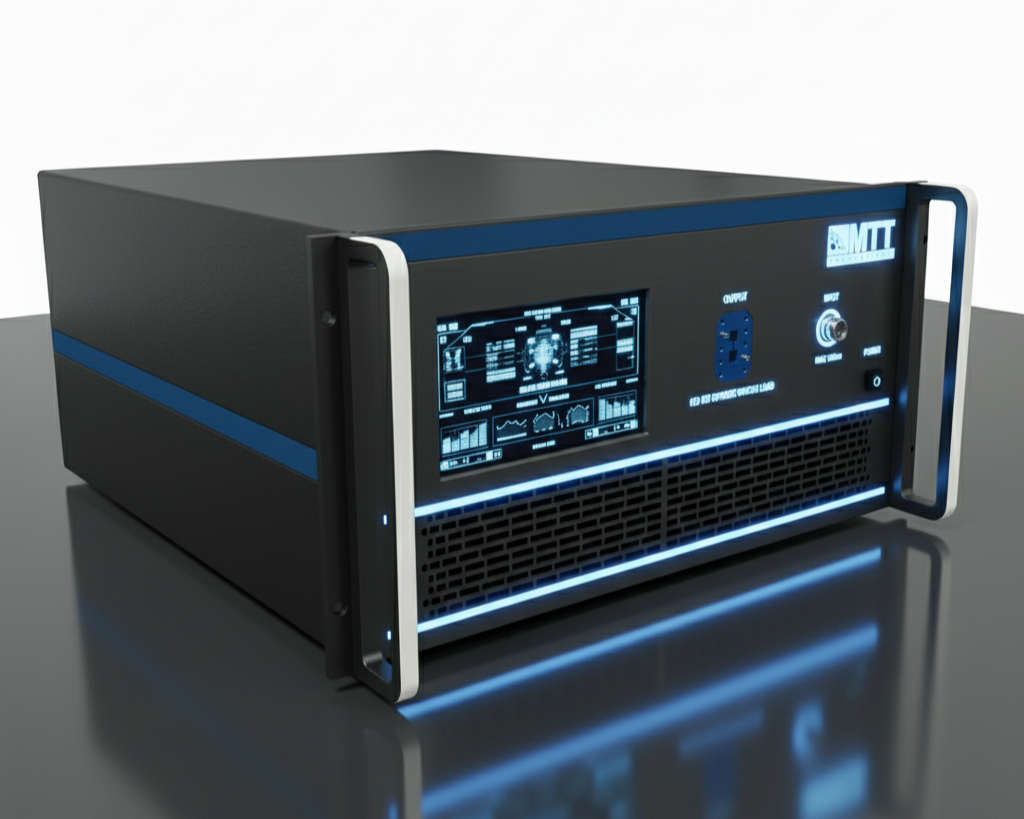

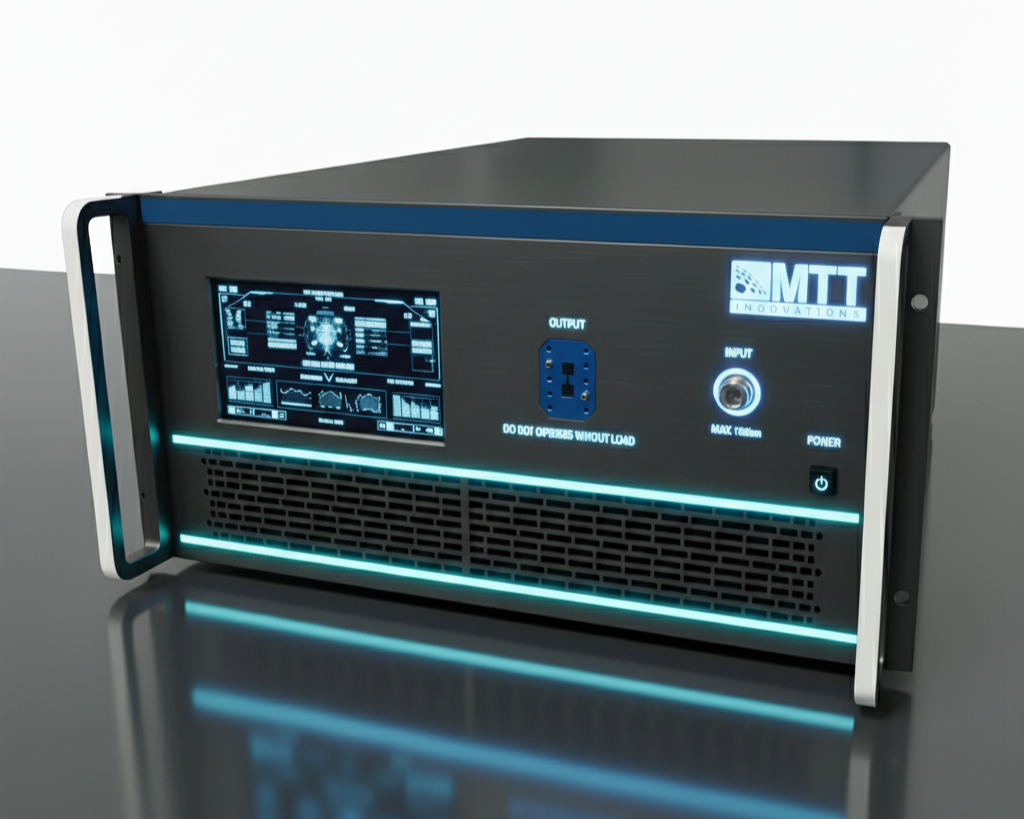

The 400~2700MHz 150W Band Power Amplifier delivers exceptional broadband amplification across a wide frequency range, designed to meet the demanding requirements of modern wireless communication systems. Engineered for superior linearity and high efficiency, this amplifier supports frequencies from 400 MHz up to 2700 MHz, making it ideal for applications spanning from cellular base stations, public safety radios, to advanced 4G/5G infrastructure.
Key Features:
Wide Frequency Coverage: Operates seamlessly across 400 MHz to 2700 MHz, covering multiple communication bands.
High Output Power: Provides a robust 150W output power, ensuring reliable signal strength over extended distances.
High Linearity: Maintains signal integrity and minimizes distortion, crucial for modern digital modulation schemes.
Efficient Thermal Management: Advanced design ensures optimal heat dissipation for sustained high-power operation.
Compact and Robust Design: Combines high performance with a durable form factor suitable for harsh environmental conditions.
Applications:
Cellular networks (2G, 3G, 4G, and 5G)
Public safety and emergency communications
Wireless broadband infrastructure
Military and aerospace RF systems
This power amplifier exemplifies cutting-edge innovation in RF amplification technology, delivering high power across a versatile frequency range with exceptional reliability and efficiency. It is a vital component for expanding network coverage, enhancing signal quality, and supporting the growing demand for wireless connectivity.
The 400~2700MHz 150W Band Power Amplifier delivers exceptional broadband amplification across a wide frequency range, designed to meet the demanding requirements of modern wireless communication systems. Engineered for superior linearity and high efficiency, this amplifier supports frequencies from 400 MHz up to 2700 MHz, making it ideal for applications spanning from cellular base stations, public safety radios, to advanced 4G/5G infrastructure.
Key Features:
Wide Frequency Coverage: Operates seamlessly across 400 MHz to 2700 MHz, covering multiple communication bands.
High Output Power: Provides a robust 150W output power, ensuring reliable signal strength over extended distances.
High Linearity: Maintains signal integrity and minimizes distortion, crucial for modern digital modulation schemes.
Efficient Thermal Management: Advanced design ensures optimal heat dissipation for sustained high-power operation.
Compact and Robust Design: Combines high performance with a durable form factor suitable for harsh environmental conditions.
Applications:
Cellular networks (2G, 3G, 4G, and 5G)
Public safety and emergency communications
Wireless broadband infrastructure
Military and aerospace RF systems
This power amplifier exemplifies cutting-edge innovation in RF amplification technology, delivering high power across a versatile frequency range with exceptional reliability and efficiency. It is a vital component for expanding network coverage, enhancing signal quality, and supporting the growing demand for wireless connectivity.
| Parameter | Specifications | Remark |
|---|---|---|
| Frequency | 400~2700MHz | Continuous Wave |
| Output Power | ≥52dBm | Customizable for Other Power Levels |
| Scattered | ≤-60dBc | |
| Second Harmonic | ≤-12dBc | |
| Third Harmonic | ≤-10dBc | |
| Input VSWR | ≤1.5 | |
| Output VSWR | ≤2 | |
| Power Supply | +28V | |
| Total Power Consumption | ≤500W | |
| Size | 188mm*138mm*28mm |
