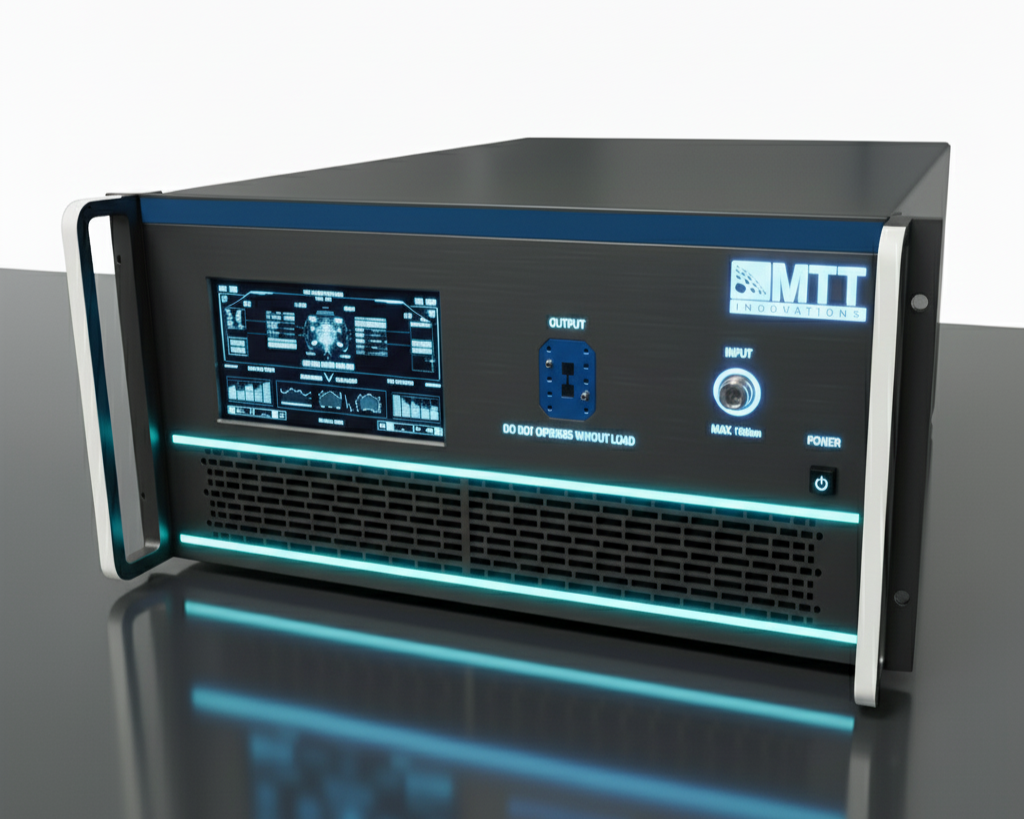

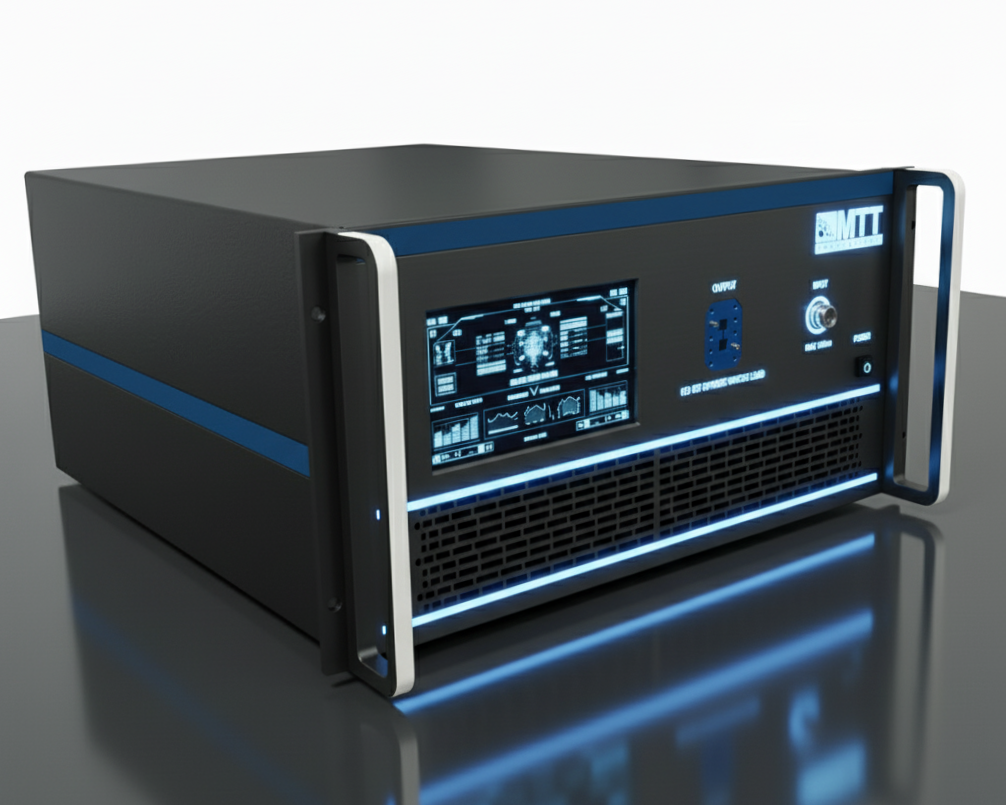

Band Power Amplifier (1 - 6 GHz, 100W)
Introducing a groundbreaking solution for high-frequency signal amplification, our Band Power Amplifier operates seamlessly across a broad spectrum from 1 GHz to 6 GHz, delivering a robust output power of 100 watts. Engineered for maximum efficiency and reliability, this amplifier is ideal for applications requiring high linearity and superior gain performance in radar, communication systems, electronic warfare, and test instrumentation.
Key Features:
Wide Frequency Range: Covers 1 to 6 GHz, supporting versatile high-frequency applications without the need for multiple amplifiers.
High Output Power: Consistent 100W power output ensures strong signal transmission over extended distances.
Excellent Linearity: Minimizes intermodulation distortion, making it optimal for complex modulation schemes.
High Efficiency: Advanced design reduces power consumption and thermal footprint for improved system reliability.
Robust Construction: Durable components and thermal management systems designed for continuous operation in demanding environments.
Compact Form Factor: Streamlined design facilitating integration into existing systems and platforms.
This amplifier represents the next generation in RF amplification technology, combining broad bandwidth and high power to meet the evolving demands of modern RF systems. Whether enhancing communication links or powering sophisticated radar arrays, it sets a new standard for performance and innovation.
Band Power Amplifier (1 - 6 GHz, 100W)
Introducing a groundbreaking solution for high-frequency signal amplification, our Band Power Amplifier operates seamlessly across a broad spectrum from 1 GHz to 6 GHz, delivering a robust output power of 100 watts. Engineered for maximum efficiency and reliability, this amplifier is ideal for applications requiring high linearity and superior gain performance in radar, communication systems, electronic warfare, and test instrumentation.
Key Features:
Wide Frequency Range: Covers 1 to 6 GHz, supporting versatile high-frequency applications without the need for multiple amplifiers.
High Output Power: Consistent 100W power output ensures strong signal transmission over extended distances.
Excellent Linearity: Minimizes intermodulation distortion, making it optimal for complex modulation schemes.
High Efficiency: Advanced design reduces power consumption and thermal footprint for improved system reliability.
Robust Construction: Durable components and thermal management systems designed for continuous operation in demanding environments.
Compact Form Factor: Streamlined design facilitating integration into existing systems and platforms.
This amplifier represents the next generation in RF amplification technology, combining broad bandwidth and high power to meet the evolving demands of modern RF systems. Whether enhancing communication links or powering sophisticated radar arrays, it sets a new standard for performance and innovation.
| Parameter | Specifications | Remark |
|---|---|---|
| Frequency | 1~6GHz | Continuous Wave |
| Input Power | 0~5dBm | |
| Saturated Output Power | 100W | With design capability exceeding 200W, supporting customization |
| Power Gain | ≥45dB | |
| Input VSWR | ≤1.5：1 | |
| Output VSWR | ≤2：1 | |
| Second Harmonic | ≤-60dBc | |
| Power Consumption | ≤500W | |
| Power Supply Requirements | +28V/18A |
