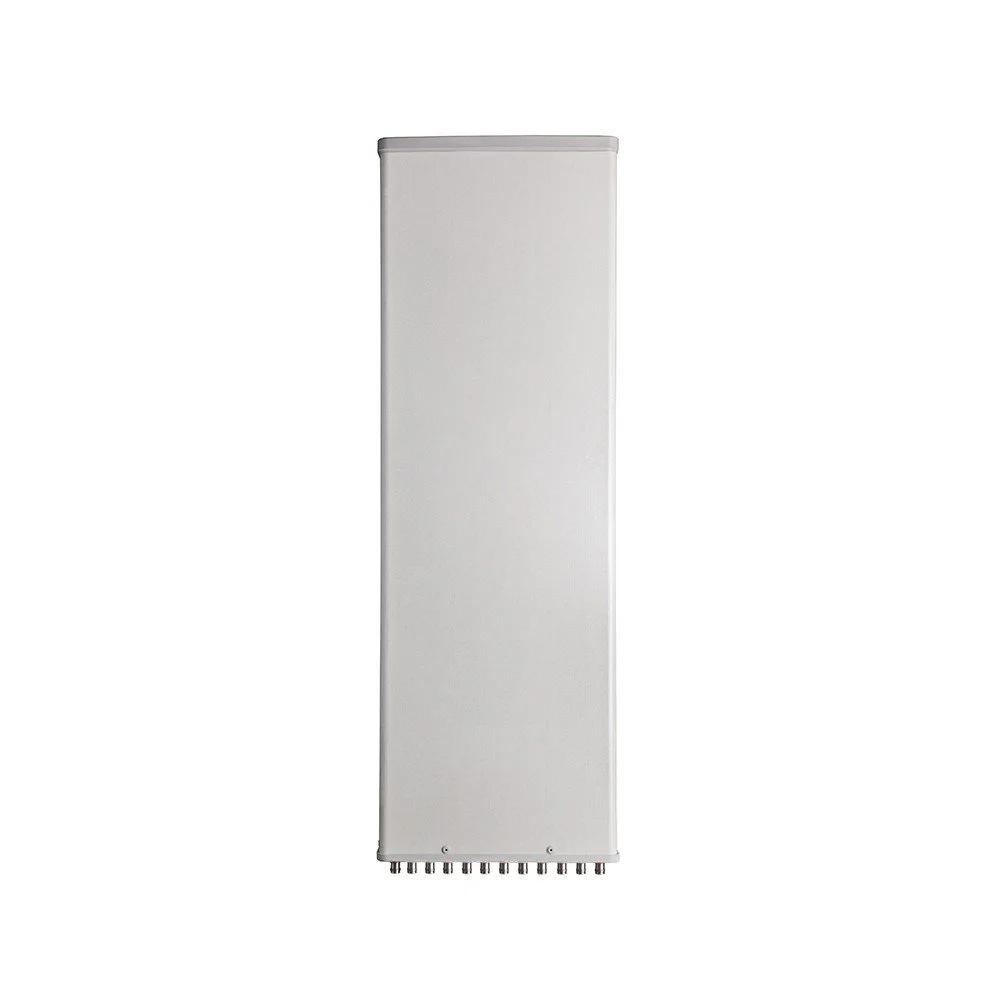

12-Port Panel Sector Antenna (690–2690 MHz)

12-port panel sector antenna engineered for high-capacity cellular deployments across 690–2690 MHz. Optimized for modern multi-band macro and small cell networks, this antenna delivers consistent gain, tight pattern control, and low inter-port coupling to support MIMO, CA (carrier aggregation), and multi-operator installations.

Key Features :

Frequency range: 690–2690 MHz covering LTE/5G sub-6 bands and key public safety bands where applicable.
12 ports: Multiple independent ports for flexible MIMO configurations and multi-operator sharing. Supports up to 8x8 MIMO combinations when aggregated with neighboring sectors or remote units.
High gain: Frequency-dependent peak gain optimized for sector coverage and capacity; designed to maximize link margin in urban, suburban, and rural environments.
Narrow beam azimuth control: Standard sector beamwidth (e.g., 65° or configurable options) for dense cell planning and interference mitigation.
Vertical beam shaping: Tight downtilt control for improved cell edge performance and reduced inter-site interference. Mechanical downtilt and electrical tilt options available depending on variant.
Low mutual coupling: Isolation between ports maintained to support high-order MIMO and multi-operator coexistence with minimal degradation.
Wide dynamic power handling: Robust input power thresholds to handle modern base station transmit levels and aggregated carriers.
Weatherproof ruggedization: IP65/IP67-rated radome options, UV-stable materials, and corrosion-resistant mounting hardware for long outdoor life.
Compact, low-windload form factor: Designed for rooftop, tower, wall, or pole mounting with minimal visual impact and reduced structural loading.
Easy integration: Standard RF connectors (N-type or 4.3-10 depending on variant), color-coded port labeling, and clear mechanical drawings for straightforward installation and commissioning.
Optional integrated hybrid cable or remote RF modules to reduce feeder loss in long runs.

12-Port Panel Sector Antenna (690–2690 MHz)

Key Features :

Frequency range: 690–2690 MHz covering LTE/5G sub-6 bands and key public safety bands where applicable.
12 ports: Multiple independent ports for flexible MIMO configurations and multi-operator sharing. Supports up to 8x8 MIMO combinations when aggregated with neighboring sectors or remote units.
High gain: Frequency-dependent peak gain optimized for sector coverage and capacity; designed to maximize link margin in urban, suburban, and rural environments.
Narrow beam azimuth control: Standard sector beamwidth (e.g., 65° or configurable options) for dense cell planning and interference mitigation.
Vertical beam shaping: Tight downtilt control for improved cell edge performance and reduced inter-site interference. Mechanical downtilt and electrical tilt options available depending on variant.
Low mutual coupling: Isolation between ports maintained to support high-order MIMO and multi-operator coexistence with minimal degradation.
Wide dynamic power handling: Robust input power thresholds to handle modern base station transmit levels and aggregated carriers.
Weatherproof ruggedization: IP65/IP67-rated radome options, UV-stable materials, and corrosion-resistant mounting hardware for long outdoor life.
Compact, low-windload form factor: Designed for rooftop, tower, wall, or pole mounting with minimal visual impact and reduced structural loading.
Easy integration: Standard RF connectors (N-type or 4.3-10 depending on variant), color-coded port labeling, and clear mechanical drawings for straightforward installation and commissioning.
Optional integrated hybrid cable or remote RF modules to reduce feeder loss in long runs.

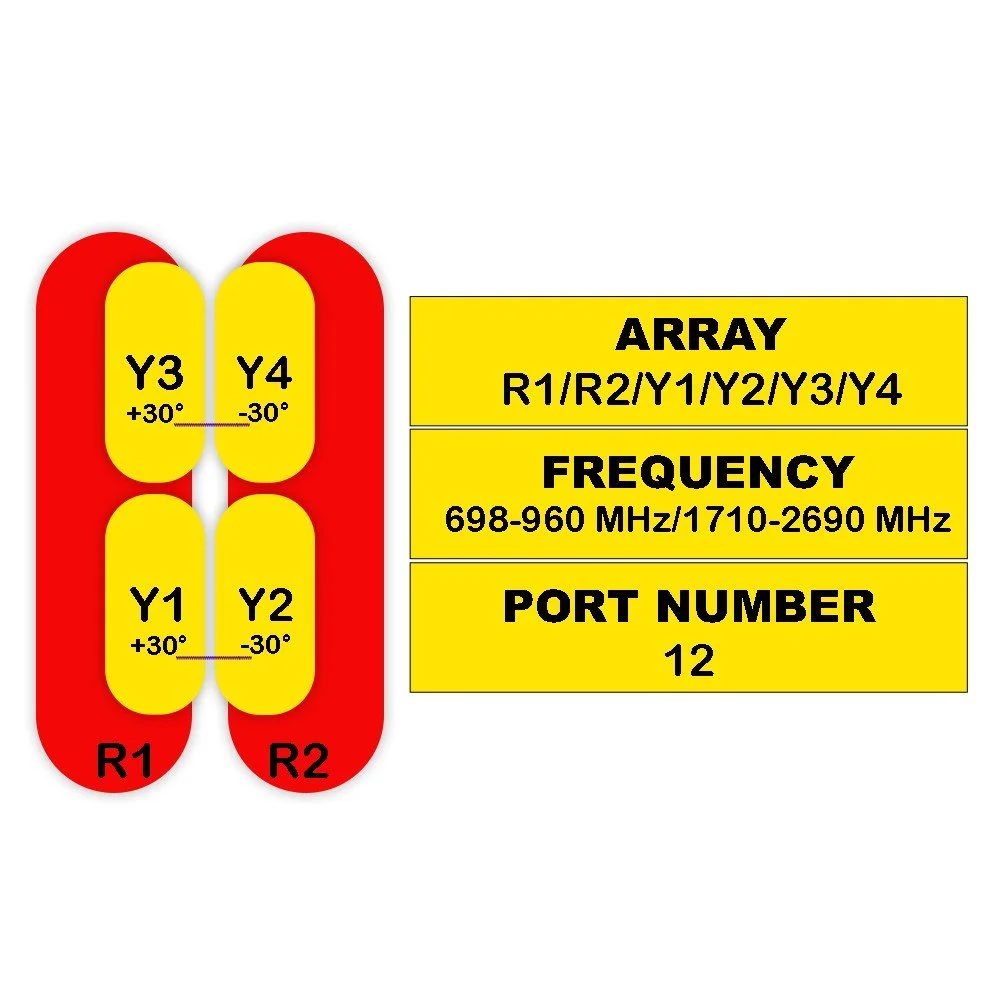

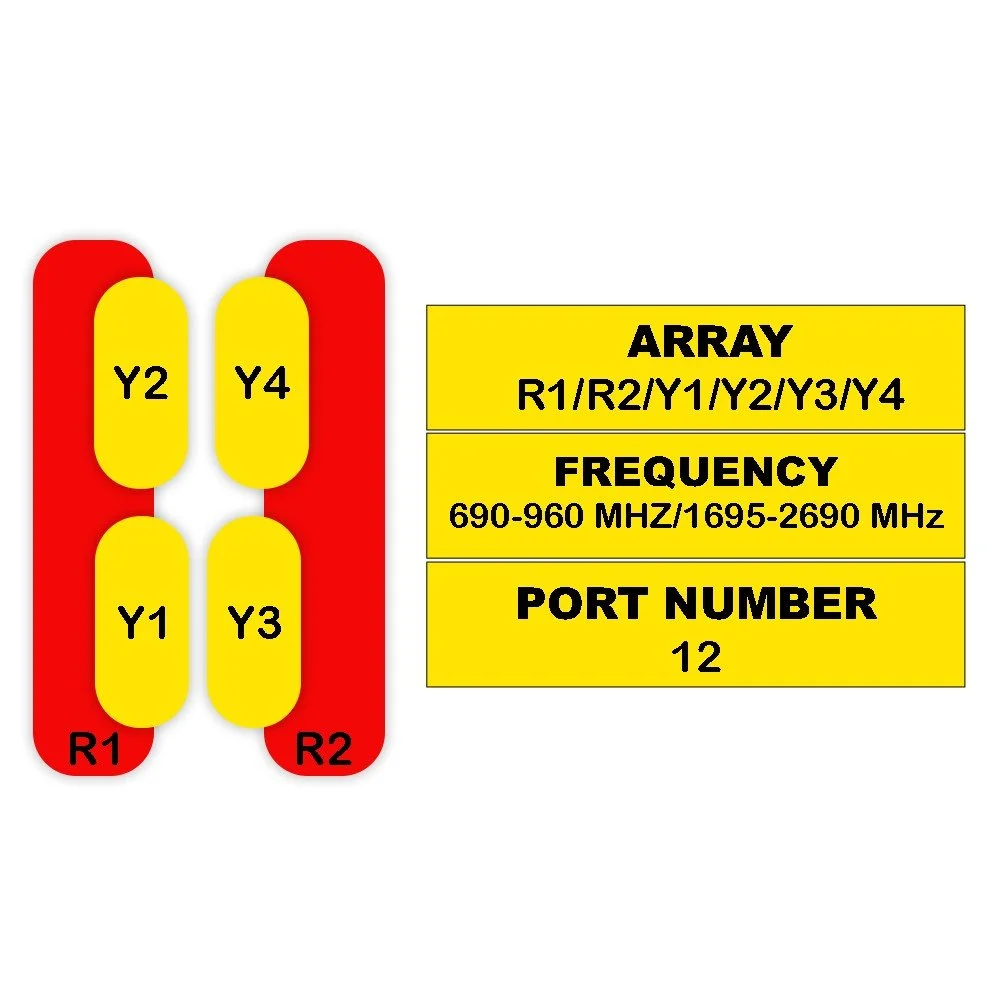

Electrical Specifications


Electrical Specifications




R1 / R2
Y1 / Y3
Y2 / Y4

Frequency Range
MHz
690-960
1695-2690
1695-2690




690-806
790-894
880-960

1695-1880
1850-1990
1920-2170
2300-2400
2490-2690

1695-1880
1850-1990
1920-2170
2300-2400
2490-2690



Polarization
---
±45°
±45°
±45°

Gain at Mid Tilt
dBi
14.8
15.1
15.4
15.5
15.8
16.1
16.4
16.4
15.2
15.5
15.8
16.1
16.1

Gain Over All Tilts
dBi
14.6 ±0.5
14.9 ±0.5
15.2 ±0.5
15.3 ±0.5
15.6 ±0.5
15.9 ±0.5
16.2 ±0.5
16.2 ±0.5
15.0 ±0.5
15.3 ±0.5
15.6 ±0.5
15.9 ±0.5
15.9 ±0.5

Horizontal Beamwidth
degree
68 ±4.4
65 ±3.6
62 ±4.6
67 ±6.5
65 ±6.5
62 ±6.5
58 ±6.2
58 ±6.2
67 ±6.5
65 ±6.5
62 ±6.5
58 ±6.2
58 ±6.2

Vertical Beamwidth
degree
11.5 ±1.1
10.4 ±0.9
9.3 ±0.9
9.5 ±0.6
8.8 ±0.6
8.2 ±0.6
7.2 ±0.5
6.5 ±0.4
9.5 ±0.6
8.8 ±0.6
8.2 ±0.6
7.2 ±0.5
6.5 ±0.4

Electrical Downtilt, Continuously Adjustable
degree
2–12
2–12
2–12

Tilt Accuracy
degree
<1<1<1
<1<1<1<1<1
<1<1<1<1<1

Upper Side Lobe (First Upper Lobe)
dB
>16>16>16
>15>15>16>16>16
>15>15>16>16>16

Suppression Peak to 20°
dB
>15>15>15
>14>14>15>15>15
>14>14>15>15>15

Front-To-Back Ratio ±30°
dB
>22>24>24
≥25≥25>25≥26≥26
≥25≥25>25≥26≥26

Cross Polar at Boresight
dB
>16>17>16
>16>16>17>17>17
>16>16>17>17>17

Discrimination Over Sector
dB
>8.0>7.5>6.5
>4.0>6.0>6.0>5.0>3.0
>4.0>6.0>6.0>5.0>3.0

Isolation Cross-Polar
dB
>26
>26
>26

Isolation Port-To-Port
dB
>26 (R1/R2), >28 (R1,R2/Y1,Y2,Y3,Y4)
>28
>28

Impedance
Ohm
50
50
50

VSWR
---
<1.5
<1.5
<1.5

Return Loss
dB
>14
>14
>14

PIM3 (2×43 dBm Carrier)
dBc
<-150
<-150
<-150

Lightning Protection
---
DC Ground
DC Ground
DC Ground

Maximum Average Input Power per Port (50°C)
Watts
250
200
200

Mechanical Specifications


  Mechanical specifications of antenna including dimensions, weight, wind load and operating temperature

      Parameter
      Unit
      Specification

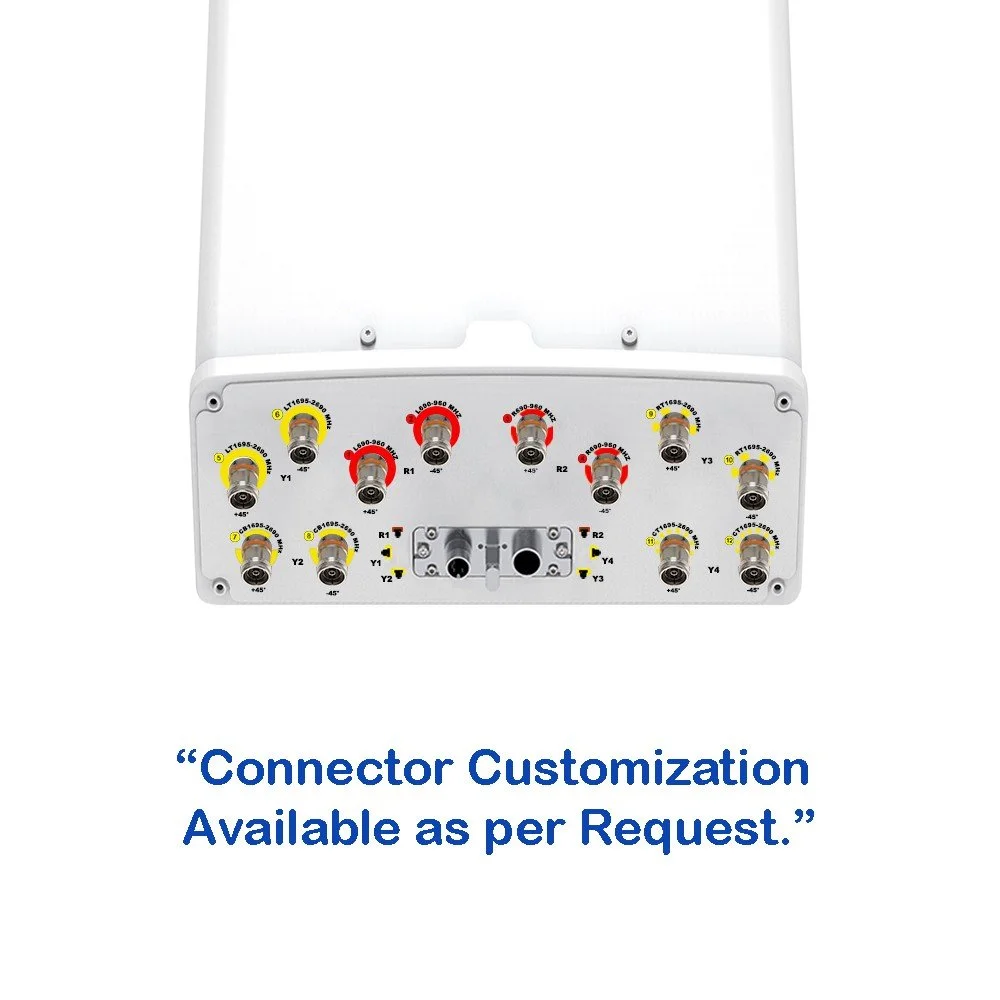

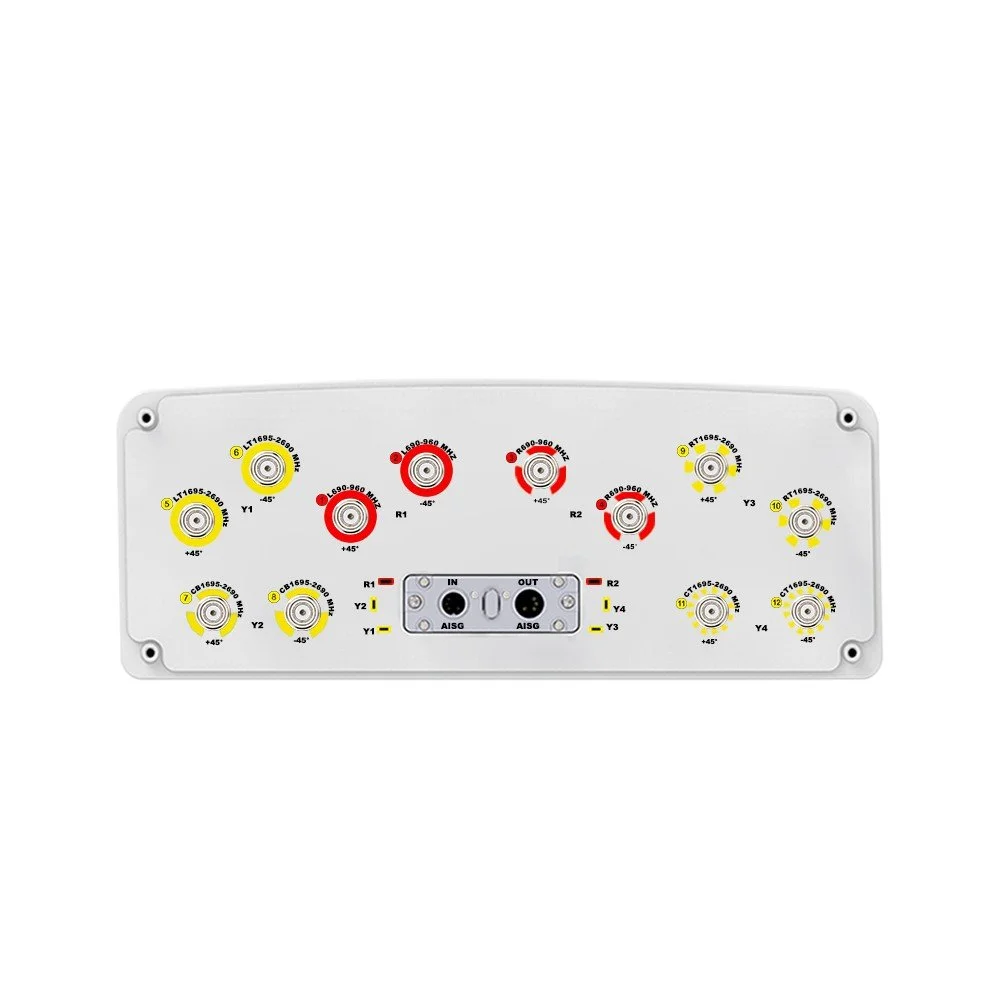

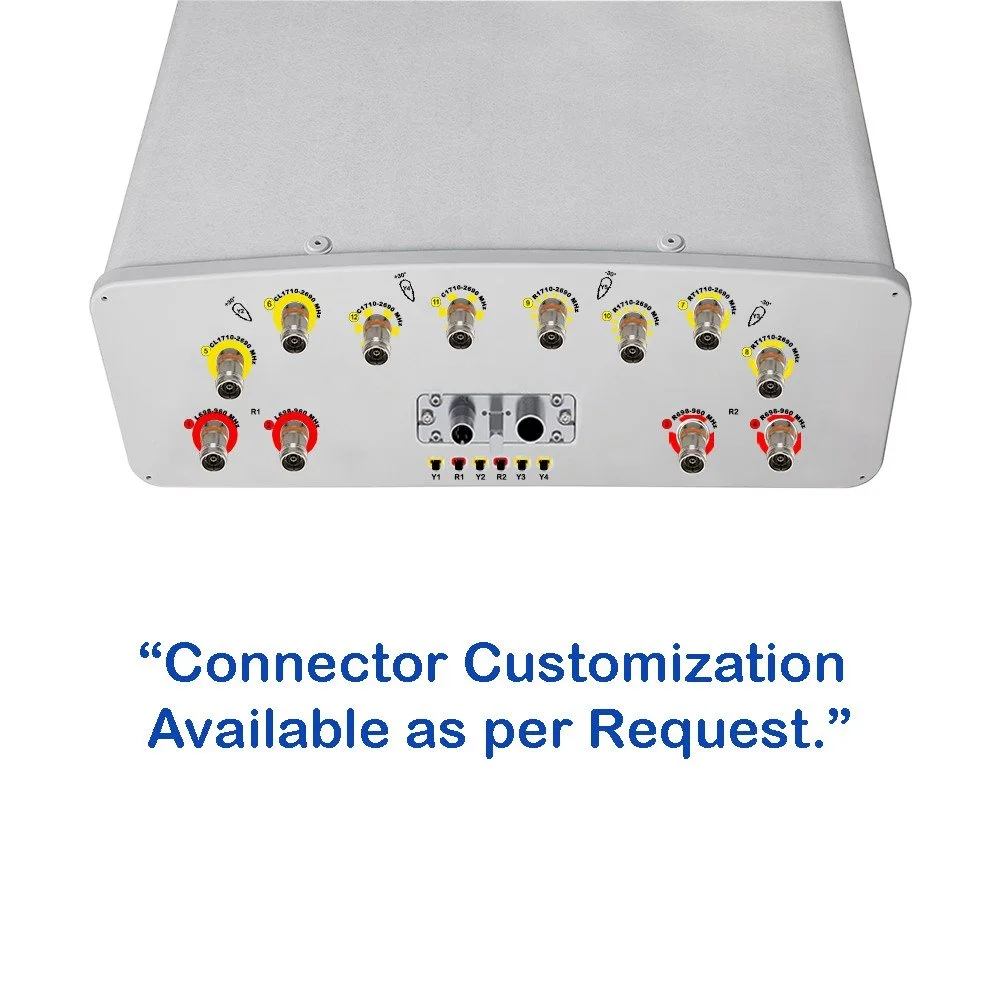

      Connector Type
      ---
      (12x) 4.3/10 Female


      Connector Position
      ---
      Bottom


      Electrical Tilt Control
      ---
      Integrated RET


      Radome Material
      ---
      Fiberglass

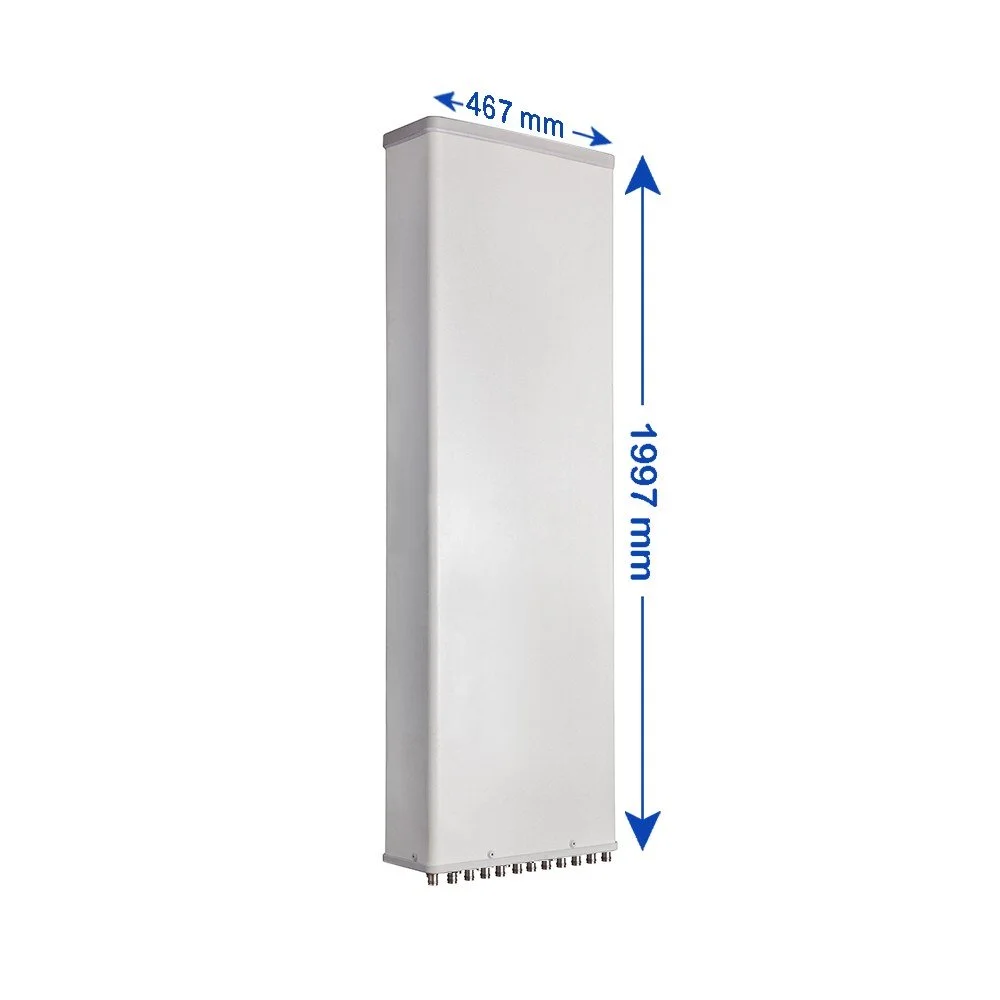

      Antenna Dimensions (H × W × D)
      mm (in)
      1997 × 467 × 167 (78.6 × 18.4 × 6.6)


      Antenna Weight
      Antenna Only
kg (lbs)
      30.5 (67.2)


      With Clamps
kg (lbs)
      36 (79.4)


      Maximum Wind Speed
      km/h (mph)
      200 (124.3)


      Wind Load at 150 km/h
      Frontal
N (lbf)
      860 (193.3)


      Rear
N (lbf)
      965 (216.9)


      Lateral
N (lbf)
      360 (80.9)


      Operating Temperature
      °C (°F)
      -40 to +60 (-40 to +140)
