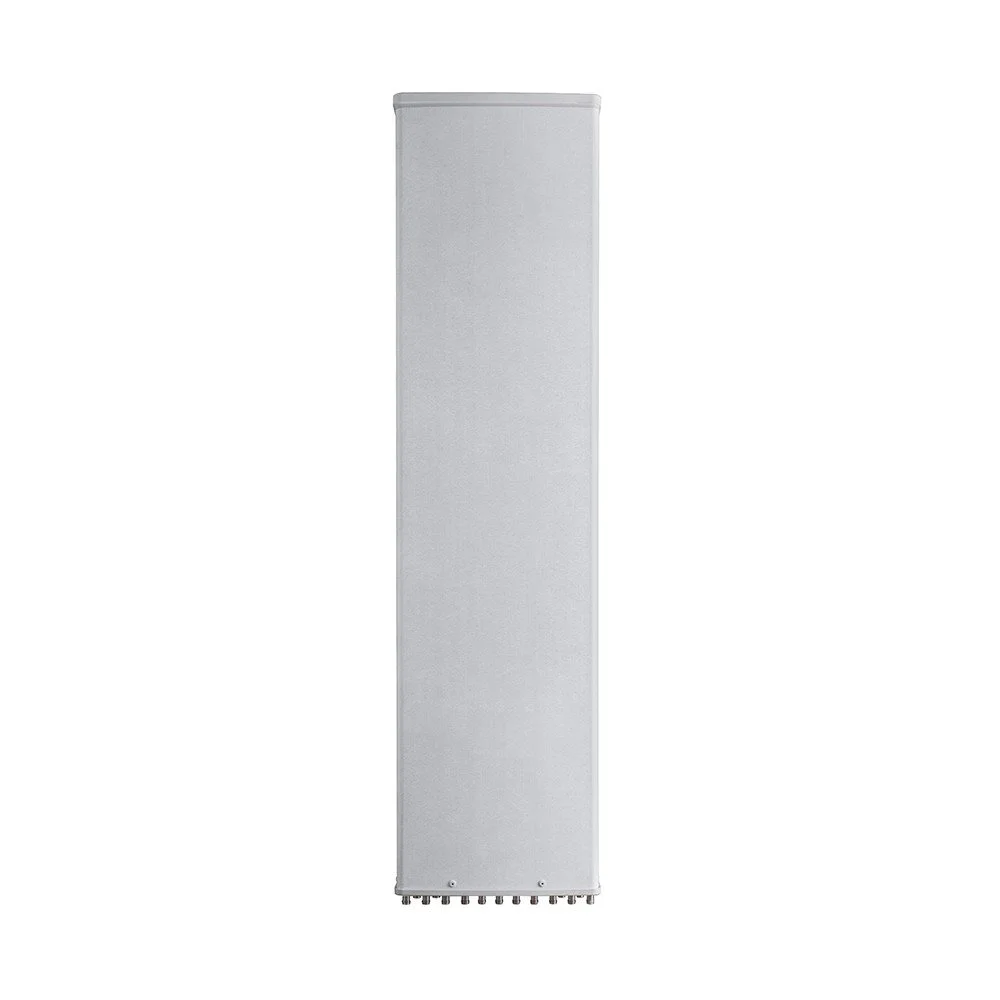

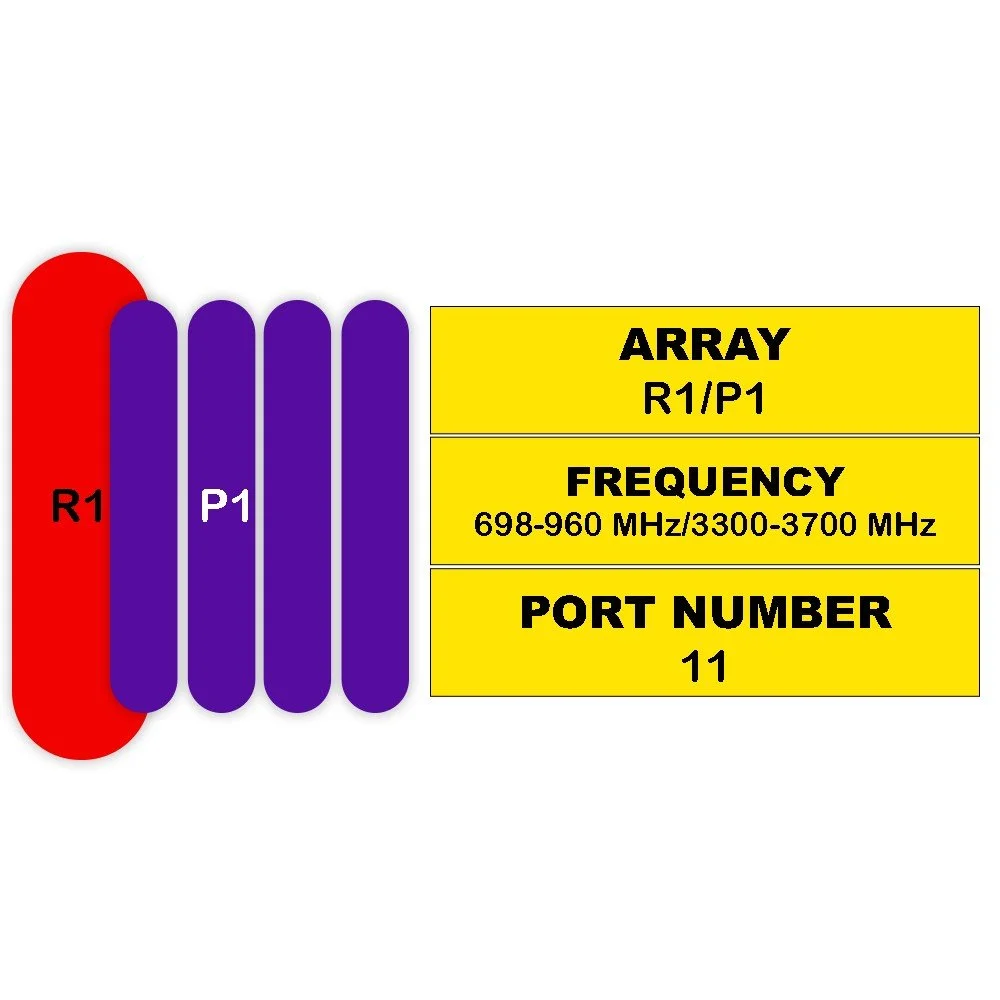

11-Port, TDD Hybrid Panel Antenna ( 698 - 3700 MHz )

₹0.00

11-Port TDD Hybrid Panel Antenna (698–3700 MHz)

Overview :‍ ‍

This 11-port TDD hybrid panel antenna delivers wideband performance across 698–3700 MHz with compact form and flexible deployment options. Engineered for modern wireless networks, it supports Time Division Duplex (TDD) systems and multi-band LTE/5G deployments, providing efficient sector coverage, high isolation between ports, and robust mechanical design for outdoor use.

Key Features :

  • Frequency range: 698–3700 MHz — single broadband unit covers low-, mid-, and upper-mid bands.

  • 11 ports: dedicated ports for multiple transmit/receive paths and multi-operator or multi-technology configurations.

  • TDD-optimized: phased array and feed network designed for TDD timing and channel reciprocity, improving beam stability and MIMO performance.

  • Hybrid design: combines wideband passive radiating elements with integrated filtering to minimize inter-port interference and undesired out-of-band responses.

  • High forward gain: delivers strong sector coverage with narrow beamwidth options for 65° or 90° sectors (model options).

  • Low VSWR: typical return loss better than 15 dB across the operating band.

  • High port-to-port isolation: optimized feed and shielding sustain isolation typically >25 dB between adjacent ports.

  • Dual-polarized elements: support ±45° linear polarization for improved MIMO diversity and capacity scaling.

  • Integrated mounting: adjustable tilt and azimuth brackets for precise alignment; compatible with standard pole and wall mounts.

  • Weatherproof enclosure: IP65/IP67 rated radome and corrosion-resistant hardware for long-term outdoor durability.

  • Lightning and surge protection options: integrated or add-on solutions available to meet site requirements.

11-Port TDD Hybrid Panel Antenna (698–3700 MHz)

Overview :‍ ‍

This 11-port TDD hybrid panel antenna delivers wideband performance across 698–3700 MHz with compact form and flexible deployment options. Engineered for modern wireless networks, it supports Time Division Duplex (TDD) systems and multi-band LTE/5G deployments, providing efficient sector coverage, high isolation between ports, and robust mechanical design for outdoor use.

Key Features :

  • Frequency range: 698–3700 MHz — single broadband unit covers low-, mid-, and upper-mid bands.

  • 11 ports: dedicated ports for multiple transmit/receive paths and multi-operator or multi-technology configurations.

  • TDD-optimized: phased array and feed network designed for TDD timing and channel reciprocity, improving beam stability and MIMO performance.

  • Hybrid design: combines wideband passive radiating elements with integrated filtering to minimize inter-port interference and undesired out-of-band responses.

  • High forward gain: delivers strong sector coverage with narrow beamwidth options for 65° or 90° sectors (model options).

  • Low VSWR: typical return loss better than 15 dB across the operating band.

  • High port-to-port isolation: optimized feed and shielding sustain isolation typically >25 dB between adjacent ports.

  • Dual-polarized elements: support ±45° linear polarization for improved MIMO diversity and capacity scaling.

  • Integrated mounting: adjustable tilt and azimuth brackets for precise alignment; compatible with standard pole and wall mounts.

  • Weatherproof enclosure: IP65/IP67 rated radome and corrosion-resistant hardware for long-term outdoor durability.

  • Lightning and surge protection options: integrated or add-on solutions available to meet site requirements.

Electrical Specifications
Parameter Unit 698–806 MHz 790–894 MHz 880–960 MHz
Frequency Range MHz 698–960
Polarization — ±45°
Gain (at Mid Tilt) dBi 14.8 15.4 15.8
Gain (Over All Tilts) dBi 14.7 ± 0.5 15.3 ± 0.5 15.7 ± 0.5
Horizontal Beamwidth degree 69 ± 5 66 ± 5 63 ± 5
Vertical Beamwidth degree 10.8 ± 1.0 9.8 ± 1.0 9.0 ± 0.9
Electrical Downtilt (Continuously Adjustable) degree 2–12
First Upper Side Lobe Suppression dB > 16 > 16 > 16
Front-To-Back Ratio (±30°) dB > 23 > 24 > 25
Isolation (Cross-Polar) dB > 25
Isolation (Interband) dB > 25
Impedance Ohm 50
VSWR — < 1.5
Return Loss dB > 14
Lightning Protection — DC Ground
Maximum Average Input Power per Port (at 50°C Ambient Temperature) Watts 250
TDD LTE Electrical Specifications
Parameter Sub Parameter Unit 3300-3600 MHz 3600-3700 MHz
Frequency Range MHz 3300-3700
Polarization --- ±45°
Electrical Downtilt (Continuously Adjustable) degree 2–12
Single Column Beam
Gain dBi 15.1 ± 1 15.5 ± 1
Horizontal Beamwidth degree 75 ± 15 70 ± 15
Vertical Beamwidth (3 dB) degree 6.6 ± 0.8 6.0 ± 0.6
Cross-Polar Discrimination (Boresight 0°) dB ≥ 15 ≥ 15
Cross-Polar Discrimination (Over Sector) dB ≥ 8 ≥ 8
First Upper Side Lobe Suppression dB ≥ 15 ≥ 15
Front-To-Back Ratio dB ≥ 23 ≥ 23
65° Broadcast Beam
Gain dB 16.5 17
Horizontal Beamwidth (10 dB) degree 115 108
First Upper Side Lobe Suppression dB ≥ 15 ≥ 15
Front-To-Back Ratio dB ≥ 25 ≥ 25
Service Beam
0° Direct Beam Gain dBi 20.5 21
0° Direct Beam Horizontal 3 dB Beamwidth degree 26 24
0° Direct Beam Cross-Polar Ratio dB ≥ 16 ≥ 17
0° Direct Beam Front-To-Back Ratio dB ≥ 27 ≥ 28
0° Direct Beam Horizontal Sidelobe dB 12 12
±30° Direction Beam Gain dBi 19 19.5
±30° Direction Beam Horizontal 3 dB Beamwidth degree 28 25
±30° Direction Beam Front-To-Back Ratio dB ≥ 24 ≥ 25
Soft Split Multi-Beam
Gain dBi 19.3 19.8
Horizontal Beamwidth (3 dB) degree 31 29
Front-To-Back Ratio dB ≥ 25 ≥ 25
Calibration & Electrical Parameters
Coupling Factor Between Calibration & Each Port dB -26 ± 2
Maximum Amplitude Tolerance (Calibration to Input Ports) dB ≤ 1.0
Maximum Phase Tolerance (Calibration to Input Ports) degree ≤ 9
Ports VSWR --- < 1.5
Average Power Capacity W 25
Co-Polar Isolation Between Ports dB ≥ 23
Inter-band Isolation dB ≥ 23
Impedance Ohms 50
Lightning Protection --- DC Ground
5G Electrical Specifications
Parameter Sub Parameter Unit 3300–3600 MHz 3600–3700 MHz
Frequency Range MHz 3300–3700
Single Column Beam
Gain dBi 15.1 ± 1 15.5 ± 1
Horizontal Beamwidth degree 75 ± 15 70 ± 15
Vertical Beamwidth (3 dB) degree 6.6 ± 0.8 6.0 ± 0.6
Cross-Polar Discrimination (Boresight 0°) dB ≥ 15 ≥ 15
Cross-Polar Discrimination (Over Sector) dB ≥ 8 ≥ 8
First Upper Side Lobe Suppression dB ≥ 15 ≥ 15
Broadcast Beam (±13°, ±43° Service Beam)
Gain dB 20.0 20.5
Horizontal Beamwidth (10 dB) degree 120 115
First Upper Side Lobe Suppression dB ≥ 15 ≥ 15
Front-To-Back Ratio dB ≥ 25 ≥ 25
Service Beam
0° Direct Beam Gain dBi 20.5 21
0° Direct Beam Horizontal 3 dB Beamwidth degree 26 24
0° Direct Beam Cross-Polar Ratio at Beam Peak dB ≥ 16 ≥ 17
0° Direct Beam Front-To-Back Ratio dB ≥ 27 ≥ 28
0° Direct Beam Horizontal Sidelobe dB 12 12
Mechanical Specifications
Parameter Sub Parameter Unit Specification

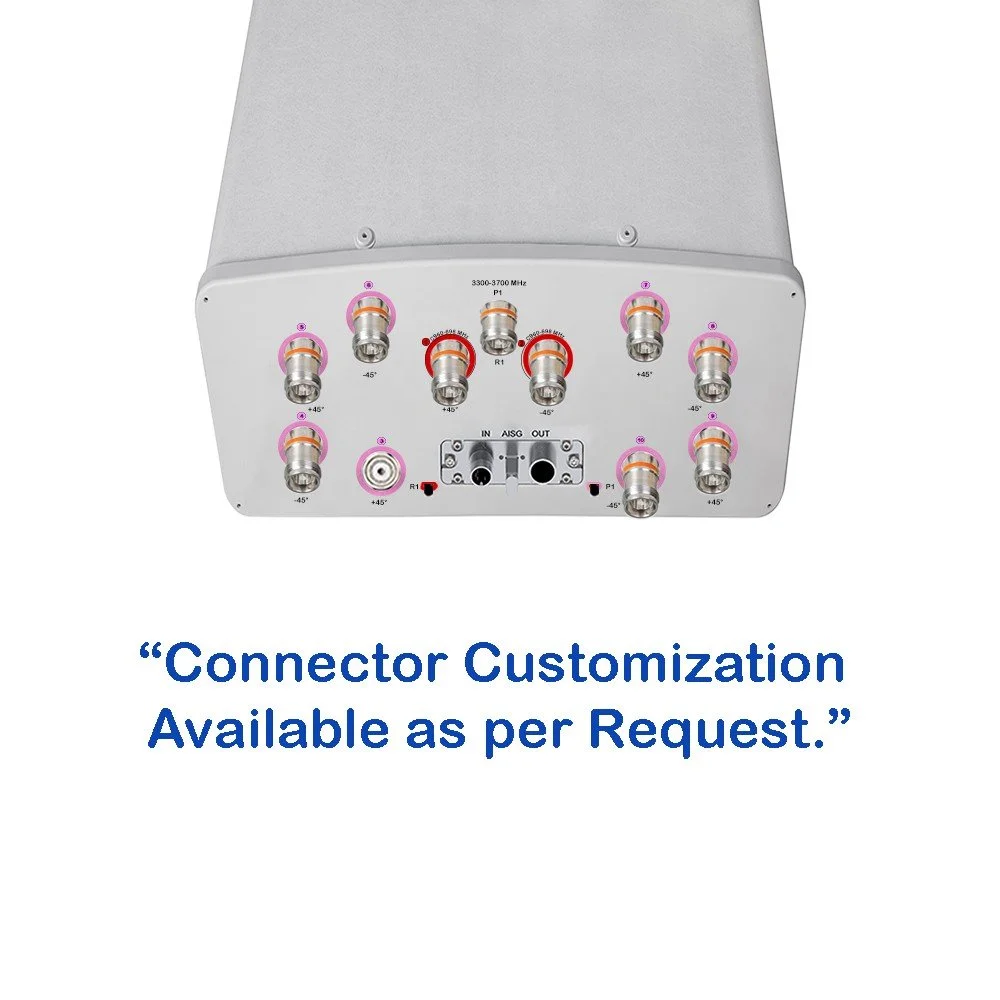

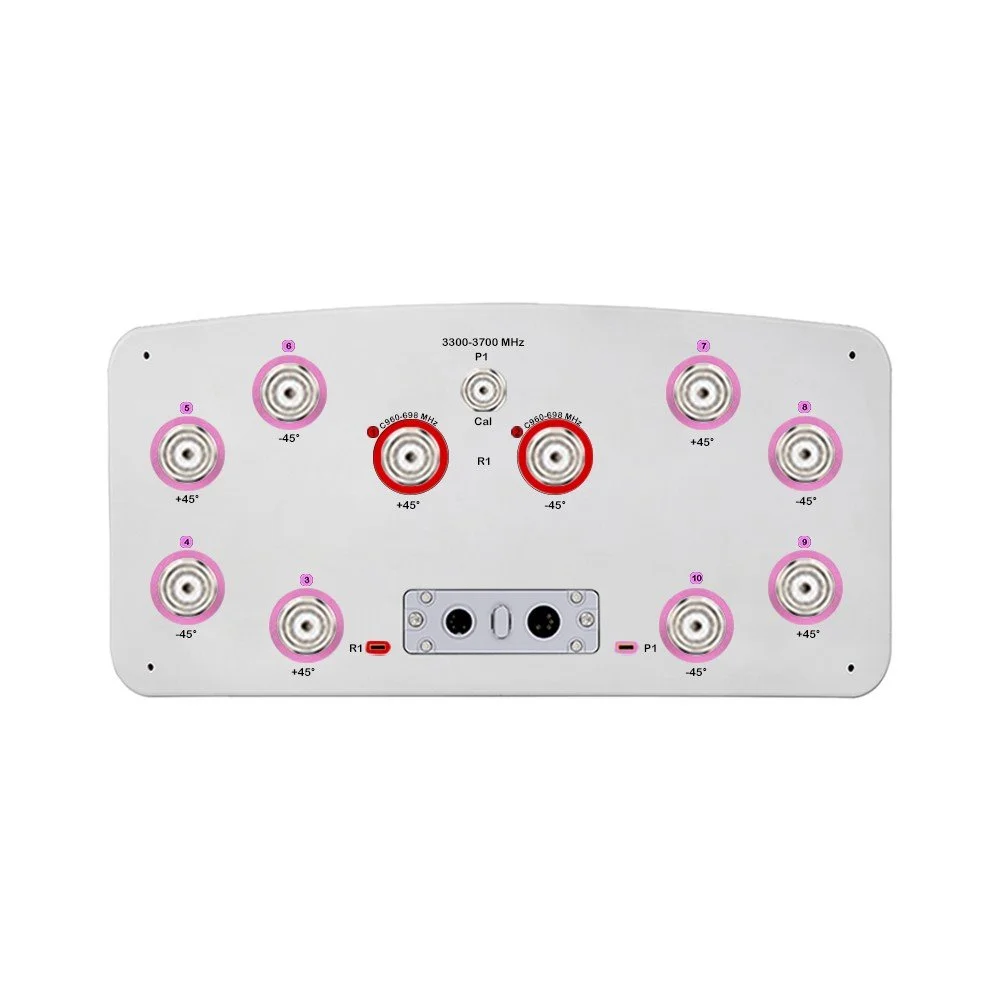

Connector Type --- (10x) 4.3/10 Female and (1x) 4.3/10 Female Calibration Port
Connector Position --- Bottom
Electrical Tilt Control --- FDD: Integrated RET, Each Band Individually Adjustable
TDD: Integrated RET, Single Internal RET Control for All Four Antenna Arrays
Radome Material --- UPVC

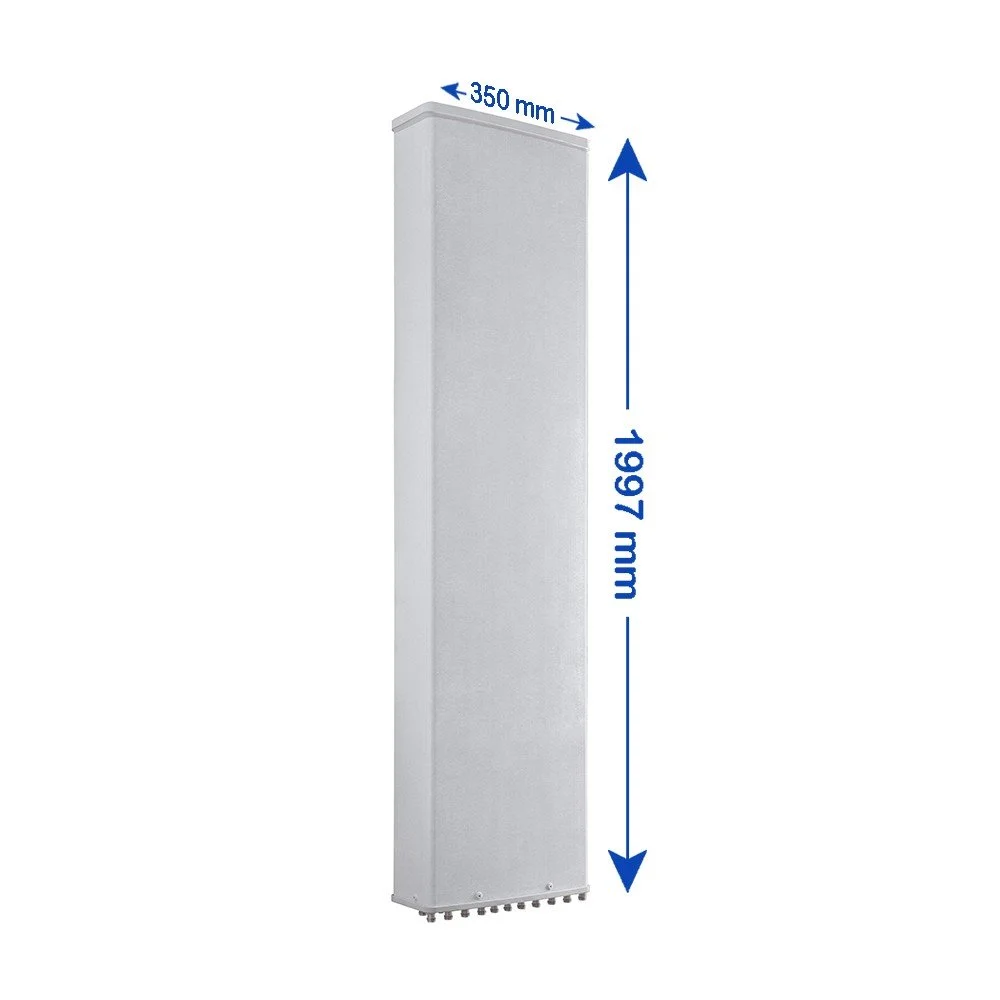

Antenna Dimensions (H × W × D) mm (in) 1997 × 350 × 178 (78.6 × 13.8 × 7.0)
Antenna Weight
Antenna Only kg (lbs) 24 (52.9)
With Clamps kg (lbs) 28 (61.7)
Maximum Wind Speed km/h (mph) 200 (124.3)
Wind Load at 150 km/h
Frontal N (lbf) 645 (145.0)
Rear N (lbf) 720 (161.9)
Lateral N (lbf) 435 (97.8)
Operating Temperature °C (°F) -40 to +60 (-40 to +140)
