12-Port Hybrid Split Beam Panel Sector Antenna (698–2690 MHz)

Overview :

A high-performance, multi-port sector antenna engineered for modern macro and small-cell networks. The hybrid split-beam architecture combines broadband coverage with precise beam shaping to maximize sector throughput, improve interference rejection, and support advanced MIMO and multi-operator deployments across 698–2690 MHz.

Key Features :

  • Frequency range: 698–2690 MHz (full support for low, mid, and upper-LTE bands)

  • 12 antenna ports: configurable for multiple MIMO layers, multi-band operation, and operator sharing

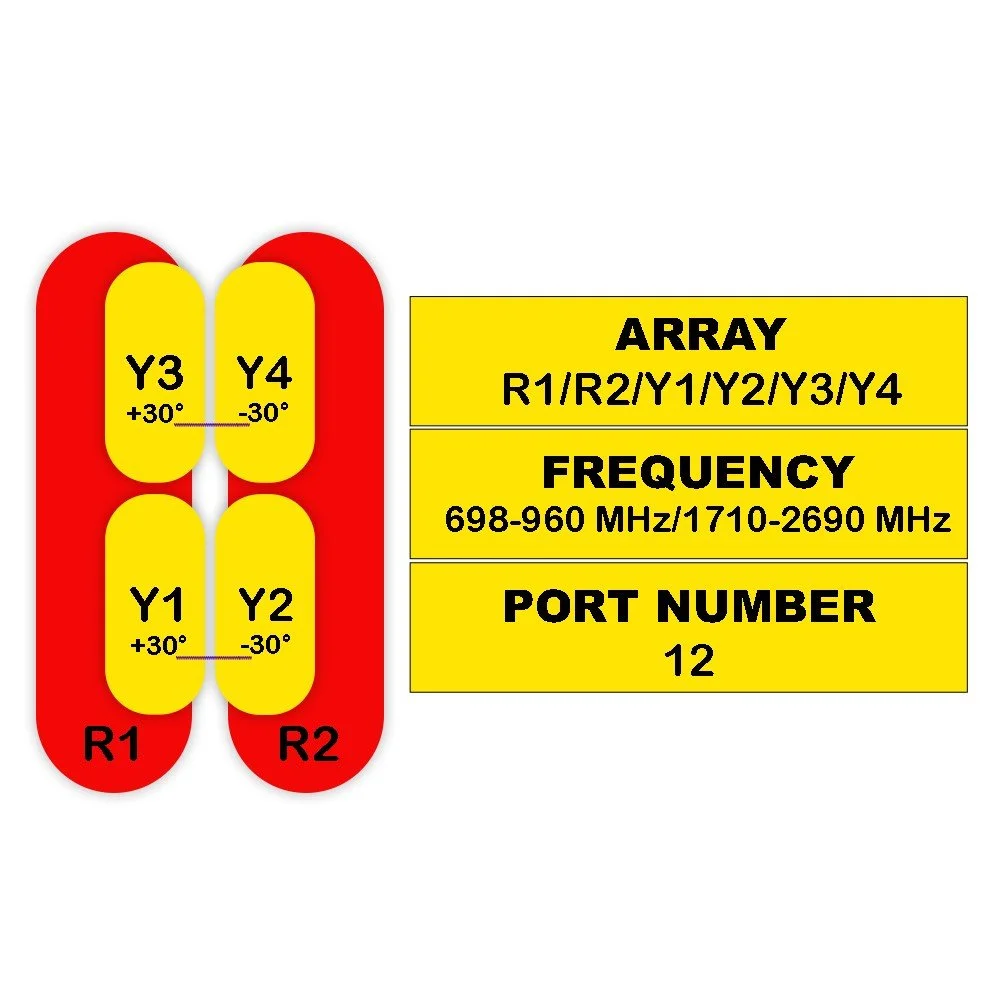

  • Hybrid split-beam design: separate radiating apertures optimized for low and mid-band performance, yielding consistent azimuth coverage and elevation control

  • Sector beamwidth: 65° nominal (wide coverage with controlled sidelobes)

12-Port Hybrid Split Beam Panel Sector Antenna (698–2690 MHz)

Overview :

A high-performance, multi-port sector antenna engineered for modern macro and small-cell networks. The hybrid split-beam architecture combines broadband coverage with precise beam shaping to maximize sector throughput, improve interference rejection, and support advanced MIMO and multi-operator deployments across 698–2690 MHz.

Key Features :

  • Frequency range: 698–2690 MHz (full support for low, mid, and upper-LTE bands)

  • 12 antenna ports: configurable for multiple MIMO layers, multi-band operation, and operator sharing

  • Hybrid split-beam design: separate radiating apertures optimized for low and mid-band performance, yielding consistent azimuth coverage and elevation control

  • Sector beamwidth: 65° nominal (wide coverage with controlled sidelobes)

Electrical Specifications
Parameter Sub Item Unit 698-806 790-894 880-960 1710-1880 1850-1990 1920-2170 2300-2500 2500-2690
Frequency Range R1 / R2 MHz 698-960 1710-2690
Polarization --- --- ±45° ±45°
Gain At Mid Tilt dBi 15.7 16.3 16.6 18.9 19.6 20.1 20.5 20.3
Over All Tilts dBi 15.7 ± 0.6 16.3 ± 0.6 16.6 ± 0.6 18.8 ± 0.6 19.5 ± 0.6 20.0 ± 0.6 20.4 ± 0.6 20.2 ± 0.7
Horizontal Beamwidth --- degree 67 ± 5 65 ± 5 59 ± 5 35 ± 3 33 ± 3 31 ± 3 27 ± 3 25 ± 3
Vertical Beamwidth --- degree 8.7 ± 0.8 7.5 ± 0.8 7.0 ± 0.7 7.7 ± 0.7 7.1 ± 0.7 6.7 ± 0.7 6.0 ± 0.6 5.5 ± 0.5
Electrical Downtilt, Continuously Adjustable --- degree 2-12 2-12
First Upper Side Lobe Suppression --- dB >15 >15 >15 >15 >15 >15 >15 >15
Front-To-Back Ratio Co-Pol ±30° --- dB >23 >24 >24 >23 >24 >24 >25 >25
Cross Polar Discrimination at Boresight --- dB >15 >15 >15 >15 >15 >15 >15 >15
Isolation Intraband (same beam) dB >25 ≥25
Beam-to-Beam dB --- ≥15
Interband dB >25 >25
Impedance --- Ohm 50 50
VSWR --- --- < 1.5 < 1.5
Return Loss --- dB >14 >14
PIM3 (2x43 dBm Carrier) --- dBc < -150 < -150
Lightning Protection --- --- DC Ground DC Ground
Maximum Average Input Power per Port, at 50°C Ambient Temperature --- Watts 250 200
Mechanical Specifications
Parameter Sub Item Unit Specification

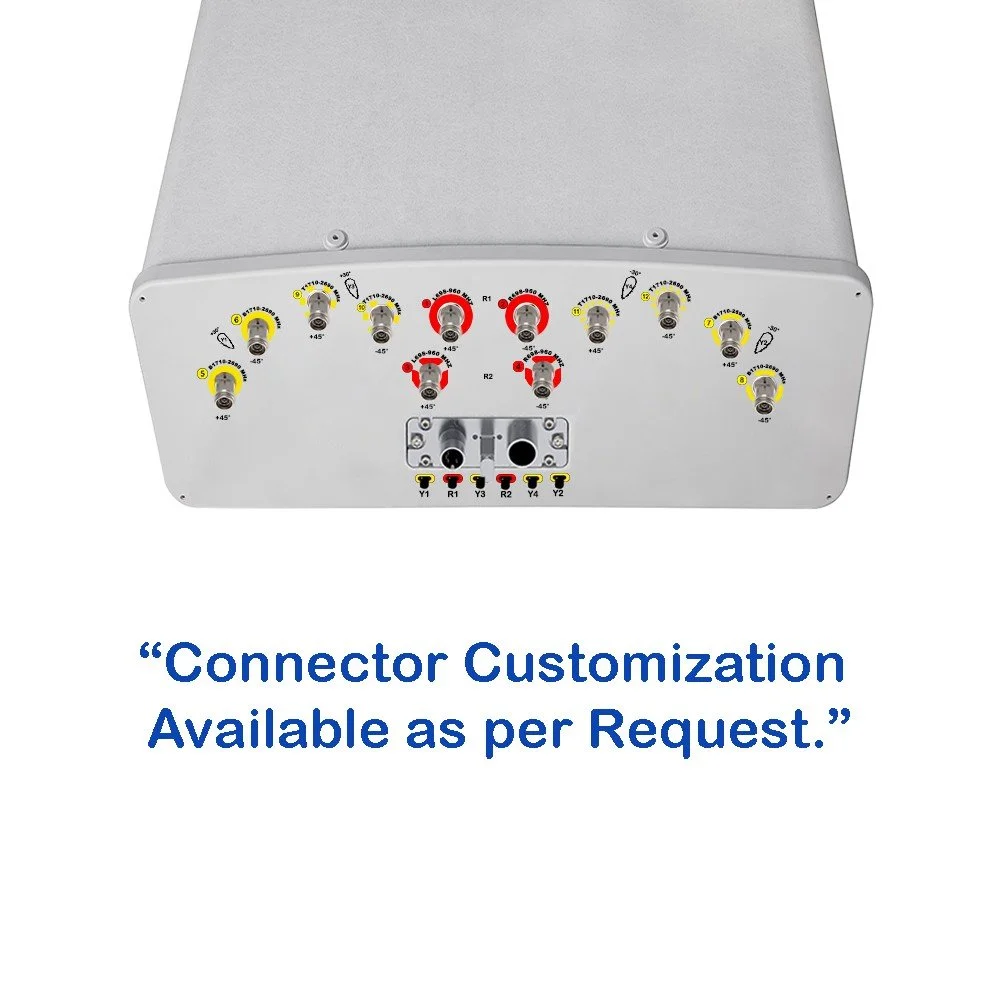

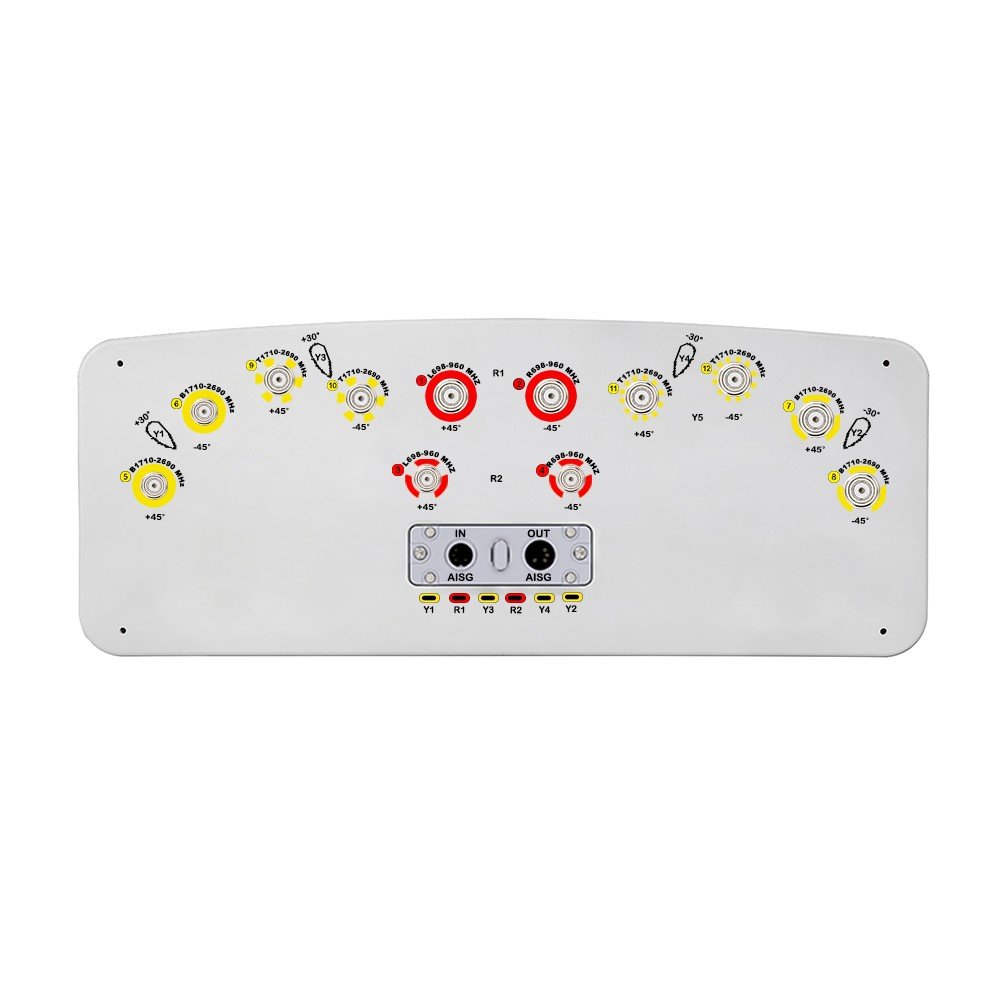

Connector Type --- --- (12x) 4.3/10 Female
Connector Position --- --- Bottom
Electrical Tilt Control --- --- Integrated RET
Radome Material --- --- Fiberglass

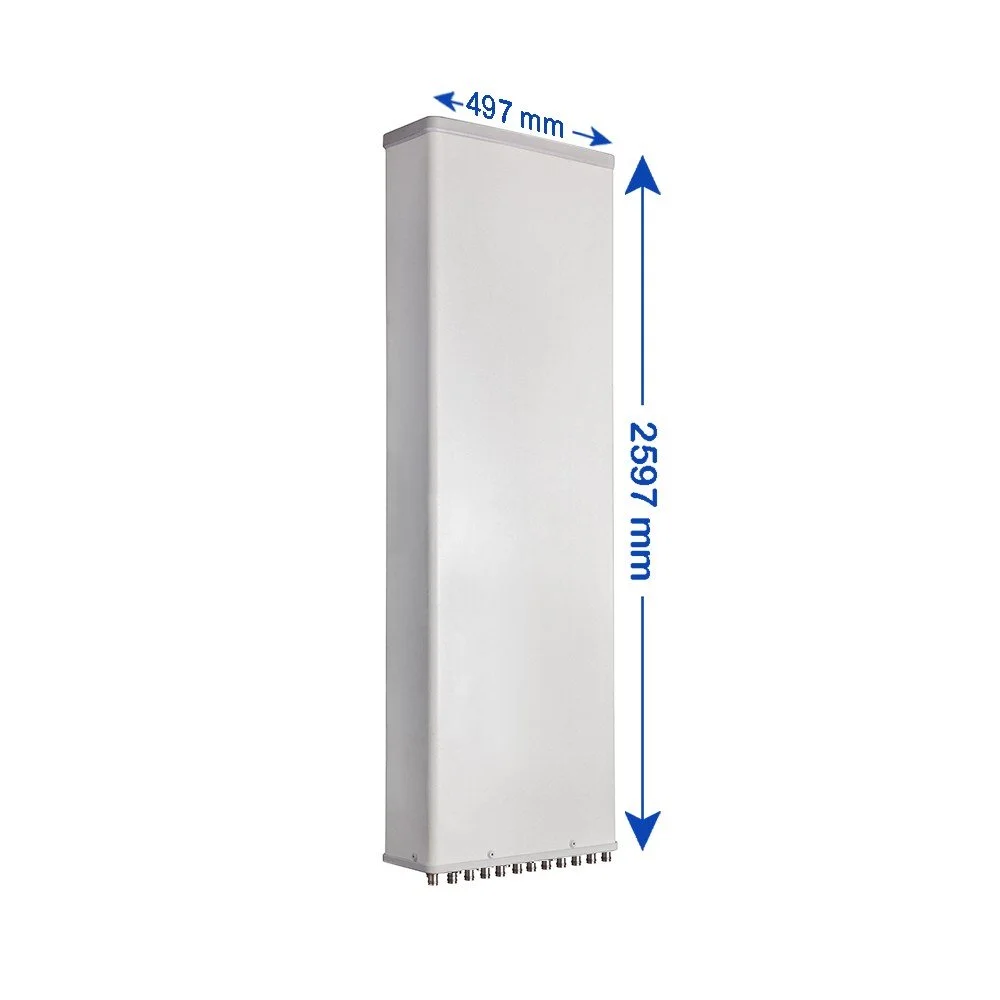

Antenna Dimensions (H × W × D) --- mm (in) 2597 × 497 × 197 (102.2 × 19.6 × 7.8)
Antenna Weight Antenna Only kg (lbs) 35 (77.2)
with Clamps kg (lbs) 40.5 (89.3)
Maximum Wind Speed --- km/h (mph) 200 (124.3)
Wind Load at 150 km/h Frontal N (lbf) 1190 (267.5)
Rear N (lbf) 1330 (299.0)
Lateral N (lbf) 580 (130.4)
Operating Temperature --- °C (°F) -40 to +60 (-40 to +140)
