12-Port, Panel Sector Antenna ( 690 - 2690 MHz )

₹0.00

12-Port Panel Sector Antenna (690–2690 MHz)

A high-performance 12-port panel sector antenna engineered for advanced multi-operator and multi-band cellular deployments across 690–2690 MHz. Designed for dense urban, suburban, and rural macro sites, the antenna delivers robust MIMO capacity, controlled horizontal coverage, and low sidelobe performance to maximize spectral efficiency and minimize interference.

Key Features :

Frequency range: 690–2690 MHz covering key low- and mid-band cellular allocations (including 700/800/900/1500/1700/1800/1900/2100/2300/2600 MHz bands).
12 independent RF ports: supports multiple operators or multi-carrier MIMO configurations (e.g., 4x4 + 4x4 + 4x4 aggregation, or combinations tailored to site needs).
Sector coverage: available beamwidth options (typically 65° or 90° horizontal) for flexible site planning and capacity optimization.
High isolation between ports: minimizes inter-port coupling to preserve MIMO performance and reduce cross-talk between carriers/operators.
Low VSWR across bands: optimized impedance matching delivers efficient power transfer and consistent radiation patterns.
Robust front-to-back and low sidelobe characteristics: reduces interference to adjacent sectors and improves overall network SINR.
Wideband radiation performance: stable gain and downtilt behavior across the full passband for predictable planning and tilt control.
Mechanical: rugged radome and mounting hardware rated for extreme environments; lightweight, corrosion-resistant aluminum/chassis; integrated tilt adjustment.
Weatherproofing: IP65/66-class sealing, operational temperature range suitable for harsh climates, UV-stable radome.
Lightning and surge protection: integrated grounding points and recommended external surge protection provisions.
Easy installation: pre-wired or color-coded feed options, alignment marks, and quick-mount brackets to reduce tower time.

12-Port Panel Sector Antenna (690–2690 MHz)

Key Features :

Frequency range: 690–2690 MHz covering key low- and mid-band cellular allocations (including 700/800/900/1500/1700/1800/1900/2100/2300/2600 MHz bands).
12 independent RF ports: supports multiple operators or multi-carrier MIMO configurations (e.g., 4x4 + 4x4 + 4x4 aggregation, or combinations tailored to site needs).
Sector coverage: available beamwidth options (typically 65° or 90° horizontal) for flexible site planning and capacity optimization.
High isolation between ports: minimizes inter-port coupling to preserve MIMO performance and reduce cross-talk between carriers/operators.
Low VSWR across bands: optimized impedance matching delivers efficient power transfer and consistent radiation patterns.
Robust front-to-back and low sidelobe characteristics: reduces interference to adjacent sectors and improves overall network SINR.
Wideband radiation performance: stable gain and downtilt behavior across the full passband for predictable planning and tilt control.
Mechanical: rugged radome and mounting hardware rated for extreme environments; lightweight, corrosion-resistant aluminum/chassis; integrated tilt adjustment.
Weatherproofing: IP65/66-class sealing, operational temperature range suitable for harsh climates, UV-stable radome.
Lightning and surge protection: integrated grounding points and recommended external surge protection provisions.
Easy installation: pre-wired or color-coded feed options, alignment marks, and quick-mount brackets to reduce tower time.

Electrical Specifications

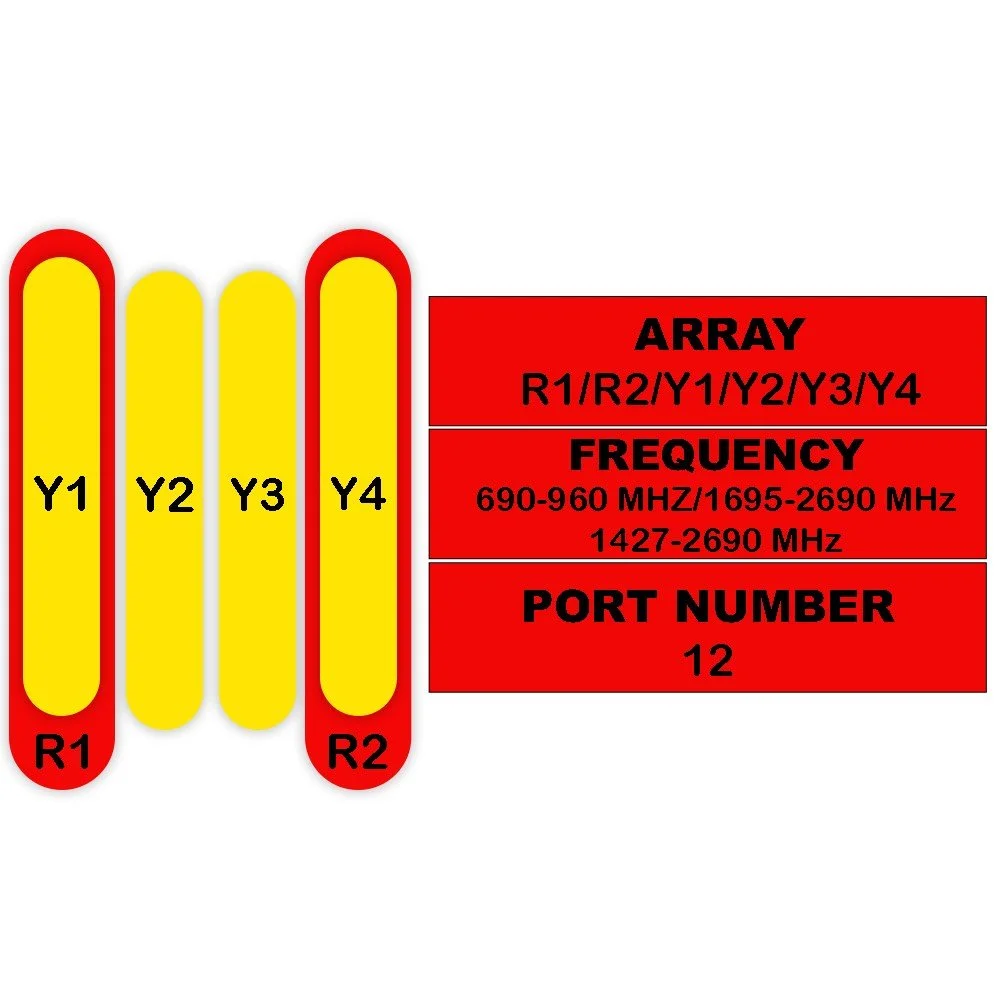

Electrical specifications for R1/R2, Y1/Y4, and Y2/Y3 antenna bands


Parameter
Unit
R1 / R2
Y1 / Y4
Y2 / Y3


MHz
690-806
790-894
880-960

1695-1880
1850-1990
1920-2170
2300-2400
2490-2690

1427-1518
1695-1920
1920-2170
2300-2400
2500-2690



Polarization
---
±45°
±45°
±45°

Gain (Mid Tilt)
dBi
15.7
16.1
16.5
16.6
16.9
17.2
17.4
17.4
16
17
17.4
17.8
17.8

Gain (All Tilts)
dBi
15.5 ±0.6
15.9 ±0.6
16.3 ±0.6
16.4 ±0.6
16.7 ±0.5
17.0 ±0.5
17.2 ±0.5
17.2 ±0.5
15.8 ±0.6
16.8 ±0.5
17.2 ±0.5
17.6 ±0.5
17.6 ±0.5

Horizontal Beamwidth
degree
68 ±5.4
66 ±5.6
63 ±4.6
70 ±6.5
68 ±6.1
66 ±6.1
64 ±5.5
64 ±6.5
73 ±6.5
69 ±6.5
66 ±6.5
63 ±5.5
61 ±6.2

Vertical Beamwidth
degree
8.8 ±0.9
7.8 ±0.6
7.2 ±0.7
6.2 ±0.6
5.8 ±0.5
5.4 ±0.5
4.9 ±0.4
4.4 ±0.6
7.8 ±0.6
6.2 ±0.8
5.4 ±0.6
4.8 ±0.5
4.4 ±0.6

Electrical Downtilt (Continuous)
degree
2–12
2–12
2–12

Tilt Accuracy
degree
< 1

Upper Side Lobe (1st)
dB
>16
>16
>16
>15
>15
>15
>15
>15
>15
>15
>15
>15
>15

Peak Suppression to 20°
dB
>15
>15
>15
>14
>14
>14
>14
>14
>14
>14
>14
>14
>14

Front-to-Back Ratio (±30°)
dB
>22
>23
>24
>23
>23
>24
>25
>25
>24
>25
>25
>26
>26

Cross Polar (Boresight)
dB
>18
>18
>18
>16
>16
>16
>17
>17
>17
>18
>18
>17
>17

Discrimination (Over Sector)
dB
>9
>7
>6
>7
>8
>8
>6
>4
>6
>6
>5
>3
>2

Isolation (Cross-Polar)
dB
> 26

Isolation (Port-to-Port)
dB
>26 (R1/R2), >28 (R1 vs Y1-Y4)
>28
>26 (Y2/Y3), >28 (Y2 vs others)

Impedance
Ohm
50
50
50

VSWR
---
<1.5
<1.5
<1.5

Return Loss
dB
>14
>14
>14

PIM3 (2×43 dBm)
dBc
<-150
<-150
<-150

Lightning Protection
---
DC Ground
DC Ground
DC Ground

Max Avg Input Power / Port
Watts
250
200
200

Mechanical Specifications

Mechanical specifications including connector type, antenna dimensions, wind load, and operating temperature


Parameter
Unit
Specification

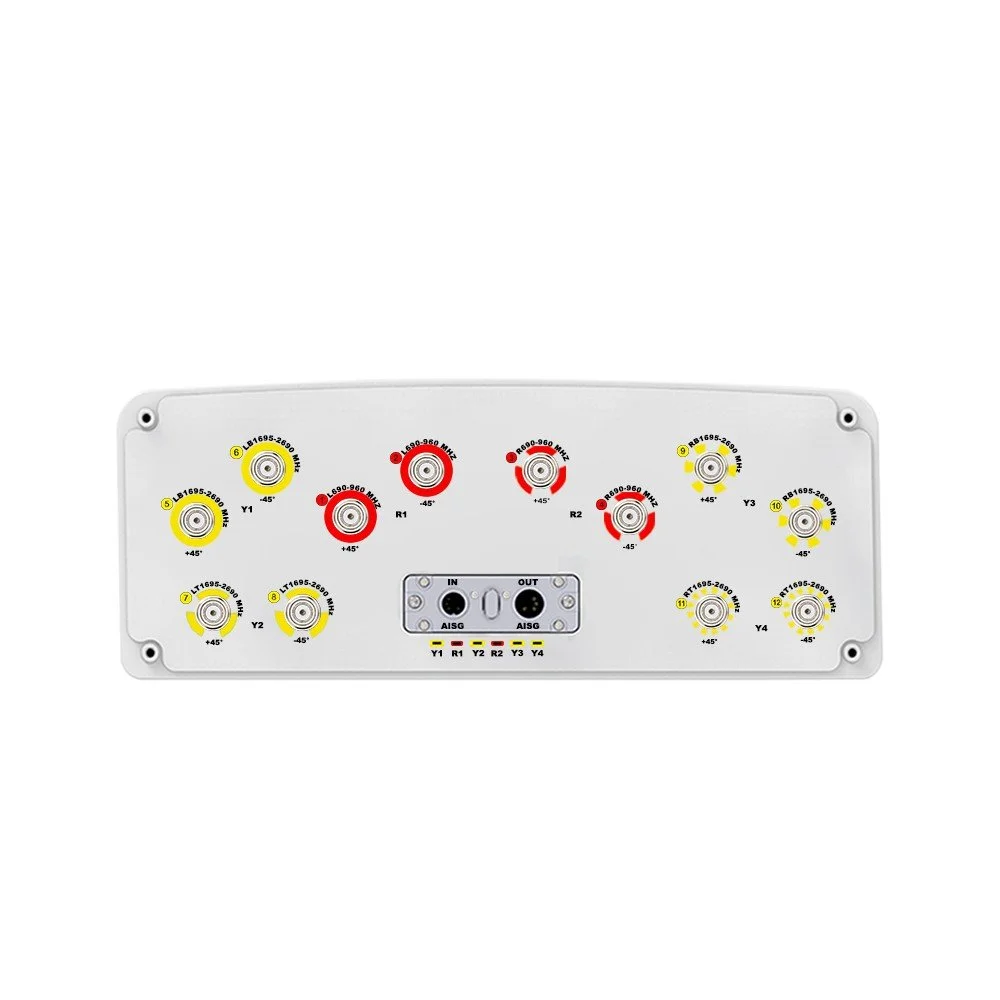

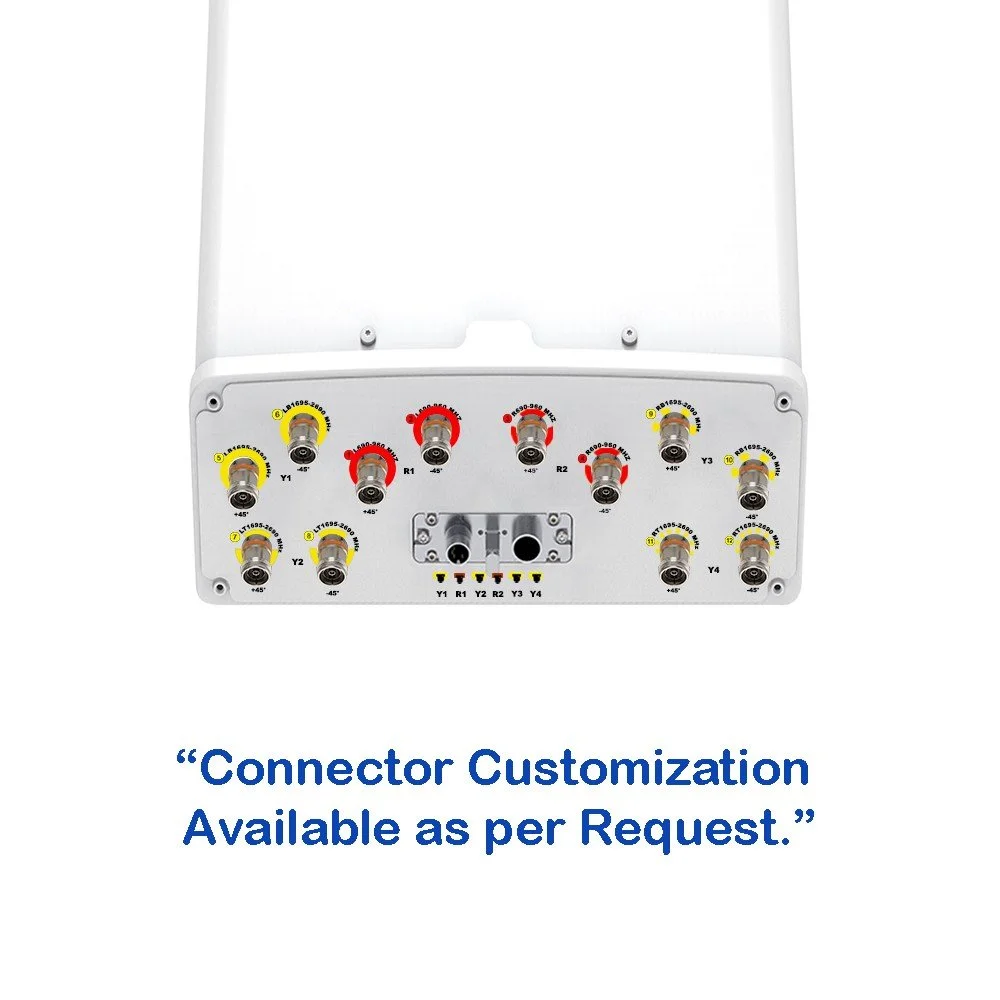

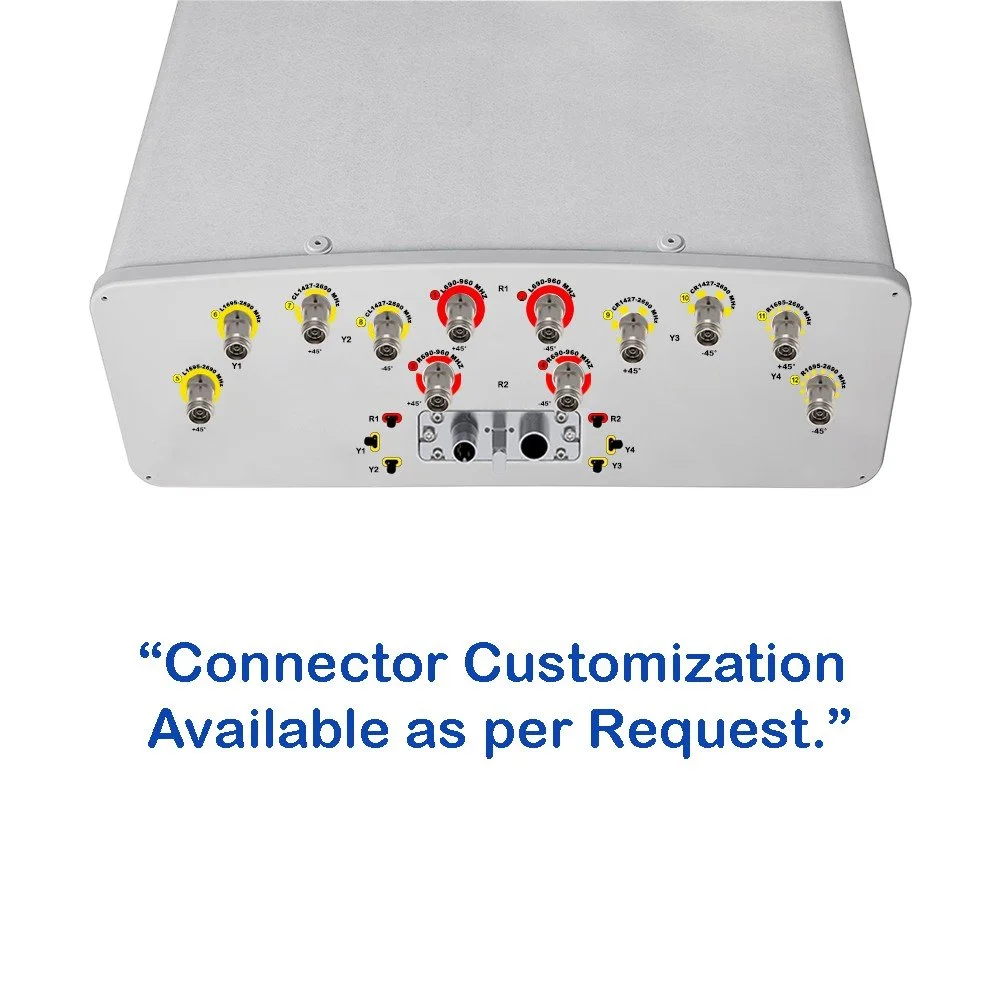

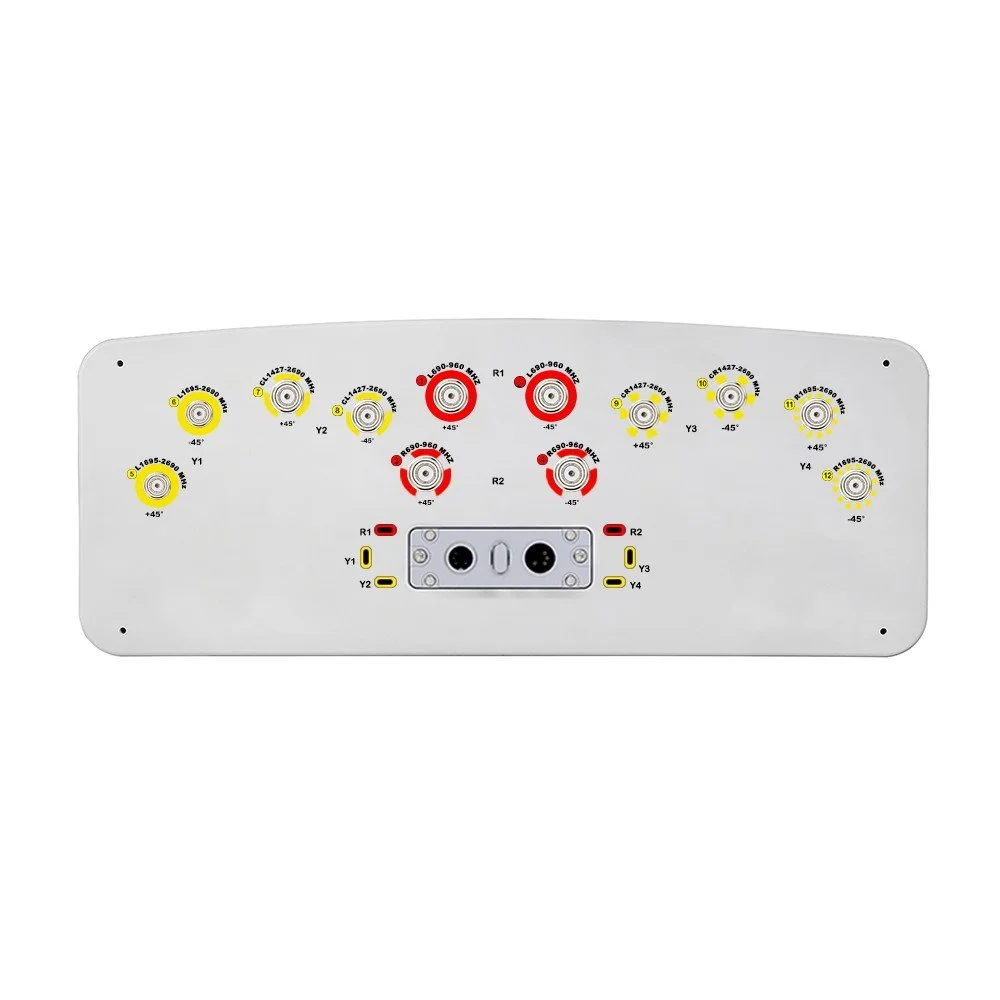

Connector Type
---
(12x) 4.3/10 Female

Connector Position
---
Bottom

Electrical Tilt Control
---
Integrated RET

Radome Material
---
Fiberglass

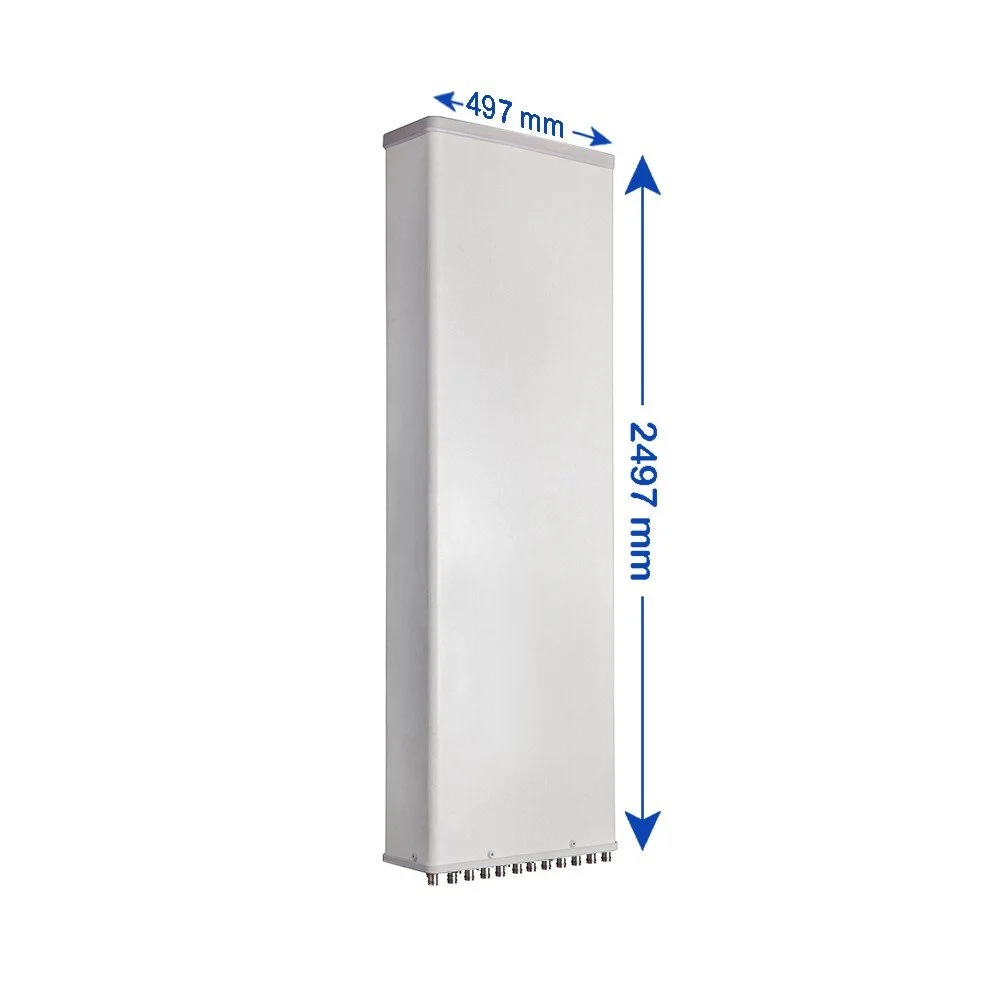

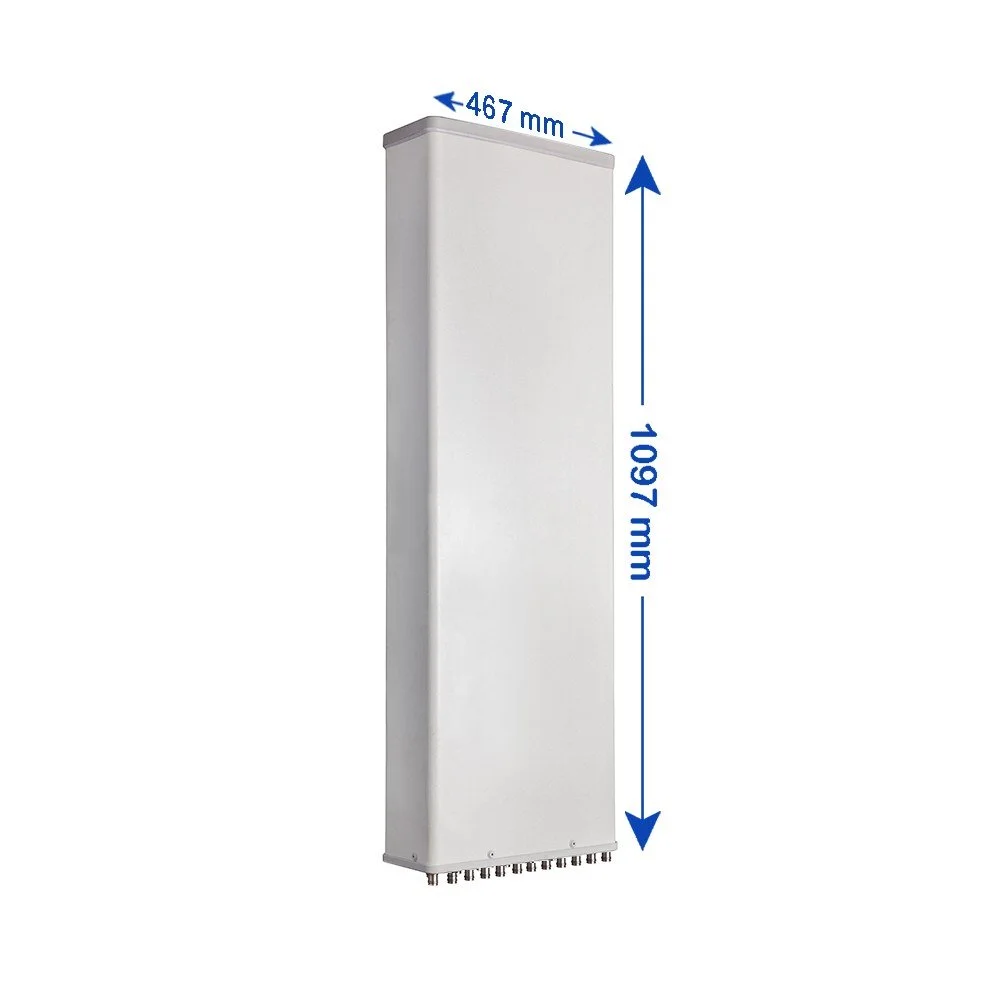

Antenna Dimensions (H × W × D)
mm (in)
2497 × 497 × 197 (98.3 × 19.6 × 7.8)

Antenna Weight
kg (lbs)
43.5 (95.9)

with Clamps
kg (lbs)
51 (112.4)

Maximum Wind Speed
km/h (mph)
200 (124.3)

Wind Load at 150 km/h
N (lbf)
Frontal: 1145 (257.4)

Rear
N (lbf)
1280 (287.8)

Lateral
N (lbf)
560 (125.9)

Operating Temperature
°C (°F)
-40 to +60 (-40 to +140)
