19‑Port TDD Hybrid Panel Antenna (698–3700 MHz)

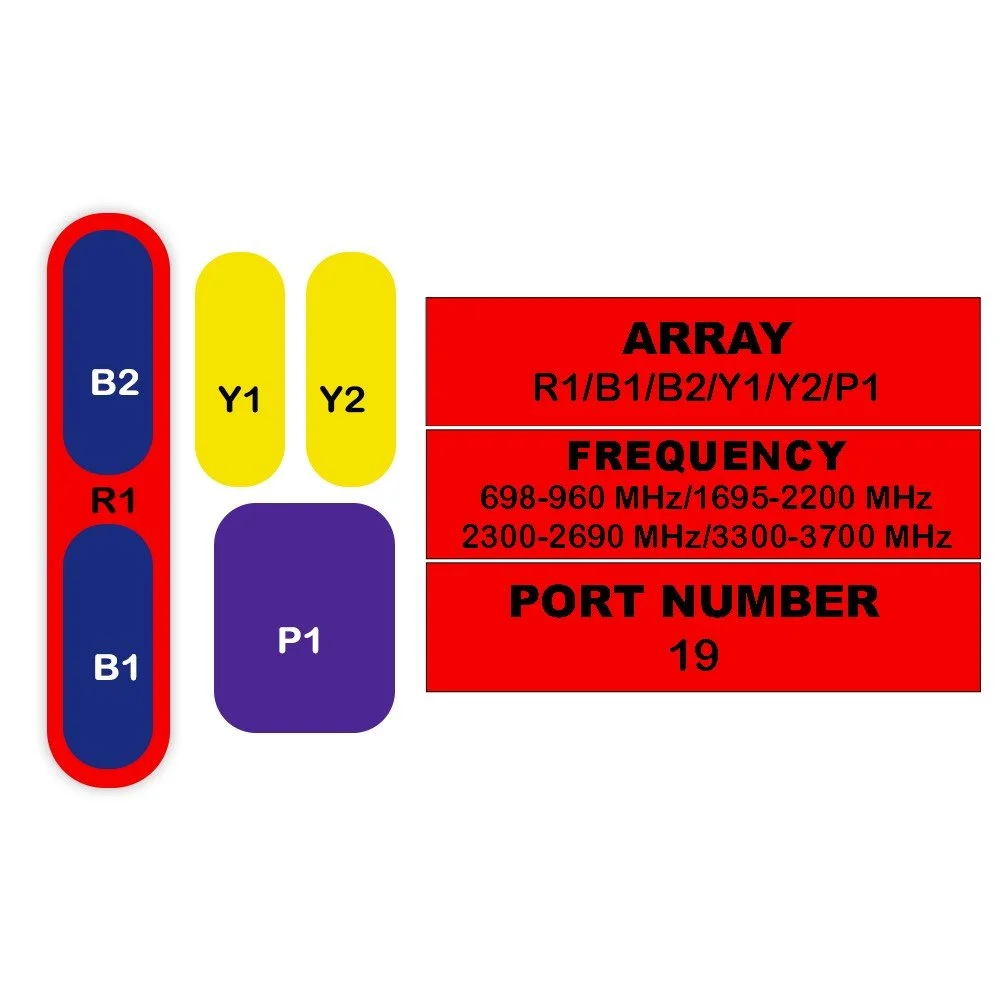

Overview

  • Frequency range: 698–3700 MHz

  • Ports: 19 total (hybrid TDD configuration)

  • Application: 4G/5G TDD networks, small cells, macro cell sectorization, DAS, private LTE/CBRS

  • Antenna type: Panel, wideband, multi-port MIMO/TDD hybrid

  • Polarization: Dual linear per appropriate ports (hybrid port grouping for TDD operation)

  • Mounting: Tilt-adjustable wall and mast brackets; low wind‑load profile

Key Features

  • Massive multi‑port MIMO: 19 integrated ports support high spatial capacity for TDD deployments, enabling high user throughput and improved spectral efficiency in dense environments.

  • Wideband coverage: Single antenna covers 698–3700 MHz, simplifying inventory and installation across low‑band, mid‑band and some upper mid‑band 5G TDD frequencies.

  • Hybrid TDD design: Ports grouped and impedance‑matched for TDD operation, allowing flexible allocation of transmit/receive streams and optimized isolation between ports to reduce self‑interference in TDD timing-sensitive systems.

  • Low profile, rugged enclosure: Weatherproof radome rated for outdoor use; IP65/66 class construction and corrosion-resistant hardware for long service life.

  • High isolation and low inter‑port coupling: Engineered to maintain MIMO performance even in co‑located installations and compact sector deployments.

  • Integrated surge protection: Built-in lightning and surge protection per port to protect active equipment and ease field deployment.

  • Simple installation: Quick‑attach mounting bracket with +/- tilt and azimuth adjustments; compatible with standard pole diameters and wall mounts.

  • Wide operating temperature: Designed for -40°C to +65°C operation for reliable performance in harsh climates.

Electrical Specifications (typical)

  • Frequency: 698–3700 MHz

  • Gain: Dependent on band and port grouping; optimized across low and mid bands for balanced coverage and capacity

  • VSWR: ≤ 2.0:1 (typical across band)

  • Isolation: High inter‑port isolation design (typical values exceed industry minimums; specific dB per port available on datasheet)

  • Polarization: Dual linear (per port/pair) with hybrid phasing for TDD MIMO operation

  • Max input power: Per port rating suitable for typical base station/remote radio head levels (consult datasheet for exact figures)

  • Impedance: 50 ohm

Mechanical Specifications

  • Dimensions: Slim panel form factor to minimize visual impact (exact dimensions provided on product sheet)

  • Weight: Lightweight composite materials for easier handling and reduced tower loading

  • Mounting: Universal mast clamp and wall bracket included; allows +/- tilt and 360° azimuth adjustment

  • Radome color: Light gray (UV stabilized)

Compliance and Reliability

  • Environmental: IP65/66 rated, UV resistant, salt fog and corrosion tested

  • Standards: Designed to meet telecom RF performance and safety standards; individual regulatory compliance and certifications available per region

  • Warranty: Manufacturer warranty and optional extended support packages for mission‑critical installations

Use Cases

  • High‑capacity urban sectors needing many spatial streams in a compact footprint

  • Neutral host DAS and shared infrastructure where multiple operators or multiple radios must coexist on one panel

  • Private networks and enterprise sites requiring robust TDD performance across 700–3700 MHz (including CBRS and mid‑band 5G)

  • Upgrades from legacy single‑band antennas to a consolidated wideband, multi‑port solution to reduce tower clutter and simplify logistics

Ordering Information

  • Model: 19‑Port TDD Hybrid Panel Antenna (698–3700 MHz)

  • Options: Different connector types (N‑female/SMA/other), mounting kit variants, custom cable assemblies, and band‑specific tuning are available. Contact sales or technical support for configuration and pricing.

Technical Support

  • Includes installation guide, antenna radiation patterns, port isolation tables, and mechanical drawings. Field commissioning assistance and RF planning input available upon request.

19‑Port TDD Hybrid Panel Antenna (698–3700 MHz)

Overview

  • Frequency range: 698–3700 MHz

  • Ports: 19 total (hybrid TDD configuration)

  • Application: 4G/5G TDD networks, small cells, macro cell sectorization, DAS, private LTE/CBRS

  • Antenna type: Panel, wideband, multi-port MIMO/TDD hybrid

  • Polarization: Dual linear per appropriate ports (hybrid port grouping for TDD operation)

  • Mounting: Tilt-adjustable wall and mast brackets; low wind‑load profile

Key Features

  • Massive multi‑port MIMO: 19 integrated ports support high spatial capacity for TDD deployments, enabling high user throughput and improved spectral efficiency in dense environments.

  • Wideband coverage: Single antenna covers 698–3700 MHz, simplifying inventory and installation across low‑band, mid‑band and some upper mid‑band 5G TDD frequencies.

  • Hybrid TDD design: Ports grouped and impedance‑matched for TDD operation, allowing flexible allocation of transmit/receive streams and optimized isolation between ports to reduce self‑interference in TDD timing-sensitive systems.

  • Low profile, rugged enclosure: Weatherproof radome rated for outdoor use; IP65/66 class construction and corrosion-resistant hardware for long service life.

  • High isolation and low inter‑port coupling: Engineered to maintain MIMO performance even in co‑located installations and compact sector deployments.

  • Integrated surge protection: Built-in lightning and surge protection per port to protect active equipment and ease field deployment.

  • Simple installation: Quick‑attach mounting bracket with +/- tilt and azimuth adjustments; compatible with standard pole diameters and wall mounts.

  • Wide operating temperature: Designed for -40°C to +65°C operation for reliable performance in harsh climates.

Electrical Specifications (typical)

  • Frequency: 698–3700 MHz

  • Gain: Dependent on band and port grouping; optimized across low and mid bands for balanced coverage and capacity

  • VSWR: ≤ 2.0:1 (typical across band)

  • Isolation: High inter‑port isolation design (typical values exceed industry minimums; specific dB per port available on datasheet)

  • Polarization: Dual linear (per port/pair) with hybrid phasing for TDD MIMO operation

  • Max input power: Per port rating suitable for typical base station/remote radio head levels (consult datasheet for exact figures)

  • Impedance: 50 ohm

Mechanical Specifications

  • Dimensions: Slim panel form factor to minimize visual impact (exact dimensions provided on product sheet)

  • Weight: Lightweight composite materials for easier handling and reduced tower loading

  • Mounting: Universal mast clamp and wall bracket included; allows +/- tilt and 360° azimuth adjustment

  • Radome color: Light gray (UV stabilized)

Compliance and Reliability

  • Environmental: IP65/66 rated, UV resistant, salt fog and corrosion tested

  • Standards: Designed to meet telecom RF performance and safety standards; individual regulatory compliance and certifications available per region

  • Warranty: Manufacturer warranty and optional extended support packages for mission‑critical installations

Use Cases

  • High‑capacity urban sectors needing many spatial streams in a compact footprint

  • Neutral host DAS and shared infrastructure where multiple operators or multiple radios must coexist on one panel

  • Private networks and enterprise sites requiring robust TDD performance across 700–3700 MHz (including CBRS and mid‑band 5G)

  • Upgrades from legacy single‑band antennas to a consolidated wideband, multi‑port solution to reduce tower clutter and simplify logistics

Ordering Information

  • Model: 19‑Port TDD Hybrid Panel Antenna (698–3700 MHz)

  • Options: Different connector types (N‑female/SMA/other), mounting kit variants, custom cable assemblies, and band‑specific tuning are available. Contact sales or technical support for configuration and pricing.

Technical Support

  • Includes installation guide, antenna radiation patterns, port isolation tables, and mechanical drawings. Field commissioning assistance and RF planning input available upon request.

Electrical Specifications
Electrical specifications for R1, B1, and B2 antenna bands including frequency ranges, gain, beamwidth, tilt, isolation, and power ratings.
Parameter Unit R1 (698-806) R1 (790-894) R1 (880-960) B1 (1695-1880) B1 (1850-1990) B1 (1920-2200) B2 (1695-1880) B2 (1850-1990) B2 (1920-2200)
Frequency Range MHz 698-960 1695-2200 1695-2200
Polarization ±45° ±45° ±45°
Gain (Mid Tilt) dBi 15.816.216.6 17.117.417.7 16.717.017.3
Gain (Over All Tilts) dBi 15.6 ±0.616.0 ±0.616.4 ±0.6 16.9 ±0.617.2 ±0.517.5 ±0.6 16.5 ±0.616.8 ±0.517.1 ±0.6
Horizontal Beamwidth degree 68 ±4.566 ±4.163 ±4.5 68 ±6.566 ±6.560 ±5.5 68 ±6.566 ±6.560 ±5.5
Vertical Beamwidth degree 8.8 ±1.17.8 ±0.97.2 ±0.8 6.8 ±0.66.4 ±0.86.0 ±0.8 6.8 ±0.66.4 ±0.86.0 ±0.8
Electrical Downtilt degree 0-10 0-10 0-10
Tilt Accuracy degree <1<1<1 <1<1<1 <1<1<1
Upper Sidelobe Suppression (First Lobe) dB ≥16≥16≥16 >15>15>15 >15>15>15
20° Sector Above Main Beam dB >15>15>15 >15>15>15 >15>15>15
Front-To-Back Ratio ±30° dB ≥22≥23≥24 >24>24>25 >24>24>25
Cross Polar Discrimination (Boresight) dB ≥17≥18≥17 >18>18>18 >18>18>18
Cross Polar Discrimination (Sector) dB ≥8≥7≥6 >6.0>7.0>7.0 >6.0>7.0>7.0
Isolation (Cross-Polar) dB >26 >28 >28
Isolation (Port-to-Port) dB >28 >28 >28
Impedance Ohm 50 50 50
VSWR <1.5 <1.5 <1.5
Return Loss dB >14 >14 >14
PIM3 (2×43 dBm) dBc <-150 <-150 <-150
Lightning Protection DC Ground DC Ground DC Ground
Max Avg Input Power per Port (50°C) Watts 250 200 200
Electrical Specifications
Electrical specifications for R1, B1, and B2 antenna bands including gain, beamwidth, tilt, isolation, and power ratings.
Parameter Unit R1 (698–960 MHz) B1 (1695–2200 MHz) B2 (1695–2200 MHz)
698–806 790–894 880–960 1695–1880 1850–1990 1920–2200 1695–1880 1850–1990 1920–2200
Polarization ±45° ±45° ±45°
Gain (Mid Tilt) dBi 15.816.216.6 17.117.417.7 16.717.017.3
Gain (Over All Tilts) dBi 15.6 ±0.616.0 ±0.616.4 ±0.6 16.9 ±0.617.2 ±0.517.5 ±0.6 16.5 ±0.616.8 ±0.517.1 ±0.6
Horizontal Beamwidth degree 68 ±4.566 ±4.163 ±4.5 68 ±6.566 ±6.560 ±5.5 68 ±6.566 ±6.560 ±5.5
Vertical Beamwidth degree 8.8 ±1.17.8 ±0.97.2 ±0.8 6.8 ±0.66.4 ±0.86.0 ±0.8 6.8 ±0.66.4 ±0.86.0 ±0.8
Electrical Downtilt degree 0–10 0–10 0–10
Tilt Accuracy degree <1
Isolation (Cross-Polar) dB >26 >28 >28
Impedance Ohm 50
VSWR <1.5
Return Loss dB >14
PIM3 (2×43 dBm) dBc <-150
Lightning Protection DC Ground
Max Avg Input Power per Port (50°C) Watts 250 200 200
TDD LTE Specifications – P1
TDD LTE antenna specifications for P1 including frequency range, beam performance, sidelobe suppression, and front-to-back ratio.
Parameter Unit Specification
Frequency Range MHz 3300–3700
Polarization ±45°
Electrical Downtilt degree 2–12
Single Column Beam
Gain dBi 17
Horizontal Beamwidth degree 75
Vertical Beamwidth (3 dB) degree 5.8
Cross-Polar Ratio (at Boresight) dB ≥ 15
Cross-Polar Ratio (Over Sector) dB ≥ 8
First Upper Sidelobe Suppression dB ≥ 15
Front-To-Back Ratio dB ≥ 23
Broadcast Beam (65°)
Gain dBi 18
Horizontal Beamwidth (3 dB) degree 65
Vertical Beamwidth (3 dB) degree 5.8
Cross-Polar Ratio (0°) dB ≥ 15
First Upper Sidelobe Suppression dB ≥ 15
Front-To-Back Ratio ±30° dB ≥ 25
TDD LTE Specifications – Continued (P1)
Continued TDD LTE P1 specifications including service beam performance, calibration parameters, isolation, impedance and lightning protection.
Parameter Unit Specification
Service Beam – 0° Direct Beam
Gain dBi 21.5
Horizontal Beamwidth (3 dB) degree 26
Cross Polar Ratio (Beam-Peak) dB ≥ 16
Front-To-Back Ratio ±30° dB ≥ 27
Horizontal Sidelobe dB 12
Service Beam – ±30° Direct Beam
Gain dBi 20
Horizontal Beamwidth (3 dB) degree 28
Front-To-Back Ratio dB ≥ 24
Soft Split Multi-Beam
Gain dBi 20
Horizontal Beamwidth (3 dB) degree 31
Front-To-Back dB ≥ 25
Calibration & Electrical Parameters
Coupling Factor (Calibration to Port) dB -26 ± 2
Max. Amplitude Tolerance dB ≤ 1.0
Max. Phase Tolerance dB ≤ 9
VSWR < 1.5
Average Power Capacity W 25
Isolation & Mechanical
Isolation (Intraband) dB ≥ 23
Isolation (Interband) dB ≥ 23
Impedance Ohm 50
Lightning Protection DC Ground
Mechanical Specifications
Mechanical specifications including connector type, dimensions, weight, wind load, and operating temperature.
Parameter Unit Specification

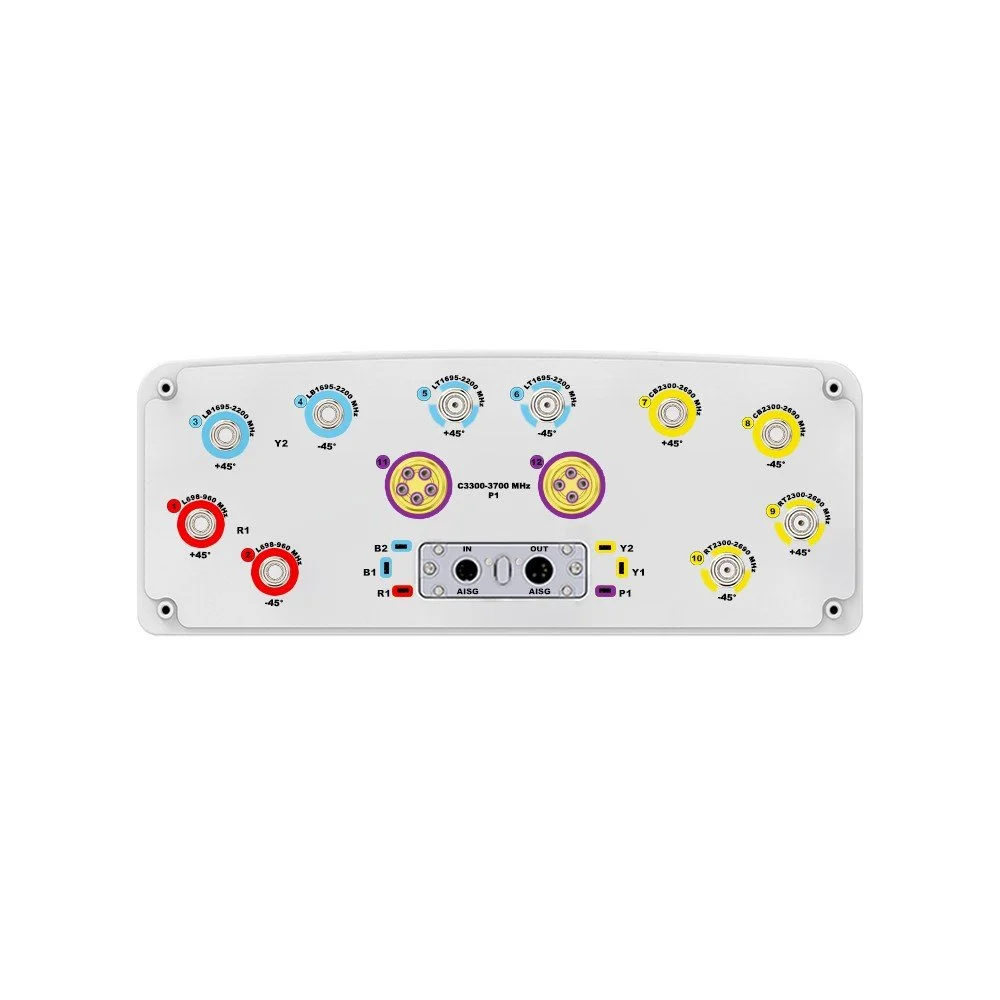

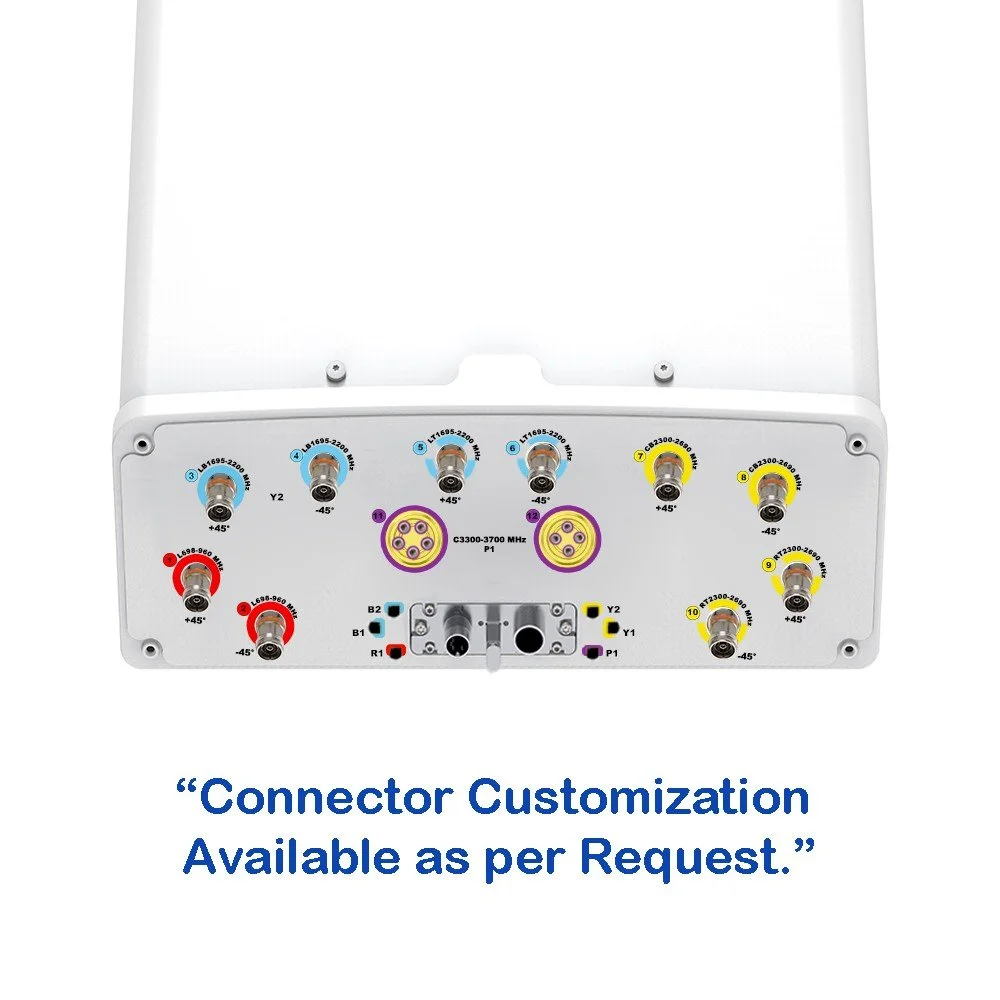

Connector Type (10x) 4.3/10 Female + (1x) MQ5 Male + (1x) MQ4 Male
Connector Position Bottom
Radome Material Fiberglass

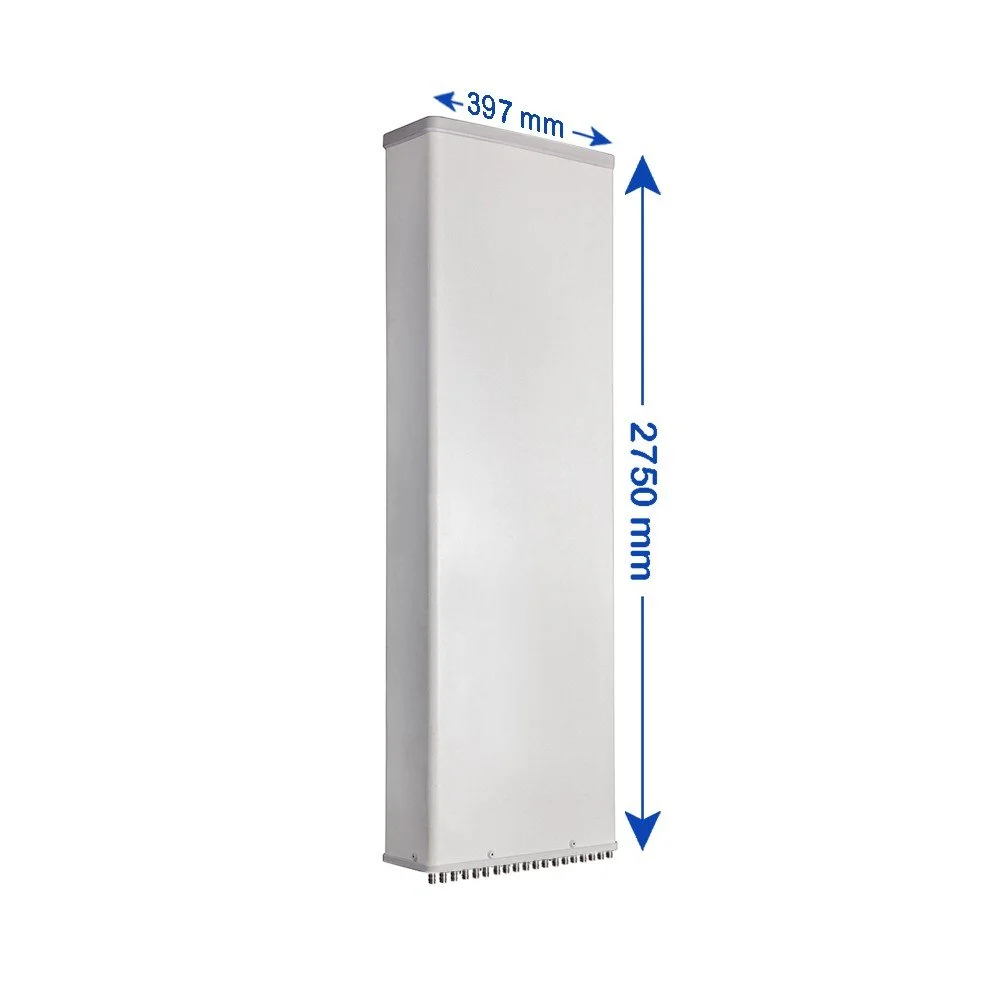

Antenna Dimensions (H × W × D) mm (in) 2750 × 397 × 157 (108.3 × 15.6 × 6.2)
Antenna Weight kg (lbs) 37 (81.6) – Antenna Only
with Clamps kg (lbs) 42.5 (93.7)
Maximum Wind Speed km/h (mph) 200 (124.3)
Wind Load at 150 km/h
Frontal N (lbf) 1005 (225.9)
Rear N (lbf) 1125 (252.9)
Lateral N (lbf) 490 (110.2)
Operating Temperature °C (°F) -40 to +60 (-40 to +140)
