18-Port, Panel Sector Antenna ( 698 - 2690 MHz )

₹0.00

18-Port Panel Sector Antenna (698–2690 MHz)

Overview

  • High-performance 18-port sector antenna covering 698–2690 MHz for multi-carrier, multi-band deployments.

  • Designed for dense urban and suburban macro sites, small cells, and fixed wireless access where broad frequency coverage and high port-count are required.

  • Compact, ruggedized panel form factor with low visual profile and simplified installation.

Key features

  • Frequency range: 698–2690 MHz (full LTE and early 5G sub-6 bands).

  • 18 ports: supports multiple MIMO layers and carrier aggregation across bands — ideal for 2x2/4x4/8x8 multi-RF architectures and active/passive DAS integrations.

  • High isolation between ports to minimize inter-port coupling and preserve MIMO performance.

  • Consistent radiation patterns and stable electrical tilt across the band for predictable coverage planning.

  • Low VSWR across each tuned band for efficient RF transfer and minimized reflected power.

  • Rugged, IP65/IP67-class housing with corrosion-resistant materials for long-term outdoor use.

  • Wide temperature range operation for extreme climates.

  • Lightweight design with integrated mounting brackets for pole and wall mounting; adjustable azimuth and downtilt.

  • N-type or 4.3-10 connector options available for compatibility with common RF hardware.

  • Lightning and surge protection provisions built into mechanical design (externally recommended surge arrestors for critical links).

Performance summary (typical)

  • Gain: optimized per sub-band to balance coverage and beamwidth (sector-optimized); consult antenna datasheet for detailed gain vs. frequency curves.

  • Beamwidth: sector-optimized horizontal beamwidth (e.g., 65°–90° typical depending on frequency and port configuration) with controlled vertical beamwidth for effective downtilt shaping.

  • Port isolation: high isolation values across adjacent and non-adjacent ports to support dense MIMO.

  • Polarization: dual linear polarization with cross-polarization discrimination optimized for MIMO throughput.

  • Impedance: 50 ohm nominal.

Applications

  • Macro cellular sectors for operators deploying wide-ranging LTE bands and early 5G NR sub-6 GHz.

  • High-capacity sites requiring multi-band aggregation and multi-antenna layers.

  • Distributed antenna systems (DAS) and neutral host environments needing many ports within a single, compact panel.

  • Fixed wireless access (FWA) where broad spectral support and multiple radios are collocated.

Installation and integration

  • Lightweight, low-profile enclosure simplifies rooftop and tower installations.

  • Integrated mounting hardware allows quick alignment and mechanical downtilt adjustments.

  • Connector access positioned for ease of cable routing and weatherproofing.

  • Compatible with standard sector alignment tools and RF planning software; antenna pattern files available for link and coverage planning.

Compliance and reliability

  • Environmental: Designed to meet common telecom standards for wind loading, salt fog, and UV resistance.

  • Electrical: Meets RF safety and performance requirements; factory-tested for repeatable performance.

  • Optional: Available with factory-installed surge protection modules or integrated grounding kits as required.

Ordering information

  • Model variants available by connector type, mounting option, and optional lightning/surge features.

  • Specify desired frequency band tuning, connector type (N-type or 4.3-10), and mounting kit when ordering.

For technical planning, request the antenna pattern files (azimuth/elevation), S-parameters, and detailed mechanical drawings to confirm fit, placement, and RF design integration.

18-Port Panel Sector Antenna (698–2690 MHz)

Overview

  • High-performance 18-port sector antenna covering 698–2690 MHz for multi-carrier, multi-band deployments.

  • Designed for dense urban and suburban macro sites, small cells, and fixed wireless access where broad frequency coverage and high port-count are required.

  • Compact, ruggedized panel form factor with low visual profile and simplified installation.

Key features

  • Frequency range: 698–2690 MHz (full LTE and early 5G sub-6 bands).

  • 18 ports: supports multiple MIMO layers and carrier aggregation across bands — ideal for 2x2/4x4/8x8 multi-RF architectures and active/passive DAS integrations.

  • High isolation between ports to minimize inter-port coupling and preserve MIMO performance.

  • Consistent radiation patterns and stable electrical tilt across the band for predictable coverage planning.

  • Low VSWR across each tuned band for efficient RF transfer and minimized reflected power.

  • Rugged, IP65/IP67-class housing with corrosion-resistant materials for long-term outdoor use.

  • Wide temperature range operation for extreme climates.

  • Lightweight design with integrated mounting brackets for pole and wall mounting; adjustable azimuth and downtilt.

  • N-type or 4.3-10 connector options available for compatibility with common RF hardware.

  • Lightning and surge protection provisions built into mechanical design (externally recommended surge arrestors for critical links).

Performance summary (typical)

  • Gain: optimized per sub-band to balance coverage and beamwidth (sector-optimized); consult antenna datasheet for detailed gain vs. frequency curves.

  • Beamwidth: sector-optimized horizontal beamwidth (e.g., 65°–90° typical depending on frequency and port configuration) with controlled vertical beamwidth for effective downtilt shaping.

  • Port isolation: high isolation values across adjacent and non-adjacent ports to support dense MIMO.

  • Polarization: dual linear polarization with cross-polarization discrimination optimized for MIMO throughput.

  • Impedance: 50 ohm nominal.

Applications

  • Macro cellular sectors for operators deploying wide-ranging LTE bands and early 5G NR sub-6 GHz.

  • High-capacity sites requiring multi-band aggregation and multi-antenna layers.

  • Distributed antenna systems (DAS) and neutral host environments needing many ports within a single, compact panel.

  • Fixed wireless access (FWA) where broad spectral support and multiple radios are collocated.

Installation and integration

  • Lightweight, low-profile enclosure simplifies rooftop and tower installations.

  • Integrated mounting hardware allows quick alignment and mechanical downtilt adjustments.

  • Connector access positioned for ease of cable routing and weatherproofing.

  • Compatible with standard sector alignment tools and RF planning software; antenna pattern files available for link and coverage planning.

Compliance and reliability

  • Environmental: Designed to meet common telecom standards for wind loading, salt fog, and UV resistance.

  • Electrical: Meets RF safety and performance requirements; factory-tested for repeatable performance.

  • Optional: Available with factory-installed surge protection modules or integrated grounding kits as required.

Ordering information

  • Model variants available by connector type, mounting option, and optional lightning/surge features.

  • Specify desired frequency band tuning, connector type (N-type or 4.3-10), and mounting kit when ordering.

For technical planning, request the antenna pattern files (azimuth/elevation), S-parameters, and detailed mechanical drawings to confirm fit, placement, and RF design integration.
Electrical Specifications

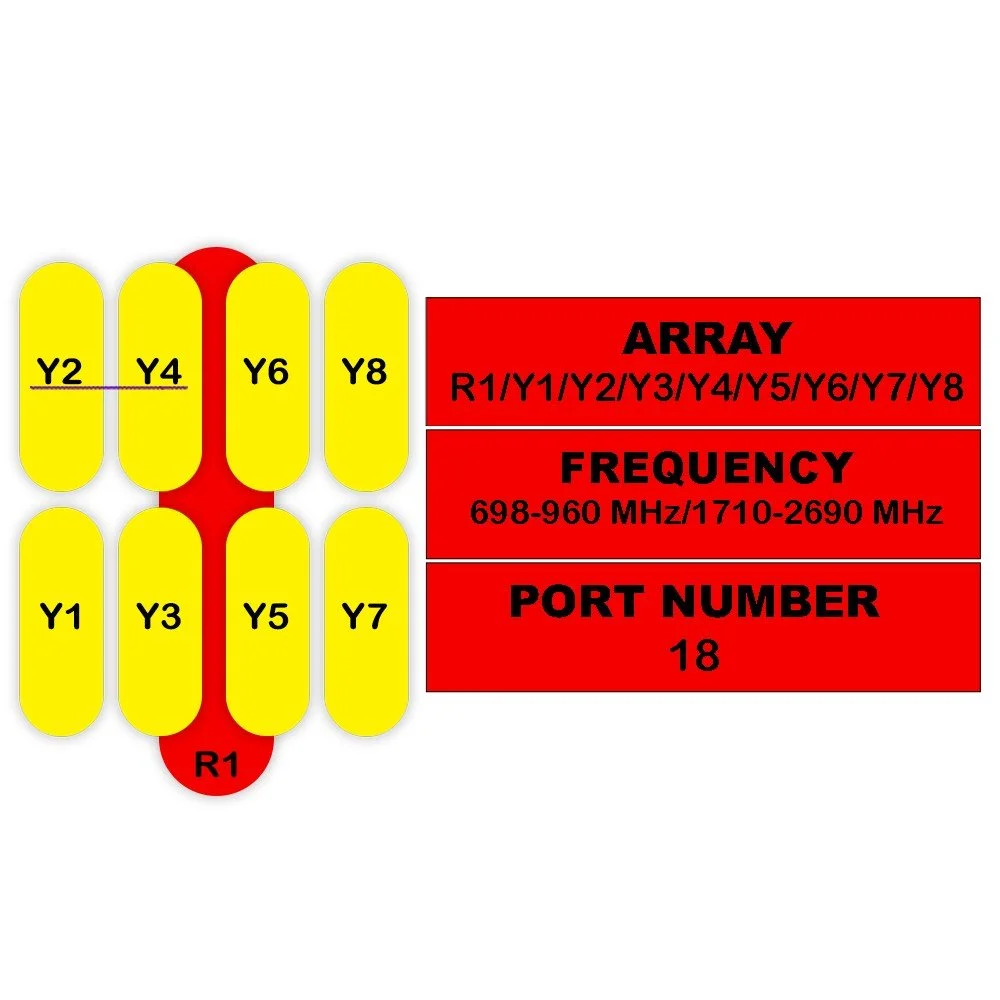

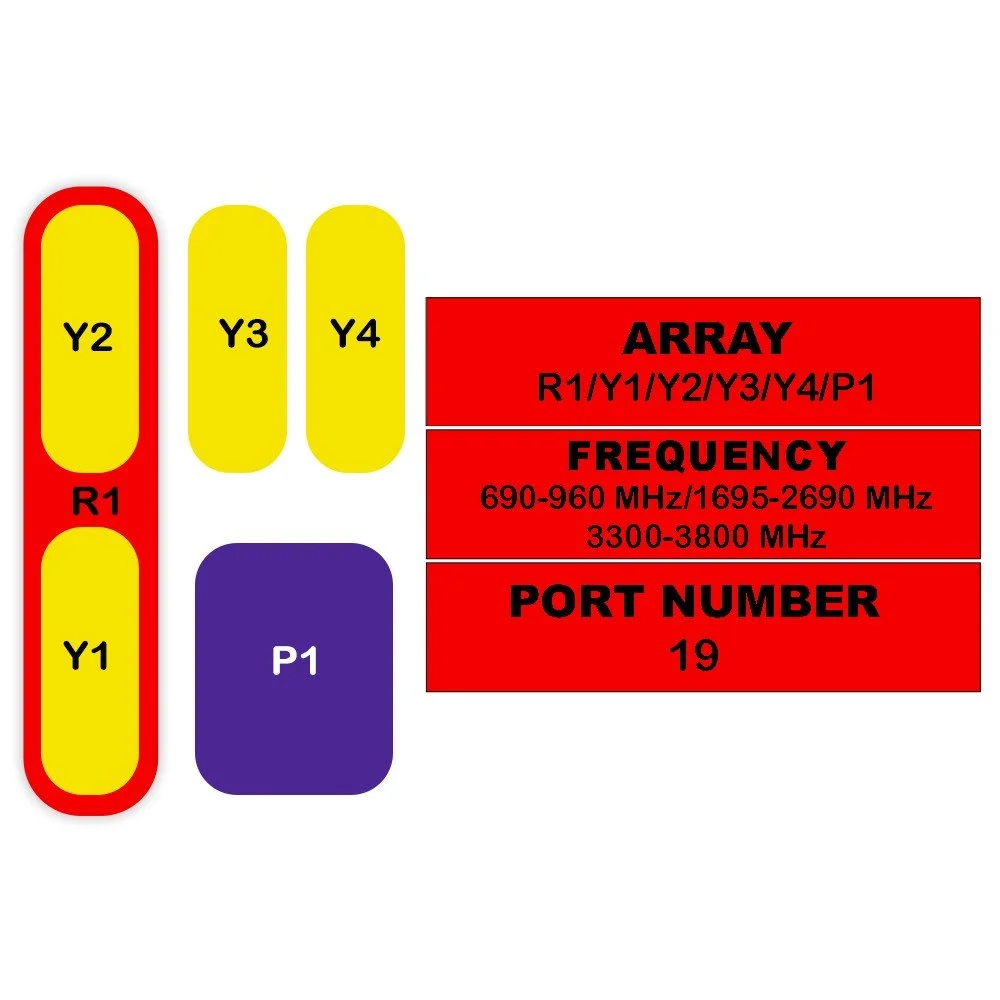

Parameter Unit R1 Y1 / Y3 / Y5 / Y7 Y2 / Y4 / Y6 / Y8
Frequency Range MHz 698–960 1710–2690 1710–2690
Sub Band Range MHz 698–806 / 790–894 / 880–960 1710–1880 / 1850–1990 / 1920–2170 / 2300–2400 / 2490–2690 1710–1880 / 1850–1990 / 1920–2170 / 2300–2400 / 2490–2690
Polarization — ±45° ±45° ±45°
Gain (Mid Tilt) dBi 13.7 / 14.0 / 14.3 13.8 – 14.7 13.6 – 14.5
Gain (Over All Tilts) dBi 13.5 ±0.6 to 14.1 ±0.5 13.6 ±0.6 to 14.5 ±0.6 13.4 ±0.6 to 14.3 ±0.6
Horizontal Beamwidth degree 68° – 64° ± tolerance 70° – 63° ± tolerance 70° – 63° ± tolerance
Vertical Beamwidth degree 14.9° – 12.2° 14.9° – 13.2° 12.7° – 8.7°
Electrical Downtilt degree 2–12 2–12 2–12
Tilt Accuracy degree < 1 < 1 < 1
Upper Side Lobe Suppression dB > 15 > 15 > 15
Front-To-Back Ratio (±30°) dB > 22–24 > 22–24 > 22–24
Cross Polar Discrimination dB > 15 (Boresight) > 16–17 (Boresight) > 16–17 (Boresight)
Isolation dB > 25 / > 28 / > 28 > 25 / > 28 / > 28 > 25 / > 28 / > 28
Impedance Ohm 50 50 50
VSWR — < 1.5 < 1.5 < 1.5
Return Loss dB > 14 > 14 > 14
PIM3 (2x43 dBm) dBc < -150 < -150 < -150
Lightning Protection — DC Ground DC Ground DC Ground
Max Avg Input Power @ 50°C Watts 250 200 200
Mechanical Specifications
Parameter Sub-Category Unit Specification

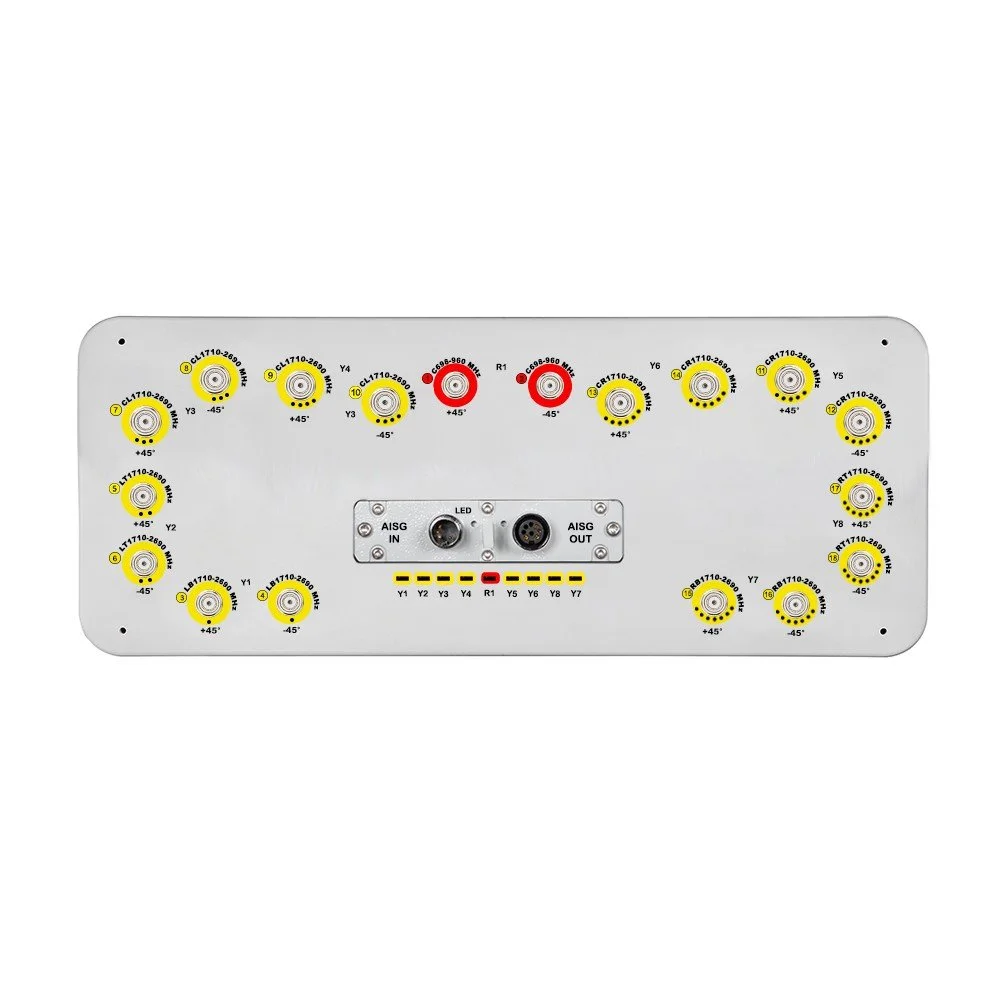

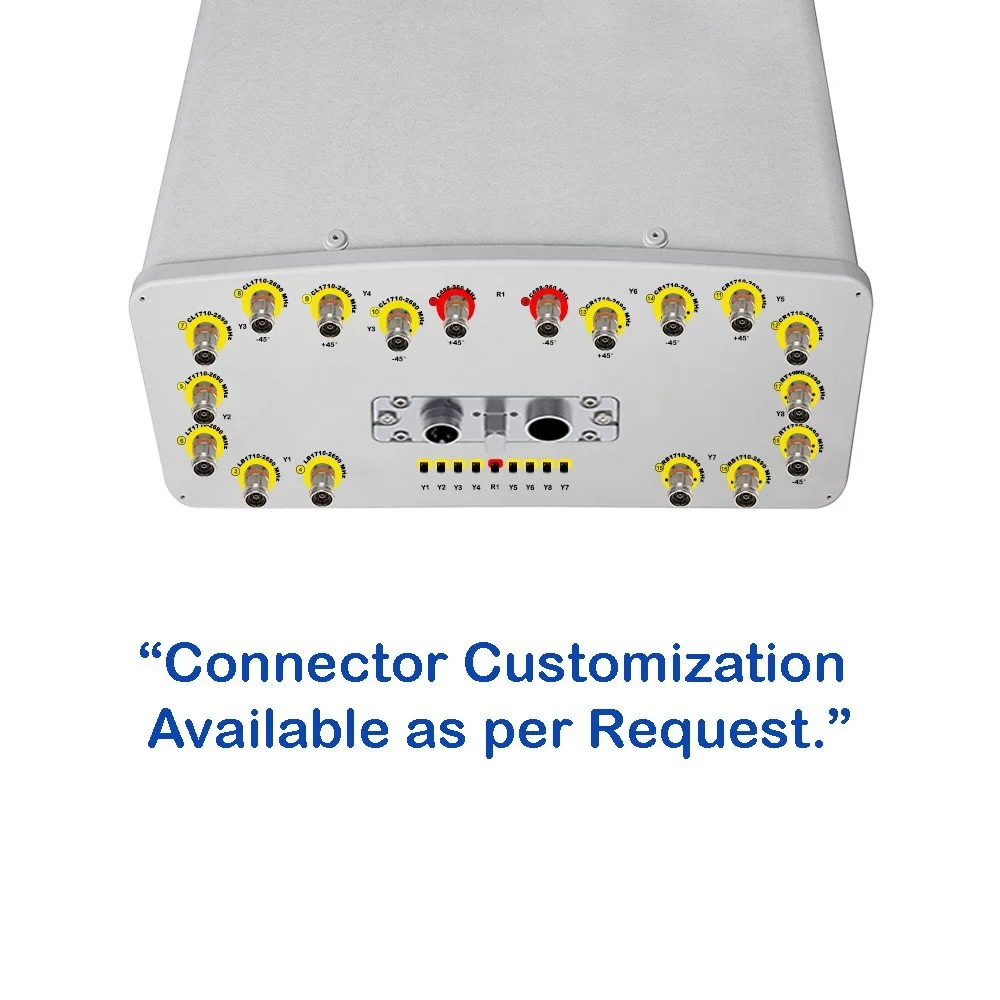

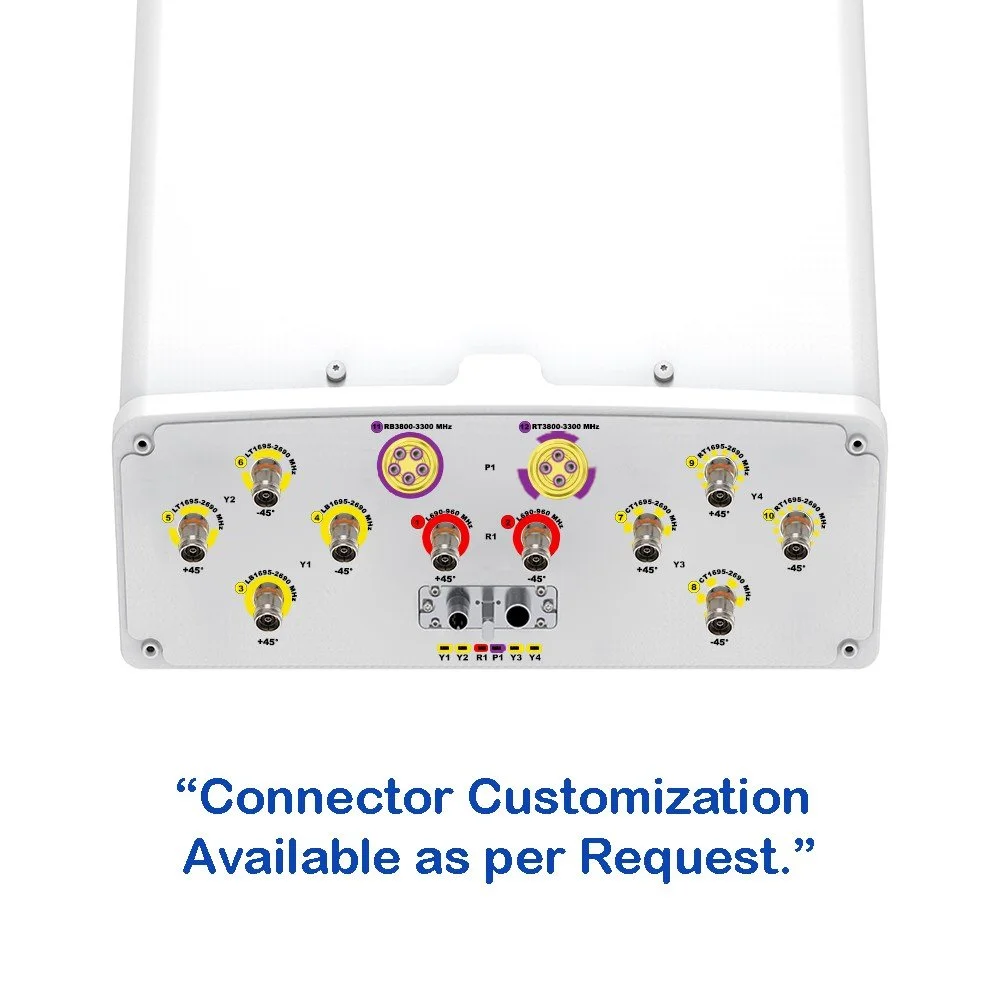

Connector Type — — (18x) 4.3/10 Female

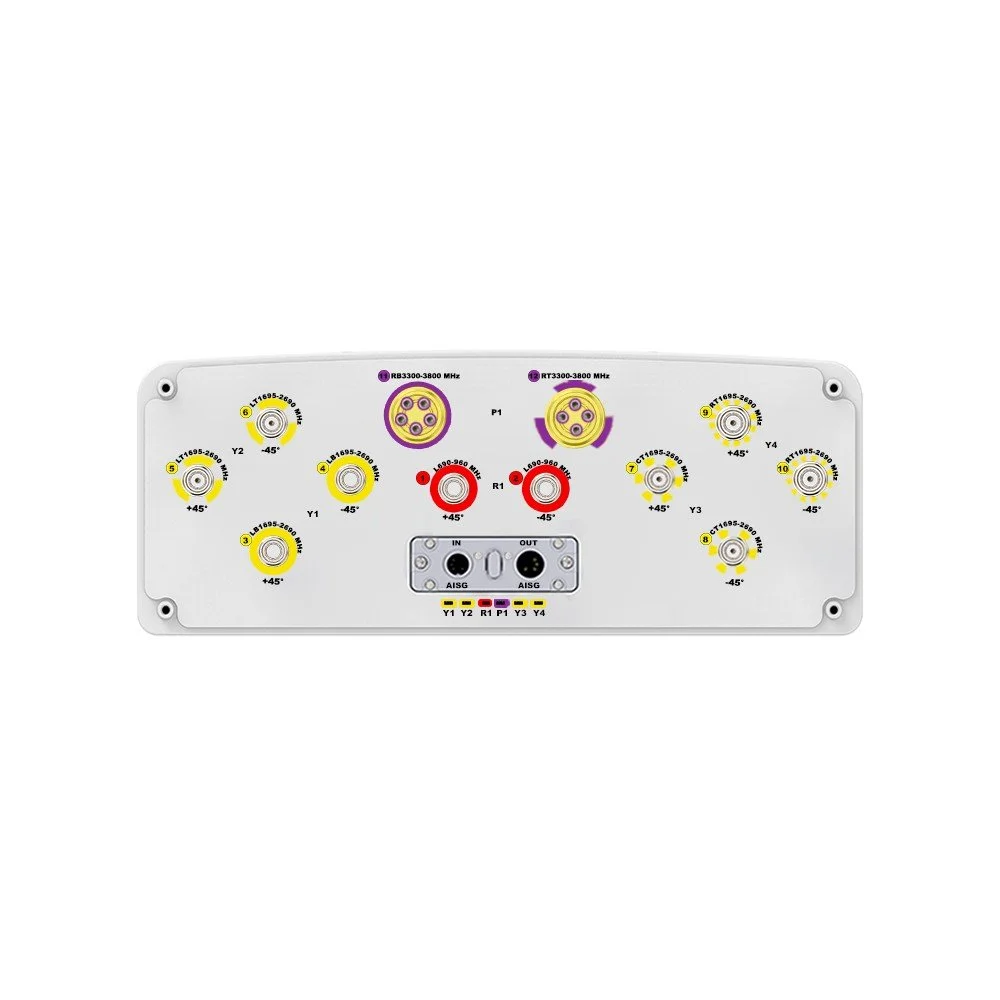

Connector Position — — Bottom
Electrical Tilt Control — — Integrated RET
Radome Material — — Fiberglass

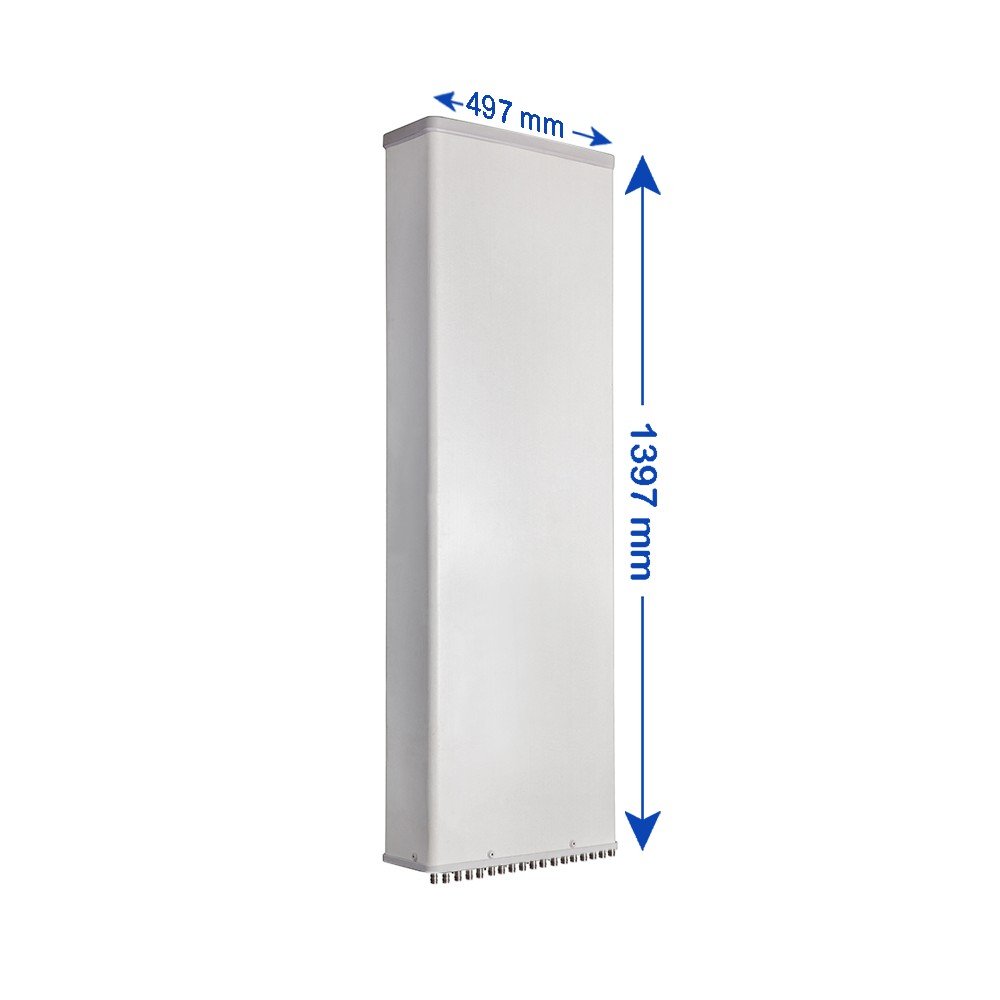

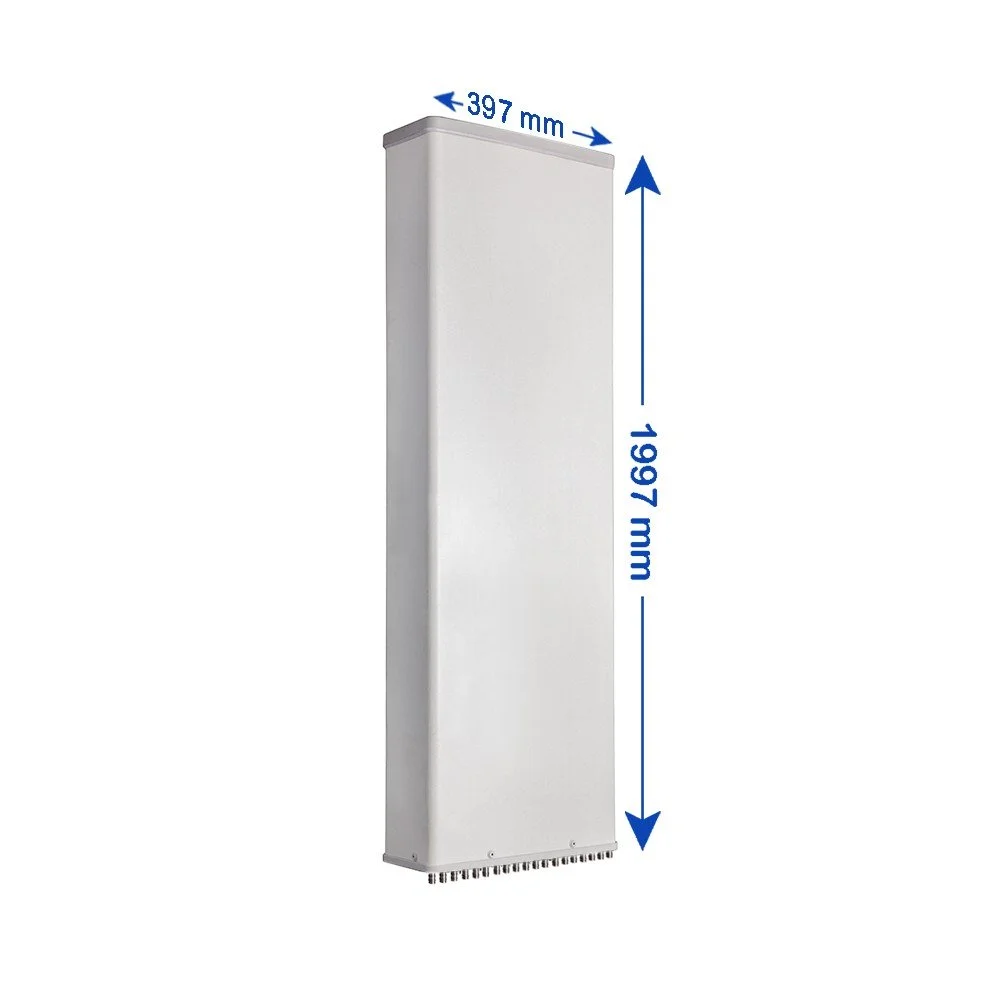

Antenna Dimensions (H × W × D) — mm (in) 1397 × 497 × 197 (55.0 × 19.6 × 7.8)
Antenna Weight Antenna Only kg (lbs) 31.5 (69.4)
Antenna Weight With Clamps kg (lbs) 35.5 (78.3)
Maximum Wind Speed — km/h (mph) 200 (124.3)
Wind Load @ 150 km/h Frontal N (lbf) 640 (143.9)
Wind Load @ 150 km/h Rear N (lbf) 715 (160.7)
Wind Load @ 150 km/h Lateral N (lbf) 315 (70.8)
Operating Temperature — °C (°F) -40 to +60 (-40 to +140)
