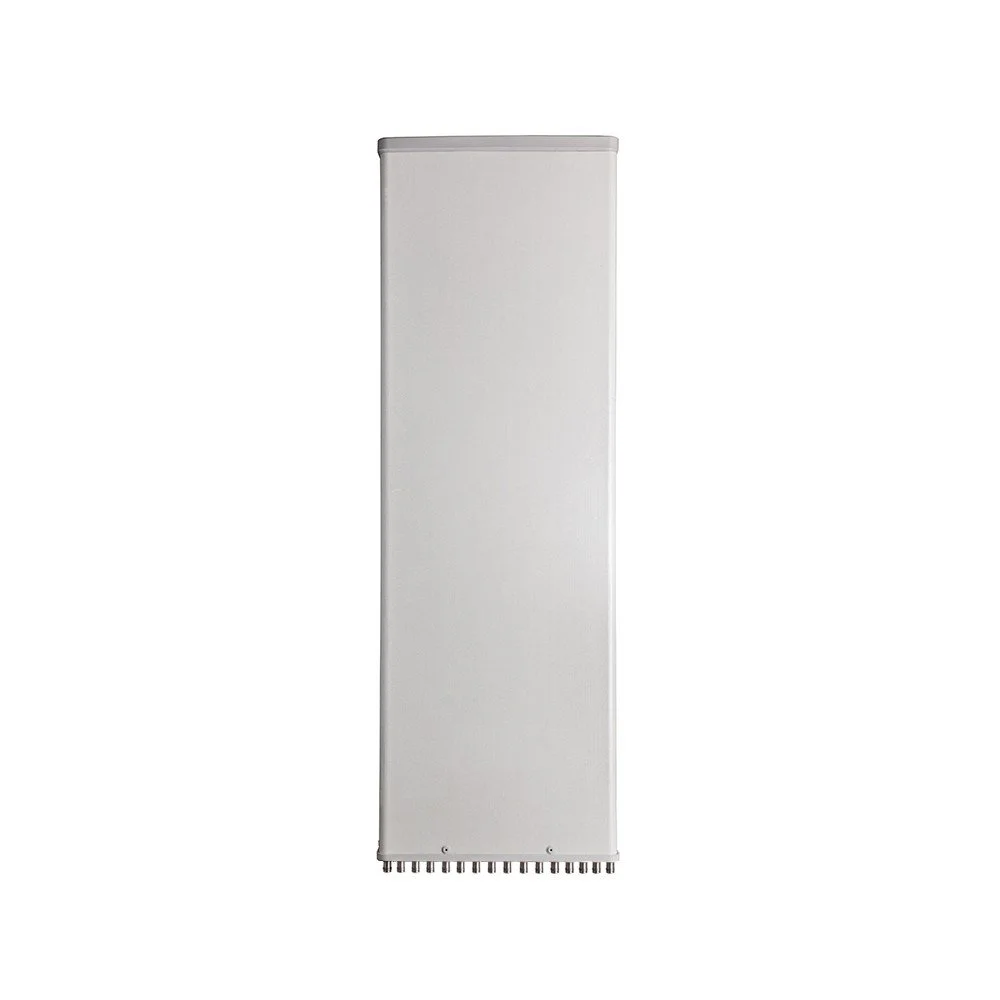

16-Port Split‑Beam Panel Sector Antenna Frequency: 1710–2400 MHz

Overview A compact, high-performance 16-port split‑beam panel sector antenna engineered for dense wireless deployments across 1710–2400 MHz. Designed for macro and micro cellular sites, small cells, and neutral-host or shared infrastructure, this antenna delivers high isolation multiport MIMO capability with consistent sector coverage, robust mechanical design, and straightforward mounting.

16-Port Split‑Beam Panel Sector Antenna Frequency: 1710–2400 MHz

Overview A compact, high-performance 16-port split‑beam panel sector antenna engineered for dense wireless deployments across 1710–2400 MHz. Designed for macro and micro cellular sites, small cells, and neutral-host or shared infrastructure, this antenna delivers high isolation multiport MIMO capability with consistent sector coverage, robust mechanical design, and straightforward mounting.

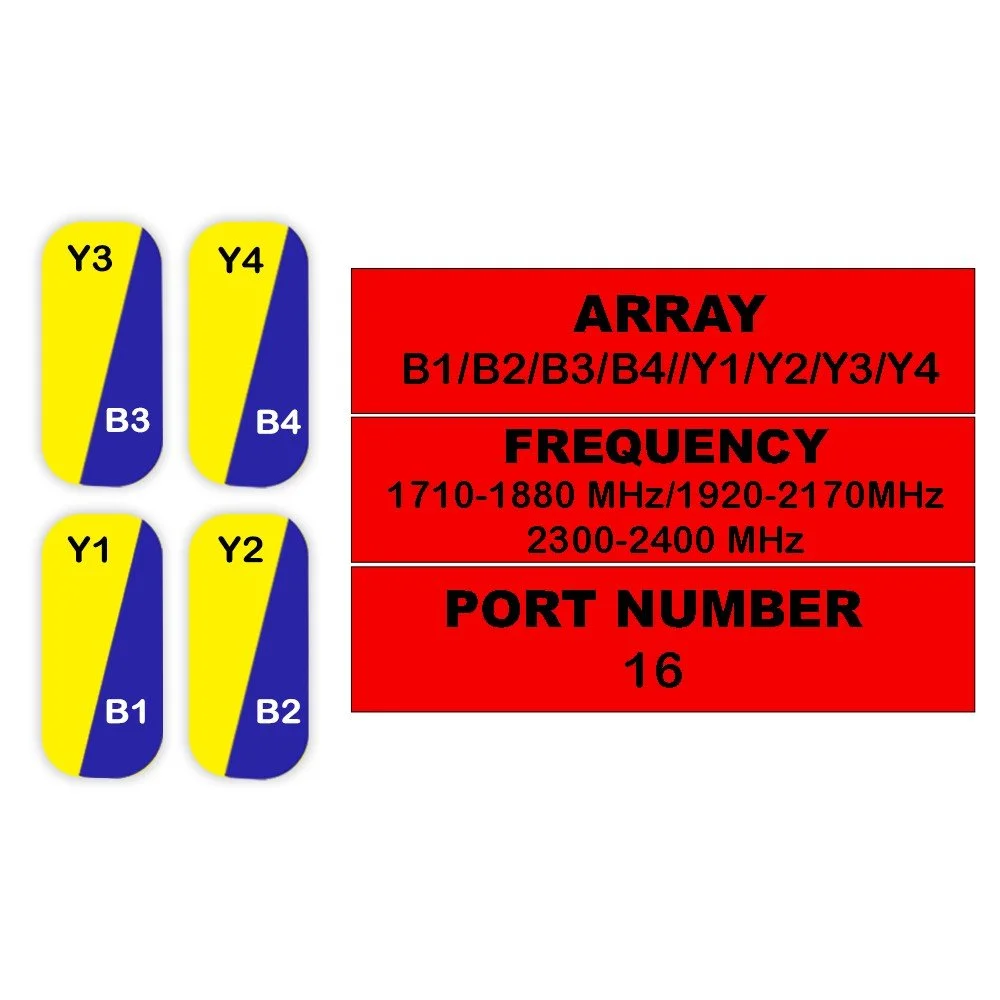

Electrical Specifications
Parameter Unit B1 / B2 (1710–1880 MHz) B1 / B2 (1920–2170 MHz)
Frequency Range MHz 1710–1880 1920–2170
Polarization — ±45° ±45°
Gain – at Mid Tilt dBi 17.3 17.5
Gain – Over All Tilts dBi 17.2 ± 0.6 17.4 ± 0.6
Horizontal Beamwidth degree 40 ± 3 36 ± 3
Azimuth Beam Centers degree B1: +30 ± 3 B2: -30 ± 3 B1: +30 ± 3 B2: -30 ± 3
Vertical Beamwidth degree 10.5 ± 1.1 9.1 ± 0.9
Electrical Downtilt (Continuously Adjustable) degree 2–12 2–12
First Upper Side Lobe Suppression dB > 15 > 15
Front-to-Back Ratio Co-Pol, ±30° dB > 23 > 24
Cross Polar Discrimination at Boresight dB > 15 > 15
Isolation – Intraband dB ≥ 25 ≥ 25
Isolation – Beam-to-Beam (Same Beam) dB ≥ 25 ≥ 25
Isolation – Interband dB ≥ 25 ≥ 25
Impedance Ohm 50 50
VSWR — < 1.5 < 1.5
Return Loss dB > 14 > 14
PIM3 (2×43 dBm Carrier) dBc < -150 < -150
Lightning Protection — DC Ground DC Ground
Maximum Average Input Power per Port (at 50°C) Watts 200 200
Electrical Specifications
Parameter Unit Y1 / Y2 Y3 / Y4
Frequency Range MHz 2300–2400 2300–2400
Polarization — ±45° ±45°
Gain – at Mid Tilt dBi 18.5 18.0
Gain – Over All Tilts dBi 18.4 ± 0.6 17.9 ± 0.6
Horizontal Beamwidth degree 33 ± 3 33 ± 3
Azimuth Beam Centers degree B1: +30 ± 3 B2: -30 ± 3 B1: +30 ± 3 B2: -30 ± 3
Vertical Beamwidth degree 8.0 ± 0.8 8.0 ± 0.8
Electrical Downtilt (Continuously Adjustable) degree 2–12 2–12
First Upper Side Lobe Suppression dB > 15 > 15
Front-to-Back Ratio Co-Pol, ±30° dB > 25 > 25
Cross Polar Discrimination at Boresight dB > 15 > 15
Isolation – Intraband dB ≥ 25 ≥ 25
Isolation – Beam-to-Beam (Same Beam) dB ≥ 25 ≥ 25
Isolation – Interband dB ≥ 25 ≥ 25
Impedance Ohm 50 50
VSWR — < 1.5 < 1.5
Return Loss dB > 14 > 14
PIM3 (2×43 dBm Carrier) dBc < -150 < -150
Lightning Protection — DC Ground DC Ground
Maximum Average Input Power per Port (at 50°C) Watts 200 200
Mechanical Specifications
Parameter Unit Specification

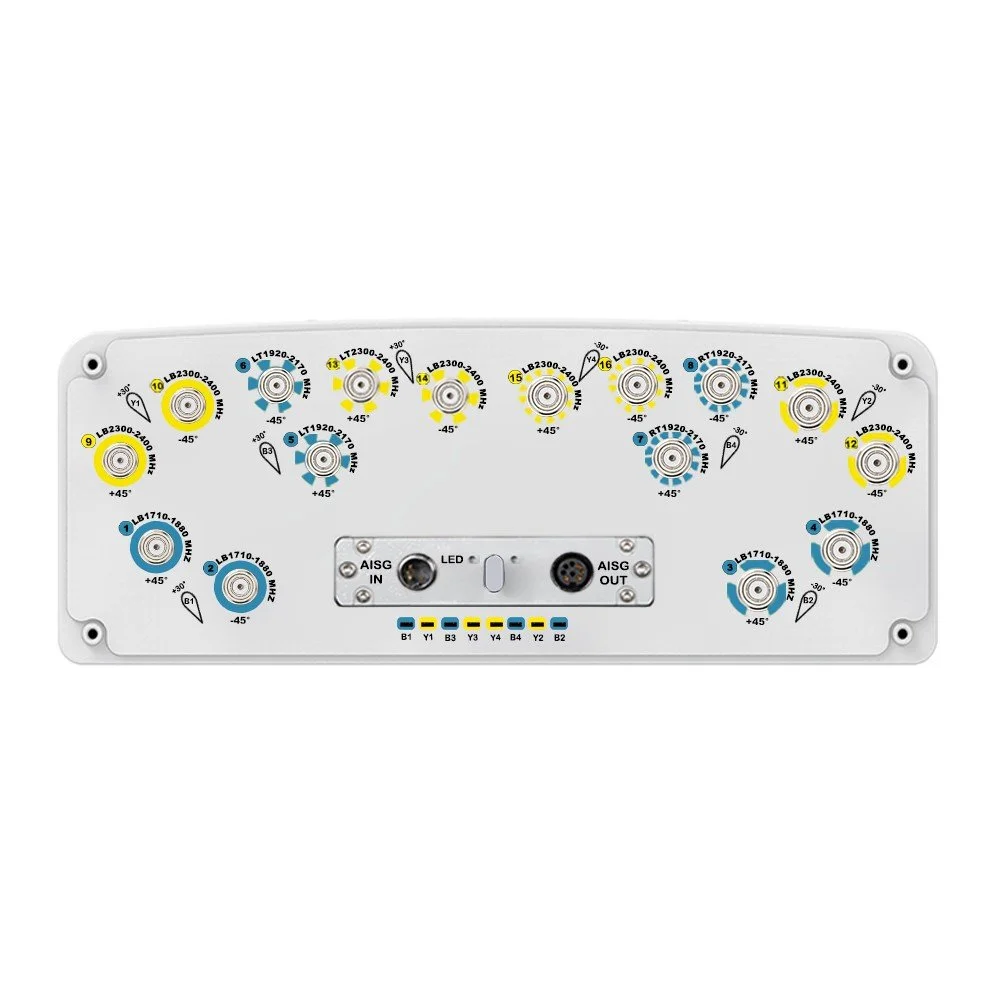

Connector Type — (16x) 4.3/10 Female
Connector Position — Bottom
Electrical Tilt Control — Integrated RET
Radome Material — Fiberglass

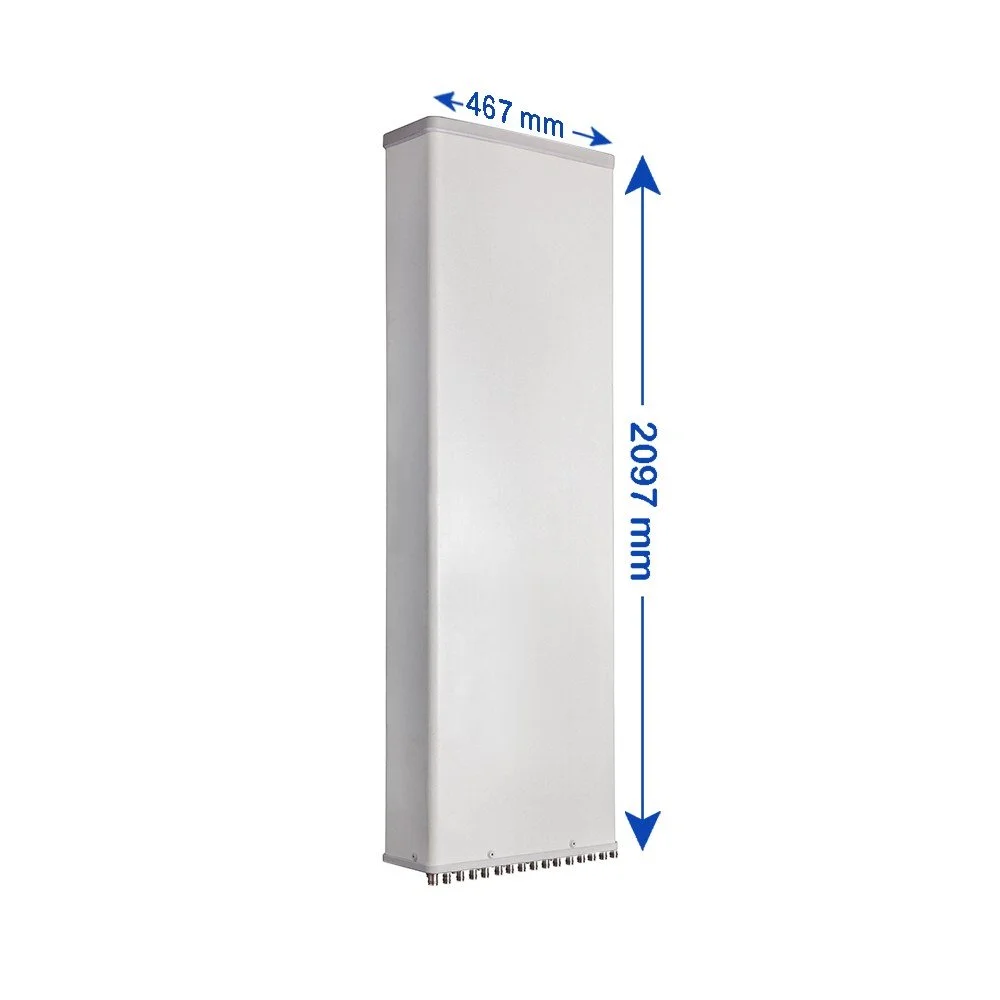

Antenna Dimensions (H × W × D) mm (in) 2097 × 467 × 167 (82.6 × 18.4 × 6.6)
Antenna Weight – Antenna Only kg (lbs) 37.5 (82.7)
Antenna Weight – With Clamps kg (lbs) 43 (94.8)
Maximum Wind Speed km/h (mph) 200 (124.3)
Wind Load at 150 km/h – Frontal N (lbf) 905 (203.5)
Wind Load at 150 km/h – Rear N (lbf) 1010 (227.1)
Wind Load at 150 km/h – Lateral N (lbf) 400 (89.9)
Operating Temperature °C (°F) -40 to +60 (-40 to +140)
