| Electrical Specifications | ||||
|---|---|---|---|---|
| Parameter | Unit | 694–806 MHz | 790–894 MHz | 880–960 MHz |
| Frequency Range | MHz | 694–960 | ||
| Polarization | — | ±45° | ||
| Gain – Typical | dBi | 15.1 | 15.5 | 15.9 |
| Gain – Over All Tilts | dBi | 14.5 ± 0.6 | 14.9 ± 0.6 | 15.3 ± 0.6 |
| Horizontal Beamwidth | degree | 68 ± 5.4 | 65 ± 5.6 | 62 ± 4.6 |
| Vertical Beamwidth | degree | 11.6 ± 1.1 | 10.3 ± 0.6 | 9.2 ± 0.7 |
| Electrical Downtilt (Continuously Adjustable) | degree | 2–12 | ||
| Tilt Accuracy | degree | < 1 | < 1 | < 1 |
| Upper Side Lobe Suppression – First Upper Lobe | dB | > 15 | > 15 | > 15 |
| Upper Side Lobe Suppression – Peak to 20° | dB | > 14 | > 14 | > 14 |
| Front-to-Back Ratio ±30° | dB | > 22 | > 23 | > 24 |
| Cross Polar – At Boresight | dB | > 16 | > 16 | > 16 |
| Discrimination – Over Sector | dB | > 7.0 | > 7.0 | > 6.0 |
| Isolation – Cross-Polar | dB | > 25 | ||
| Isolation – Interband (Typical) | dB | > 25 | ||
| Impedance | Ohm | 50 | ||
| VSWR | — | < 1.5 | ||
| Return Loss | dB | > 14 | ||
| PIM3 (2×43 dBm Carrier) | dBc | < -150 | ||
| Lightning Protection | — | DC Ground | ||
| Maximum Average Input Power per Port (at 50°C) | Watts | 250 | ||
| Electrical Specifications | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Parameter | B1 / B2 | Y1 / Y4 | Y2 / Y3 | ||||||
| Frequency Bands (MHz) | 1695–1880 | 1850–1990 | 1920–2180 | — | 1427–1518 | 1695–1920 | 1920–2170 | 2300–2400 | 2500–2690 |
| Frequency Range (MHz) | 1695–2180 | 2490–2690 | 1427–2690 | ||||||
| Polarization | ±45° | ±45° | ±45° | ||||||
| Gain at Mid Tilt (dBi) | 16.8 | 17.1 | 17.5 | 17.7 | 15.6 | 16.6 | 17.2 | 17.6 | 17.6 |
| Gain Over All Tilts (dBi) | 16.2 ± 0.6 | 16.6 ± 0.5 | 17.0 ± 0.5 | 17.2 ± 0.5 | 15.4 ± 0.6 | 16.4 ± 0.5 | 17.0 ± 0.5 | 17.4 ± 0.5 | 17.4 ± 0.5 |
| Horizontal Beamwidth (°) | 66 ± 6.5 | 66 ± 6.5 | 64 ± 8.1 | 58 ± 9.0 | 71 ± 9.5 | 66 ± 8.5 | 59 ± 6.5 | 58 ± 6.0 | 57 ± 8.0 |
| Vertical Beamwidth (°) | 6.2 ± 0.6 | 5.6 ± 0.8 | 5.2 ± 0.8 | 4.4 ± 0.5 | 7.8 ± 0.6 | 6.0 ± 0.8 | 5.2 ± 0.6 | 4.8 ± 0.5 | 4.4 ± 0.6 |
| Electrical Downtilt (°) | 2–12 | 2–12 | 2–12 | ||||||
| Tilt Accuracy (°) | < 1 | < 1 | < 1 | < 1 | < 1 | < 1 | < 1 | < 1 | < 1 |
| Upper Side Lobe Suppression – First Upper Lobe (dB) | > 15 | > 15 | > 15 | > 15 | > 15 | > 15 | > 15 | > 15 | > 15 |
| Upper Side Lobe Suppression – Peak to 20° (dB) | > 15 | > 15 | > 15 | > 14 | > 14 | > 14 | > 14 | > 14 | > 14 |
| Front-to-Back Ratio ±30° (dB) | > 24 | > 24 | > 25 | > 24 | > 23 | > 25 | > 25 | > 25 | > 25 |
| Cross Polar at Boresight (dB) | > 18 | > 18 | > 18 | > 18 | > 16 | > 16 | > 16 | > 17 | > 17 |
| Discrimination Over Sector (dB) | > 6.0 | > 7.0 | > 7.0 | > 2.0 | > 4.0 | > 6.0 | > 5.0 | > 3.0 | > 2.0 |
| Isolation – Cross-Polar (dB) | > 26 | > 26 | > 26 | ||||||
| Isolation – Port-to-Port / Interband (dB) | > 25 | > 25 | > 25 | ||||||
| Impedance (Ohm) | 50 | 50 | 50 | ||||||
| VSWR | < 1.5 | < 1.5 | < 1.5 | ||||||
| Return Loss (dB) | > 14 | > 14 | > 14 | ||||||
| PIM3 (2×43 dBm Carrier) (dBc) | < -150 | < -150 | < -150 | ||||||
| Lightning Protection | DC Ground | DC Ground | DC Ground | ||||||
| Maximum Average Input Power per Port (W) | 200 | 200 | 200 | ||||||
| Mechanical Specifications | |||
|---|---|---|---|
| Parameter | Sub-Category | Unit | Specification |

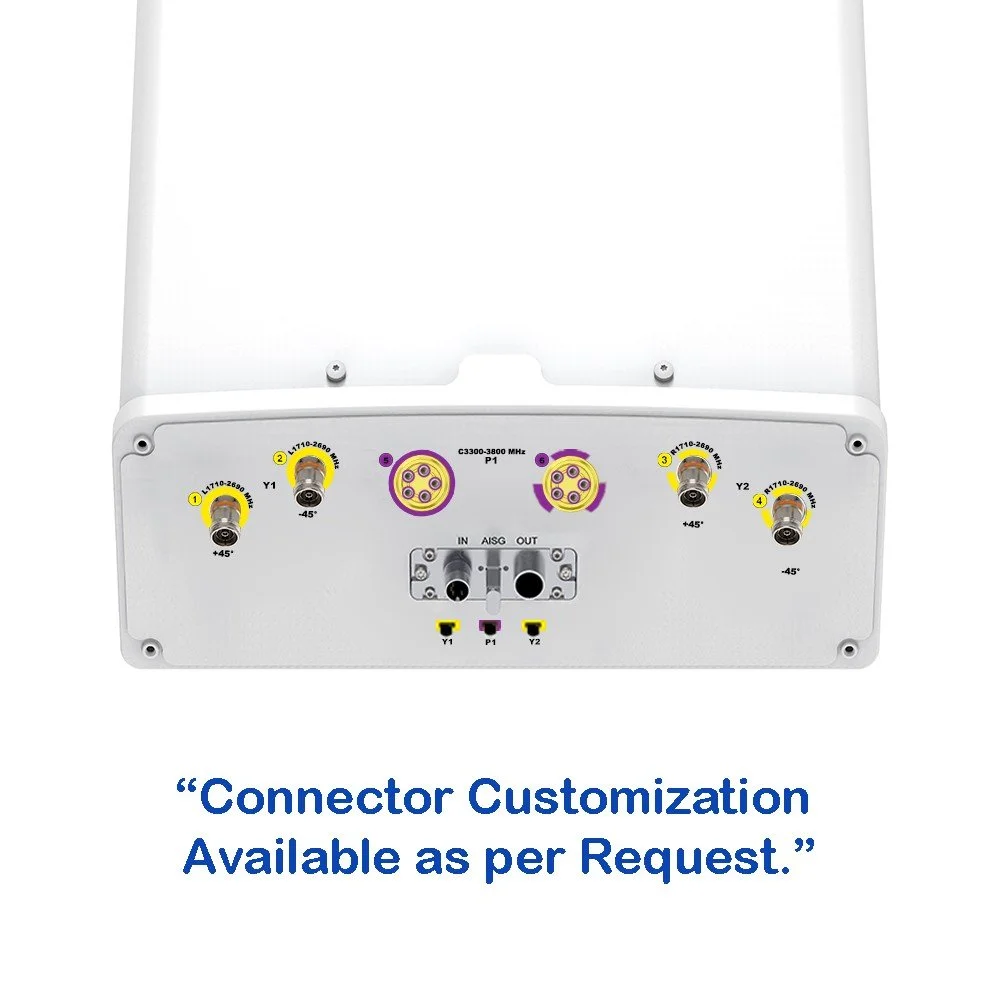

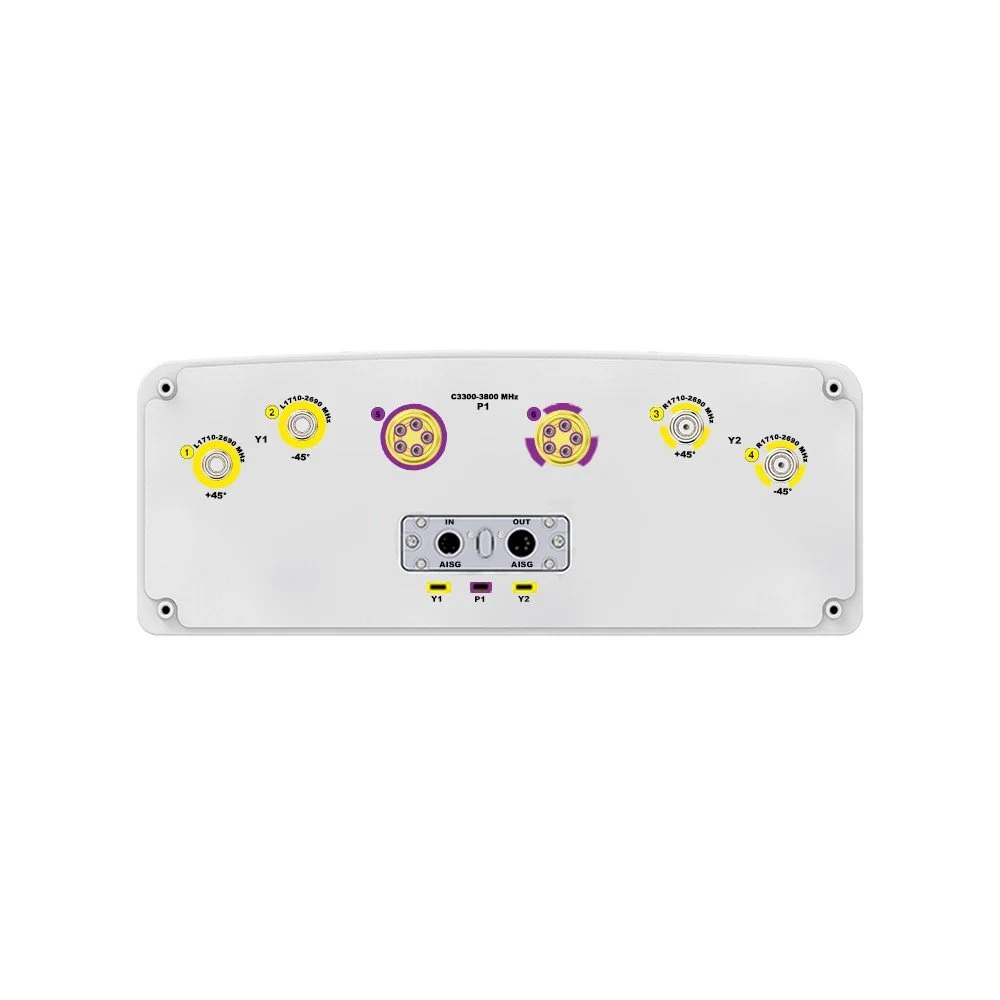

| Connector Type | — | — | (16x) 4.3/10 Female |
| Connector Position | — | — | Bottom |
| Electrical Tilt Control | — | — | Integrated RET |
| Radome Material | — | — | Fiberglass |
| Antenna Dimensions (H × W × D) | — | mm (in) | 2097 × 497 × 197 (82.6 × 19.6 × 7.8) |
| Antenna Weight | Antenna Only | kg (lbs) | 29 (63.9) |
| Antenna Weight | With Clamps | kg (lbs) | 34.5 (76.1) |
| Maximum Wind Speed | — | km/h (mph) | 200 (124.3) |
| Wind Load at 150 km/h | Frontal | N (lbf) | 965 (216.9) |
| Wind Load at 150 km/h | Rear | N (lbf) | 1075 (241.7) |
| Wind Load at 150 km/h | Lateral | N (lbf) | 470 (105.7) |
| Operating Temperature | — | °C (°F) | -40 to +60 (-40 to +140) |
