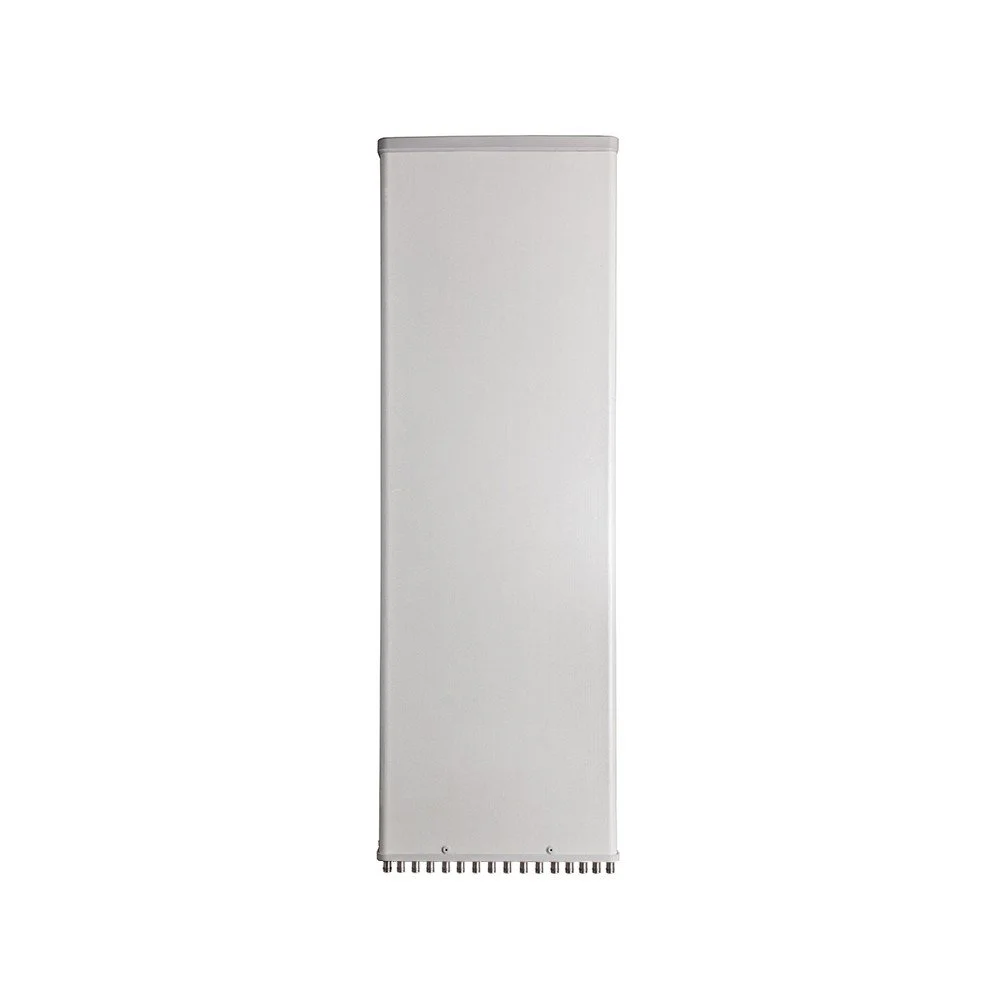

16-Port Panel Sector Antenna (694–2690 MHz)

Overview A high‑performance 16‑port panel sector antenna engineered for multi‑band cellular coverage across 694–2690 MHz. Designed for dense urban and suburban deployments, this antenna delivers optimized azimuth control, consistent downlink/uplink performance, and simplified integration into multi‑carrier, MIMO and DAS systems.

Key Features :

  • Frequency range: 694–2690 MHz (covers low, mid and extended LTE bands for broad operator compatibility)

  • 16 ports supporting multiple MIMO layers and carrier aggregation

  • Sector beamwidth options for precise coverage shaping and interference control

  • High gain across bands to extend cell edge and improve user throughput

  • Low passive intermodulation (PIM) construction for reliable multi-carrier operation

  • Excellent port-to-port isolation and stable radiation patterns to support dense antenna stacking

  • Corrosion-resistant radome and robust mounting hardware for long-term outdoor use

  • Wide operating temperature range and environmental sealing for all-weather reliability

  • Compatible with standard tower clamps and sector mounts for quick field installation

  • Lightweight design to minimize mounting wind load and simplify handling

16-Port Panel Sector Antenna (694–2690 MHz)

Overview A high‑performance 16‑port panel sector antenna engineered for multi‑band cellular coverage across 694–2690 MHz. Designed for dense urban and suburban deployments, this antenna delivers optimized azimuth control, consistent downlink/uplink performance, and simplified integration into multi‑carrier, MIMO and DAS systems.

Key Features :

  • Frequency range: 694–2690 MHz (covers low, mid and extended LTE bands for broad operator compatibility)

  • 16 ports supporting multiple MIMO layers and carrier aggregation

  • Sector beamwidth options for precise coverage shaping and interference control

  • High gain across bands to extend cell edge and improve user throughput

  • Low passive intermodulation (PIM) construction for reliable multi-carrier operation

  • Excellent port-to-port isolation and stable radiation patterns to support dense antenna stacking

  • Corrosion-resistant radome and robust mounting hardware for long-term outdoor use

  • Wide operating temperature range and environmental sealing for all-weather reliability

  • Compatible with standard tower clamps and sector mounts for quick field installation

  • Lightweight design to minimize mounting wind load and simplify handling

Electrical Specifications – R1 / R2 (694–960 MHz)
Electrical Specifications – R1 / R2 (694–960 MHz)
Parameter Sub-Parameter Unit 694–824 MHz 806–896 MHz 880–960 MHz
Polarization ±45°
Gain Mid Tilt dBi 1414.314.6
All Tilts dBi 13.8±0.614.1±0.614.4±0.6
Horizontal Beamwidth ° 67±5.564±5.562±5.5
Vertical Beamwidth ° 15.1±1.113.6±0.912.4±0.8
Electrical Downtilt Continuously Adjustable ° 2–12
Tilt Accuracy ° <1<1<1
Upper Side Lobe Suppression First Upper Lobe dB >15>15>15
Peak to 20° dB >15>15>15
Front-to-Back Ratio ±30° dB >22>23>24
Cross Polar At Boresight dB >18>18>18
Discrimination Over Sector dB >8.0>7.0>6.0
Isolation Cross-Polar dB >25
Port-to-Port dB >28 (R1,R2//Y1–Y6)
>25 (R1//R2)
Impedance Ohm 50
VSWR <1.5
Return Loss dB >14
PIM3 (2×43 dBm Carrier) dBc <-150
Lightning Protection DC Ground
Maximum Avg Input Power @50°C Per Port Watts 250

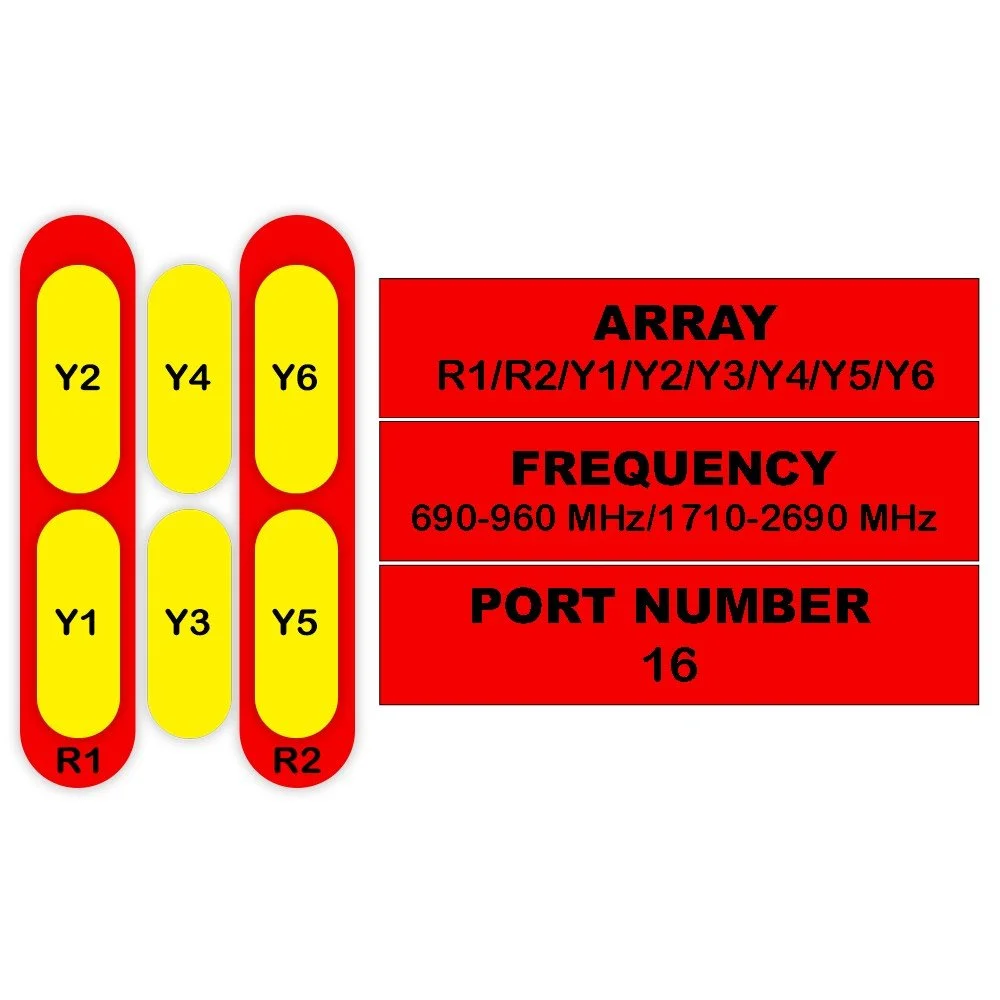

Electrical Specifications for Y1/Y3/Y5 and Y2/Y4/Y6 antenna ports
Parameter Y1 / Y3 / Y5 Y2 / Y4 / Y6
Frequency Bands (MHz) 1710–1880 1850–1990 1920–2170 2300–2400 2500–2690 1710–1880 1850–1990 1920–2170 2300–2400 2500–2690
Frequency Range (MHz) 1710–2690 1710–2690
Polarization ±45° ±45°
Gain at Mid Tilt (dBi) 14.0 14.3 14.6 14.9 14.9 13.8 14.1 14.4 14.7 14.7
Gain Over All Tilts (dBi) 13.8±0.7 14.1±0.6 14.4±0.6 14.7±0.6 14.7±0.6 13.6±0.7 13.9±0.6 14.2±0.6 14.5±0.6 14.5±0.6
Horizontal Beamwidth (°) 69 ± 5.6 67 ± 5.2 65 ± 5.5 63 ± 5.4 62 ± 5.2 69 ± 5.6 67 ± 5.2 65 ± 5.5 63 ± 5.4 62 ± 5.2
Vertical Beamwidth (°) 12.7±1.0 11.7±0.8 10.9±0.8 9.6 ± 0.9 8.7 ± 0.9 12.7±1.0 11.7±0.8 10.9±0.8 9.6 ± 0.9 8.7 ± 0.9
Electrical Downtilt (°) 2–12 2–12
Tilt Accuracy (°) < 1< 1< 1< 1< 1 < 1< 1< 1< 1< 1
Upper Side Lobe Suppression – First Upper Lobe (dB) > 15> 15> 15> 15> 15 > 15> 15> 15> 15> 15
Upper Side Lobe Suppression – Peak to 20° (dB) > 15> 15> 15> 15> 15 > 15> 15> 15> 15> 15
Front-to-Back Ratio ±30° (dB) > 23> 23> 24> 25> 24 > 23> 23> 24> 25> 24
Cross Polar at Boresight (dB) > 16> 16> 17> 18> 18 > 16> 16> 17> 18> 18
Discrimination Over Sector (dB) > 6.0> 7.0> 7.0> 5.0> 3.0 > 6.0> 7.0> 7.0> 5.0> 3.0
Isolation – Cross-Polar (dB) > 25 > 25
Isolation – Port-to-Port (dB) > 28 > 28
Impedance (Ohm) 50 50
VSWR < 1.5 < 1.5
Return Loss (dB) > 14 > 14
PIM3 (2×43 dBm Carrier) (dBc) < -150 < -150
Lightning Protection DC Ground DC Ground
Maximum Average Input Power per Port (W) 250 250
Mechanical Specifications for antenna including connectors, dimensions, wind load, and operating temperature
Mechanical Specifications
Parameter Sub-Category Unit Specification

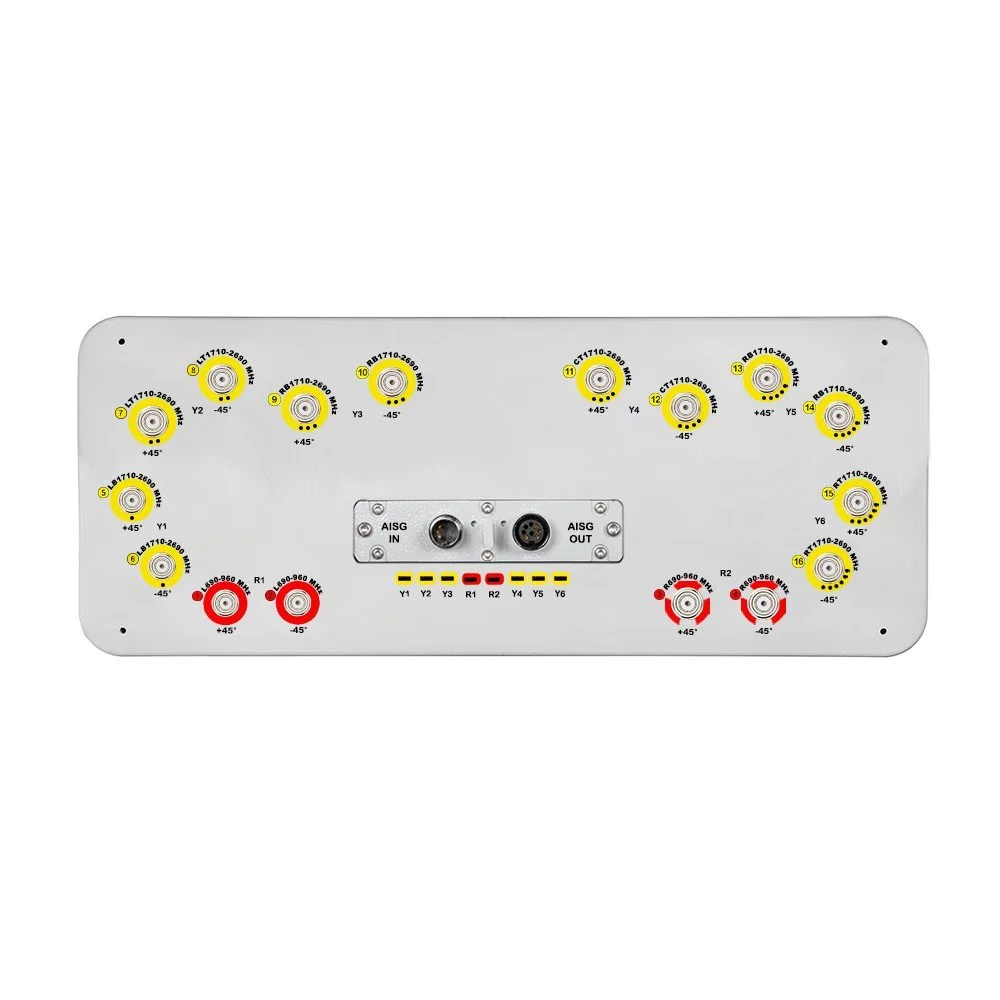

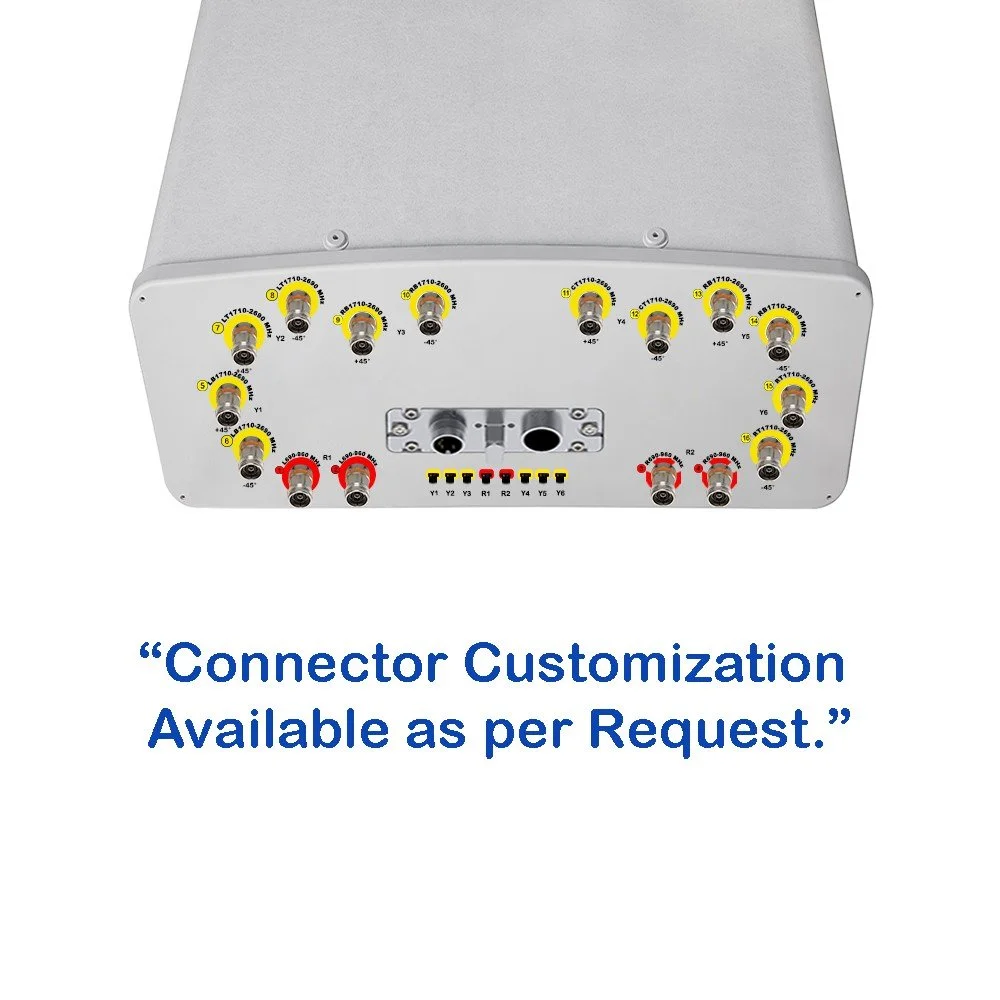

Connector Type (16x) 4.3/10 Female
Connector Position Bottom
Electrical Tilt Control Integrated RET
Radome Material Fiberglass

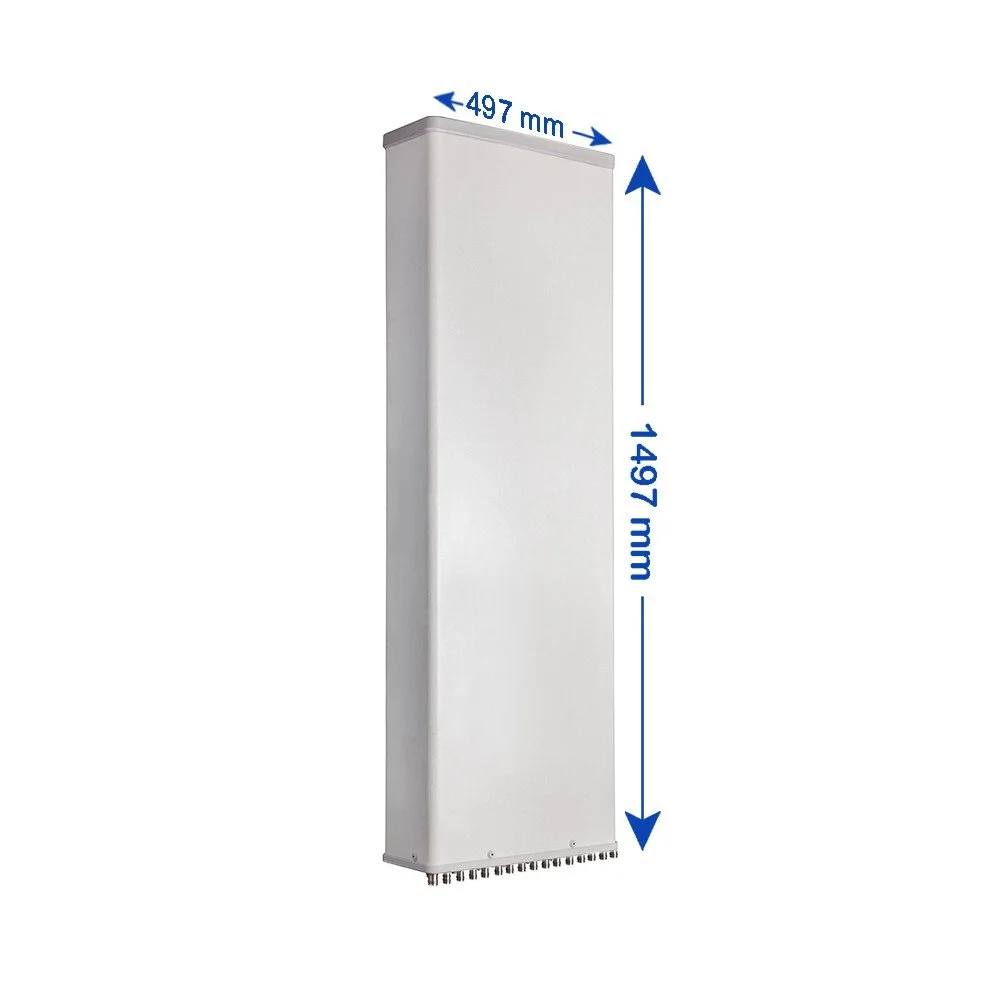

Antenna Dimensions (H × W × D) mm (in) 1497 × 497 × 197 (58.9 × 19.6 × 7.8)
Antenna Weight Antenna Only kg (lbs) 27.5 (60.6)
Antenna Weight With Clamps kg (lbs) 33 (72.8)
Maximum Wind Speed km/h (mph) 200 (124.3)
Wind Load at 150 km/h Frontal N (lbf) 690 (155.1)
Wind Load at 150 km/h Rear N (lbf) 770 (173.1)
Wind Load at 150 km/h Lateral N (lbf) 290 (65.2)
Operating Temperature °C (°F) -40 to +60 (-40 to +140)
