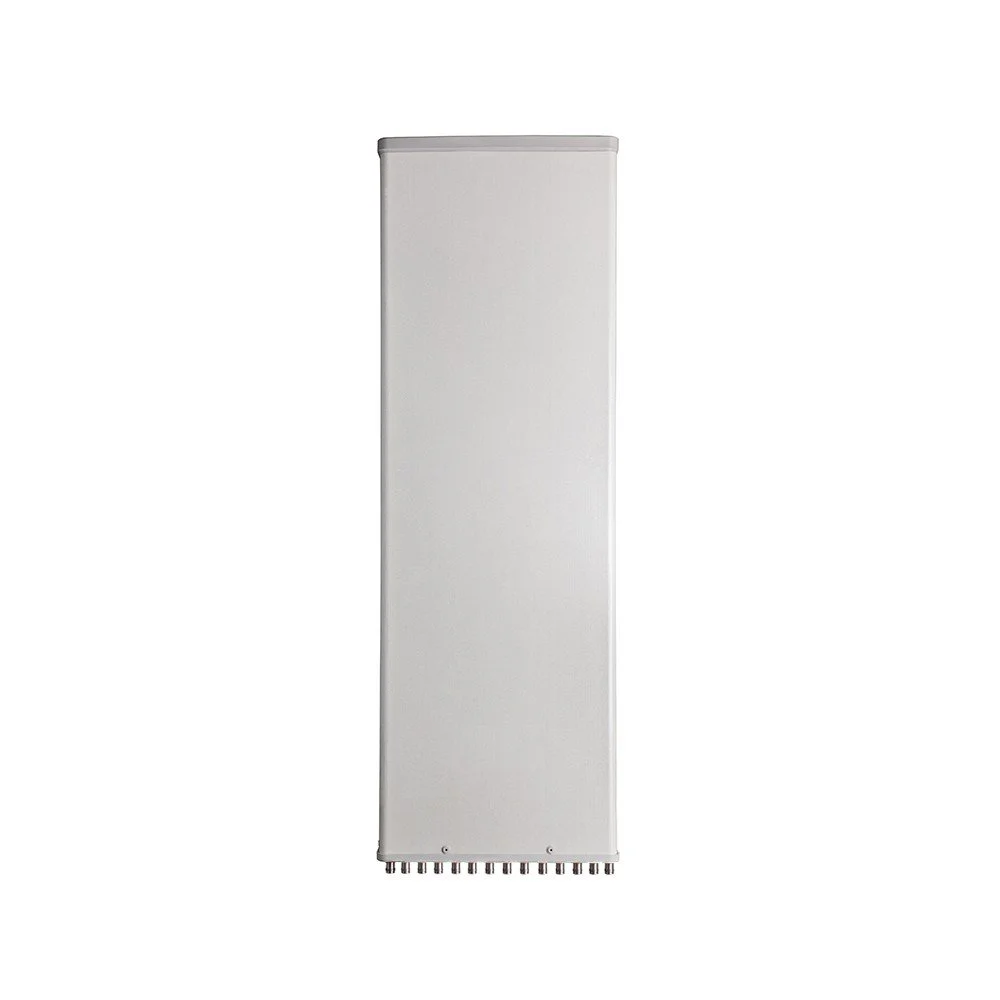

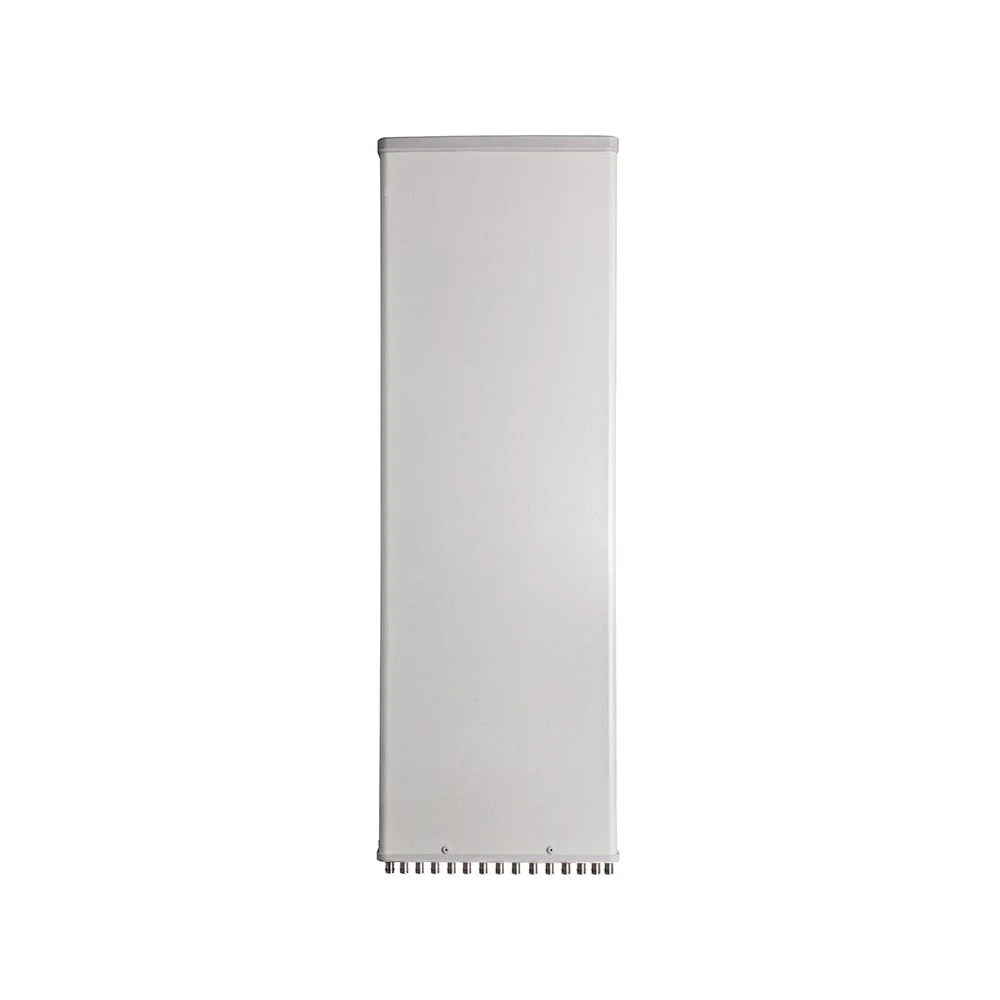

16-Port Panel Sector (694–2690 MHz)

Overview A rugged, high-performance 16-port panel sector antenna covering 694–2690 MHz. Engineered for dense urban and suburban deployments, this antenna delivers consistent sector coverage for macro and small cell sites, supporting multi-carrier and multi-operator environments with low insertion loss and optimized radiation patterns.

Key Features :

  • Frequency range: 694–2690 MHz (full support for 700/800/900/1500/1700/1800/1900/2100/2300/2600 MHz bands)

  • 16 RF ports: supports high-capacity multi-operator or MIMO configurations

  • Sector beamwidth: 65° nominal horizontal (custom options available)

  • Dual-slant polarization with adjustable downtilt per port grouping

  • High gain: typical 8–12 dBi across the band (per port values depend on frequency)

  • Low VSWR: ≤ 1.5:1 typical per port

  • Low inter-port isolation: optimized to minimize mutual coupling between adjacent ports

  • Robust mechanical design: corrosion-resistant radome and mounting hardware for pole or wall installation

  • Wide operating temperature: -40°C to +65°C

  • IP65/66 rated enclosure for outdoor exposure

  • Lightning protection: integrated DC grounding and surge paths; optional external surge devices recommended

  • Lightweight, compact form factor for easier installation and reduced tower loading

16-Port Panel Sector (694–2690 MHz)

Overview A rugged, high-performance 16-port panel sector antenna covering 694–2690 MHz. Engineered for dense urban and suburban deployments, this antenna delivers consistent sector coverage for macro and small cell sites, supporting multi-carrier and multi-operator environments with low insertion loss and optimized radiation patterns.

Key Features :

  • Frequency range: 694–2690 MHz (full support for 700/800/900/1500/1700/1800/1900/2100/2300/2600 MHz bands)

  • 16 RF ports: supports high-capacity multi-operator or MIMO configurations

  • Sector beamwidth: 65° nominal horizontal (custom options available)

  • Dual-slant polarization with adjustable downtilt per port grouping

  • High gain: typical 8–12 dBi across the band (per port values depend on frequency)

  • Low VSWR: ≤ 1.5:1 typical per port

  • Low inter-port isolation: optimized to minimize mutual coupling between adjacent ports

  • Robust mechanical design: corrosion-resistant radome and mounting hardware for pole or wall installation

  • Wide operating temperature: -40°C to +65°C

  • IP65/66 rated enclosure for outdoor exposure

  • Lightning protection: integrated DC grounding and surge paths; optional external surge devices recommended

  • Lightweight, compact form factor for easier installation and reduced tower loading

Antenna Electrical Specifications Table
Parameter Unit R1 / R3
694–862 MHz
R2 / R4
880–960 MHz
Y1 / Y3
1695–2690 MHz
Y2 / Y4
1695–2690 MHz
694–806 790–862 880–960 1695–1880 1850–1990 1920–2170 2300–2400 2490–2690 1695–1880 1850–1990 1920–2170 2300–2400 2490–2690
Polarization ±45°
Gain (Mid Tilt) dBi 15.61616.4 16.416.817.217.417.4 1616.416.81717
Gain (All Tilts) dBi 15.4 ± 0.615.8 ± 0.616.2 ± 0.6 16.2 ± 0.516.6 ± 0.517.0 ± 0.517.2 ± 0.517.2 ± 0.5 15.8 ± 0.516.2 ± 0.516.6 ± 0.516.8 ± 0.516.8 ± 0.5
Horizontal Beamwidth degree 65 ± 5.462 ± 5.658 ± 4.6 68 ± 6.566 ± 6.561 ± 6.562 ± 5.060 ± 6.5 68 ± 6.566 ± 6.561 ± 6.562 ± 5.060 ± 6.5
Vertical Beamwidth degree 8.8 ± 0.97.8 ± 0.67.2 ± 0.7 6.8 ± 0.56.4 ± 0.46.0 ± 0.55.2 ± 0.54.8 ± 0.6 6.8 ± 0.56.4 ± 0.46.0 ± 0.55.2 ± 0.54.8 ± 0.6
Electrical Downtilt (Continuous) degree 2° – 12° (Integrated RET)
Tilt Accuracy degree < 1°
Front-to-Back Ratio (±30°) dB >23>24>25 ≥24≥24>25≥25≥25 ≥24≥24>25≥25≥25
Cross Polar (Boresight) dB >18>18>18 >16>16>17>18>18 >16>16>17>18>18
Isolation (Port-to-Port) dB >25 / >28 (configuration dependent) >28
Impedance Ohm 50 Ω
VSWR < 1.5
Return Loss dB > 14
PIM3 (2×43 dBm) dBc < -150
Lightning Protection DC Ground
Max Avg Input Power / Port (50°C) Watts 200 W
Antenna Mechanical Specifications
Mechanical Specifications Unit Value

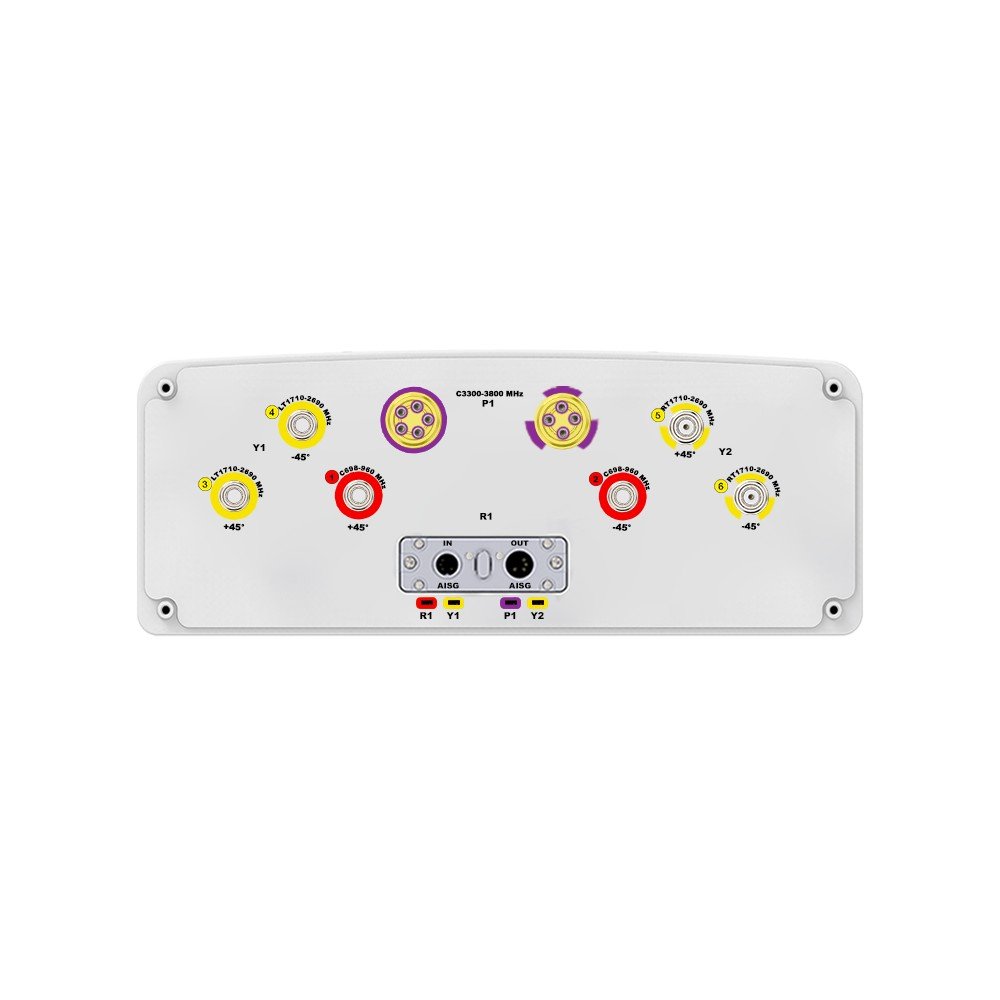

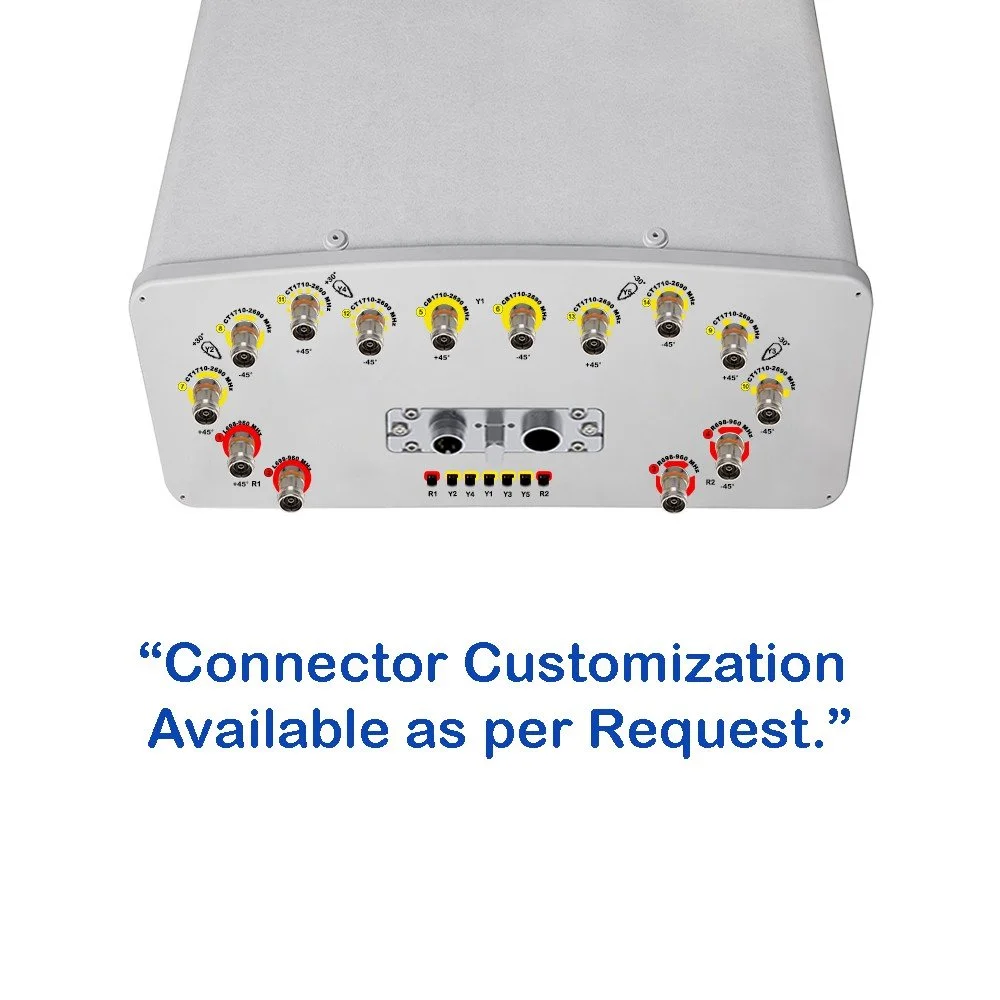

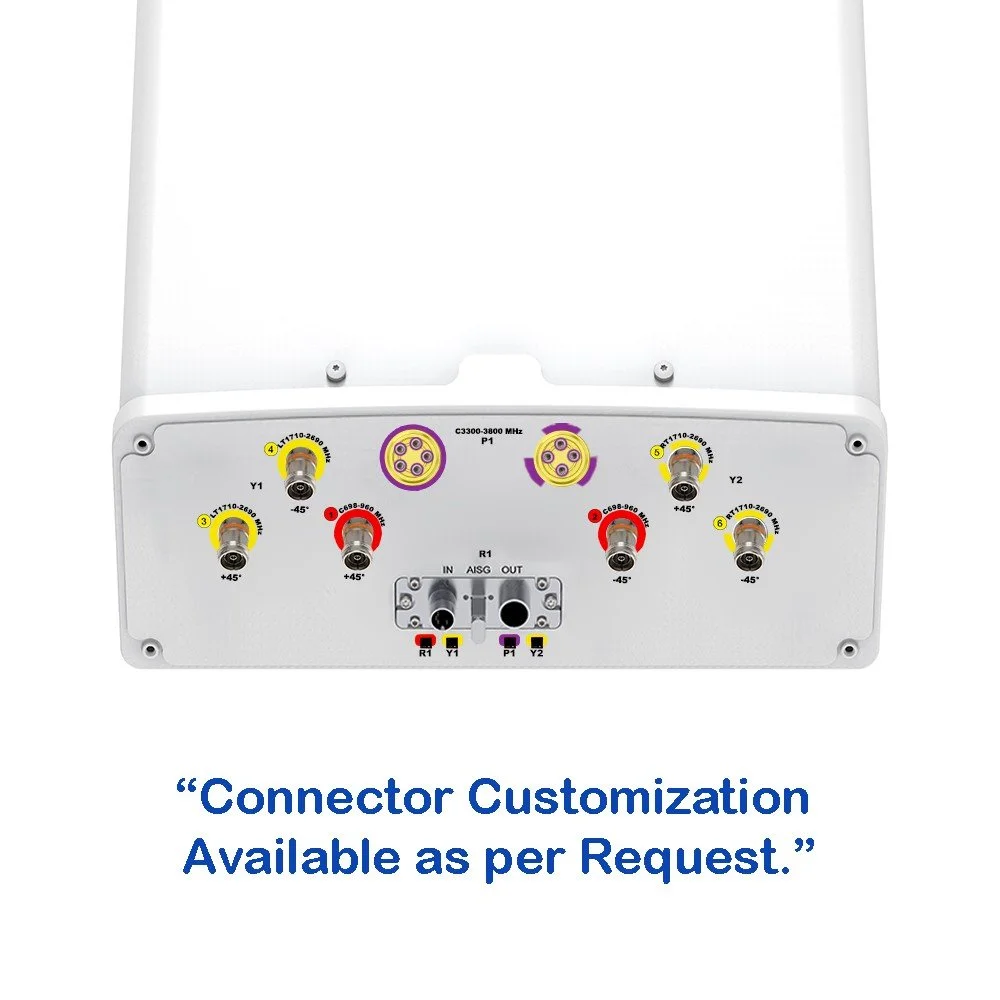

Connector Type (16x) 4.3/10 Female
Connector Position Bottom
Electrical Tilt Control Integrated RET, Each Band Individually Adjustable
Radome Material Fiberglass

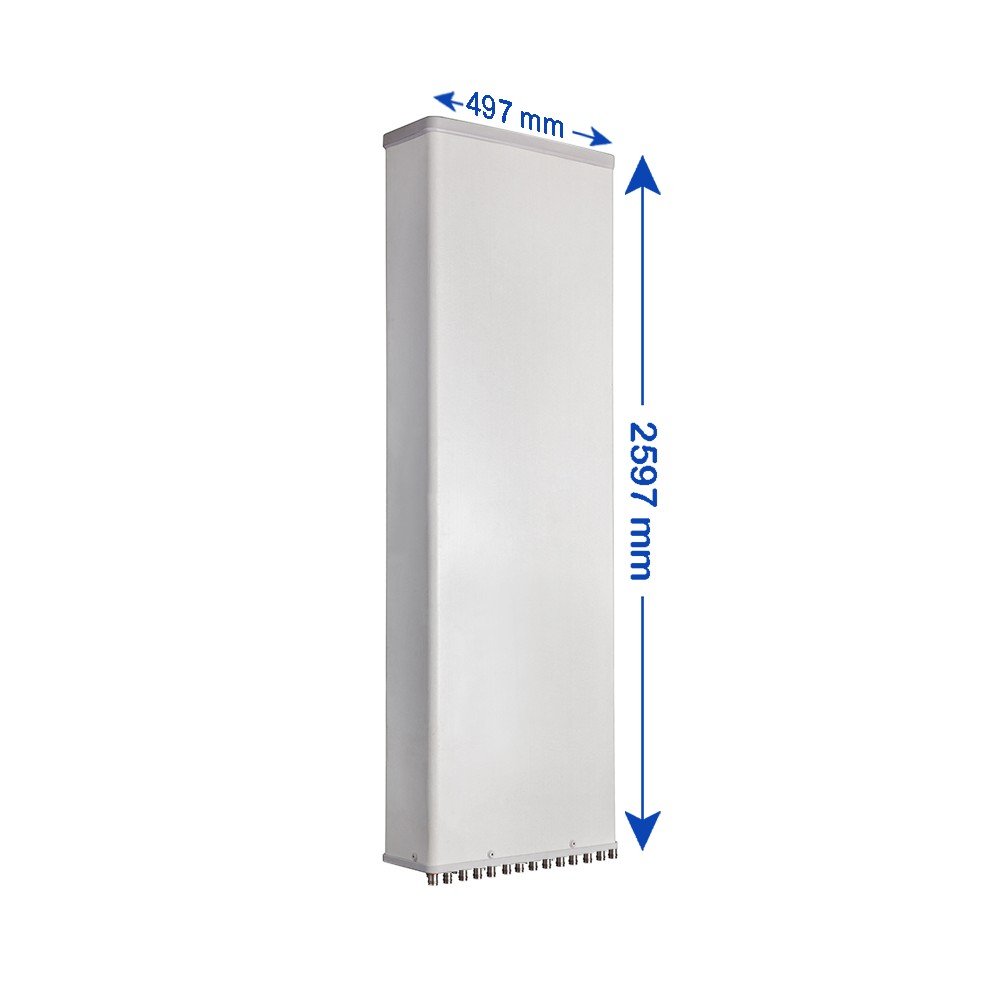

Antenna Dimensions (H × W × D) mm (in) 2750 × 497 × 197 (108.3 × 19.6 × 7.8)
Antenna Weight – Antenna Only kg (lbs) 57.5 (126.8)
Antenna Weight – With Clamps kg (lbs) 65 (143.3)
Maximum Wind Speed km/h (mph) 200 (124.3)
Wind Load (at 150 km/h)
Frontal N (lbf) 1265 (284.4)
Rear N (lbf) 1410 (317.0)
Lateral N (lbf) 600 (134.9)
Operating Temperature °C (°F) -40 to +60 (-40 to +140)
