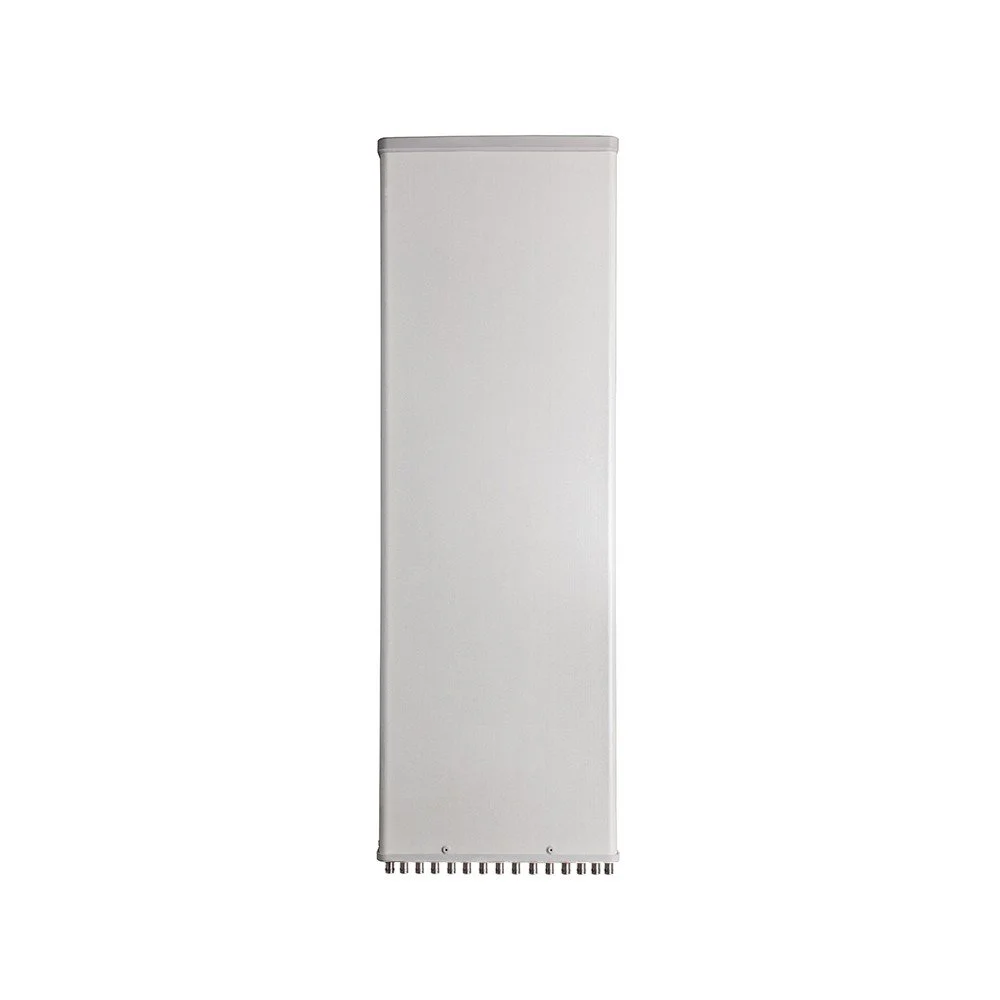

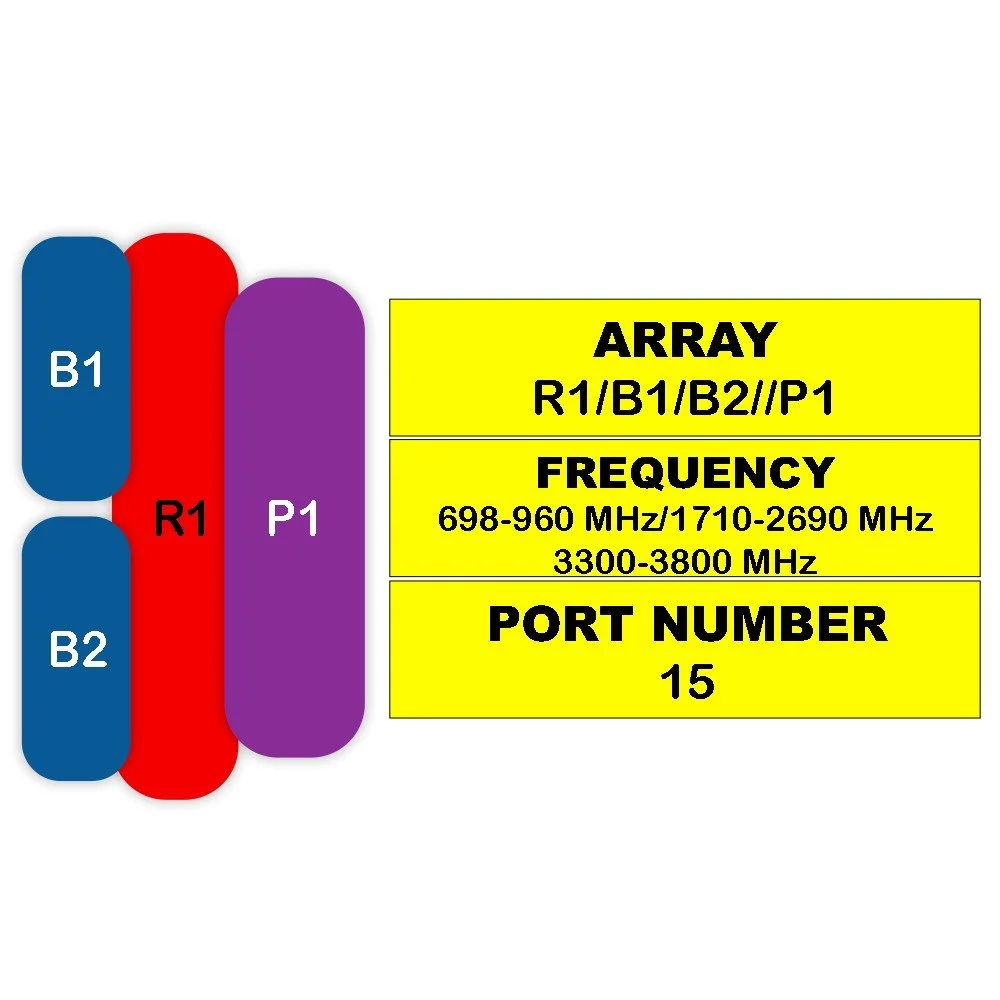

15-Port TDD Hybrid Panel Antenna (698–3800 MHz)

This 15-port TDD hybrid panel antenna delivers wideband coverage across 698–3800 MHz for robust TDD deployments. Engineered for dense urban, suburban, and small-cell environments, it combines high isolation, precise beam control, and integrated filtering options to support carrier aggregation, MIMO, and CBRS/LTE/5G NR applications.

15-Port TDD Hybrid Panel Antenna (698–3800 MHz)

This 15-port TDD hybrid panel antenna delivers wideband coverage across 698–3800 MHz for robust TDD deployments. Engineered for dense urban, suburban, and small-cell environments, it combines high isolation, precise beam control, and integrated filtering options to support carrier aggregation, MIMO, and CBRS/LTE/5G NR applications.

Electrical specifications for R1 and B1/B2 bands including frequency ranges, gain, beamwidth, tilt, isolation, and power ratings.
Parameter Unit R1 B1 / B2
698–806 790–896 1710–1880 1850–1990 1920–2170
Frequency Range MHz 698–896 1710–2170
Polarization ±45° ±45°
Gain (Mid Tilt) dBi 12.6 12.9 12.8 13.1 13.4
Gain (All Tilts) dBi 12.4 ± 0.6 12.7 ± 0.6 12.6 ± 0.6 12.9 ± 0.5 13.2 ± 0.5
Horizontal Beamwidth degree 72 ± 4.8 69 ± 3.9 68 ± 4.9 66 ± 4.7 64 ± 5.1
Vertical Beamwidth degree 21 ± 2 18.5 ± 2 19 ± 1.5 17.5 ± 1.5 15.8 ± 1.5
Electrical Tilt (Continuous) degree 5–15 2–12
First Upper Side Lobe Suppression dB > 15 > 15 > 15 > 15 > 15
Front-To-Back Ratio (±30°) dB > 22 > 23 ≥ 22 ≥ 22 ≥ 23
Isolation (Cross-Polar) dB > 25 > 25
Isolation (Interband Typical) dB > 25 > 25
Impedance Ohm 50 50
VSWR < 1.5 < 1.5
Return Loss dB > 14 > 14
PIM3 (2×43 dBm Carrier) dBc < -150 < -150
Lightning Protection DC Ground DC Ground
Max Avg Input Power per Port (50°C) Watts 250 200
Electrical specifications for P1 band including single column beam, broadcast beam, service beam, calibration parameters, isolation, and electrical characteristics based on NGMN-P-BASTA V10.0.
Category Parameter Unit 3300–3600 MHz 3600–3800 MHz
Frequency Range Overall MHz 3300–3800
Polarization ±45°
Electrical Downtilt (Continuous) degree 2–12
Single Column Beam Gain dBi 15.5 ± 1 15.7 ± 1
Horizontal Beamwidth degree 75 ± 10 65 ± 10
Vertical Beamwidth (3 dB) degree 5.8 ± 0.6 5.5 ± 0.6
Cross-Polar Discrimination (0°) dB ≥ 15 ≥ 15
First Upper Sidelobe Suppression dB ≥ 15 ≥ 15
Front-To-Back Ratio dB ≥ 25 ≥ 25
Broadcast Beam (65°) Gain (Typical) dBi 17.0 ± 0.6 17.2 ± 0.6
Horizontal Beamwidth degree 65 65
Vertical Beamwidth (3 dB) degree 5.8 ± 0.6 5.5 ± 0.6
Cross-Polar Ratio (0°) dB ≥ 15 ≥ 15
First Upper Sidelobe Suppression dB ≥ 15 ≥ 15
Front-To-Back Ratio dB ≥ 27 ≥ 27
Service Beam 0° Direct Beam Gain dB 21 ± 0.5 21.2 ± 0.5
0° Direct Beam Horizontal Beamwidth (3 dB) degree < 25 < 25
0° Direct Beam Cross-Polar Ratio dB ≥ 18 ≥ 18
0° Direct Beam Front-To-Back Ratio dB ≥ 30 ≥ 30
±30° Direct Beam Gain dB 18 18.2
±30° Direct Beam Horizontal Beamwidth (3 dB) degree < 30 < 30
Calibration & Electrical Coupling Factor (Calibration to Port) dB -26 ± 2
Max Amplitude Tolerance dB ≤ 0.7
Max Phase Tolerance degree ≤ 9
VSWR < 1.5
Maximum Power per Port W 25
Isolation Co-Polar Isolation Between Ports dB ≥ 20
Cross-Polar Isolation Between Ports dB ≥ 25
Impedance Ohm 50
Lightning Protection DC Ground
Mechanical specifications including connector configuration, dimensions, weight, wind load, and operating temperature.
Mechanical Specifications
Parameter Sub-Category Unit Specification

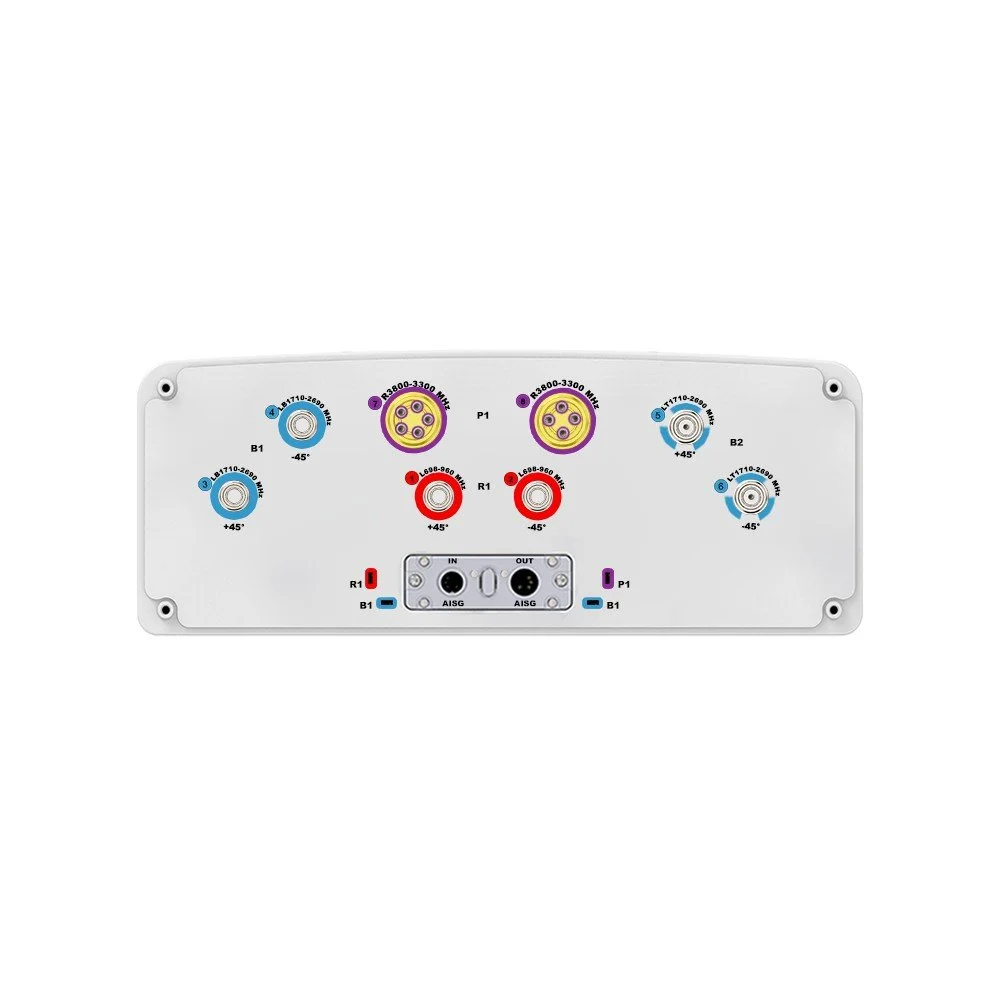

Connector Type (6x) 4.3/10 Female + (1x) MQ5 Male + (1x) MQ4 Male
Connector Position Bottom
Electrical Tilt Control Integrated RET
Radome Material Fiberglass

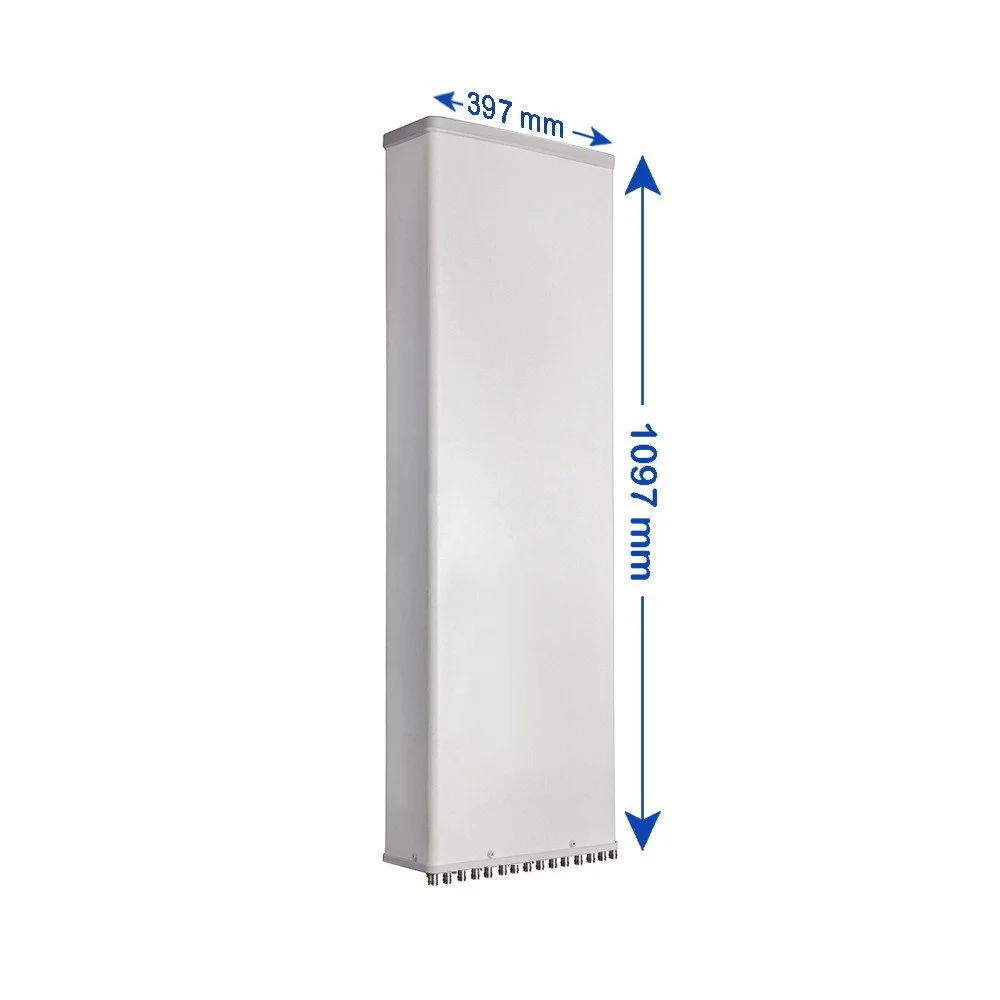

Antenna Dimensions (H × W × D) mm (in) 1097 × 397 × 157 (43.2 × 15.6 × 6.2)
Antenna Weight Antenna Only kg (lbs) 18 (39.7)
Antenna Weight With Clamps kg (lbs) 22 (48.5)
Maximum Wind Speed km/h (mph) 200 (124.3)
Wind Load (150 km/h) Frontal N (lbf) 400 (89.9)
Wind Load (150 km/h) Rear N (lbf) 450 (101.2)
Wind Load (150 km/h) Lateral N (lbf) 195 (43.8)
Operating Temperature °C (°F) -40 to +60 (-40 to +140)
