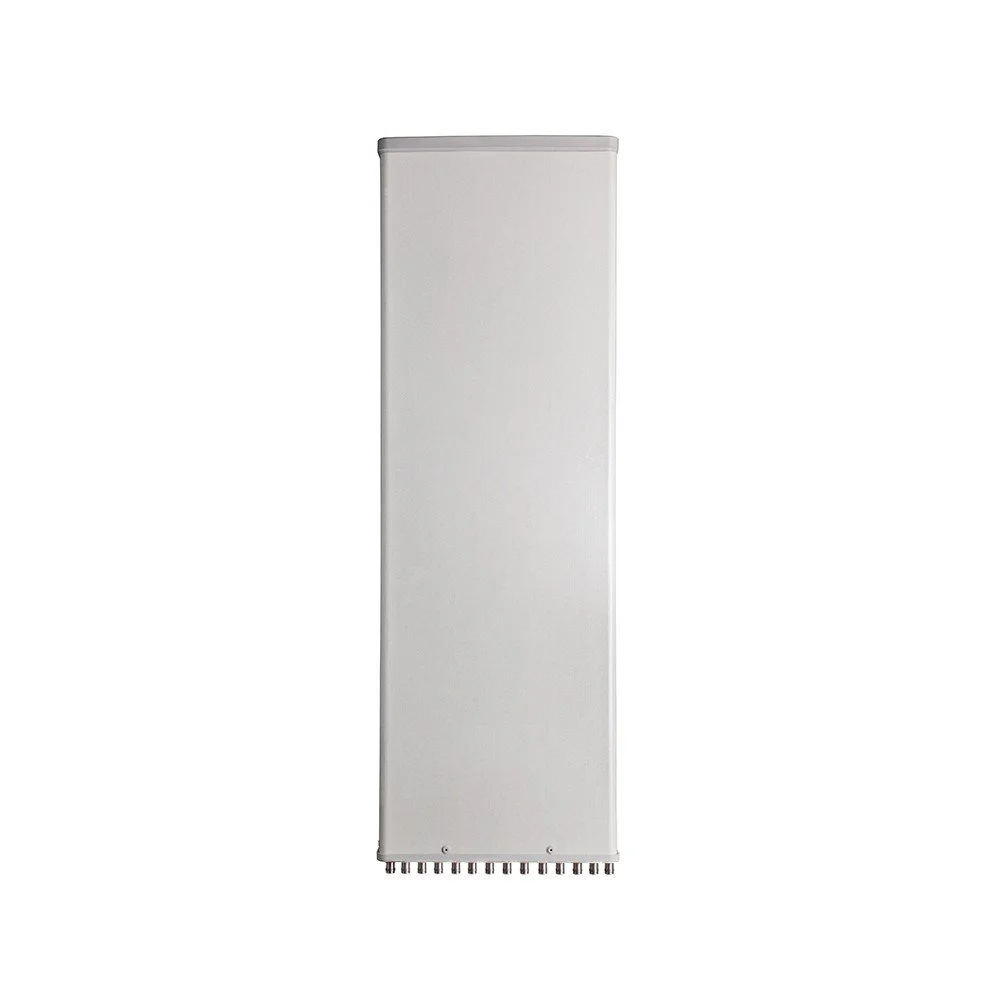

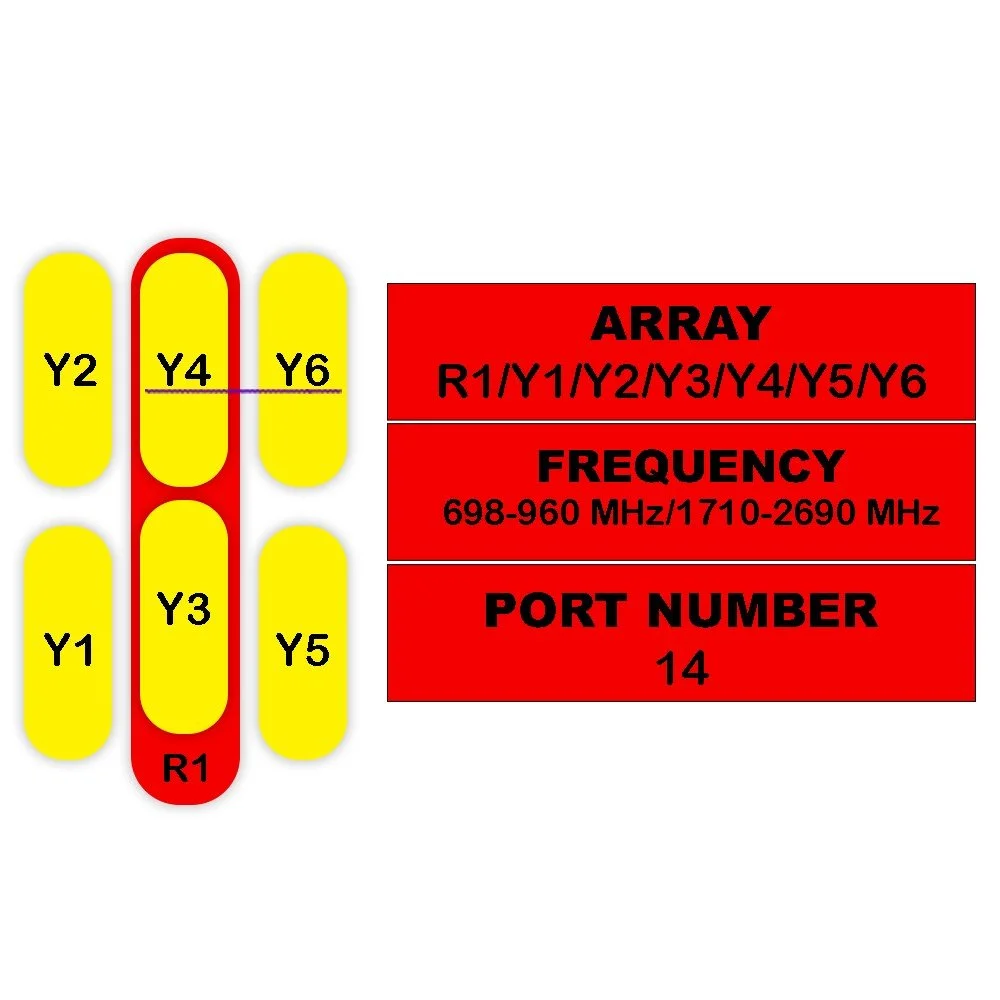

14-Port Panel Sector Antenna (698–3700 MHz)

A high-performance, multi-band panel sector antenna engineered for dense macro and small-cell deployments across 698–3700 MHz. Optimized for modern multi-operator sites and massive MIMO installations, the 14-port design supports flexible sectorization, simultaneous multi-carrier operation, and high-order MIMO combos while maintaining stable radiation patterns and low inter-port isolation.

14-Port Panel Sector Antenna (698–3700 MHz)

A high-performance, multi-band panel sector antenna engineered for dense macro and small-cell deployments across 698–3700 MHz. Optimized for modern multi-operator sites and massive MIMO installations, the 14-port design supports flexible sectorization, simultaneous multi-carrier operation, and high-order MIMO combos while maintaining stable radiation patterns and low inter-port isolation.

Electrical Specifications

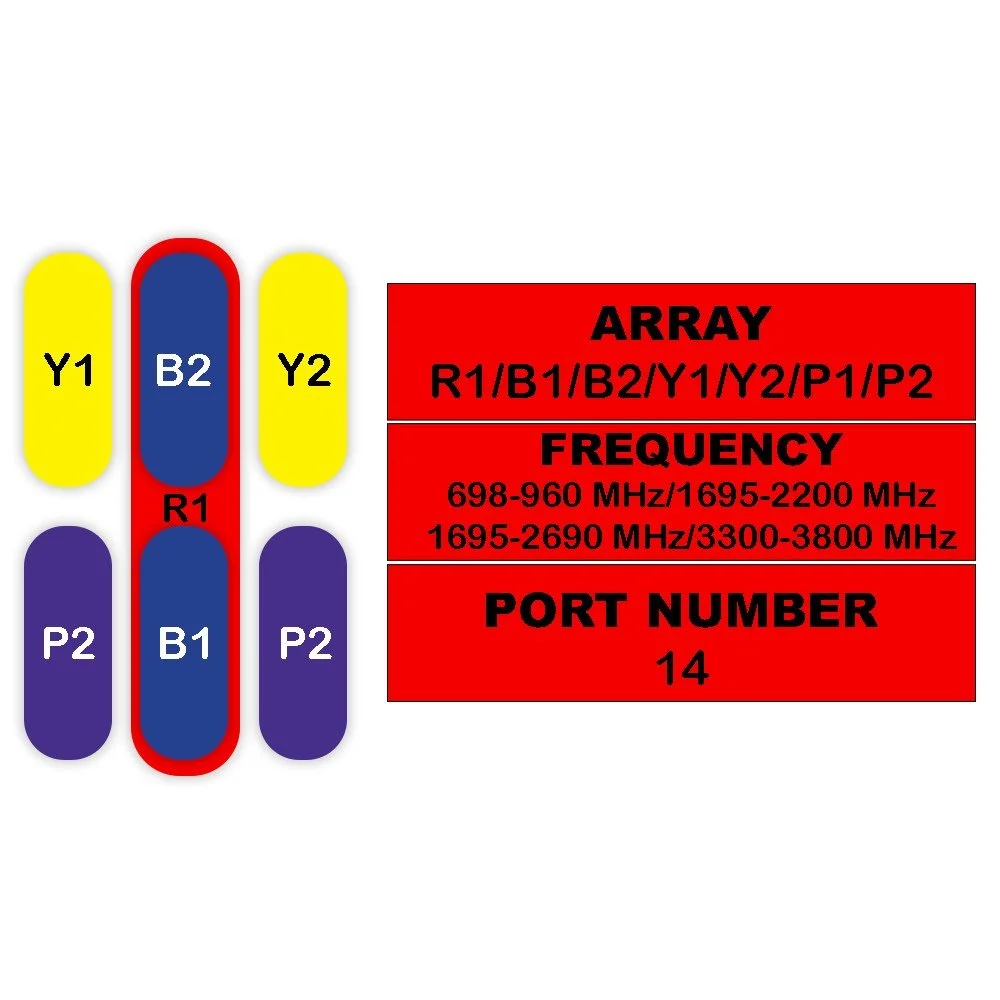

Parameter Sub-Parameter Unit R1 (698–960 MHz) B1 (1695–2200 MHz) B2 (1695–2200 MHz)
698-806 790-894 880-960 1695-1880 1850-1990 1920-2200 1695-1880 1850-1990 1920-2200
Polarization — — ±45° ±45° ±45°
Gain At Mid Tilt dBi 15.816.216.6 16.617.017.4 16.216.617.0
Gain Over All Tilts dBi 15.6 ± 0.616.0 ± 0.616.4 ± 0.6 16.4 ± 0.616.8 ± 0.517.2 ± 0.5 16.0 ± 0.616.4 ± 0.516.8 ± 0.5
Horizontal Beamwidth — degree 68 ± 4.566 ± 4.163 ± 4.5 64 ± 6.562 ± 6.560 ± 5.5 64 ± 6.562 ± 6.560 ± 5.5
Vertical Beamwidth — degree 8.8 ± 1.17.8 ± 0.97.2 ± 0.8 6.8 ± 0.66.4 ± 0.86.0 ± 0.8 6.8 ± 0.66.4 ± 0.86.0 ± 0.8
Electrical Downtilt Continuously Adjustable degree 2–12 2–12 2–12
Tilt Accuracy — degree < 1
Isolation Cross-Polar dB > 26 > 28 > 28
Isolation Port-to-Port dB > 28 > 28 > 28
Impedance — Ohm 50 50 50
VSWR — — < 1.5 < 1.5 < 1.5
Return Loss — dB > 14 > 14 > 14
PIM3 (2x43 dBm Carrier) — dBc < -150 < -150 < -150
Lightning Protection — — DC Ground DC Ground DC Ground
Maximum Avg. Input Power per Port (50°C) — Watts 250 200 200
Electrical Specifications
Parameter Sub-Parameter Unit Y1 / Y2 (1695–2690 MHz) P1 / P2 (3300–3700 MHz)
1695-1880 1850-1990 1920-2170 2300-2400 2490-2690 3300-3700
Polarization — — ±45° ±45°
Gain At Mid Tilt dBi 16.016.416.817.017.0 17.6
Gain Over All Tilts dBi 15.8 ± 0.616.0 ± 0.516.4 ± 0.516.8 ± 0.516.8 ± 0.5 17.5 ± 0.6
Horizontal Beamwidth — degree 68 ± 6.566 ± 6.160 ± 6.163 ± 6.563 ± 7.5 63 ± 6
Vertical Beamwidth — degree 6.8 ± 0.66.4 ± 0.56.0 ± 0.55.4 ± 0.44.8 ± 0.6 5.7 ± 0.8
Electrical Downtilt Continuously Adjustable degree 2–12 2–12
Tilt Accuracy — degree < 1< 1< 1< 1< 1 —
Upper Sidelobe Suppression First Upper Sidelobe dB > 15> 15> 15> 15> 15 > 16
Upper Sidelobe Suppression 20° Sector Above Main Beam dB > 14> 14> 14> 14> 14 —
Front-To-Back Ratio ±30° — dB > 24> 22> 23> 24> 24 > 25
Cross Polar Discrimination At Boresight dB > 16> 16> 16> 17> 17 > 15
Cross Polar Discrimination Over Sector dB > 7.0> 6.0> 6.0> 4.0> 3.0 > 7
Isolation Cross-Polar dB > 26 > 25
Isolation Port-to-Port dB > 28 > 25
Impedance — Ohm 50 50
VSWR — — < 1.5 < 1.5
Return Loss — dB > 14 > 14
PIM3 (2x43 dBm Carrier) — dBc < -150 —
Lightning Protection — — DC Ground DC Ground
Maximum Avg. Input Power per Port (50°C) — Watts 200 75
Mechanical Specifications
Parameter Sub-Parameter Unit Value

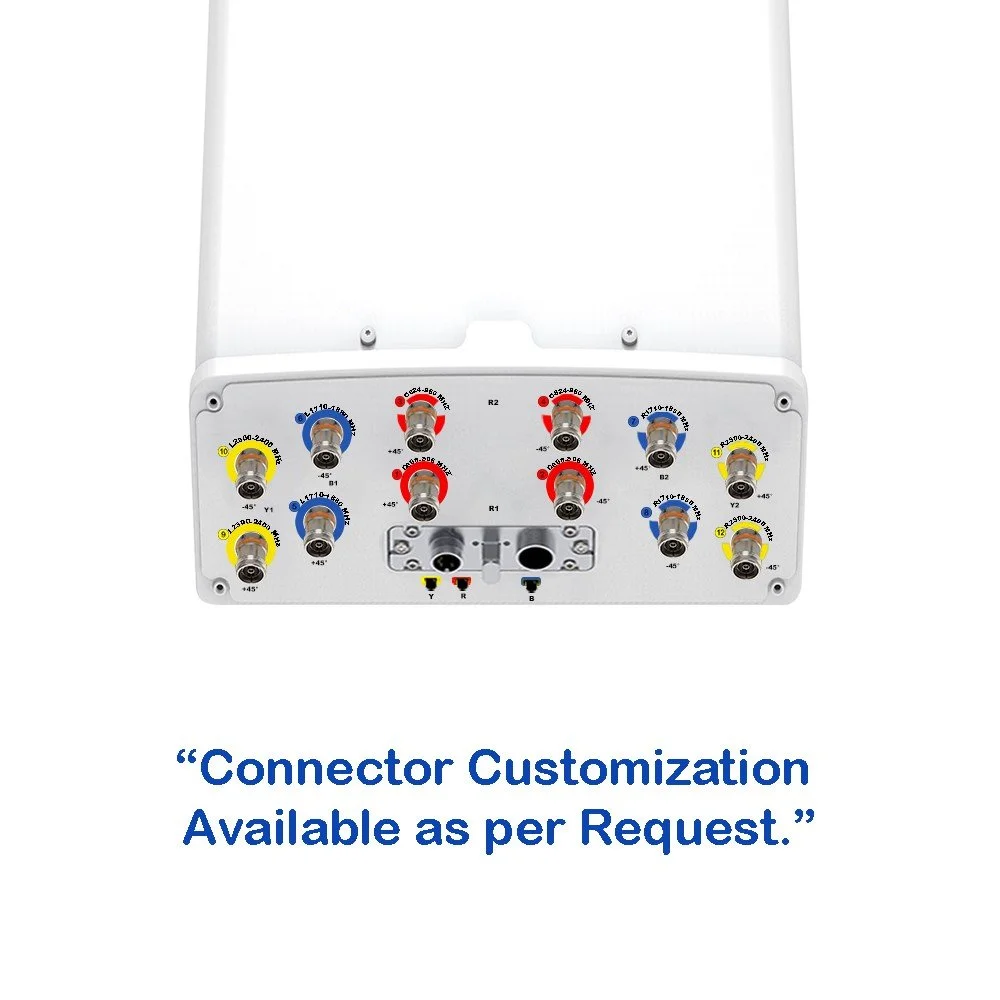

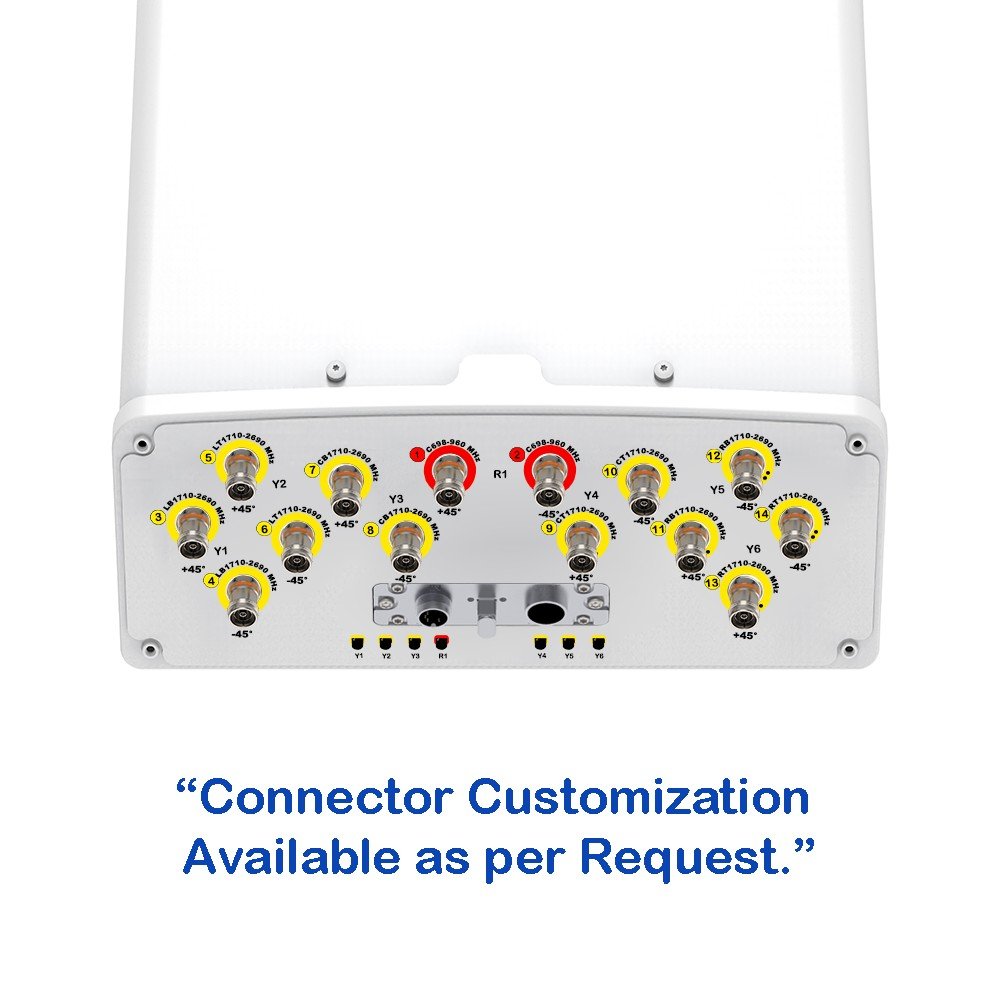

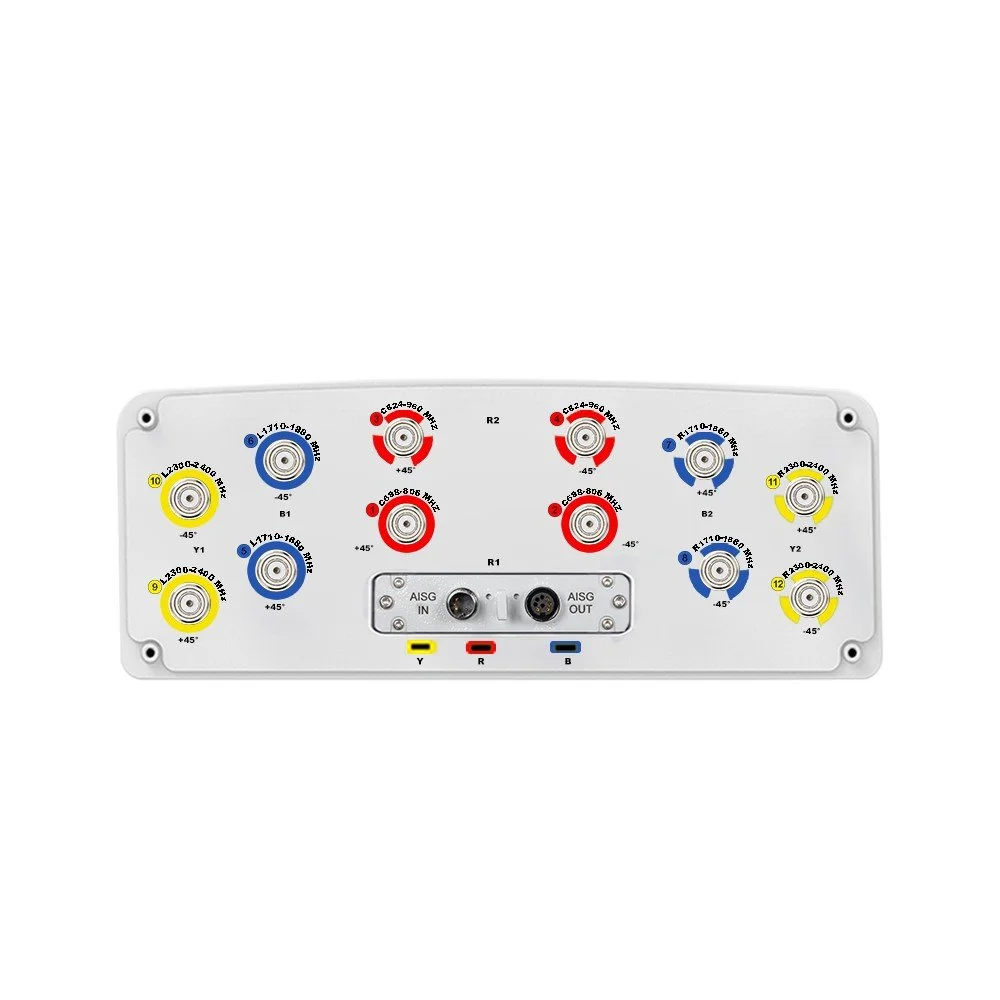

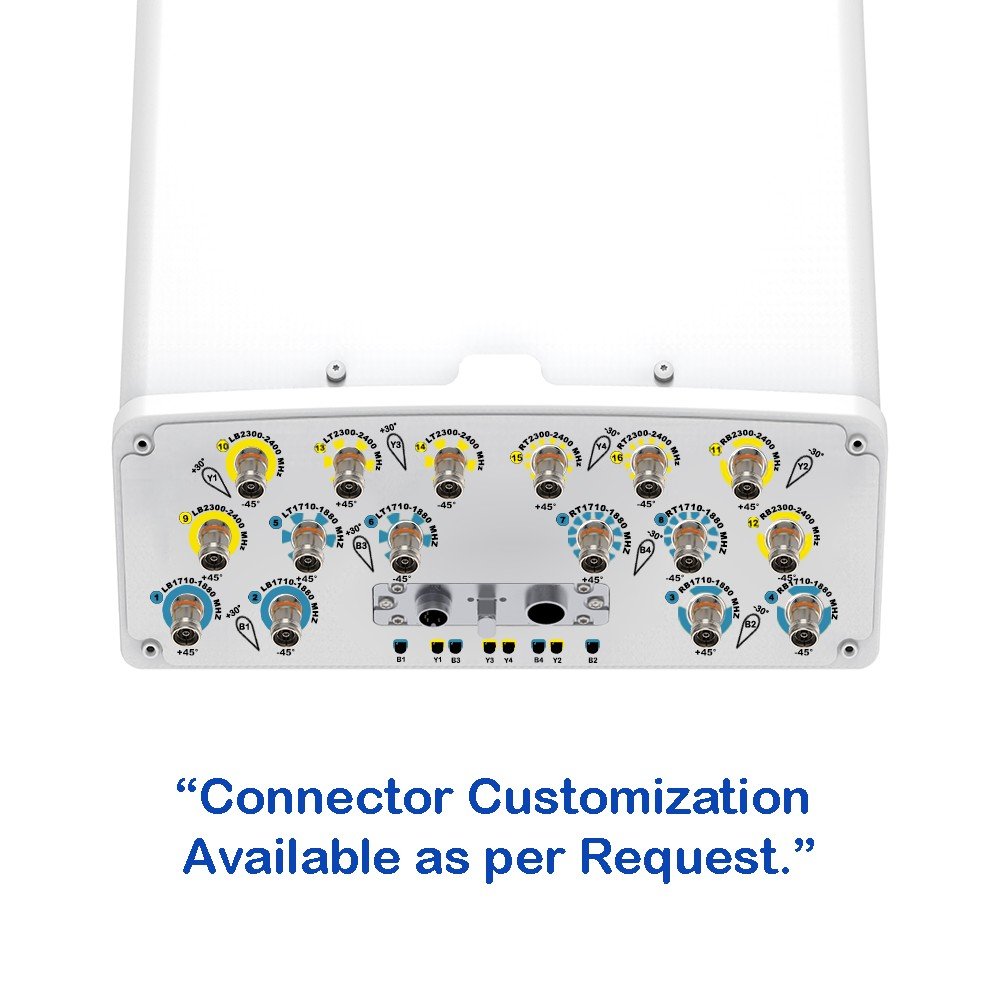

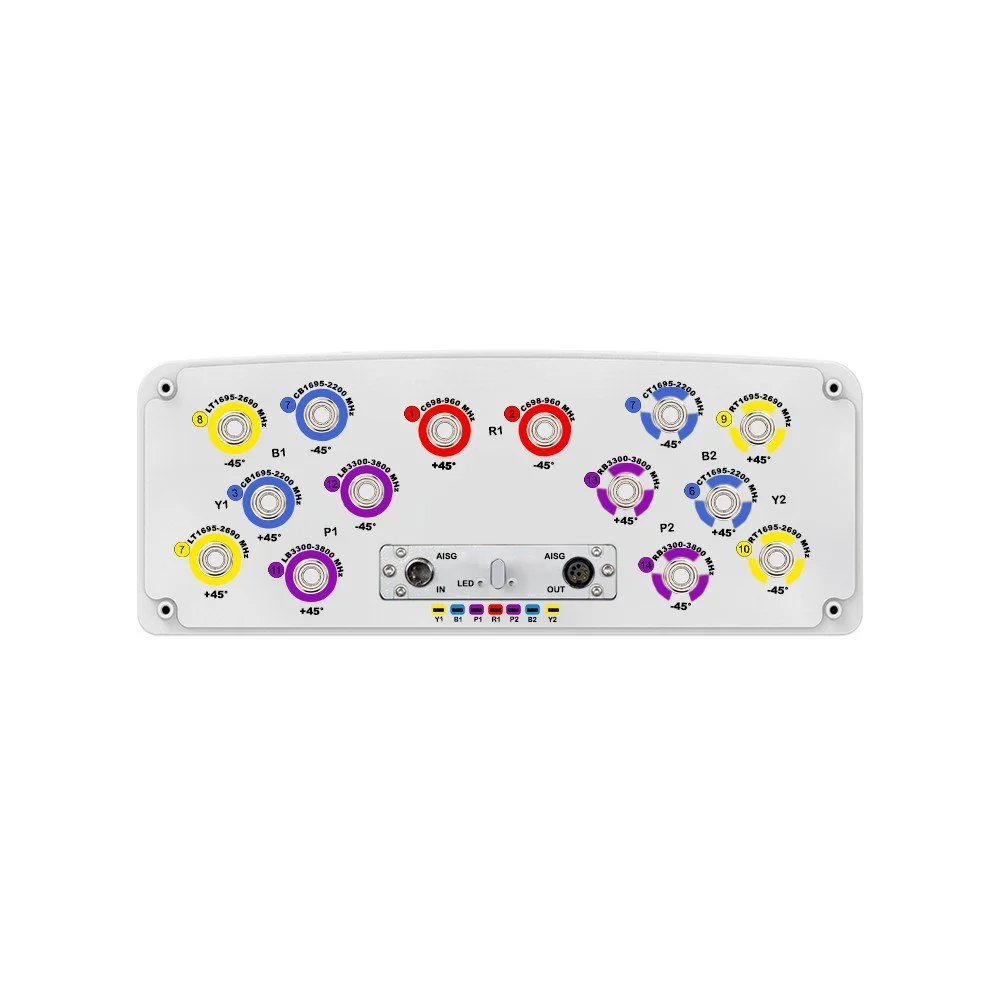

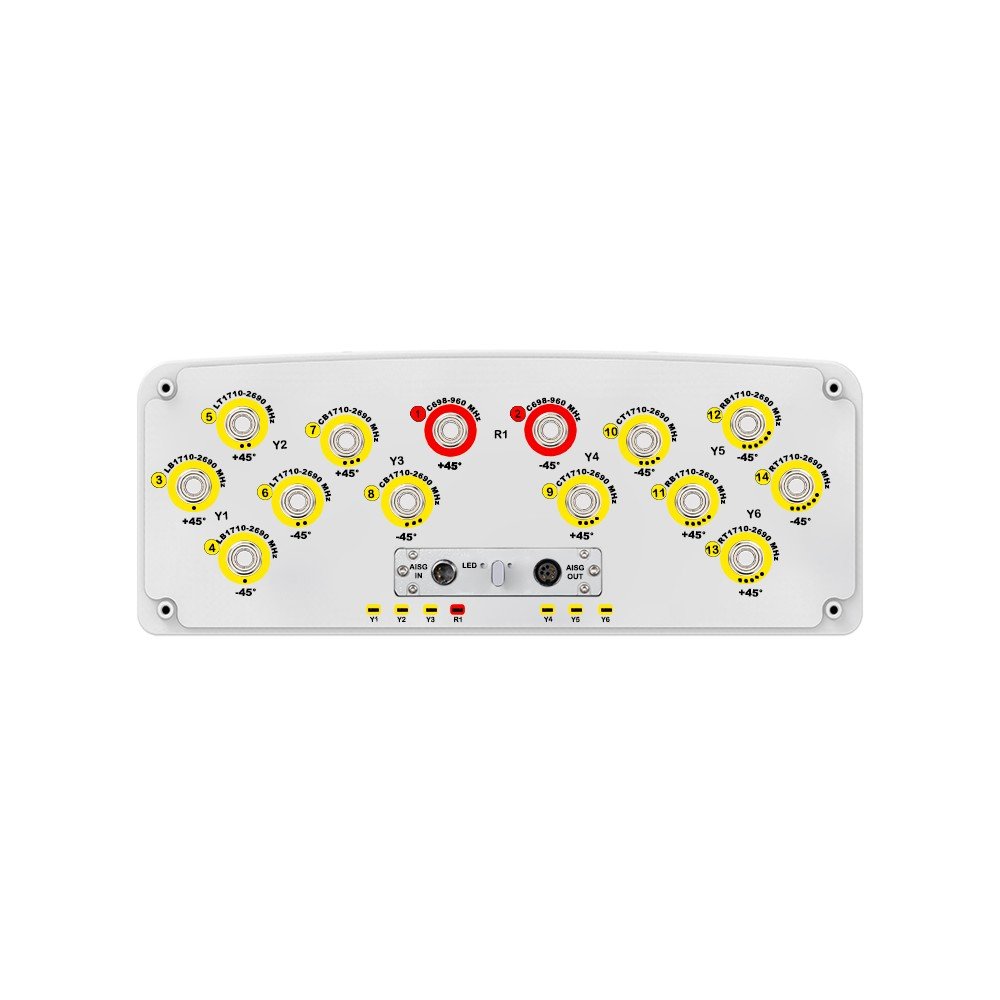

Connector Type — — (14x) 4.3/10 Female
Connector Position — — Bottom
Radome Material — — Fiberglass

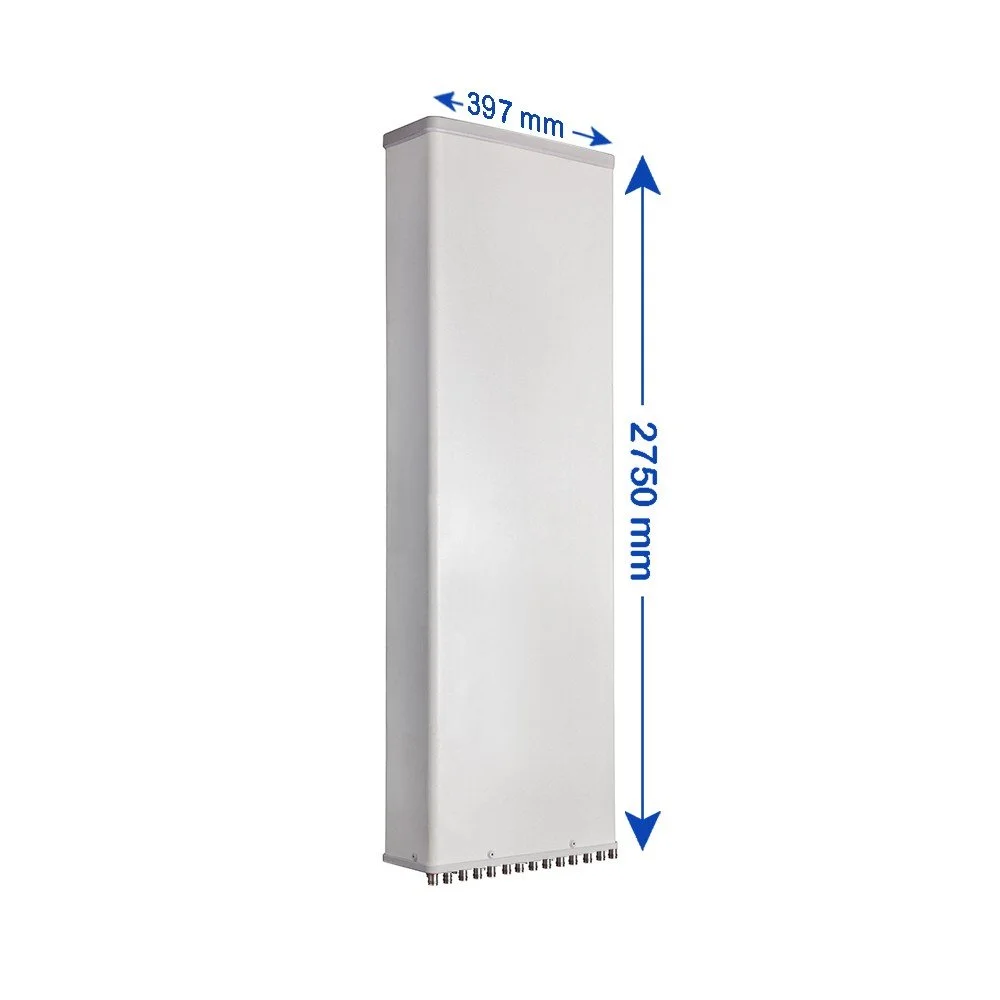

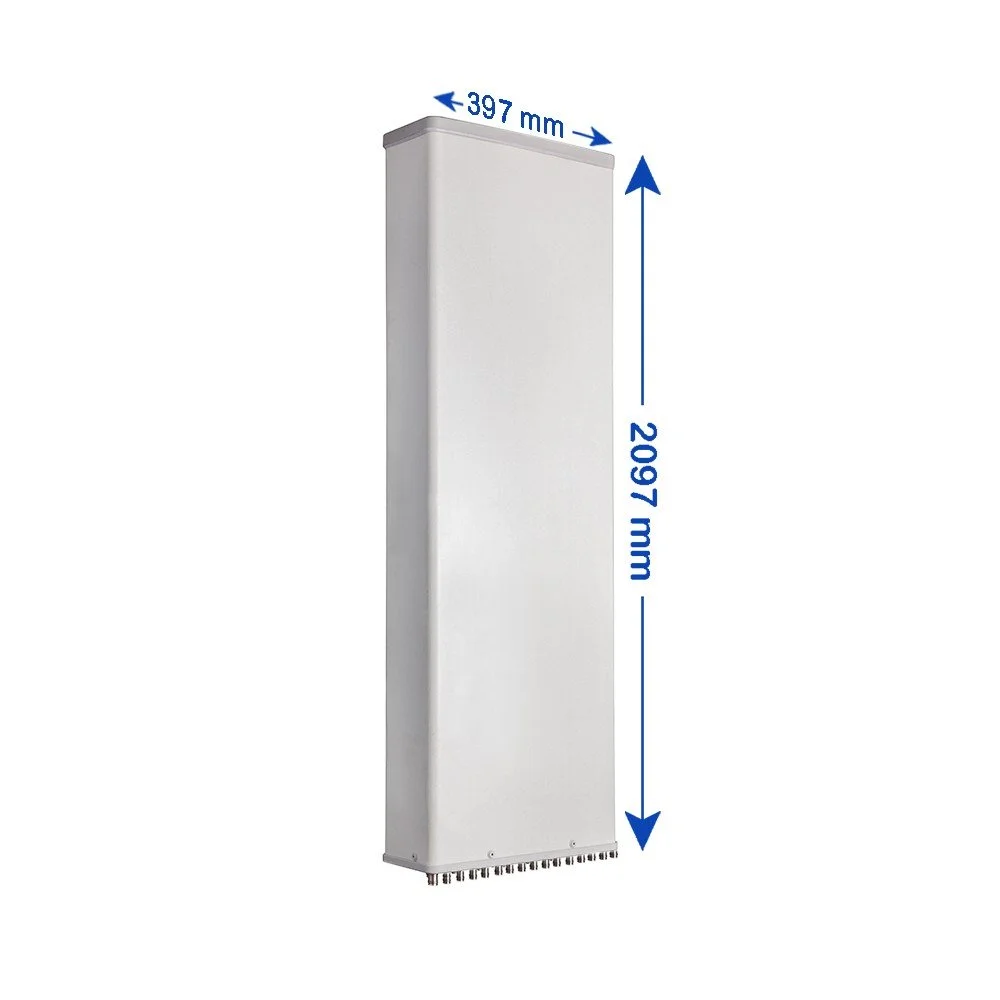

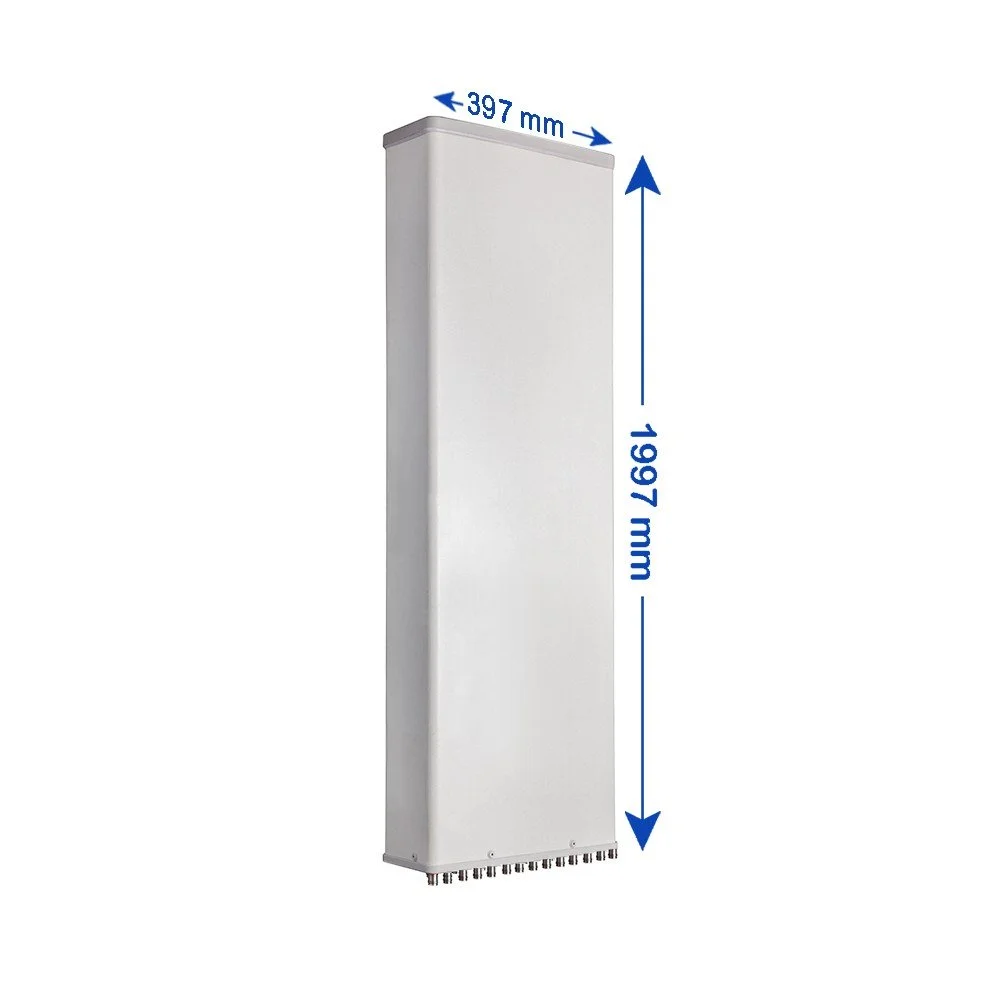

Antenna Dimensions (H × W × D) — mm (in) 2750 × 397 × 157 (108.3 × 15.6 × 6.2)
Antenna Weight Antenna Only kg (lbs) 37.3 (82.2)
Antenna Weight With Clamps kg (lbs) 42.8 (94.4)
Maximum Wind Speed — km/h (mph) 200 (124.3)
Wind Load at 150 km/h Frontal N (lbf) 1005 (225.9)
Wind Load at 150 km/h Rear N (lbf) 1125 (252.9)
Wind Load at 150 km/h Lateral N (lbf) 490 (110.2)
Operating Temperature — °C (°F) -40 to +60 (-40 to 140)
