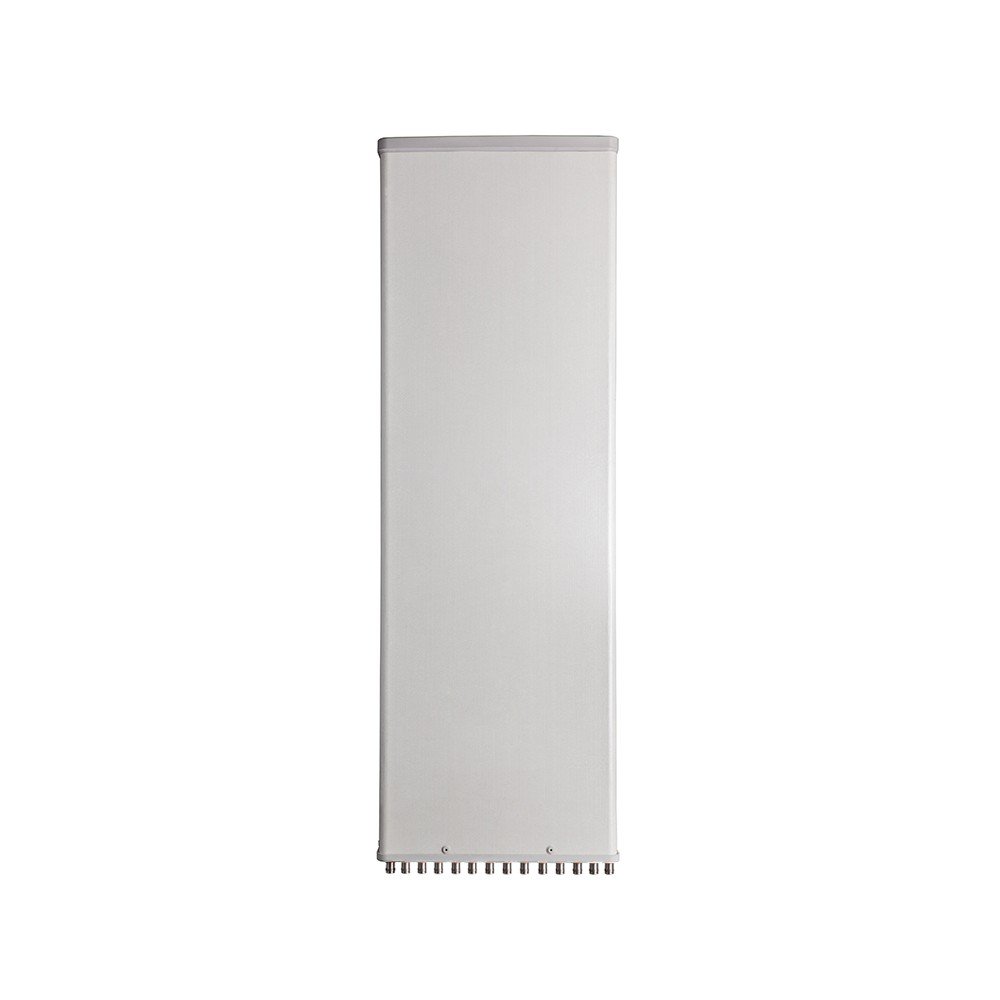

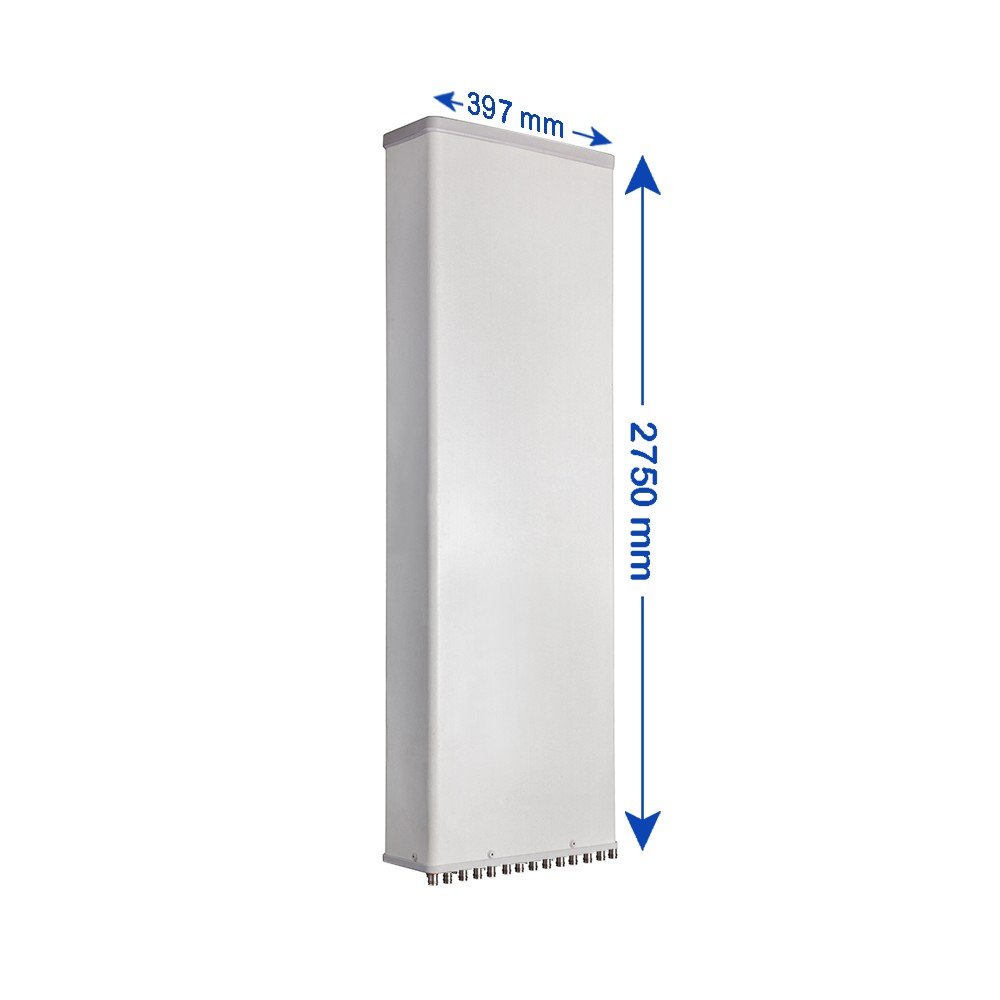

14-Port Panel Sector Antenna (698–2690 MHz)

Overview Designed for high-capacity, multi-sector deployments, this 14-port panel sector antenna covers 698–2690 MHz and supports modern MIMO and carrier aggregation architectures. Its compact form factor, robust RF performance, and IP65-rated enclosure make it ideal for macro and small-cell sites, rooftop sectors, and distributed antenna systems.

Key Features :

  • Frequency range: 698–2690 MHz covering low-band and mid-band LTE and 3G.

  • 14 individual ports: optimized for multiple-input/multiple-output (MIMO) and carrier aggregation scenarios.

  • High isolation between ports reducing inter-path interference and improving system throughput.

  • Wideband, multi-section design for consistent radiation patterns and stable electrical tilt across the band.

  • Port labeling and keyed connectors for simple, error-free installation and maintenance.

  • Durable, weatherproof enclosure (IP65) with corrosion-resistant mounting hardware.

  • Lightweight, low-windload design for easier tower and rooftop mounting.

  • Gain and pattern consistency tailored for sector coverage with low sidelobes to minimize inter-sector interference.

  • RoHS compliant materials and recyclable packaging.

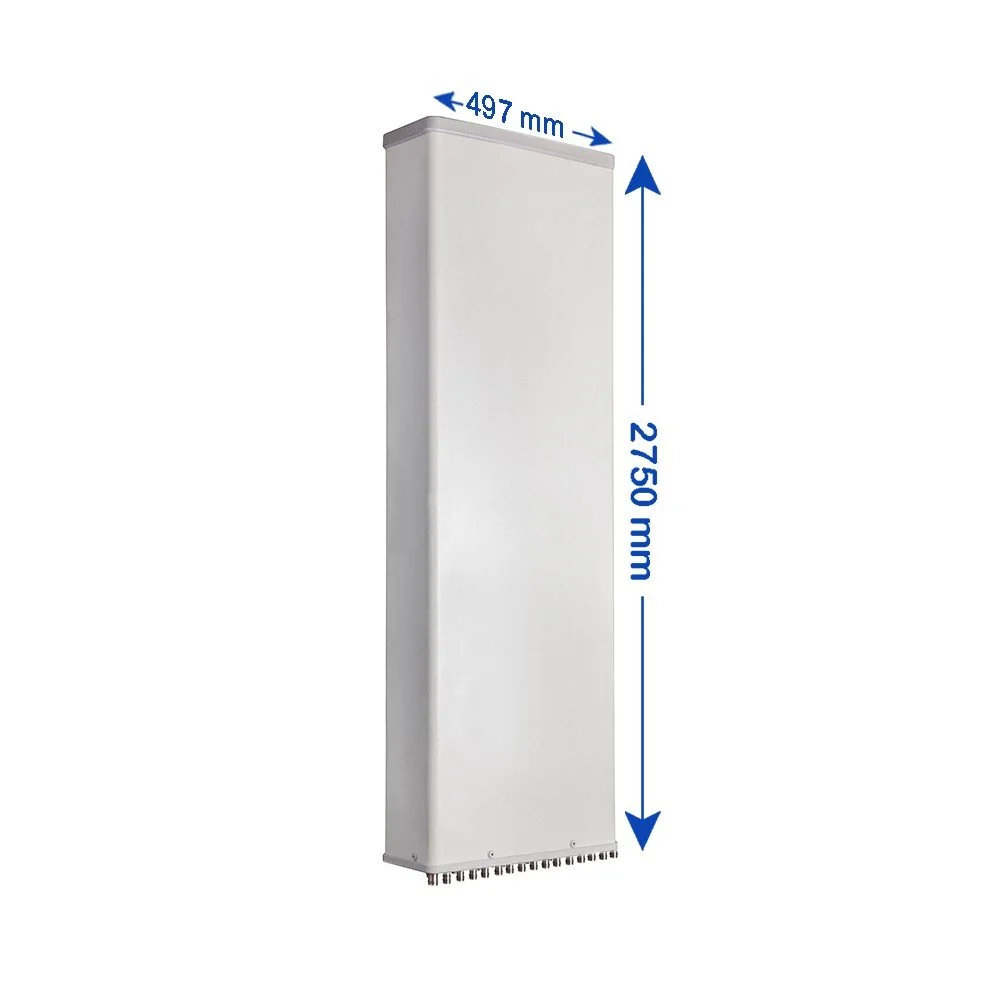

14-Port Panel Sector Antenna (698–2690 MHz)

Overview Designed for high-capacity, multi-sector deployments, this 14-port panel sector antenna covers 698–2690 MHz and supports modern MIMO and carrier aggregation architectures. Its compact form factor, robust RF performance, and IP65-rated enclosure make it ideal for macro and small-cell sites, rooftop sectors, and distributed antenna systems.

Key Features :

  • Frequency range: 698–2690 MHz covering low-band and mid-band LTE and 3G.

  • 14 individual ports: optimized for multiple-input/multiple-output (MIMO) and carrier aggregation scenarios.

  • High isolation between ports reducing inter-path interference and improving system throughput.

  • Wideband, multi-section design for consistent radiation patterns and stable electrical tilt across the band.

  • Port labeling and keyed connectors for simple, error-free installation and maintenance.

  • Durable, weatherproof enclosure (IP65) with corrosion-resistant mounting hardware.

  • Lightweight, low-windload design for easier tower and rooftop mounting.

  • Gain and pattern consistency tailored for sector coverage with low sidelobes to minimize inter-sector interference.

  • RoHS compliant materials and recyclable packaging.

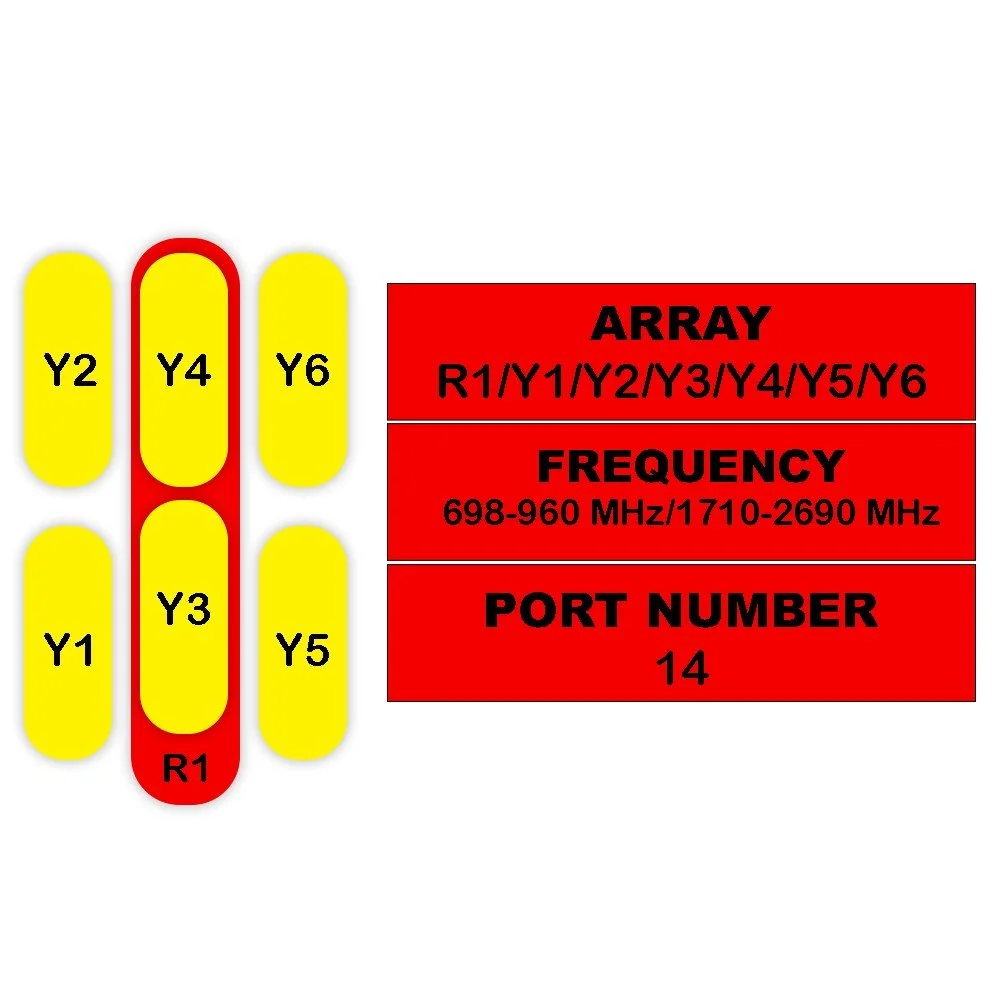

Parameter Unit R1 Y1 / Y3 / Y5 Y2 / Y4 / Y6
698–806 790–894 880–960 1710–1880 1850–1990 1920–2170 2300–2400 2490–2690 1710–1880 1850–1990 1920–2170 2300–2400 2490–2690
Polarization — ±45° ±45° ±45°
Gain (Mid Tilt) dBi 16.016.416.8 16.617.017.417.617.6 16.216.617.017.217.2
Gain (All Tilts) dBi 15.8 ± 0.616.2 ± 0.516.6 ± 0.6 16.4 ± 0.616.8 ± 0.517.2 ± 0.617.4 ± 0.617.4 ± 0.6 16.0 ± 0.616.4 ± 0.516.8 ± 0.617.0 ± 0.617.0 ± 0.6
Horizontal Beamwidth ° 67 ± 4.565 ± 4.563 ± 4.1 68 ± 6.166 ± 6.163 ± 6.562 ± 6.062 ± 6.5 68 ± 6.166 ± 6.163 ± 6.562 ± 6.062 ± 6.5
Vertical Beamwidth ° 8.8 ± 0.97.8 ± 0.67.2 ± 0.6 6.8 ± 0.66.4 ± 0.56.0 ± 0.55.2 ± 0.44.8 ± 0.6 6.8 ± 0.66.4 ± 0.56.0 ± 0.55.2 ± 0.44.8 ± 0.6
Electrical Downtilt ° 2–12 2–12 2–12
Tilt Accuracy ° < 1
Upper Side Lobe Suppression dB > 16 (First Upper Lobe)
Front-to-Back Ratio (±30°) dB >24>25>25 >24>24>25>26>26 >24>24>25>26>26
Cross Polar Discrimination (Boresight) dB >17>18>17 >16>16>16>17>17 >16>16>16>17>17
Isolation (Cross-Polar) dB > 26 > 26 > 26
Isolation (Port-to-Port) dB > 28
Impedance Ohm 50
VSWR — < 1.5
Return Loss dB > 14
PIM3 (2×43 dBm) dBc < -153
Lightning Protection — DC Ground
Max Avg Input Power (50°C) W 250 250 250
Mechanical Specifications
Parameter Value Unit

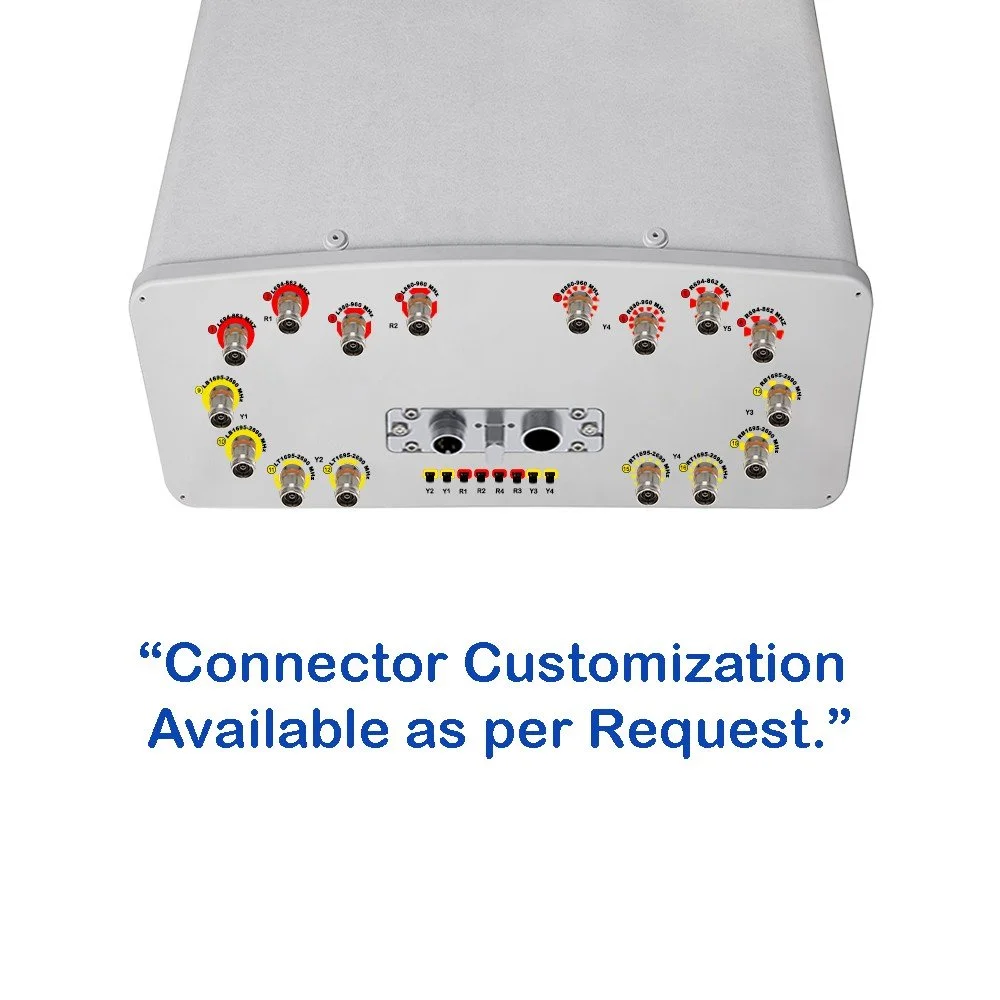

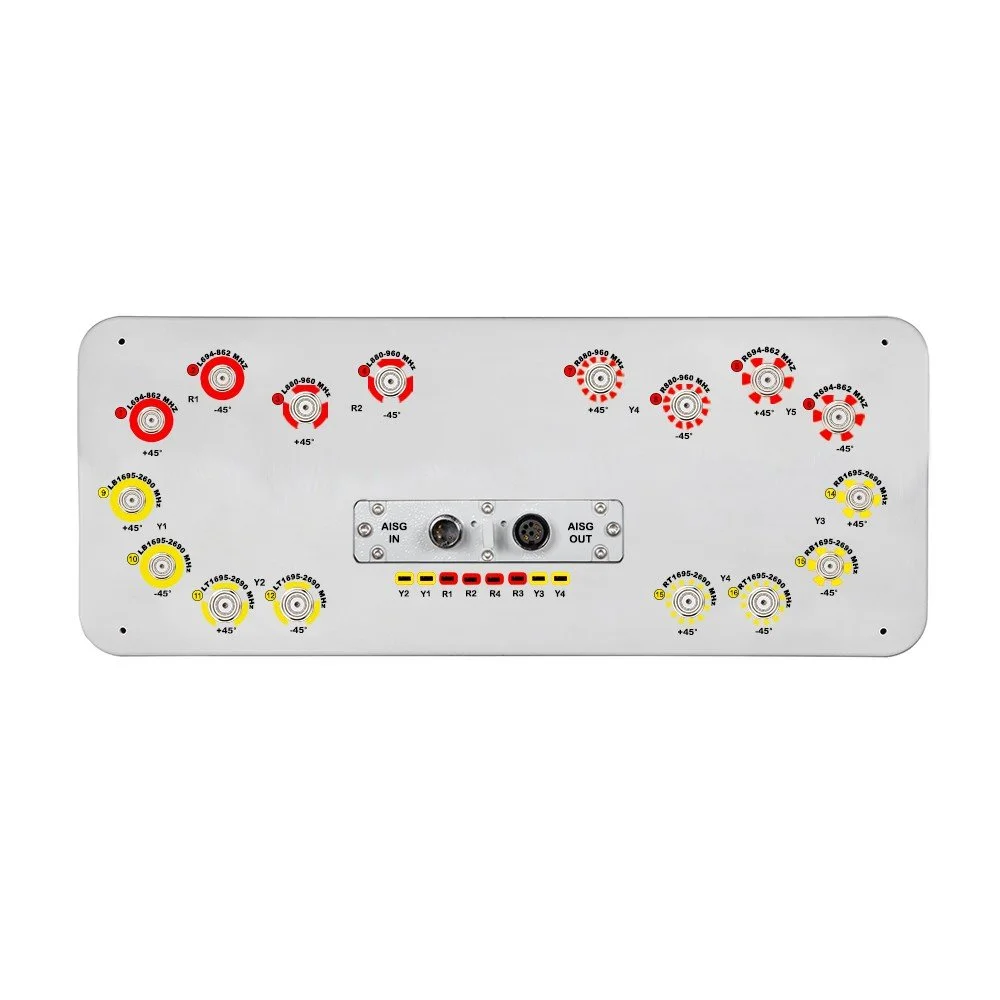

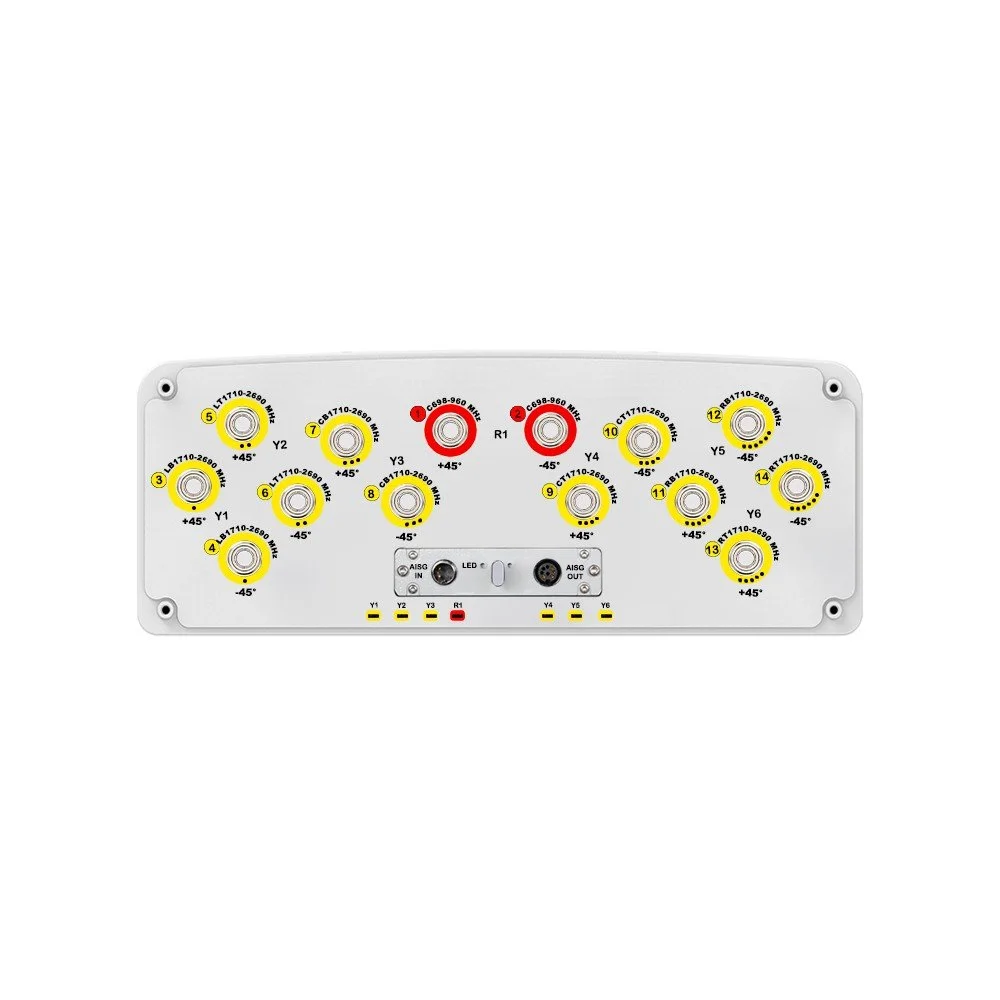

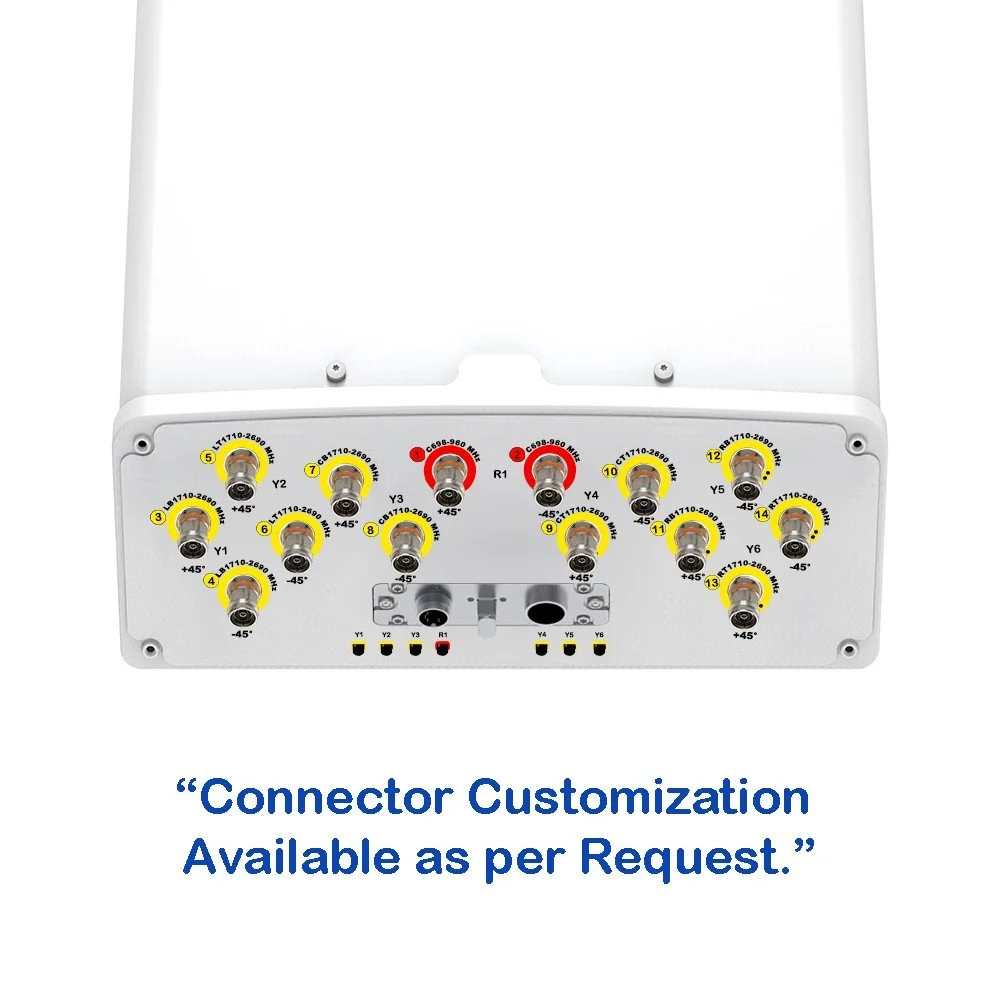

Connector Type (14x) 4.3/10 Female —
Connector Position Bottom —
Electrical Tilt Control Integrated RET —
Radome Material Fiberglass —
Antenna Dimensions (H × W × D) 2697 × 467 × 167 (106.2 × 18.4 × 6.6) mm (in)
Antenna Weight (Antenna Only) 44.5 (98.1) kg (lbs)
Antenna Weight (With Clamps) 52 (114.6) kg (lbs)
Maximum Wind Speed 200 (124.3) km/h (mph)
Wind Load @150 km/h (Frontal) 1165 (261.9) N (lbf)
Wind Load @150 km/h (Rear) 1300 (292.3) N (lbf)
Wind Load @150 km/h (Lateral) 515 (115.8) N (lbf)
Operating Temperature -40 to +60 (-40 to +140) °C (°F)
