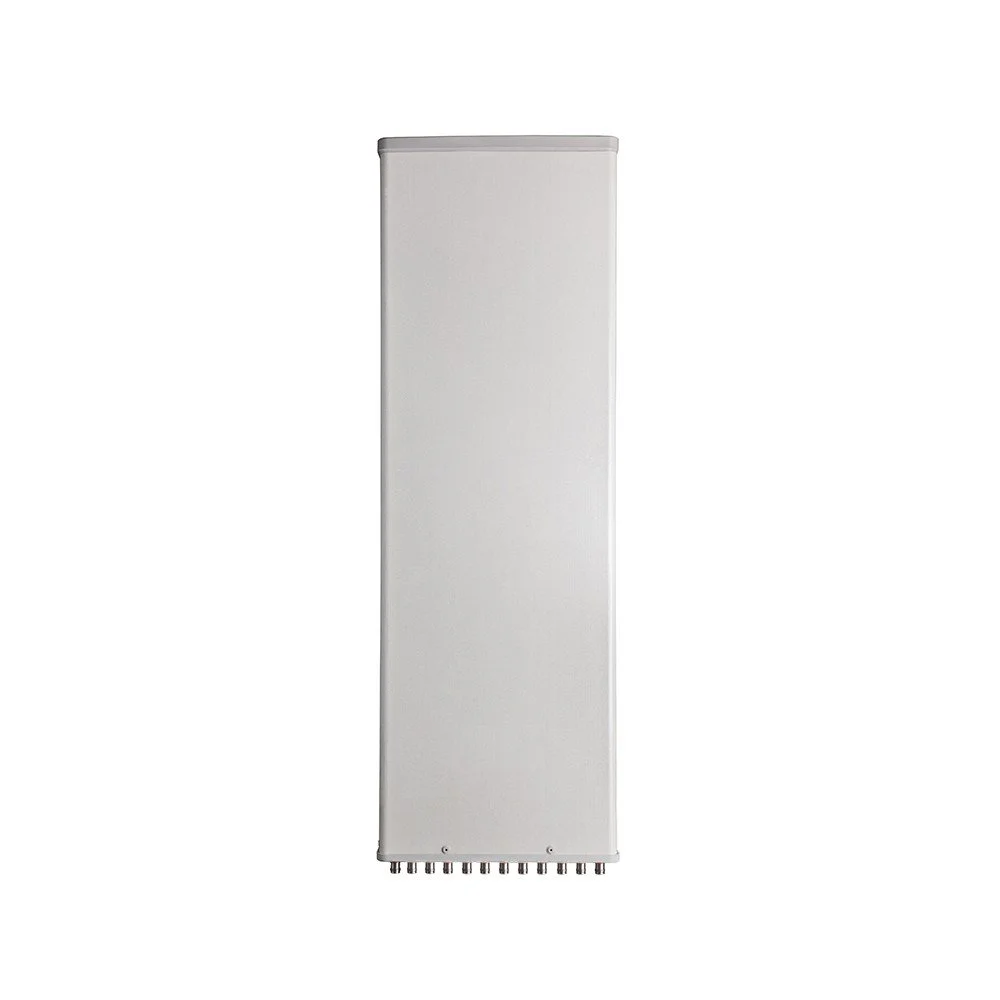

14-Port Panel Sector Antenna (698–2690 MHz)

Overview This 14-port panel sector antenna delivers high-performance multi-user coverage across the 698–2690 MHz band. Engineered for capacity and spectral efficiency, it supports modern multi-operator and multi-band deployments in urban and suburban macrocell environments, small cell aggregation sites, and neutral-host or shared-RAN installations.

Key Features

  • Frequency range: 698–2690 MHz — covers LTE bands and many public-safety and commercial cellular allocations.

  • 14 ports configured for multi-band, multi-operator use: flexible mapping of ports to carriers, operators, or technologies.

  • Sector coverage: designed for 60° horizontal panels (other beamwidths available on request).

  • High gain across the band to maximize coverage and link margin while maintaining consistent radiation pattern shape.

  • Low inter-port isolation loss through optimized feed network to reduce cross-talk between carriers.

  • Multi-band port grouping for simultaneous low-band (700/850), mid-band (1700/1900/2100), and upper-mid (2300/2500/2600) operations.

  • Durable radome and ruggedized mounting hardware: IP65-rated for outdoor installations and long service life in harsh environments.

  • Lightweight composite construction for easier installation and reduced tower loading.

  • Tilt and azimuth adjustable mounting bracket for precise alignment.

  • Wide input impedance matching (50 Ω) and low VSWR per port to minimize insertion loss.

  • Lightning protection and grounding provisions integrated into mounting system.

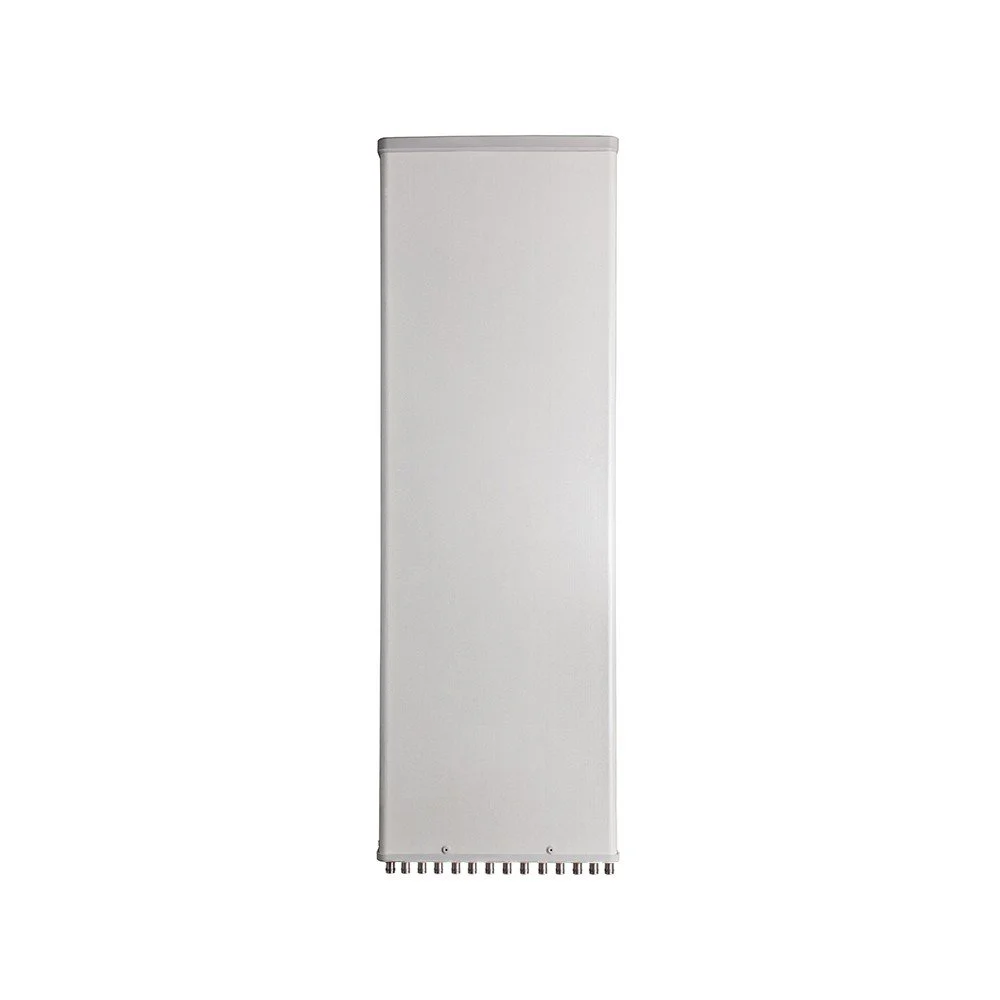

14-Port Panel Sector Antenna (698–2690 MHz)

Overview This 14-port panel sector antenna delivers high-performance multi-user coverage across the 698–2690 MHz band. Engineered for capacity and spectral efficiency, it supports modern multi-operator and multi-band deployments in urban and suburban macrocell environments, small cell aggregation sites, and neutral-host or shared-RAN installations.

Key Features

  • Frequency range: 698–2690 MHz — covers LTE bands and many public-safety and commercial cellular allocations.

  • 14 ports configured for multi-band, multi-operator use: flexible mapping of ports to carriers, operators, or technologies.

  • Sector coverage: designed for 60° horizontal panels (other beamwidths available on request).

  • High gain across the band to maximize coverage and link margin while maintaining consistent radiation pattern shape.

  • Low inter-port isolation loss through optimized feed network to reduce cross-talk between carriers.

  • Multi-band port grouping for simultaneous low-band (700/850), mid-band (1700/1900/2100), and upper-mid (2300/2500/2600) operations.

  • Durable radome and ruggedized mounting hardware: IP65-rated for outdoor installations and long service life in harsh environments.

  • Lightweight composite construction for easier installation and reduced tower loading.

  • Tilt and azimuth adjustable mounting bracket for precise alignment.

  • Wide input impedance matching (50 Ω) and low VSWR per port to minimize insertion loss.

  • Lightning protection and grounding provisions integrated into mounting system.
Electrical Specifications

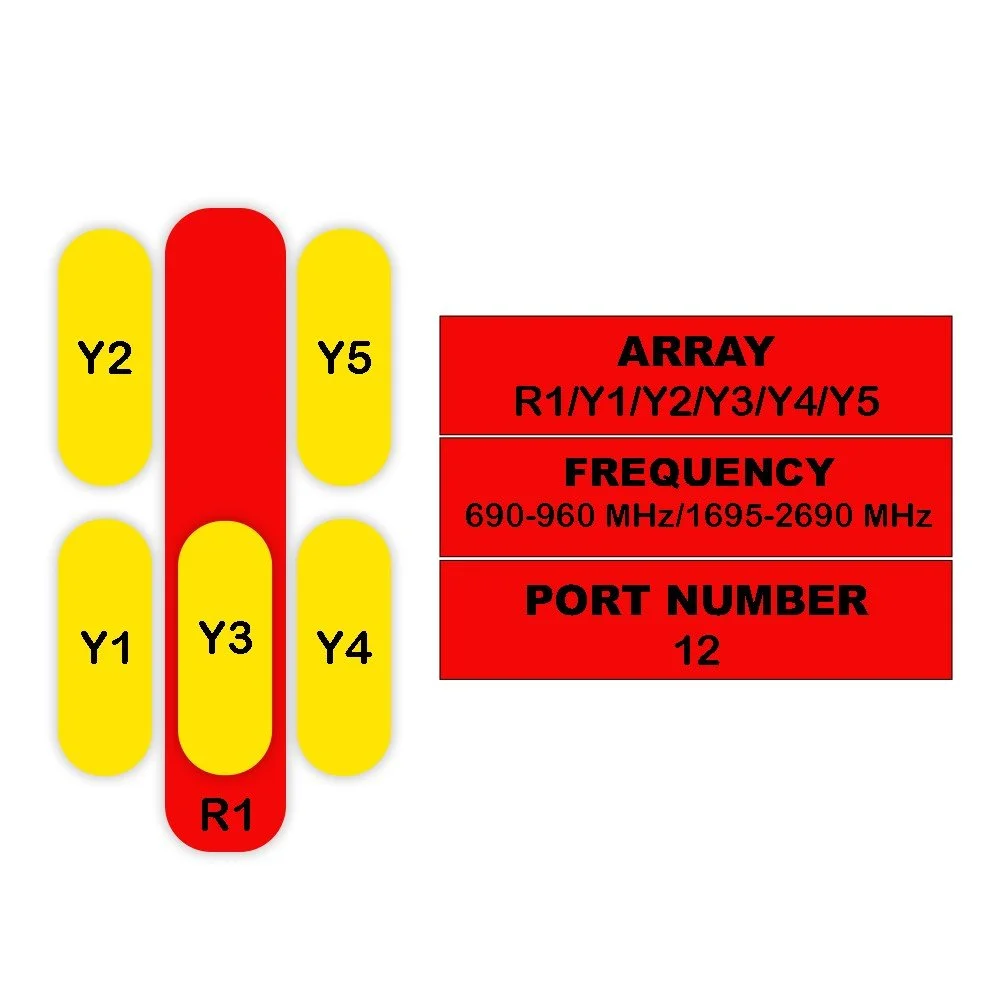

Parameter Sub-Parameter Unit R1 (698–960 MHz) Y1 / Y3 / Y5 (1710–2690 MHz) Y2 / Y4 / Y6 (1710–2690 MHz)
698-806 790-894 880-960 1710-1880 1850-1990 1920-2170 2300-2400 2490-2690 1710-1880 1850-1990 1920-2170 2300-2400 2490-2690
Polarization — — ±45° ±45° ±45°
Gain At Mid Tilt dBi 15.015.415.8 15.515.816.116.416.4 15.215.515.816.116.1
Gain Over All Tilts dBi 14.8 ± 0.615.2 ± 0.515.6 ± 0.6 15.3 ± 0.515.6 ± 0.515.9 ± 0.516.2 ± 0.516.2 ± 0.5 15.0 ± 0.515.3 ± 0.515.6 ± 0.515.9 ± 0.515.9 ± 0.5
Horizontal Beamwidth — degree 67 ± 4.565 ± 4.563 ± 4.1 68 ± 6.166 ± 6.163 ± 6.562 ± 6.062 ± 6.5 68 ± 6.166 ± 6.163 ± 6.562 ± 6.062 ± 6.5
Vertical Beamwidth — degree 11.6 ± 0.910.3 ± 0.69.2 ± 0.6 9.5 ± 0.68.8 ± 0.68.2 ± 0.67.2 ± 0.56.5 ± 0.4 9.5 ± 0.68.8 ± 0.68.2 ± 0.67.2 ± 0.56.5 ± 0.4
Electrical Downtilt Continuously Adjustable degree 2–12 2–12 2–12
Tilt Accuracy — degree < 1
Isolation Cross-Polar dB > 26 > 26 > 26
Isolation Port-to-Port dB > 28 > 28 > 28
Isolation Interband dB > 28 > 28 > 28
Impedance — Ohm 50 50 50
VSWR — — < 1.5 < 1.5 < 1.5
Return Loss — dB > 14 > 14 > 14
PIM3 (2x43 dBm Carrier) — dBc < -153 < -153 < -153
Lightning Protection — — DC Ground DC Ground DC Ground
Maximum Avg. Input Power per Port (50°C) — Watts 250 250 250
Mechanical Specifications
Parameter Sub-Parameter Unit Value

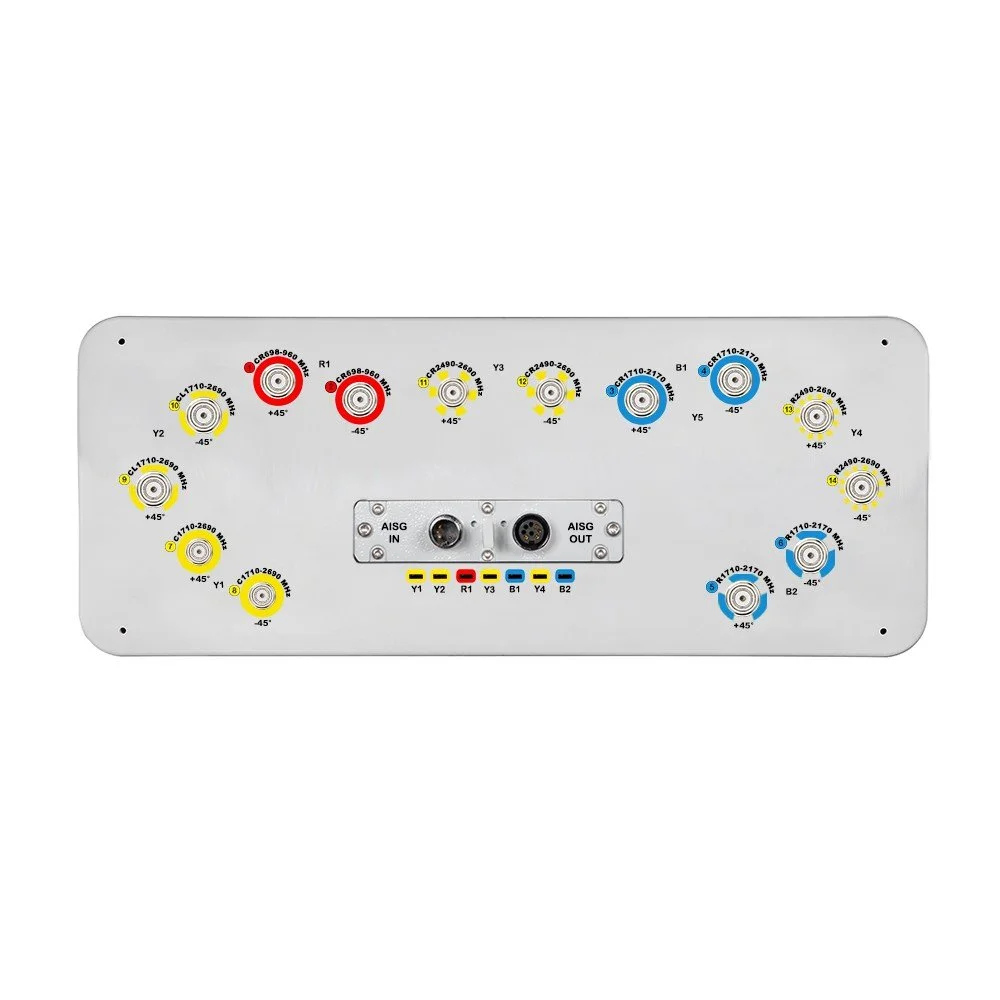

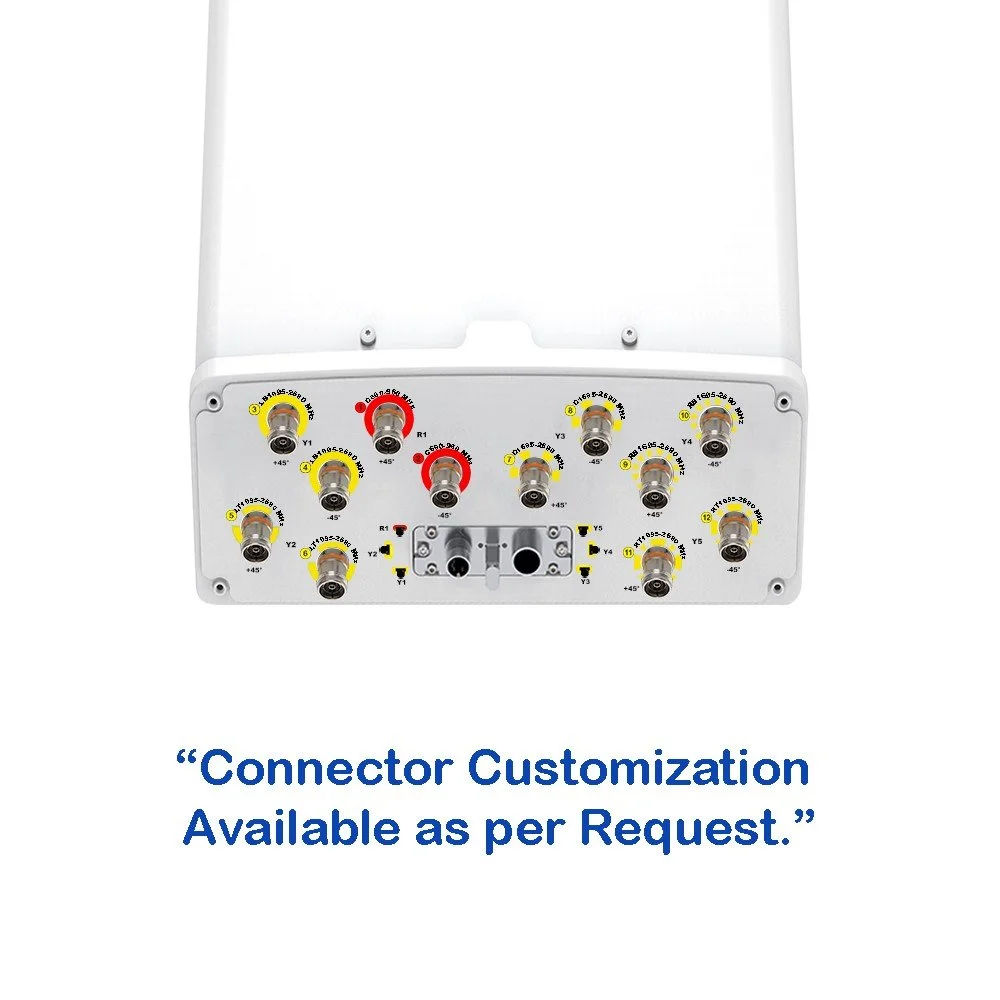

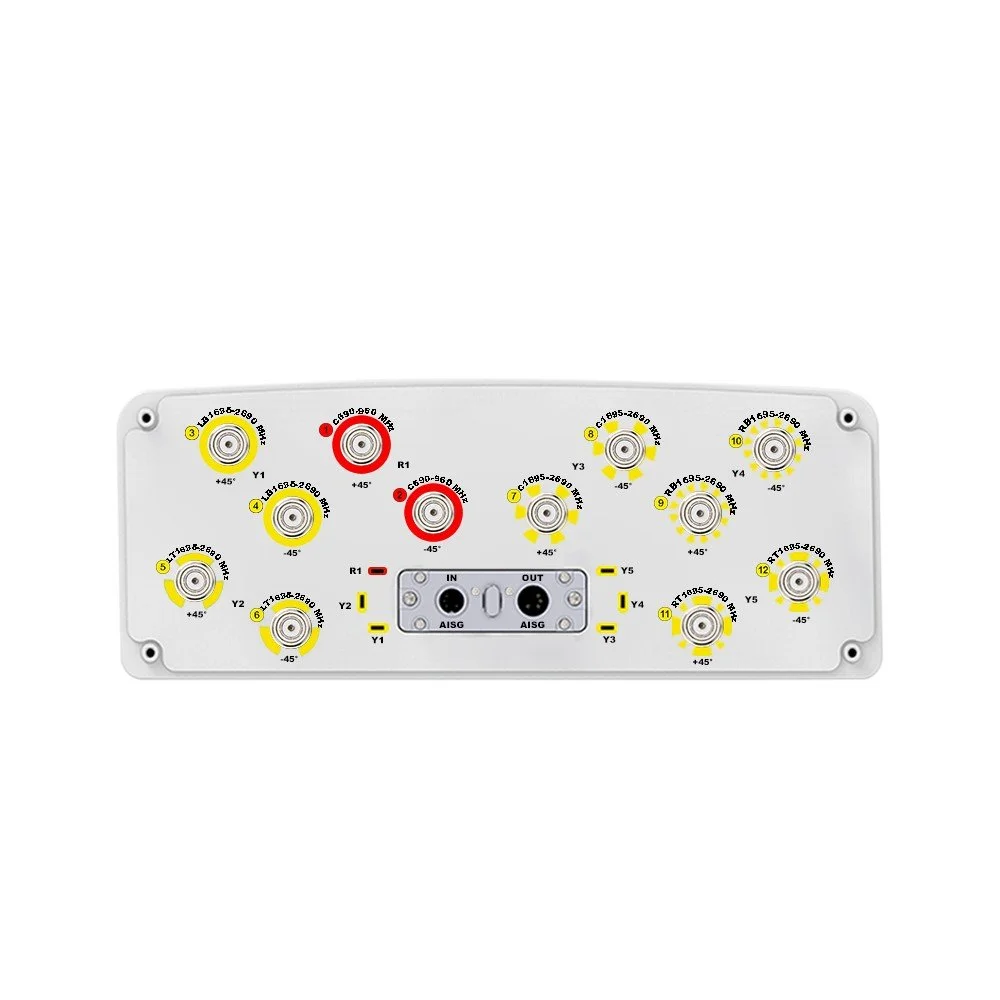

Connector Type — — (14x) 4.3/10 Female
Connector Position — — Bottom
Electrical Tilt Control — — Integrated RET
Radome Material — — Fiberglass

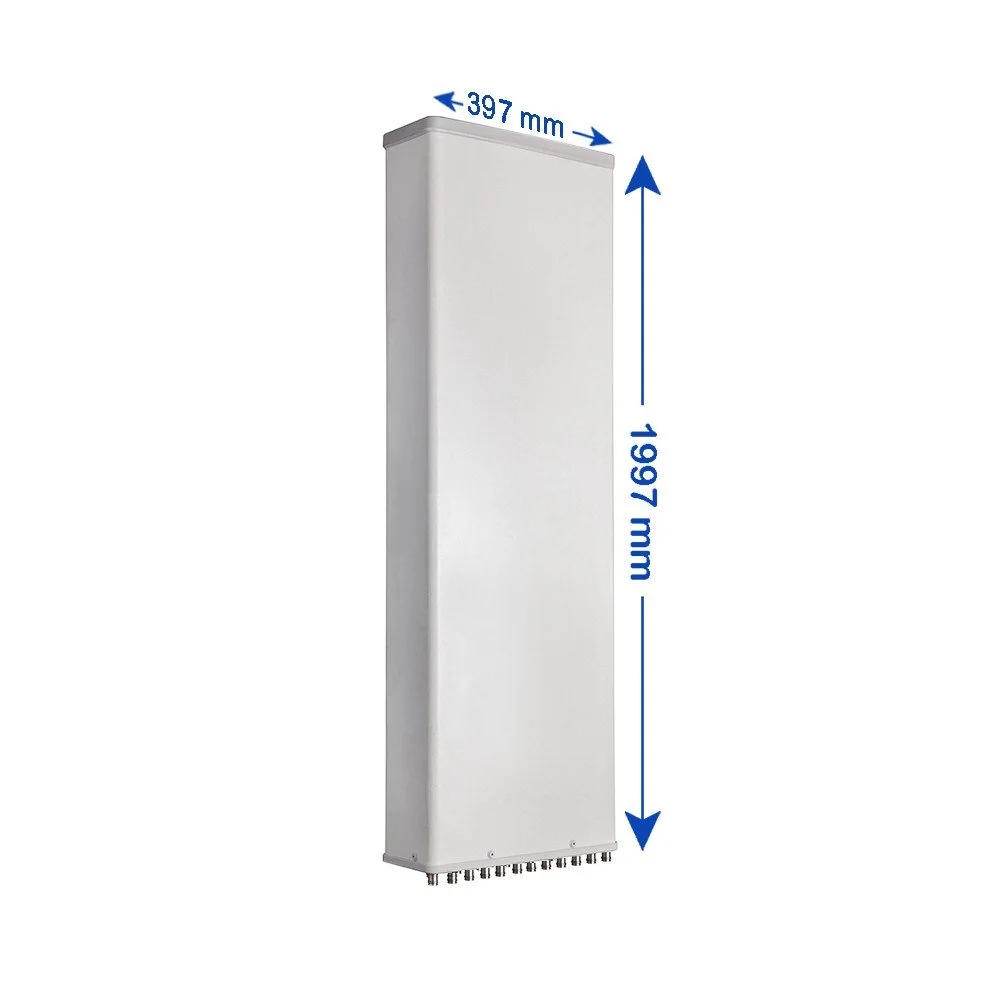

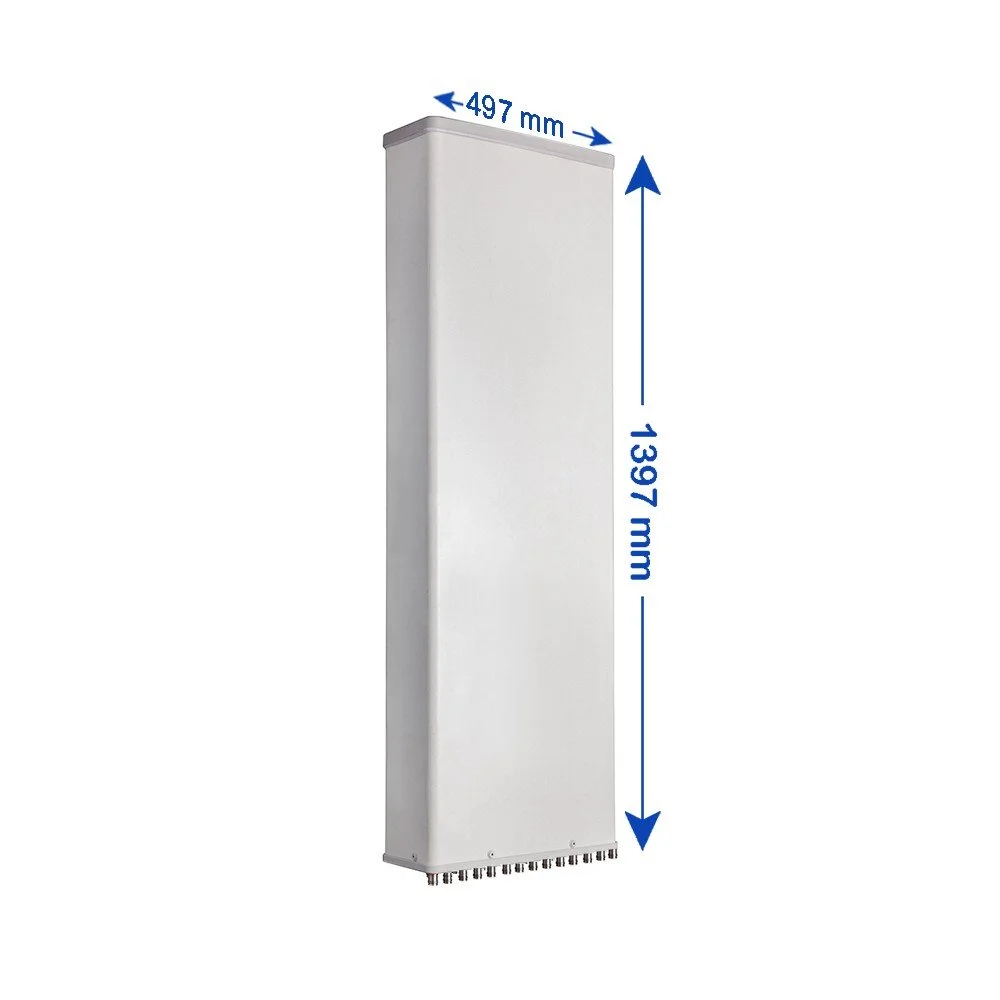

Antenna Dimensions (H × W × D) — mm (in) 1997 × 397 × 157 (78.6 × 15.6 × 6.2)
Antenna Weight Antenna Only kg (lbs) 31.5 (69.4)
Antenna Weight With Clamps kg (lbs) 35.5 (78.3)
Maximum Wind Speed — km/h (mph) 200 (124.3)
Wind Load at 150 km/h Frontal N (lbf) 735 (165.2)
Wind Load at 150 km/h Rear N (lbf) 820 (184.3)
Wind Load at 150 km/h Lateral N (lbf) 360 (80.9)
Operating Temperature — °C (°F) -40 to +60 (-40 to +140)
