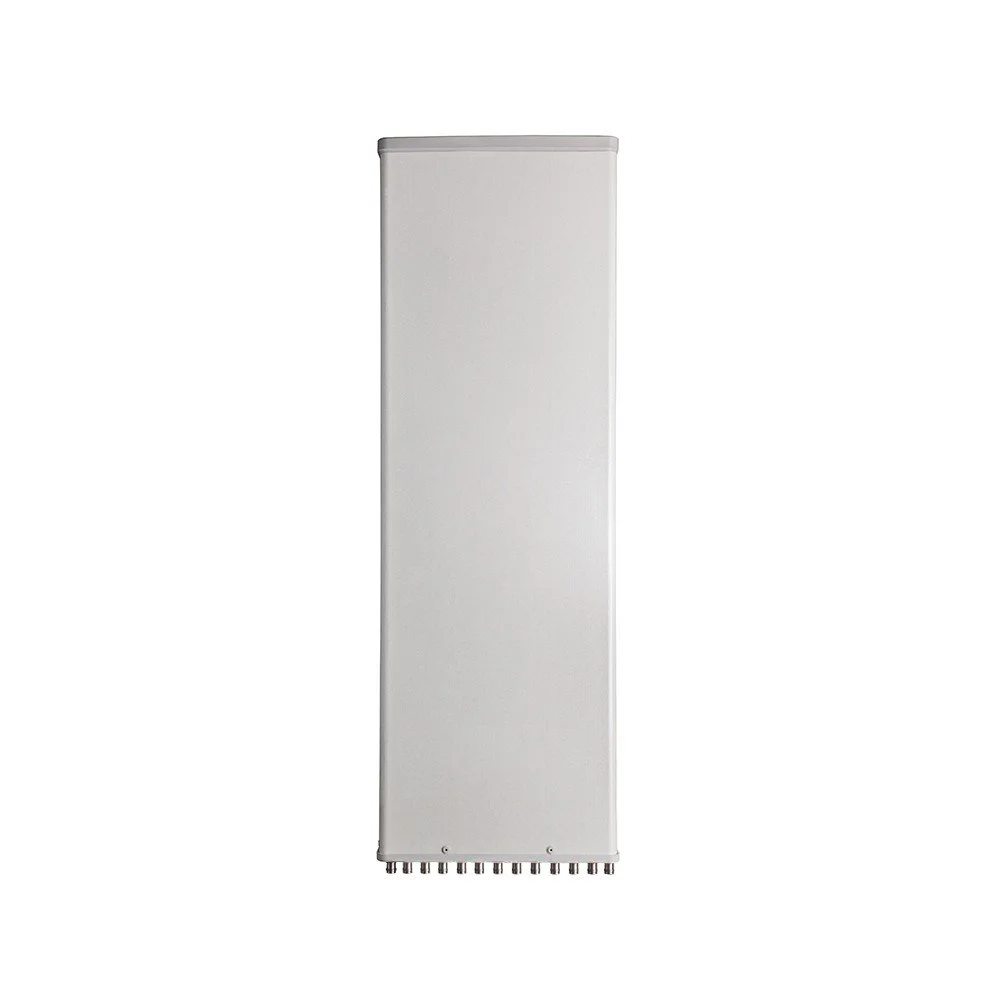

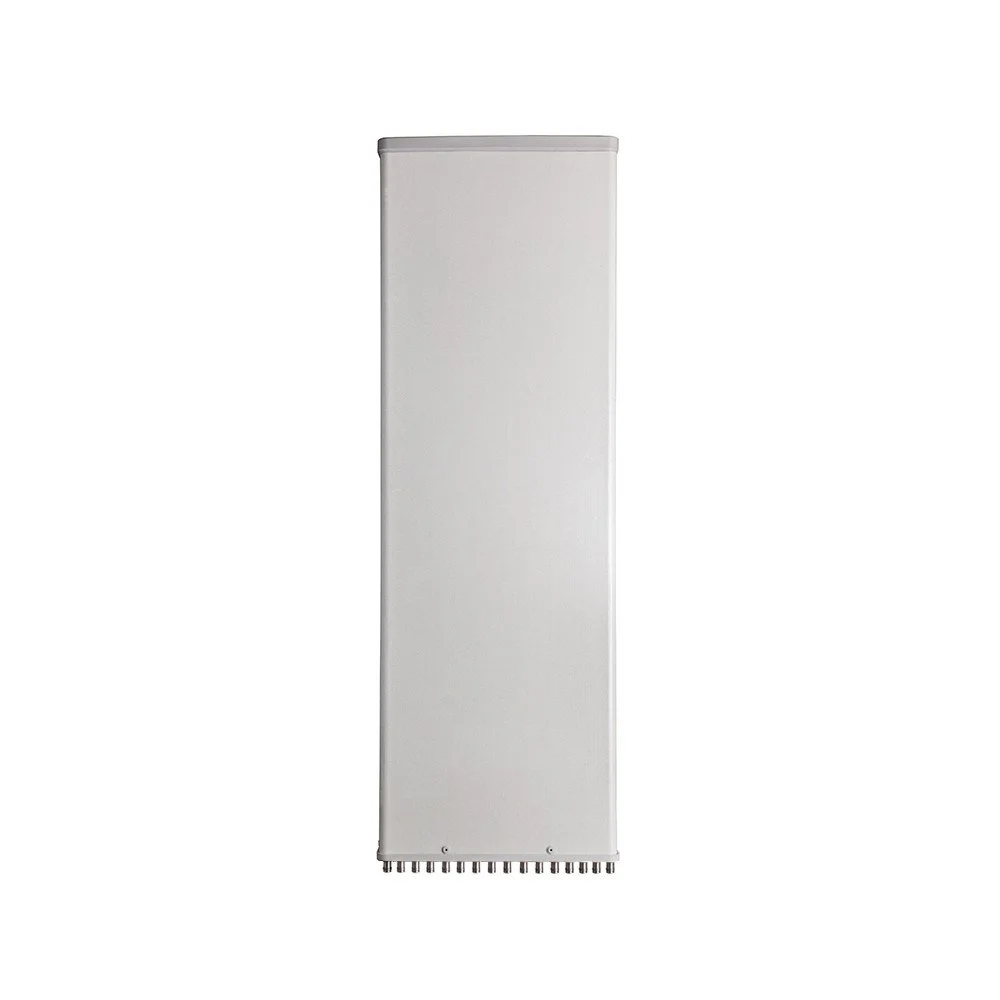

14-Port Panel Sector Antenna (698–2690 MHz)

A high-performance 14-port panel sector antenna designed for multi-operator, multi-band deployments across 698–2690 MHz. Engineered for dense urban and suburban coverage, this antenna delivers superior isolation, low inter-port coupling, and consistent pattern control to support modern multi-carrier networks, carrier aggregation, and MIMO configurations.

14-Port Panel Sector Antenna (698–2690 MHz)

A high-performance 14-port panel sector antenna designed for multi-operator, multi-band deployments across 698–2690 MHz. Engineered for dense urban and suburban coverage, this antenna delivers superior isolation, low inter-port coupling, and consistent pattern control to support modern multi-carrier networks, carrier aggregation, and MIMO configurations.

Electrical Specifications
Parameter Unit R1
698-806		 R1
790-894		 R1
880-960		 B1/B2
1710-1880		 B1/B2
1850-1990		 B1/B2
1920-2170		 Y1/Y2
1710-1880		 Y1/Y2
1850-1990		 Y1/Y2
1920-2170		 Y3/Y4
2300-2400		 Y3/Y4
2490-2690		 Y3/Y4
2490-2690
Polarization — ±45° ±45° ±45° ±45°
Gain (Mid Tilt) dBi 14.014.314.6 16.216.717.2 16.616.917.4 17.617.617.0
Gain (All Tilts) dBi 13.8 ±0.614.1 ±0.414.4 ±0.5 16.0 ±0.616.5 ±0.517.0 ±0.5 16.4 ±0.616.7 ±0.517.2 ±0.6 17.4 ±0.617.4 ±0.616.8 ±0.5
Horizontal Beamwidth ° 68 ±5.567 ±5.566 ±6.5 68 ±6.566 ±6.564 ±5.5 68 ±6.166 ±6.164 ±6.5 60 ±6.060 ±6.560 ±5.0
Vertical Beamwidth ° 16.5 ±0.914.6 ±0.614.2 ±0.6 6.8 ±0.66.4 ±0.86.0 ±0.8 7.0 ±0.66.6 ±0.56.2 ±0.5 5.4 ±0.44.8 ±0.64.8 ±0.5
Electrical Downtilt ° 2–12 2–12 2–12 2–12
Tilt Accuracy ° < 1
VSWR — < 1.5
Return Loss dB > 14
Impedance Ohm 50
PIM3 (2×43 dBm) dBc < -150
Lightning Protection — DC Ground
Maximum Avg Input Power per Port (50°C) Watts 250 200 200 200
Mechanical Specifications
Parameter Sub-Parameter Unit Value

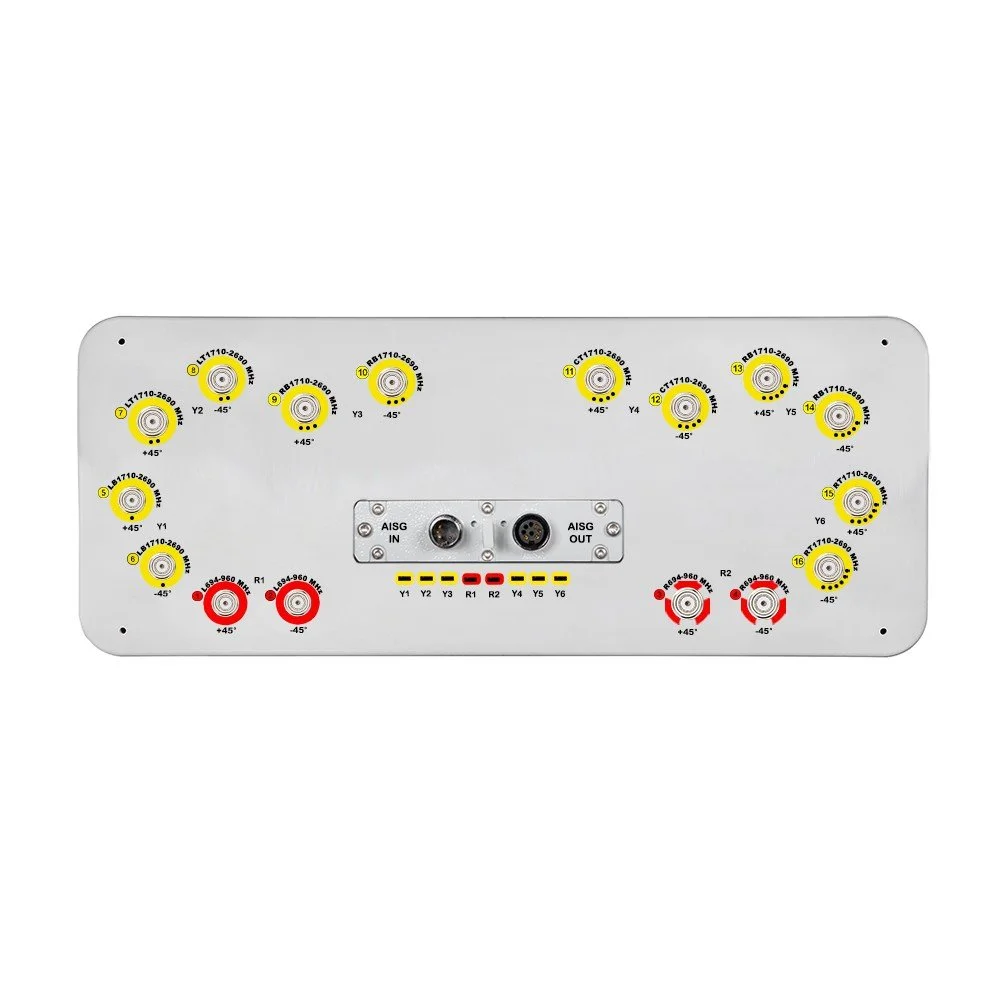

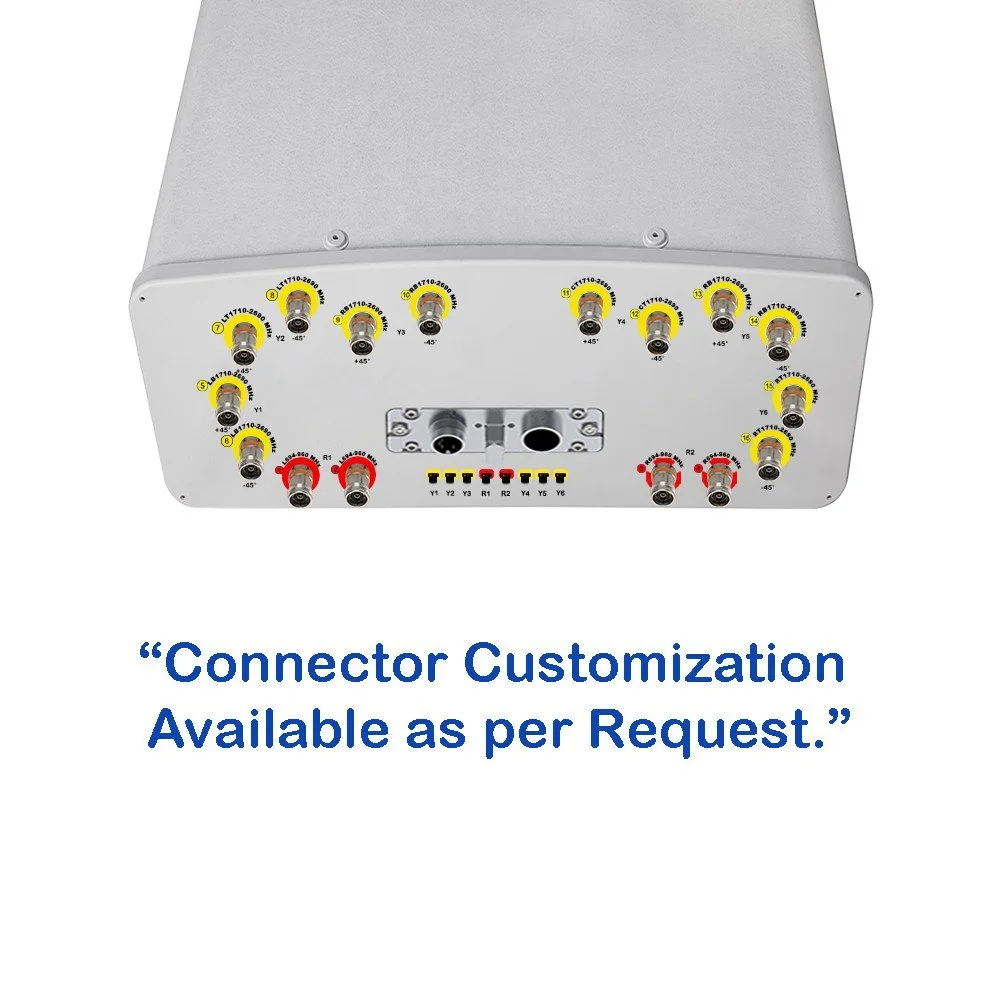

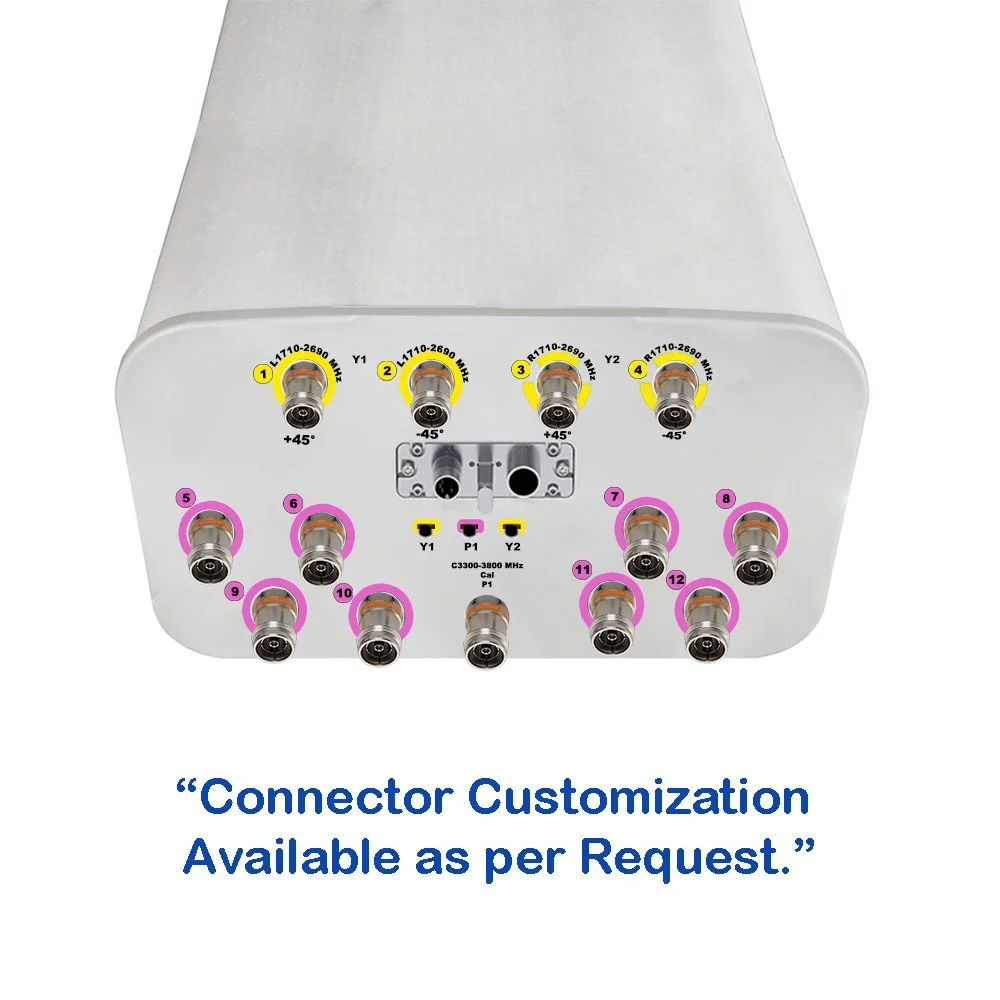

Connector Type — — (14x) 4.3/10 Female
Connector Position — — Bottom
Electrical Tilt Control — — Integrated RET
Radome Material — — Fiberglass
Antenna Dimensions (H × W × D) — mm (in) 1397 × 497 × 197 (55.0 × 19.6 × 7.8)
Antenna Weight Antenna Only kg (lbs) 29 (63.9)
Antenna Weight With Clamps kg (lbs) 33 (72.8)
Maximum Wind Speed — km/h (mph) 200 (124.3)
Wind Load at 150 km/h Frontal N (lbf) 640 (143.9)
Wind Load at 150 km/h Rear N (lbf) 715 (160.7)
Wind Load at 150 km/h Lateral N (lbf) 315 (70.8)
Operating Temperature — °C (°F) -40 to +60 (-40 to +140)
