14-Port, Panel Sector Antenna ( 694 - 2690 MHz )

₹0.00

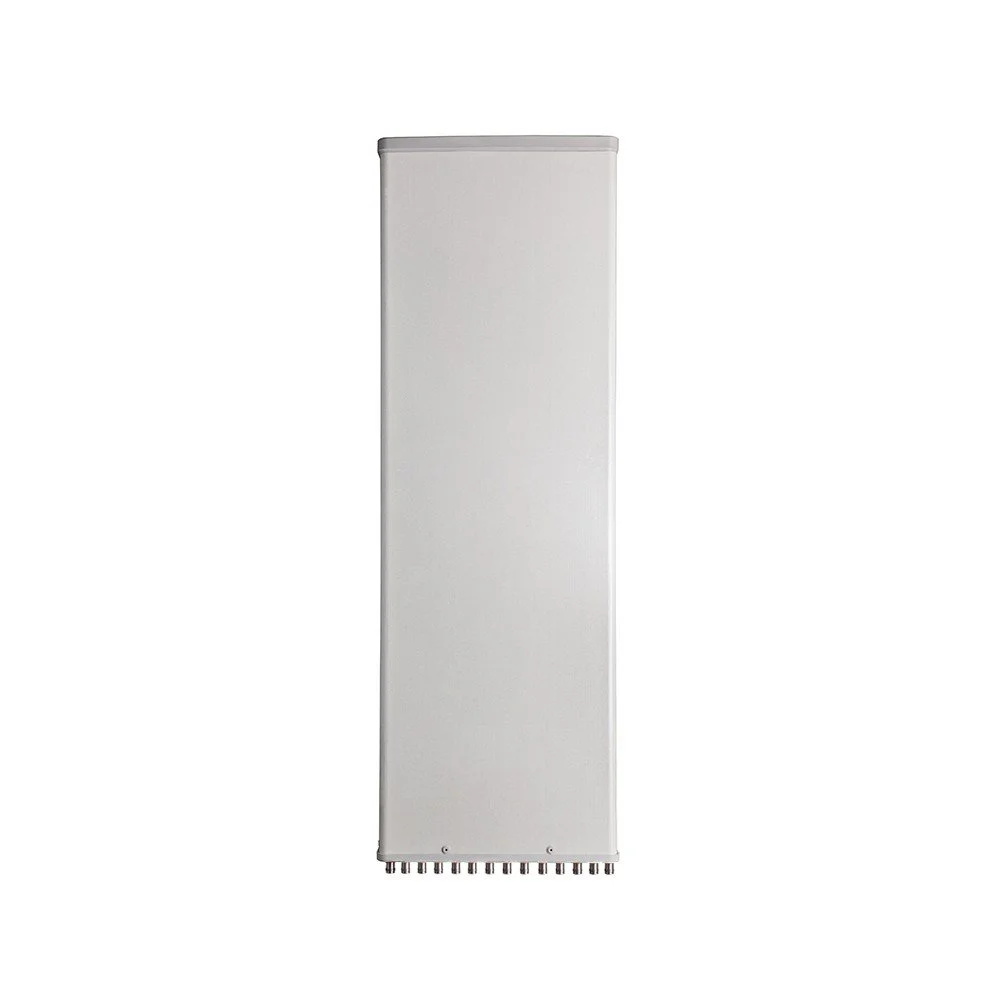

14-Port Panel Sector Antenna (694–2690 MHz)

Overview A high-performance 14-port panel sector antenna covering 694–2690 MHz, designed for dense urban and suburban macro deployments. Engineered for multi-operator and multi-band LTE/3G coverage, this antenna supports flexible MIMO configurations and carrier aggregation with low inter-port coupling, stable radiation patterns, and rugged outdoor construction.

Key Features :

  • Frequency range: 694–2690 MHz (covers 700/800/900/1700/1800/1900/2100/2600 MHz bands)

  • 14 ports supporting multiple MIMO streams (configurable for 2x2, 4x4, or mixed MIMO depending on operator needs)

  • Low inter-port isolation to minimize cross-talk and preserve MIMO performance

  • Optimized vertical beamwidth for sectorized coverage and consistent down-tilt performance

  • High gain across bands to enhance cell edge throughput and signal quality

  • Durable enclosure rated for outdoor deployment with corrosion-resistant hardware and UV-stable radome

  • IP65/66 environmental protection and wide operating temperature range

  • Integrated mounting bracket for pole/tri-sector mast installation

  • Lightning protection and DC grounding provisions

  • Low passive intermodulation (PIM) for multi-carrier base stations

14-Port Panel Sector Antenna (694–2690 MHz)

Overview A high-performance 14-port panel sector antenna covering 694–2690 MHz, designed for dense urban and suburban macro deployments. Engineered for multi-operator and multi-band LTE/3G coverage, this antenna supports flexible MIMO configurations and carrier aggregation with low inter-port coupling, stable radiation patterns, and rugged outdoor construction.

Key Features :

  • Frequency range: 694–2690 MHz (covers 700/800/900/1700/1800/1900/2100/2600 MHz bands)

  • 14 ports supporting multiple MIMO streams (configurable for 2x2, 4x4, or mixed MIMO depending on operator needs)

  • Low inter-port isolation to minimize cross-talk and preserve MIMO performance

  • Optimized vertical beamwidth for sectorized coverage and consistent down-tilt performance

  • High gain across bands to enhance cell edge throughput and signal quality

  • Durable enclosure rated for outdoor deployment with corrosion-resistant hardware and UV-stable radome

  • IP65/66 environmental protection and wide operating temperature range

  • Integrated mounting bracket for pole/tri-sector mast installation

  • Lightning protection and DC grounding provisions

  • Low passive intermodulation (PIM) for multi-carrier base stations

Electrical Specifications

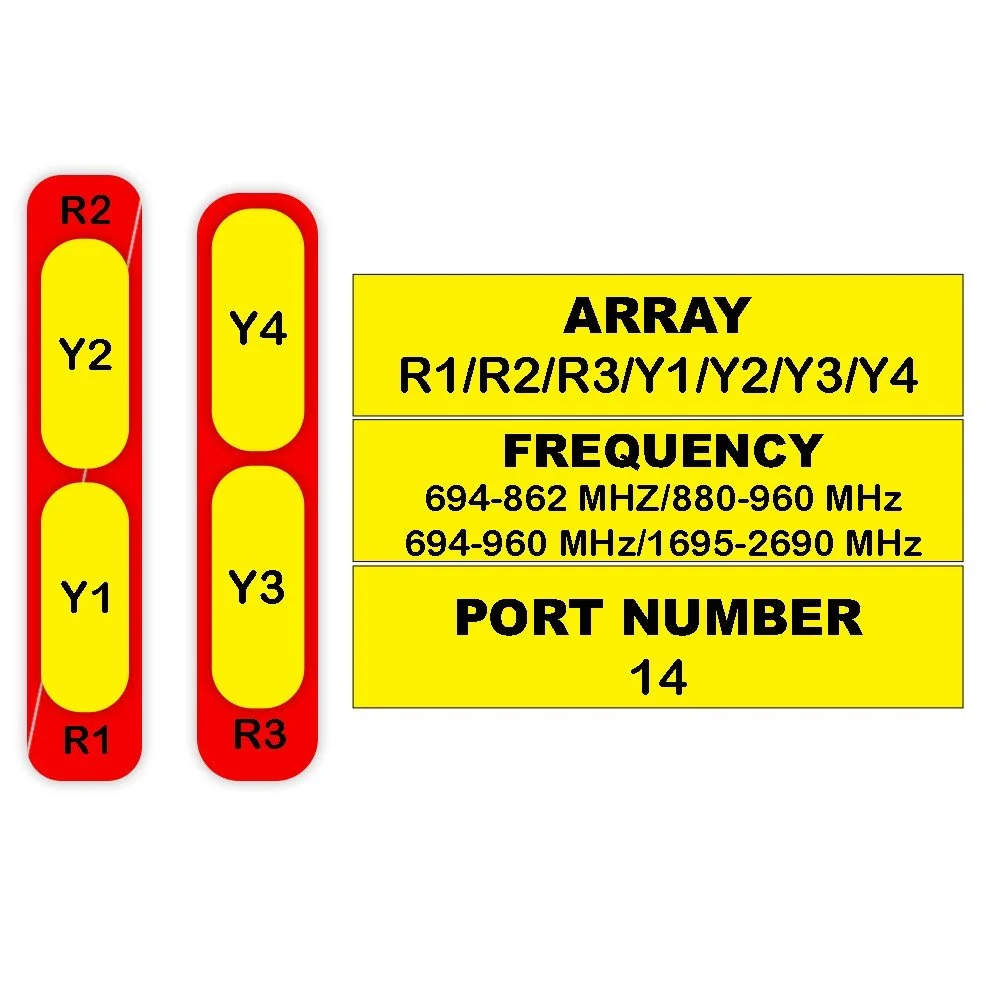

Parameter Detail Unit R1 (694–806) R1 (790–862) R1 (880–960) R2 (694–806) R2 (790–894) R3 (880–960)
Frequency Range — MHz 694–806 790–862 880–960 694–806 790–894 880–960
Polarization — — ±45° ±45°
Gain Mid Tilt dBi 15.6 16.0 16.4 16.0 16.3 16.7
Gain Over All Tilts dBi 15.4 ± 0.6 15.8 ± 0.6 16.2 ± 0.6 15.8 ± 0.6 16.1 ± 0.6 16.5 ± 0.6
Horizontal Beamwidth — ° 65 ± 5.4 62 ± 5.6 58 ± 4.6 65 ± 5.4 62 ± 5.6 58 ± 4.6
Vertical Beamwidth — ° 8.8 ± 0.9 7.8 ± 0.6 7.2 ± 0.7 8.8 ± 0.9 7.8 ± 0.6 7.2 ± 0.7
Electrical Downtilt Continuously Adjustable ° 2–12 2–12
Tilt Accuracy — ° < 1 < 1 < 1 < 1 < 1 < 1
Upper Side Lobe Suppression First Upper Lobe (Typical) dB > 16
Upper Side Lobe Suppression 20° Sector Above Main Beam dB > 15
Front-To-Back Ratio (±30°) — dB > 23 > 24 > 25 > 23 > 24 > 25
Cross Polar Discrimination At Boresight dB > 18
Cross Polar Discrimination Over Sector dB > 9.0 > 7.0 > 6.0 > 9.0 > 7.0 > 6.0
Isolation Cross-Polar dB > 26
Isolation Port-to-Port dB > 25 (R1,R2//R3)
> 28 (R1//R2,Y1,Y2,Y3,Y4)		 > 25 (R3//R1,R2)
> 28 (R3//Y1,Y2,Y3,Y4)
Impedance — Ohm 50
VSWR — — < 1.5
Return Loss — dB > 14
PIM3 (2×43 dBm Carrier) — dBc < -150
Lightning Protection — — DC Ground
Maximum Avg. Input Power per Port (50°C) — Watts 200 200 200 200 200 250
Electrical Specifications
Parameter Detail Unit Y1/Y3 (1695–1880) Y1/Y3 (1850–1990) Y1/Y3 (1920–2170) Y1/Y3 (2300–2400) Y1/Y3 (2490–2690) Y2/Y4 (1695–1880) Y2/Y4 (1850–1990) Y2/Y4 (1920–2170) Y2/Y4 (2300–2400) Y2/Y4 (2490–2690)
Frequency Range — MHz 1695–2690 1695–2690
Polarization — — ±45° ±45°
Gain Mid Tilt dBi 16.416.817.217.417.4 16.016.416.817.017.0
Gain Over All Tilts dBi 16.2 ± 0.516.6 ± 0.517.0 ± 0.517.2 ± 0.517.2 ± 0.5 15.8 ± 0.516.2 ± 0.516.6 ± 0.516.8 ± 0.516.8 ± 0.5
Horizontal Beamwidth — ° 68 ± 6.566 ± 6.561 ± 6.562 ± 5.060 ± 6.5 68 ± 6.566 ± 6.561 ± 6.562 ± 5.060 ± 6.5
Vertical Beamwidth — ° 6.8 ± 0.56.4 ± 0.46.0 ± 0.55.2 ± 0.54.8 ± 0.6 6.8 ± 0.56.4 ± 0.46.0 ± 0.55.2 ± 0.54.8 ± 0.6
Electrical Downtilt Continuously Adjustable ° 2–12 2–12
Tilt Accuracy — ° < 1 < 1
Upper Side Lobe Suppression First Upper Lobe dB >16>16>16>15>15 >16>16>16>15>15
Upper Side Lobe Suppression 20° Sector Above Main Beam dB >15>15>15>14>14 >15>15>15>14>14
Front-To-Back Ratio (±30°) — dB ≥24≥24>25≥25≥25 ≥24≥24>25≥25≥25
Cross Polar Discrimination At Boresight dB >16>16>17>18>18 >16>16>17>18>18
Cross Polar Discrimination Over Sector dB >6.0>7.0>7.0>4.0>2.0 >6.0>7.0>7.0>4.0>2.0
Isolation Cross-Polar dB > 26 > 26
Isolation Port-to-Port dB > 28 > 28
Impedance — Ohm 50 50
VSWR — — < 1.5 < 1.5
Return Loss — dB > 14 > 14
PIM3 (2×43 dBm Carrier) — dBc < -150 < -150
Lightning Protection — — DC Ground DC Ground
Maximum Avg. Input Power per Port (50°C) — Watts 200 200
Mechanical Specifications
Parameter Detail Unit Value

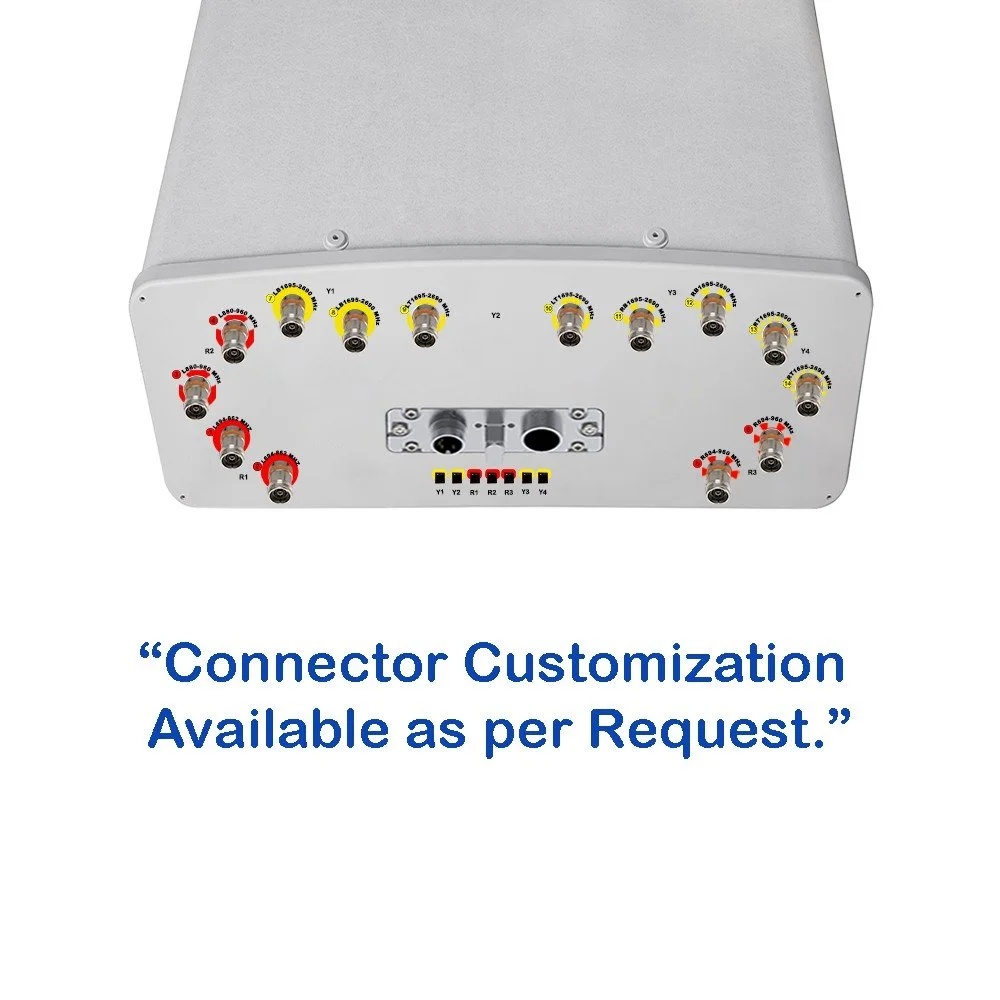

Connector Type — — (14×) 4.3/10 Female
Connector Position — — Bottom
Electrical Tilt Control — — Integrated RET
Radome Material — — Fiberglass

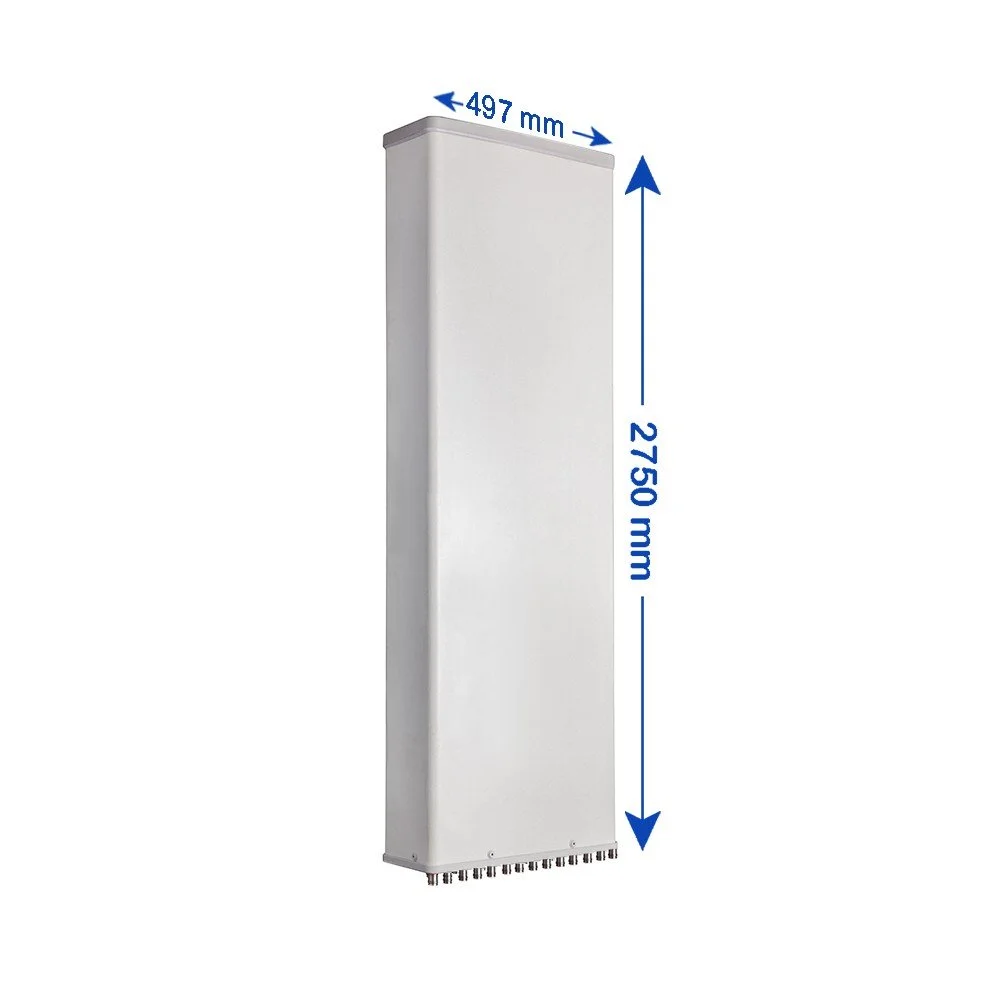

Antenna Dimensions (H × W × D) — mm (in) 2750 × 497 × 197 (108.3 × 19.6 × 7.8)
Antenna Weight Antenna Only kg (lbs) 51 (112.4)
Antenna Weight With Clamps kg (lbs) 58.5 (129.0)
Maximum Wind Speed — km/h (mph) 200 (124.3)
Wind Load at 150 km/h Frontal N (lbf) 1265 (284.4)
Wind Load at 150 km/h Rear N (lbf) 1410 (317.0)
Wind Load at 150 km/h Lateral N (lbf) 600 (134.9)
Operating Temperature — °C (°F) -40 to +60 (-40 to +140)
