14-Port Panel Sector Antenna (617–2200 MHz)

Overview This 14-port panel sector antenna delivers wideband multi-antenna coverage across 617–2200 MHz, supporting modern cellular deployments including legacy 600/700/850 MHz bands through AWS, PCS and low‑band LTE/5G sub‑6 GHz frequencies. Designed for dense urban and suburban macro sites, the antenna provides sectorized beam control, high isolation between ports, and robust mechanical and environmental performance for outdoor tower and rooftop installations.

Key Features :

  • Frequency range: 617–2200 MHz to cover low, mid and selected upper cellular bands.

  • 14 ports: Multiple MIMO ports and/or port grouping for carrier aggregation, massive MIMO extensions, and multi-technology coexistence.

  • Sectorization: Optimized horizontal beamwidth (customizable 60°/65°/90° options depending on model) to support sector splits and flexible network planning.

  • High port isolation: Minimizes inter-port interference for improved MIMO performance.

  • Low passive intermodulation (PIM): Factory-tested to low PIM levels to preserve uplink integrity.

  • Gain: Balanced gain across the band with smooth frequency response to support consistent cell edge throughput.

  • Broadband design: Single wideband radiating structure eliminates need for multiple antennas per band, reducing tower load and visual clutter.

  • Robust construction: UV-stable radome, marine-grade mounting hardware, and sealed RF enclosures for long service life in harsh outdoor environments.

  • Lightweight and compact form factor: Easier handling and lower wind load compared with multiple discrete antennas.

  • Tilt options: Adjustable mechanical downtilt and/or integrated electrical tilt variants available for optimized coverage.

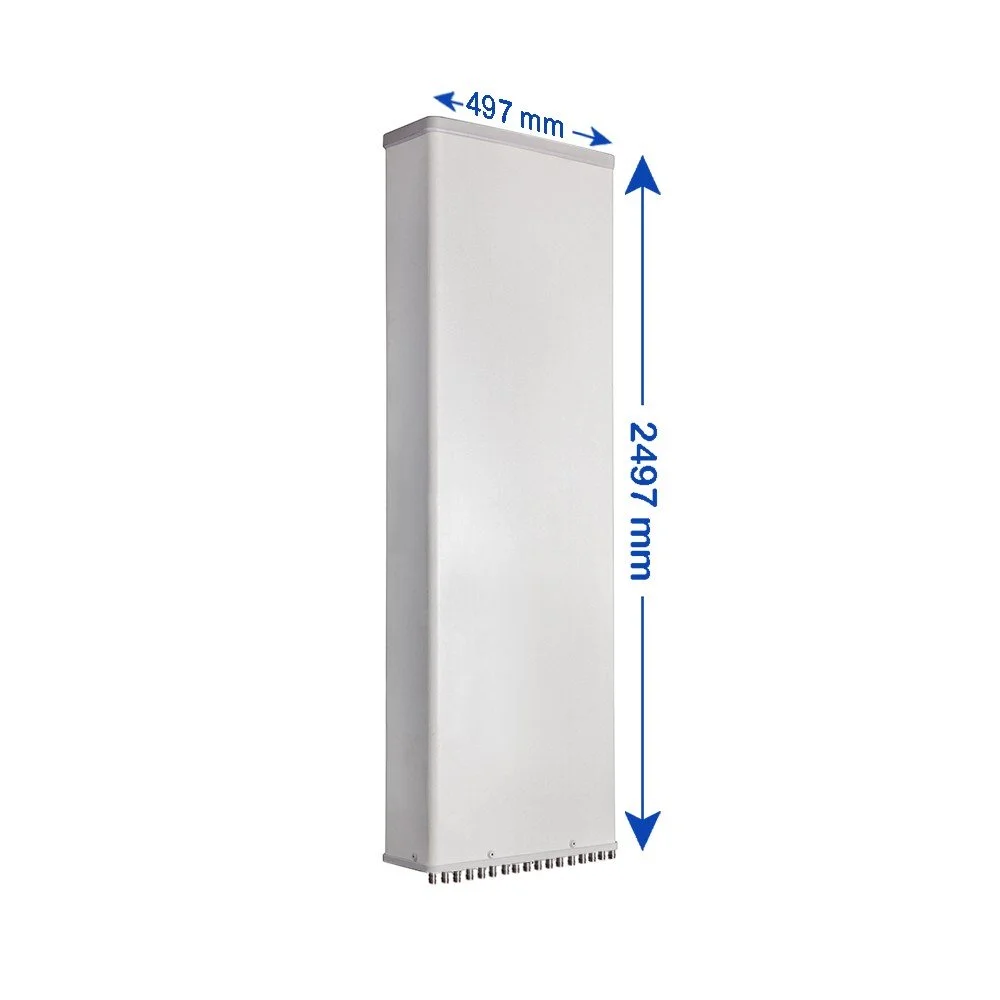

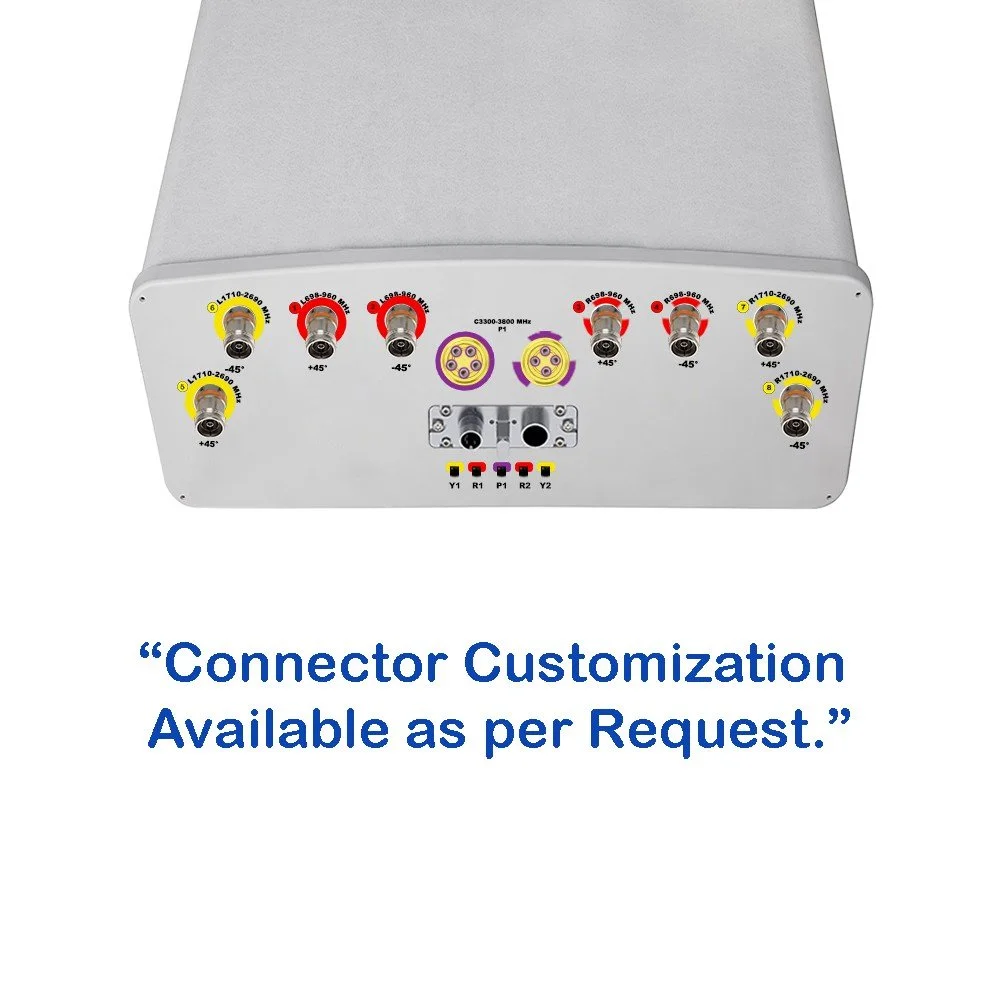

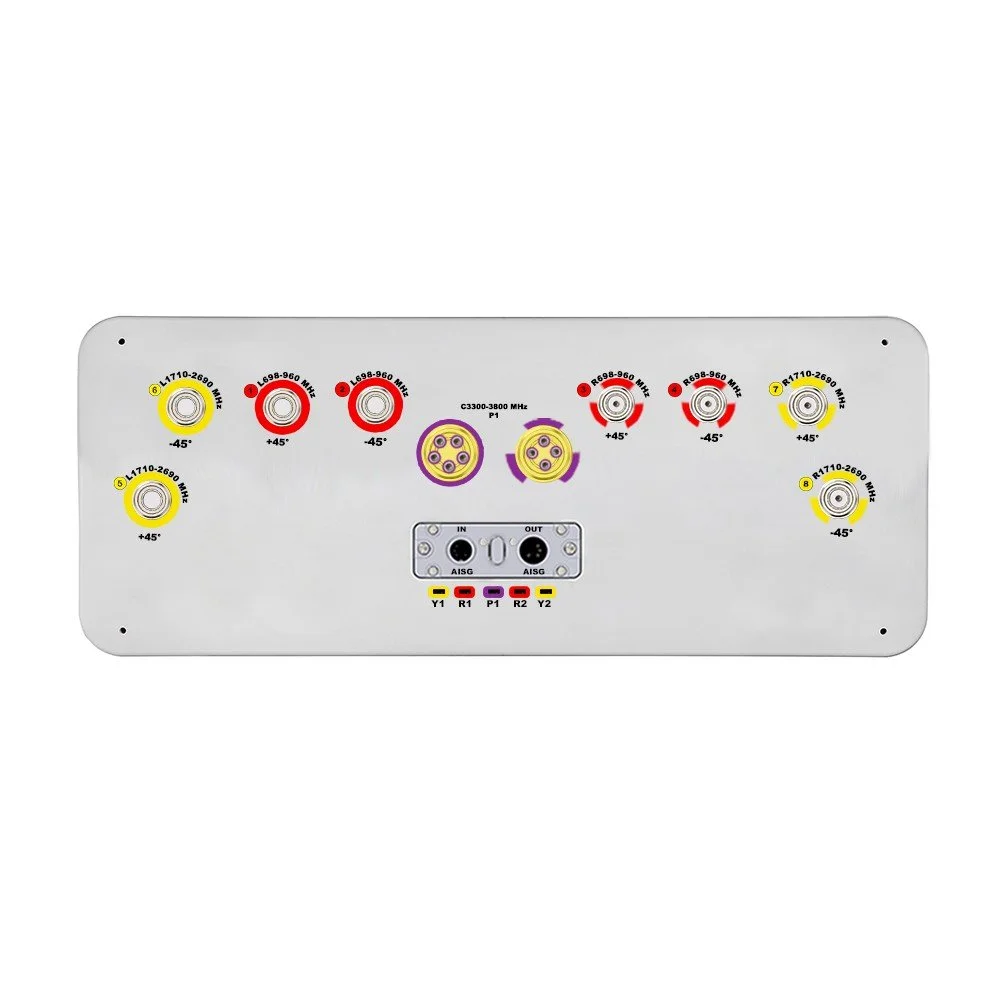

  • Connectorization: Weatherproof N-type or rugged hybrid connectors; options for integrated jumpers or remote MTPs to simplify installation.

  • Lightning protection: Integrated DC grounding and surge protection options to meet site safety requirements.

  • Compliance: Designed to meet relevant industry standards for RF performance and environmental durability (e.g., ETSI, IEC).

14-Port Panel Sector Antenna (617–2200 MHz)

Overview This 14-port panel sector antenna delivers wideband multi-antenna coverage across 617–2200 MHz, supporting modern cellular deployments including legacy 600/700/850 MHz bands through AWS, PCS and low‑band LTE/5G sub‑6 GHz frequencies. Designed for dense urban and suburban macro sites, the antenna provides sectorized beam control, high isolation between ports, and robust mechanical and environmental performance for outdoor tower and rooftop installations.

Key Features :

  • Frequency range: 617–2200 MHz to cover low, mid and selected upper cellular bands.

  • 14 ports: Multiple MIMO ports and/or port grouping for carrier aggregation, massive MIMO extensions, and multi-technology coexistence.

  • Sectorization: Optimized horizontal beamwidth (customizable 60°/65°/90° options depending on model) to support sector splits and flexible network planning.

  • High port isolation: Minimizes inter-port interference for improved MIMO performance.

  • Low passive intermodulation (PIM): Factory-tested to low PIM levels to preserve uplink integrity.

  • Gain: Balanced gain across the band with smooth frequency response to support consistent cell edge throughput.

  • Broadband design: Single wideband radiating structure eliminates need for multiple antennas per band, reducing tower load and visual clutter.

  • Robust construction: UV-stable radome, marine-grade mounting hardware, and sealed RF enclosures for long service life in harsh outdoor environments.

  • Lightweight and compact form factor: Easier handling and lower wind load compared with multiple discrete antennas.

  • Tilt options: Adjustable mechanical downtilt and/or integrated electrical tilt variants available for optimized coverage.

  • Connectorization: Weatherproof N-type or rugged hybrid connectors; options for integrated jumpers or remote MTPs to simplify installation.

  • Lightning protection: Integrated DC grounding and surge protection options to meet site safety requirements.

  • Compliance: Designed to meet relevant industry standards for RF performance and environmental durability (e.g., ETSI, IEC).

Electrical Specifications
Electrical specifications for R1, R2, R3, G1, G2 and B1/B2 bands including gain, beamwidth, isolation, and power ratings.
Parameter Unit R1
617–698
R1
698–806
R2
790–894
R3
1427–1518
G1
1427–1518
G2
1695–1880
B1/B2
1850–1990
B1/B2
1920–2200
B1/B2
Polarization ±45°±45°±45°±45° ±45°±45°±45°±45°±45°
Gain at Mid Tilt dBi 15.015.516.415.4 15.816.216.416.817.2
Gain Over All Tilts dBi 14.8 ± 0.615.3 ± 0.616.2 ± 0.615.2 ± 0.5 15.6 ± 0.516.0 ± 0.516.2 ± 0.616.6 ± 0.617.0 ± 0.6
Horizontal Beamwidth degree 72 ± 5.468 ± 5.658 ± 4.672 ± 5.4 68 ± 5.664 ± 3.669 ± 6.567 ± 6.561 ± 6.5
Vertical Beamwidth degree 10.4 ± 0.98.8 ± 0.67.2 ± 0.710.4 ± 0.9 8.8 ± 0.67.8 ± 0.86.8 ± 0.56.4 ± 0.56.0 ± 0.5
Electrical Downtilt degree 2–12 (Common for R1/R2) 2–12 2–12 2–12 2–12
Tilt Accuracy degree < 1< 1< 1< 1 < 1< 1< 1< 1< 1
First Upper Lobe (Typical) dB > 15> 16> 16> 15 > 16> 16> 16> 16> 16
20° Sector Above Main Beam dB > 15> 15> 15> 14 > 15> 15> 14> 14> 14
Front-To-Back Ratio ±30° dB > 22> 23> 25> 21 > 23> 24≥ 23≥ 24> 24
Cross Polar Discrimination (Boresight) dB > 18> 18> 18> 16 > 17> 18> 16> 16> 17
Cross Polar Discrimination (Sector) dB > 9.0> 7.0> 6.0> 7.0 > 8.0> 7.5> 6.0> 6.0> 6.0
Isolation – Cross-Polar dB > 25> 25> 25> 25 > 25> 26
Isolation – Port-to-Port dB > 25> 25> 25> 25 > 25> 28
Impedance Ohm 50505050 5050505050
VSWR < 1.5< 1.5< 1.5< 1.5 < 1.5< 1.5< 1.5< 1.5< 1.5
Return Loss dB > 14> 14> 14> 14 > 14> 14> 14> 14> 14
PIM3 (2×43 dBm) dBc < -150< -150< -150< -150 < -150< -150< -150< -150< -150
Lightning Protection DC GroundDC GroundDC GroundDC Ground DC GroundDC GroundDC GroundDC GroundDC Ground
Max Avg Input Power per Port (50°C) Watts 200200250200 200200200200200
Mechanical Specifications for Antenna including connectors, dimensions, weight, wind load, and operating temperature.
Parameter Unit Specification
Connector Type (14x) 4.3/10 Female
Connector Position Bottom
Electrical Tilt Control Integrated RET
Radome Material Fiberglass
Antenna Dimensions (H × W × D) mm (in) 2750 × 560 × 180 (108.3 × 22.0 × 7.1)
Antenna Weight (Antenna Only) kg (lbs) 51 (112.4)
Antenna Weight (With Clamps) kg (lbs) 58.5 (129.0)
Maximum Wind Speed km/h (mph) 200 (124.3)
Wind Load at 150 km/h (Frontal) N (lbf) 1425 (320.4)
Wind Load at 150 km/h (Rear) N (lbf) 1590 (357.4)
Wind Load at 150 km/h (Lateral) N (lbf) 565 (127.0)
Operating Temperature °C (°F) -40 to +60 (-40 to +140)
