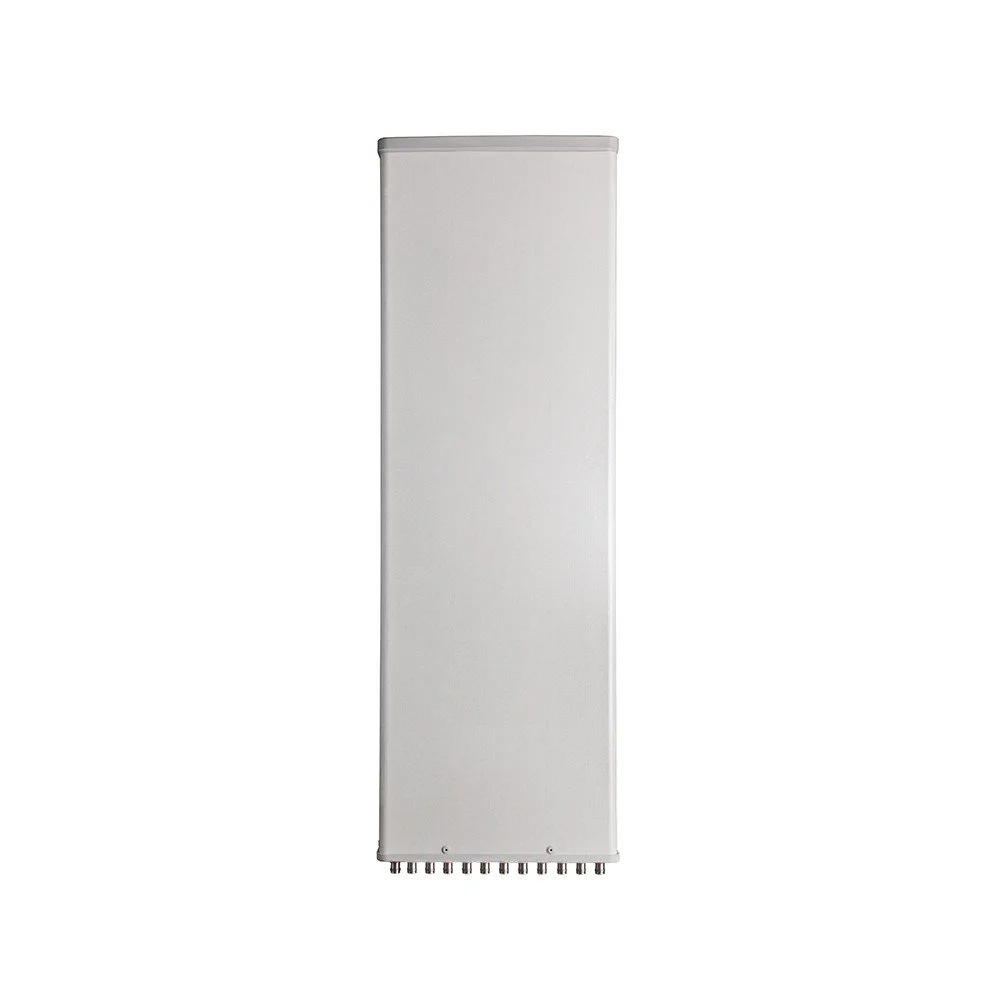

A high‑performance 12‑port panel sector antenna engineered for modern multi‑carrier, multi‑sector deployments across the 698–2690 MHz band. Designed for dense urban, suburban and rural macro sites, this antenna supports 2G/3G/4G/LTE networks and is forward‑compatible with multi‑layer MIMO configurations and carrier aggregation strategies.
Frequency range: 698–2690 MHz — full coverage for low and mid bands used in public mobile networks.

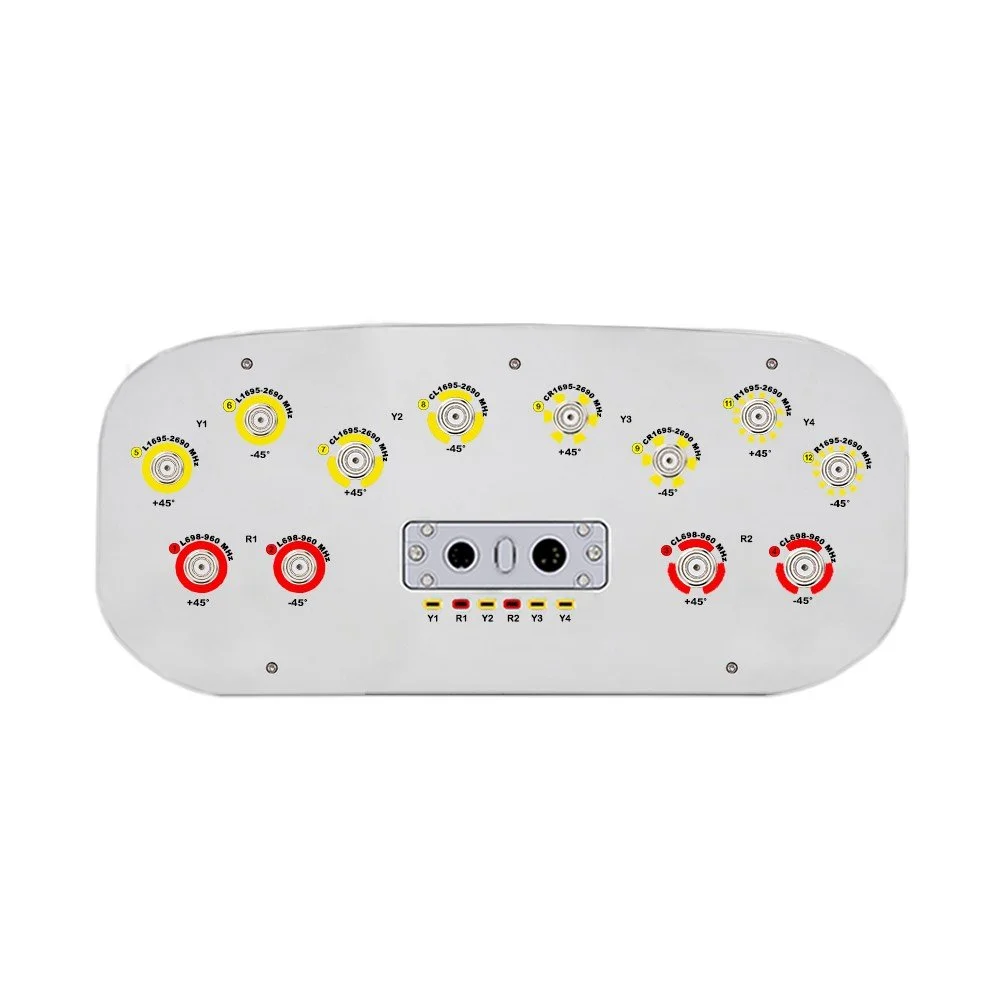

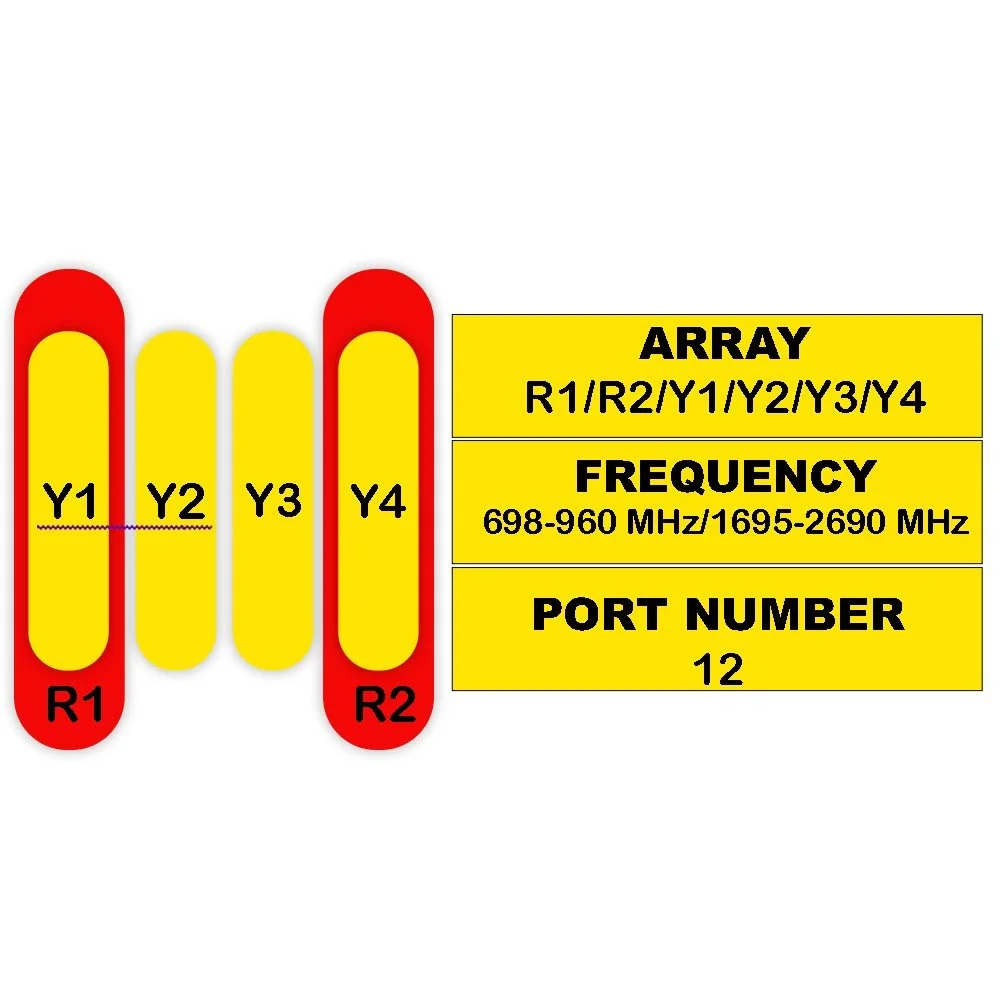

12 RF ports — flexible port mapping for multiple operators, bands, or MIMO layers.
Sector configuration — optimized radiation pattern for 65° (typical) sectorization with consistent azimuth coverage.
High isolation between ports — minimizes inter‑port coupling for cleaner MIMO performance.
Low VSWR across the band — ensures efficient power transfer and reduced reflections.
Robust gain profile — optimized gain per sub‑band to balance coverage and capacity.
Durable outdoor enclosure — UV‑stabilized, corrosion‑resistant housing rated for harsh environments.
Wide operating temperature range — suitable for extreme climates.

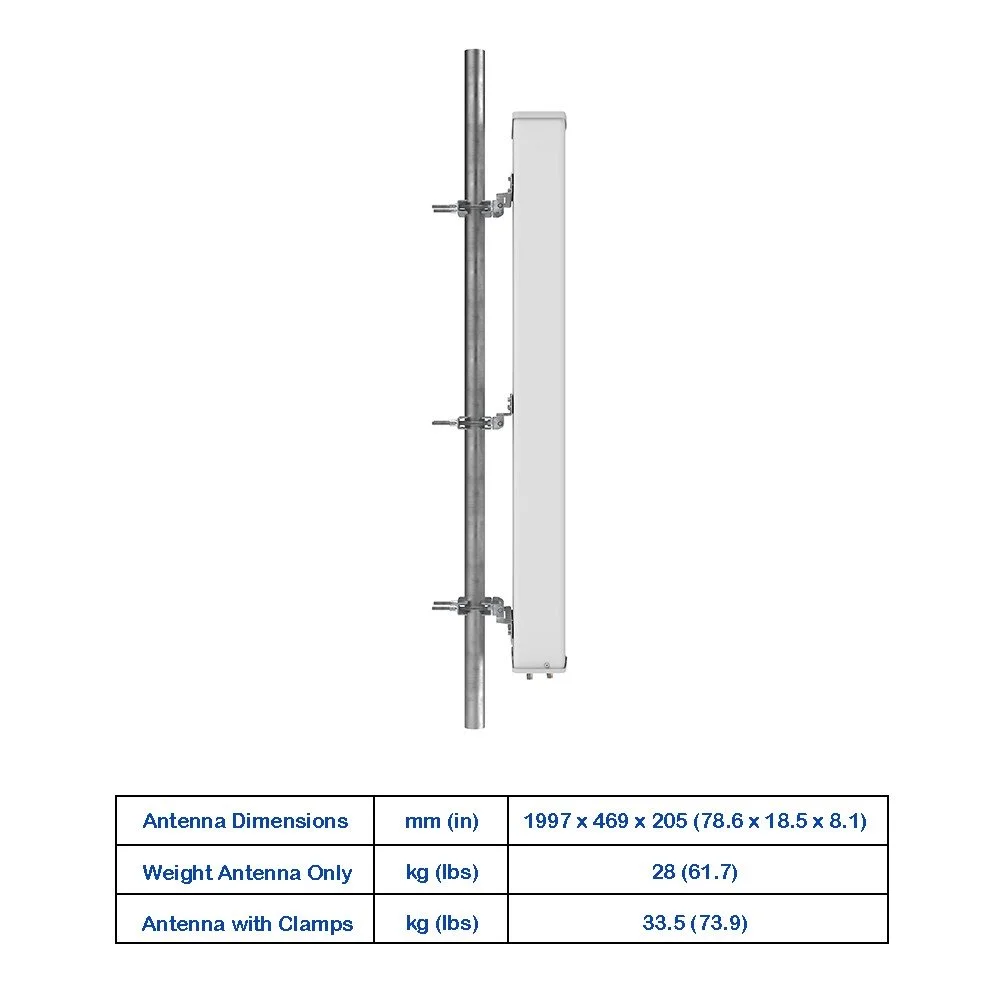

Integrated mounting bracket — quick mast or tower mounting with tilt adjustment.
Lightning and grounding provisions — protects equipment and simplifies site grounding.

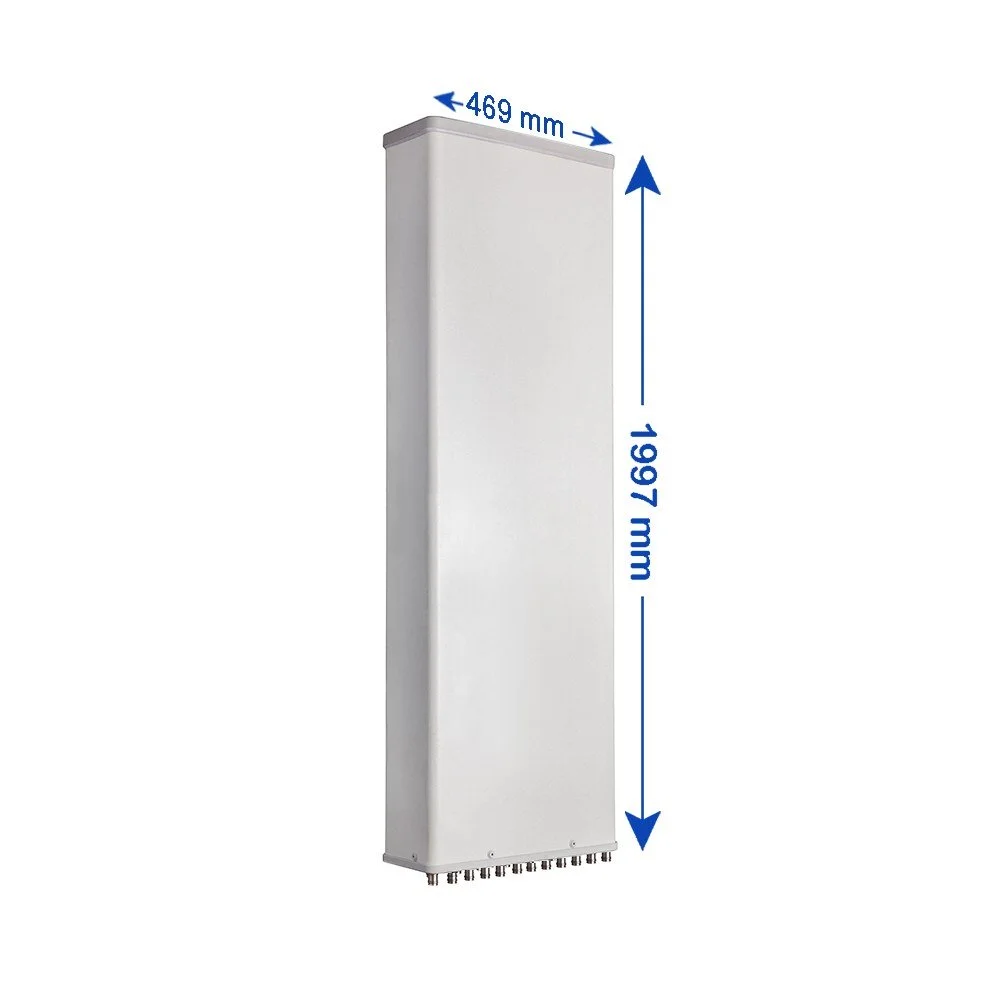

Lightweight, compact form factor — reduces wind load and simplifies logistics.

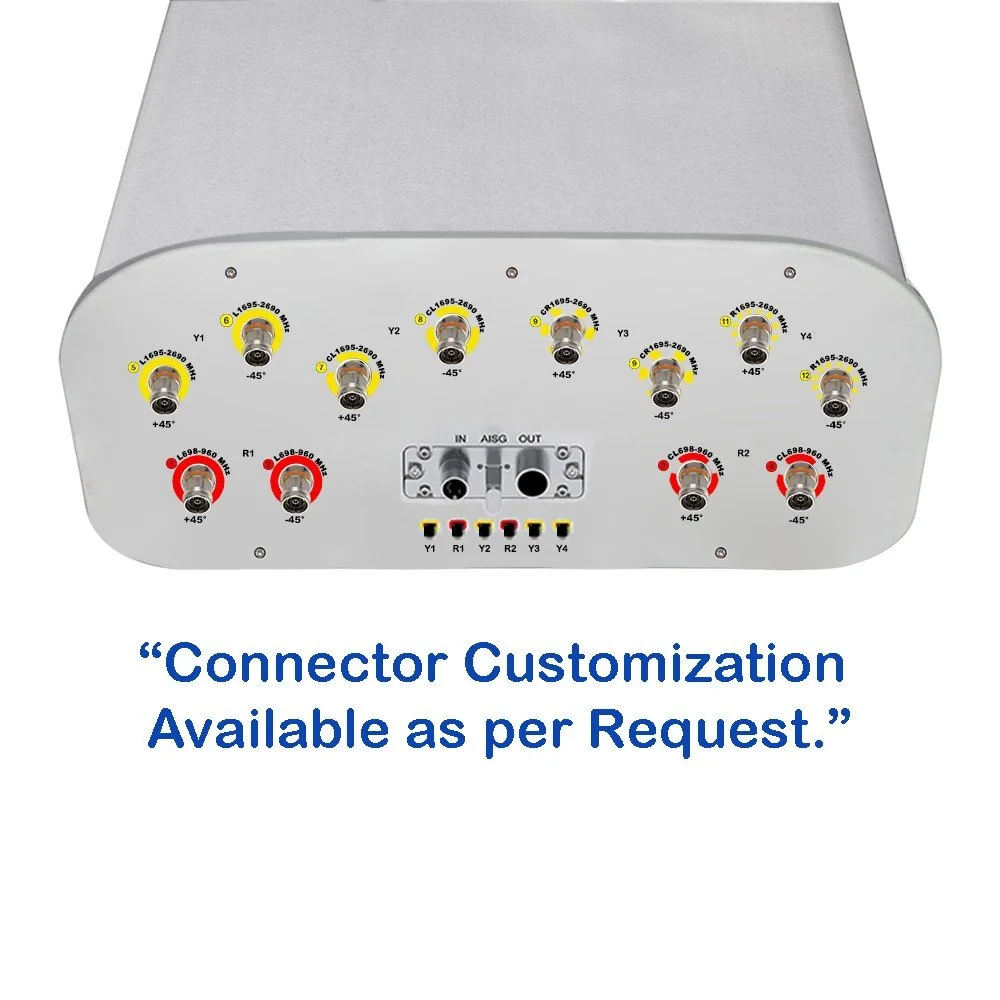

Easy maintenance — accessible RF connectors and serviceable components.
