12-Port Panel Sector Antenna (694–2690 MHz)

A high-performance 12-port panel sector antenna engineered for modern multi-operator and multi-band deployments. Covers 694–2690 MHz to support LTE, 3G, and legacy services across low, mid, and upper cellular bands. Designed for dense urban and suburban sites where spectral capacity, sectorization flexibility, and low visual impact are priorities.

Key Features :

  • Frequency: 694–2690 MHz — single wideband design simplifies inventory and installation while covering major cellular bands.

  • 12 Ports: Supports up to 12 independent antenna feeds for multi-operator or multi-sector configurations (MIMO, multi-operator shared infrastructure).

  • High Port Isolation: Optimized feed network to minimize inter-port coupling and preserve MIMO performance across the band.

  • Sector Coverage: Available in typical horizontal beamwidths for sector deployments (e.g., 65°/90° options) with tight tilt control.

  • Dual/Triple Polarization Support: Configurable polarization options to support cross-polarized MIMO or mixed-polarization scenarios.

  • Low VSWR: Excellent return loss across the full band for improved power transfer and reduced reflected power to radios.

  • Low PIM: Precision manufacturing and RF conditioning minimize passive intermodulation, suitable for high-power multi-operator sites.

  • Robust Mechanical Design: Lightweight composite radome, corrosion-resistant mounting hardware, and sealed RF compartments for IP65+ environmental protection.

  • Wind Load Optimized: Slim profile and reinforced mounting points for reduced wind loading and simplified pole or tower mounting.

  • Easy Integration: Standardized RF connectors, color-coded ports, and clear labeling for fast, error-free installation and commissioning.

  • Future-Ready: Wideband coverage supports refarming and new band introductions without antenna swaps.

12-Port Panel Sector Antenna (694–2690 MHz)

A high-performance 12-port panel sector antenna engineered for modern multi-operator and multi-band deployments. Covers 694–2690 MHz to support LTE, 3G, and legacy services across low, mid, and upper cellular bands. Designed for dense urban and suburban sites where spectral capacity, sectorization flexibility, and low visual impact are priorities.

Key Features :

  • Frequency: 694–2690 MHz — single wideband design simplifies inventory and installation while covering major cellular bands.

  • 12 Ports: Supports up to 12 independent antenna feeds for multi-operator or multi-sector configurations (MIMO, multi-operator shared infrastructure).

  • High Port Isolation: Optimized feed network to minimize inter-port coupling and preserve MIMO performance across the band.

  • Sector Coverage: Available in typical horizontal beamwidths for sector deployments (e.g., 65°/90° options) with tight tilt control.

  • Dual/Triple Polarization Support: Configurable polarization options to support cross-polarized MIMO or mixed-polarization scenarios.

  • Low VSWR: Excellent return loss across the full band for improved power transfer and reduced reflected power to radios.

  • Low PIM: Precision manufacturing and RF conditioning minimize passive intermodulation, suitable for high-power multi-operator sites.

  • Robust Mechanical Design: Lightweight composite radome, corrosion-resistant mounting hardware, and sealed RF compartments for IP65+ environmental protection.

  • Wind Load Optimized: Slim profile and reinforced mounting points for reduced wind loading and simplified pole or tower mounting.

  • Easy Integration: Standardized RF connectors, color-coded ports, and clear labeling for fast, error-free installation and commissioning.

  • Future-Ready: Wideband coverage supports refarming and new band introductions without antenna swaps.

Electrical Specifications

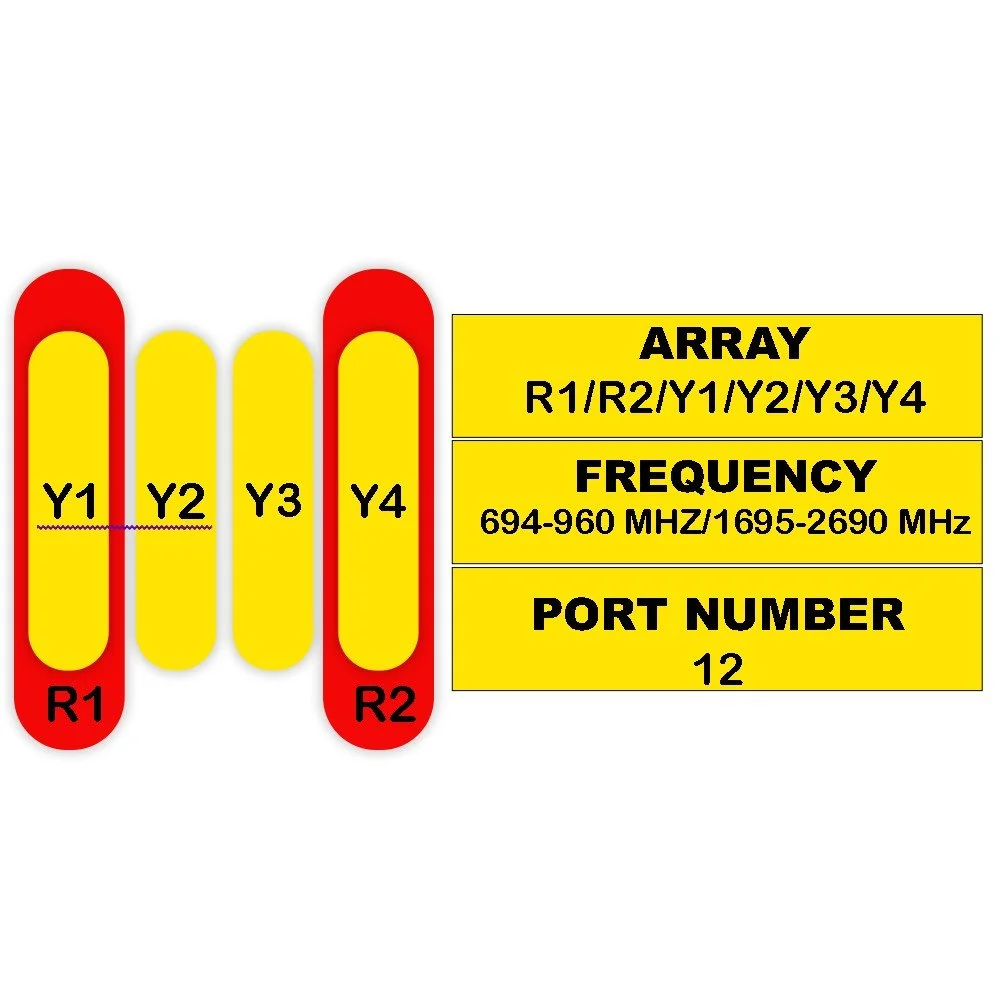

R1 / R2 Y1 / Y2 / Y3 / Y4
Frequency Range MHz 694-960 1695-2690
694-806 790-894 880-960 1695-1880 1850-1990 1920-2170 2300-2400 2490-2690
Polarization --- ±45° ±45°
Gain at Mid Tilt dBi 14.0 14.3 14.6 16.6 17.0 17.3 17.4 17.7
Gain Over All Tilts dBi 13.8 ±0.5 14.1 ±0.5 14.4 ±0.5 16.4 ±0.6 16.8 ±0.5 17.1 ±0.5 17.2 ±0.5 17.5 ±0.5
Horizontal Beamwidth degree 62 ±6.5 60 ±4.5 60 ±6.5 68 ±6.5 65 ±6.1 63 ±6.1 58 ±6.5 58 ±7.5
Vertical Beamwidth degree 14.9 ±1.1 13.3 ±0.9 12.2 ±0.9 6.8 ±0.6 6.4 ±0.5 6.0 ±0.5 5.2 ±0.4 4.8 ±0.6
Electrical Downtilt, Continuously Adjustable degree 2-12 2-12
First Upper Side Lobe Suppression dB >14 >14 >14 >15 >15 >15 >15 >15
Front-To-Back Ratio ±30° dB >24 >25 >25 >25 >25 >25 >25 >25
Cross Polar Discrimination at Boresight dB >17 >17 >17 >16 >16 >16 >17 >17
Isolation Cross-Polar dB >25 >25
Isolation Port-To-Port dB >25 >25
Impedance Ohm 50 50
VSWR --- <1.5 <1.5
Return Loss dB >14 >14
PIM3 (2x43 dBm Carrier) dBc <-150 <-150
Lightning Protection --- DC Ground DC Ground
Maximum Average Input Power per Port (50°C) Watts 250 200
Mechanical Specifications

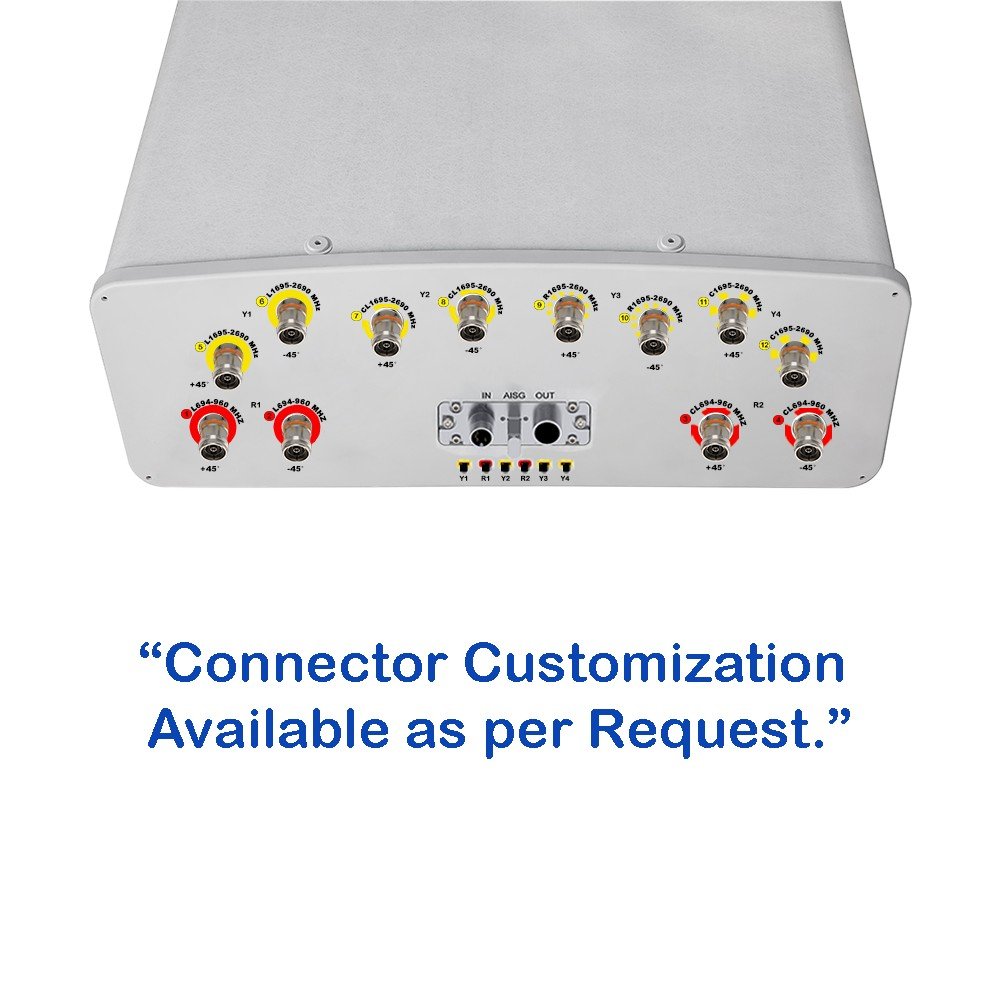

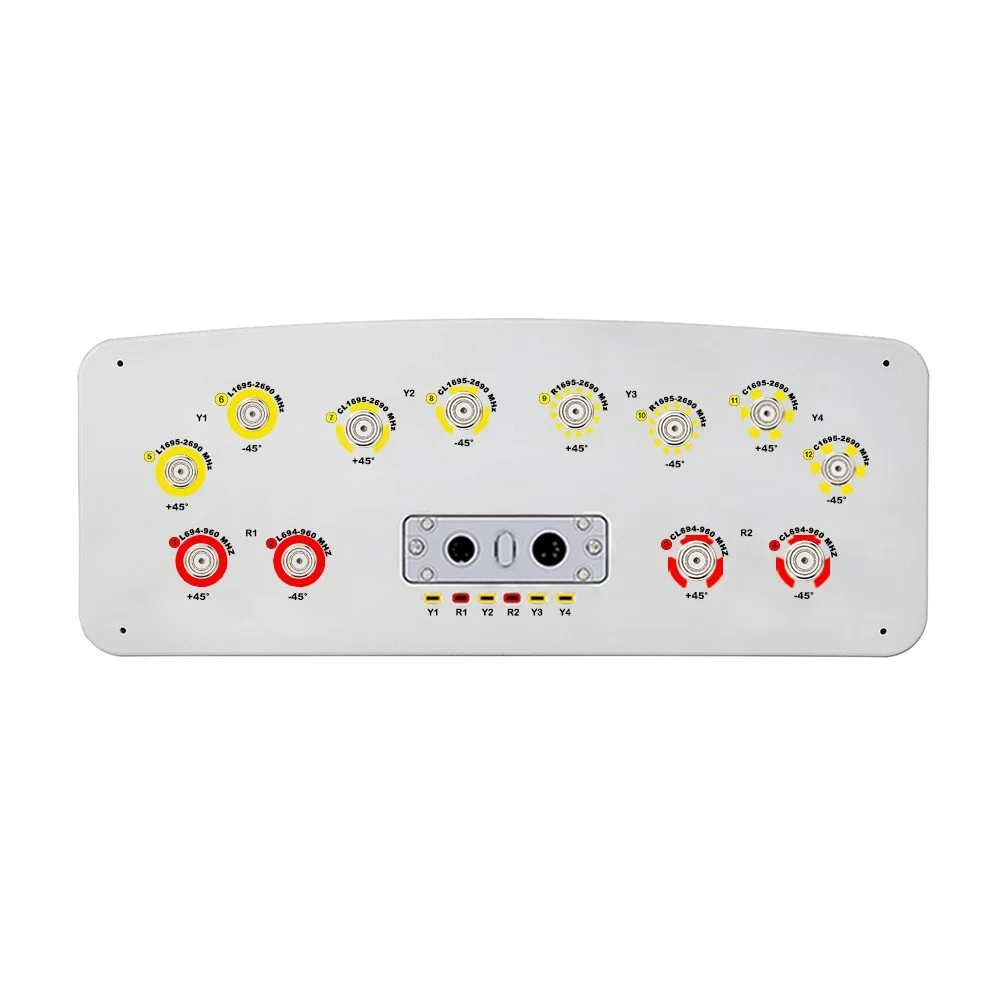

Connector Type --- (12x) 4.3/10 Female
Connector Position --- Bottom
Electrical Tilt Control --- Integrated RET
Radome Material --- Fiberglass

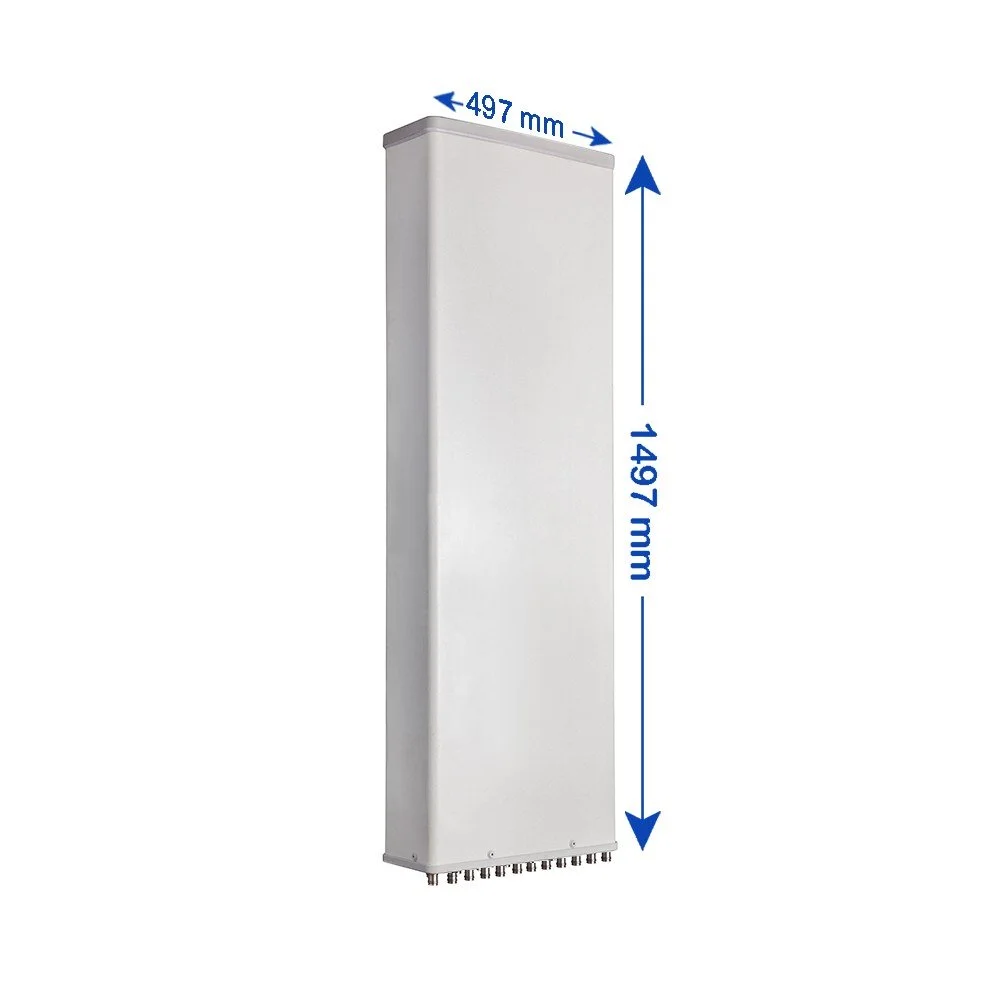

Antenna Dimensions (H × W × D) mm (in) 1497 × 497 × 197 (58.9 × 19.6 × 7.8)
Antenna Weight – Antenna Only kg (lbs) 26.5 (58.4)
Antenna Weight – With Clamps kg (lbs) 32 (70.5)
Maximum Wind Speed km/h (mph) 200 (124.3)
Wind Load – Frontal (at 150 km/h) N (lbf) 690 (155.1)
Wind Load – Rear (at 150 km/h) N (lbf) 770 (173.1)
Wind Load – Lateral (at 150 km/h) N (lbf) 335 (75.3)
Operating Temperature °F (°C) -40 to +60 (-40 to +140)
