12-Port, Panel Sector Antenna ( 690 - 2690 MHz )

₹0.00

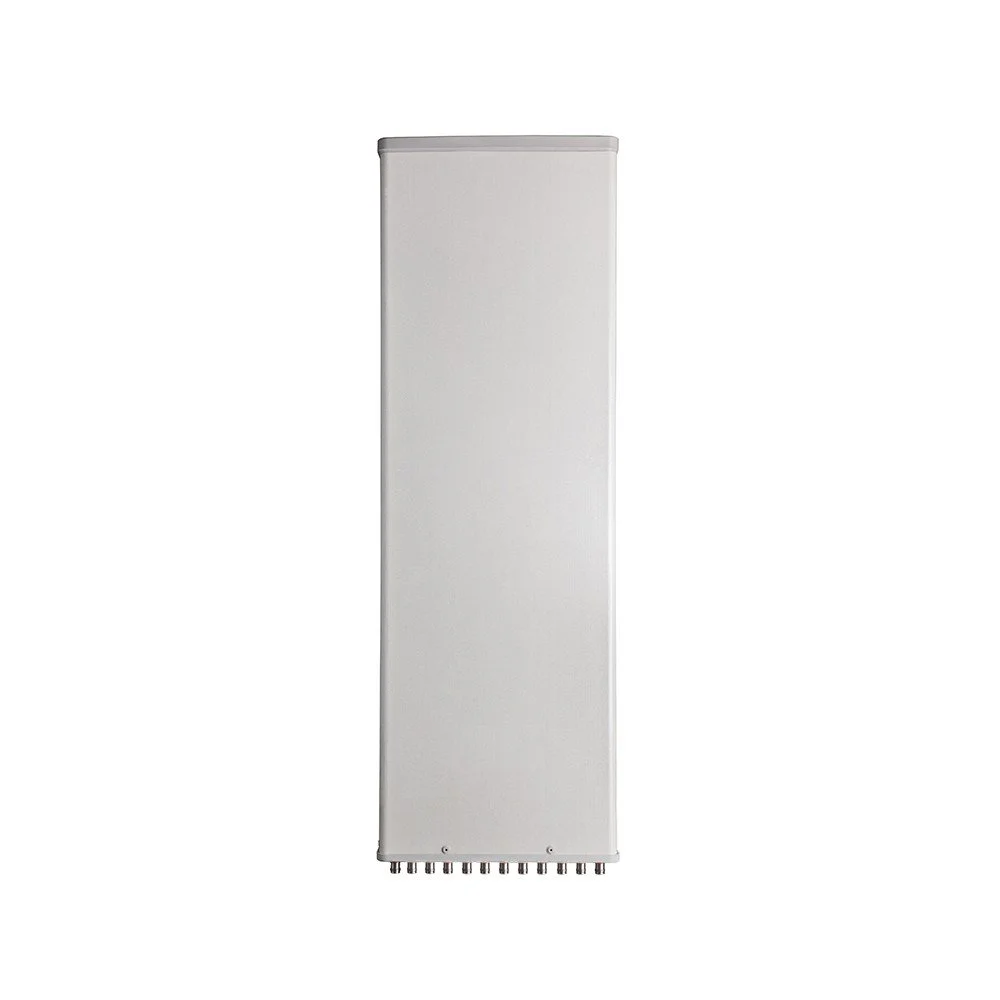

12-Port Panel Sector Antenna (690–2690 MHz)

This high-performance 12-port panel sector antenna covers 690–2690 MHz, delivering comprehensive multi-band support for modern cellular networks and shared-spectrum deployments. Engineered for dense urban sites and macro cell sectors, the antenna provides consistent sector coverage, high isolation between ports, and mechanical flexibility for seamless integration with existing towers and small-cell platforms.

Key Features :

  • Frequency range: 690–2690 MHz for LTE, 3G, and shared spectrum bands

  • 12 ports for multi-operator and multi-band configurations

  • Sector beamwidth options: 65° (typical) for optimized coverage vs. capacity tradeoffs

  • High gain across bands to extend cell edge performance

  • Low passive intermodulation (PIM) to support high-power transmit scenarios

  • Port isolation optimized to minimize cross-talk and enable co-location

  • Robust mechanical design: lightweight radome, corrosion-resistant mounting hardware

  • Wide environmental rating: meets or exceeds IP65 and IEC wind/ice load standards

  • Lightning protection and DC grounding provisions

  • Factory configurable port mapping and tilt options for on-site flexibility

12-Port Panel Sector Antenna (690–2690 MHz)

This high-performance 12-port panel sector antenna covers 690–2690 MHz, delivering comprehensive multi-band support for modern cellular networks and shared-spectrum deployments. Engineered for dense urban sites and macro cell sectors, the antenna provides consistent sector coverage, high isolation between ports, and mechanical flexibility for seamless integration with existing towers and small-cell platforms.

Key Features :

  • Frequency range: 690–2690 MHz for LTE, 3G, and shared spectrum bands

  • 12 ports for multi-operator and multi-band configurations

  • Sector beamwidth options: 65° (typical) for optimized coverage vs. capacity tradeoffs

  • High gain across bands to extend cell edge performance

  • Low passive intermodulation (PIM) to support high-power transmit scenarios

  • Port isolation optimized to minimize cross-talk and enable co-location

  • Robust mechanical design: lightweight radome, corrosion-resistant mounting hardware

  • Wide environmental rating: meets or exceeds IP65 and IEC wind/ice load standards

  • Lightning protection and DC grounding provisions

  • Factory configurable port mapping and tilt options for on-site flexibility

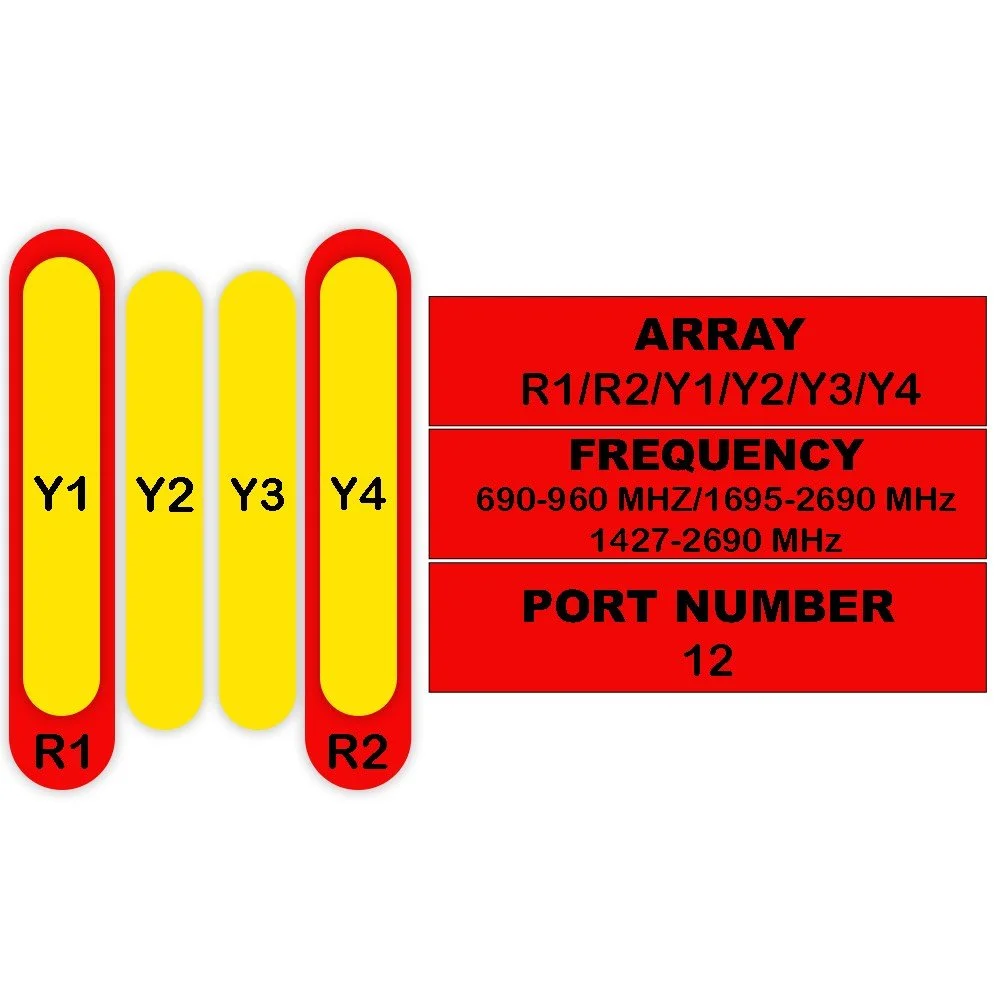

Electrical Specifications for R1/R2, Y1/Y4 and Y2/Y3 Bands
Parameter Unit R1 / R2 (690–960 MHz) Y1 / Y4 (1695–2690 MHz) Y2 / Y3 (1427–2690 MHz)
690–806 790–894 880–960 1695–1880 1850–1990 1920–2170 2300–2400 2490–2690 1427–1518 1695–1920 1920–2170 2300–2400 2500–2690
Frequency Range MHz 690–960 1695–2690 1427–2690
Polarization — ±45° ±45° ±45°
Gain (at Mid Tilt) dBi 1414.314.6 16.616.917.217.417.4 161717.417.817.8
Gain (Over All Tilts) dBi 13.8 ± 0.614.2 ± 0.614.4 ± 0.6 16.4 ± 0.616.7 ± 0.517.0 ± 0.517.2 ± 0.517.2 ± 0.5 15.8 ± 0.616.8 ± 0.517.2 ± 0.517.6 ± 0.517.6 ± 0.5
Horizontal Beamwidth degree 68 ± 5.466 ± 5.663 ± 4.6 70 ± 6.568 ± 6.166 ± 6.164 ± 5.564 ± 6.5 73 ± 6.569 ± 6.566 ± 6.563 ± 5.561 ± 6.2
Vertical Beamwidth degree 15.6 ± 0.913.4 ± 0.612.3 ± 0.7 6.8 ± 0.66.4 ± 0.56.0 ± 0.55.4 ± 0.44.8 ± 0.6 7.8 ± 0.66.2 ± 0.85.4 ± 0.64.8 ± 0.54.4 ± 0.6
Electrical Downtilt (Continuously Adjustable) degree 2–12 2–12 2–12
Tilt Accuracy degree < 1
Upper Side Lobe (First Upper Lobe) dB > 15
Upper Side Lobe Suppression (Peak to 20°) dB > 14
Front-To-Back Ratio ±30° dB > 22> 23> 24 > 23> 23> 24> 25> 25 > 24> 25> 25> 26> 26
Impedance Ohm 50 50 50
VSWR — < 1.5 < 1.5 < 1.5
Return Loss dB > 14 > 14 > 14
PIM3 (2x43 dBm Carrier) dBc < -150 < -150 < -150
Lightning Protection — DC Ground DC Ground DC Ground
Maximum Average Input Power per Port (at 50°C) Watts 250 200 200
Mechanical Specifications
Parameter Unit Specification

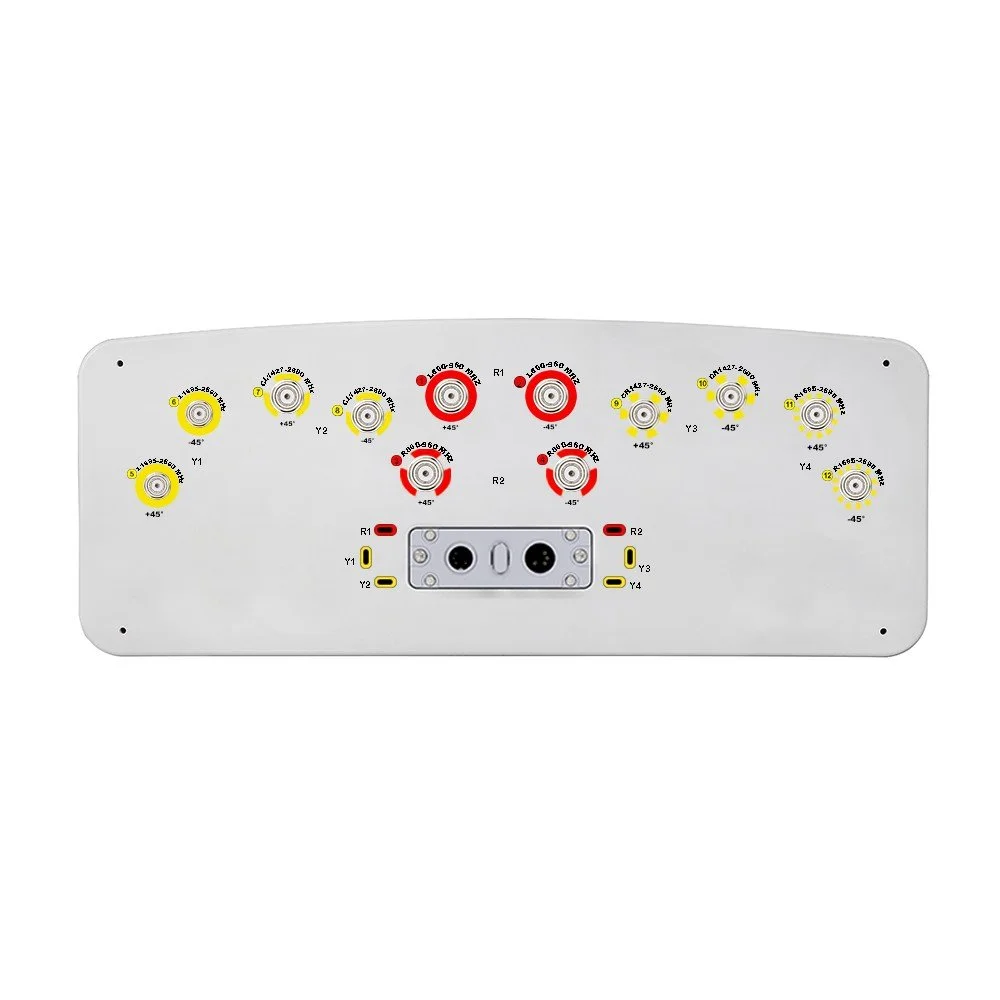

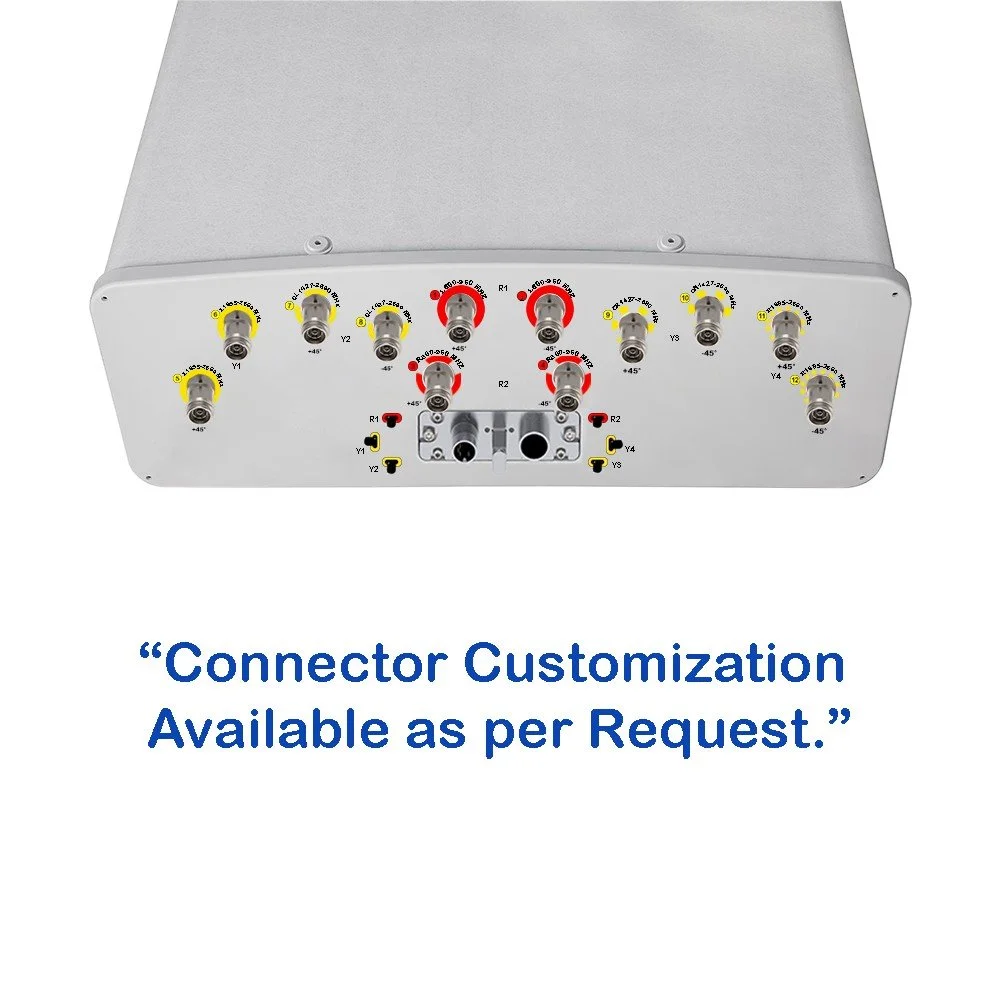

Connector Type — (12x) 4.3/10 Female
Connector Position — Bottom
Electrical Tilt Control — Integrated RET
Radome Material — Fiberglass

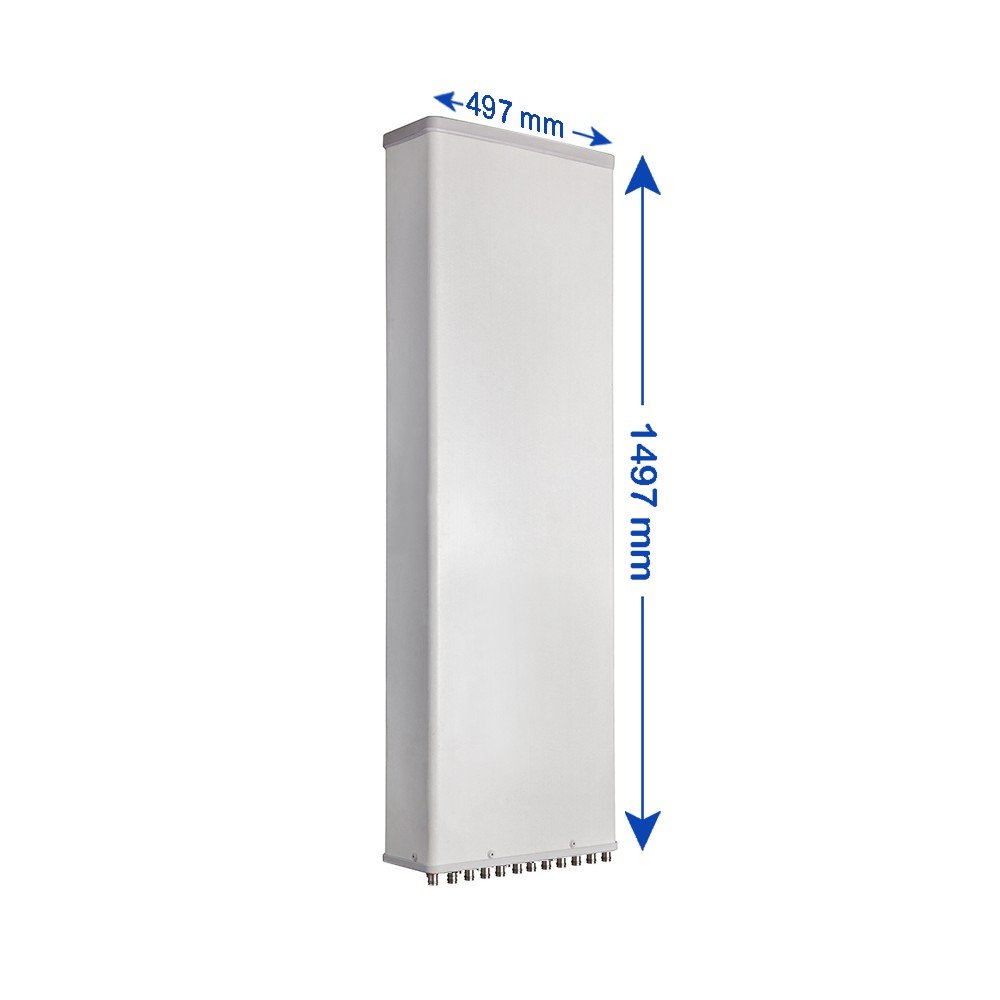

Antenna Dimensions (H × W × D) mm (in) 1497 × 497 × 197 (58.9 × 19.6 × 7.8)
Antenna Weight kg (lbs) 29 (63.9) — Antenna Only
kg (lbs) 34.5 (76.1) — With Clamps
Maximum Wind Speed km/h (mph) 200 (124.3)
Wind Load at 150 km/h
Frontal N (lbf) 690 (155.1)
Rear N (lbf) 770 (173.1)
Lateral N (lbf) 335 (75.3)
Operating Temperature °C (°F) -40 to +60 (-40 to +140)
