12-Port, Panel Sector Antenna ( 690 -2690 MHz )

₹0.00

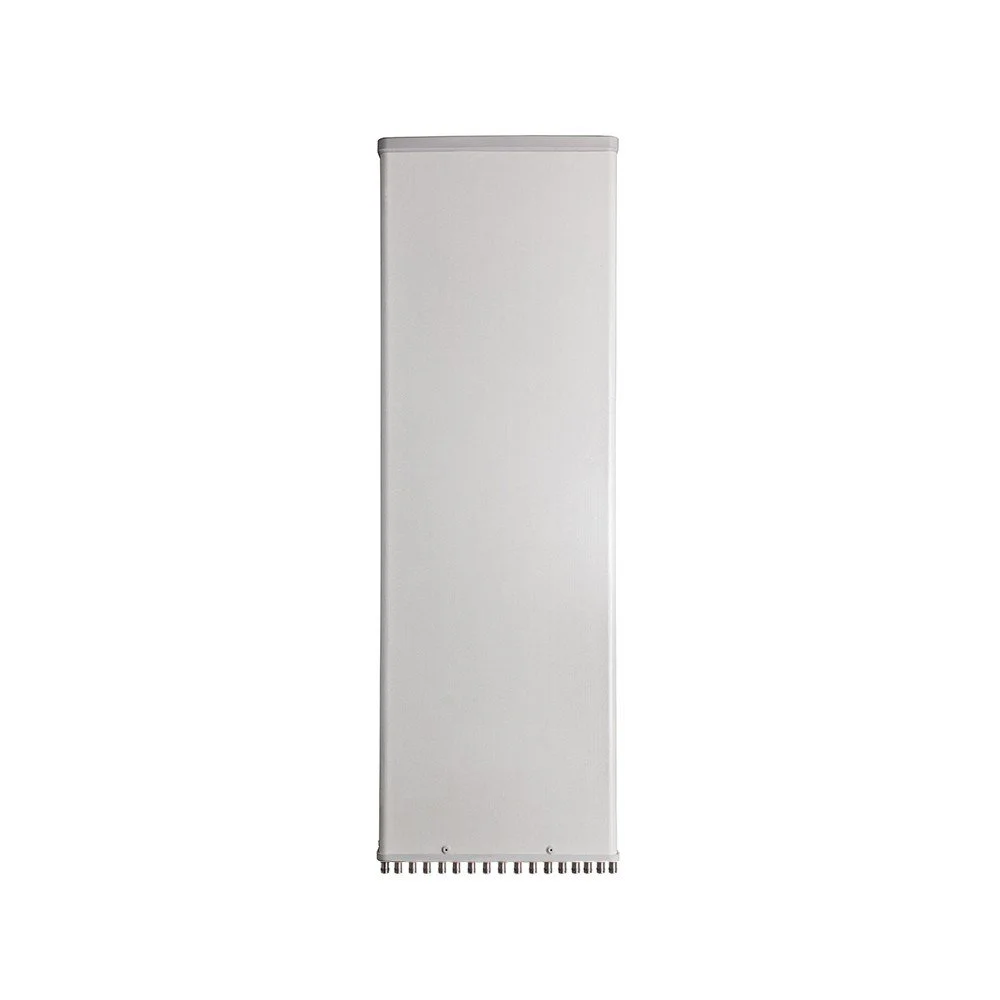

12-Port Panel Sector Antenna (690–2690 MHz)

High-capacity multi-carrier deployments, this 12-port panel sector antenna covers 690–2690 MHz, supporting extensive LTE/5G NR sub-6 GHz bands and broadband public safety or private network applications. Its multi-port configuration enables flexible MIMO and carrier aggregation strategies, improved throughput, and robust interference management in dense urban and enterprise environments.

Key Features :

  • Frequency range: 690–2690 MHz (full sub-6 GHz coverage for LTE and early 5G NR bands)

  • 12 ports to support multiple MIMO layers, separate Rx/Tx groups, and/or diversity and cross-polarization schemes

  • Sector beamwidth options optimized for cellular coverage (typical horizontal beamwidth: 60°; vertical tilt configurable)

  • High gain across band: tailored gain profile to maximize cell edge performance while controlling interference

  • Low VSWR and high port isolation for efficient power transfer and minimal inter-port coupling

  • Supports multi-operator and multi-technology co-location on a single antenna platform

  • Durable radome and structural design for outdoor rooftop, tower, and small cell macro sites

  • Corrosion-resistant mount hardware with adjustable tilt for precise sector aiming

  • Integrated lightning protection and grounding provisions

  • Compact, low-windload form factor for simplified site planning and reduced tower loading

12-Port Panel Sector Antenna (690–2690 MHz)

High-capacity multi-carrier deployments, this 12-port panel sector antenna covers 690–2690 MHz, supporting extensive LTE/5G NR sub-6 GHz bands and broadband public safety or private network applications. Its multi-port configuration enables flexible MIMO and carrier aggregation strategies, improved throughput, and robust interference management in dense urban and enterprise environments.

Key Features :

  • Frequency range: 690–2690 MHz (full sub-6 GHz coverage for LTE and early 5G NR bands)

  • 12 ports to support multiple MIMO layers, separate Rx/Tx groups, and/or diversity and cross-polarization schemes

  • Sector beamwidth options optimized for cellular coverage (typical horizontal beamwidth: 60°; vertical tilt configurable)

  • High gain across band: tailored gain profile to maximize cell edge performance while controlling interference

  • Low VSWR and high port isolation for efficient power transfer and minimal inter-port coupling

  • Supports multi-operator and multi-technology co-location on a single antenna platform

  • Durable radome and structural design for outdoor rooftop, tower, and small cell macro sites

  • Corrosion-resistant mount hardware with adjustable tilt for precise sector aiming

  • Integrated lightning protection and grounding provisions

  • Compact, low-windload form factor for simplified site planning and reduced tower loading

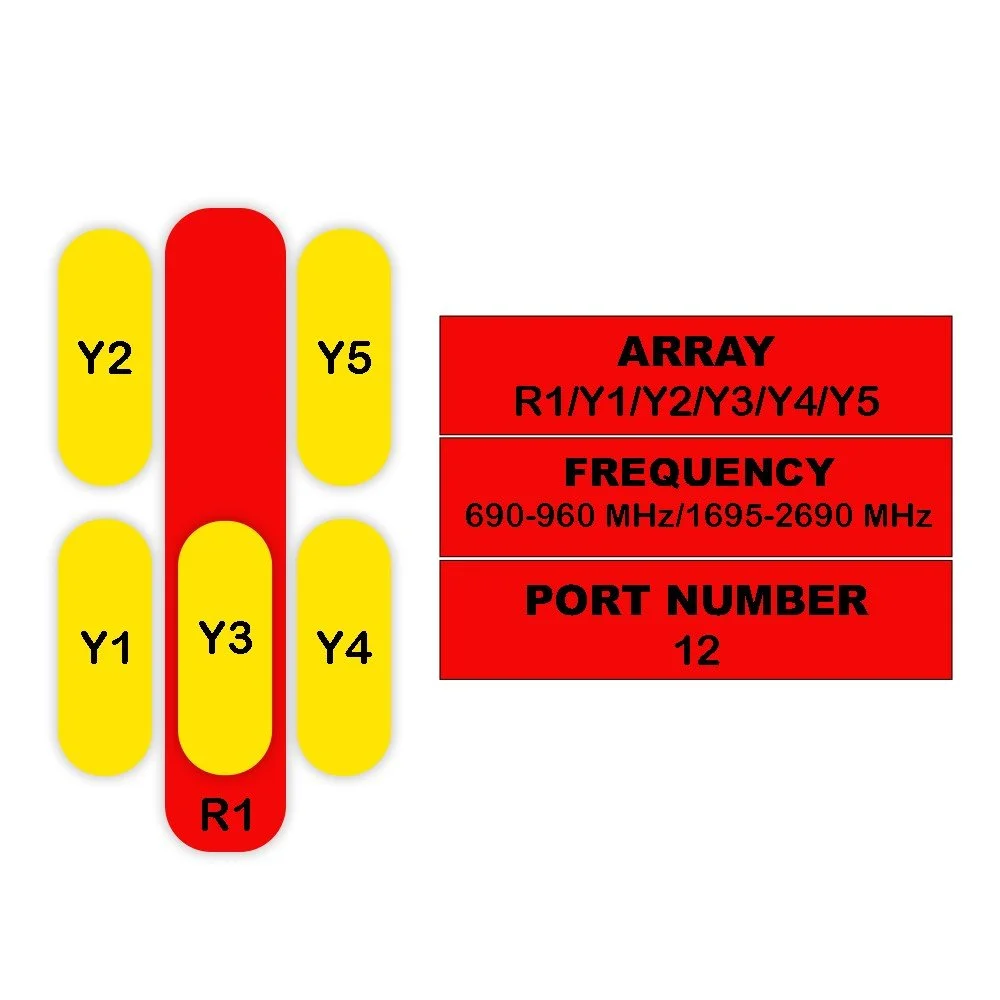

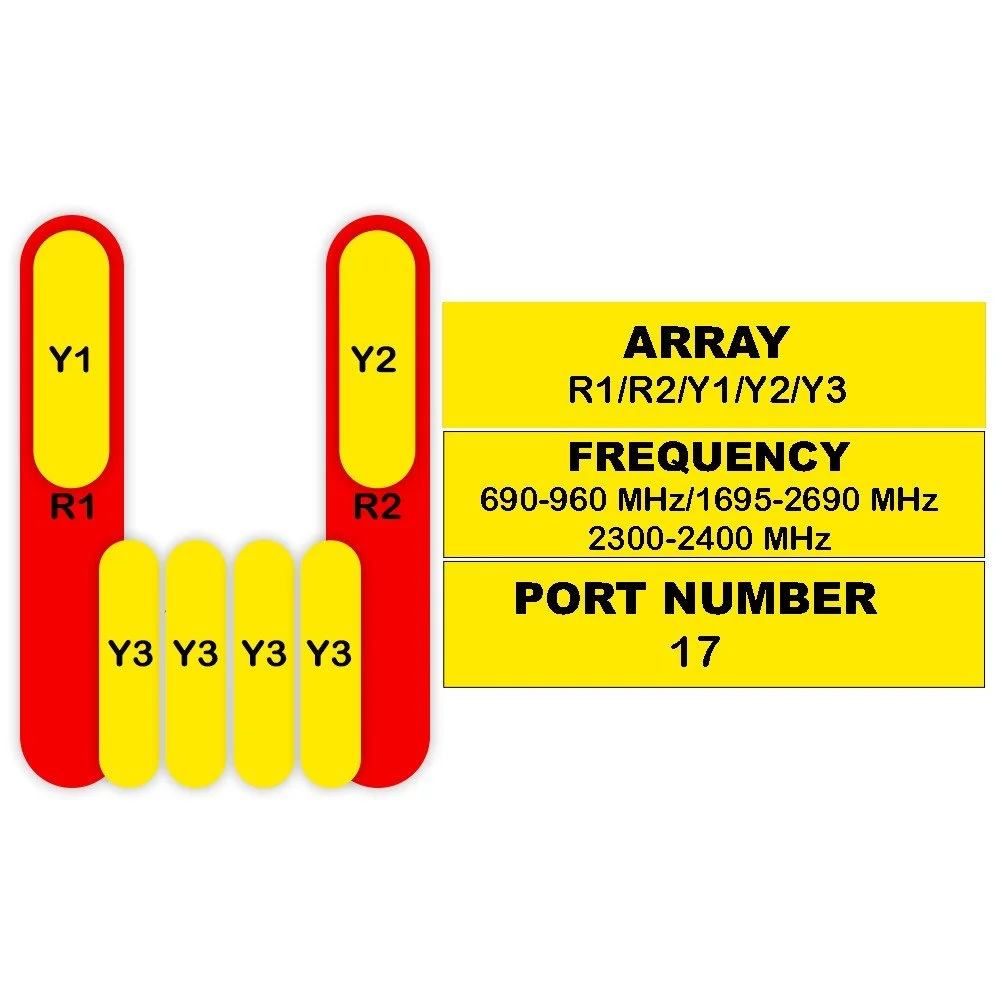

R1 / Y1 / Y4 Electrical Specifications
Parameter 690–806 790–894 880–960 1695–1880 1850–1990 1920–2170 2300–2400 2490–2690
Electrical Specifications
Polarization ±45° ±45°
Gain at Mid Tilt (dBi) 16 16.4 16.8 16.7 17.1 17.4 17.6 17.6
Gain Over All Tilts (dBi) 15.8 ± 0.5 16.2 ± 0.5 16.6 ± 0.6 16.5 ± 0.6 16.9 ± 0.5 17.2 ± 0.5 17.4 ± 0.5 17.4 ± 0.5
Horizontal Beamwidth (°) 67 ± 4.5 65 ± 3.5 63 ± 4.6 68 ± 6.5 66 ± 6.5 64 ± 6.5 62 ± 5.5 62 ± 6.0
Vertical Beamwidth (°) 8.8 ± 0.9 7.8 ± 0.7 7.2 ± 0.7 6.8 ± 0.4 6.4 ± 0.5 6.0 ± 0.5 5.2 ± 0.5 4.8 ± 0.6
Electrical Downtilt (°) 2–12 2–12
Tilt Accuracy (°) < 1< 1< 1 < 1< 1< 1 < 1< 1
Upper Side Lobe Suppression (dB) > 16
Front-to-Back Ratio ±30° (dB) > 24> 25> 25 > 24> 24> 25 > 25> 25
Cross Polar at Boresight (dB) > 17> 17> 17 > 16> 16> 16 > 16> 16
Discrimination Over Sector (dB) > 8.0> 8.5> 7.0 > 8.0> 8.0> 8.0 > 6.0> 4.5
Isolation Cross-Polar (dB) > 28 > 28
Isolation Port-to-Port (dB) > 28 > 28
Impedance (Ohm) 50 50
VSWR < 1.5 < 1.5
Return Loss (dB) > 14 > 14
PIM3 (2x43 dBm Carrier) < -150 dBc < -150 dBc
Lightning Protection DC Ground DC Ground
Max Avg Input Power per Port @ 50°C (W) 250 250
Y3 and Y2/Y5 Electrical Specifications
Parameter Y3
1695–1880
Y3
1850–1990
Y3
1920–2170
Y3
2300–2400
Y3
2490–2690
Y2/Y5
1695–1880
Y2/Y5
1850–1990
Y2/Y5
1920–2170
Y2/Y5
2300–2400
Y2/Y5
2490–2690
Electrical Specifications
Polarization ±45° ±45°
Gain at Mid Tilt (dBi) 16.917.217.517.817.8 16.316.617.017.217.2
Gain Over All Tilts (dBi) 16.7 ± 0.617.0 ± 0.617.3 ± 0.617.6 ± 0.517.6 ± 0.5 16.1 ± 0.616.4 ± 0.516.8 ± 0.517.0 ± 0.617.0 ± 0.6
Horizontal Beamwidth (°) 69 ± 6.566 ± 6.562 ± 6.558 ± 6.058 ± 6.5 68 ± 6.566 ± 6.564 ± 6.562 ± 5.562 ± 6.0
Vertical Beamwidth (°) 5.8 ± 0.75.4 ± 0.64.9 ± 0.64.4 ± 0.54.0 ± 0.6 6.8 ± 0.46.4 ± 0.56.0 ± 0.55.2 ± 0.54.8 ± 0.6
Electrical Downtilt (°) 2–12 2–12
Tilt Accuracy (°) < 1
Upper Side Lobe – First Upper Lobe (dB) > 16
Upper Side Lobe – Peak to 20° (dB) > 15
Front-to-Back Ratio ±30° (dB) > 24> 24> 25> 26> 26 > 24> 24> 25> 25> 25
Cross Polar – At Boresight (dB) > 15> 16> 16> 18> 18 > 16> 16> 16> 16> 16
Discrimination – Over Sector (dB) > 6.0> 7.0> 6.0> 5.0> 3.0 > 8.0> 8.0> 8.0> 6.0> 4.5
Isolation – Cross-Polar (dB) > 28 > 28
Isolation – Port-to-Port (dB) > 28 > 28
Impedance (Ohm) 50 50
VSWR < 1.5 < 1.5
Return Loss (dB) > 14 > 14
PIM3 (2x43 dBm Carrier) < -150 dBc < -150 dBc
Lightning Protection DC Ground DC Ground
Max Avg Input Power per Port @ 50°C (W) 200 250
Antenna Mechanical and Environmental Specifications
Parameter Category Unit Specification

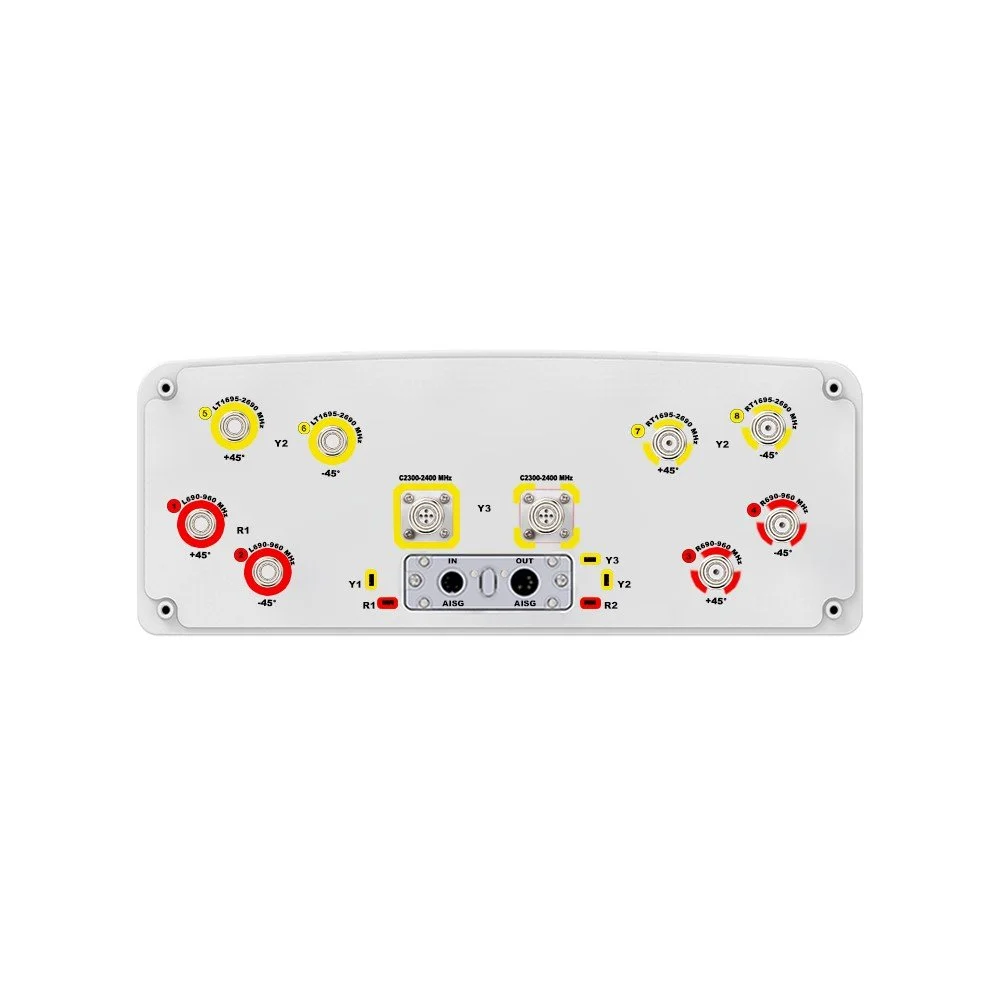

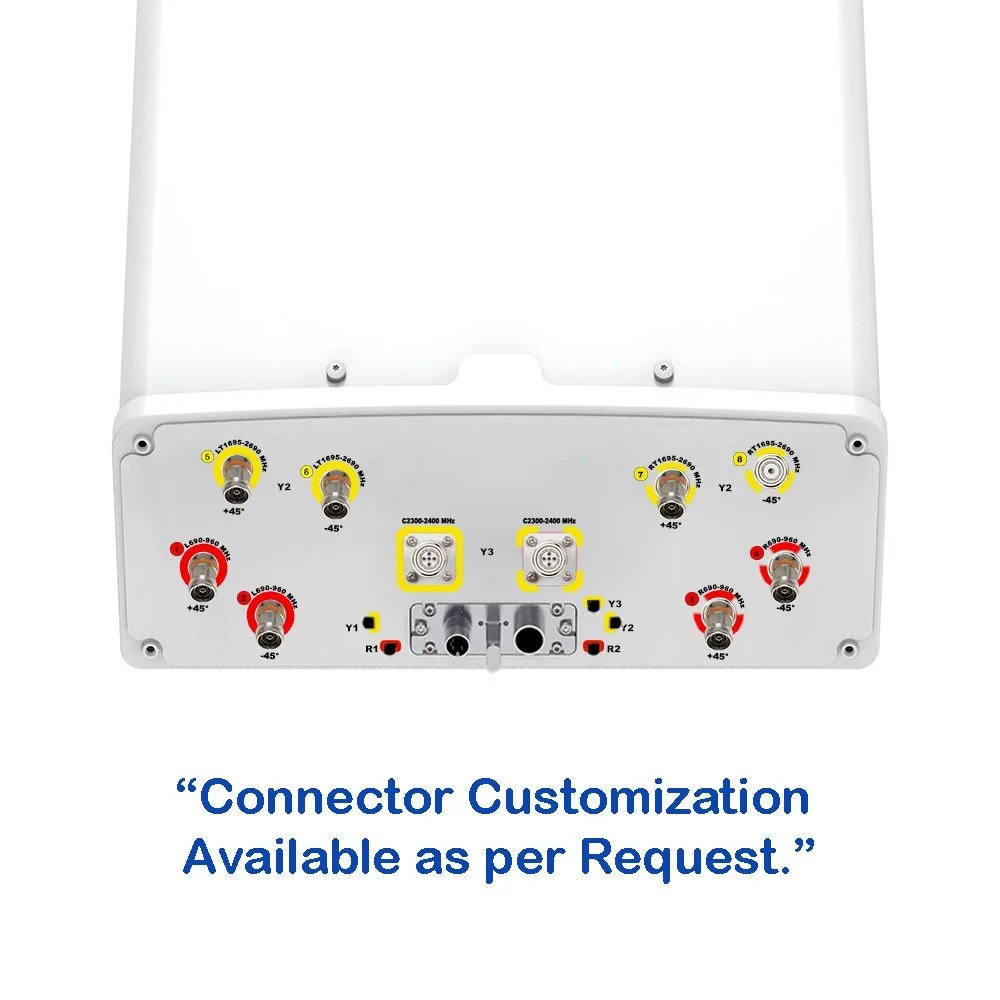

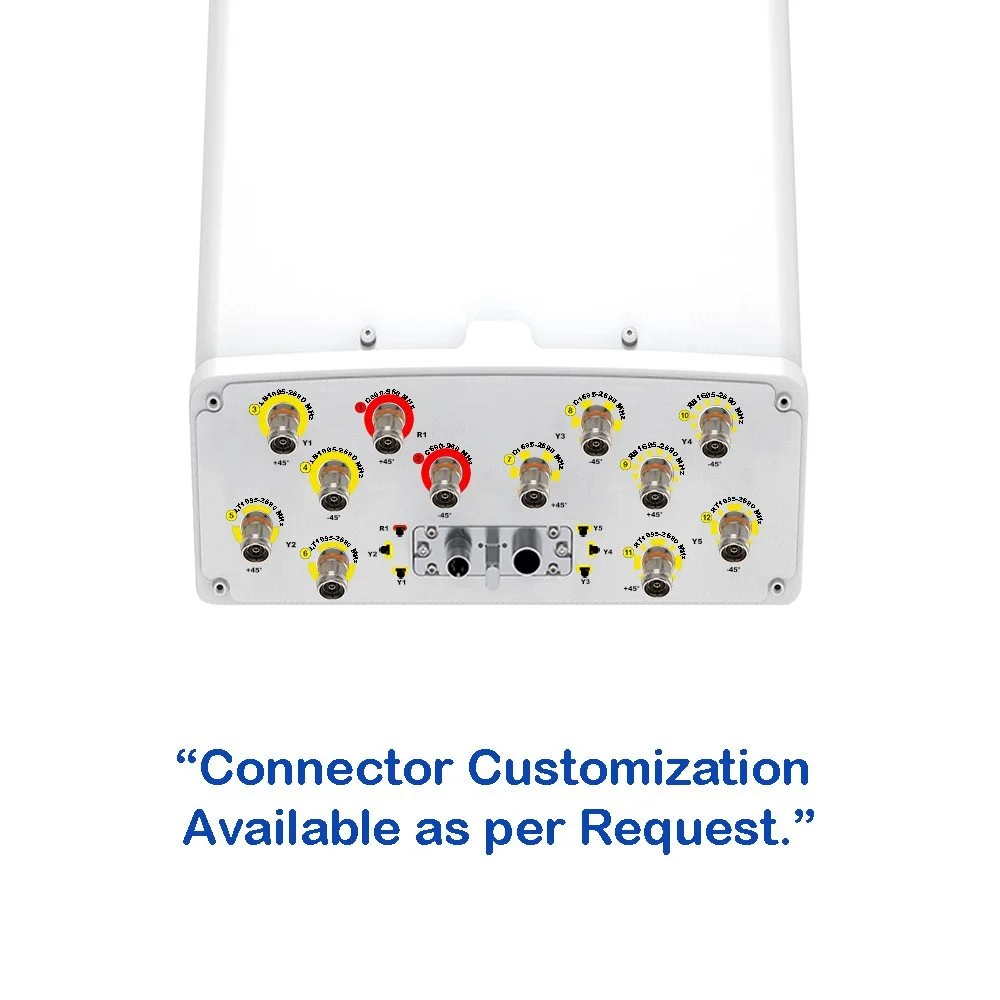

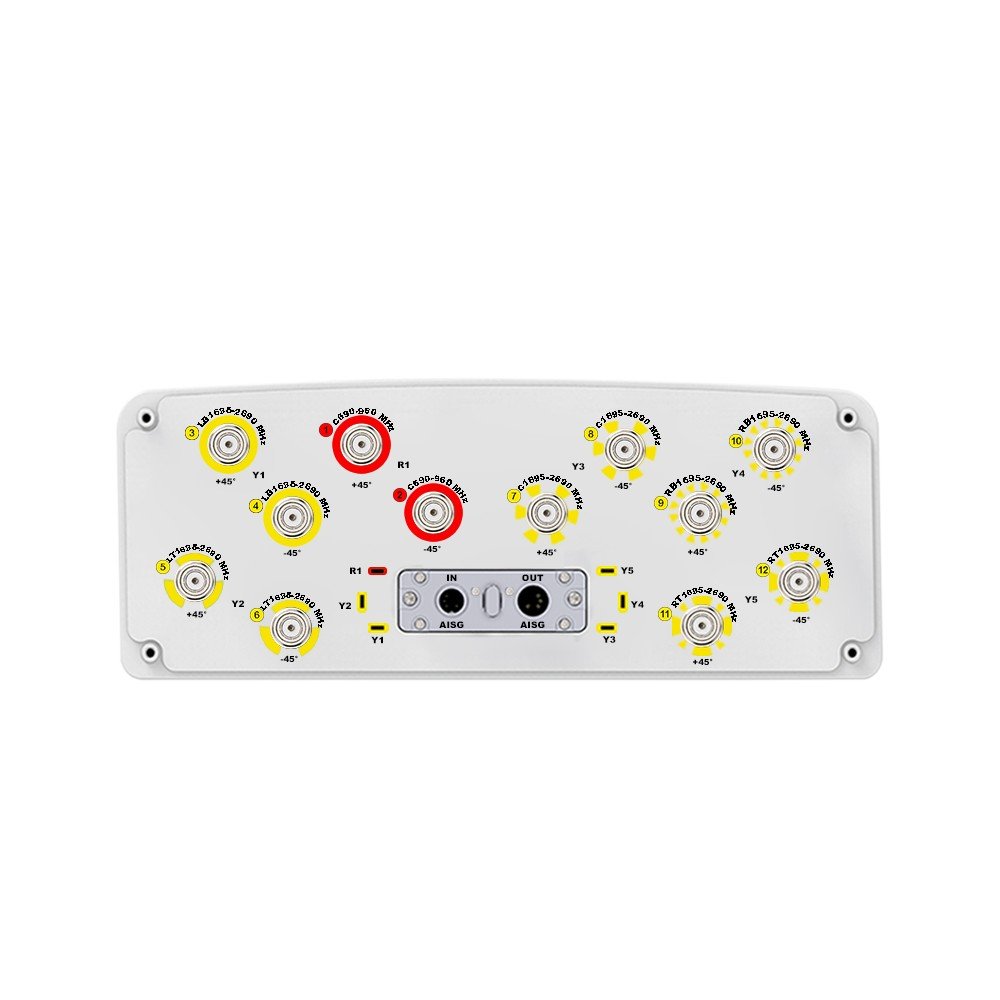

Connector Type (12x) 4.3/10 Female
Connector Position Bottom
Electrical Tilt Control Integrated RET
Radome Material Fiberglass

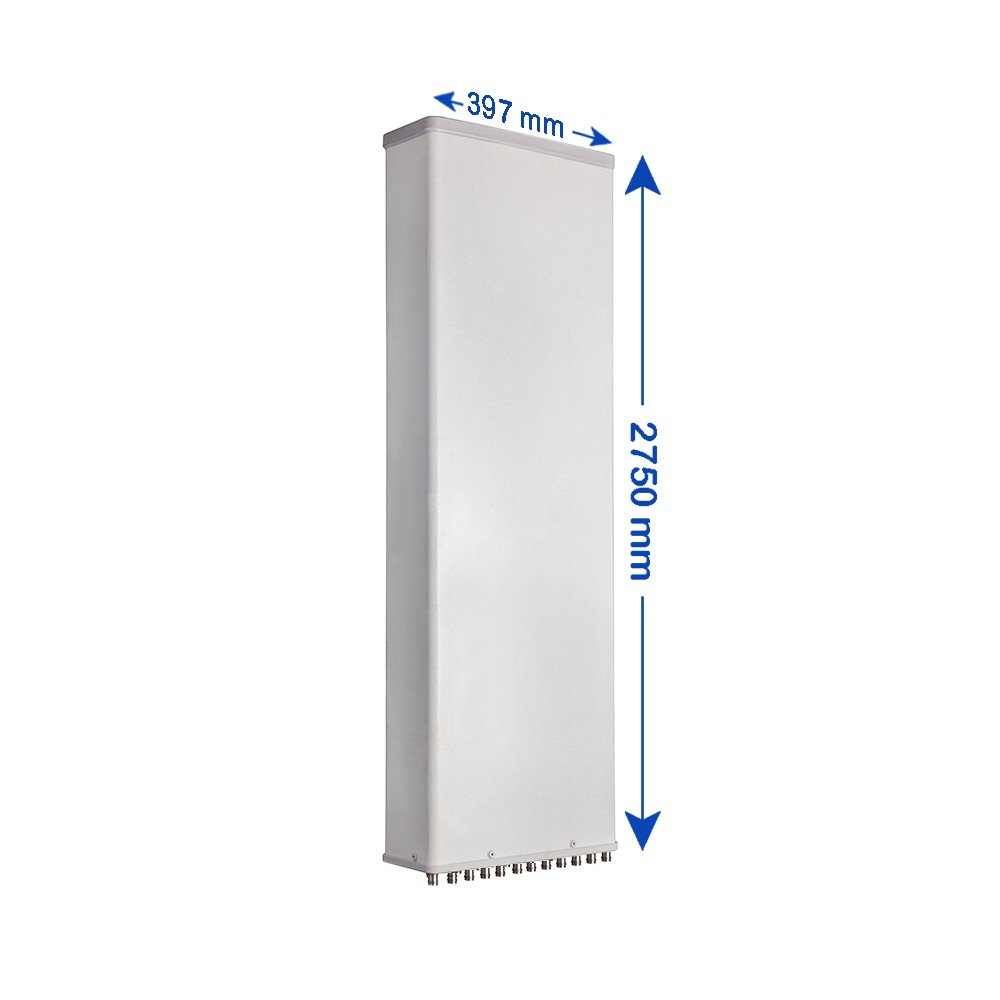

Antenna Dimensions (H × W × D) mm (in) 2750 × 397 × 157 (108.3 × 15.6 × 6.2)
Antenna Weight Antenna Only kg (lbs) 42.5 (93.7)
Antenna Weight With Clamps kg (lbs) 50 (110.2)
Maximum Wind Speed km/h (mph) 200 (124.3)
Wind Load at 150 km/h Frontal N (lbf) 1010 (227.1)
Wind Load at 150 km/h Rear N (lbf) 1125 (252.9)
Wind Load at 150 km/h Lateral N (lbf) 530 (119.1)
Operating Temperature °C (°F) -40 to +60 (-40 to +140)
