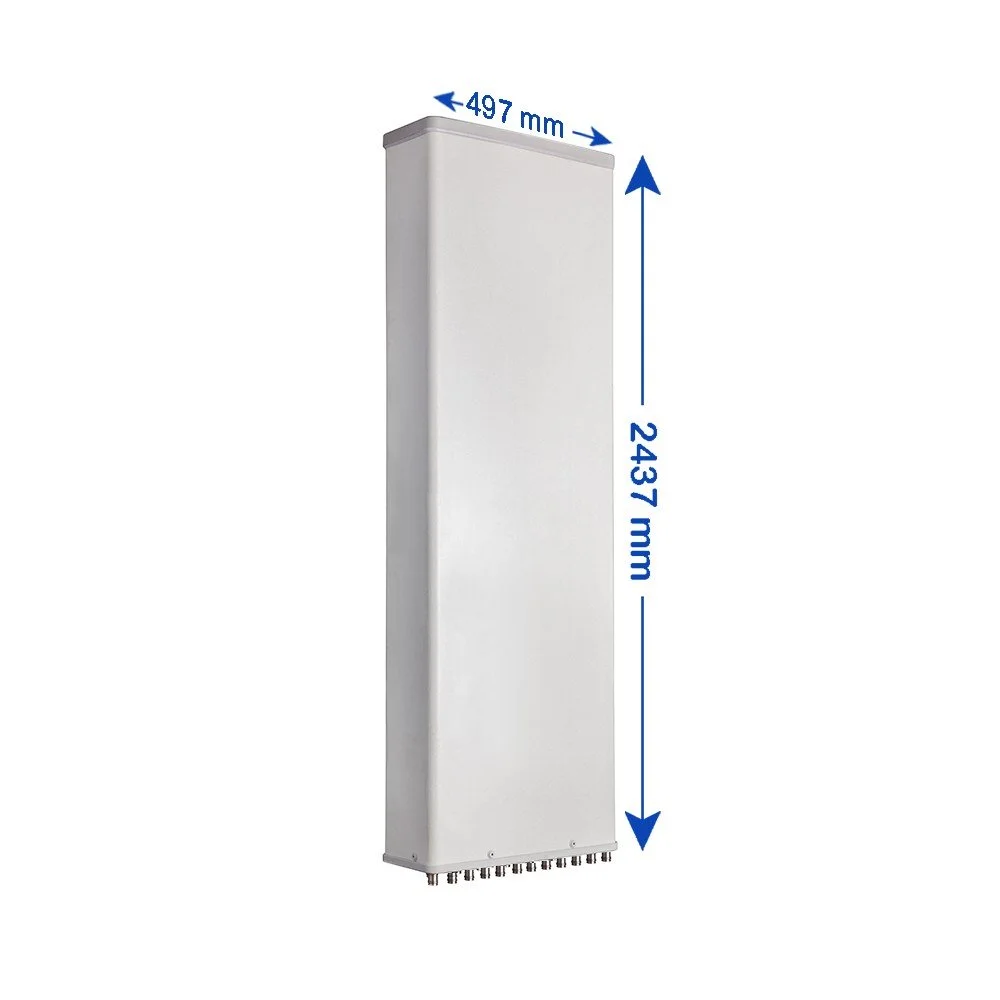

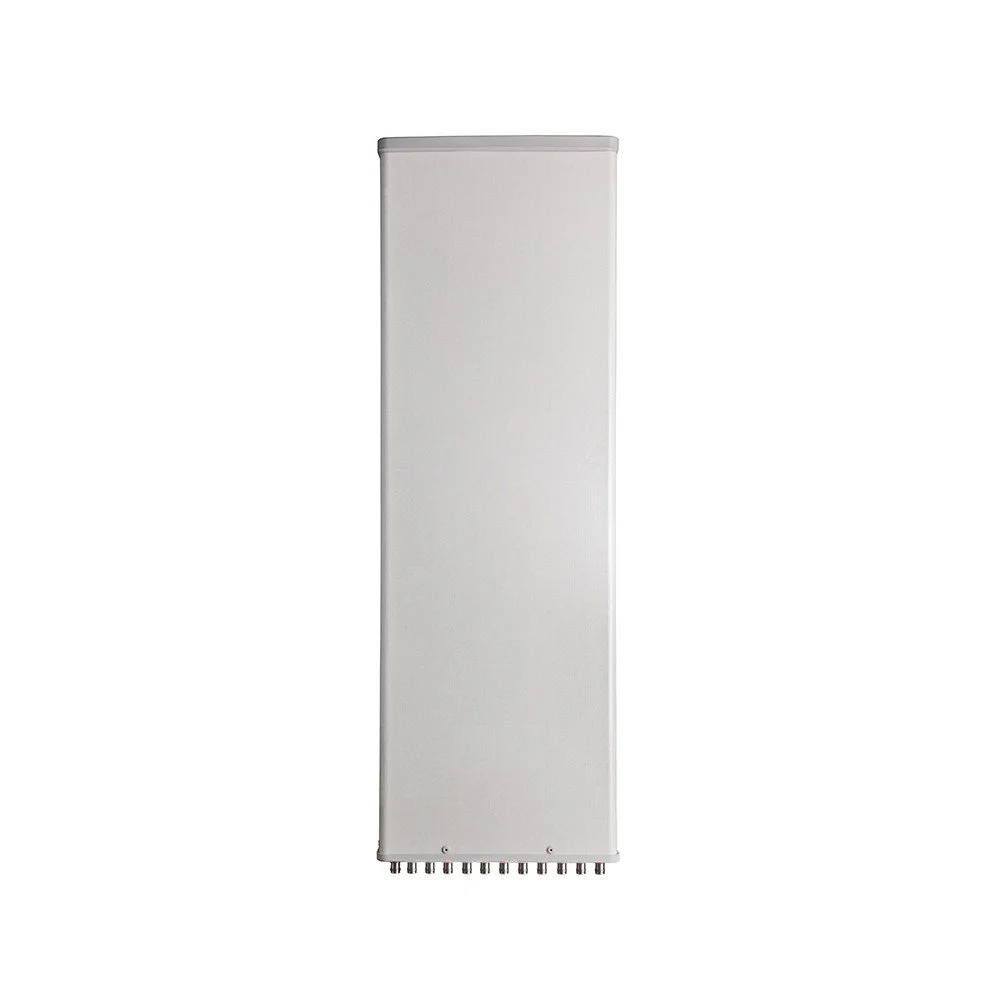

12-Port Panel Sector Antenna (617–2690 MHz)
A high-performance 12-port panel sector antenna engineered for multi-band cellular coverage from 617 to 2690 MHz. Designed for macro and small cell deployments, this antenna supports modern multi-operator and multi-sector requirements with compact form, reliable gain, and excellent pattern control. Ideal for dense urban, suburban, and rural installations where space, aesthetics, and RF performance are critical.
Key Features :
Frequency range: 617–2690 MHz — single integrated aperture covering low-band, mid-band, and upper mid-band LTE/5G FDD/TDD deployments.

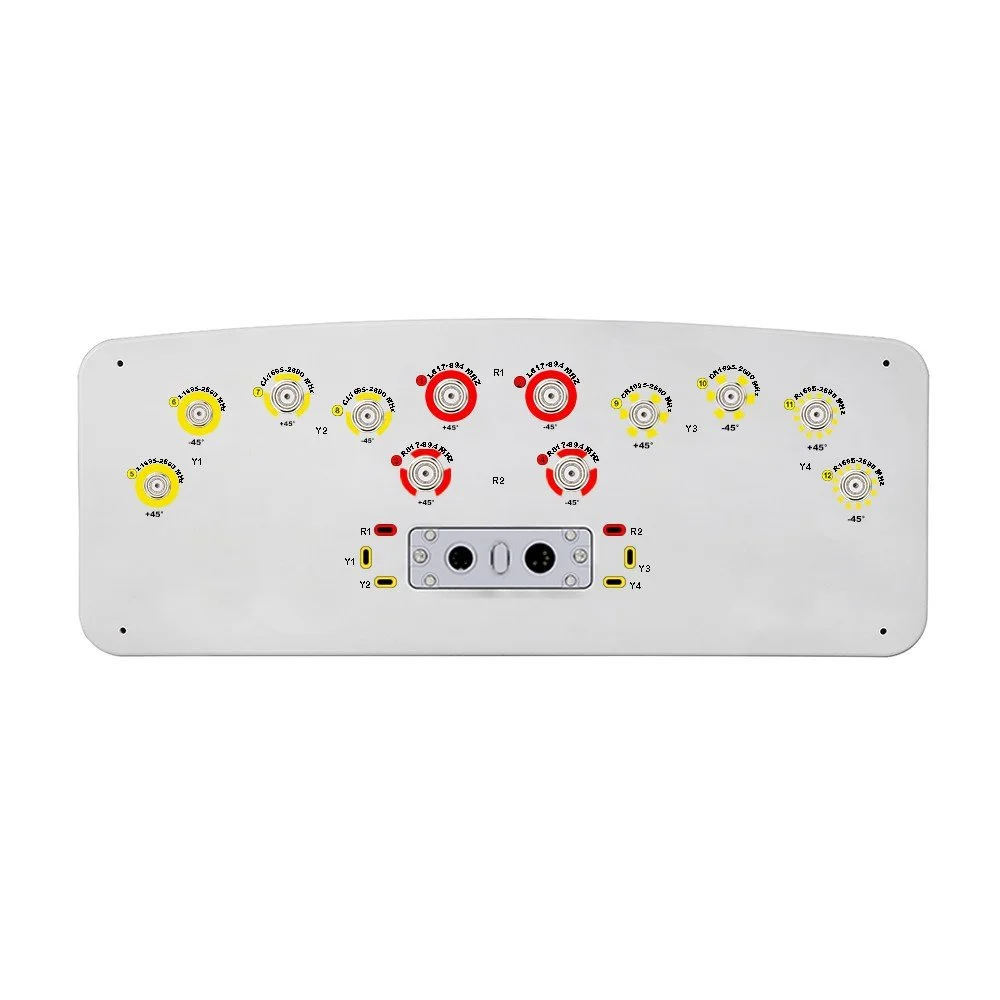

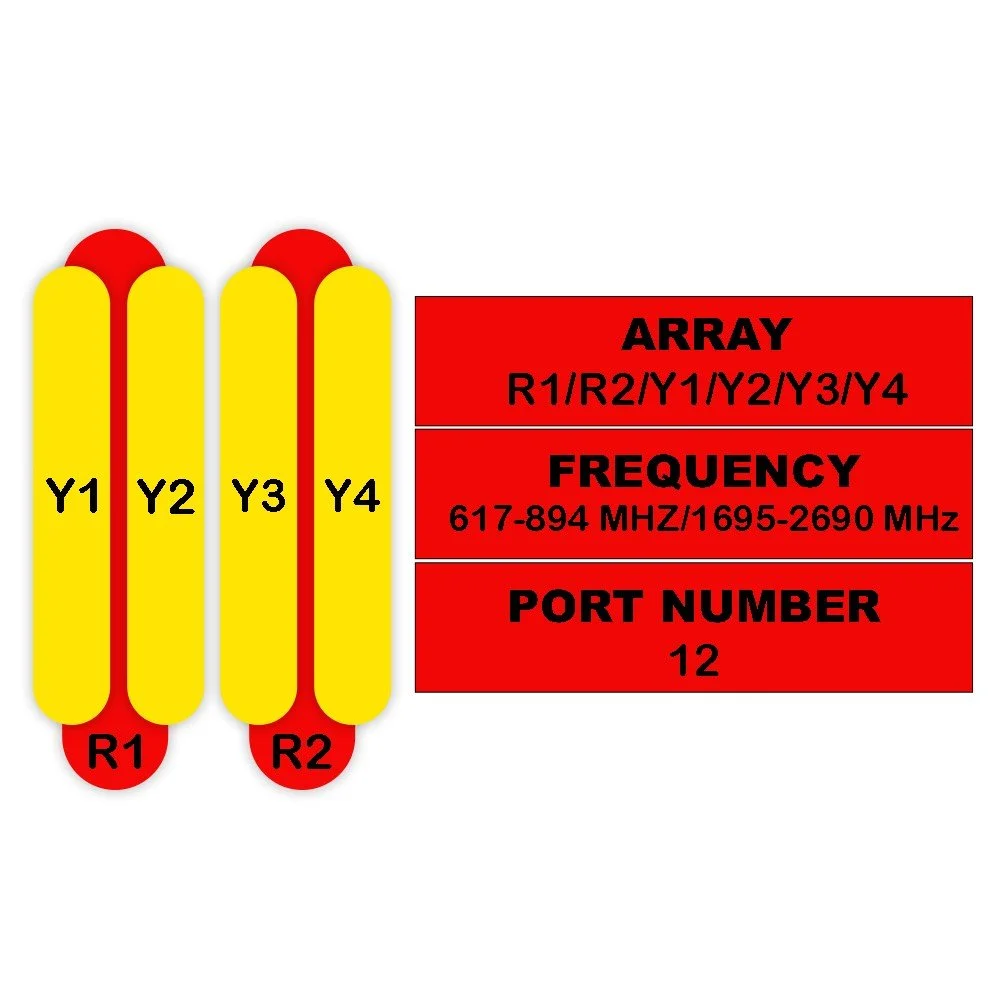

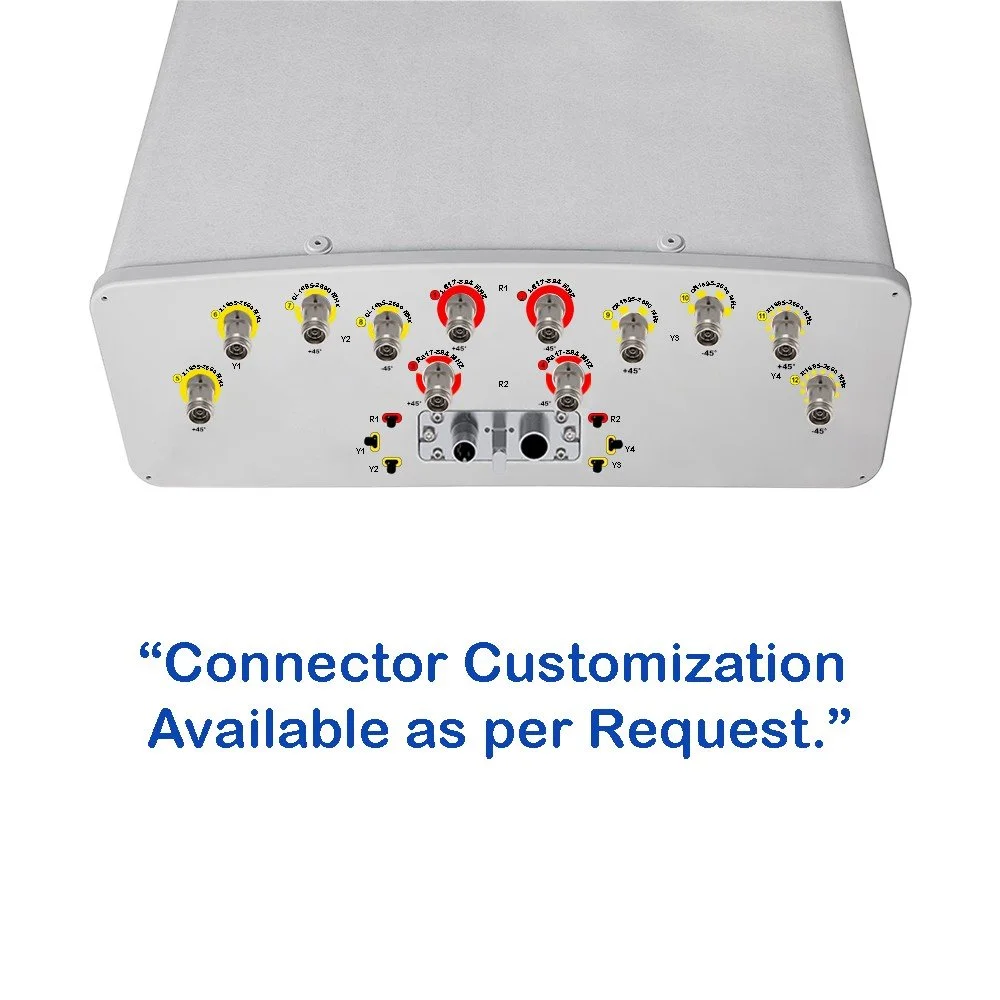

12 ports: supports multiple subarrays, MIMO configurations, and multi-operator sharing with independent coaxial feeds.
Sector bandwidth: Wide instantaneous bandwidth across the full range with minimal insertion loss.
Gain: Optimized gain per band to ensure robust coverage and capacity (typical values tailored by band).
Radiation pattern: Well-defined sector pattern with tight azimuth beamwidth and controlled vertical tilt options to reduce interference and improve cell edge performance.
Isolation: High inter-port isolation for superior MIMO performance and reduced mutual coupling.
Cross-polarization: Excellent cross-polarization discrimination for improved throughput and link reliability.
Mounting: Low-profile radome and universal mounting bracket compatible with standard tower and pole hardware. Adjustable tilt and azimuth alignment.
Environmental: Ruggedized design—IP65/IP67-rated enclosure, UV-stable radome, and wide operating temperature range for outdoor deployment.
Lightning/Surge protection: Integrated DC grounding points and surge protection options to meet industry safety standards.
Low wind load and lightweight construction for simplified installation and reduced tower loading.
12-Port Panel Sector Antenna (617–2690 MHz)
A high-performance 12-port panel sector antenna engineered for multi-band cellular coverage from 617 to 2690 MHz. Designed for macro and small cell deployments, this antenna supports modern multi-operator and multi-sector requirements with compact form, reliable gain, and excellent pattern control. Ideal for dense urban, suburban, and rural installations where space, aesthetics, and RF performance are critical.
Key Features :
Frequency range: 617–2690 MHz — single integrated aperture covering low-band, mid-band, and upper mid-band LTE/5G FDD/TDD deployments.
12 ports: supports multiple subarrays, MIMO configurations, and multi-operator sharing with independent coaxial feeds.
Sector bandwidth: Wide instantaneous bandwidth across the full range with minimal insertion loss.
Gain: Optimized gain per band to ensure robust coverage and capacity (typical values tailored by band).
Radiation pattern: Well-defined sector pattern with tight azimuth beamwidth and controlled vertical tilt options to reduce interference and improve cell edge performance.
Isolation: High inter-port isolation for superior MIMO performance and reduced mutual coupling.
Cross-polarization: Excellent cross-polarization discrimination for improved throughput and link reliability.
Mounting: Low-profile radome and universal mounting bracket compatible with standard tower and pole hardware. Adjustable tilt and azimuth alignment.
Environmental: Ruggedized design—IP65/IP67-rated enclosure, UV-stable radome, and wide operating temperature range for outdoor deployment.
Lightning/Surge protection: Integrated DC grounding points and surge protection options to meet industry safety standards.
Low wind load and lightweight construction for simplified installation and reduced tower loading.
