12-Port Panel Sector Antenna (617–2690 MHz)

This 12-port panel sector antenna delivers high-performance multi-band coverage across 617–2690 MHz. Engineered for dense urban and suburban macro deployments, the antenna supports multi-operator and multi-technology configurations with compact form factor, rugged construction, and optimized sector radiation. Ideal for carriers and neutral host networks requiring scalable, cost-effective capacity and coverage.

Key Features :

  • Frequency range: 617–2690 MHz covering low-band (617–960 MHz), mid-band (1700–2200 MHz), and extended mid/high bands (up to 2690 MHz).

  • 12 RF ports for flexible multi-band, multi-operator configurations (e.g., MIMO, carrier aggregation, dedicated operator splits).

  • Sector beamwidth options: nominal 65° horizontal; elevation optimized for macro sector coverage.

  • High port isolation and low inter-port coupling for enhanced MIMO performance and reduced interference.

  • Wide dynamic electrical tilt and phase center stabilization for consistent coverage across bands.

  • Low VSWR across all ports for efficient transmitter power transfer and reduced return loss.

  • Robust wind-rated mechanical design for rooftop and tower mounting in harsh environments.

  • Corrosion-resistant radome and heavy-gauge mounting bracket with integrated grounding.

  • IP65/IP66 environmental sealing (model-dependent) for outdoor exposure and moisture resistance.

  • Light-weight panel construction for simplified installation and reduced tower loading.

12-Port Panel Sector Antenna (617–2690 MHz)

This 12-port panel sector antenna delivers high-performance multi-band coverage across 617–2690 MHz. Engineered for dense urban and suburban macro deployments, the antenna supports multi-operator and multi-technology configurations with compact form factor, rugged construction, and optimized sector radiation. Ideal for carriers and neutral host networks requiring scalable, cost-effective capacity and coverage.

Key Features :

  • Frequency range: 617–2690 MHz covering low-band (617–960 MHz), mid-band (1700–2200 MHz), and extended mid/high bands (up to 2690 MHz).

  • 12 RF ports for flexible multi-band, multi-operator configurations (e.g., MIMO, carrier aggregation, dedicated operator splits).

  • Sector beamwidth options: nominal 65° horizontal; elevation optimized for macro sector coverage.

  • High port isolation and low inter-port coupling for enhanced MIMO performance and reduced interference.

  • Wide dynamic electrical tilt and phase center stabilization for consistent coverage across bands.

  • Low VSWR across all ports for efficient transmitter power transfer and reduced return loss.

  • Robust wind-rated mechanical design for rooftop and tower mounting in harsh environments.

  • Corrosion-resistant radome and heavy-gauge mounting bracket with integrated grounding.

  • IP65/IP66 environmental sealing (model-dependent) for outdoor exposure and moisture resistance.

  • Light-weight panel construction for simplified installation and reduced tower loading.

Electrical Specifications
Parameter Unit R1 / R2 Y1 / Y3 Y2 / Y4
617-698 698-824 1695-1880 1850-1990 1920-2170 2300-2400 2490-2690 1695-1880 1850-1990 1920-2170 2300-2400 2490-2690
Polarization — ±45° ±45° ±45°
Gain (Mid Tilt) dBi 14.915.7 15.71616.516.816.6 15.415.716.216.516.3
Gain (All Tilts) dBi 14.7 ± 0.515.5 ± 0.5 15.5 ± 0.615.8 ± 0.616.3 ± 0.6 16.6 ± 0.516.4 ± 0.5 15.2 ± 0.615.5 ± 0.616.0 ± 0.6 16.3 ± 0.516.1 ± 0.5
Horizontal Beamwidth degree 73 ± 6.565 ± 6.5 69 ± 6.564 ± 6.560 ± 6.5 56 ± 6.058 ± 6.5 69 ± 6.564 ± 6.560 ± 6.5 56 ± 6.058 ± 6.5
Vertical Beamwidth degree 11.6 ± 1.19.9 ± 0.9 8.5 ± 0.87.8 ± 0.87.0 ± 0.7 6.4 ± 0.65.8 ± 0.6 8.5 ± 0.87.8 ± 0.87.0 ± 0.7 6.4 ± 0.65.8 ± 0.6
Electrical Downtilt degree 2–12 2–12 2–12
First Upper Side Lobe Suppression dB > 15
Front-To-Back Ratio ±30° dB > 25
Cross Polar Discrimination dB > 16 / > 17 (by band)
Isolation (Cross-Polar) dB > 25
Isolation (Port-to-Port) dB > 25 > 28
Impedance Ohm 50
VSWR — < 1.5
Return Loss dB > 14
PIM3 (2×43 dBm Carrier) dBc < -150
Lightning Protection — DC Ground
Max Avg Input Power per Port (50°C) Watts 250 200 200
Mechanical Specifications

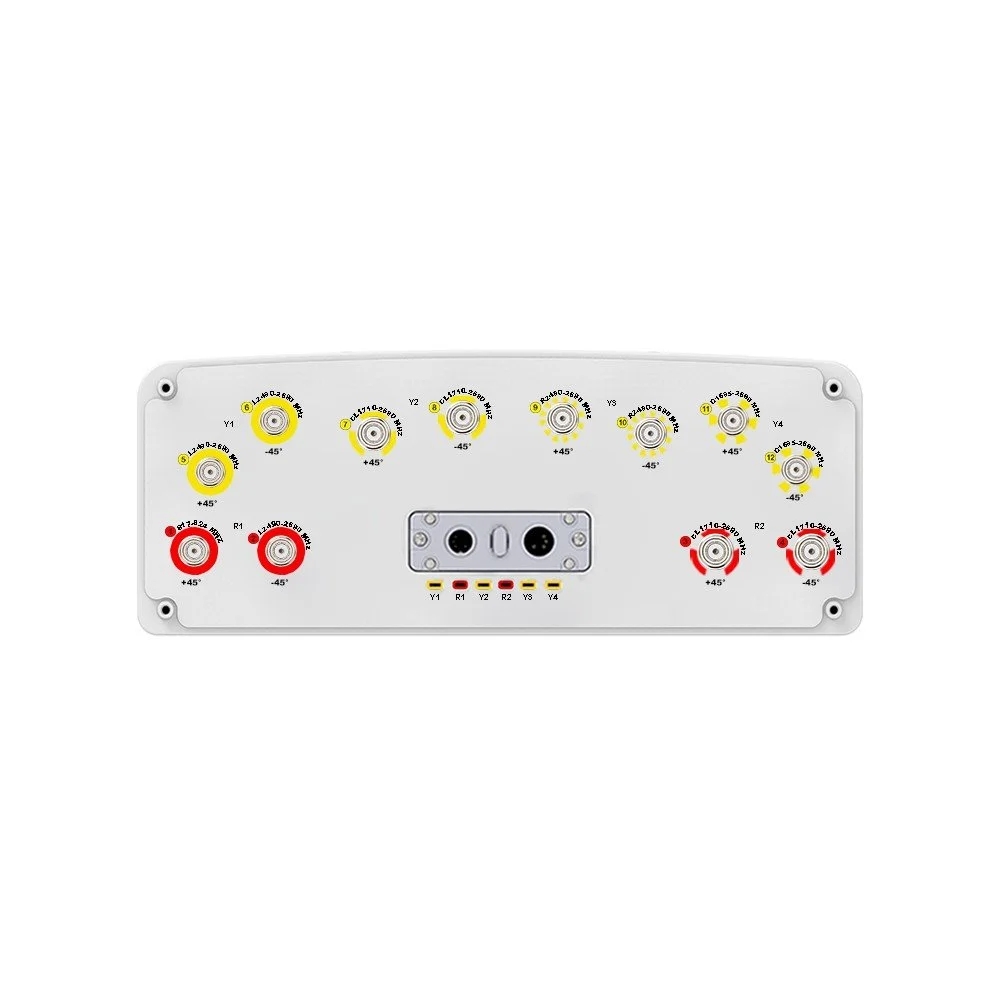

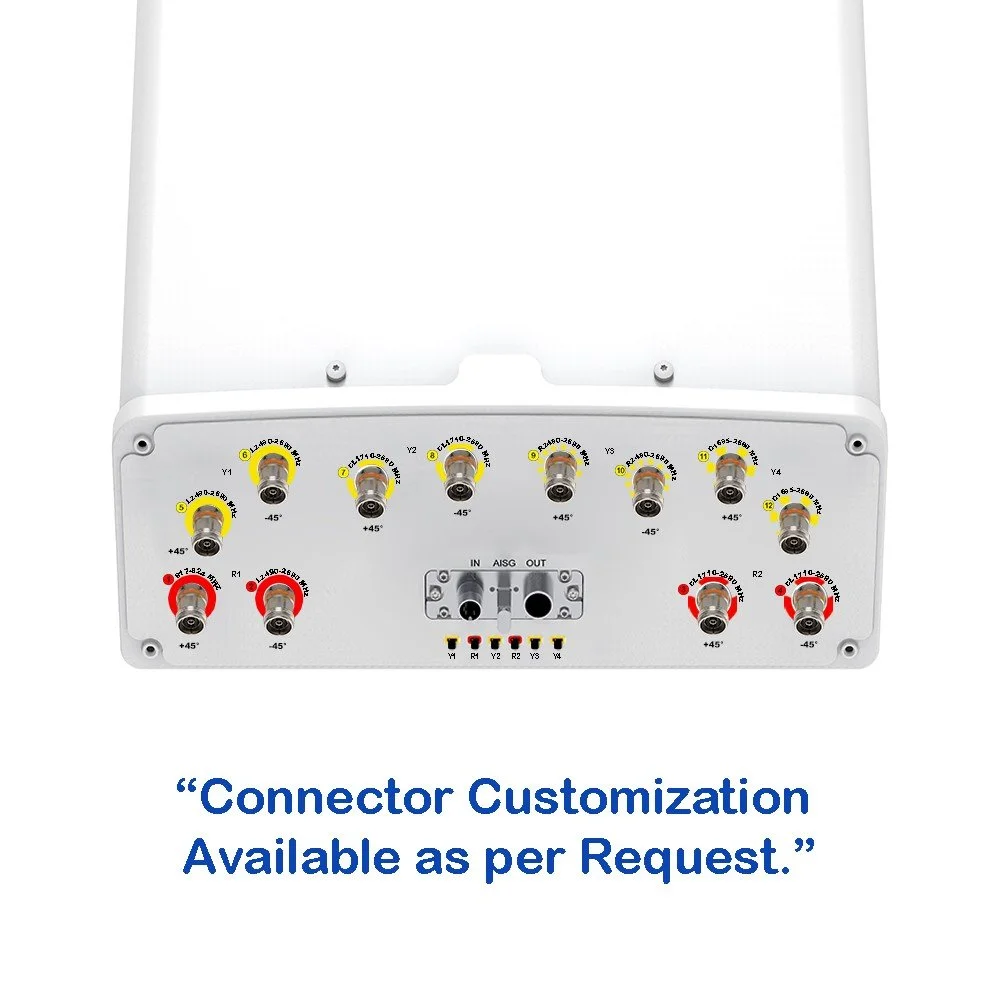

Connector Type — (12x) 4.3/10 Female
Connector Position — Bottom
Electrical Tilt Control — Integrated RET
Radome Material — Fiberglass

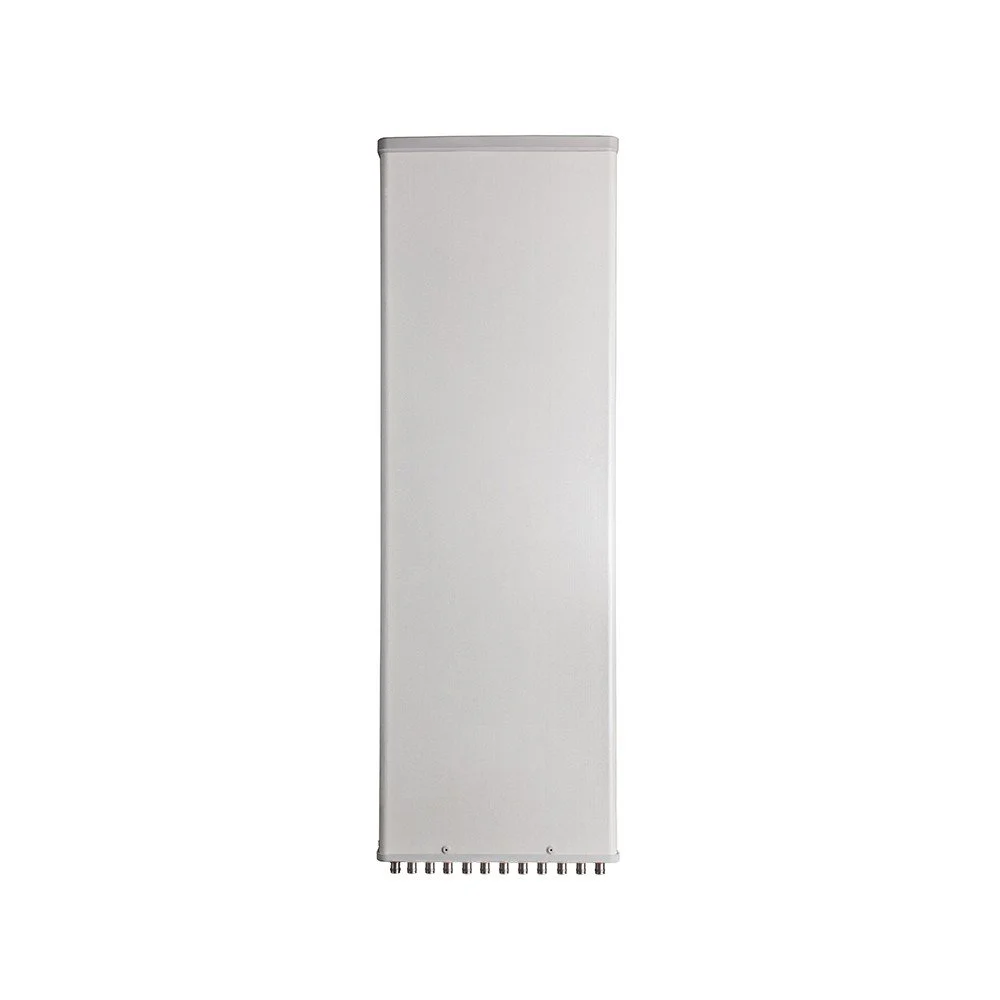

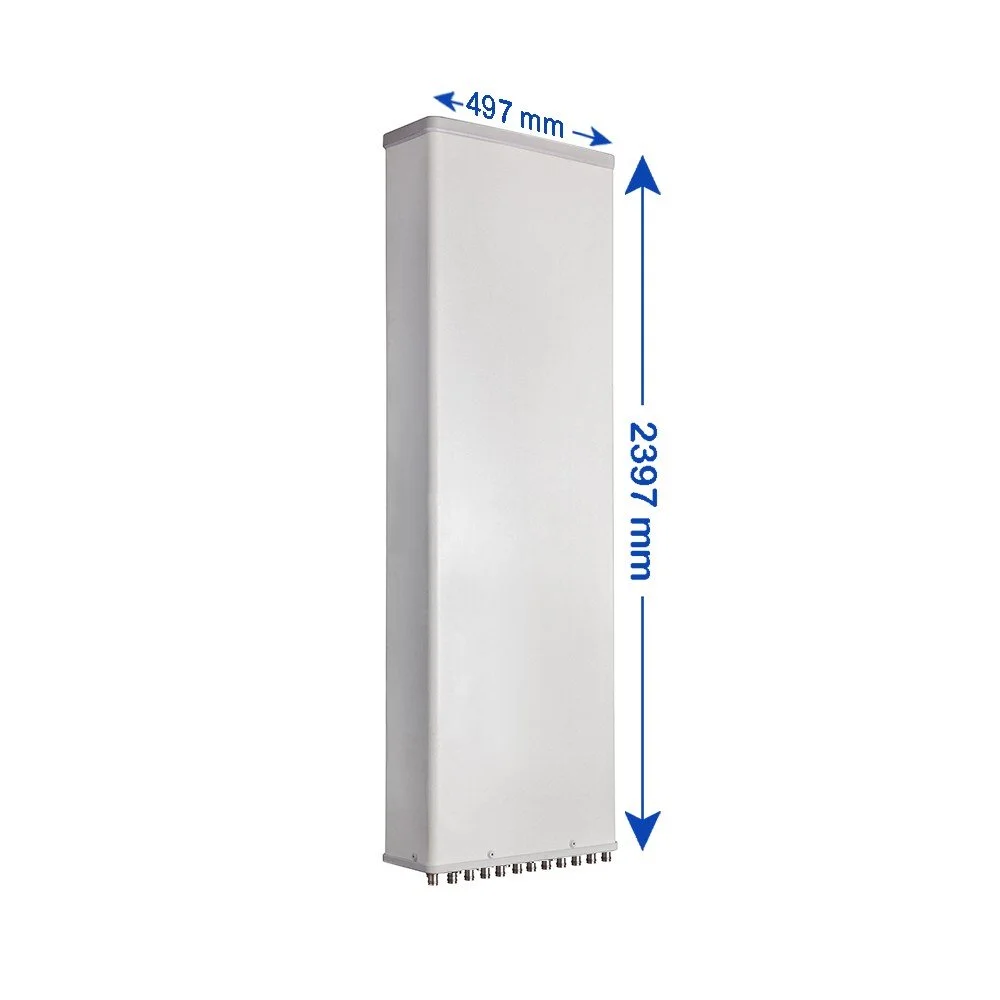

Antenna Dimensions (H × W × D) mm (in) 2397 × 497 × 197 (94.4 × 19.6 × 7.8)
Antenna Weight – Antenna Only kg (lbs) 33 (72.8)
Antenna Weight – With Clamps kg (lbs) 38.5 (84.9)
Maximum Wind Speed km/h (mph) 200 (124.3)
Wind Load – Frontal (at 150 km/h) N (lbf) 1100 (247.3)
Wind Load – Rear (at 150 km/h) N (lbf) 1230 (276.5)
Wind Load – Lateral (at 150 km/h) N (lbf) 540 (121.4)
Operating Temperature °C (°F) -40 to +60 (-40 to +140)
