12-Port Panel Sector Antenna (617–2690 MHz)

A compact, high-performance 12-port panel sector antenna engineered for dense urban and suburban deployments across 617–2690 MHz. Designed for multi-operator and multi-band applications including public safety, LTE (2G/3G/4G), and broadband wireless systems. Delivers consistent sector coverage, high isolation between ports, and ruggedized construction for all-weather reliability.

Key Features :

  • Frequency range: 617–2690 MHz (covers low-band, mid-band cellular and public safety bands)

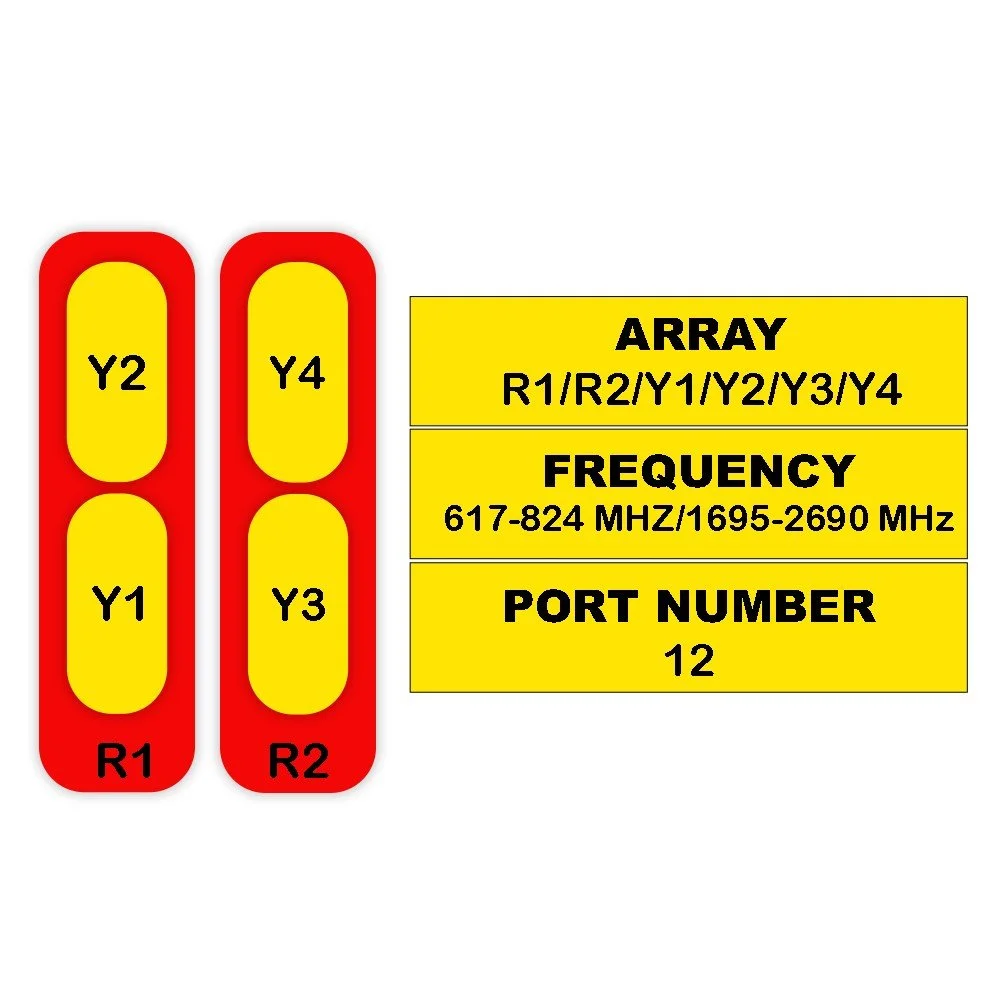

  • 12 RF ports organized for MIMO, multi-operator, or multi-band configurations

  • Sector beamwidth: nominal 65° horizontal for standard sector deployment

  • Dual-polarized elements with vertical and horizontal polarization support; configurable port mapping for cross-polar and co-polar use

  • High port-to-port isolation to minimize inter-port interference and enable co-site multi-carrier operation

  • Low return loss across the band: typical S11 ≤ -10 dB per port

  • High gain: typical 8–11 dBi across the band (frequency-dependent)

  • Durable, UV-resistant radome and corrosion-resistant mounting hardware for outdoor use

  • IP67-rated enclosure and connectors for weatherproof reliability

  • Wide operating temperature: -40°C to +65°C

  • Lightweight slim profile for reduced windload and easier installation

  • Universal mounting bracket for pole or wall installation; optional tilt and azimuth adjustments

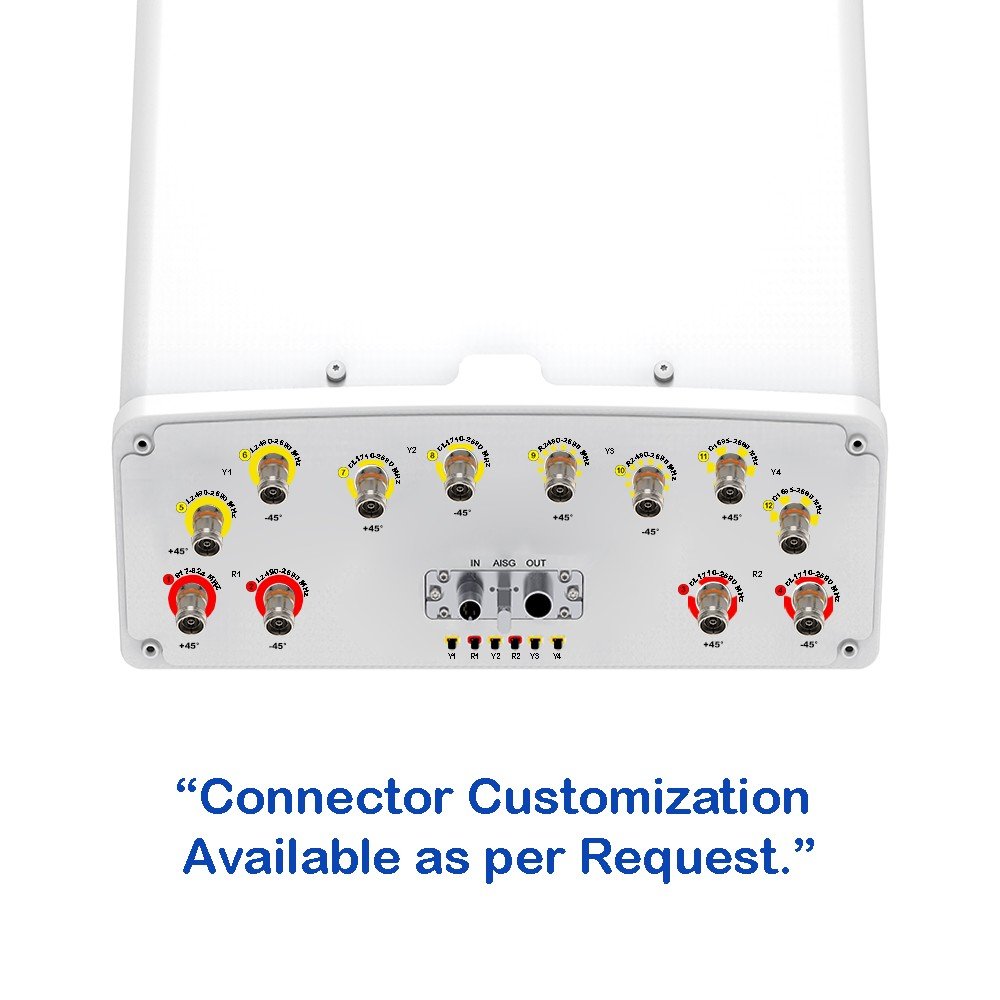

  • Factory-configurable cable/connector options to suit site requirements

12-Port Panel Sector Antenna (617–2690 MHz)

A compact, high-performance 12-port panel sector antenna engineered for dense urban and suburban deployments across 617–2690 MHz. Designed for multi-operator and multi-band applications including public safety, LTE (2G/3G/4G), and broadband wireless systems. Delivers consistent sector coverage, high isolation between ports, and ruggedized construction for all-weather reliability.

Key Features :

  • Frequency range: 617–2690 MHz (covers low-band, mid-band cellular and public safety bands)

  • 12 RF ports organized for MIMO, multi-operator, or multi-band configurations

  • Sector beamwidth: nominal 65° horizontal for standard sector deployment

  • Dual-polarized elements with vertical and horizontal polarization support; configurable port mapping for cross-polar and co-polar use

  • High port-to-port isolation to minimize inter-port interference and enable co-site multi-carrier operation

  • Low return loss across the band: typical S11 ≤ -10 dB per port

  • High gain: typical 8–11 dBi across the band (frequency-dependent)

  • Durable, UV-resistant radome and corrosion-resistant mounting hardware for outdoor use

  • IP67-rated enclosure and connectors for weatherproof reliability

  • Wide operating temperature: -40°C to +65°C

  • Lightweight slim profile for reduced windload and easier installation

  • Universal mounting bracket for pole or wall installation; optional tilt and azimuth adjustments

  • Factory-configurable cable/connector options to suit site requirements

Electrical Specifications
Electrical specifications for R1/R2, Y1/Y3, and Y2/Y4 frequency bands including gain, beamwidth, isolation, and power ratings.
Parameter Unit R1 / R2 Y1 / Y3 Y2 / Y4
617-698 698-824 1695-1880 1850-1990 1920-2170 2300-2400 2490-2690 1695-1880 1850-1990 1920-2170 2300-2400 2490-2690
Polarization ±45° ±45° ±45°
Gain (Mid Tilt) dBi 13.4 14.2 14 14.2 14.6 15 14.8 13.8 14 14.4 14.8 14.6
Gain (All Tilts) dBi 13.2 ± 0.5 14.0 ± 0.5 13.8 ± 0.6 14.0 ± 0.6 14.4 ± 0.6 14.8 ± 0.5 14.6 ± 0.5 13.6 ± 0.6 13.8 ± 0.6 14.2 ± 0.6 14.6 ± 0.5 14.4 ± 0.5
Horizontal Beamwidth degree 73 ± 6.5 65 ± 6.5 69 ± 6.5 64 ± 6.5 60 ± 6.5 56 ± 6.0 58 ± 6.5 69 ± 6.5 64 ± 6.5 60 ± 6.5 56 ± 6.0 58 ± 6.5
Vertical Beamwidth degree 17.4 ± 1.1 14.6 ± 0.9 12.5 ± 0.9 11.7 ± 0.6 11.1 ± 0.9 9.8 ± 0.9 9.1 ± 0.8 12.5 ± 0.9 11.7 ± 0.6 11.1 ± 0.9 9.8 ± 0.9 9.1 ± 0.8
Electrical Downtilt degree 2–12 2–12 2–12
First Upper Side Lobe Suppression dB > 15
Front-To-Back Ratio ±30° dB > 25> 25 ≥ 25≥ 25≥ 25≥ 25≥ 25 ≥ 25≥ 25≥ 25≥ 25≥ 25
Cross Polar Discrimination dB > 17> 17 > 16> 16> 17> 17> 17 > 16> 16> 17> 17> 17
Isolation (Cross-Polar) dB > 25
Isolation (Port-to-Port) dB > 25 > 28
Impedance Ohm 50
VSWR < 1.5
Return Loss dB > 14
PIM3 (2x43 dBm Carrier) dBc < -150
Lightning Protection DC Ground
Max Avg Input Power per Port (50°C) Watts 250 200 200
Mechanical Specifications
Mechanical specifications including dimensions, weight, wind load, and operating temperature.

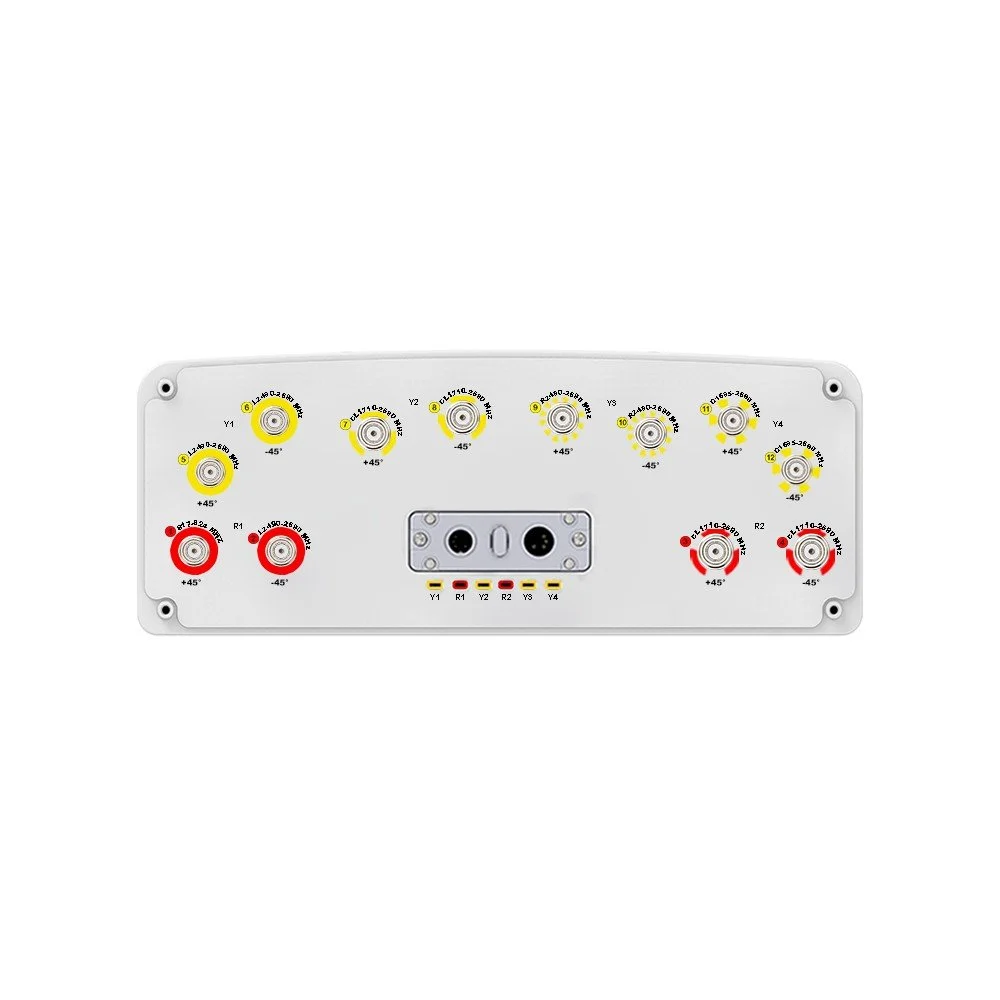

Connector Type (12x) 4.3/10 Female
Connector Position Bottom
Electrical Tilt Control Integrated RET
Radome Material Fiberglass

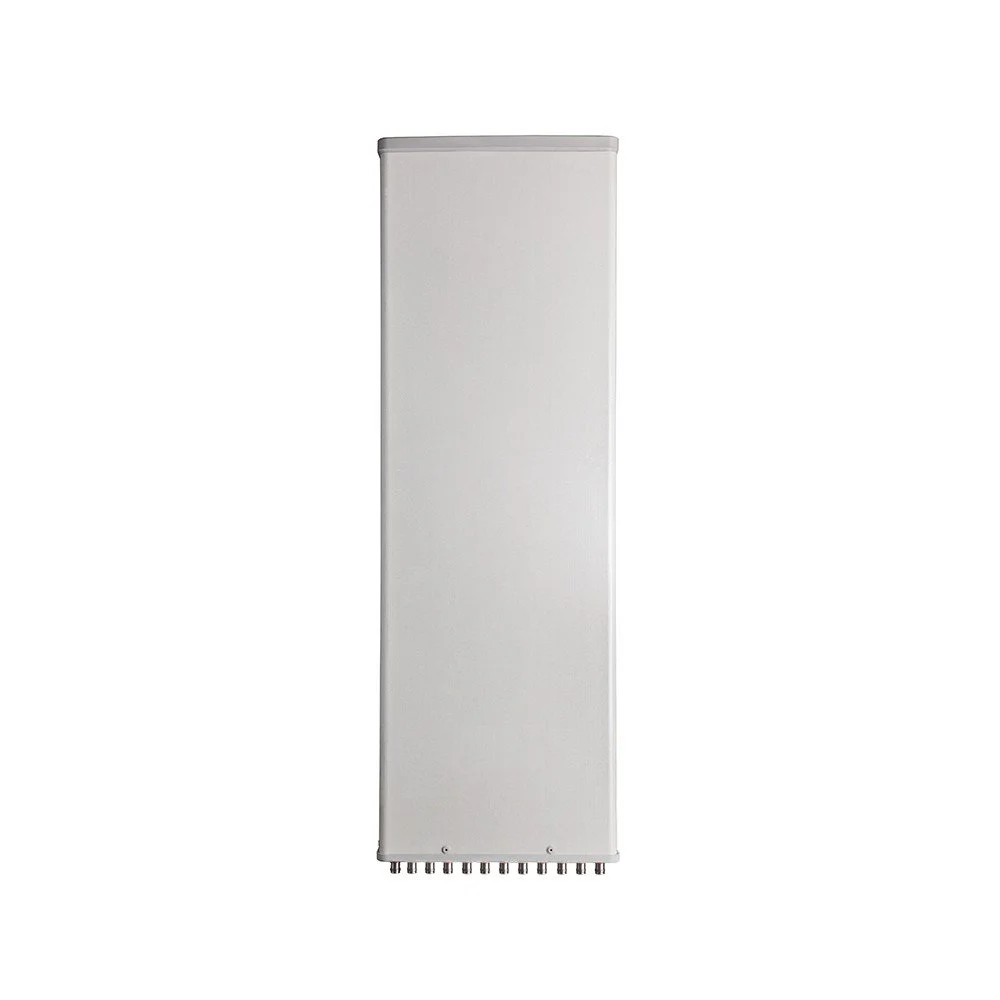

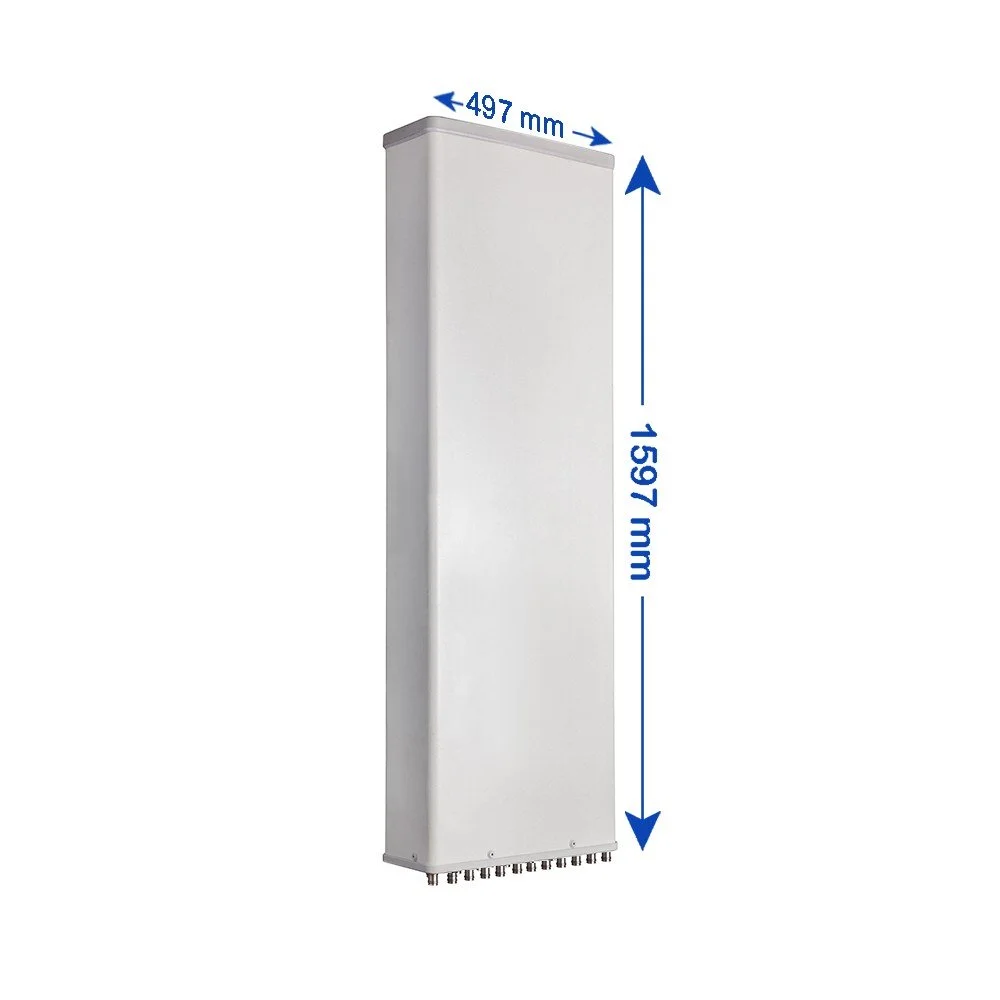

Antenna Dimensions (H × W × D) mm (in) 1597 × 497 × 197 (62.9 × 19.6 × 7.8)
Antenna Weight – Antenna Only kg (lbs) 25 (55.1)
Antenna Weight – With Clamps kg (lbs) 30.5 (67.2)
Maximum Wind Speed km/h (mph) 200 (124.3)
Wind Load – Frontal (at 150 km/h) N (lbf) 735 (165.2)
Wind Load – Rear (at 150 km/h) N (lbf) 820 (184.3)
Wind Load – Lateral (at 150 km/h) N (lbf) 360 (80.9)
Operating Temperature °C (°F) -40 to +60 (-40 to +140)
