12-Port Panel Antenna (1710–2400 MHz)

Overview A high-performance, multi-port panel antenna engineered for dense wireless deployments across the 1710–2400 MHz band. Designed for indoor or outdoor mounting where multi-sector or multi-carrier coverage is required, this 12-port panel antenna delivers consistent gain, controlled beam patterns, and flexible polarization options to support MIMO, carrier aggregation, and multi-operator networks.

Key Features :

  • Frequency range: 1710–2400 MHz (covers key cellular and Wi‑Fi sub-bands)

  • 12 RF ports: supports multiple MIMO layers, carriers, or operators

  • Uniform gain across the band for predictable coverage

  • Low inter-port isolation loss for simultaneous multi-port operation

  • Cross-polarized port configuration for enhanced diversity and MIMO performance

  • Slim, low-profile radome for reduced visual impact and wind load

  • IP65 (or higher) rated for outdoor durability; UV-stable materials for long-term exposure

  • Wide operating temperature range suitable for harsh environments

  • Mounting: adjustable pole and wall brackets included for flexible installation

  • Lightning protection and grounding provisions per industry best practices

12-Port Panel Antenna (1710–2400 MHz)

Overview A high-performance, multi-port panel antenna engineered for dense wireless deployments across the 1710–2400 MHz band. Designed for indoor or outdoor mounting where multi-sector or multi-carrier coverage is required, this 12-port panel antenna delivers consistent gain, controlled beam patterns, and flexible polarization options to support MIMO, carrier aggregation, and multi-operator networks.

Key Features :

  • Frequency range: 1710–2400 MHz (covers key cellular and Wi‑Fi sub-bands)

  • 12 RF ports: supports multiple MIMO layers, carriers, or operators

  • Uniform gain across the band for predictable coverage

  • Low inter-port isolation loss for simultaneous multi-port operation

  • Cross-polarized port configuration for enhanced diversity and MIMO performance

  • Slim, low-profile radome for reduced visual impact and wind load

  • IP65 (or higher) rated for outdoor durability; UV-stable materials for long-term exposure

  • Wide operating temperature range suitable for harsh environments

  • Mounting: adjustable pole and wall brackets included for flexible installation

  • Lightning protection and grounding provisions per industry best practices

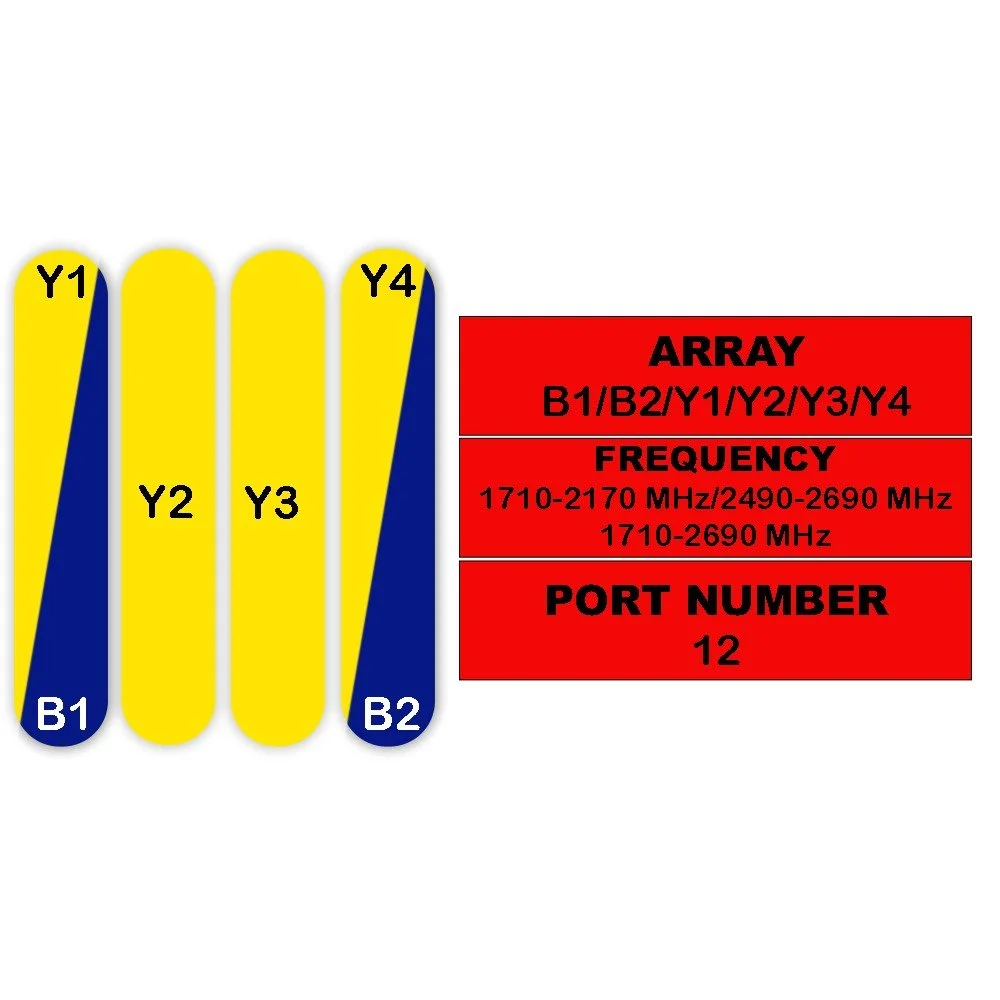

Electrical Specifications
Electrical specifications including frequency range, gain, beamwidth, isolation, and power ratings.
Unit B1 / B2 (1710–2690 MHz) Y1 / Y4 & Y2 / Y3 (1710–2690 MHz)
1710-1880 1850-1990 1920-2170 2490-2690 1710-1880 1850-1990 1920-2170 2300-2400 2490-2690
Polarization --- ±45° ±45°
Gain At Mid Tilt dBi 16.71717.317.6 16.917.317.61817.8
Over All Tilts dBi 16.6 ± 0.516.9 ± 0.517.2 ± 0.517.5 ± 0.6 16.8 ± 0.517.2 ± 0.517.5 ± 0.517.9 ± 0.517.7 ± 0.6
Horizontal Beamwidth degree 68 ± 6.065 ± 6.063 ± 6.059 ± 6.0 68 ± 6.065 ± 6.063 ± 6.061 ± 5.059 ± 6.0
Vertical Beamwidth degree 7.0 ± 0.76.7 ± 0.66.3 ± 0.65.0 ± 0.5 7.0 ± 0.76.7 ± 0.66.3 ± 0.65.4 ± 0.55.0 ± 0.4
Electrical Downtilt Continuously Adjustable degree 2°–12° 2°–12°
First Upper Side Lobe Suppression dB > 16
Front-To-Back Ratio Co-Pol (±30°) dB > 27> 27> 28> 28 > 27> 27> 28> 28> 28
Cross Polar Discrimination At Boresight dB > 20
Over Sector dB > 8> 8> 8> 5 > 9> 9> 9> 6> 5
Isolation Interband dB > 25 > 25
Impedance Ohm 50 50
VSWR --- < 1.5 < 1.5
Return Loss dB > 14 > 14
PIM3 (2x43 dBm Carrier) dBc < -150 < -150
Lightning Protection --- DC Ground DC Ground
Maximum Avg Input Power Per Port, 50°C Watts 200 200
Mechanical Specifications
Mechanical specifications including dimensions, weight, wind load, and environmental ratings.
Parameter Unit Value

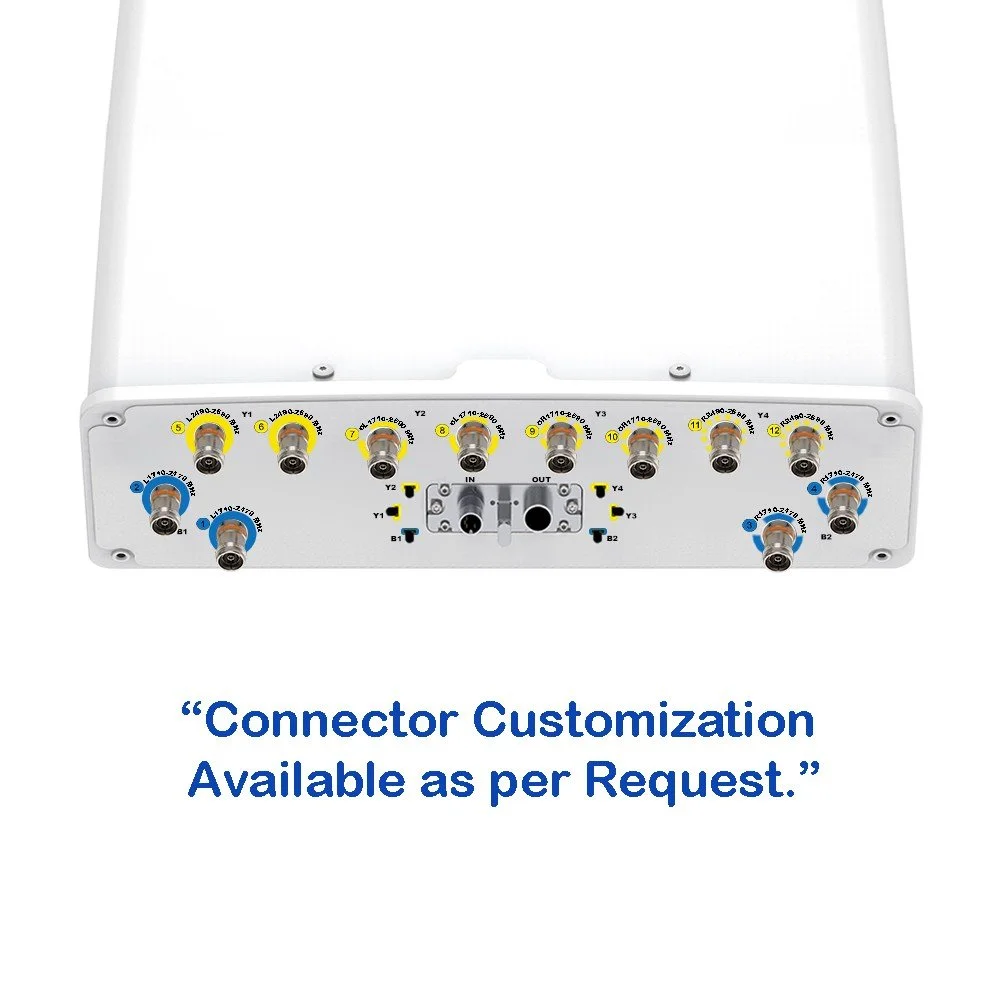

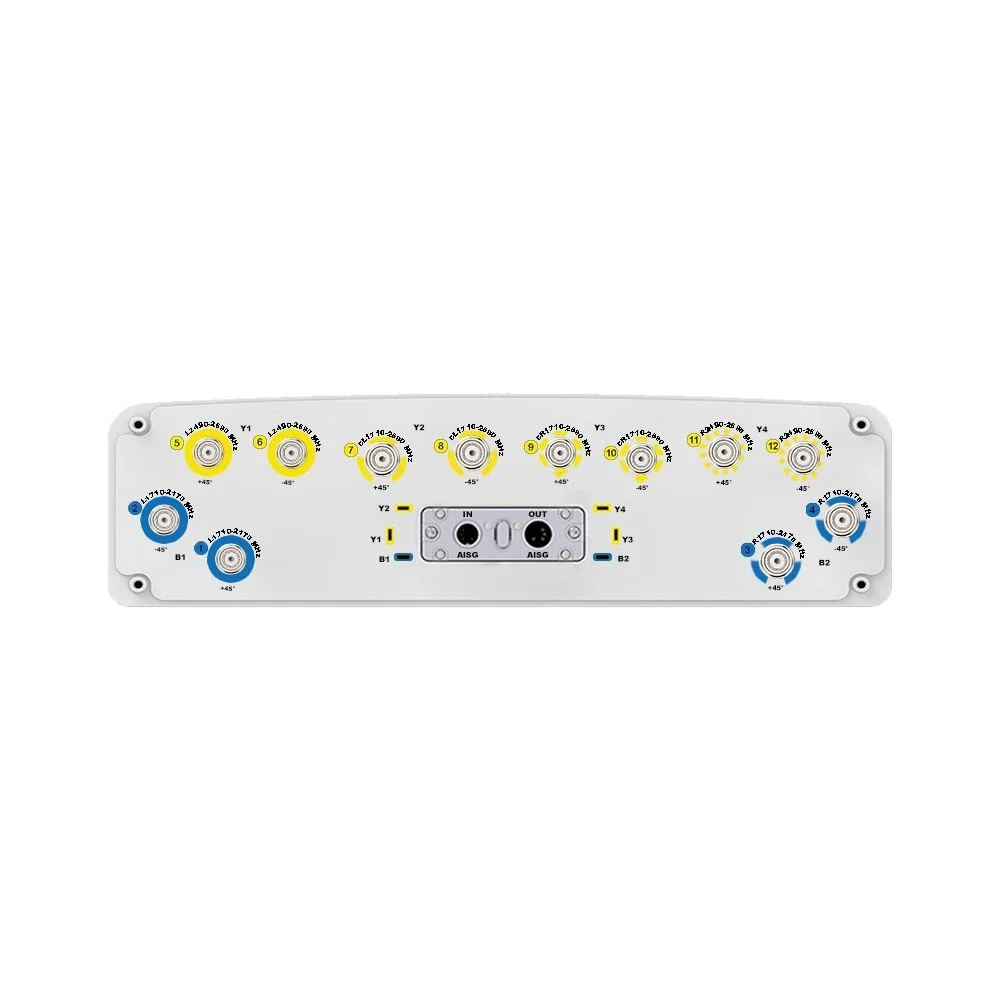

Connector Type --- (12x) 4.3/10 Female
Connector Position --- Bottom
Electrical Tilt Control --- Integrated RET
Radome Material --- Fiberglass

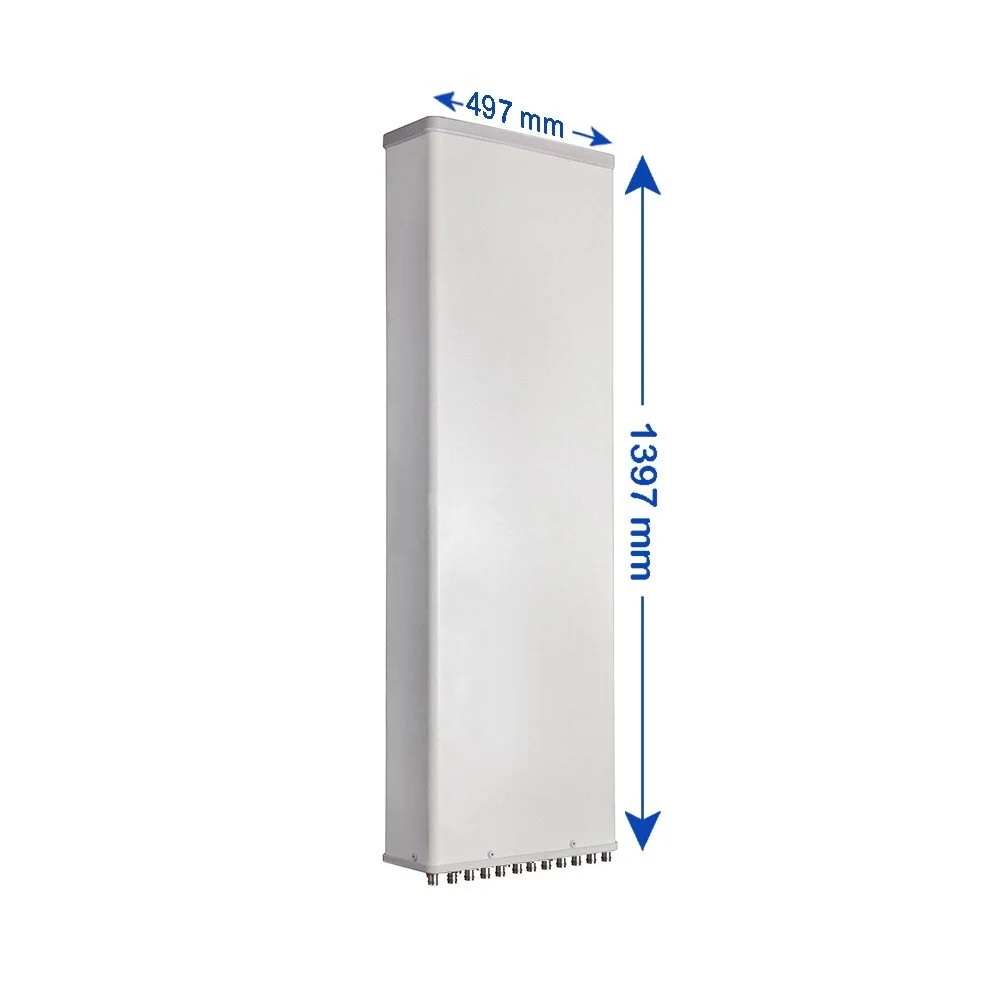

Antenna Dimensions (H × W × D) mm (in) 1397 × 497 × 127 (55.0 × 19.6 × 5.0)
Antenna Weight – Antenna Only kg (lbs) 25.5 (56.2)
Antenna Weight – With Clamps kg (lbs) 31 (68.3)
Maximum Wind Speed km/h (mph) 200 (124.3)
Wind Load at 150 km/h – Frontal N (lbf) 640 (143.9)
Wind Load at 150 km/h – Rear N (lbf) 715 (160.7)
Wind Load at 150 km/h – Lateral N (lbf) 205 (46.1)
Operating Temperature °C (°F) -40 to +60 (-40 to +140)
