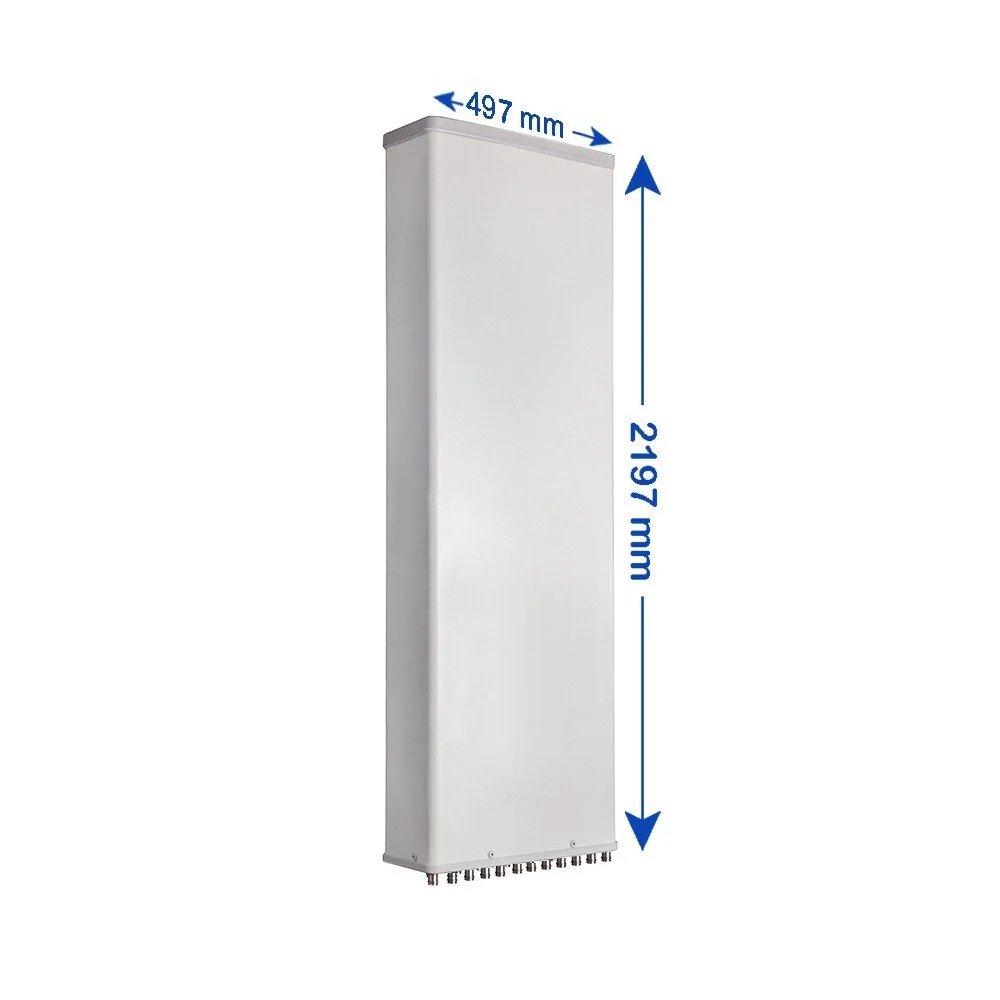

12-Port Hybrid Split Beam Panel Sector Antenna Frequency Range: 698–2690 MHz
Overview :
A high-performance, compact sector antenna engineered for multi-band macro and small-cell deployments. The hybrid split beam design provides independent control of two polarization beams per sector for improved capacity, interference mitigation, and optimized coverage. Ideal for urban and suburban base stations, DAS, and C-RAN sites demanding flexible multi-operator support and efficient MIMO implementations.
Key Features :
Frequency coverage: 698–2690 MHz (full LTE and many 3G/2G bands)

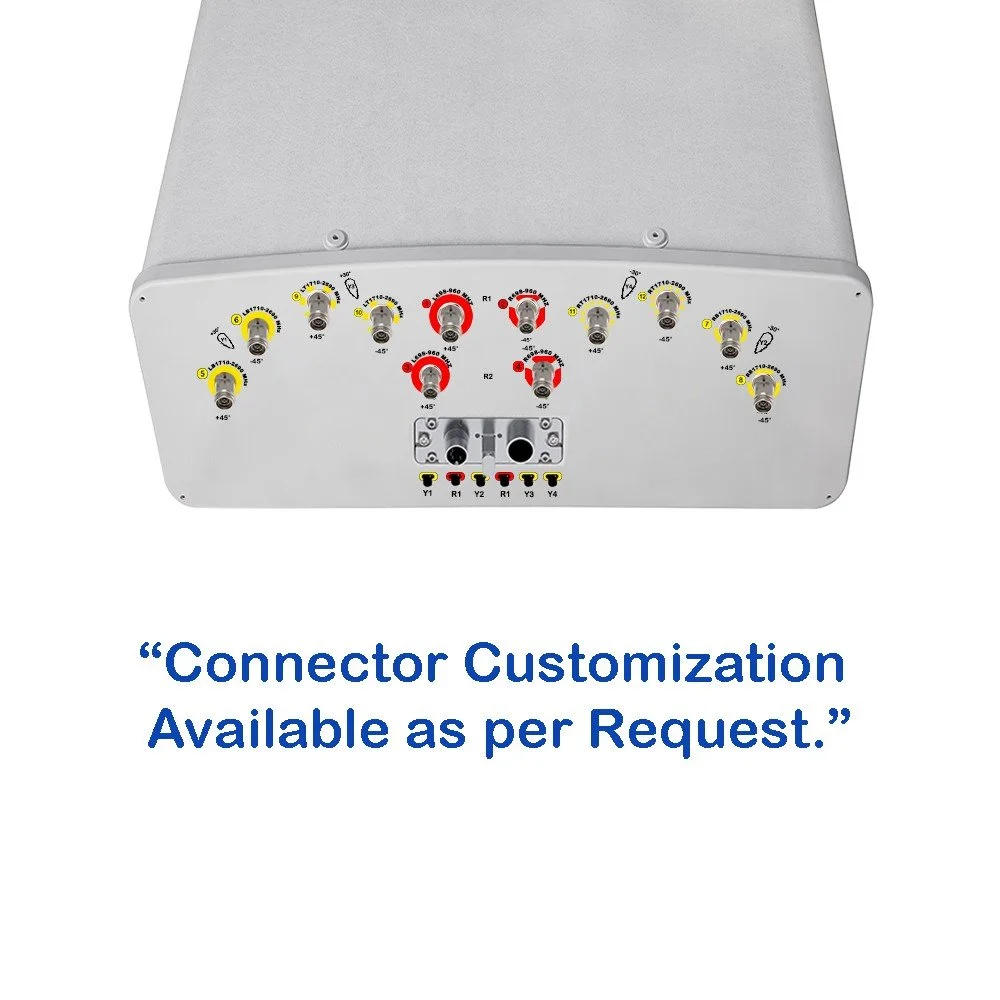

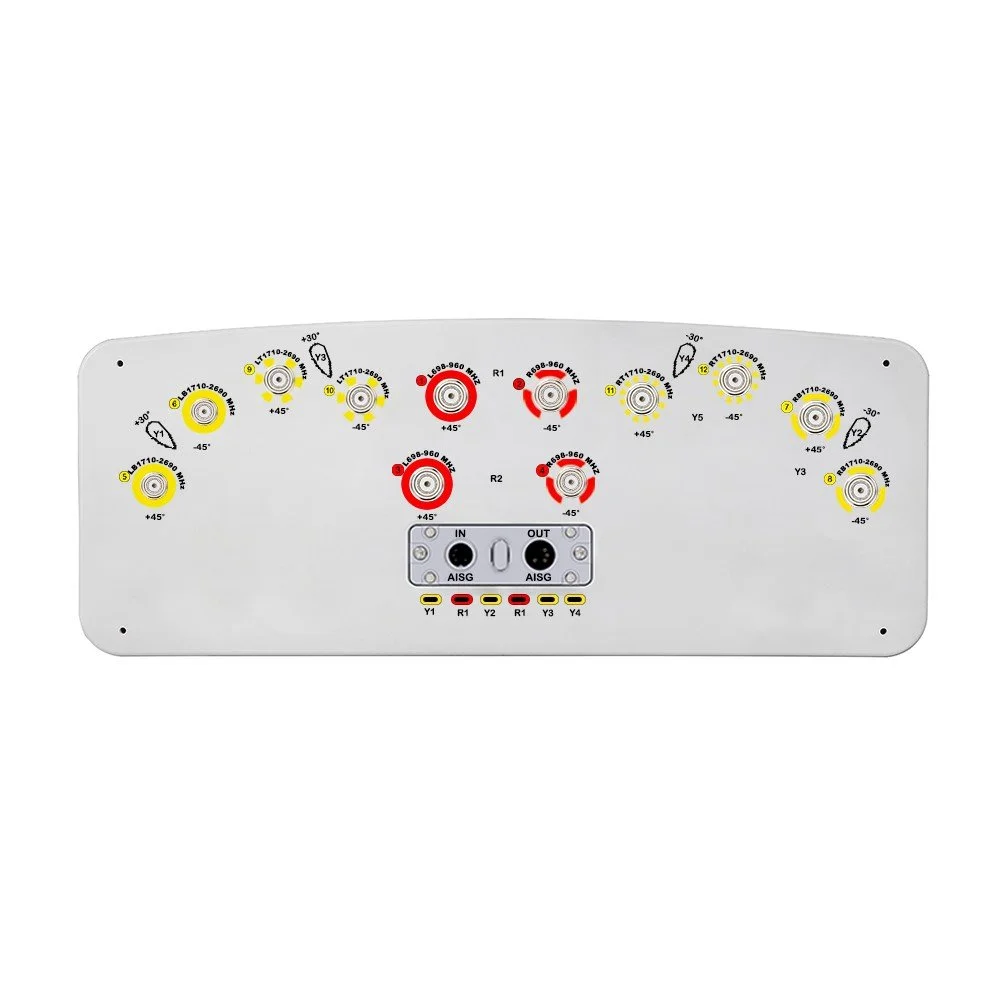

12 ports: six physical ports per polarization cluster (total 12), enabling multiple MIMO layers and operator sharing

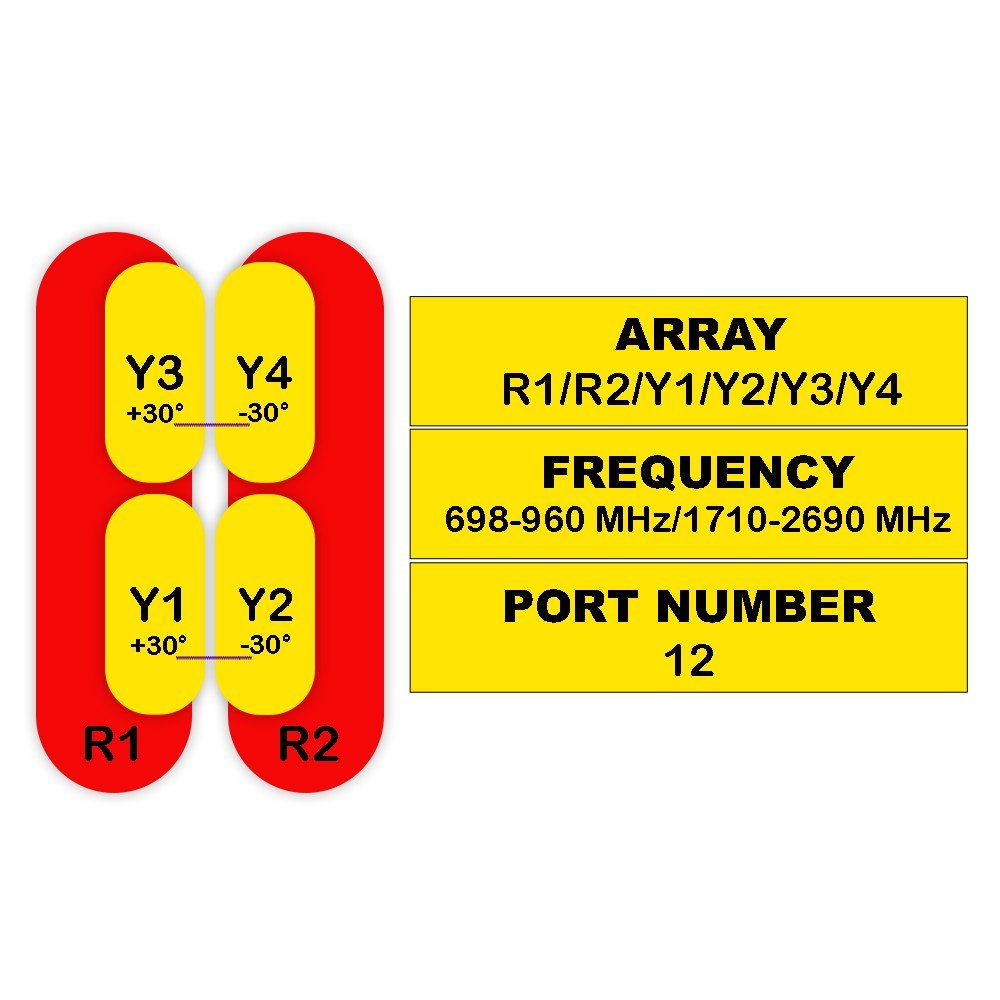

Hybrid split-beam architecture: dual independent beams per sector with selectable tilt and beam shaping for capacity/coverage trade-offs
High gain across bands for superior link budget and extended cell range
Low PIM construction to support high transmit power and minimize intermodulation products
Robust RF isolation between ports to enable co-sited multi-operator and multi-band operation

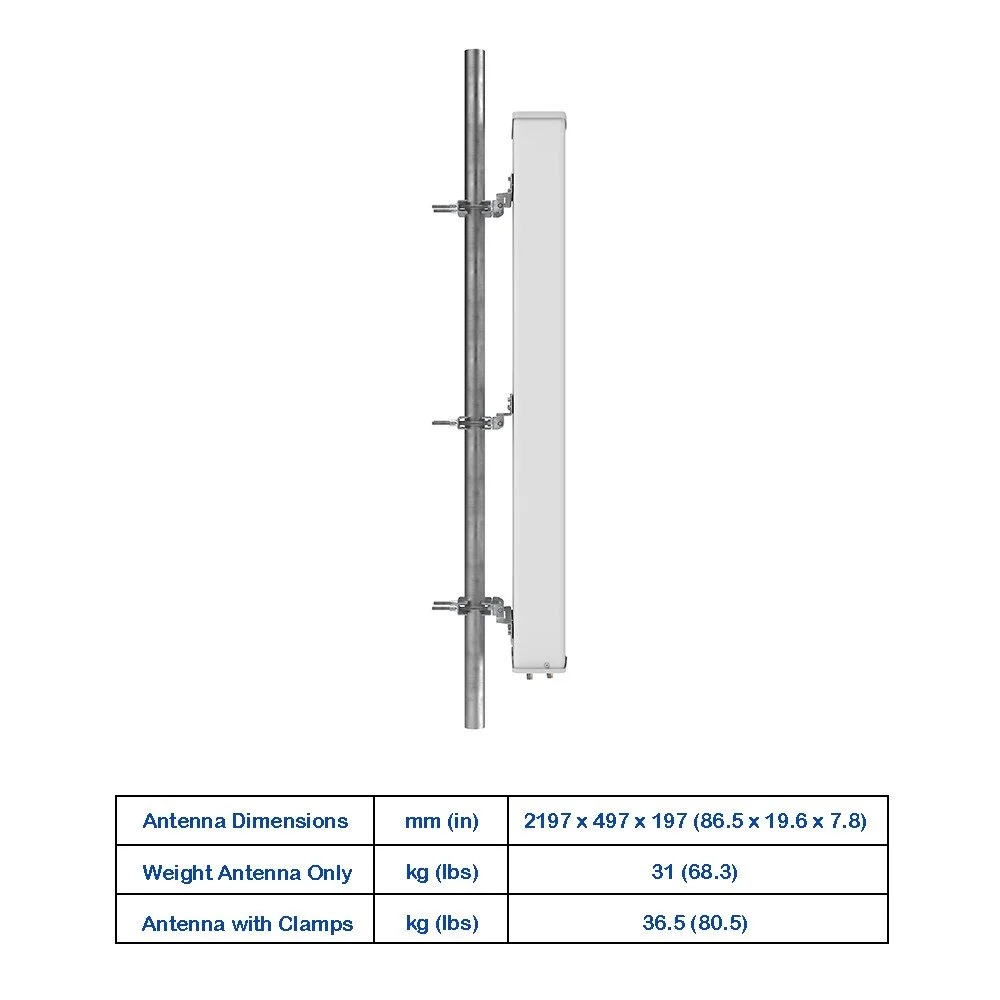

Rugged mechanical design: corrosion-resistant radome and mount hardware rated for harsh outdoor environments
