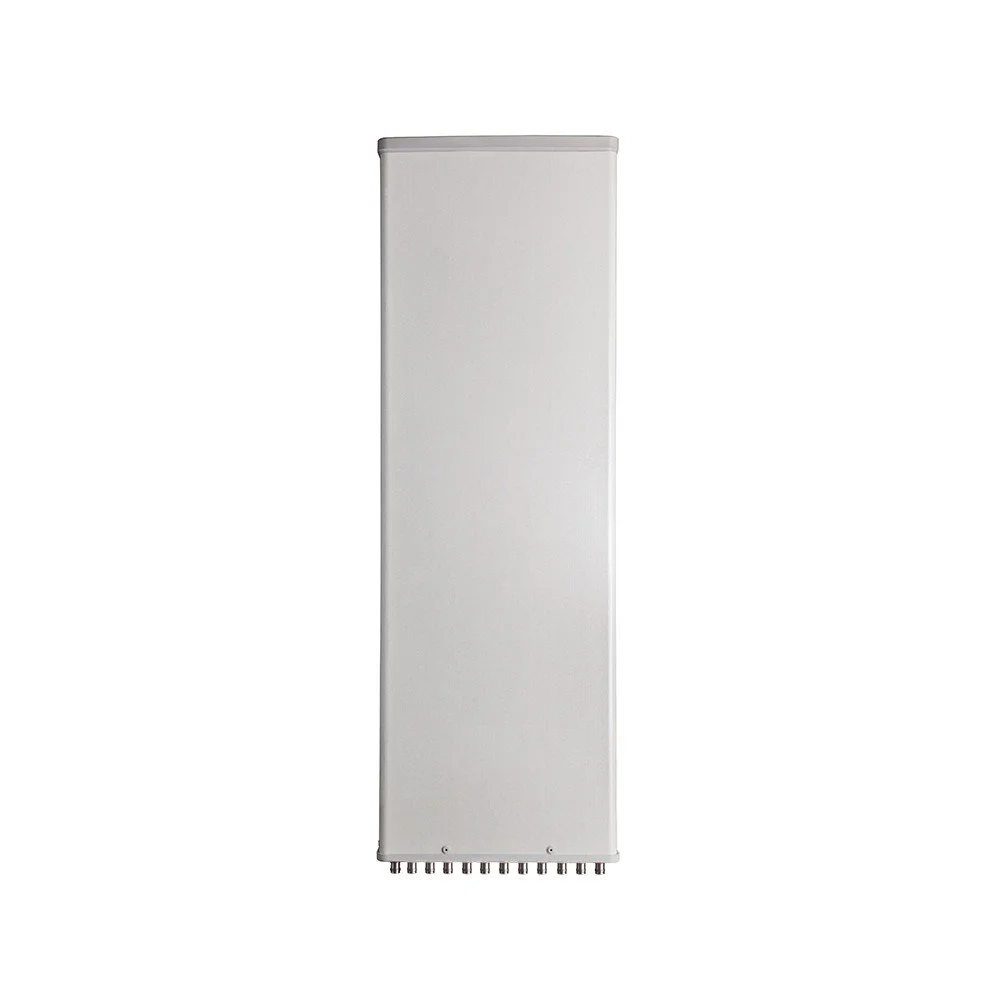

12-Port Hybrid Split‑Beam Panel Sector Antenna Frequency Range: 698–2690 MHz

Overview :

A high-performance 12-port hybrid split‑beam panel sector antenna engineered for dense macro and small cell deployments across low‑ and mid‑band LTE and 5G NR. Combines multi‑port MIMO capability with split‑beam beamforming to maximize spectral efficiency, improve interference rejection, and provide flexible downtilt and sectorization for urban, suburban, and rural coverage scenarios.

Key Features :

  • Frequency: 698–2690 MHz (full low/mid band coverage)

  • Ports: 12 RF ports supporting multi‑carrier and multi‑operator configurations

  • Hybrid design: Combines passive and active elements for low loss and high isolation

  • Split‑beam technology: Electrically separated beam panels for improved pattern shaping and interference control

  • Gain: High gain across the band with optimized element tapering for uniform sector coverage

  • Downtilt: Adjustable mechanical and electrical downtilt options for precise coverage shaping

  • Polarization: Dual linear polarization with ±45° configurations per sub‑panel

  • MIMO support: Full 8x8 (and higher) spatial throughput capability using port aggregation

  • VSWR: Low VSWR across the entire band for efficient power transfer

  • Isolation: High interport isolation to support multiple operators or layers with minimal crosstalk

  • Power handling: Robust power rating to support modern base station transmit levels

  • Wind load: Aerodynamic housing and rugged mount for high wind and ice tolerance

  • Environmental: IP65/IP67 rated enclosure options for harsh outdoor deployments

  • Connectors: Robust N‑type or 4.3‑10 connectors per customer requirements

  • Mounting: Universal sector mount compatible with standard towers and masts

12-Port Hybrid Split‑Beam Panel Sector Antenna Frequency Range: 698–2690 MHz

Overview :

A high-performance 12-port hybrid split‑beam panel sector antenna engineered for dense macro and small cell deployments across low‑ and mid‑band LTE and 5G NR. Combines multi‑port MIMO capability with split‑beam beamforming to maximize spectral efficiency, improve interference rejection, and provide flexible downtilt and sectorization for urban, suburban, and rural coverage scenarios.

Key Features :

  • Frequency: 698–2690 MHz (full low/mid band coverage)

  • Ports: 12 RF ports supporting multi‑carrier and multi‑operator configurations

  • Hybrid design: Combines passive and active elements for low loss and high isolation

  • Split‑beam technology: Electrically separated beam panels for improved pattern shaping and interference control

  • Gain: High gain across the band with optimized element tapering for uniform sector coverage

  • Downtilt: Adjustable mechanical and electrical downtilt options for precise coverage shaping

  • Polarization: Dual linear polarization with ±45° configurations per sub‑panel

  • MIMO support: Full 8x8 (and higher) spatial throughput capability using port aggregation

  • VSWR: Low VSWR across the entire band for efficient power transfer

  • Isolation: High interport isolation to support multiple operators or layers with minimal crosstalk

  • Power handling: Robust power rating to support modern base station transmit levels

  • Wind load: Aerodynamic housing and rugged mount for high wind and ice tolerance

  • Environmental: IP65/IP67 rated enclosure options for harsh outdoor deployments

  • Connectors: Robust N‑type or 4.3‑10 connectors per customer requirements

  • Mounting: Universal sector mount compatible with standard towers and masts

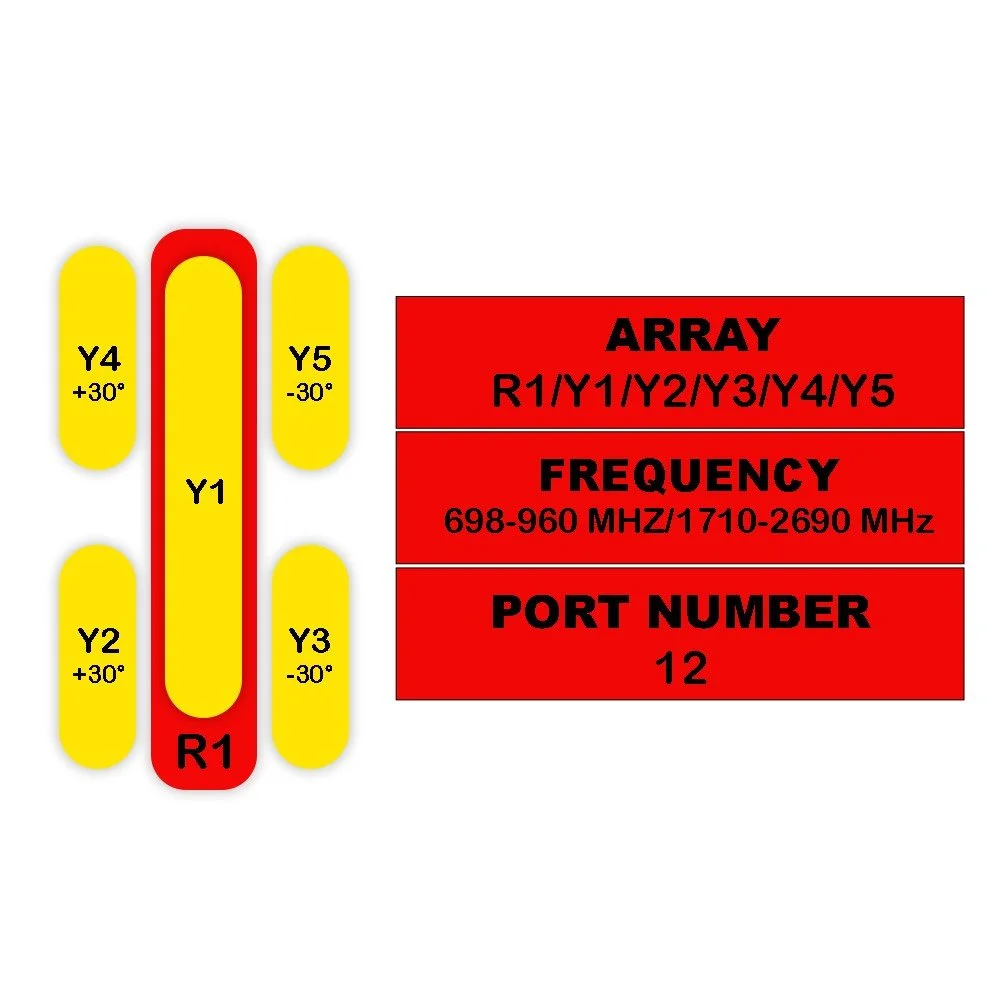

Electrical Specifications
Electrical specifications including frequency bands, gain, beamwidth and RF performance parameters
Parameter Unit R1 Y1
MHz 698-806 790-894 880-960 1710-1880 1850-1990 1920-2170 2300-2400 2500-2690
Frequency Range MHz 698-960 1710-2690
Polarization — ±45° ±45°
Gain at Mid Tilt dBi 15.8 16.3 16.6 16.6 16.9 17.2 17.6 17.5
Gain Over All Tilts dBi 15.7 ± 0.6 16.2 ± 0.6 16.5 ± 0.6 16.5 ± 0.6 16.8 ± 0.6 17.1 ± 0.6 17.5 ± 0.6 17.4 ± 0.6
Horizontal Beamwidth degree 69 ± 5 67 ± 5 63 ± 5 69 ± 6 68 ± 6 65 ± 6 60 ± 6 58 ± 6
Vertical Beamwidth degree 8.5 ± 0.9 7.7 ± 0.8 7.2 ± 0.7 7.5 ± 0.8 7.0 ± 0.7 6.6 ± 0.7 5.8 ± 0.6 5.5 ± 0.6
Electrical Downtilt, Continuously Adjustable degree 02-12 02-12
First Upper Side Lobe Suppression dB >15 >15 >15 >15 >15 >15 >15 >15
Front-To-Back Ratio Co-Pol, ±30° dB >23 >24 >25 >26 >26 >26 >26 >26
Cross Polar at Boresight dB >16 >16 >16 >19 >20 >20 >20 >20
Discrimination Over Sector dB >6 >8 >8 >7 >7 >7 >5 >5
Isolation Intraband dB >25 >25
Isolation Interband dB >25 >25
Impedance Ohm 50 50
VSWR — <1.5 <1.5
Return Loss dB >14 >14
PIM3 (2x43 dBm Carrier) dBc <-150 <-150
Lightning Protection — DC Ground DC Ground
Maximum Average Input Power per Port, at 50° C Ambient Temperature Watts 250 200
Electrical Specifications
Electrical specifications for Y2, Y3, Y4 and Y5 antenna bands including gain, beamwidth, isolation and RF performance parameters.
Parameter Unit Y2 / Y3 / Y4 / Y5
MHz 1710-1880 1850-1990 1920-2170 2300-2400 2500-2690
Frequency Range MHz 1710-2690
Polarization — ±45°
Gain at Mid Tilt dBi 17.5 17.9 18.3 18.8 18.7
Gain Over All Tilts dBi 17.4 ± 0.6 17.8 ± 0.6 18.2 ± 0.6 18.7 ± 0.6 18.6 ± 0.6
Horizontal Beamwidth degree 41 ± 3 39 ± 3 36 ± 3 32 ± 3 30 ± 3
Azimuth Beam Pointing degree Y3 / Y5: +30 ±3; Y2 / Y4: -30 ±3
Vertical Beamwidth degree 9.6 ± 1.0 9.0 ± 0.9 8.5 ± 0.9 7.2 ± 0.7 6.6 ± 0.7
Electrical Downtilt, Continuously Adjustable degree 2-12
First Upper Side Lobe Suppression dB >15 >15 >15 >15 >15
Front-To-Back Ratio Co-Pol, ±30° dB >26 >26 >26 >26 >26
Cross Polar Discrimination at Boresight dB >20 >20 >20 >20 >20
Isolation Intraband, Same Beam dB >25
Isolation Beam-to-Beam dB >25
Isolation Interband dB >25
Impedance Ohm 50
VSWR — <1.5
Return Loss dB >14
PIM3 (2x43 dBm Carrier) dBc <-150
Lightning Protection — DC Ground
Maximum Average Input Power per Port, at 50° C Ambient Temperature Watts 200
Mechanical Specifications
Mechanical specifications of the antenna including connector details, dimensions, wind load, and operating temperature.
Parameter Sub-Parameter Unit Specification

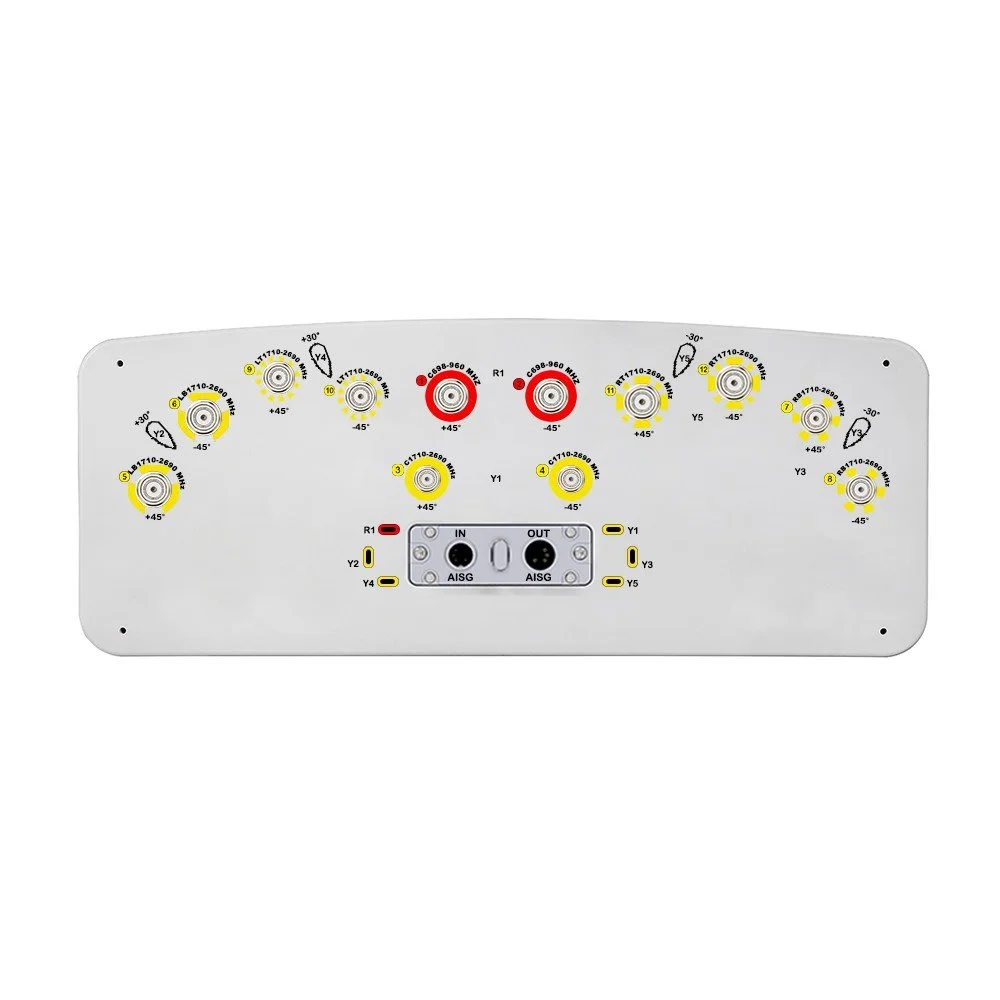

Connector Type — — (12x) 4.3/10 Female
Connector Position — — Bottom
Electrical Tilt Control — — Integrated RET
Radome Material — — Fiberglass

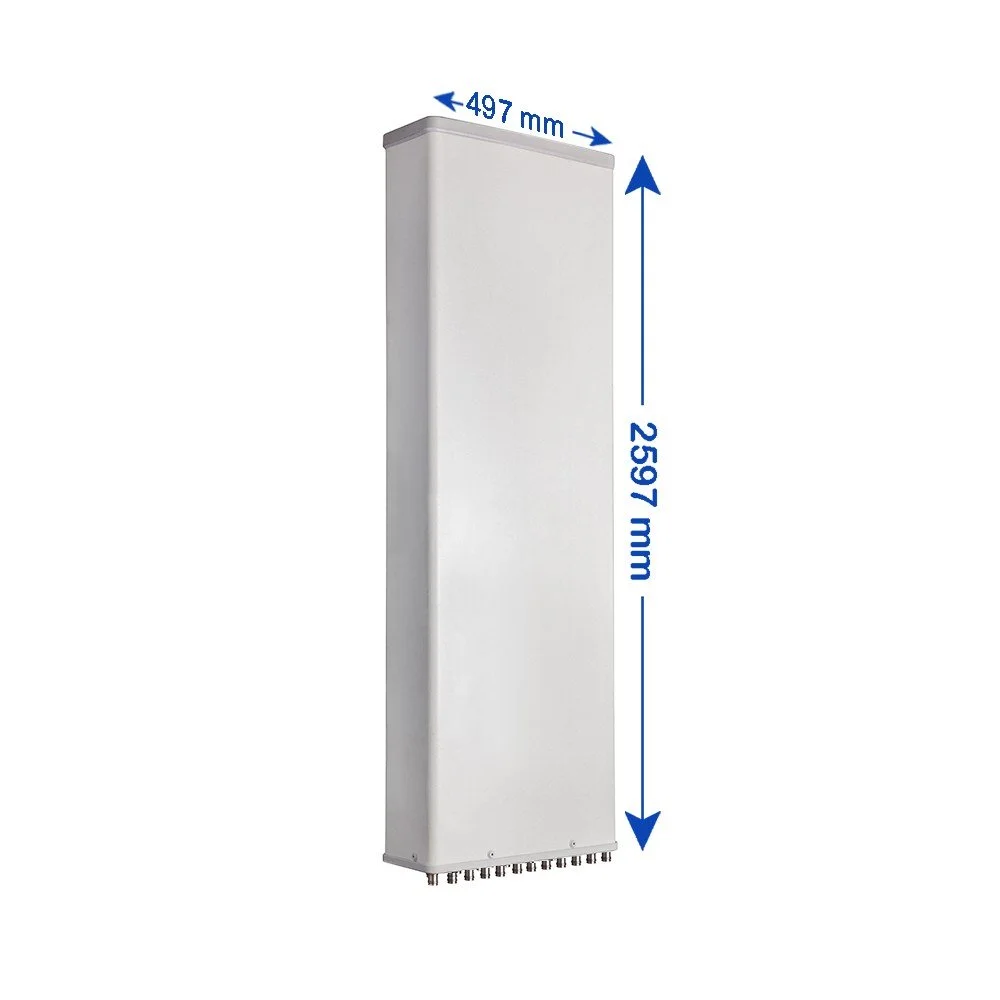

Antenna Dimensions (H × W × D) — mm (in) 2597 × 497 × 197 (102.2 × 19.6 × 7.8)
Antenna Weight Antenna Only kg (lbs) 44.5 (98.1)
with Clamps kg (lbs) 52 (114.6)
Maximum Wind Speed — km/h (mph) 200 (124.3)
Wind Load at 150 km/h Frontal N (lbf) 1195 (268.6)
Rear N (lbf) 1335 (300.1)
Lateral N (lbf) 585 (131.5)
Operating Temperature — °C (°F) -40 to +60 (-40 to +140)
