12-Port, Hybrid, Split-Beam, Panel Sector Antenna ( 698 -2690 MHz )

₹0.00

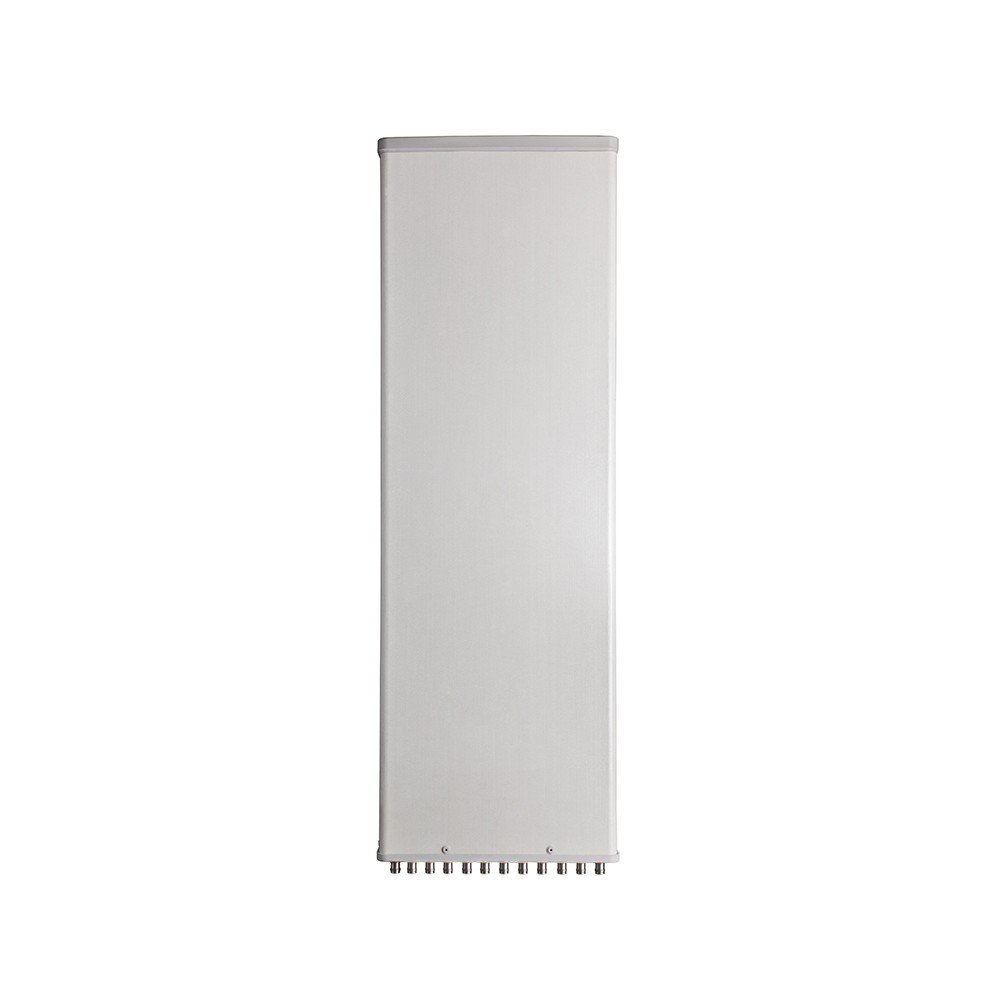

12‑Port Hybrid Split‑Beam Panel Sector Antenna (698–2690 MHz)
A high-performance 12‑port hybrid split‑beam panel sector antenna engineered for dense urban and suburban deployments across 698–2690 MHz. Combines sectorized radiation control with multi‑port flexibility to support MIMO, carrier aggregation, and mixed DAS/CC configurations. Optimized for modern mobile networks where capacity, isolation, and installation versatility are critical.

Key Features :

  • Frequency range: 698–2690 MHz (full LTE/3G spectrum coverage; suitable for refarmed bands)

  • 12 ports: configurable for multiple MIMO layers, multiple carriers, or mixed band operation

  • Hybrid split‑beam design: two independently optimized radiating arrays inside a single housing enable tighter beam shaping and reduced pattern overlap across sectors

  • Sector coverage: 65° nominal horizontal beamwidth (configurable variants available), designed for consistent sector overlap and capacity planning

  • High isolation between ports: reduces inter‑port interference and enables flexible antenna mapping for cross‑polarization and spatial multiplexing

  • Gain: optimized per sub‑band to maximize link budget across the operating spectrum

  • Low VSWR: ensures efficient power transfer and reliable performance across all ports

  • Robust input power handling: suited for high‑power base station and active DAS scenarios

  • Lightweight, compact housing: minimizes windload and rooftop footprint

  • Corrosion‑resistant materials and marine‑grade finish for long life in outdoor environments

  • Integrated mounting hardware: quick mast or bracket attachment with azimuth and electrical downtilt adjustments

  • Lightning protection: DC grounding and surge protection provisions

12‑Port Hybrid Split‑Beam Panel Sector Antenna (698–2690 MHz)
A high-performance 12‑port hybrid split‑beam panel sector antenna engineered for dense urban and suburban deployments across 698–2690 MHz. Combines sectorized radiation control with multi‑port flexibility to support MIMO, carrier aggregation, and mixed DAS/CC configurations. Optimized for modern mobile networks where capacity, isolation, and installation versatility are critical.

Key Features :

  • Frequency range: 698–2690 MHz (full LTE/3G spectrum coverage; suitable for refarmed bands)

  • 12 ports: configurable for multiple MIMO layers, multiple carriers, or mixed band operation

  • Hybrid split‑beam design: two independently optimized radiating arrays inside a single housing enable tighter beam shaping and reduced pattern overlap across sectors

  • Sector coverage: 65° nominal horizontal beamwidth (configurable variants available), designed for consistent sector overlap and capacity planning

  • High isolation between ports: reduces inter‑port interference and enables flexible antenna mapping for cross‑polarization and spatial multiplexing

  • Gain: optimized per sub‑band to maximize link budget across the operating spectrum

  • Low VSWR: ensures efficient power transfer and reliable performance across all ports

  • Robust input power handling: suited for high‑power base station and active DAS scenarios

  • Lightweight, compact housing: minimizes windload and rooftop footprint

  • Corrosion‑resistant materials and marine‑grade finish for long life in outdoor environments

  • Integrated mounting hardware: quick mast or bracket attachment with azimuth and electrical downtilt adjustments

  • Lightning protection: DC grounding and surge protection provisions

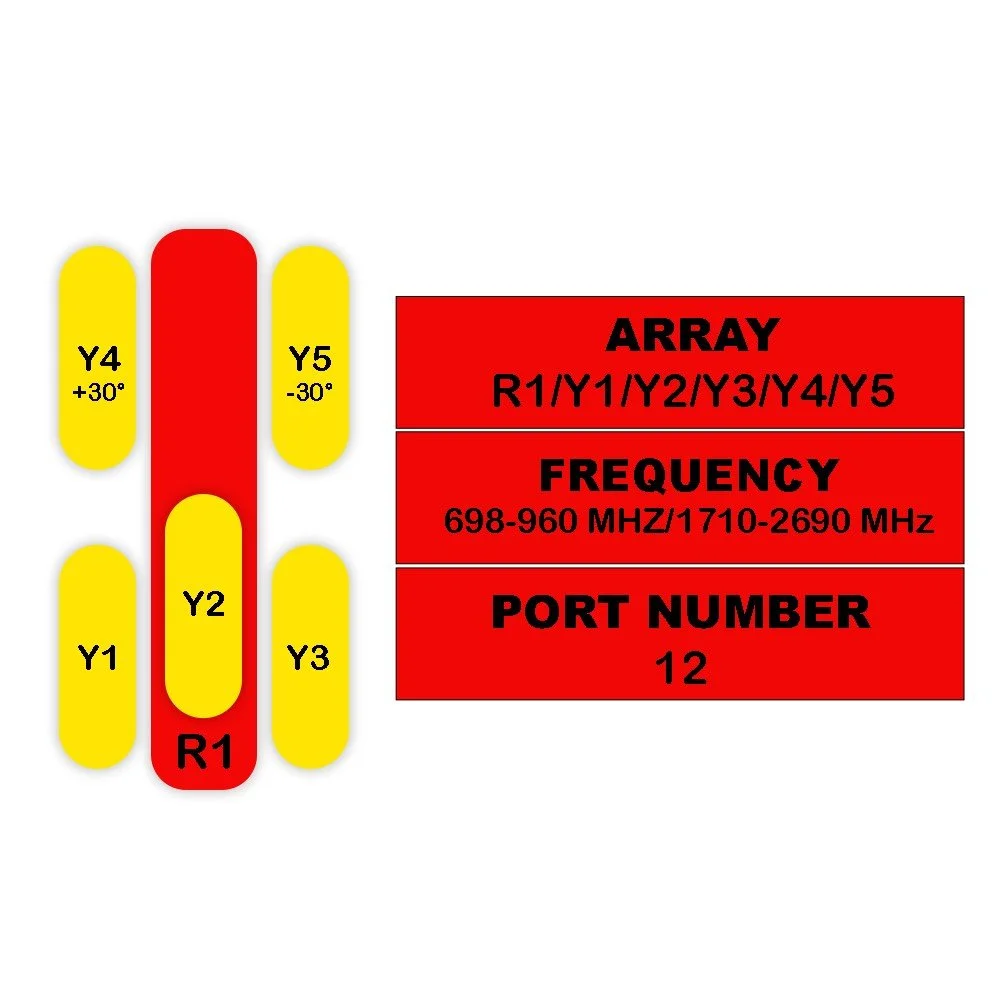

Electrical Specifications R1 B1 Y1
Unit 698-806 790-894 880-960 1710-1880 2500-2690
Frequency Range MHz 698-960
Polarization --- ±45° ±45°
Gain at Mid Tilt dBi 15.8 16.4 16.8 16.2 17.1
Over All Tilts dBi 15.7 ± 0.6 16.3 ± 0.6 16.7 ± 0.6 16.1 ± 0.6 17.0 ± 0.8
Horizontal Beamwidth degree 70 ± 6 67 ± 6 63 ± 6 67 ± 7 60 ± 7
Vertical Beamwidth degree 8.2 ± 0.9 7.3 ± 0.8 6.7 ± 0.7 7.5 ± 0.8 5.5 ± 0.6
Electrical Downtilt, Continuously Adjustable degree 2-12 2-12
First Upper Side Lobe Suppression dB ≥ 15 ≥ 15 ≥ 15 ≥ 15 ≥ 15
Front-To-Back Ratio Co-pol, ±30° dB ≥ 23 ≥ 23 ≥ 24 ≥ 24 ≥ 25
Cross Polar at Boresight dB ≥ 15 ≥ 15 ≥ 15 ≥ 16 ≥ 16
Discrimination Over Sector dB ≥ 8 ≥ 8 ≥ 8 ≥ 8 ≥ 5
Isolation Interband dB ≥ 25 ≥ 25
Intraband dB ≥ 25 ≥ 25
Impedance Ohm 50 50
VSWR --- < 1.5 < 1.5
Return Loss dB > 14 > 14
PIM3 (2x43 dBm Carrier) dBc < -150 < -150
Lightning Protection --- DC Ground DC Ground
Maximum Average Input Power per Port, at 50°C Ambient Temperature Watts 250 200
Electrical Specifications Y2 Y3 / Y4
MHz 1710-2690 1710-2690
MHz 1710-1880 1850-1990 1920-2170 2300-2400 2500-2690 1710-1880 1850-1990 1920-2170 2300-2400 2500-2690
Polarization --- ±45° ±45°
Gain At Mid Tilt dBi 16.6 17 17.3 17.6 17.5 17.6 17.9 18.1 18.8 18.7
Over All Tilts dBi 16.5 ± 0.6 16.9 ± 0.6 17.2 ± 0.6 17.5 ± 0.6 17.4 ± 0.8 17.5 ± 0.6 17.8 ± 0.6 18.0 ± 0.6 18.7 ± 0.6 18.6 ± 0.6
Horizontal Beamwidth degree 67 ± 7 66 ± 7 64 ± 7 65 ± 7 60 ± 7 35 ± 3 33 ± 3 30 ± 3 27 ± 3 25 ± 3
Vertical Beamwidth degree 7.5 ± 0.8 7.0 ± 0.7 6.7 ± 0.7 6.1 ± 0.6 5.5 ± 0.6 9.8 ± 1.0 9.0 ± 0.9 8.5 ± 0.9 7.2 ± 0.7 6.7 ± 0.7
Electrical Downtilt, Continuously Adjustable degree 2-12 2-12
First Upper Side Lobe Suppression dB ≥ 15≥ 15≥ 15≥ 15≥ 15 ≥ 15≥ 15≥ 15≥ 15≥ 15
Front-To-Back Ratio Co-pol, ±30° dB ≥ 24≥ 24≥ 25≥ 25≥ 25 ≥ 23≥ 24≥ 25≥ 25≥ 25
Cross Polar At Boresight dB ≥ 16≥ 16≥ 16≥ 16≥ 16 ≥ 15≥ 15≥ 15≥ 15≥ 15
Discrimination Over Sector dB ≥ 8≥ 8≥ 8≥ 6≥ 5
Isolation Intraband (Same-Beam) dB ≥ 25 ≥ 25
Beam-To-Beam dB --- ≥ 15
Interband dB ≥ 25 ≥ 25
Impedance Ohm 50 50
VSWR --- < 1.5 < 1.5
Return Loss dB > 14 > 14
PIM3 (2x43 dBm Carrier) dBc < -150 < -150
Lightning Protection --- DC Ground DC Ground
Maximum Average Input Power per Port, at 50°C Ambient Temperature Watts 200 200
Mechanical Specifications

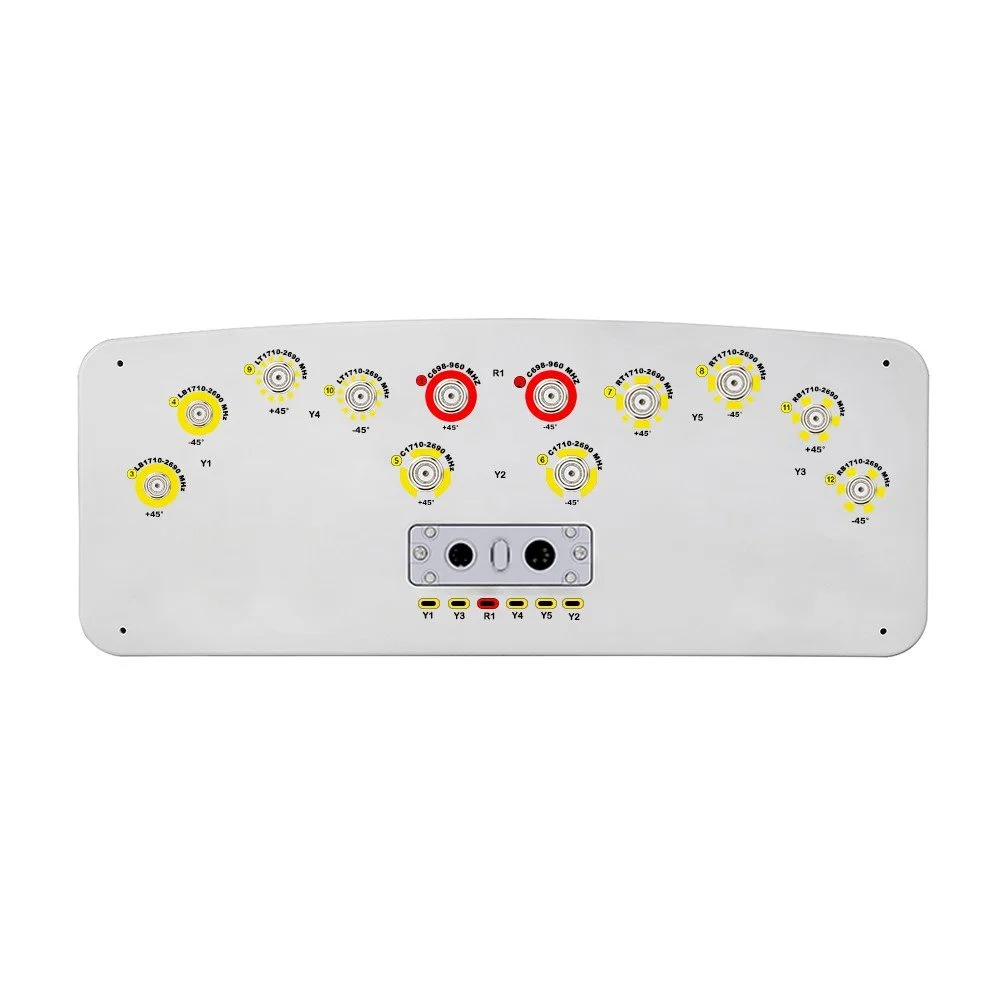

Connector Type --- (12x) 4.3/10 Female
Connector Position --- Bottom
Electrical Tilt Control --- Integrated RET
Radome Material --- UPVC

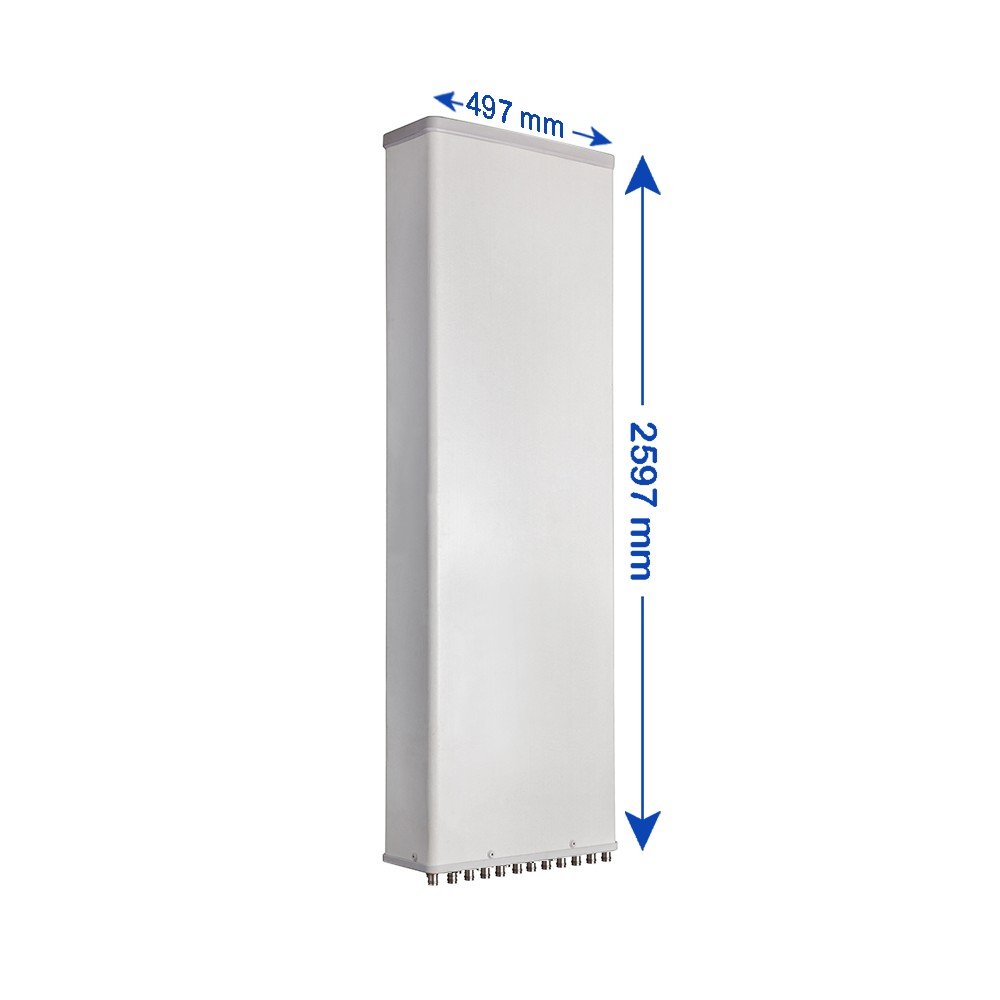

Antenna Dimensions (H × W × D) mm (in) 2597 × 350 × 178 (102.2 × 13.8 × 7.0)
Antenna Weight – Antenna Only kg (lbs) 38 (83.8)
Antenna Weight – With Clamps kg (lbs) 43.5 (95.9)
Maximum Wind Speed km/h (mph) 200 (124.3)
Wind Load at 150 km/h – Frontal N (lbf) 840 (188.8)
Wind Load at 150 km/h – Rear N (lbf) 940 (211.3)
Wind Load at 150 km/h – Lateral N (lbf) 580 (130.4)
Operating Temperature °C (°F) -40 to +60 (-40 to +140)
