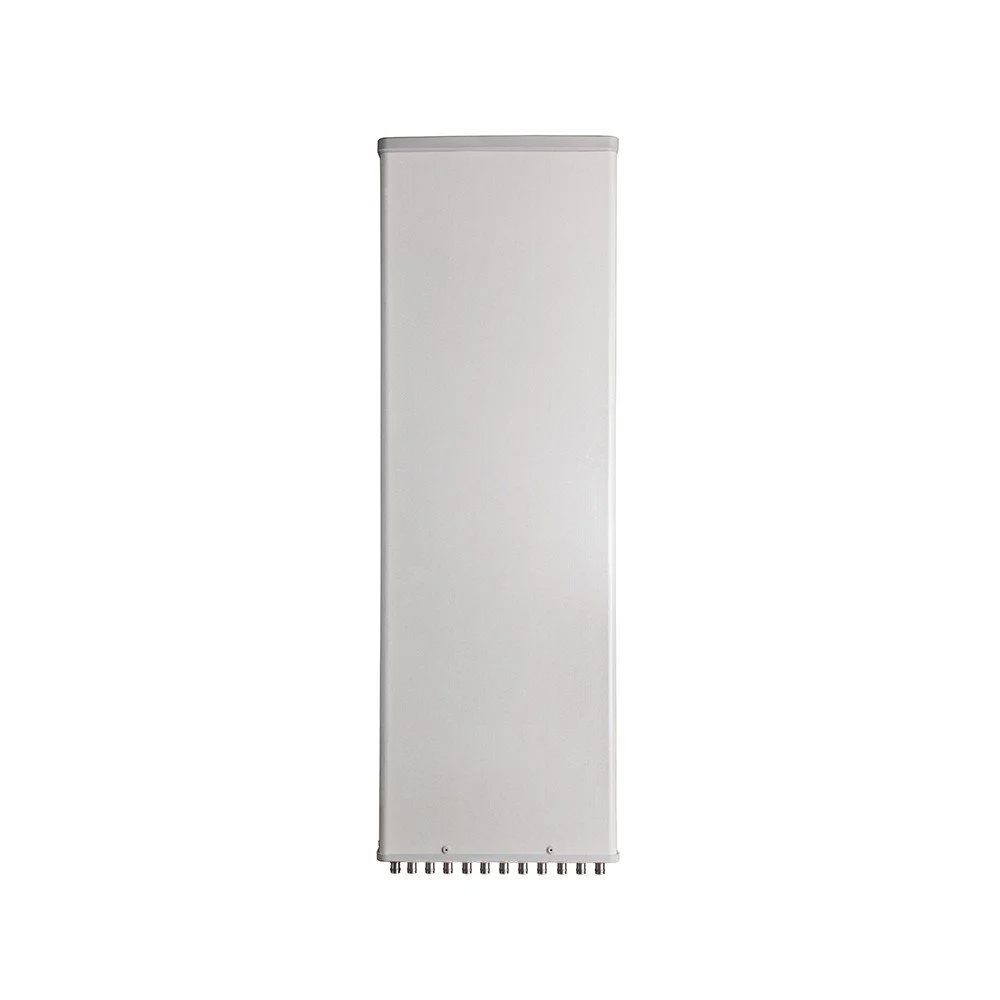

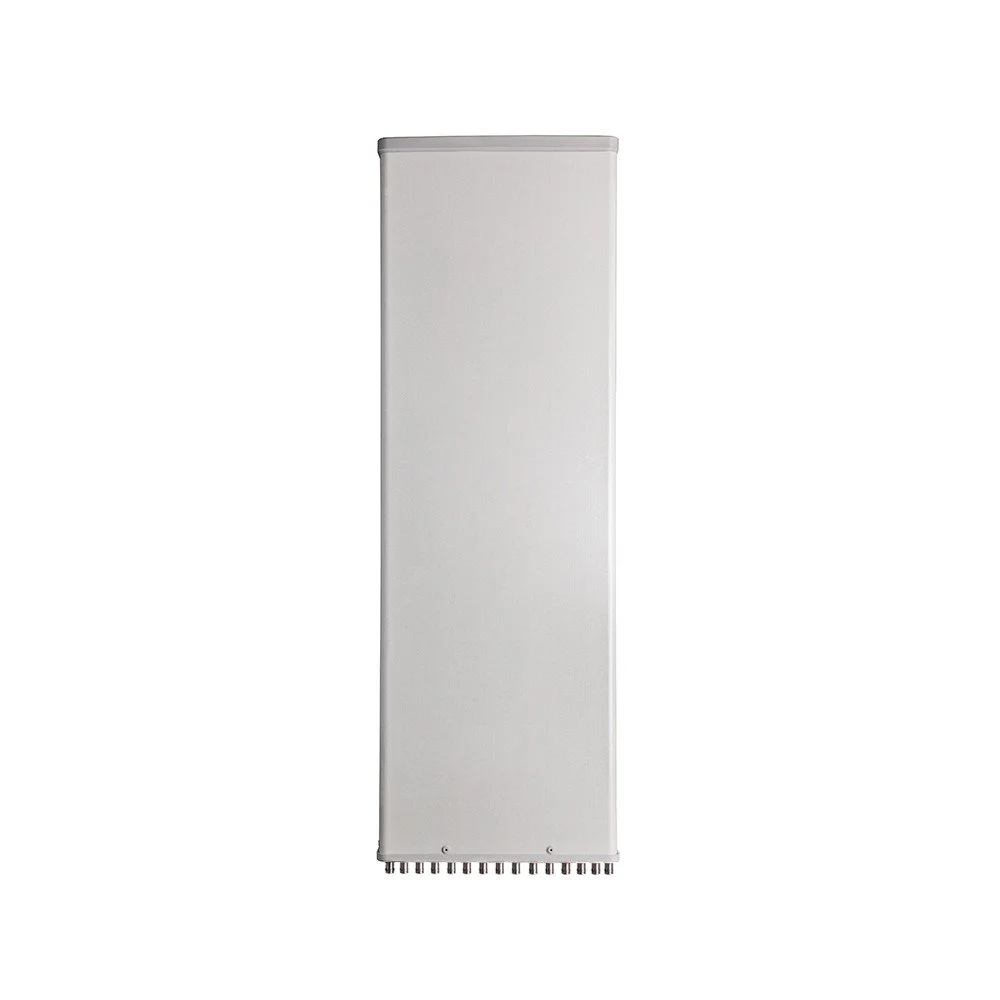

12-Port, 3-Beam Panel Sector Antenna Frequency: 1710 – 2170 MHz

Overview A high-performance, compact sector antenna engineered for modern mobile and private wireless networks. The 12-port, 3-beam design delivers controlled sectorization, enhanced capacity, and superior interference management across the 1710–2170 MHz bands. Ideal for dense urban macro sites, small cell clusters, and private enterprise deployments requiring multi-sector coverage with a single mounting footprint.

Key Features :

  • Frequency range: 1710–2170 MHz (covers common GSM, UMTS, and mid-band LTE/NR allocations)

  • 12 RF ports arranged as three independently downtilted beams (4 ports per beam)

  • Electrically isolated ports for MIMO and multi-carrier operation

  • Narrow azimuth beamwidth per beam for precise sector control

  • Built-in mechanical downtilt and remote electrical downtilt support

  • Integrated hybrid combiners and diplexing options available (model dependent)

  • Rugged outdoor enclosure rated for IP65+ (weather and salt fog resistant)

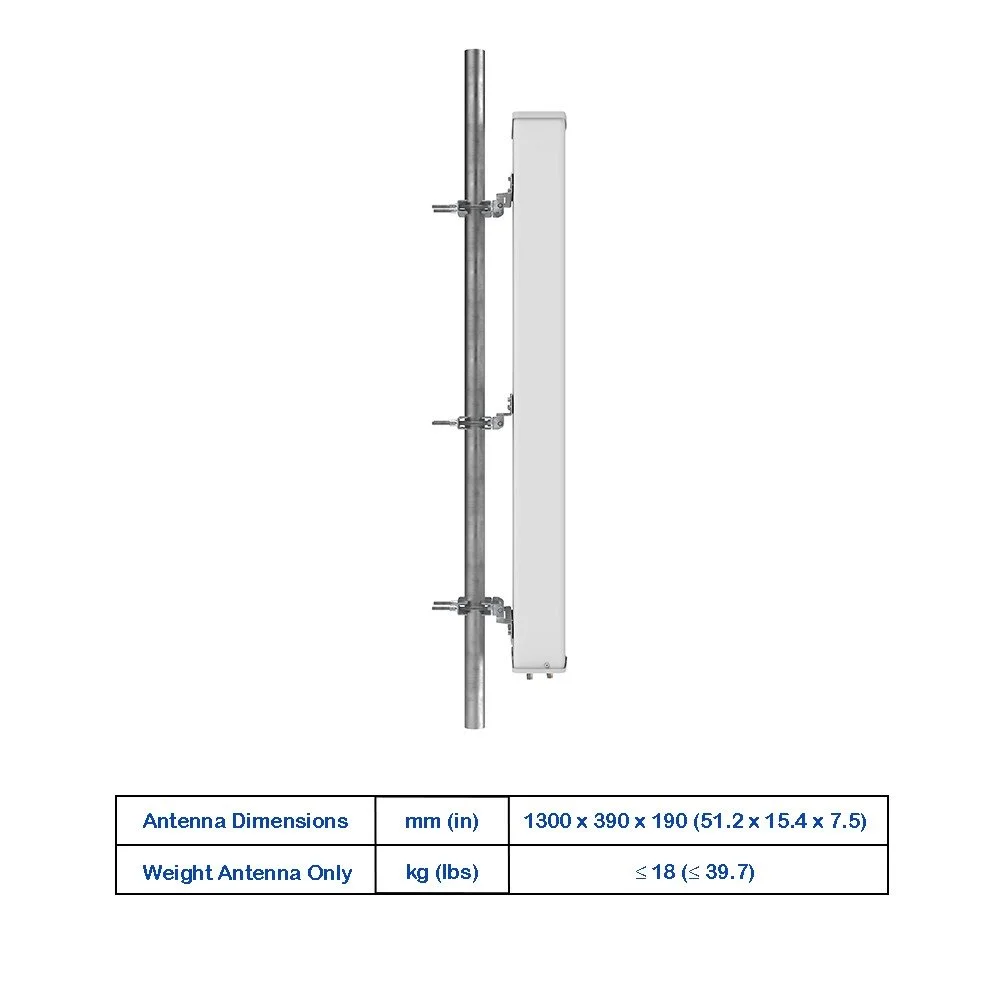

  • Corrosion-resistant mounting hardware for monopole and tower attachments

  • Low wind load and compact form factor for reduced visual impact

  • Lightweight design for simplified installation and O&M

12-Port, 3-Beam Panel Sector Antenna Frequency: 1710 – 2170 MHz

Overview A high-performance, compact sector antenna engineered for modern mobile and private wireless networks. The 12-port, 3-beam design delivers controlled sectorization, enhanced capacity, and superior interference management across the 1710–2170 MHz bands. Ideal for dense urban macro sites, small cell clusters, and private enterprise deployments requiring multi-sector coverage with a single mounting footprint.

Key Features :

  • Frequency range: 1710–2170 MHz (covers common GSM, UMTS, and mid-band LTE/NR allocations)

  • 12 RF ports arranged as three independently downtilted beams (4 ports per beam)

  • Electrically isolated ports for MIMO and multi-carrier operation

  • Narrow azimuth beamwidth per beam for precise sector control

  • Built-in mechanical downtilt and remote electrical downtilt support

  • Integrated hybrid combiners and diplexing options available (model dependent)

  • Rugged outdoor enclosure rated for IP65+ (weather and salt fog resistant)

  • Corrosion-resistant mounting hardware for monopole and tower attachments

  • Low wind load and compact form factor for reduced visual impact

  • Lightweight design for simplified installation and O&M

Electrical Specifications

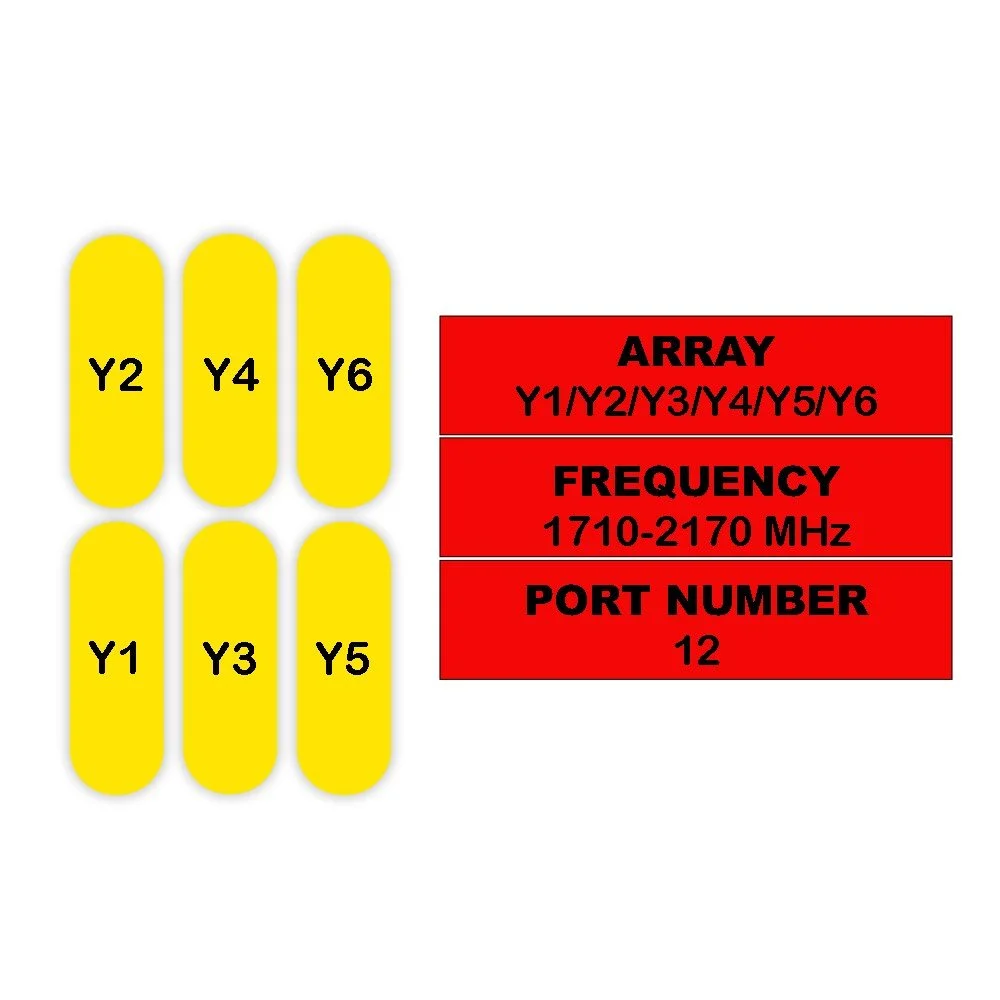

Parameter Unit Y1 (1710-1880) Y2 (1920-2170) Y3 (1710-1880) Y4 (1920-2170) Y5 (1710-1880) Y6 (1920-2170)
Frequency Range MHz 1710-1880 1920-2170 1710-1880 1920-2170 1710-1880 1920-2170
Polarization — ±45° ±45° ±45° ±45° ±45° ±45°
Gain dBi 16.9 ± 0.5 17.4 ± 0.5 18 ± 0.5 18.7 ± 0.5 16.9 ± 0.5 17.4 ± 0.5
Horizontal Beamwidth degree 31 ± 3 27 ± 3 26.5 ± 3 24 ± 3 31 ± 3 27 ± 3
Vertical Beamwidth degree 9.2 ± 1 8.2 ± 1 9 ± 1 8 ± 1 9.2 ± 1 8.2 ± 1
Electrical Downtilt (Continuous) degree 0–10 0–10 0–10
First Upper Side Lobe Suppression dB ≥ 15 ≥ 15 ≥ 15 ≥ 15 ≥ 15 ≥ 15
Front-To-Back Ratio (Co-Pol) dB ≥ 25 ≥ 25 ≥ 25 ≥ 25 ≥ 25 ≥ 25
Cross Polar Discrimination (Boresight) dB ≥ 15 ≥ 15 ≥ 15 ≥ 15 ≥ 15 ≥ 15
Cross Polar Discrimination (Sector 3 dB) dB ≥ 7 ≥ 7 ≥ 7 ≥ 7 ≥ 7 ≥ 7
Isolation (Interport) dB ≥ 25 ≥ 25 ≥ 25
Isolation (Beam-To-Beam) dB ≥ 16 ≥ 16 ≥ 16
Impedance Ohm 50 50 50
VSWR — ≤ 1.5 ≤ 1.5 ≤ 1.5
PIM3 (2×43 dBm Carrier) dBc < -150 < -150 < -150
Lightning Protection — DC Ground DC Ground DC Ground
Max Avg Input Power per Port (50°C) Watts 250 250 250
Mechanical Specifications
Parameter Sub-Category Unit Value

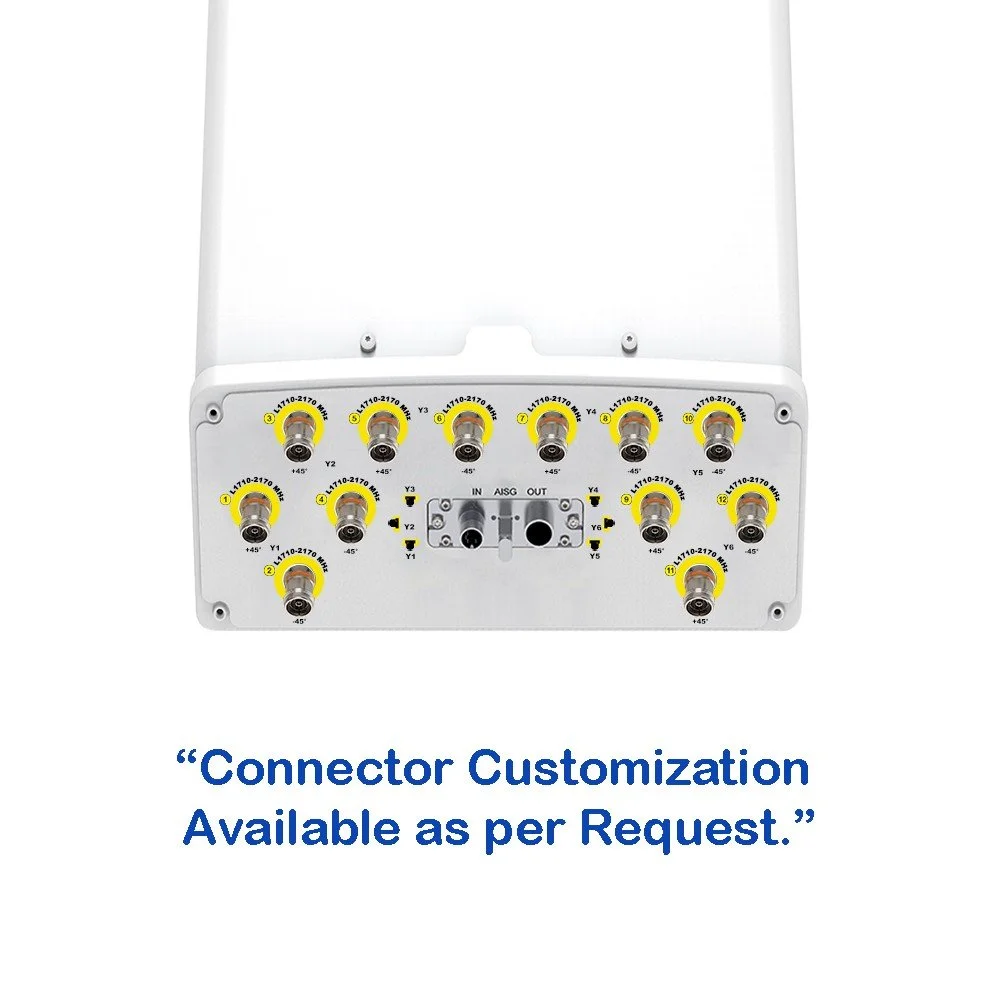

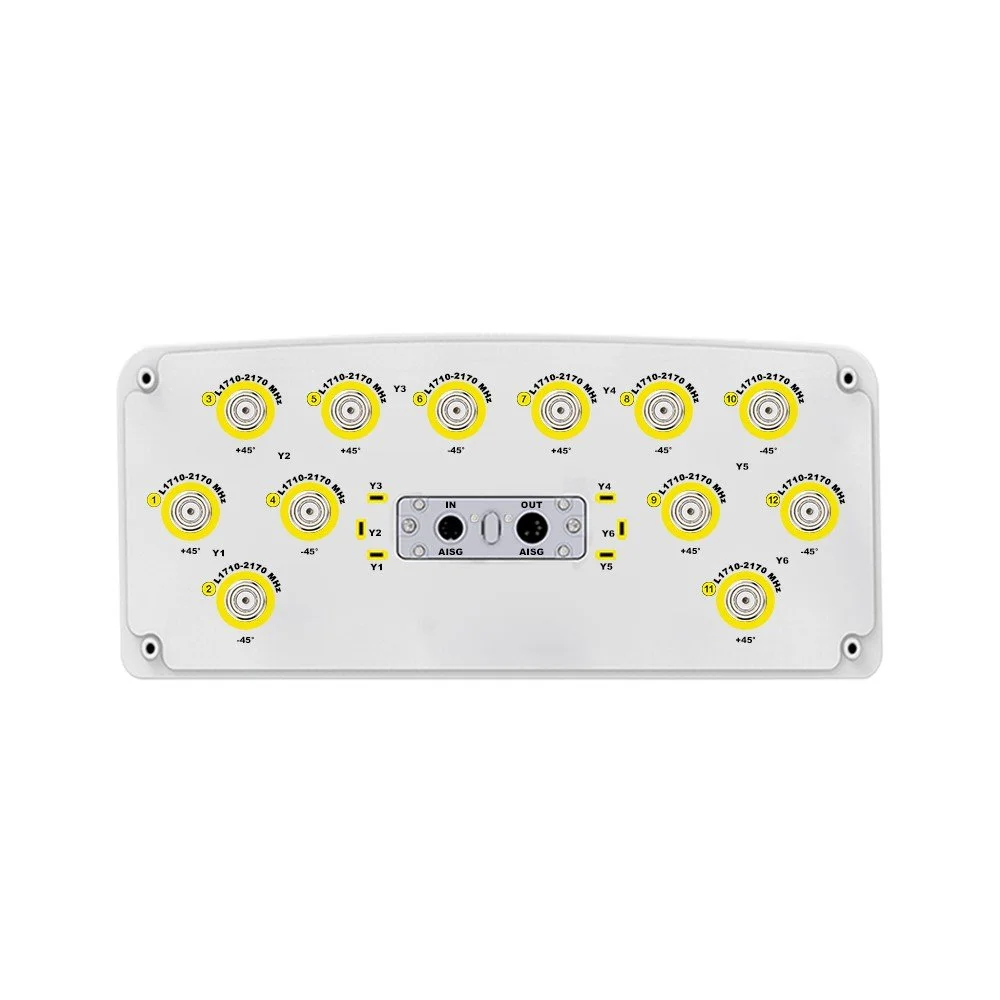

Connector Type — — (12x) 4.3/10 Female
Connector Position — — Bottom
Electrical Tilt Control — — Integrated RET
Radome Material — — FRP, UV Resistance

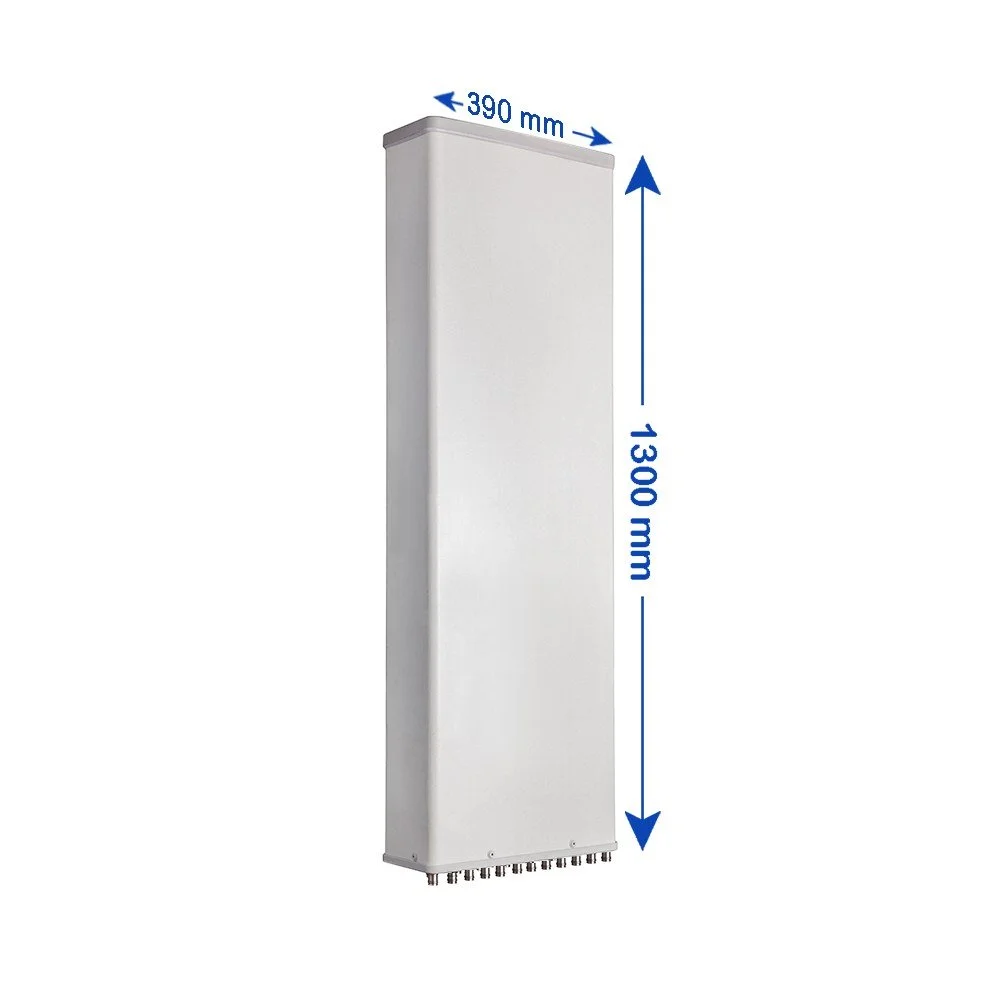

Antenna Dimensions (H × W × D) — mm (in) 1300 × 390 × 190 (51.2 × 15.4 × 7.5)
Antenna Weight (±3%) Antenna Only kg (lbs) ≤ 18 (≤ 39.7)
Maximum Wind Speed — km/h (mph) 200 (124.3)
Wind Load at 150 km/h Frontal N (lbf) 1323 (297.4)
Rear N (lbf) 1323 (297.4)
Lateral N (lbf) 432 (97.1)
