11‑Port TDD Hybrid Panel Antenna Frequency Range: 698 – 3700 MHz

Overview :

A high-performance 11‑port TDD hybrid panel antenna engineered for dense urban and suburban deployments requiring wideband coverage, flexible sectorization, and superior TDD performance across low-, mid- and upper‑mid bands. Designed for macro and small cell sites, carrier aggregation, and multi‑operator solutions where spectral efficiency, isolation, and installation simplicity are critical.

Key Features :

  • Frequency coverage: 698–3700 MHz in a single aperture to support LTE, CBRS, 3.5 GHz deployments, and future TDD carriers.

  • 11 RF ports: Multiple ports enable independent feeding for MIMO, multi‑band sectors, operator splitting, or combined mid/low band strategies.

  • TDD-optimized hybrid design: Balanced performance for time‑division duplex operation with minimized interport interference and robust isolation between transmit and receive chains.

  • Wide instantaneous bandwidth per element: Supports aggressive carrier aggregation and dynamic spectrum allocation.

  • High isolation and low mutual coupling: Ensures MIMO performance and minimizes cross‑talk for multi‑operator setups.

  • Compact, low‑windload housing: Slim form factor that reduces tower loading and simplifies rooftop and pole installations.

  • Durable outdoor construction: IP67 or better, UV‑stabilized radome, and corrosion‑resistant mounting hardware for long outdoor life in harsh environments.

  • Flexible mounting: Adjustable tilt brackets and 360° azimuth-compatible mounting for sector alignment.

  • Lightning and ESD protection: Integrated protection features to help meet site safety and reliability requirements.

  • Balanced electrical downtilt options: Mechanical tilt with optional passive electrical downtilt modules for pattern shaping without active components.

11‑Port TDD Hybrid Panel Antenna Frequency Range: 698 – 3700 MHz

Overview :

A high-performance 11‑port TDD hybrid panel antenna engineered for dense urban and suburban deployments requiring wideband coverage, flexible sectorization, and superior TDD performance across low-, mid- and upper‑mid bands. Designed for macro and small cell sites, carrier aggregation, and multi‑operator solutions where spectral efficiency, isolation, and installation simplicity are critical.

Key Features :

  • Frequency coverage: 698–3700 MHz in a single aperture to support LTE, CBRS, 3.5 GHz deployments, and future TDD carriers.

  • 11 RF ports: Multiple ports enable independent feeding for MIMO, multi‑band sectors, operator splitting, or combined mid/low band strategies.

  • TDD-optimized hybrid design: Balanced performance for time‑division duplex operation with minimized interport interference and robust isolation between transmit and receive chains.

  • Wide instantaneous bandwidth per element: Supports aggressive carrier aggregation and dynamic spectrum allocation.

  • High isolation and low mutual coupling: Ensures MIMO performance and minimizes cross‑talk for multi‑operator setups.

  • Compact, low‑windload housing: Slim form factor that reduces tower loading and simplifies rooftop and pole installations.

  • Durable outdoor construction: IP67 or better, UV‑stabilized radome, and corrosion‑resistant mounting hardware for long outdoor life in harsh environments.

  • Flexible mounting: Adjustable tilt brackets and 360° azimuth-compatible mounting for sector alignment.

  • Lightning and ESD protection: Integrated protection features to help meet site safety and reliability requirements.

  • Balanced electrical downtilt options: Mechanical tilt with optional passive electrical downtilt modules for pattern shaping without active components.

Electrical Specifications
Parameter Sub Parameter Unit 698-806 790-894 880-960
Frequency Range MHz 698-806 790-894 880-960
Polarization --- ±45°
Gain at Mid Tilt dBi 15.8 16.4 16.8
Over All Tilts dBi 15.7 ± 0.6 16.3 ± 0.6 16.7 ± 0.6
Horizontal Beamwidth degree 69 ± 5 66 ± 5 63 ± 5
Vertical Beamwidth degree 8.8 ± 0.9 7.6 ± 0.8 7.1 ± 0.7
Electrical Downtilt Continuously Adjustable degree 0-10
First Upper Side Lobe Suppression dB > 16 > 16 > 16
Front-To-Back Ratio (±30°) dB > 23 > 24 > 24
Isolation Cross-Polar dB > 25
Interband dB > 25
Impedance Ohm 50
VSWR --- < 1.5
Return Loss dB > 14
Lightning Protection --- DC Ground
Maximum Average Input Power per Port (50°C) Watts 250
TDD LTE Electrical Specifications (P1)
Parameter Sub Parameter Unit Value Notes
Frequency Range MHz 3300-3700
Polarization --- ±45°
Electrical Downtilt Continuously Adjustable degree 2-12
Single Column Beam
Gain dBi 17
Horizontal Beamwidth degree 75
Vertical Beamwidth (3 dB) degree 5.8
Cross-Polar Discrimination (Boresight) dB ≥ 15
Cross-Polar Discrimination (Sector) dB ≥ 8
First Upper Side Lobe Suppression dB ≥ 15
Front-To-Back Ratio dB ≥ 23
65° Broadcast Beam
Gain dB 18
Horizontal Beamwidth (3 dB) degree 65
Vertical Beamwidth (3 dB) degree 5.8
Cross-Polar Discrimination (0°) dB ≥ 15
First Upper Side Lobe Suppression dB ≥ 15
Front-To-Back Ratio dB ≥ 25
Service Beam
0° Direct Beam Gain dBi 21.5
0° Direct Beam Horizontal 3 dB Beamwidth degree 26
0° Direct Beam Cross-Polar Ratio at Beampeak dB ≥ 16
0° Direct Beam Front-To-Back Ratio dB ≥ 27
0° Direct Beam Horizontal Sidelobe dB 12
±30° Direction Beam Gain dBi 20
±30° Direction Beam Horizontal 3 dB Beamwidth degree 28
±30° Direction Beam Front-To-Back Ratio dB ≥ 24
Soft Split Multi-Beam
Gain dBi 20
Horizontal Beamwidth (3 dB) degree 31
Front-To-Back Ratio dB ≥ 25
Calibration and Electrical Parameter
Coupling Factor Between Calibration and Each Antenna Port dB -26 ± 2
Maximum Amplitude Tolerance dB ≤ 1.0
Maximum Phase Tolerance degree ≤ 9
Ports VSWR --- < 1.5
Average Power Capacity W 25
Co-Polar Isolation Between Ports dB ≥ 23
Inter-band Isolation dB ≥ 23
Impedance Ohms 50
Lightning Protection --- DC Ground
5G Electrical Specifications (P1)
Parameter Sub Parameter Unit Value
Frequency Range MHz 3300-3700
Single Column Beam
Gain dBi 17
Horizontal Beamwidth degree 75
Vertical Beamwidth (3 dB) degree 5.8
Cross-Polar Discrimination (Boresight) dB ≥ 15
Cross-Polar Discrimination (Sector) dB ≥ 8
First Upper Side Lobe Suppression dB ≥ 15
Broadcast Beam (±13°, ±43° Service Beam)
Gain dB 21.0
Horizontal Beamwidth (10 dB) degree 120
Vertical Beamwidth (3 dB) degree 5.8
First Upper Side Lobe Suppression dB ≥ 15
Front-To-Back Ratio dB ≥ 25
Service Beam
0° Direct Beam Gain dBi 21.5
0° Direct Beam Horizontal 3 dB Beamwidth degree 26
0° Direct Beam Cross-Polar Ratio at Beampeak dB ≥ 16
0° Direct Beam Front-To-Back Ratio dB ≥ 27
0° Direct Beam Horizontal Sidelobe dB 12
Mechanical Specifications for Antenna
Mechanical Specifications Parameter Unit Value

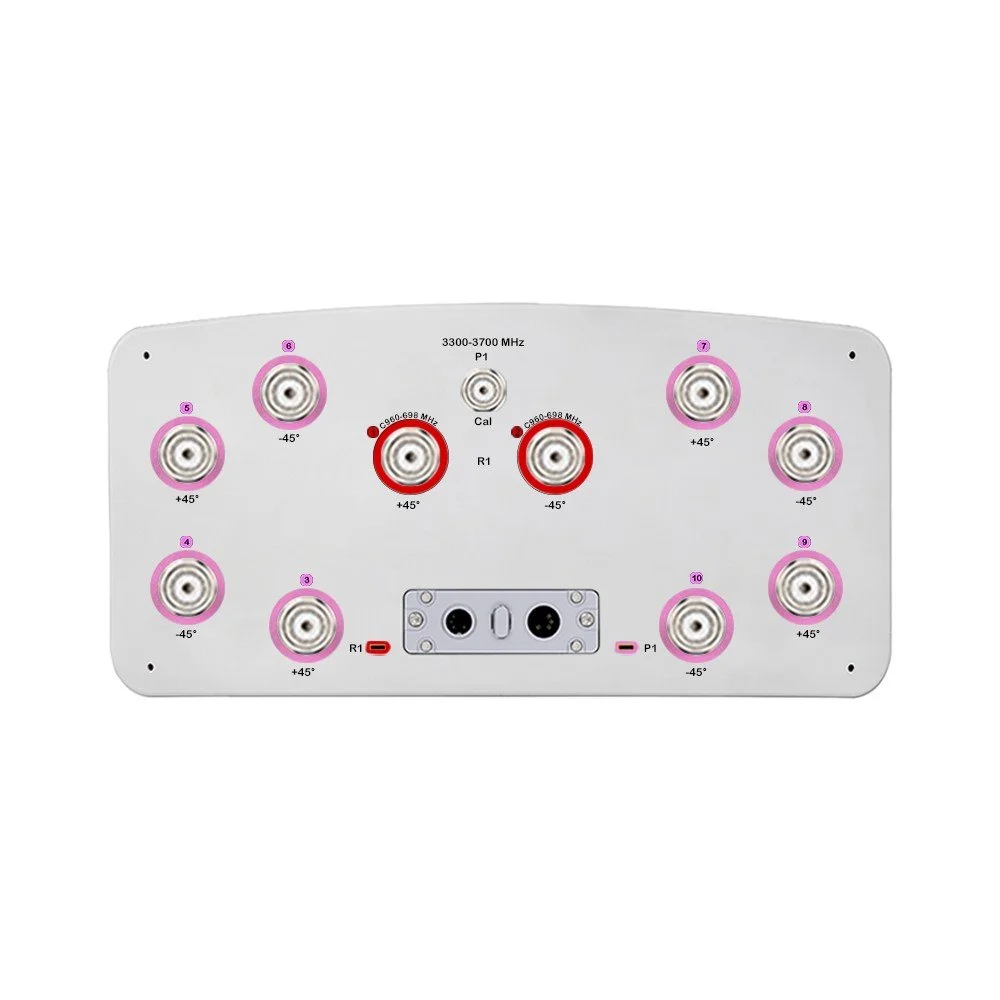

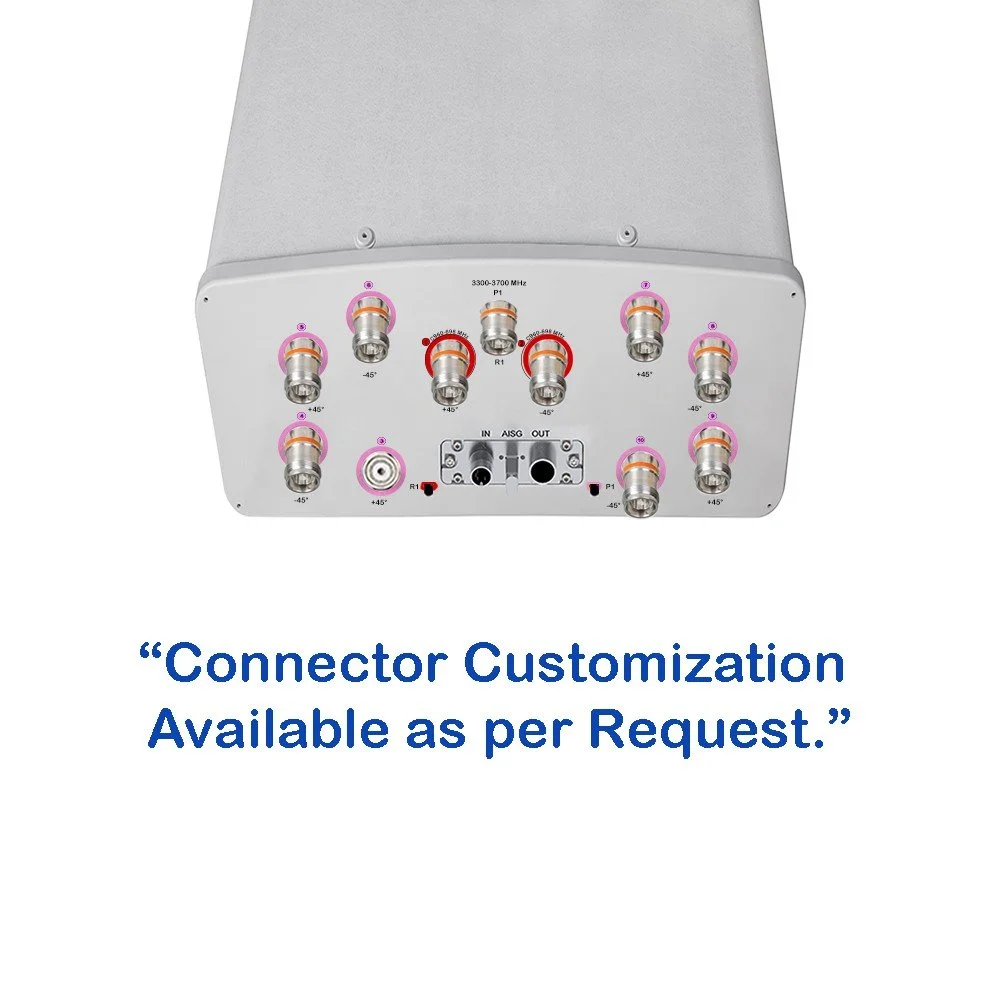

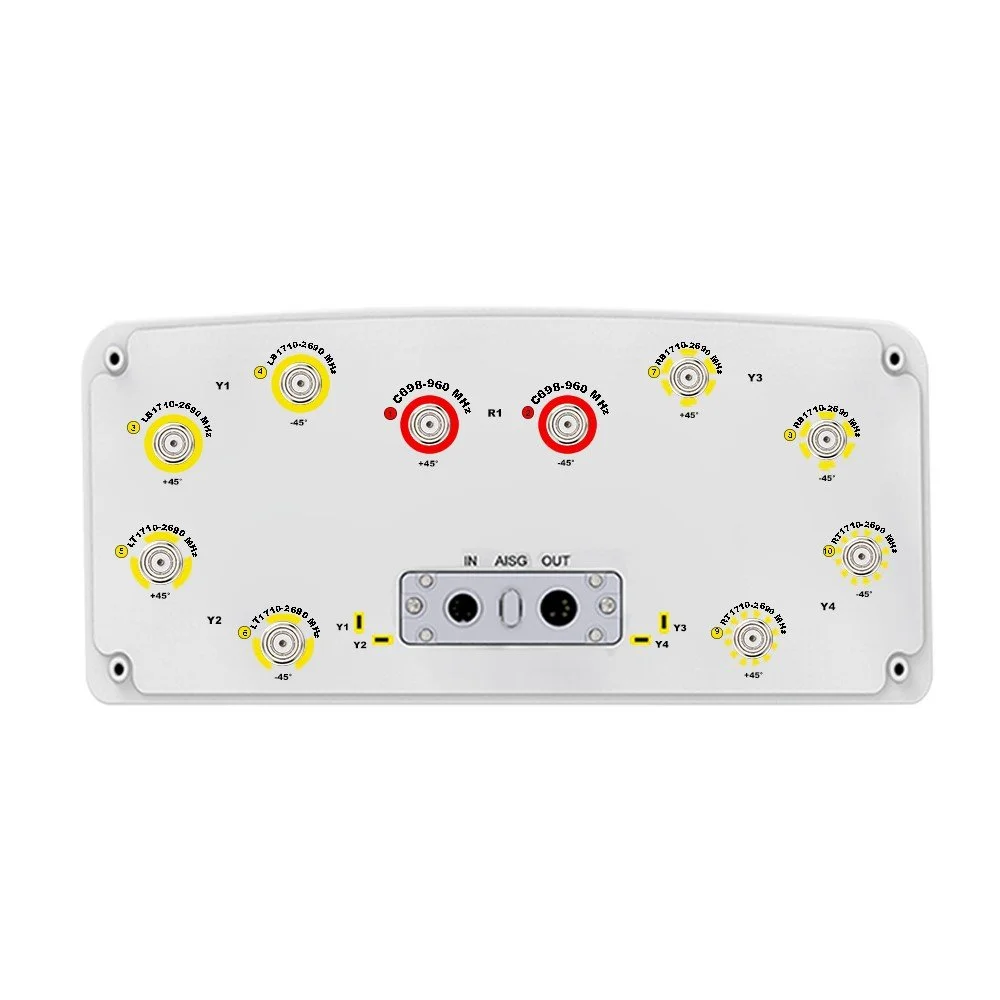

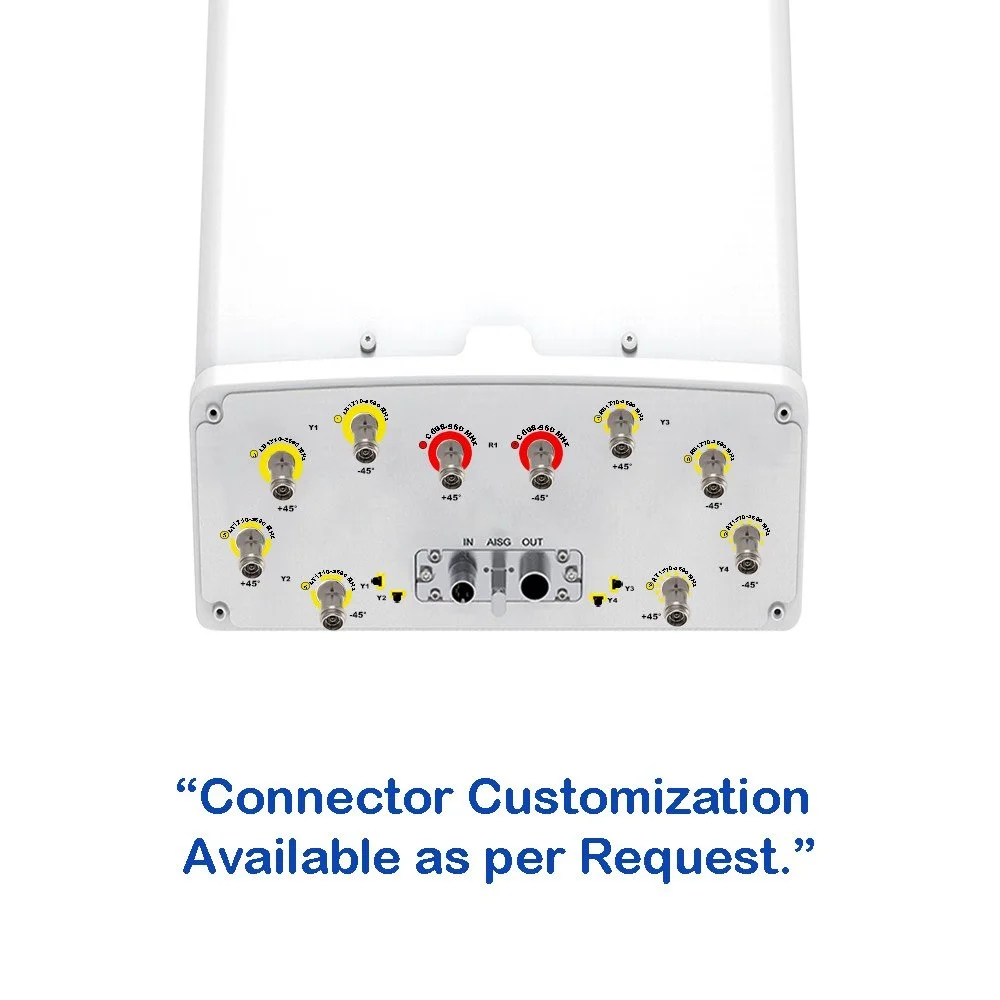

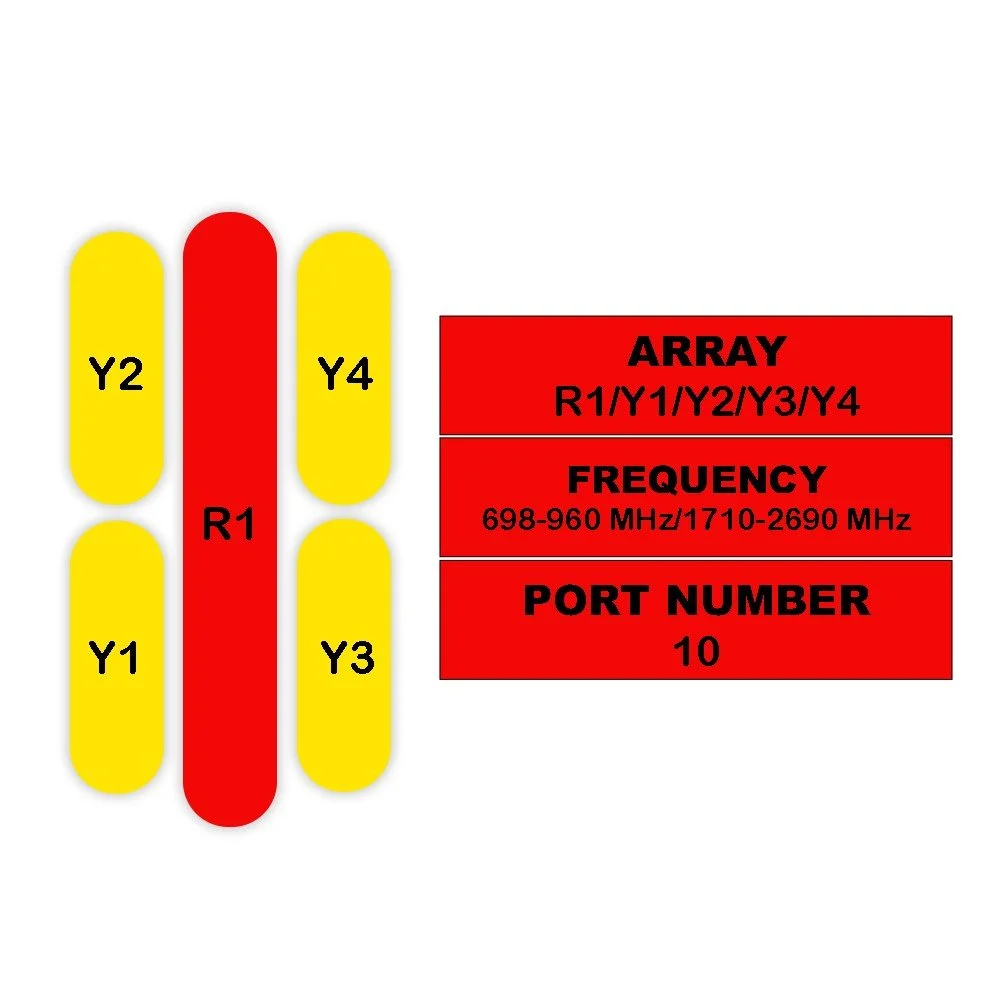

Connector Type — — (10x) 4.3/10 Female and (1x) 4.3/10 Female Calibration Port

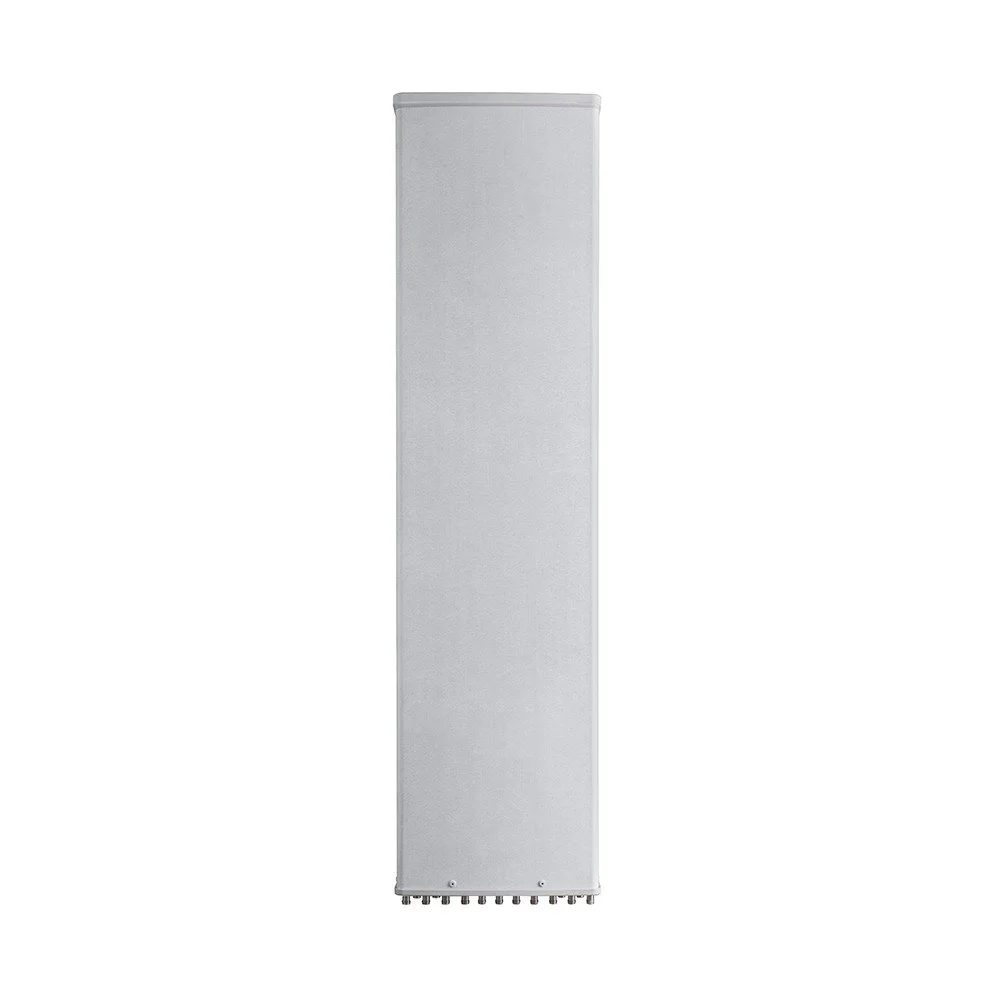

Connector Position — — Bottom

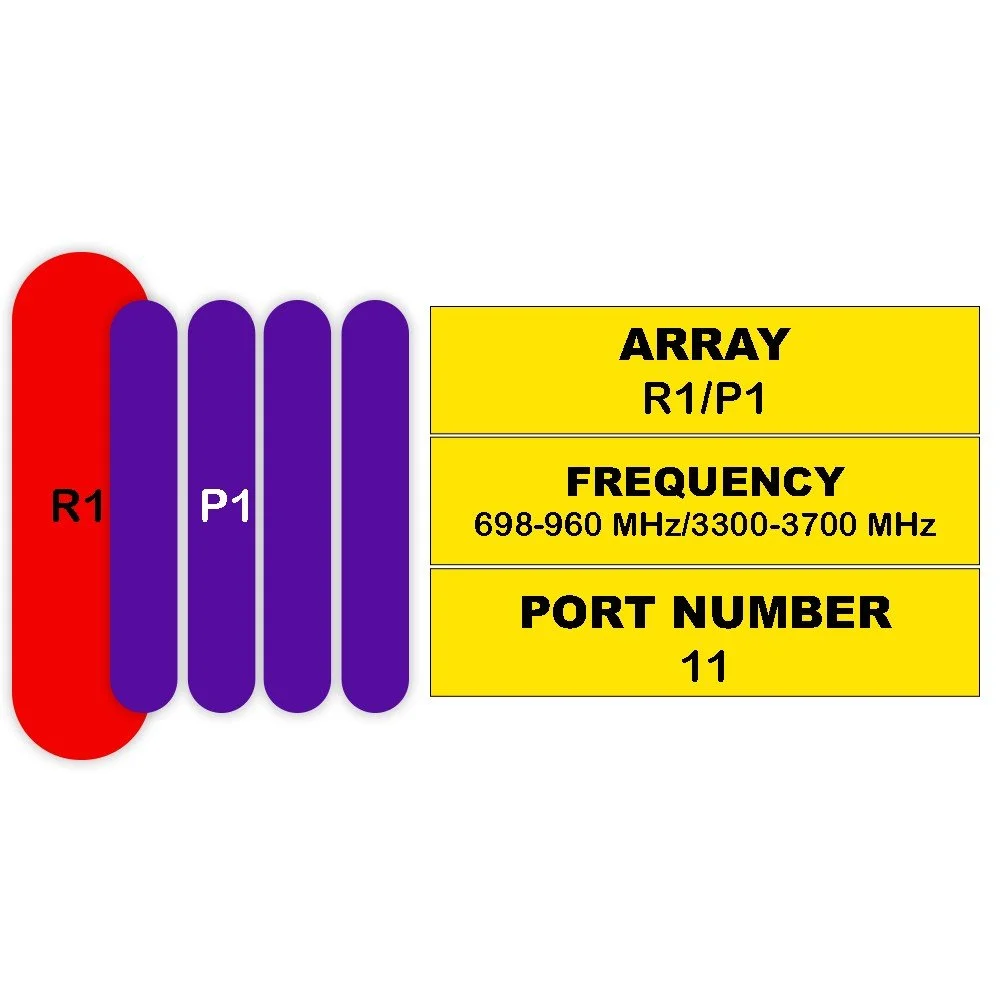

Electrical Tilt Control — — FDD: Integrated RET, Each Band Individually Adjustable
TDD: Integrated RET, Single internal RET control for all four antenna arrays
Radome Material — — UPVC

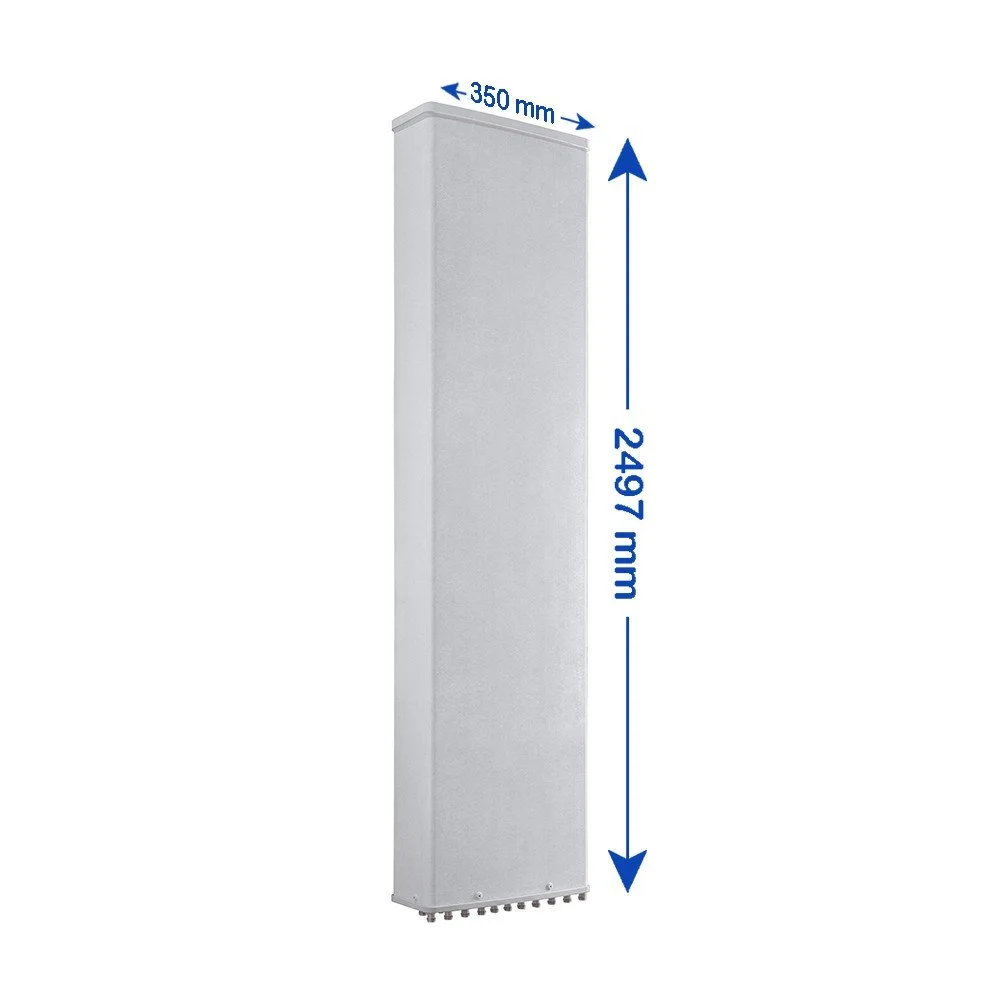

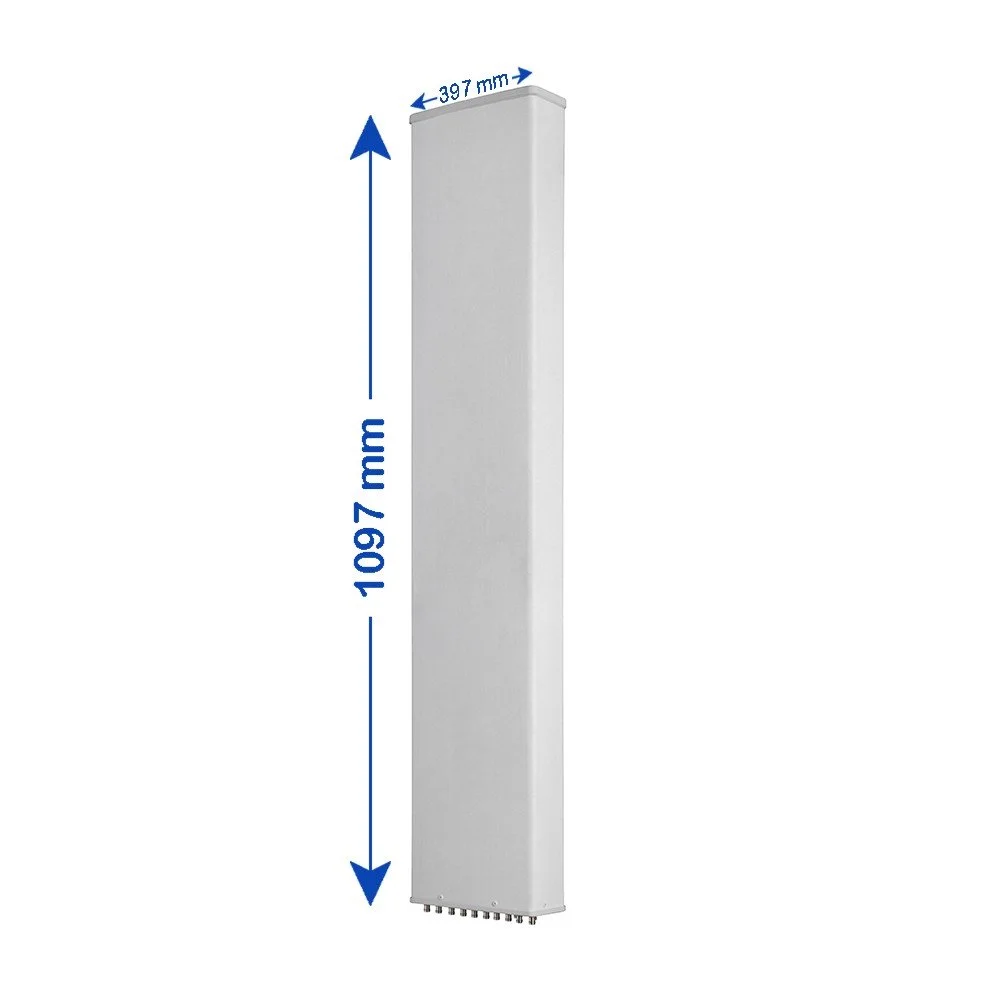

Antenna Dimensions (H × W × D) — mm (in) 2497 x 350 x 178 (98.3 x 13.8 x 7.0)
Antenna Weight (Antenna Only) — kg (lbs) 29 (63.9)
Antenna Weight (With Clamps) — kg (lbs) 33 (72.8)
Maximum Wind Speed — km/h (mph) 200 (124.3)
Wind Load at 150 km/h Frontal N (lbf) 810 (182.1)
Rear N (lbf) 905 (203.5)
Lateral N (lbf) 510 (114.7)
Operating Temperature — °C (°F) -40 to +60 (-40 to +140)
