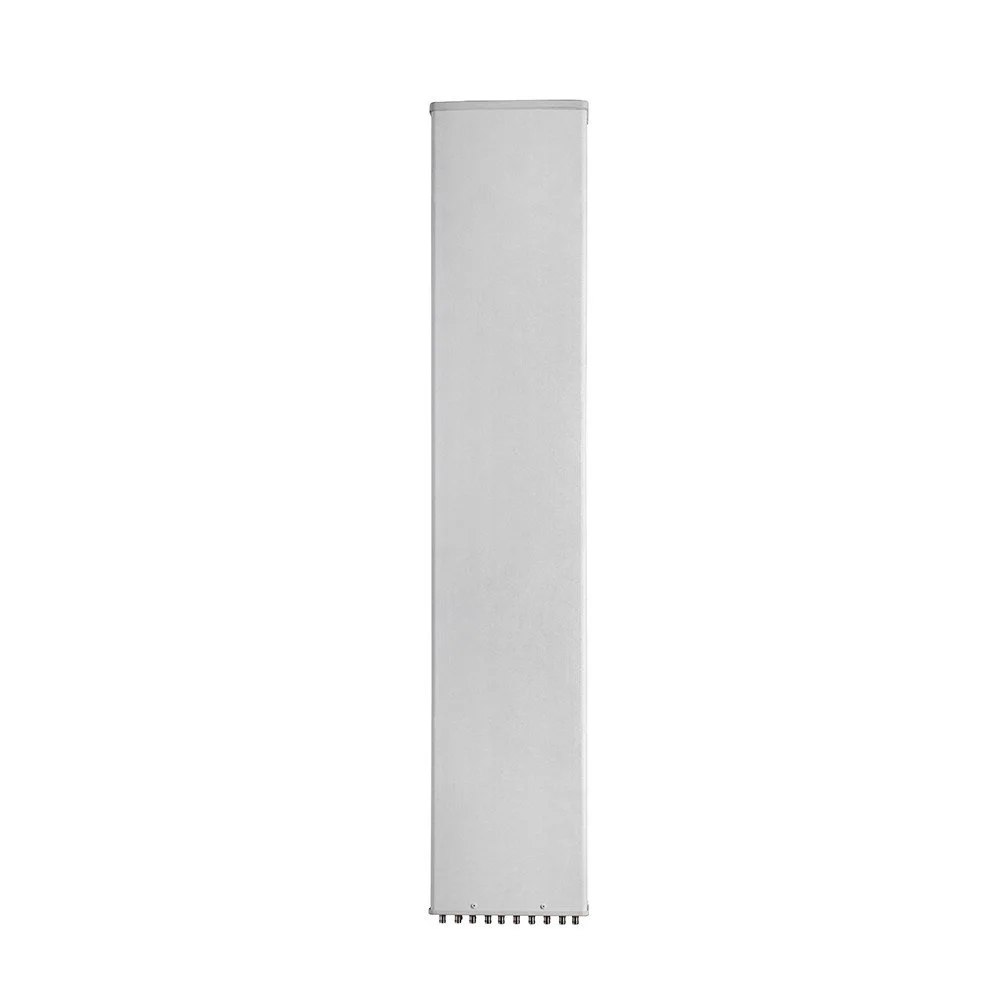

10-Port Panel Sector Antenna (698–2690 MHz)

Overview : A high-performance, multiport panel sector antenna engineered for dense cellular deployments and modern MIMO systems. Covers 698–2690 MHz to accommodate LTE and legacy bands across low and mid frequencies. Ten independently terminated ports support flexible multi-operator and multi-antenna configurations for improved capacity, coverage, and spectral efficiency.

Key Features :

  • Frequency range: 698–2690 MHz for broad carrier support

  • 10 RF ports: supports multi-operator sharing, active/passive MIMO, or antenna layering

  • Sector aperture: optimized radiation pattern for tight azimuth control and consistent sector coverage

  • High gain across the band: maximizes link budget and extends cell edge performance

  • Low inter-port isolation and controlled port-to-port coupling for reliable MIMO operation

  • Durable radome and ruggedized mounting hardware: designed for outdoor, all-weather operation

  • Easy alignment and azimuth adjustment: simplifies installation and reduces commissioning time

  • ETL/CE/RoHS-compliant materials: meets environmental and safety standards

  • Lightning and surge protection options available per site requirements

10-Port Panel Sector Antenna (698–2690 MHz)

Overview : A high-performance, multiport panel sector antenna engineered for dense cellular deployments and modern MIMO systems. Covers 698–2690 MHz to accommodate LTE and legacy bands across low and mid frequencies. Ten independently terminated ports support flexible multi-operator and multi-antenna configurations for improved capacity, coverage, and spectral efficiency.

Key Features :

  • Frequency range: 698–2690 MHz for broad carrier support

  • 10 RF ports: supports multi-operator sharing, active/passive MIMO, or antenna layering

  • Sector aperture: optimized radiation pattern for tight azimuth control and consistent sector coverage

  • High gain across the band: maximizes link budget and extends cell edge performance

  • Low inter-port isolation and controlled port-to-port coupling for reliable MIMO operation

  • Durable radome and ruggedized mounting hardware: designed for outdoor, all-weather operation

  • Easy alignment and azimuth adjustment: simplifies installation and reduces commissioning time

  • ETL/CE/RoHS-compliant materials: meets environmental and safety standards

  • Lightning and surge protection options available per site requirements

Electrical Specifications

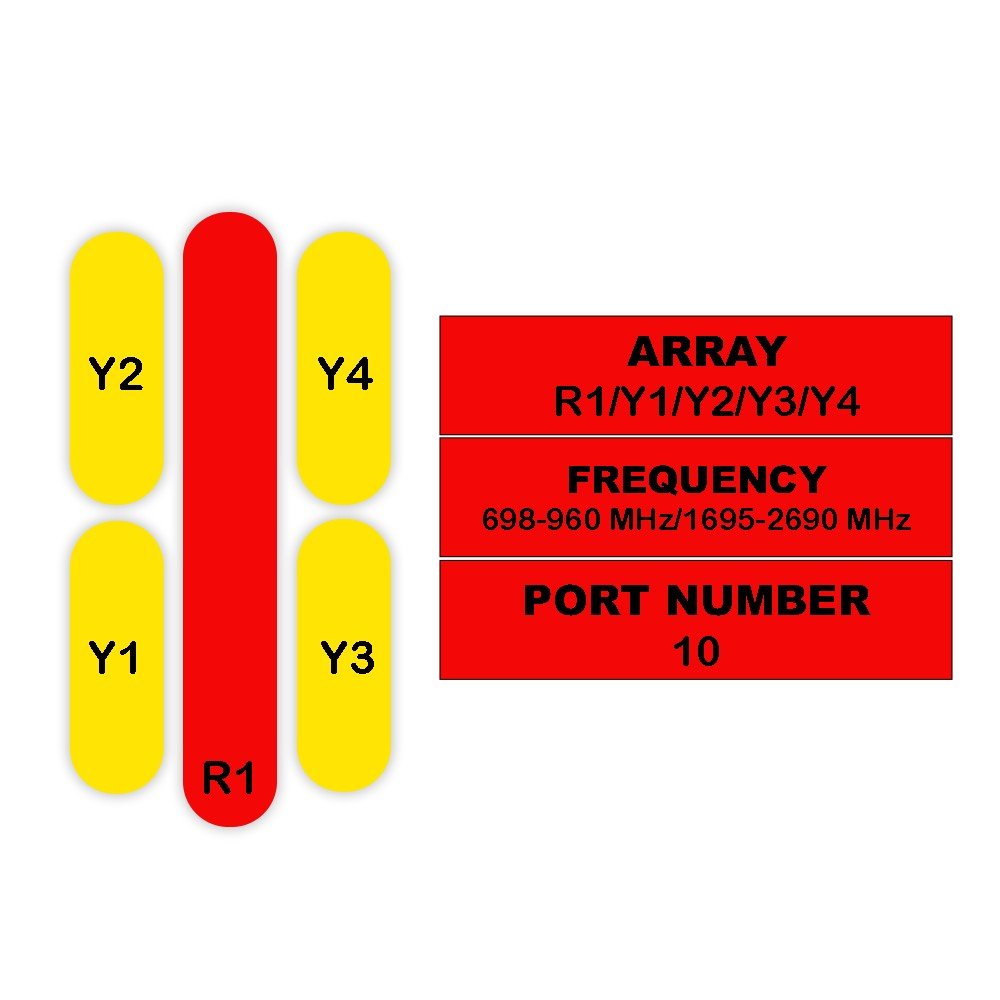

Electrical Specifications for R1 and Y1/Y2/Y3/Y4 frequency bands and antenna performance
Parameter Unit 698-806 790-894 880-960 1695-1880 1850-1990 1920-2170 2300-2400 2490-2690
R1 Y1 / Y2 / Y3 / Y4
Frequency Range MHz 698–960 1695–2690
Polarization --- ±45° ±45°
Gain (Mid Tilt) dBi 14.9 15.5 15.8 15.5 15.7 15.9 16.4 16.3
Gain (All Tilts) dBi 14.8 ± 0.6 15.4 ± 0.6 15.7 ± 0.6 15.4 ± 0.6 15.6 ± 0.6 15.8 ± 0.6 16.3 ± 0.6 16.2 ± 0.7
Horizontal Beamwidth degree 70 ± 5 68 ± 5 65 ± 5 67 ± 7.0 66 ± 6.0 65 ± 6.0 62 ± 6.0 60 ± 6.0
Vertical Beamwidth degree 11.5 ± 1.2 10.3 ± 1.0 9.5 ± 1.0 9.8 ± 1.0 9.0 ± 0.9 8.5 ± 0.9 7.4 ± 0.7 6.8 ± 0.7
Electrical Downtilt degree 2–12 2–12
First Upper Side Lobe dB > 15
Front-To-Back Ratio (±30°) dB > 23 > 25 > 25 > 25 > 24 > 25 > 25 > 25
Cross Polar Discrimination (Boresight) dB > 17 > 17 > 17 > 20 > 20 > 20 > 20 > 20
Cross Polar Discrimination (Sector) dB > 8.0 > 8.0 > 8.0 > 10 > 9 > 9 > 8 > 5
Isolation (Cross-Polar) dB > 28 > 28
Isolation (Port-to-Port) dB > 28 > 28
Isolation (Interband) dB > 28 > 28
Impedance Ohm 50
VSWR --- < 1.5
Return Loss dB > 14
PIM3 (2x43 dBm) dBc < -150
Lightning Protection --- DC Ground
Max Input Power (50°C) Watts 250 200
Mechanical Specifications
Mechanical Specifications comparison of two antenna variants (1997 mm and 1597 mm models)
Parameter Sub-Parameter Unit 1997 mm Model 1597 mm Model

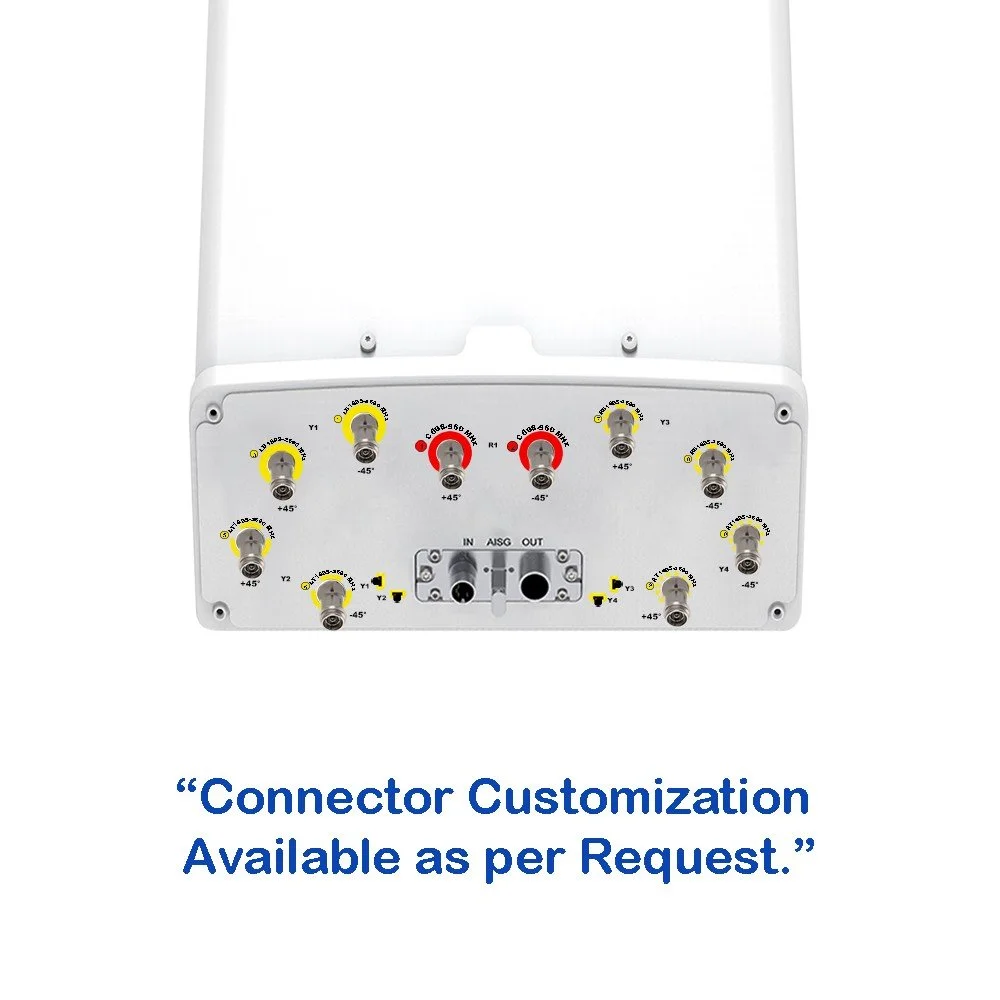

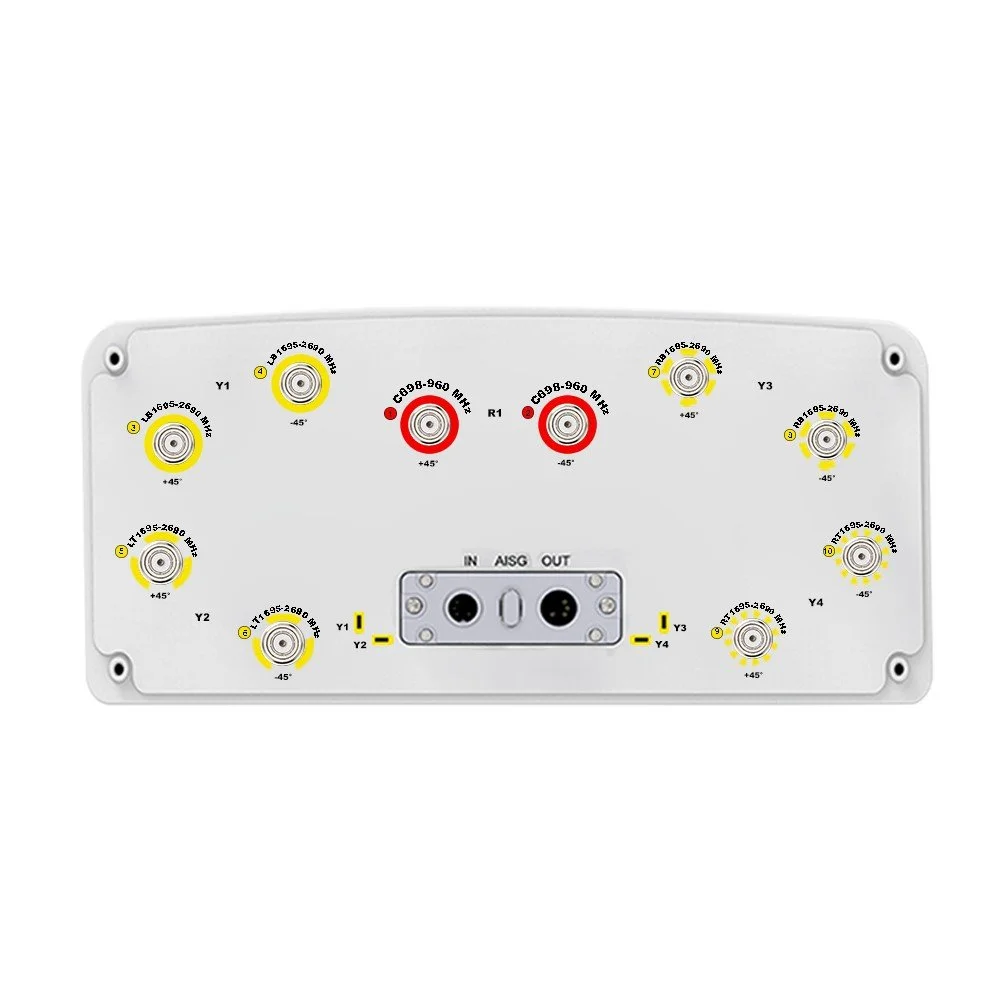

Connector Type --- --- (10x) 4.3/10 Female (10x) 4.3/10 Female
Connector Position --- --- Bottom Bottom
Electrical Tilt Control --- --- Integrated RET Integrated RET
Radome Material --- --- Fiberglass Fiberglass

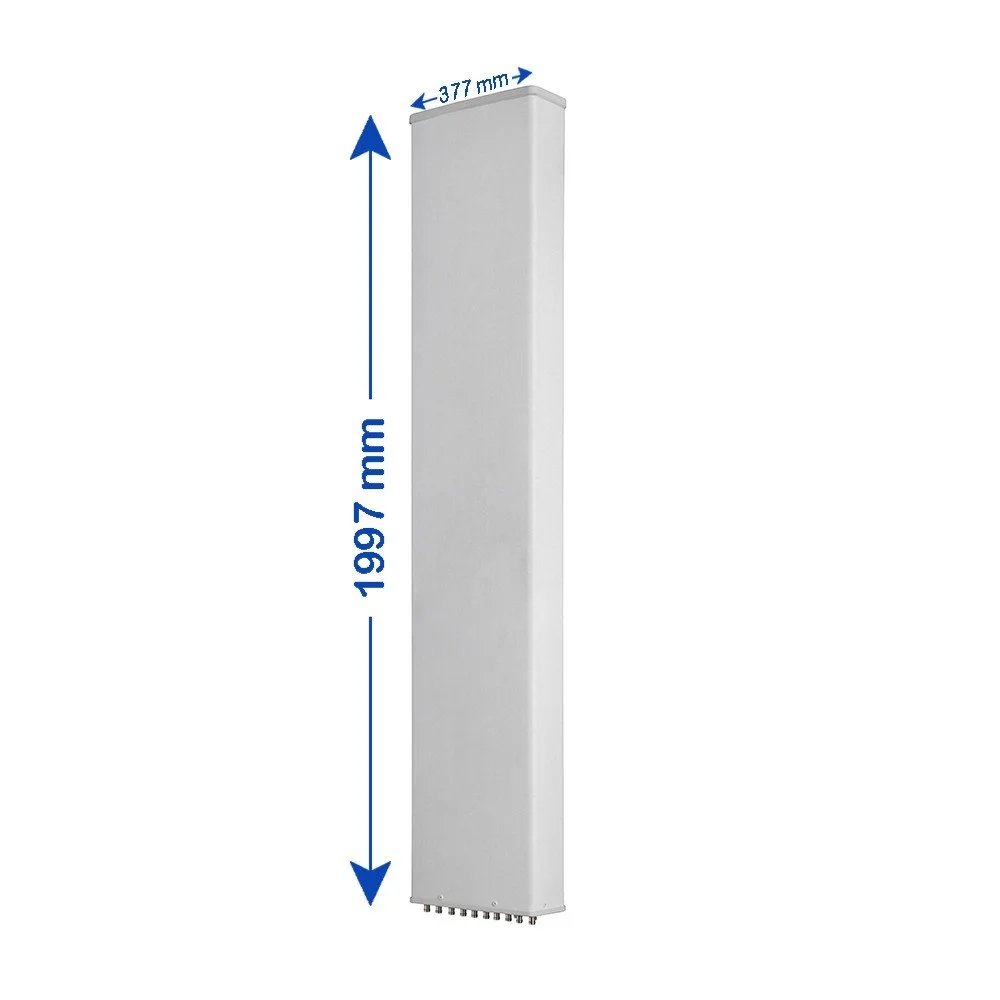

Antenna Dimensions (H × W × D) --- mm (in) 1997 × 377 × 157 (78.6 × 14.8 × 6.2) 1597 × 377 × 157 (62.9 × 14.8 × 6.2)
Antenna Weight Antenna Only kg (lbs) 26 (57.3) 21 (46.3)
Antenna Weight With Clamps kg (lbs) 31.5 (69.4) 25 (55.1)
Maximum Wind Speed --- km/h (mph) 200 (124.3) 200 (124.3)
Wind Load at 150 km/h Frontal N (lbf) 695 (156.2) 555 (124.8)
Wind Load at 150 km/h Rear N (lbf) 780 (175.4) 620 (139.4)
Wind Load at 150 km/h Lateral N (lbf) 360 (80.9) 285 (64.1)
Operating Temperature --- °C (°F) -40 to +60 (-40 to +140) -40 to +60 (-40 to +140)
