10-Port, Panel Sector Antenna ( 698 - 2690 MHz )

₹0.00

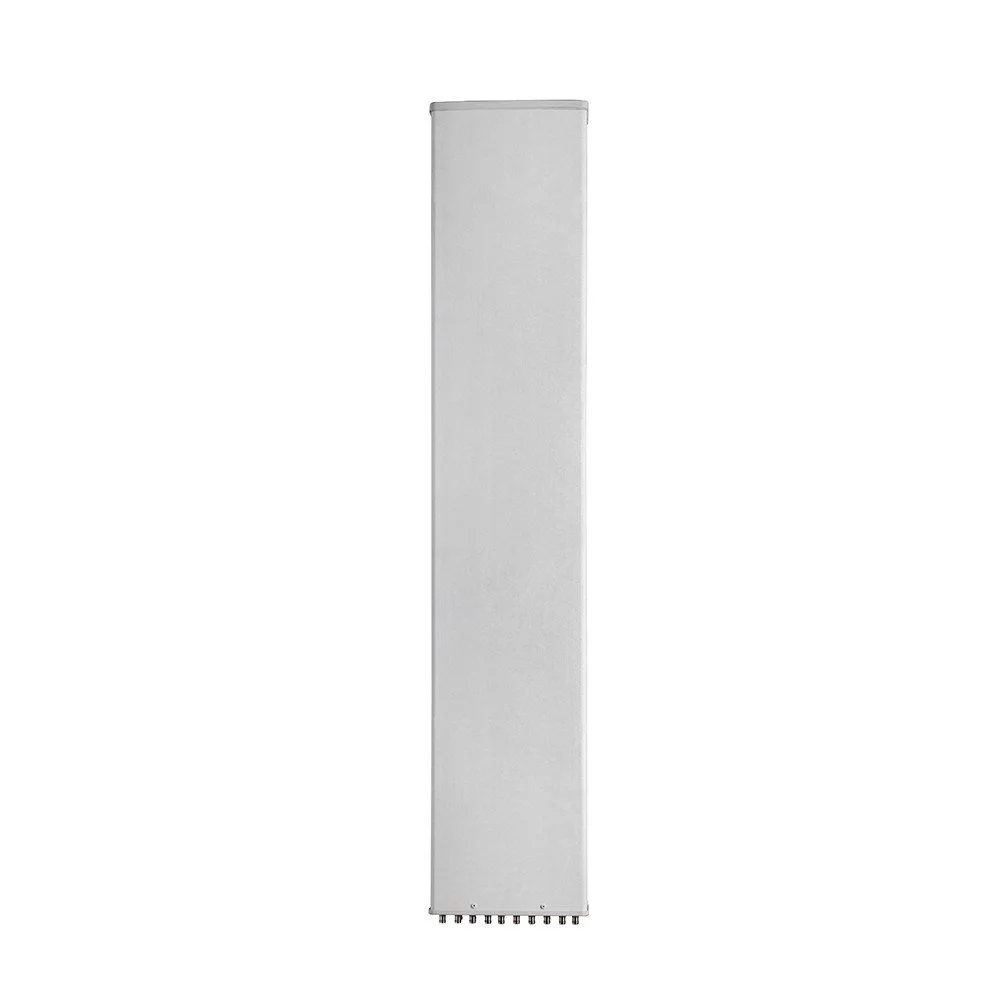

10-Port Panel Sector Antenna Frequency Range: 698–2690 MHz

Overview : Engineered for high-capacity macro sites and dense urban deployments, this 10-port panel sector antenna covers 698–2690 MHz to support multi-band cellular networks including low-band, mid-band, and extended PCS. Its multi-port design enables flexible MIMO and carrier aggregation configurations, maximizing throughput and spectral efficiency while maintaining a compact form factor.

Key Features :

  • Wideband coverage: 698–2690 MHz supports LTE and legacy networks across major cellular bands.

  • 10 independent RF ports: Supports multiple sectorized MIMO streams and operator-specific split-band configurations.

  • High isolation between ports: Minimizes inter-port coupling to preserve MIMO performance and reduce correlation.

  • Optimized port phasing: Delivers consistent radiation patterns and desired tilt behavior across bands.

  • Compact, low-profile radome: Designed for rooftop, tower, and urban pole mounts where aesthetic and wind-load constraints matter.

  • Rugged construction: Corrosion-resistant materials and sealed enclosure for long-term outdoor reliability (IP65 or higher).

  • Wide operating temperature range: Built for extreme climates and continuous operation.

  • Simple integration: Standard mounting brackets and industry-standard RF connector options (N-type or 4.3-10) to streamline field installation.

  • Lightning and surge protection options available to meet local regulatory requirements.

10-Port Panel Sector Antenna Frequency Range: 698–2690 MHz

Overview : Engineered for high-capacity macro sites and dense urban deployments, this 10-port panel sector antenna covers 698–2690 MHz to support multi-band cellular networks including low-band, mid-band, and extended PCS. Its multi-port design enables flexible MIMO and carrier aggregation configurations, maximizing throughput and spectral efficiency while maintaining a compact form factor.

Key Features :

  • Wideband coverage: 698–2690 MHz supports LTE and legacy networks across major cellular bands.

  • 10 independent RF ports: Supports multiple sectorized MIMO streams and operator-specific split-band configurations.

  • High isolation between ports: Minimizes inter-port coupling to preserve MIMO performance and reduce correlation.

  • Optimized port phasing: Delivers consistent radiation patterns and desired tilt behavior across bands.

  • Compact, low-profile radome: Designed for rooftop, tower, and urban pole mounts where aesthetic and wind-load constraints matter.

  • Rugged construction: Corrosion-resistant materials and sealed enclosure for long-term outdoor reliability (IP65 or higher).

  • Wide operating temperature range: Built for extreme climates and continuous operation.

  • Simple integration: Standard mounting brackets and industry-standard RF connector options (N-type or 4.3-10) to streamline field installation.

  • Lightning and surge protection options available to meet local regulatory requirements.

Electrical Specifications

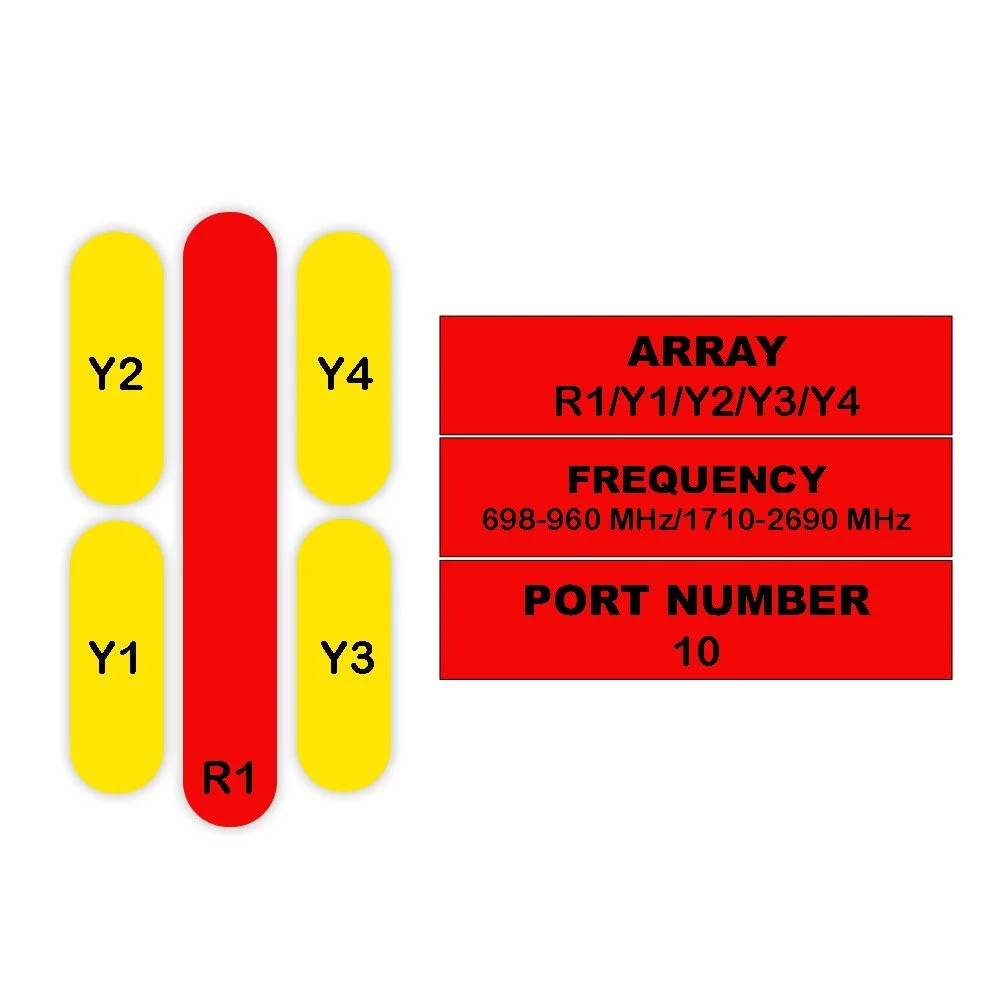

Electrical Specifications with R1, Y1/Y3, and Y2/Y4 band performance details
Parameter Unit 698-806 790-894 880-960 1710-1880 1850-1990 1920-2170 2300-2400 2490-2690 1710-1880 1850-1990 1920-2170 2300-2400 2490-2690
R1 Y1 / Y3 Y2 / Y4
Frequency Range MHz 698–960 1710–2690 1710–2690
Polarization --- ±45° ±45° ±45°
Gain (Mid Tilt) dBi 13.8 14.2 14.6 14.2 14.5 14.9 15.4 15.4 14.0 14.3 14.7 15.2 15.2
Gain (All Tilts) dBi 13.6 ± 0.6 14.0 ± 0.4 14.4 ± 0.5 14.0 ± 0.5 14.3 ± 0.5 14.7 ± 0.5 15.2 ± 0.5 15.2 ± 0.5 13.8 ± 0.5 14.1 ± 0.5 14.5 ± 0.5 15.0 ± 0.5 15.0 ± 0.5
Horizontal Beamwidth degree 68 ± 4.5 66 ± 4.5 63 ± 4.1 69 ± 6.5 67 ± 6.5 63 ± 6.5 63 ± 6.2 62 ± 6.2 69 ± 6.5 67 ± 6.5 63 ± 6.5 63 ± 6.2 62 ± 6.2
Vertical Beamwidth degree 15.7 ± 0.9 13.8 ± 0.6 12.4 ± 0.6 12.5 ± 0.9 11.7 ± 0.6 11.1 ± 0.9 9.8 ± 0.9 9.1 ± 0.8 12.5 ± 0.9 11.7 ± 0.6 11.1 ± 0.9 9.8 ± 0.9 9.1 ± 0.8
Electrical Downtilt degree 2–12 2–12 2–12
First Upper Side Lobe dB > 15
Front-To-Back Ratio (±30°) dB > 25> 25> 25 ≥ 25≥ 25> 25≥ 26≥ 26 ≥ 25≥ 25> 25≥ 26≥ 26
Cross Polar Discrimination dB > 16> 16> 16 > 15> 16> 16> 17> 17 > 15> 16> 16> 17> 17
Isolation (Cross-Polar) dB > 25 > 25 > 25
Isolation (Interband) dB > 28 > 28 > 28
Impedance Ohm 50
VSWR --- < 1.5
Return Loss dB > 14
PIM3 (2x43 dBm) dBc < -150
Lightning Protection --- DC Ground
Max Input Power (50°C) Watts 250 200 200
Mechanical Specifications
Mechanical Specifications including dimensions, weight, wind load, and environmental conditions
Parameter Sub-Parameter Unit Value

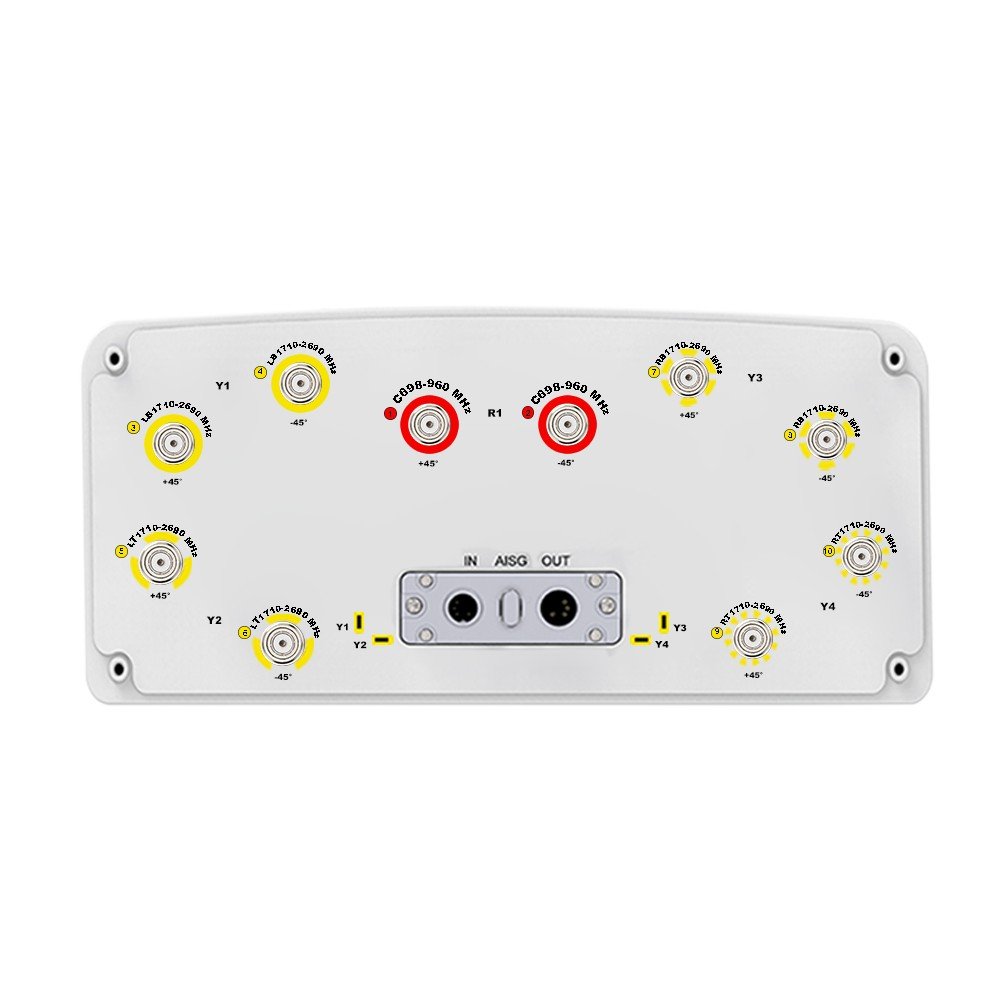

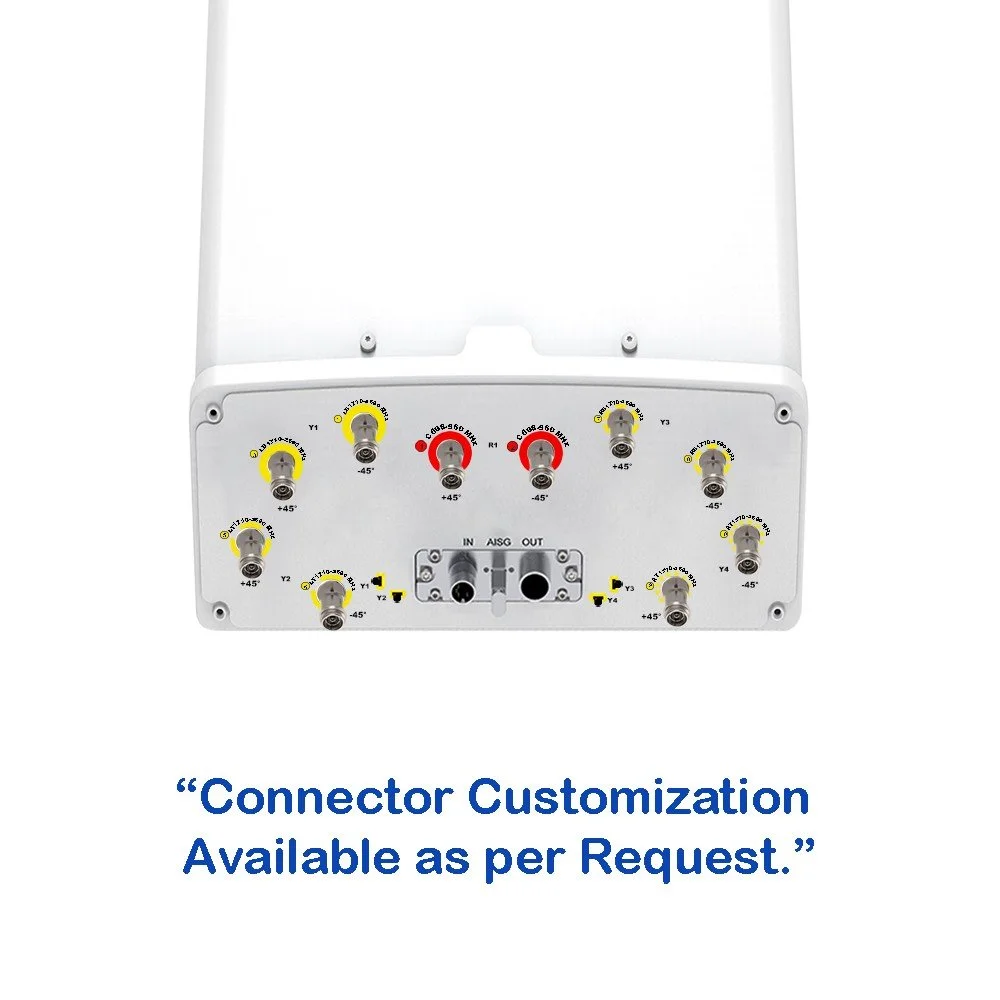

Connector Type --- --- (10x) 4.3/10 Female
Connector Position --- --- Bottom
Electrical Tilt Control --- --- Integrated RET
Radome Material --- --- Fiberglass

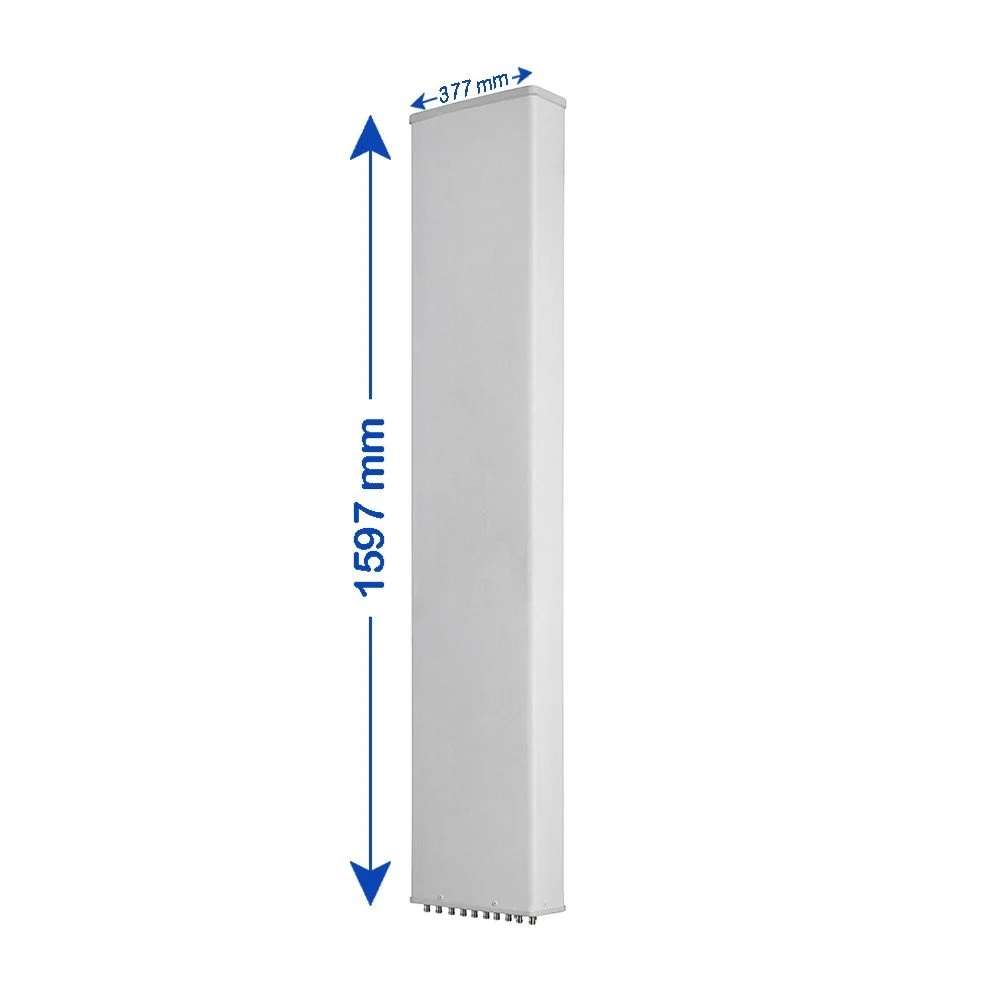

Antenna Dimensions (H × W × D) --- mm (in) 1597 × 377 × 157 (62.9 × 14.8 × 6.2)
Antenna Weight Antenna Only kg (lbs) 21 (46.3)
Antenna Weight With Clamps kg (lbs) 25 (55.1)
Maximum Wind Speed --- km/h (mph) 200 (124.3)
Wind Load at 150 km/h Frontal N (lbf) 555 (124.8)
Wind Load at 150 km/h Rear N (lbf) 620 (139.4)
Wind Load at 150 km/h Lateral N (lbf) 285 (64.1)
Operating Temperature --- °C (°F) -40 to +60 (-40 to +140)
