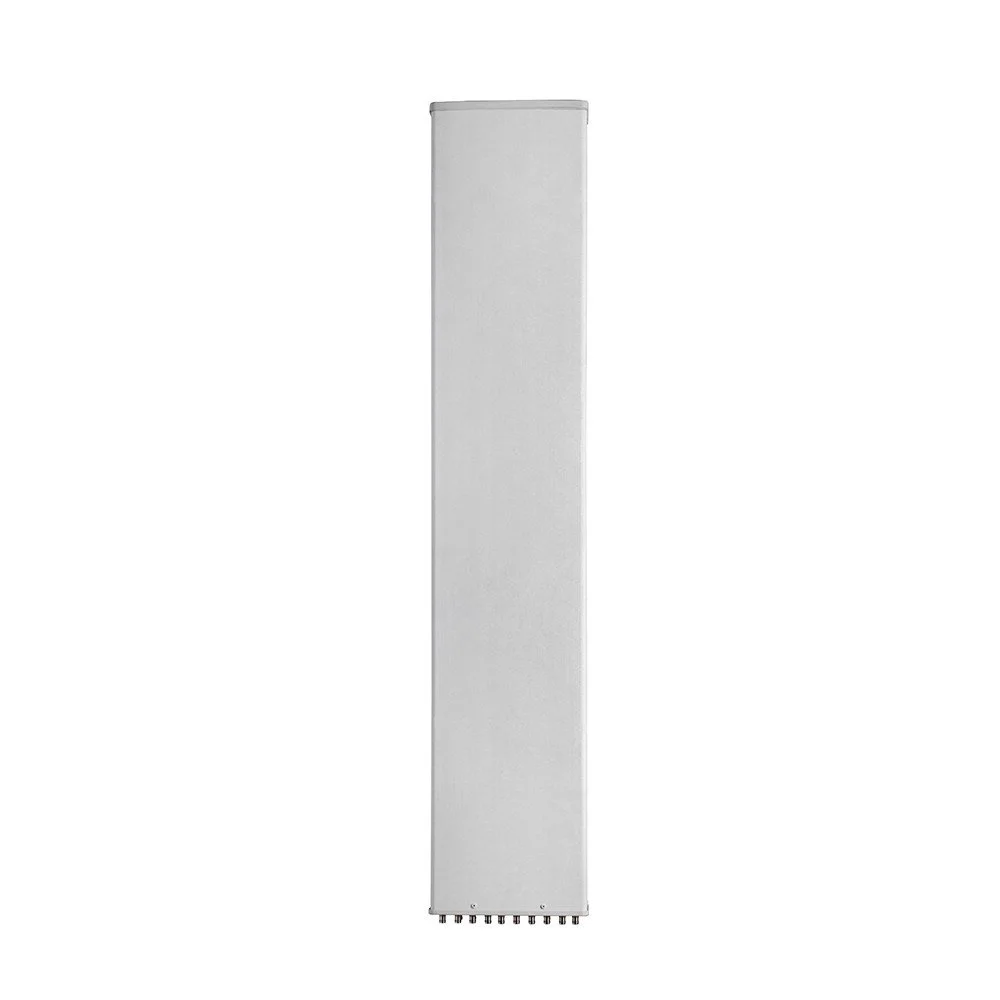

10-Port Panel Sector Antenna (698–2690 MHz)

Overview : A high-performance 10-port panel sector antenna designed for multi-operator, multi-technology deployments across the 698–2690 MHz band. Engineered for dense urban, suburban, and rural cell-site installations, this antenna supports multiple MIMO layers, carrier aggregation, and coexistence of multiple service providers on a single sector.

Key Features :

  • Frequency range: 698–2690 MHz (full coverage for low- and mid-band cellular)

  • 10 RF ports: configurable for multiple operators, MIMO layers, and/or diversity

  • Sector coverage: 65° nominal horizontal beamwidth (other beamwidths available on request)

  • High gain: optimized gain across the band for extended range and better link budget

  • Low inter-port isolation loss: engineered to minimize cross-talk and preserve MIMO performance

  • Dual-polarized elements: supports mixed polarization schemes for robust performance under varying propagation conditions

  • Compact, low-profile radome: unobtrusive appearance for rooftop, tower, and pole mounts

  • Wideband matching network: consistent VSWR across the entire band to reduce power loss

  • Durable construction: UV-stable radome, corrosion-resistant mounting hardware, and robust internal components for harsh outdoor environments

  • IP65/67-rated ingress protection (model dependent)

  • Lightning protection provisions and grounding features included

  • Multiple mounting options: universal flange, pole-mount brackets, and tilt adjustments for precise sector alignment

10-Port Panel Sector Antenna (698–2690 MHz)

Overview : A high-performance 10-port panel sector antenna designed for multi-operator, multi-technology deployments across the 698–2690 MHz band. Engineered for dense urban, suburban, and rural cell-site installations, this antenna supports multiple MIMO layers, carrier aggregation, and coexistence of multiple service providers on a single sector.

Key Features :

  • Frequency range: 698–2690 MHz (full coverage for low- and mid-band cellular)

  • 10 RF ports: configurable for multiple operators, MIMO layers, and/or diversity

  • Sector coverage: 65° nominal horizontal beamwidth (other beamwidths available on request)

  • High gain: optimized gain across the band for extended range and better link budget

  • Low inter-port isolation loss: engineered to minimize cross-talk and preserve MIMO performance

  • Dual-polarized elements: supports mixed polarization schemes for robust performance under varying propagation conditions

  • Compact, low-profile radome: unobtrusive appearance for rooftop, tower, and pole mounts

  • Wideband matching network: consistent VSWR across the entire band to reduce power loss

  • Durable construction: UV-stable radome, corrosion-resistant mounting hardware, and robust internal components for harsh outdoor environments

  • IP65/67-rated ingress protection (model dependent)

  • Lightning protection provisions and grounding features included

  • Multiple mounting options: universal flange, pole-mount brackets, and tilt adjustments for precise sector alignment

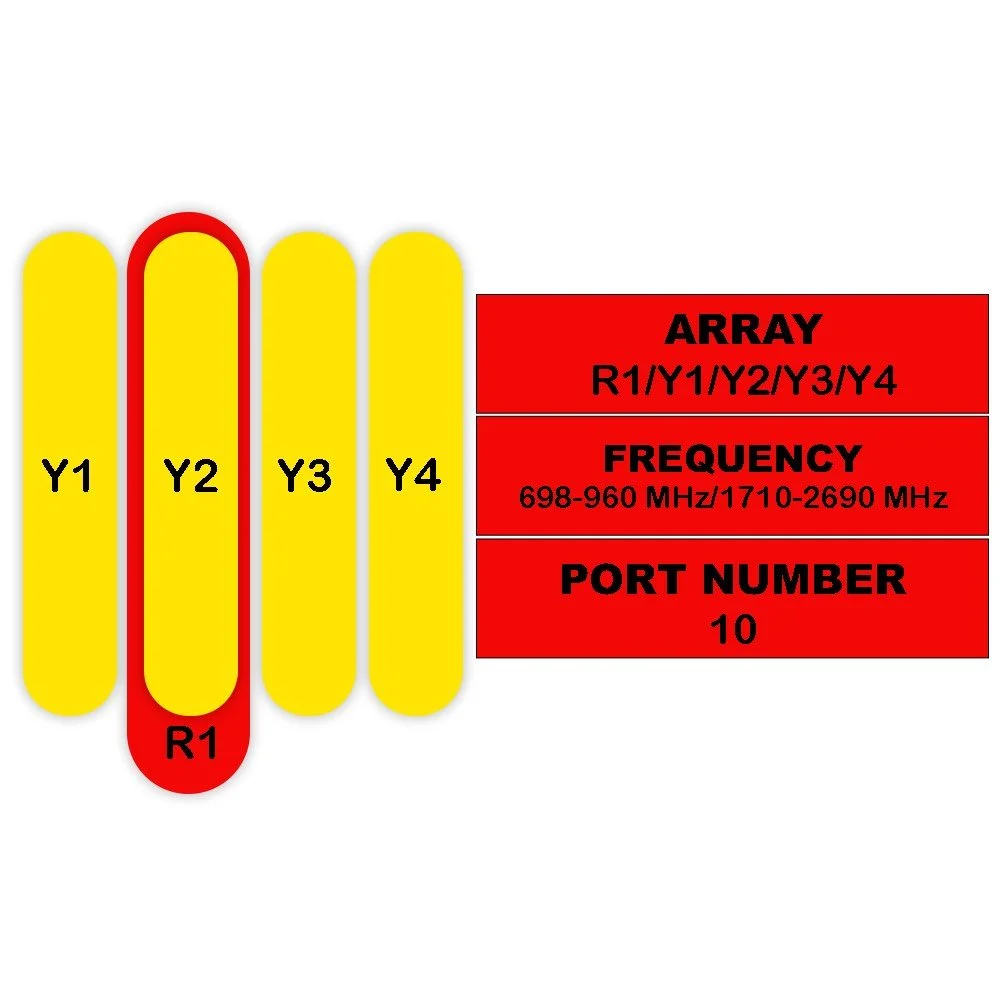

Electrical Specifications
Electrical Specifications Table for Antenna Frequency Bands and Performance Metrics
Parameter Unit 698-806 790-894 880-960 1710-1880 1850-1990 1920-2170 2300-2400 2490-2690
Frequency Range MHz 698–960 1710–2690
Polarization --- ±45° ±45°
Gain (Mid Tilt) dBi 13.7 14.0 14.3 16.6 16.9 17.4 17.6 17.6
Gain (All Tilts) dBi 13.5 ± 0.6 13.8 ± 0.4 14.1 ± 0.5 16.4 ± 0.6 16.7 ± 0.5 17.2 ± 0.6 17.4 ± 0.6 17.4 ± 0.6
Horizontal Beamwidth degree 68 ± 5.5 65 ± 5.5 62 ± 6.5 68 ± 6.1 66 ± 6.1 64 ± 6.5 60 ± 6.0 60 ± 6.5
Vertical Beamwidth degree 16.2 ± 0.9 14.2 ± 0.6 12.8 ± 0.6 6.8 ± 0.6 6.4 ± 0.5 6.0 ± 0.5 5.2 ± 0.4 4.8 ± 0.6
Electrical Downtilt degree 2–12 2–12
Tilt Accuracy degree < 1 < 1 < 1 < 1 < 1 < 1 < 1 < 1
Upper Side Lobe (First) dB > 15 > 15 > 15 > 16 > 16 > 16 > 16 > 16
Upper Side Lobe (Peak to 20°) dB > 15 > 15 > 15 > 15 > 15 > 15 > 15 > 15
Front-To-Back Ratio (±30°) dB > 22 > 23 > 24 > 24 > 24 > 25 > 25 > 25
XPD (Boresight) dB > 15 > 15 > 15 > 16 > 16 > 16 > 17 > 17
XPD (Sector) dB > 7.0 > 8.0 > 6.5 > 6.0 > 7.0 > 7.0 > 5.0 > 4.0
Isolation (Cross-Polar) dB > 25 > 26
Isolation (Port-to-Port) dB > 28
Impedance Ohm 50
VSWR --- < 1.5
Return Loss dB > 14
PIM3 (2x43 dBm) dBc < -150
Lightning Protection --- DC Ground
Max Input Power (50°C) Watts 250 200
Mechanical Specifications
Mechanical Specifications of Antenna including dimensions, weight, wind load, and environmental conditions
Parameter Sub-Parameter Unit Value

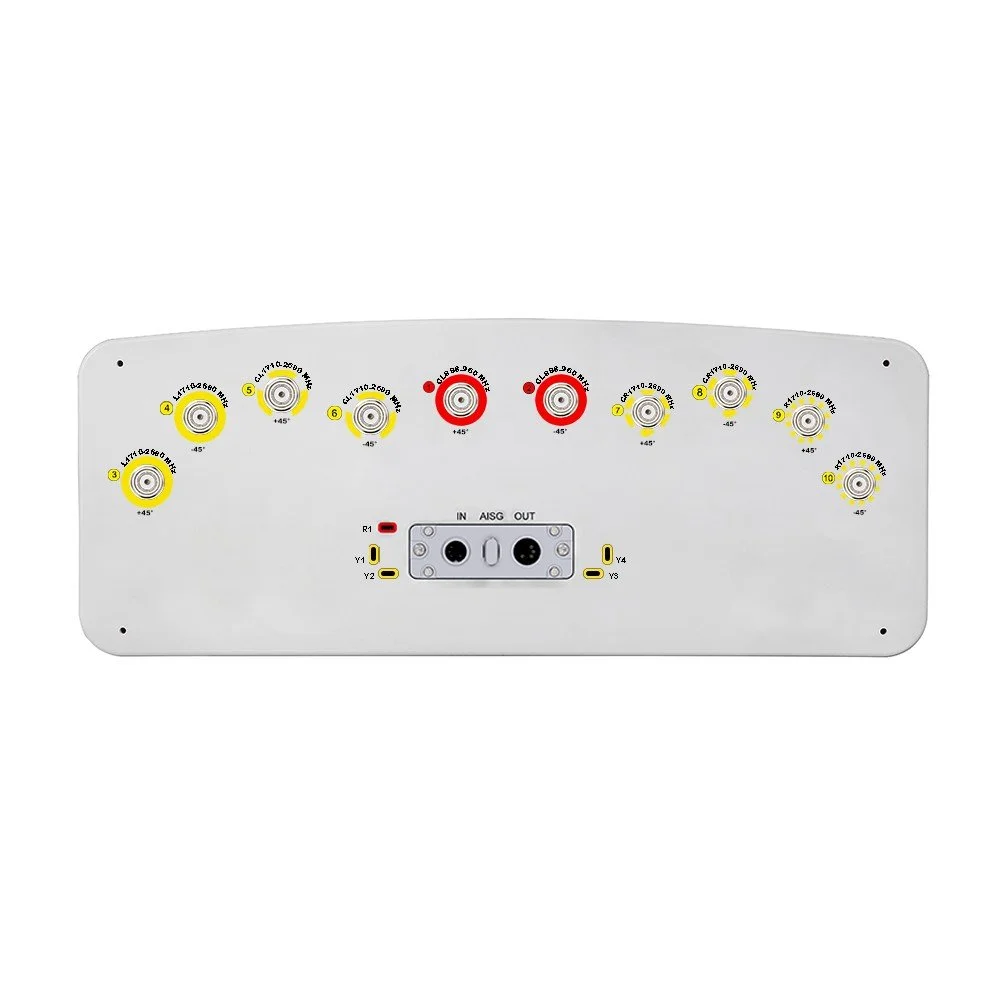

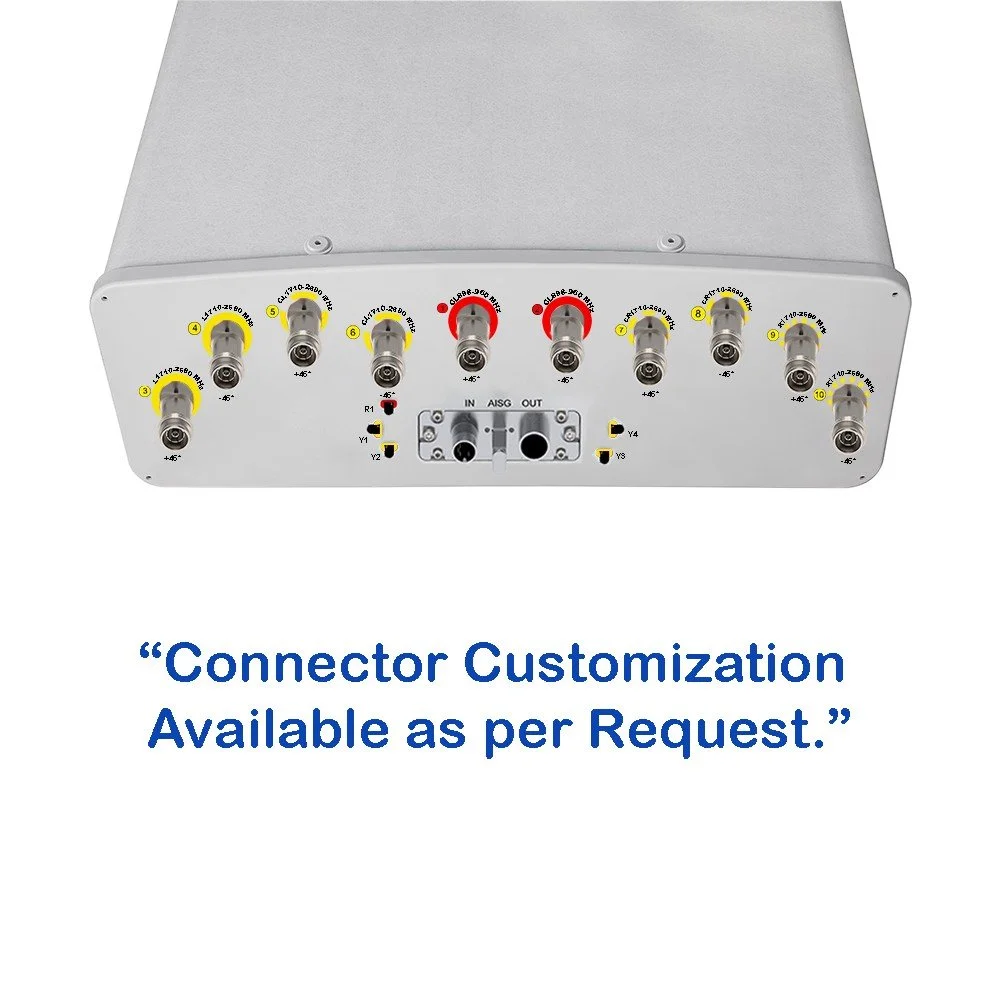

Connector Type --- --- (10x) 4.3/10 Female
Connector Position --- --- Bottom
Electrical Tilt Control --- --- Integrated RET
Radome Material --- --- Fiberglass

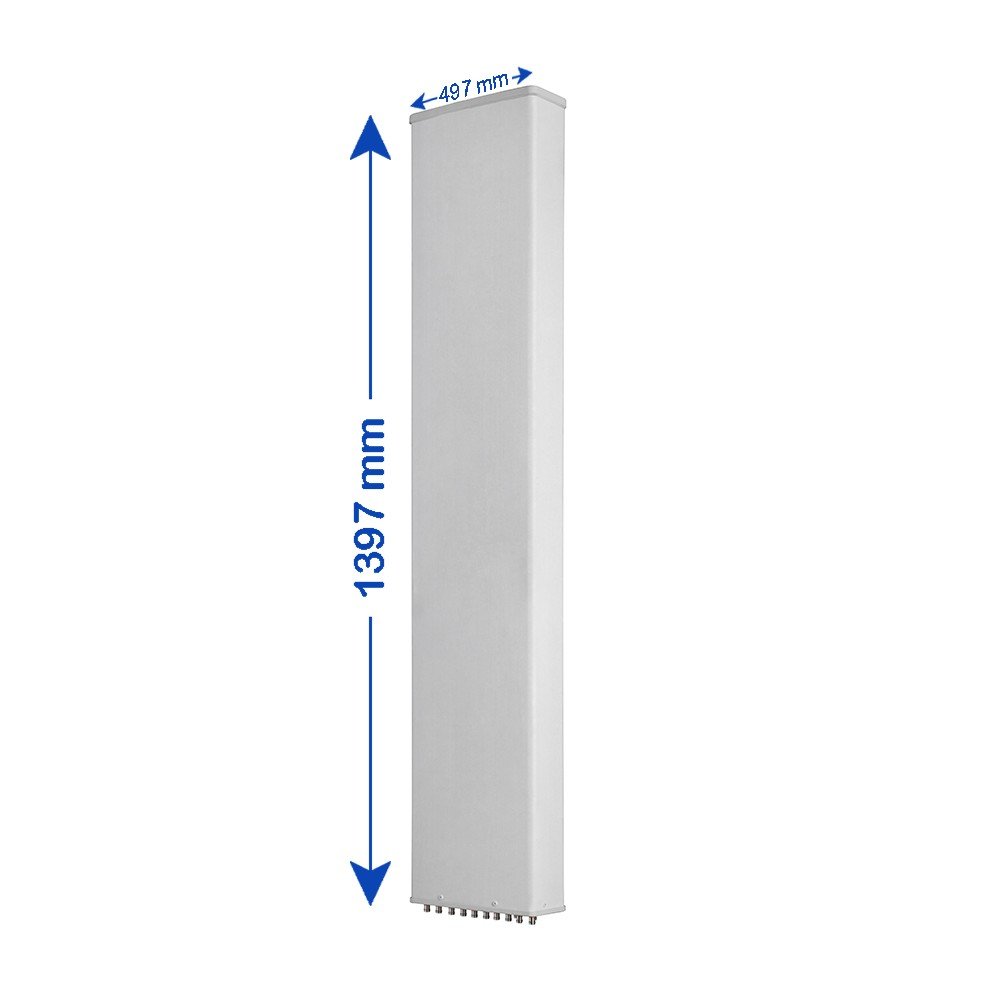

Antenna Dimensions (H × W × D) --- mm (in) 1397 × 497 × 197 (55.0 × 19.6 × 7.8)
Antenna Weight Antenna Only kg (lbs) 26.5 (58.4)
Antenna Weight With Clamps kg (lbs) 32 (70.5)
Maximum Wind Speed --- km/h (mph) 200 (124.3)
Wind Load at 150 km/h Frontal N (lbf) 640 (143.9)
Wind Load at 150 km/h Rear N (lbf) 715 (160.7)
Wind Load at 150 km/h Lateral N (lbf) 315 (70.8)
Operating Temperature --- °C (°F) -40 to +60 (-40 to +140)
